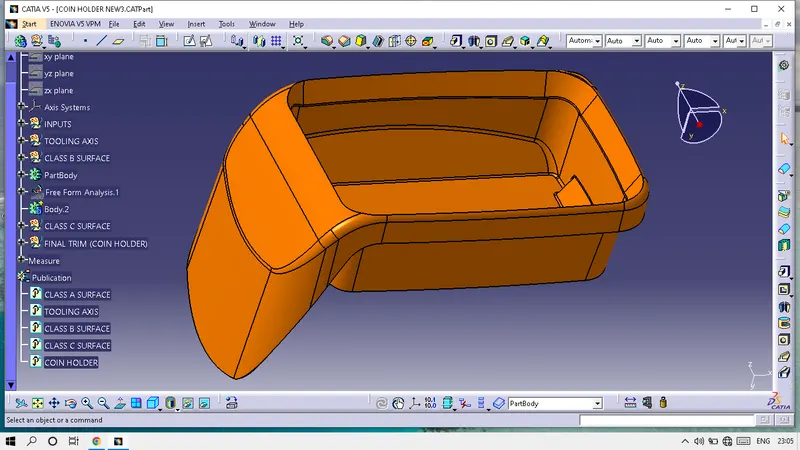

Week 8 - Challenge 3 - Coin Holder Design

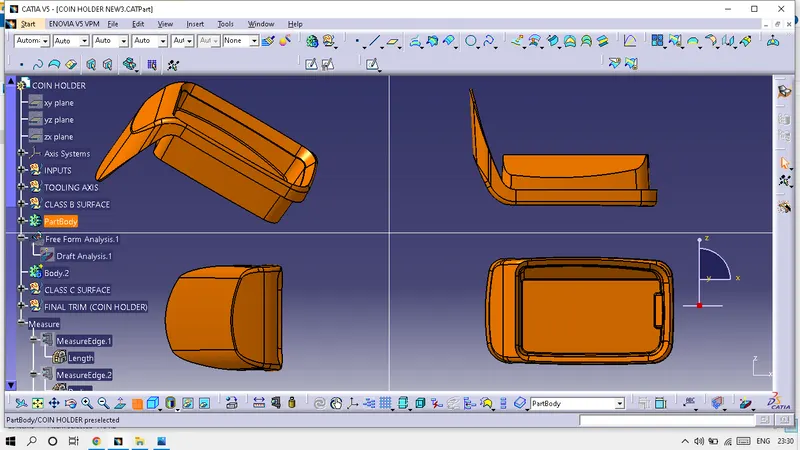

DRAWING-

Tooling axis:

The direction in which the mold or core and cavity opens is the tooling axis.

Connectivity of Class-A surface checking the connectivity of the surface, this can be done by creating boundaries or by simply using the join option such that any openings can be easily visualized

DEFINE:-

First create a tooling axis in which the core and cavity open. Then change the material mode. Then click the insert and go to Feature draft analysis and click the compass icon and put the compass on the tooling direction and click the surface.

if surface will be green so our tooling axis in right direction. and we will be create B and C surface.
