Week 14 challenge
- OPEN NX CAD SOFTWARE
- THEN CREATE NEW ASEMBLY FILE LOCATION
- THEN COPY ALL PART FILES INSAME FOLDER

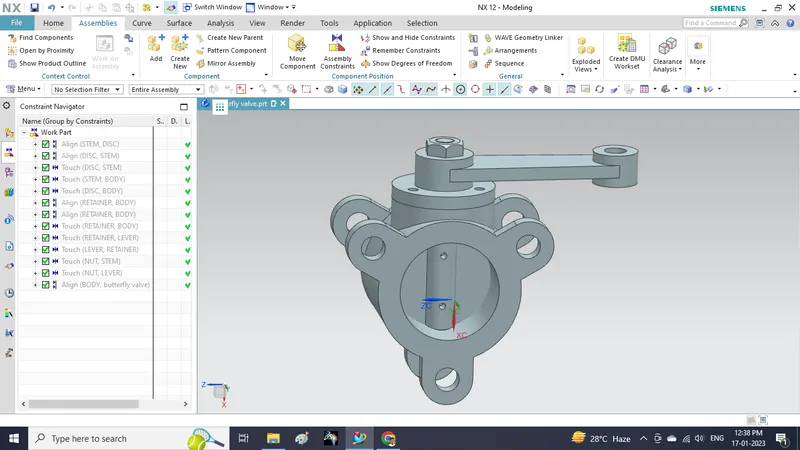

- THEN ASSEMBLE DIFFERENT PARTS USING MOVE COMMAND
- AND GIVES CONSTRAINTS LIKE TOUCH AND ALIGN
- ALIGN HAVING AXIS ALIGNMENTS
- TOUCH ALIGN GIVES TOUCH SURFACES

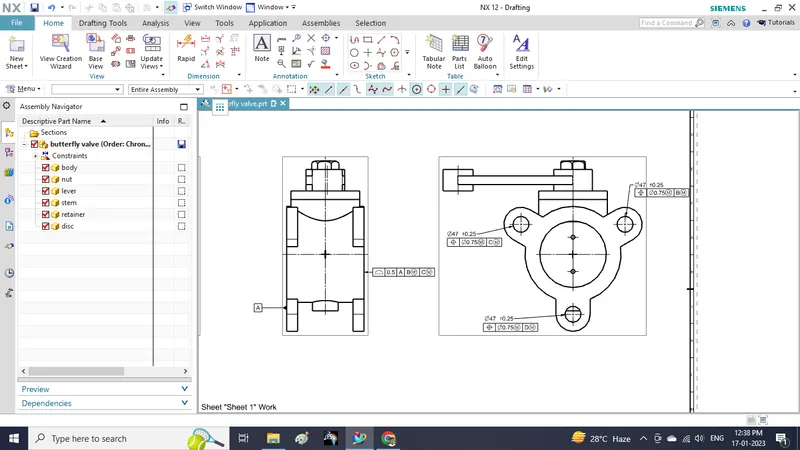

- THEN GD&T APPLIED TO THE ASSEMBLY DRAWINGS

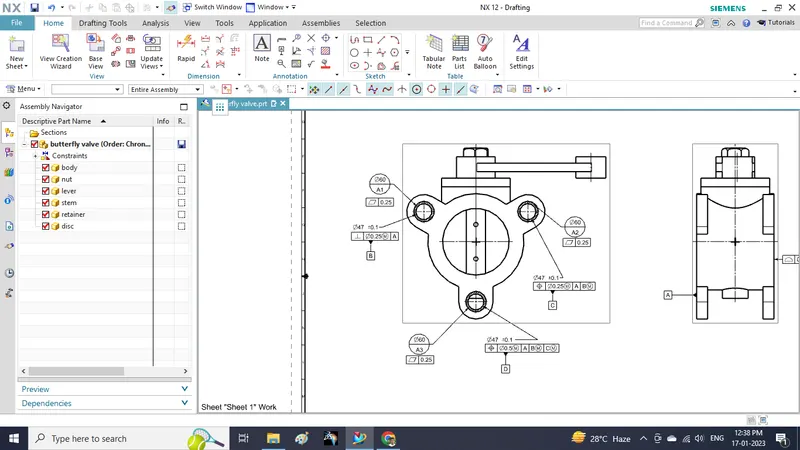

- HERE DATUM A IS AT THREE DATUM TARGETS A1, A2, A3 THOSE HAVING FLATNESS OF 0.25
- AND DATUM B IS HOLE WITH PERPENDICULARITY 0.25
- DATUM C IS HOLE WITH POSITION TOLERANCE OF 0.25
- DATUM D IS HOLE WITH POSITION TOLERANCE OF 0.5
- THE OTHER THREE HOLES GIVES POSITION TOLERANCE WITH RESPECT TO OPPOSITE HOLES ON BODY
- THIS OPPOSITE SURFACE GIVEN PROFILE TOLERANCE OF 0.5
