Week 12:Project 2-Meshing of Rear Wheel Holder challenge

REPORT:

AIM:TO FIND THE MID SURFACE OF THE MODEL AND MESH THE MODEL AS PER THE GIVEN CRITERIA.

PROCEDURE:

STEPS:

1.IMPORT THE GEOMETRY FROM THE FOLDER.

2.CHECK FOR ANY DISCRIPENCIES IN THE MODEL AND TRY TO SOLVE IT.

3.FOR MID SURFACE YOU CAN TRY AUTO MID SURFACE OR USE THE OFFSET OPTION FROM THE SURFACE EDIT OPTION.

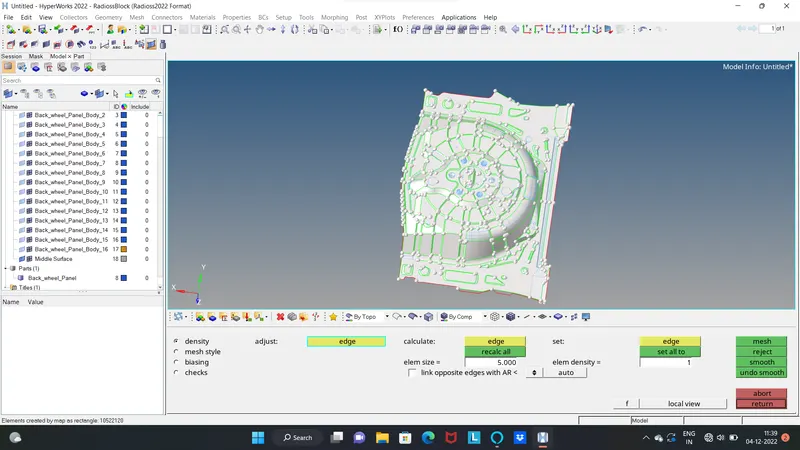

4.AFTER MID SURFACE USE THE AUTO MESH OPTION FOR MESHING.YOU CAN USE AUTO OR CHOOSE ONE SURFACE AT A TIME FOR MESHING.

5.AFETR MESHING THEN REMESH APPLYING THE QUALITY CRITERIAS GIVEN.

6.THEN CHECK FOR THE MESH QULITY.
