Week 12:Project 2-Meshing of Rear Wheel Holder challenge
Project 2-Meshing of Rear Wheel Holder challenge
AIM:
For this week's challenge,
Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:
Target Element Length = 5 Units
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2 Units |
| 6 | Max. Length | 8 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |
PROCESS:
- Download the given component and import into hypermesh
- The parental is a incomplete solid,so make it closed

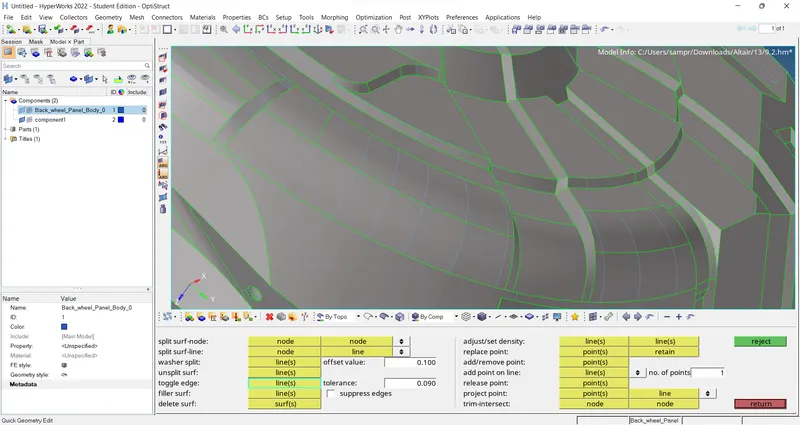

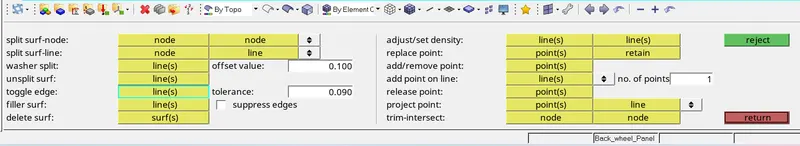

- We use quick edit and surface,surface edit etc to close it

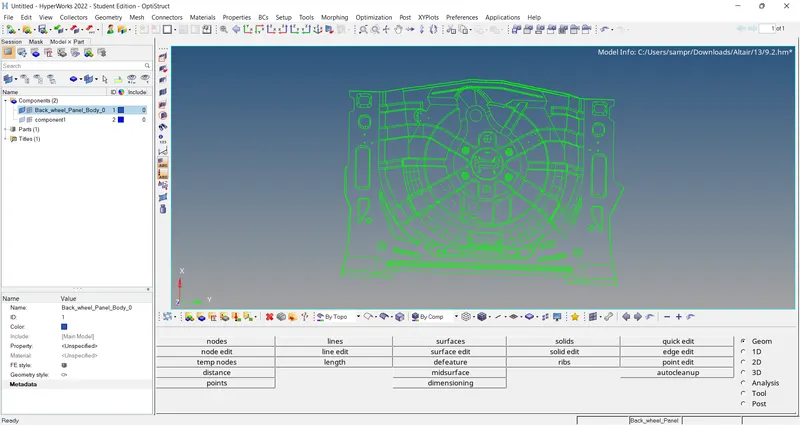

- Take the midsurface of the given parental & work on the surfaces to clear/adjust them

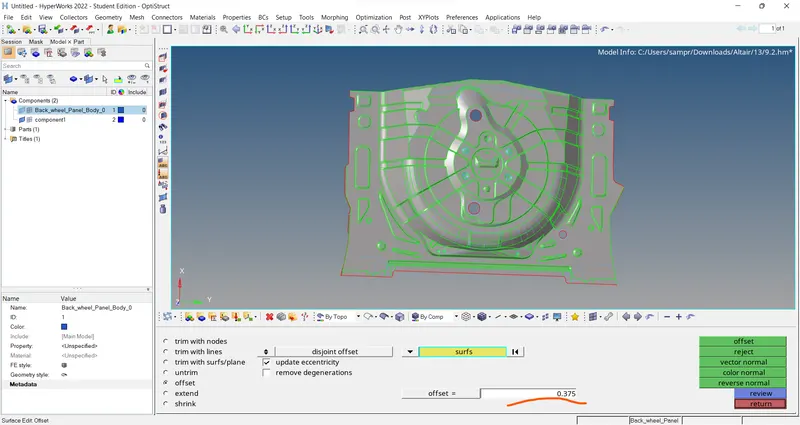

- We used manual offset for the perfect mid-surface by measuring thickness
- Create the fillets using middle line and project on base to create the surface
- Know for better mesh clean up the geometry using hypermesh
- Mesh the surface-by-surface for the better quality of mesh throughout

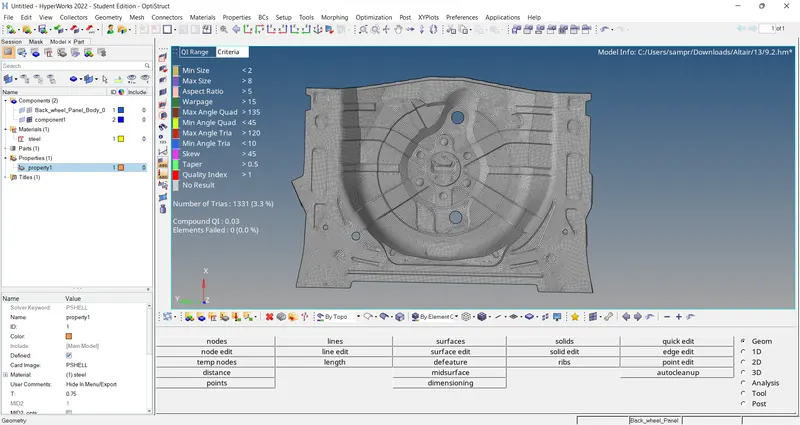

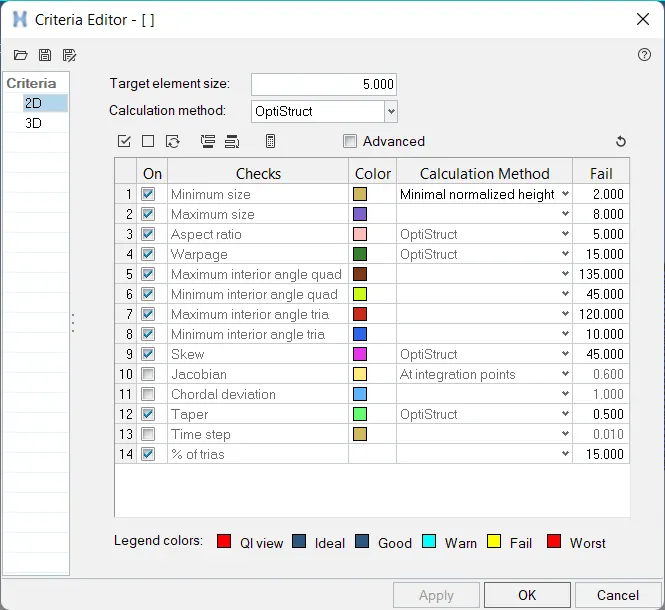

- Define the quality criteria and apply
- Clear the qualities using rebuilt,elements edit in 2D

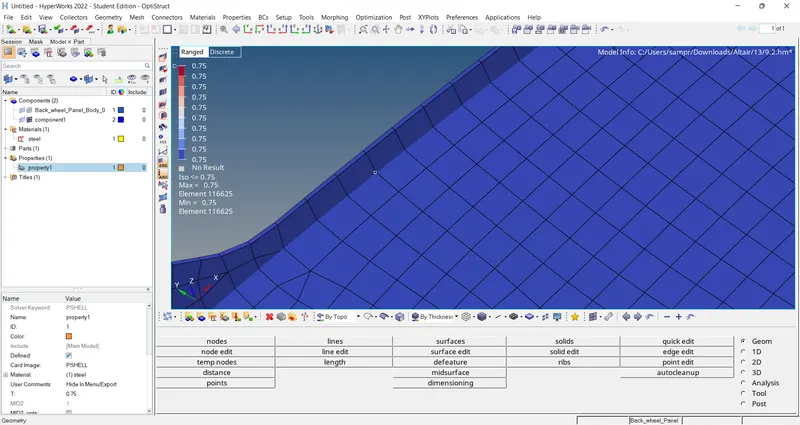

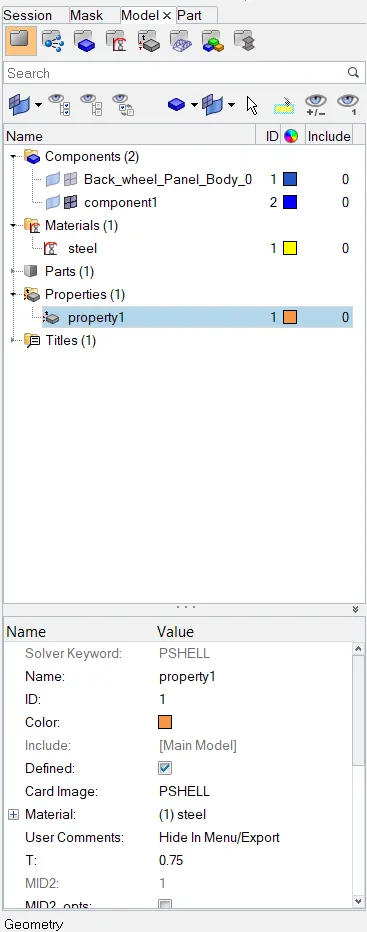

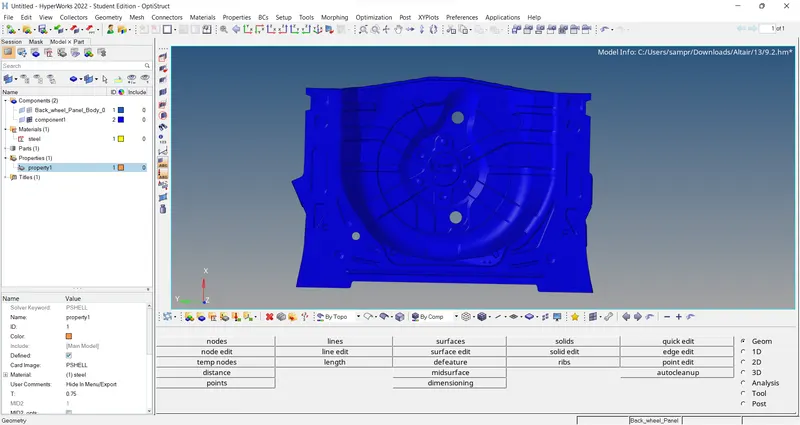

- To assigne the property,material & thickness
