Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Aim:

Meshing of Rear Wheel Holder challenge

Procedure:

1)Import CAD geometry model and select optistruct as solver

2)Change the surface into topo model

3)Do geometry clean up and apply watersplits to the Holes

4)Do surface stitching/clear Red line edges/fill up open surfaces through Surface edit and Quick edit panels

5)Create Midsurface

6)Do 2D meshing and apply element quality criteria datas

7)check for element quality till getting rid of errors

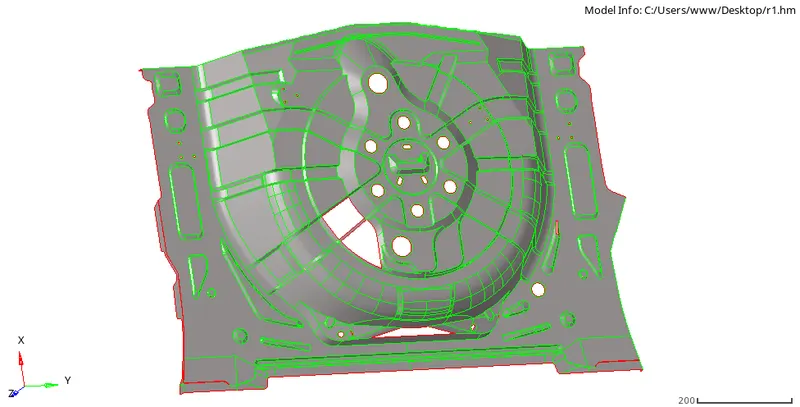

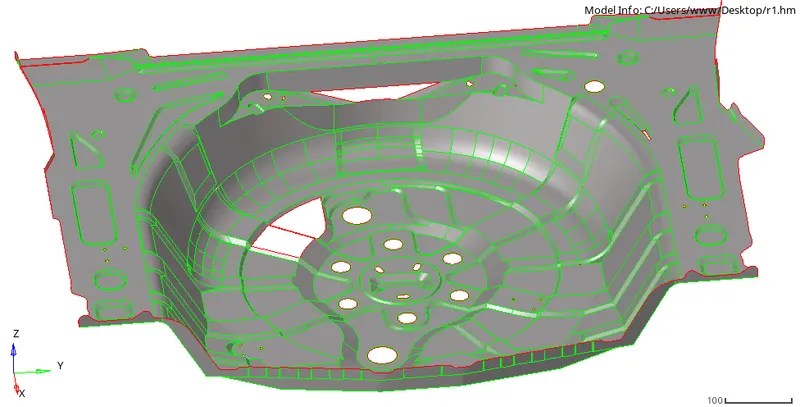

Midsurfaces:

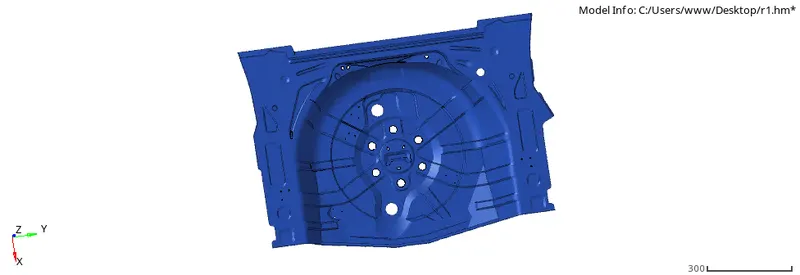

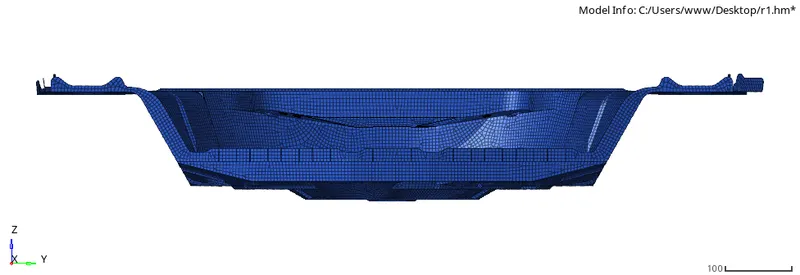

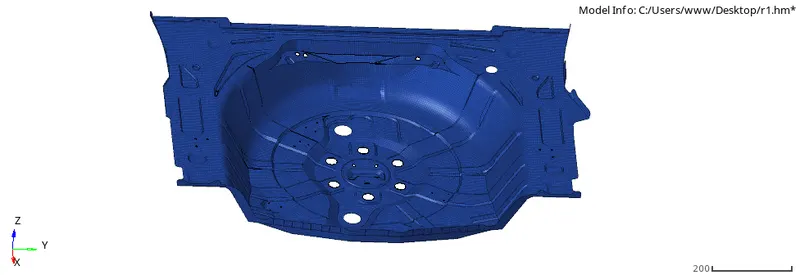

Meshed Model

File attached:

r1.hm
