Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Objective: Mesh the real wheel holder with given meshing criteria.

Procedure:

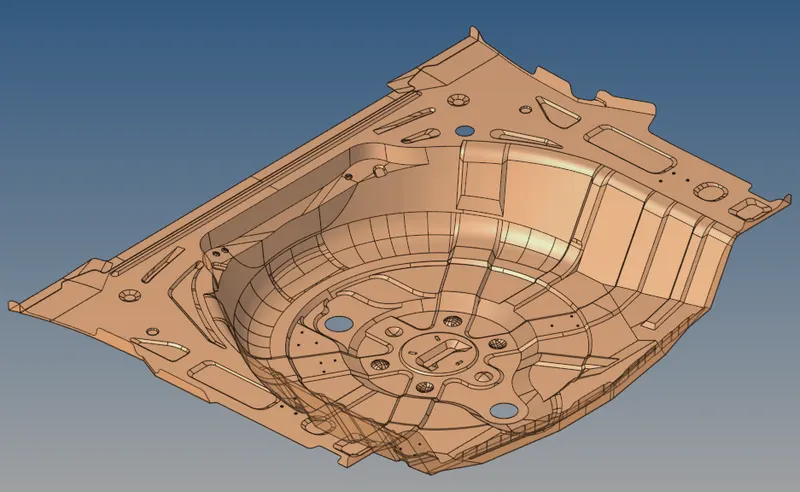

1. Import the model file.

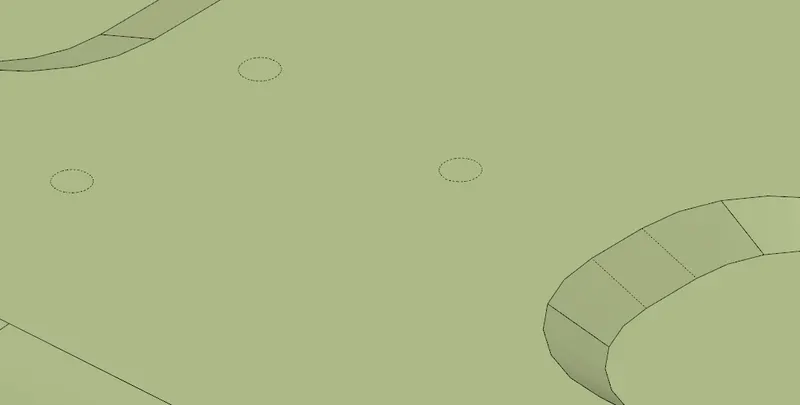

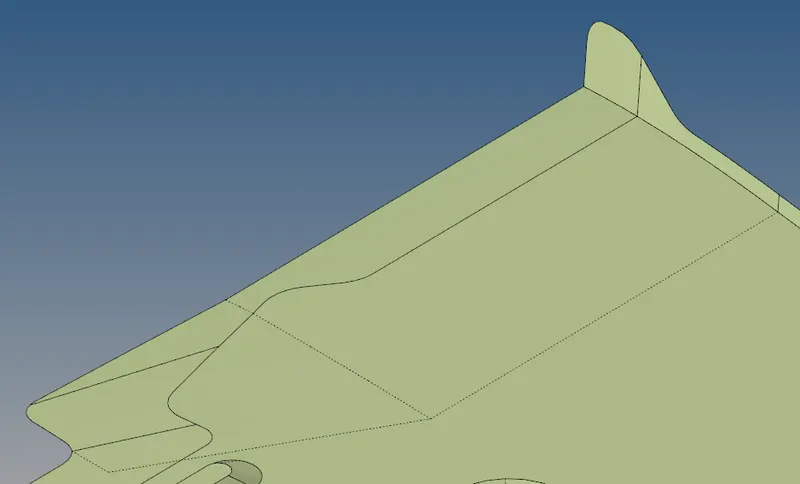

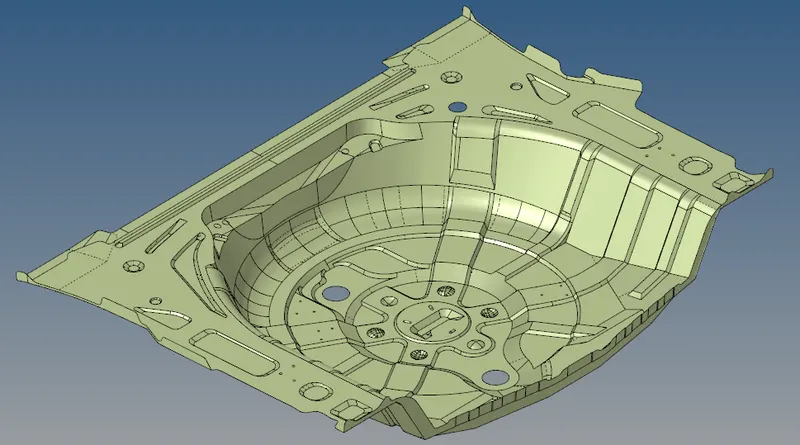

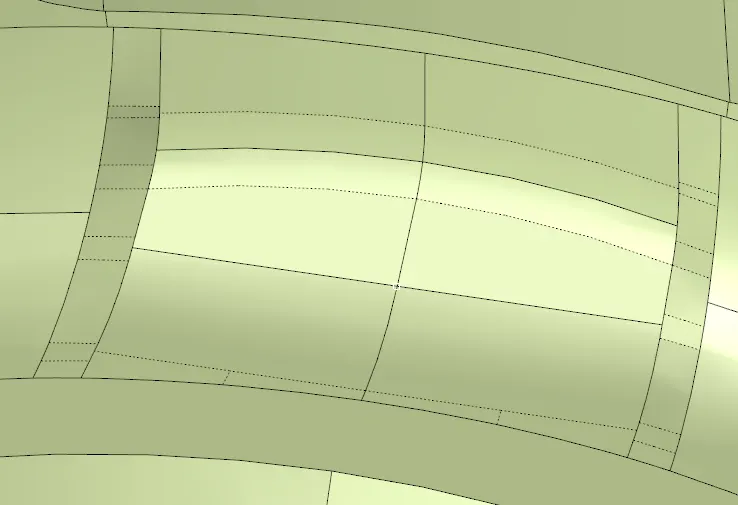

2. Simplify the CAD model. For the simplication we can use split surf-line, toggle edges, replace points, add/remove points. After simplify we have to convert it in sheet metal so we have to use mid-surfacing.

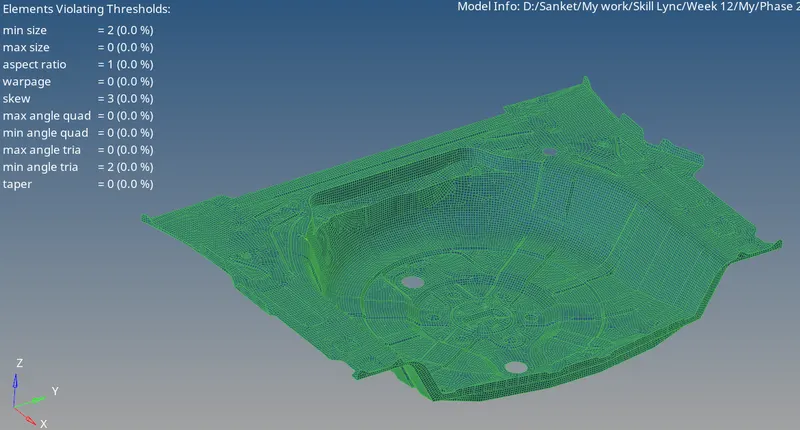

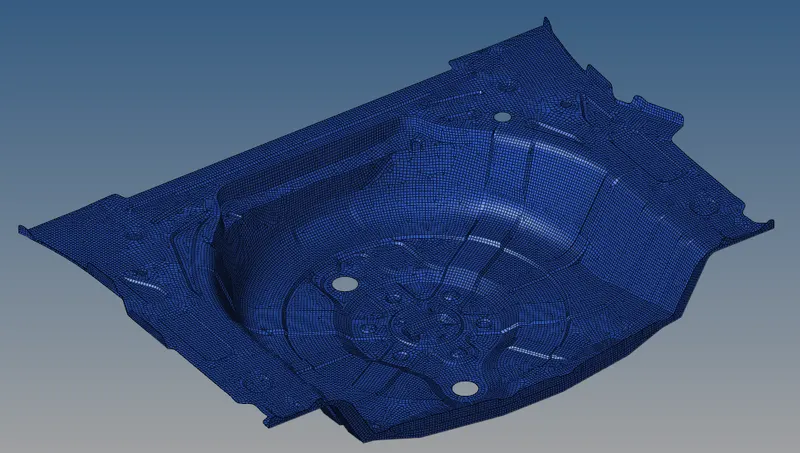

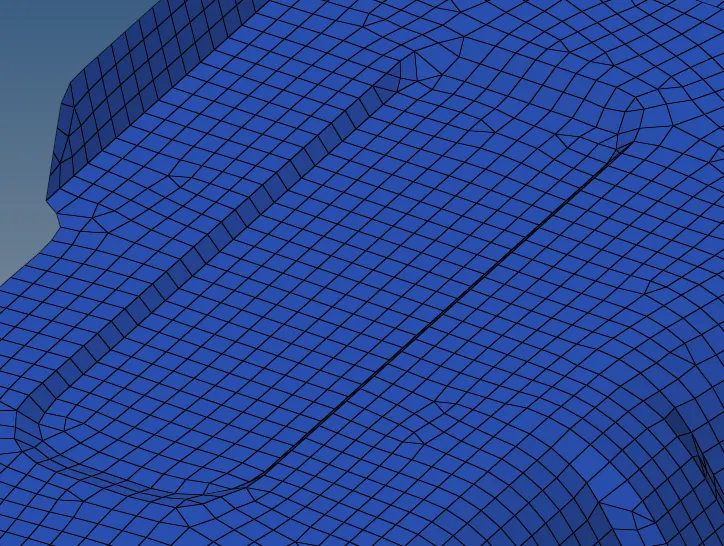

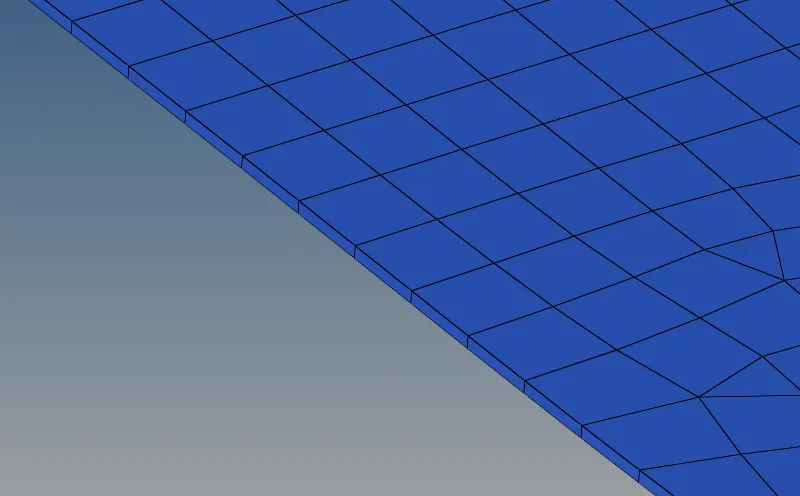

3. After simplify mesh the model with the given meshing criteria.

4. After accepting the meshing criteria. Assign thickness to it. Measure the model thickness using measure tool. In this case it shown 0.75mm. For the assigning thickness we need to create material and its property.
