Week 12:Project-1-Meshing of Door Inner Panel Challenge

Aim: To extract a mid surface and mesh the given component.

Target Element Length = 4 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	6 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

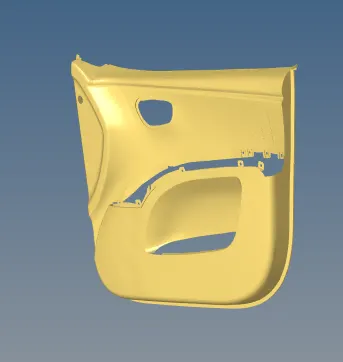

Given model:

Procedure:

1. To geometrically clean the model for any error on it.

2. To extract manual mid-surface of the component.

3. To clean and defeature the Midsurface so as to avoid any minimum length errors while

meshing.

4. To mesh the midsurface while trying to minimize the number of trias and its concentration.

5. Clear all elements that are failing any Quality criteria that was set.

6. To assign thickness to the mesh according the component.

7.checking for free edges.
