Week 12:Project-1-Meshing of Door Inner Panel Challenge

AIM

Mesh the following given modle by the following the given quality criteria

OBJECTIVE

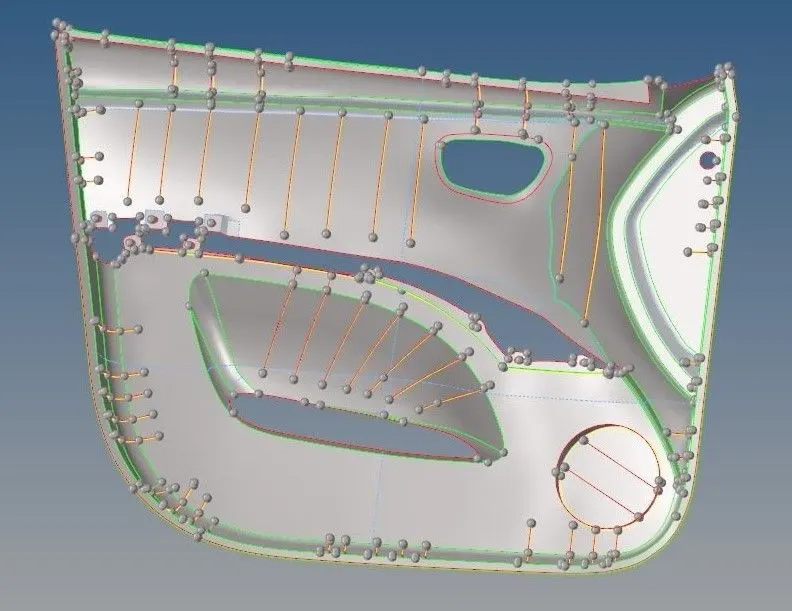

• Import the geometry file and cleanup the geometrical errors
• Extract the midsurface out from the following model
• Clean the midsurface geometrical errors and mesh the midsurface with given element size

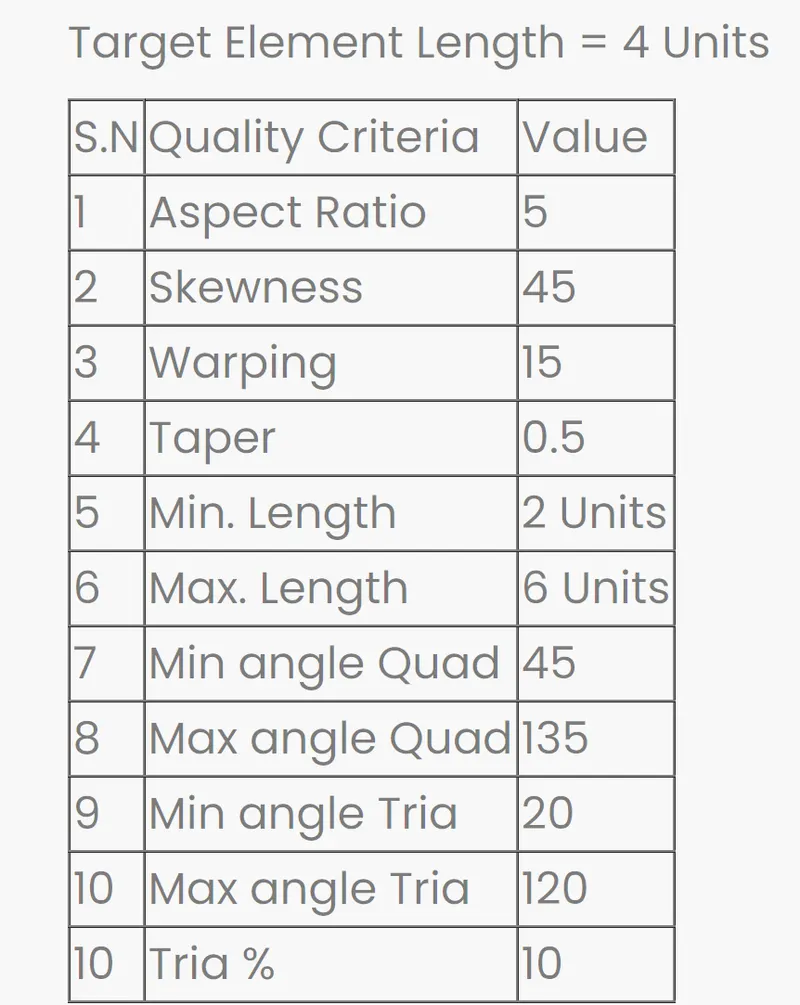

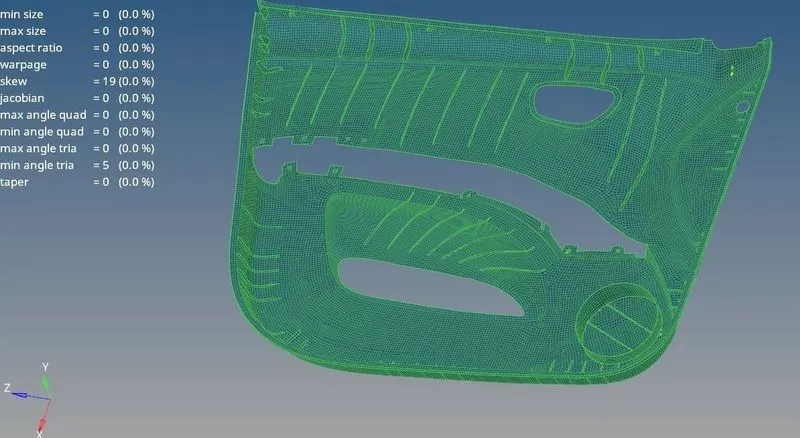

• Cleanup the elements quality errors as per the provided quality criteria
• Create the properties and assign as per the thickness of the model components
• Check for the properties assigned correctly and save the model

PRODECURE

• Import the geometry file which is provided in for the challenge

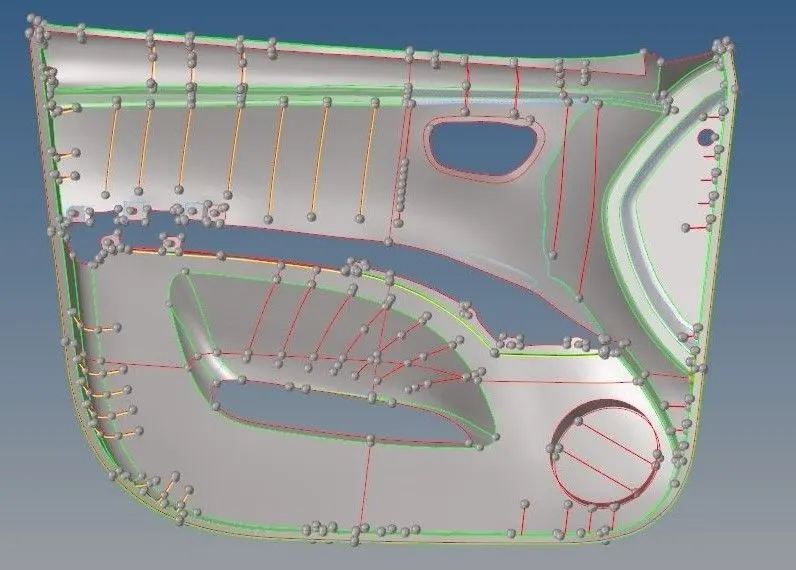

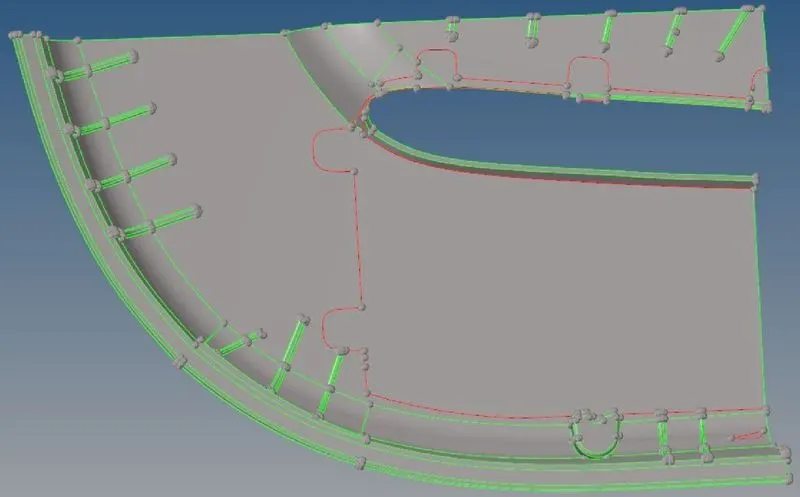

• After cleaning up the geometrical errors now we proceed for the midsurface extraction of the following components

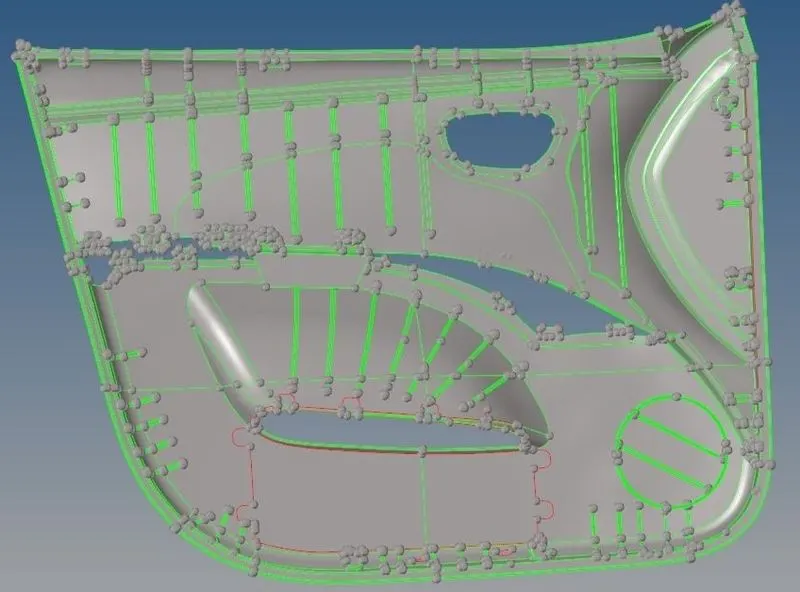

• After cleanup the errors in the midsurface now we are proceeding for the meshing
• For that we have to go 2D then automesh here in the options we provide the following target element size of the element which is provided as given data to us and select the surface which we need to get meshed

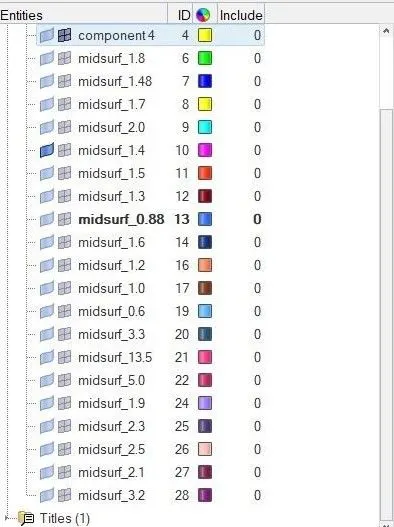

• As we know the geometry is complex and also we have to assign the thickness to the components we first divide the midsurface as per the thickness of the parent geometry

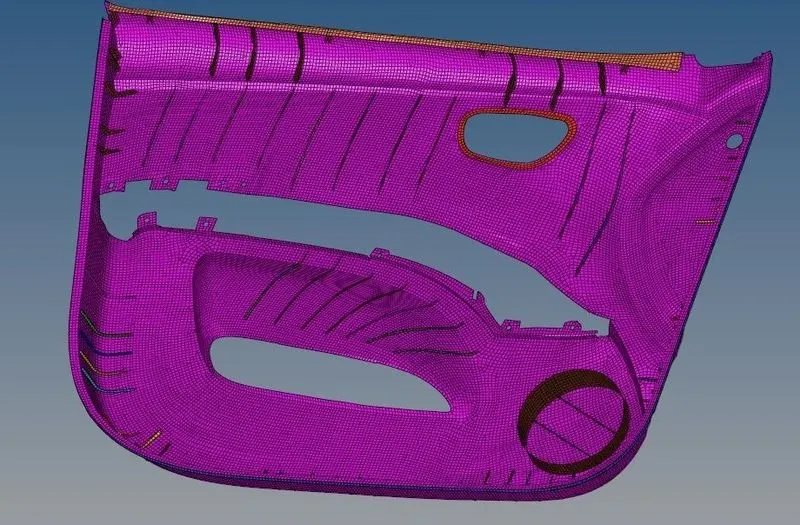

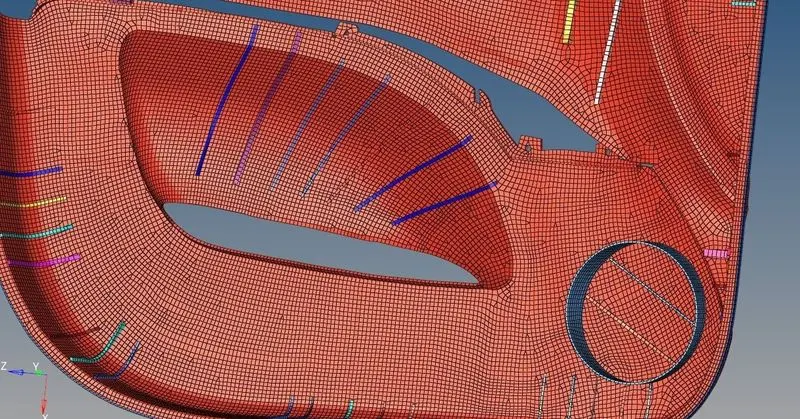

• Now we mesh the components individually and clean the quality errors if any present in the meshed elements
• Check for the elements are attached with each other with help of edges tools

• After cleanup the meshed elements quality error now we can proceed for the assigning thickness to the elements

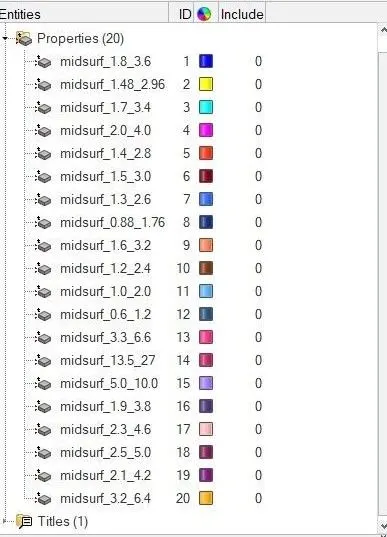

• We have to create to create the properties individually for the different components which we are already created
• As per the parent geometry thickness we have to provide the thickness to the properties we created
• After creating the properties we have to assign the property card to the components as per the required thickness to the midsurface to makeup with the parent geometry
• The properties are assigned correctly we have to change the view of the material by prop

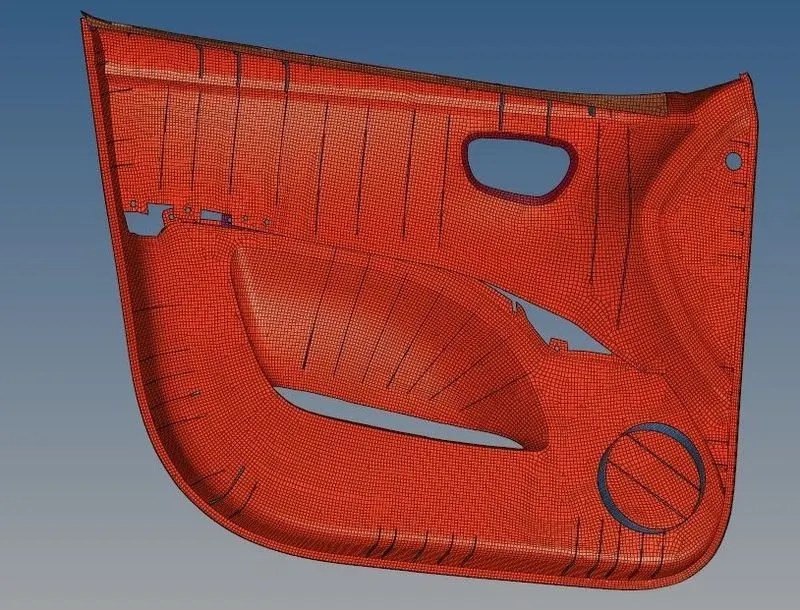

• Thickness provided to the property clearly we have to change the view from 2D traditional to 2D detailed representation

CONCLUSION

The following given task of meshing the following model components and assign thickness property to it is completed as per the given quality criteria teh mesh is also maintained
