Week 12 - Project-1

Objective: Mesh the given component as per given criteria values and assign thickness to the given component.

Procedure:

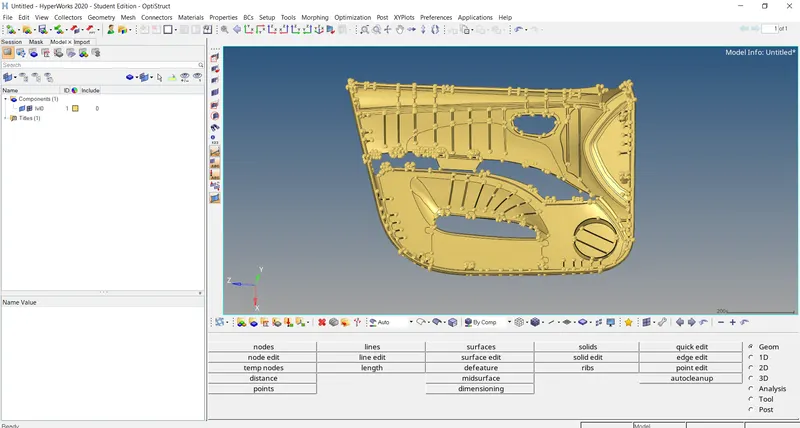

I.importing the file in to graphical area.

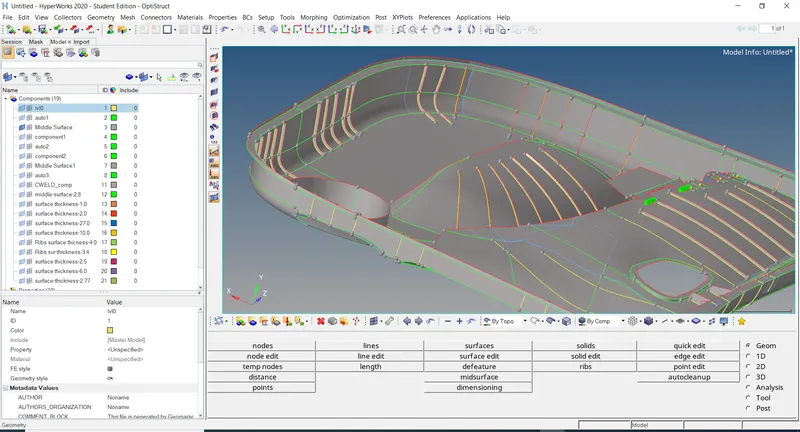

II. And then set into topology mode and clear surface errors in the parent geometry.

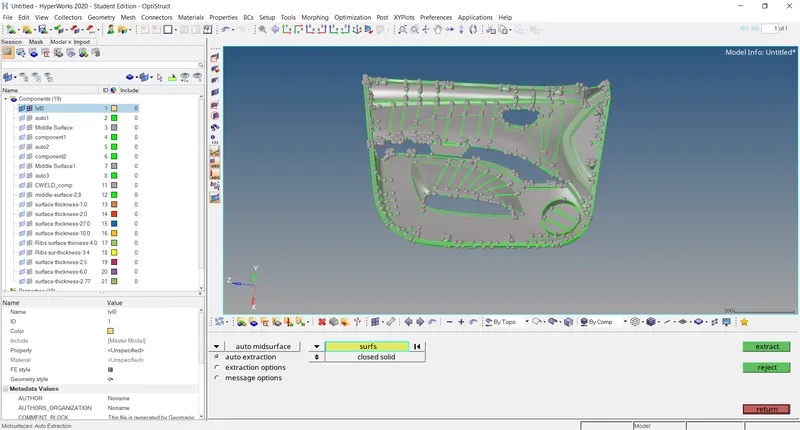

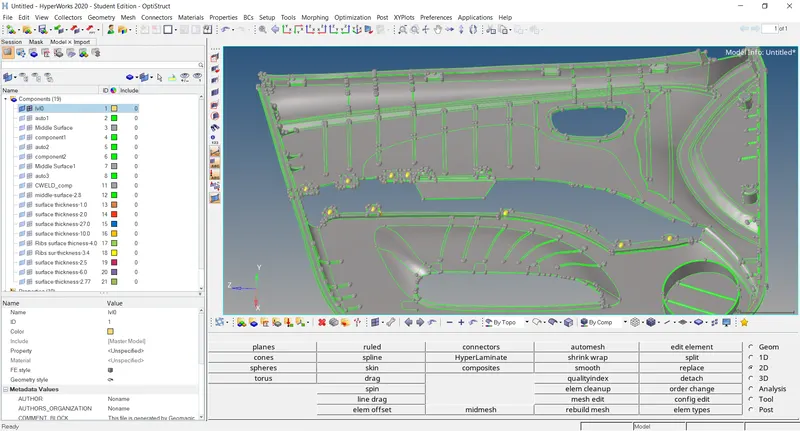

III.After clearing surface errors extract the mid surface.

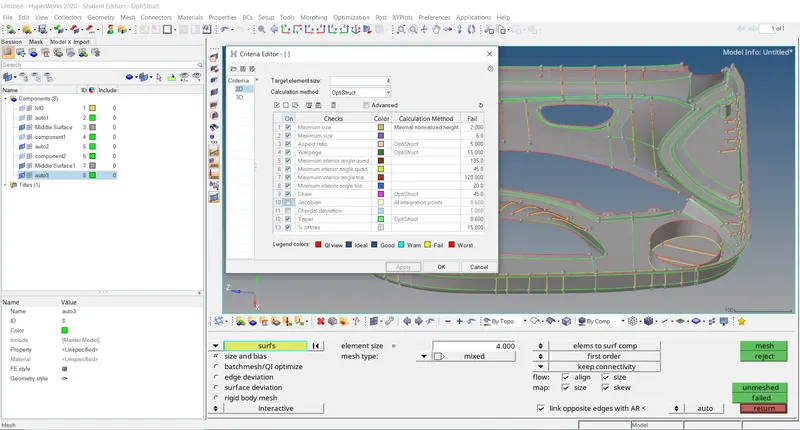

IV.And then the set the criteria values for generation of mesh.

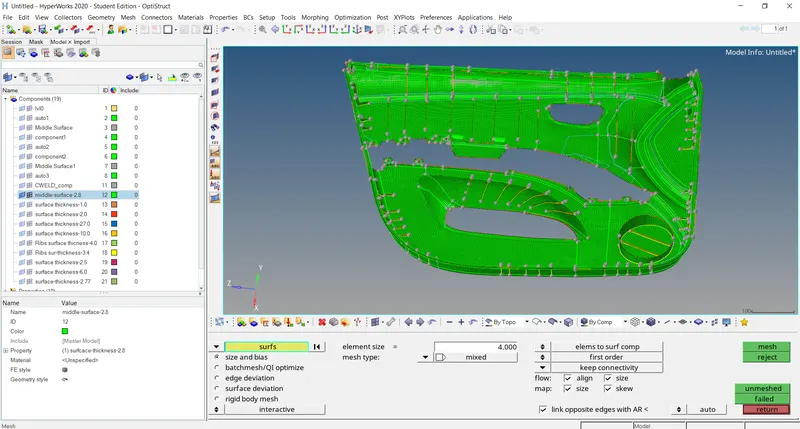

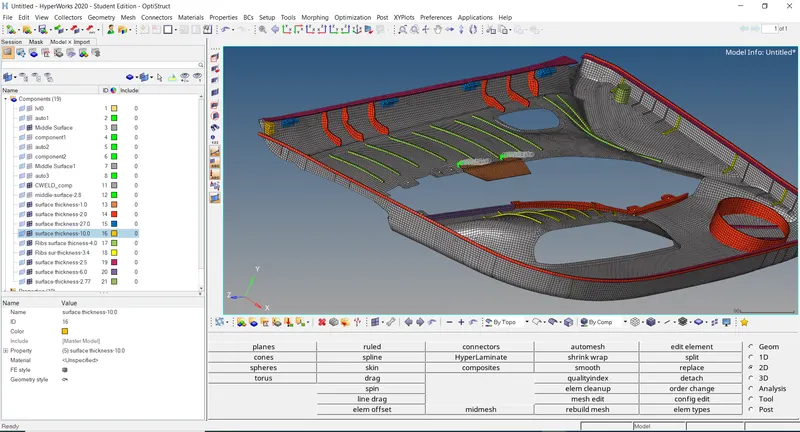

V.Generate the mesh and clear the criteria errors.

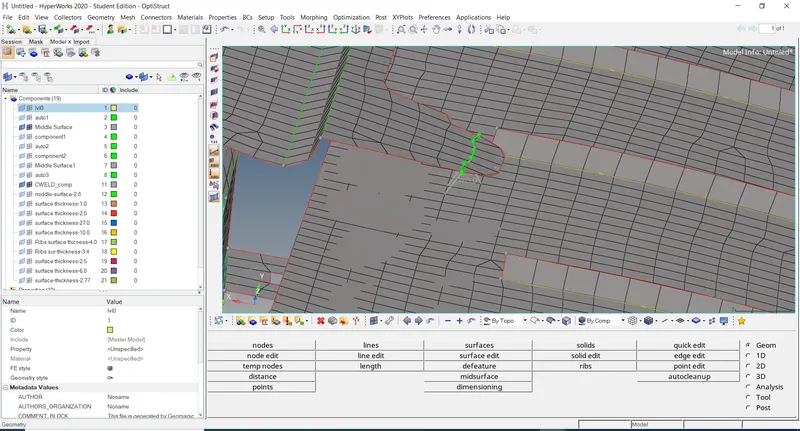

VI.Connect the surfaces with weld joint.

VII.Assigning the thickness by measuring between two nodes or two points.

Result: As the per given criteria values had mesh given component and thickness had assigned
