Week 12- Final project: Development of a Door Trim panel

Final Project: Development of a Door Trim Panel

Door Trim Panel is Creation Of CAD Model Considering follwing inputs as like in OEM And trim companies

Class A Surafce is given but after appling biundries check, it has been found there is some improvement needed to be actioned to get a closed surface. Normal thickness is taken from the provided master section.

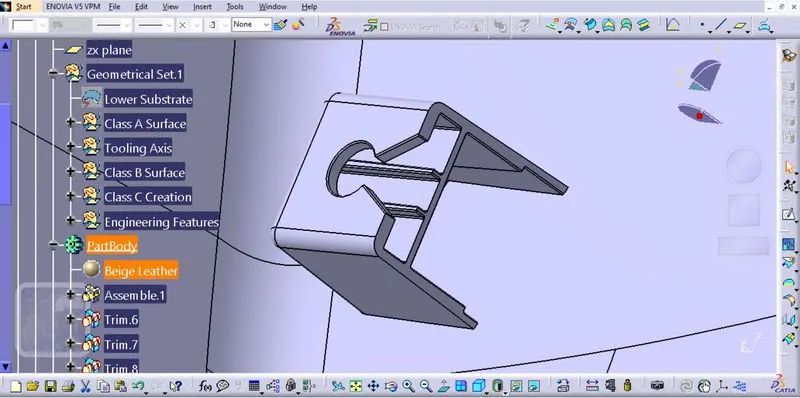

Based on the knowlwdgw that has been gained by taking the plastic Design Coures bu CATIA V5 I have developed class b & C Surfaces , Tooling axis for every single part, also I Found a startegy to assemble the four seperate part into one part design by creating engineering features such as Heat stakes, dog houses ans flanges.

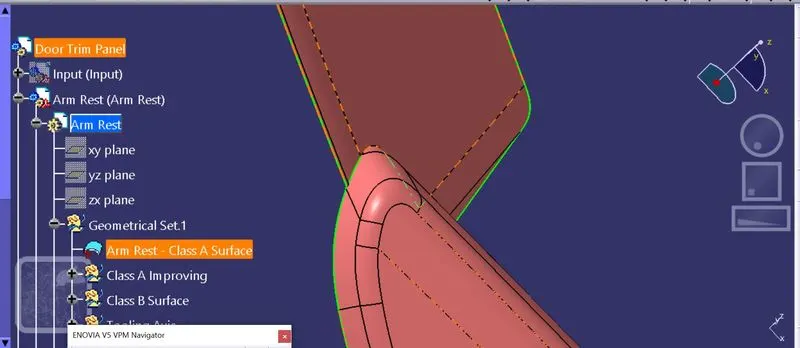

Armrest Part:

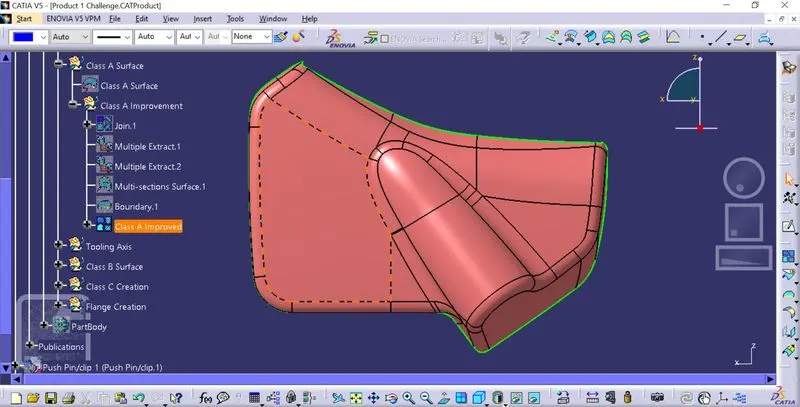

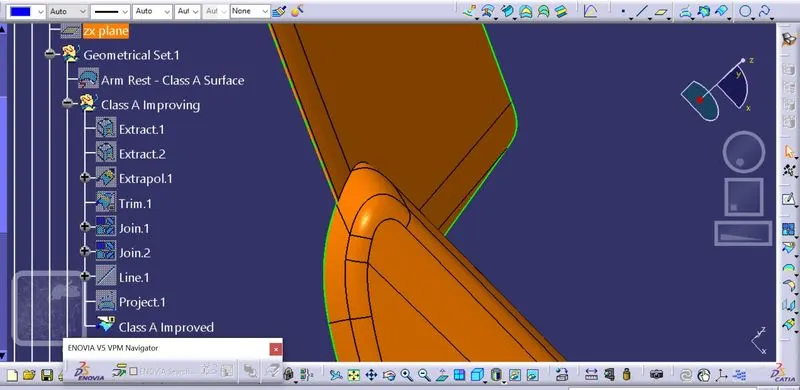

Class A Improvement:

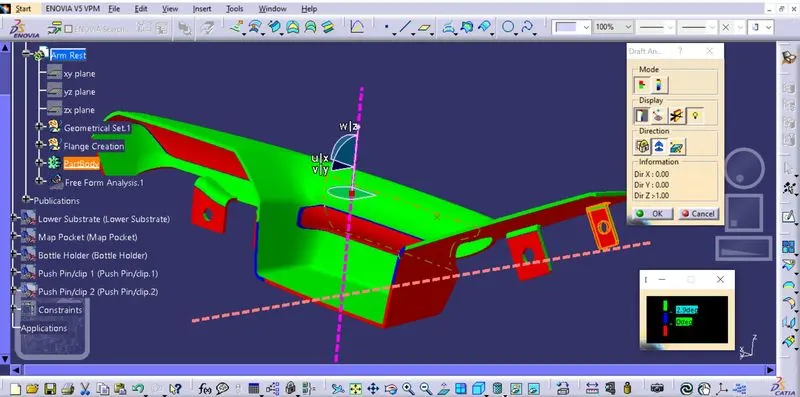

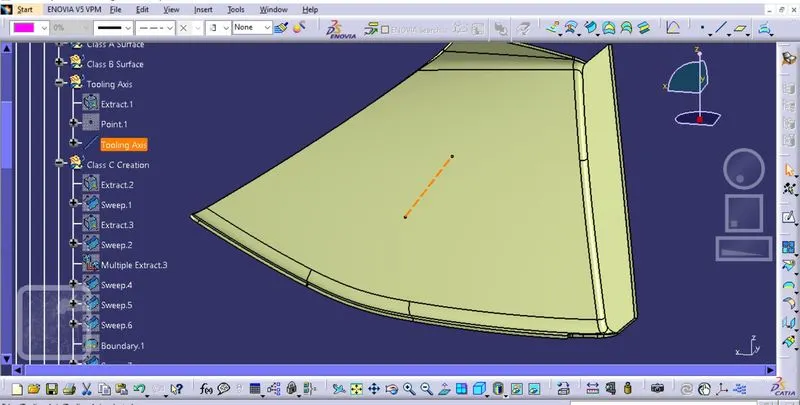

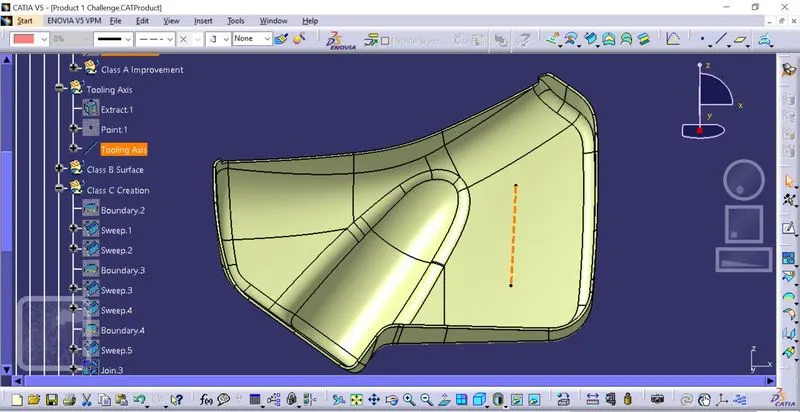

Tooling Axis

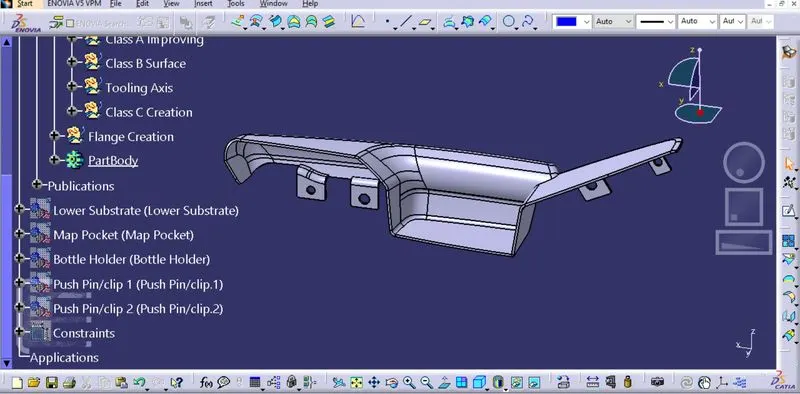

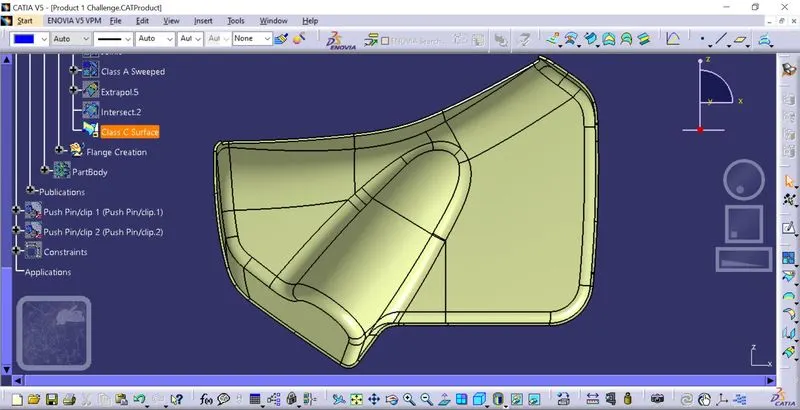

Final Part

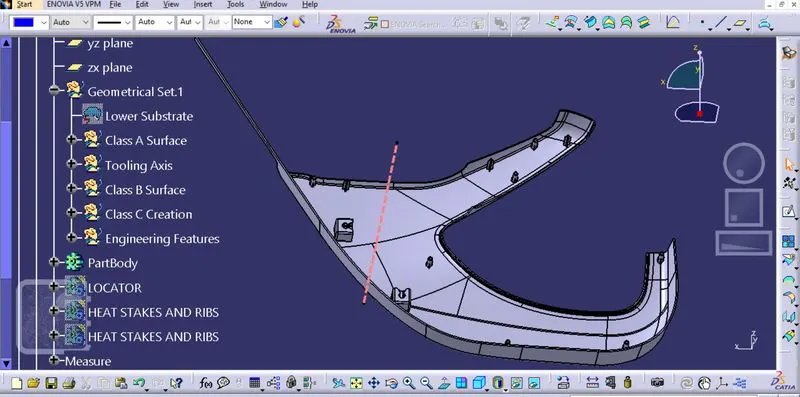

Lower Substrate:

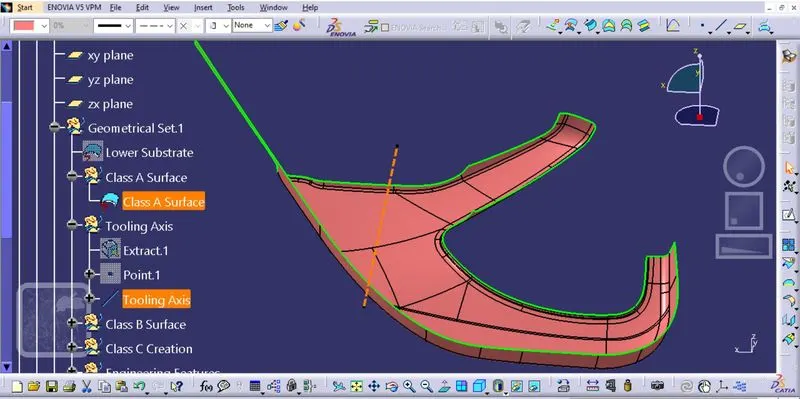

Class A Surface was given is cheak and found out it is perfectly closed boundaryTooling

Tooling Axis

Applied material details as a baige leaher for the Lower substrate.

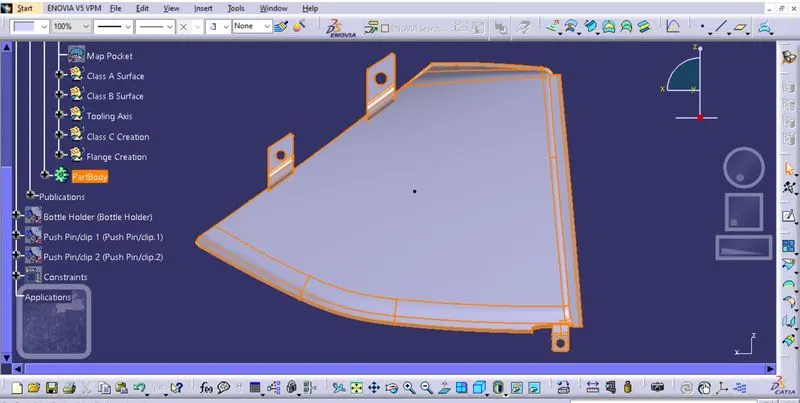

Map Pocket:

Class A Surface.

Tooling Axis.

Bottle Holder:

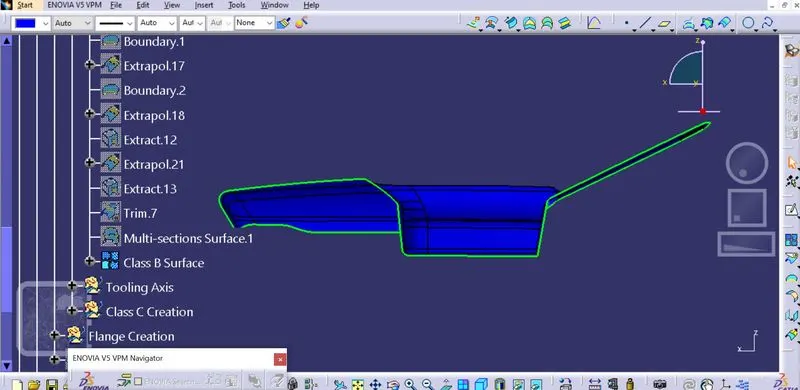

Class A Improved

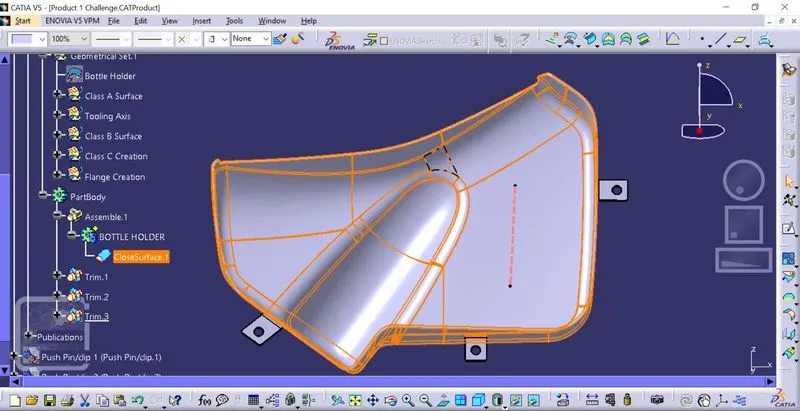

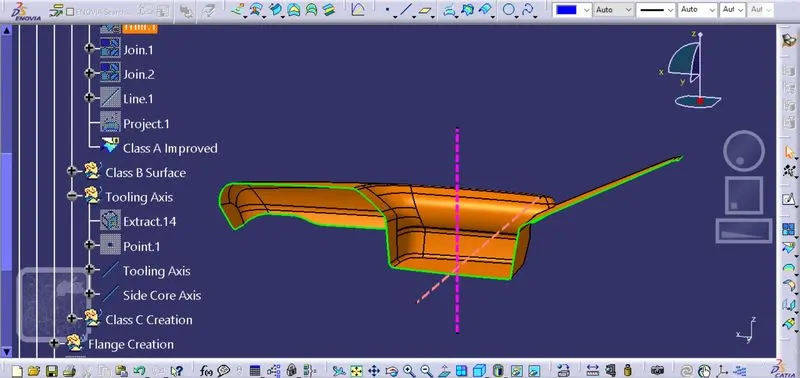

Tooling Axis

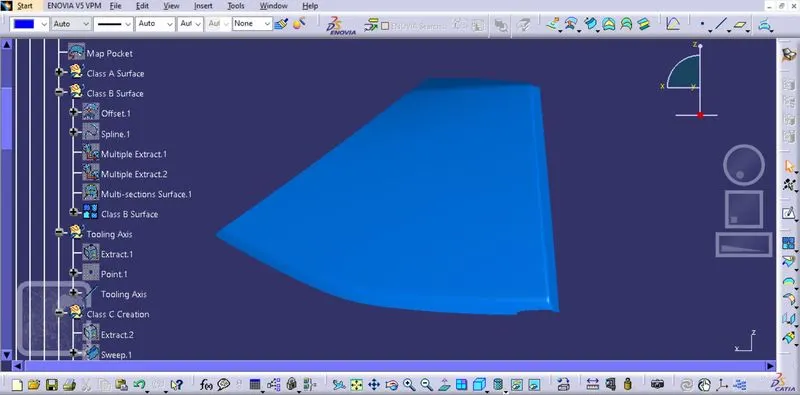

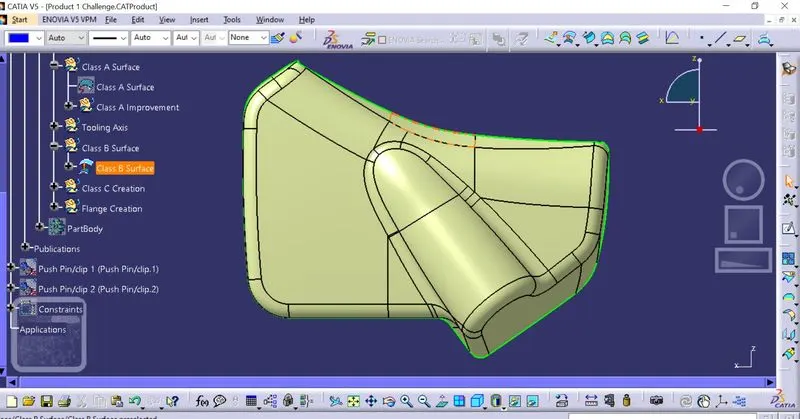

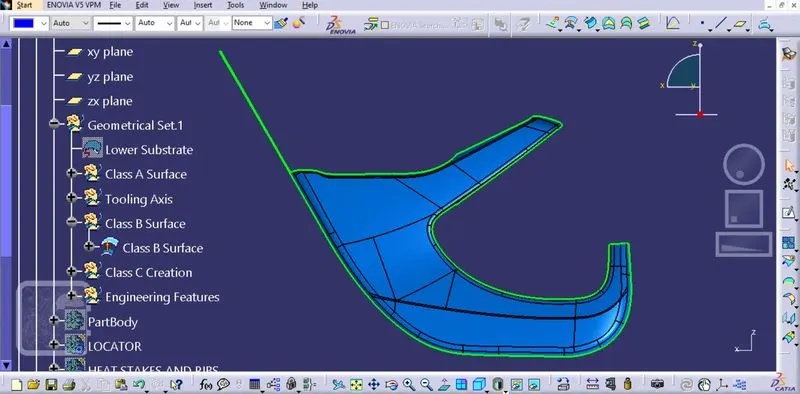

Class B Surface

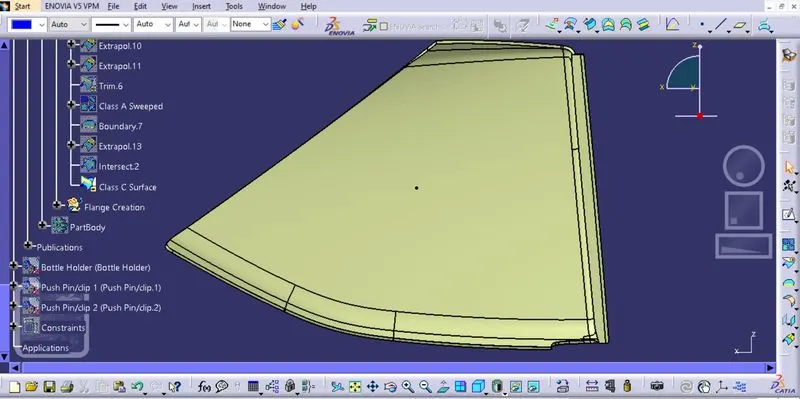

C Surface

Push Pin:

As I have created Dog Houses for this part assembly, I need to inport push pins.

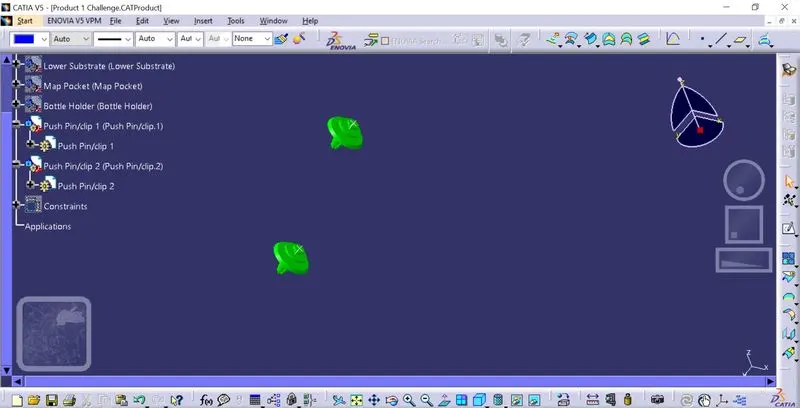

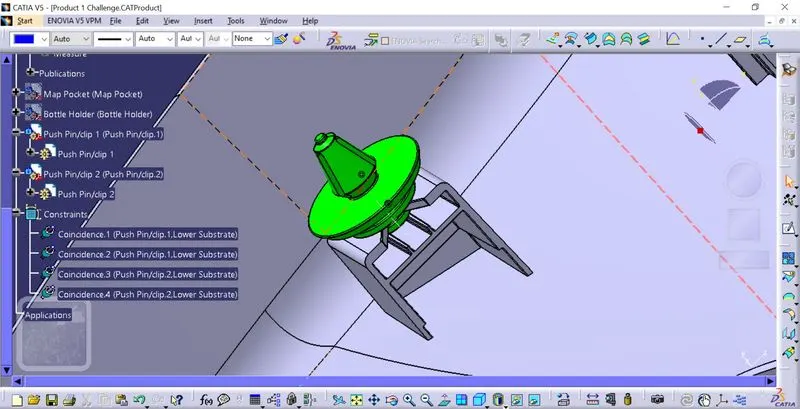

Both are assembled correctly as shown

The CATpart and CATproduct are submitted in the attachment.
