Week 12- Final project

ARMREST

Armrest was not able to clear in a single tooling direction so it was splitted into two parts for easy manufacturing.

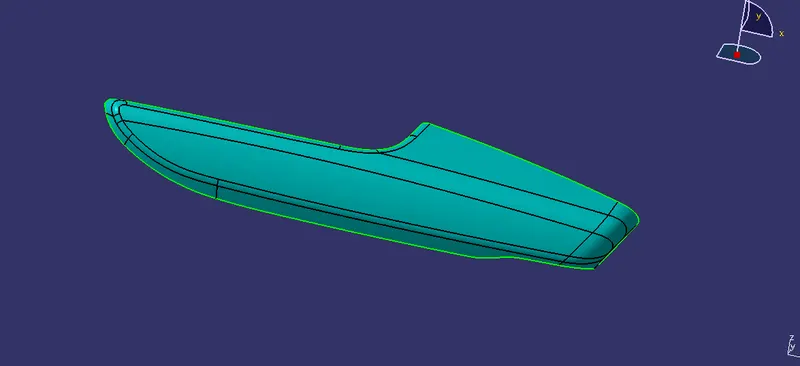

Armrest 1 Class-A surface with Tooling Axis

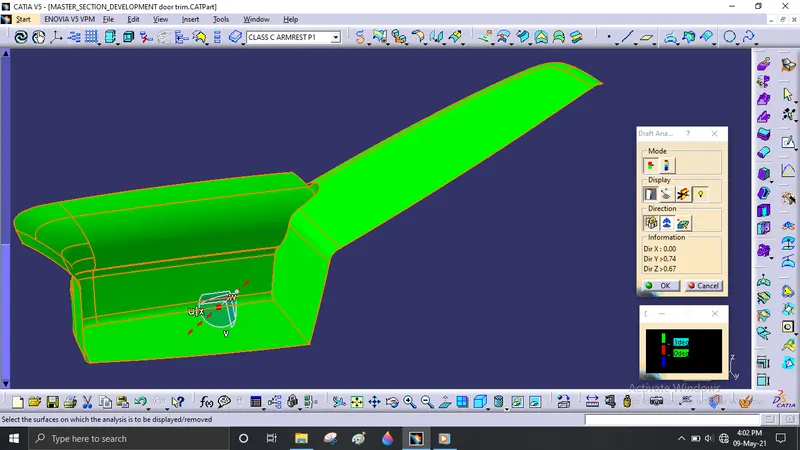

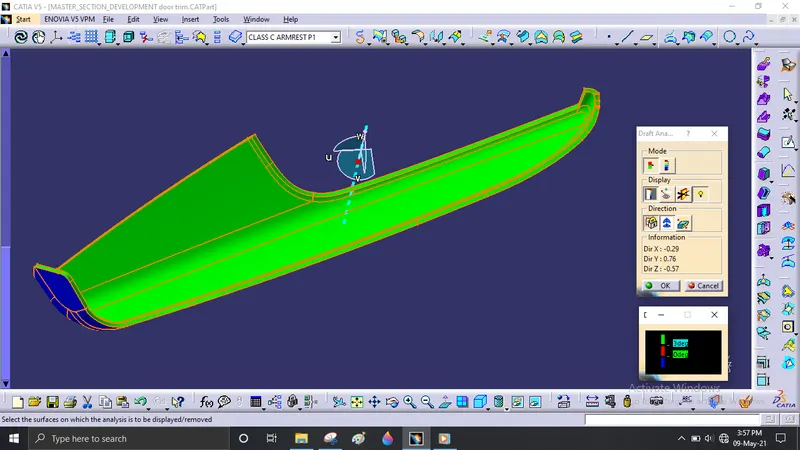

Draft Analysis of Class-A surface

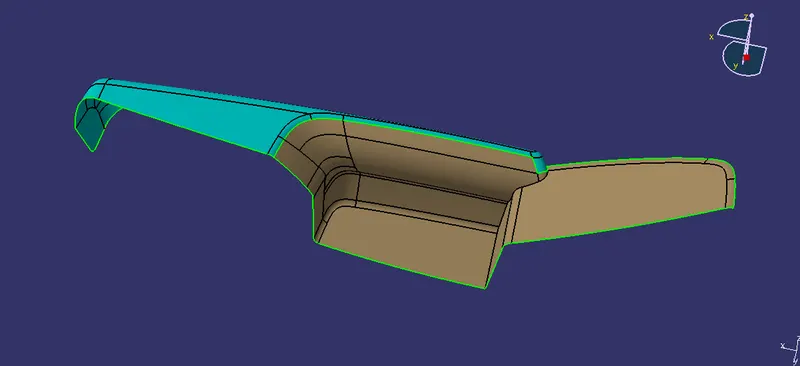

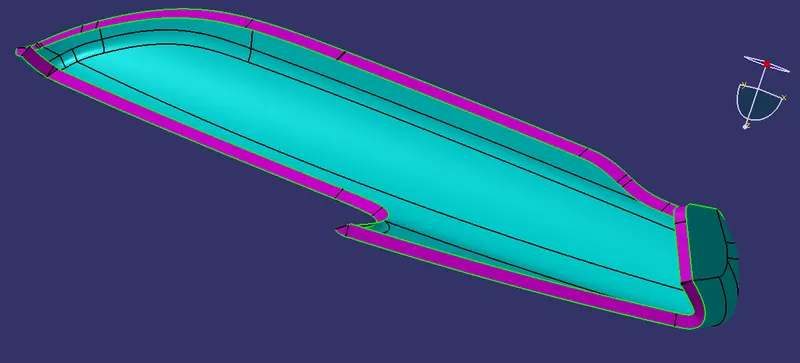

Class-B surface offset at 2.5 mm from Class-A

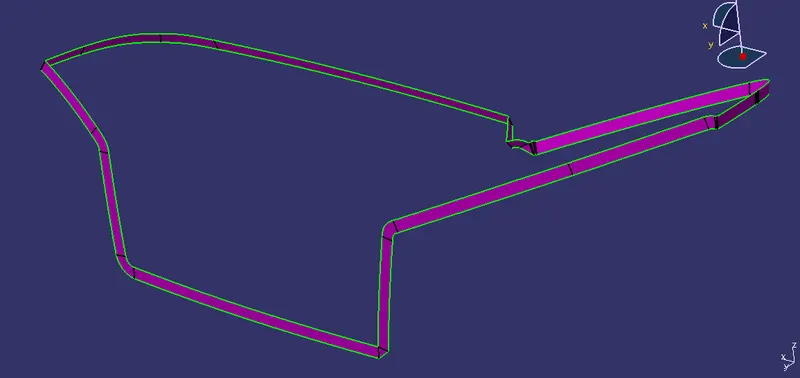

Class-C swept from Class-A boundary at 3 degrees in Tooling direction

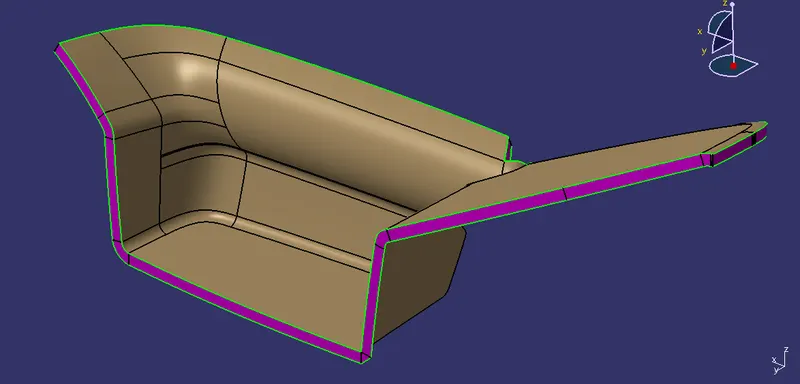

Class-C surface trimmed

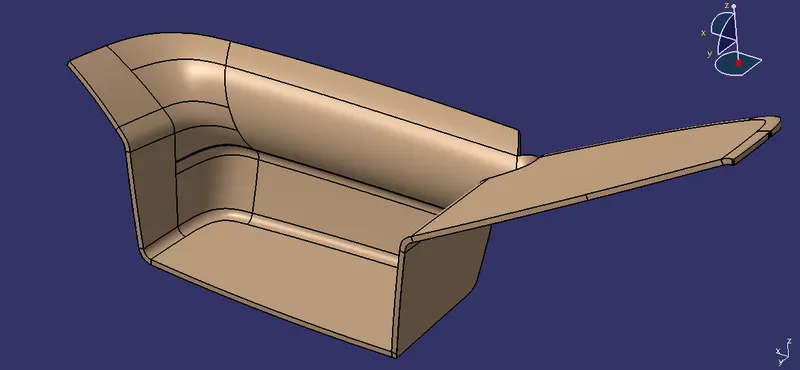

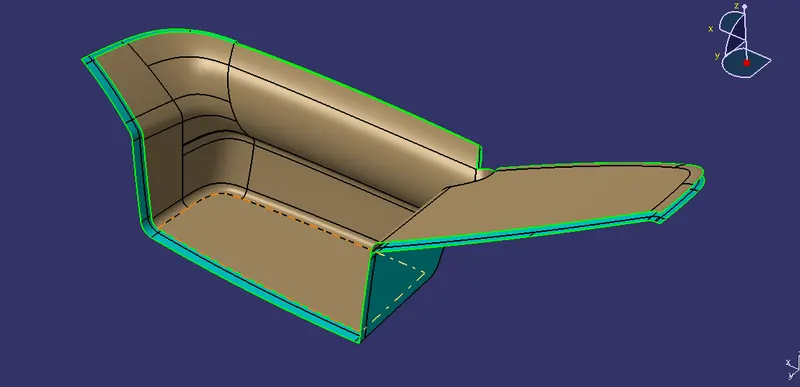

Armrest part 1 Closed Surface

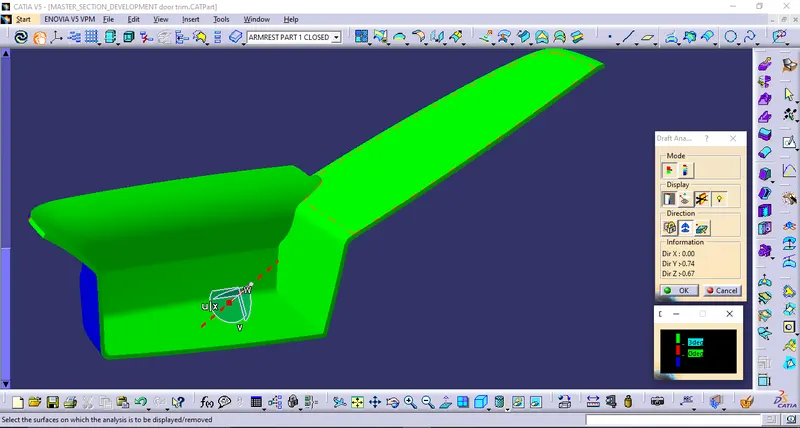

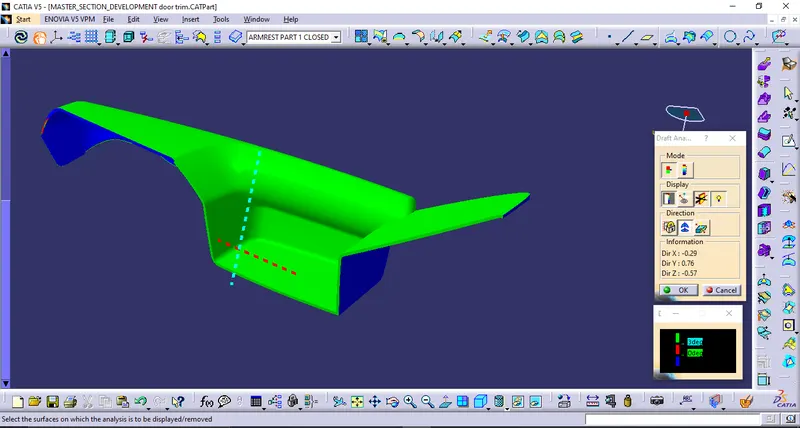

Draft Analysis of Armrest 1 Closed surface

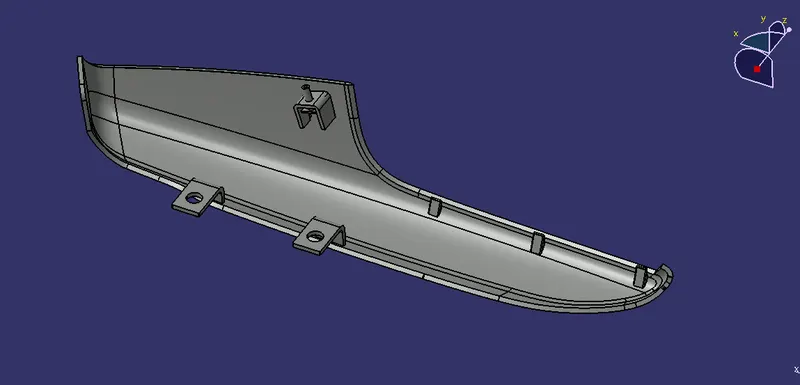

Closed body of armrest part 1 was created and attachment features were also created with 0.5 degree draft.

Draft Analysis Of attachment features

ARMREST PART 2

Class-A surface

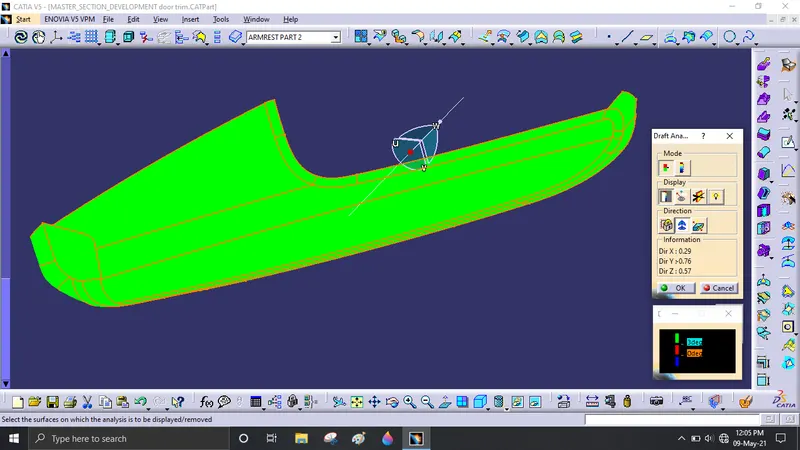

Draft Analysis of Class-A surface at 3 degrees with Tooling Axis

Class-B surface offset at 2.5 mm from Class-A

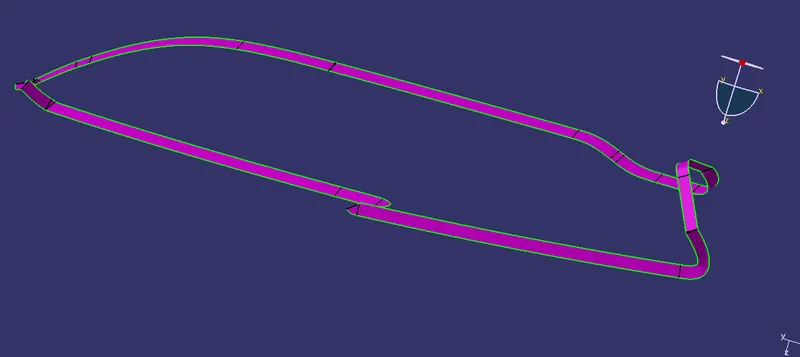

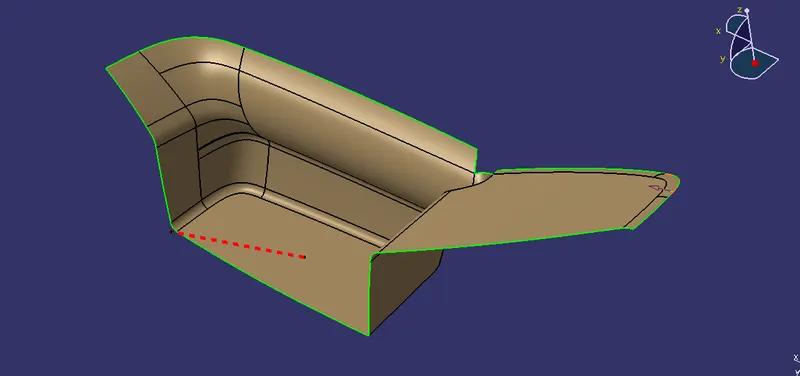

Class-C surface swept at 3 degress from Class-A boundary in tooling direction

Class-C trimmed

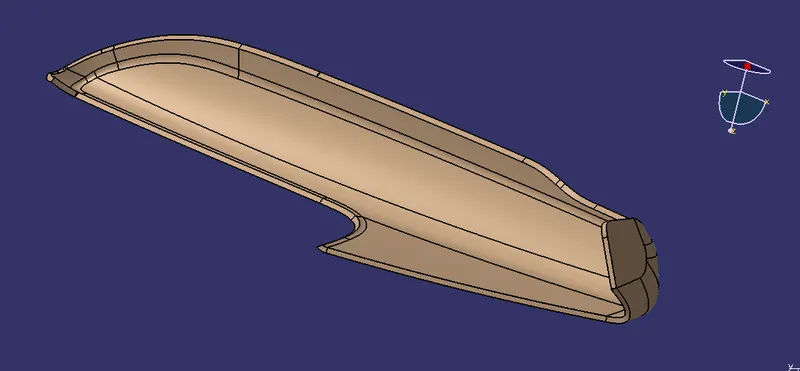

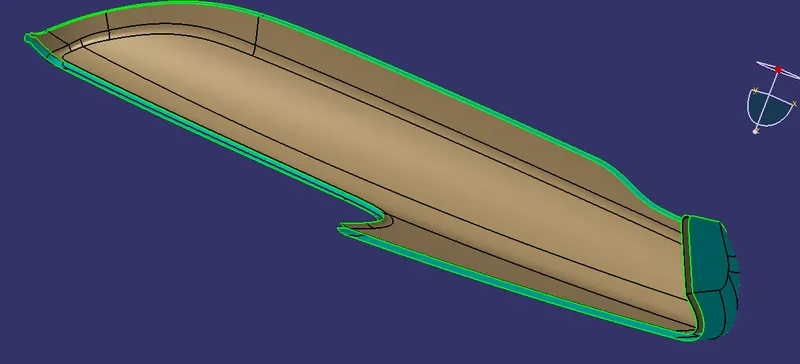

Closed surface of Armrest part 2 formed by trimming Class-A, Class-B And Class-C surfaces

Draft Analysis of Class-B and Class-C surface at 3 degrees

Closed body was formed and attachment features like doghouse, flanges and stoppers were created with 0.5 degree draft

for assembly.

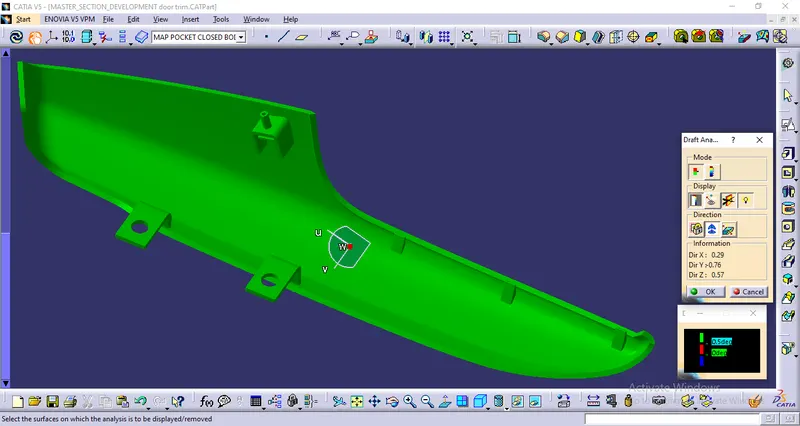

Draft Analysis of attachment features at 0.5mm draft.

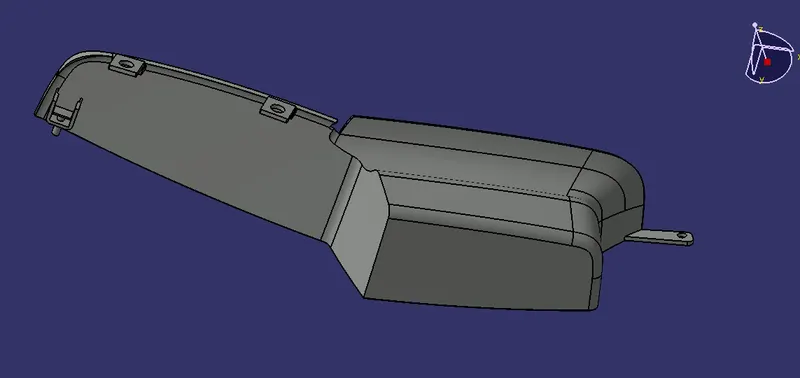

Complete Armrest solid body Draft Analysis at 3 degrees with their Tooling Directions.

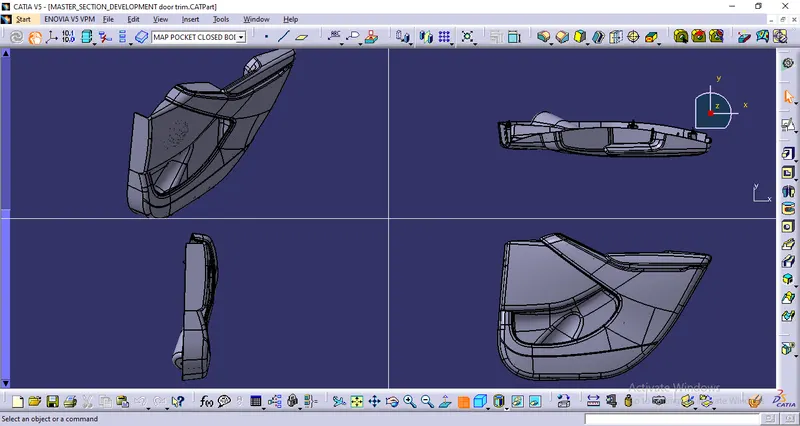

Different Orientations of Door trim Closed Body

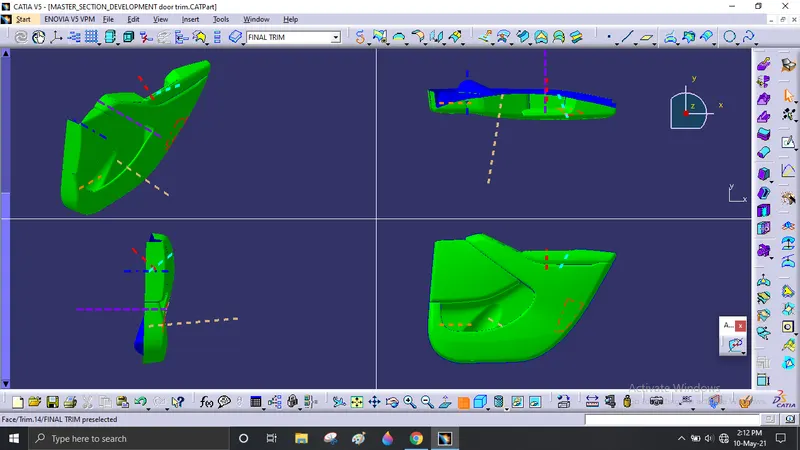

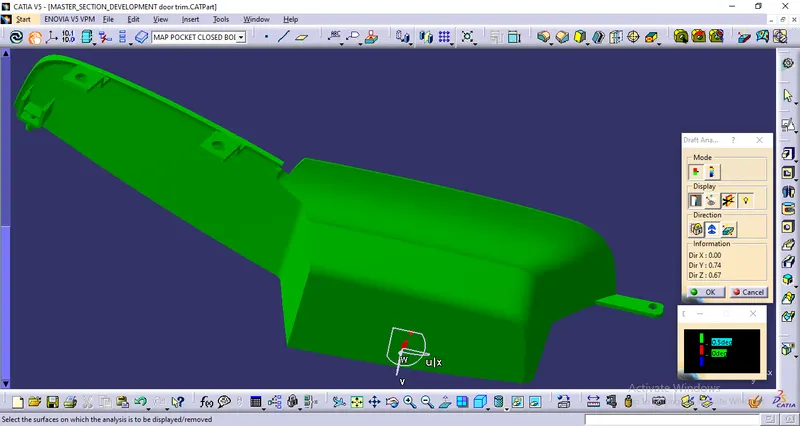

Complete Draft Analysis of Door Trim Panel View

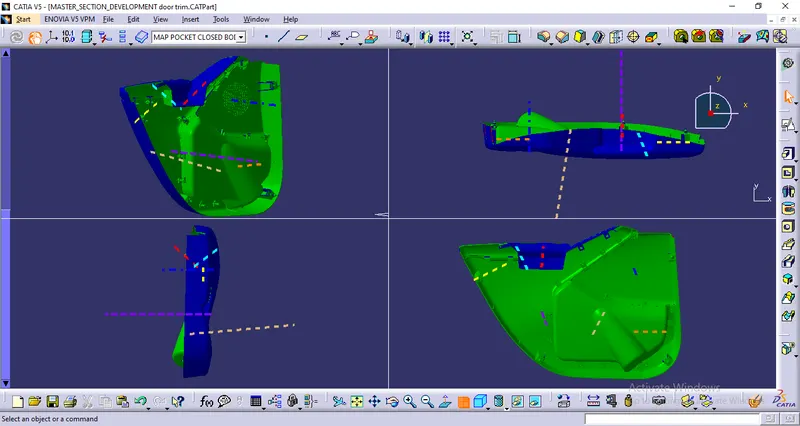

Attachment Features Draft Analysis Different View

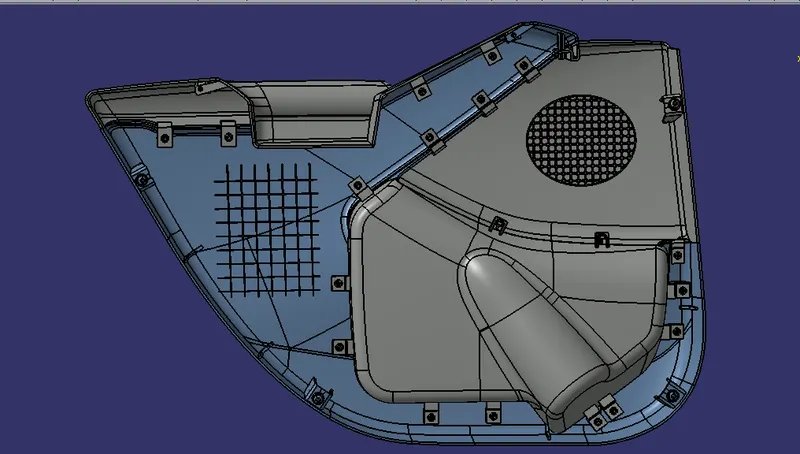

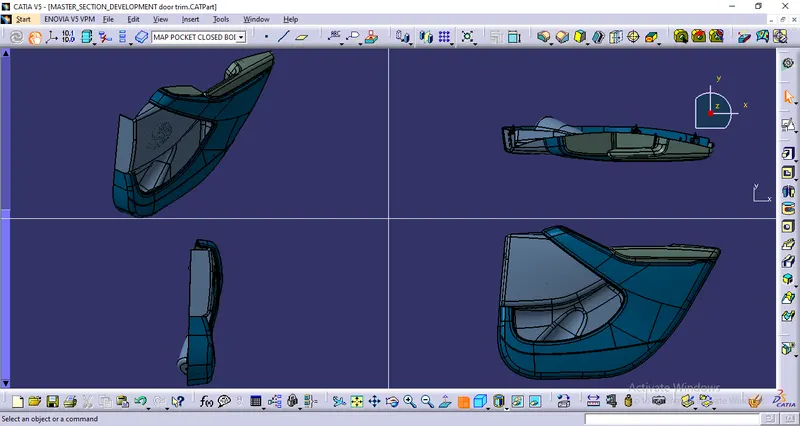

Final Door Trim Product Different View

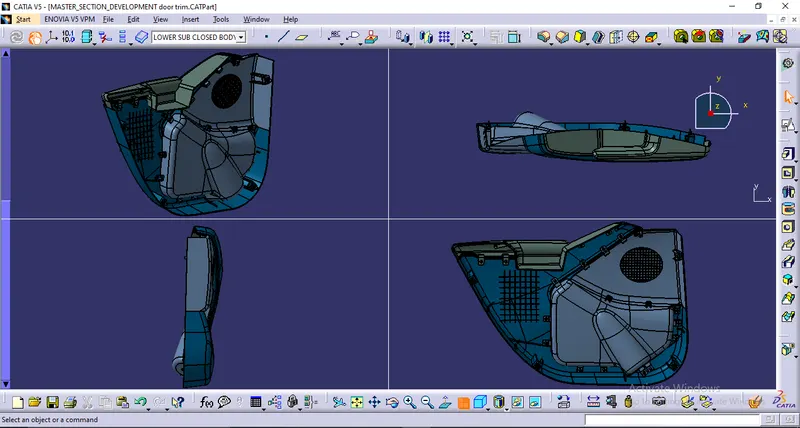

Final Door Trim Engineering Features Different View
