AIM:   To design and development of vehicle interior door trim using Catia V5 with given class A surface along with Master section. Also create the Side Attachment features as per design rules.   OBJECTIVE:   To create thickened part using master section for reference To create the mounting features as per…

Introduction: What is underbody coating for automobiles? Underbody coating is usually a dense cladding (often based on rubber) applied uniformly to the undercarriage of the automobile. It is normally sprayed or painted on when the car is just out of the dealership and is clean. But even if you are getting the undercoating…

01. Suggested Cars Listed Below:- • 01. Hyundai Venue 1.4 CRDi MTE.• 02. Mahindra XUV 3000 1.5W6.• 03. Nissan Kicks XE Diesel.• 04. Tata Nicxon KRAZ Plus AMT Diesal.• 05. Suzuki Vitara Brezza ZID AGS.• 06. Maruti Suzuki S-Cross 1.3L Sigma. 02.Mechanical Characteristics of Cars:• Advance…

Assembly 1   Assembly 2

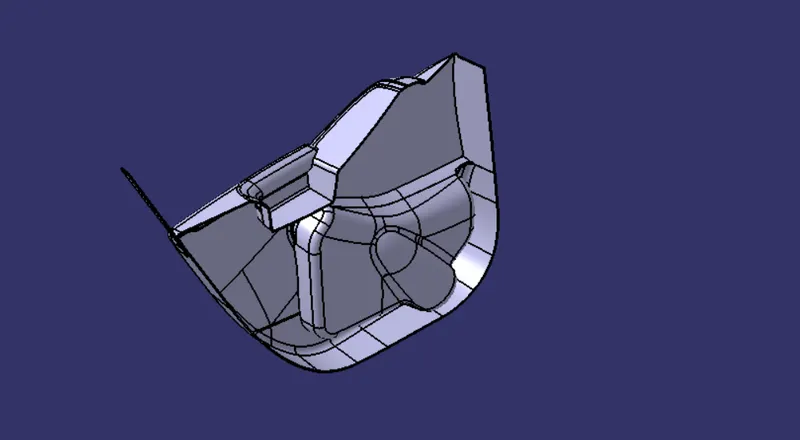

DRAFT ANALYSIS ON CLASS A SURFACE The draft analysis check is performed on the surface is to check wheather it satisfies the min draft angle as per the standards, the draft analysis on class A surface is doing before the creation of solid is to check whether the class A is drafted properly or not..The draft analysis is…

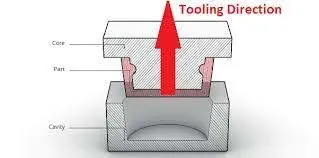

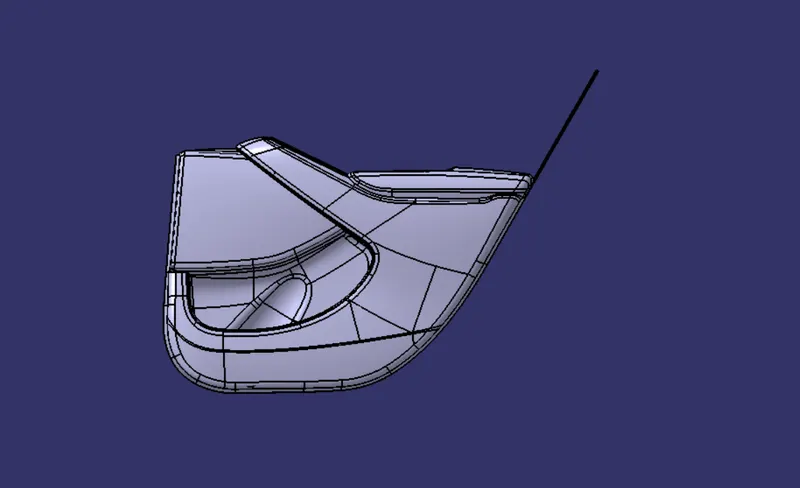

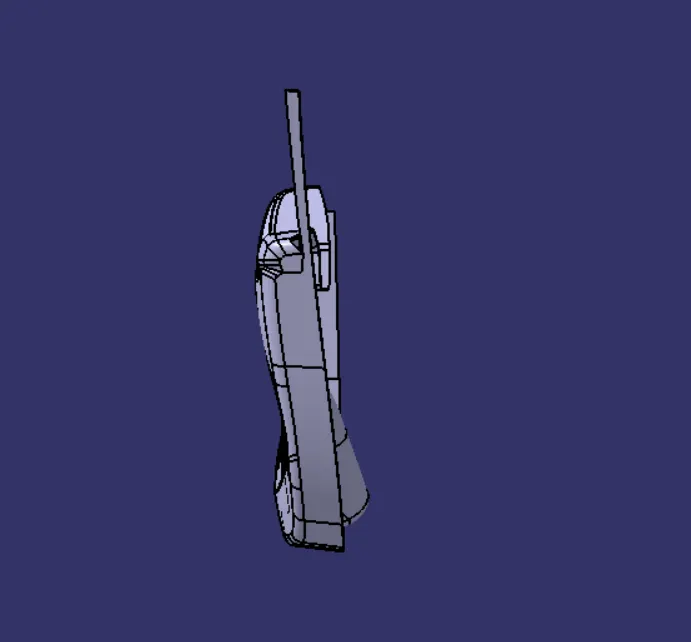

TOOLING AXIS: To create the tooling axis, I extracted a surface from class A and created a point in the middle of the surface by using the point command and created a line at that point through the x-axis. Now, I performed a draft analysis check from that line whether the created tooling axis is in the correct position…

OBJECTIVE: Create a Tooling axis for the given CLASS -A surface.Create the CLASS B and C surfaces of door trim using the given CLASS-A surface.Create a final surface model and convert it into a solid body using the close surface command in the part design workbench.Create side core axis for the dog houseCreate Dog house…

Features used for design A-Class, B-Class, and C-Class. LinePointAxis systemExtrudeuntrimextrapolateExtractboundaryJoinSweptfilletclose surfaceIntersectingPublication   General Guidelines for Bosses:  DESIGN RULE FOR RIB  DESIGN RULE FOR SCREW BOSS   Draft  - 0.5 degrees on the walls of boss…

Class A Surface: Check the connectivity of Class A Surface. Using the connect command, make sure there are no gaps between the components. We may physically inspect it or use the border command to do so. One outside and two inner circular limits make up its three borders. Find a suitable tooling axis and create one. Look…

SOFTWARE USED : CATIA Tooling Axis: Intersect the model with the plane perpendicular or to an axis system. Extend the lines which are perpendicular to the plane. Again intersect the model with another plane and extend the lines perpendicular to it. Create a bisecting line by bisecting option in Line definition. Rename…

Features used for design A-Class, B-Class, and C-Class: Line Point Axis system Extrude untrim extrapolate Extract boundary Join Swept fillet close surface Intersecting Publication  Specifications: Base Bracket Thickness = 2.5mm Minimum Draft Angle = 3 Degrees Class A Surface:            …

Features used for design A-Class, B-Class, and C-Class          Line          Point          Axis system          Extrude          untrim          Extrapolate   …
