Week 12- Final project

FINAL PROJECT

THE INPUT PROVIDED WAS CLASS A OF DOOR TRIM PANEL, CONSISTING 4 PARTS- LOWER SUBSTRATE, MAP POCKET, ARM REST AND BOTTLE HOLDER WITH ADDITION TO THIS WAS PUSH PIN.

WORKED IN ALL 4 PARTS CLASS A SURFACE, IMPROVED IT IN ARM REST AND CREATE TOOLING AXIS, SIDE CORE AXIS, CLASS B AND CLASS C SURFACE LATER PERFORMED DRAFTING ANALYSIS.

ASSEMBLED ALL CATPART FILE AND FORM CATPRODUCT ASSEMBLY FILE.

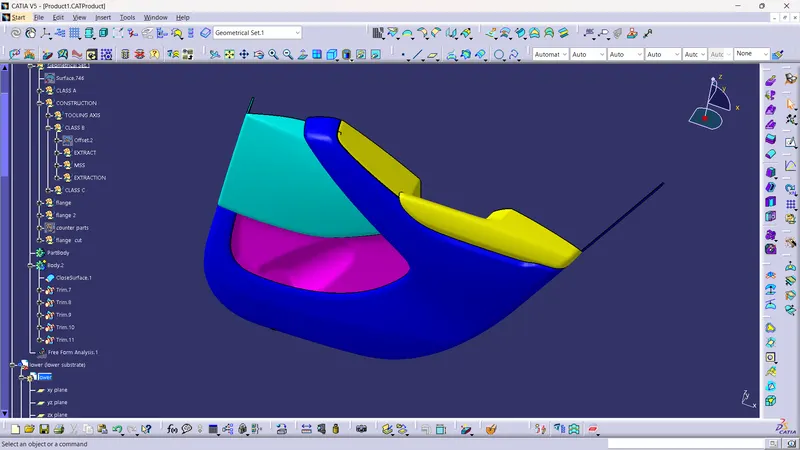

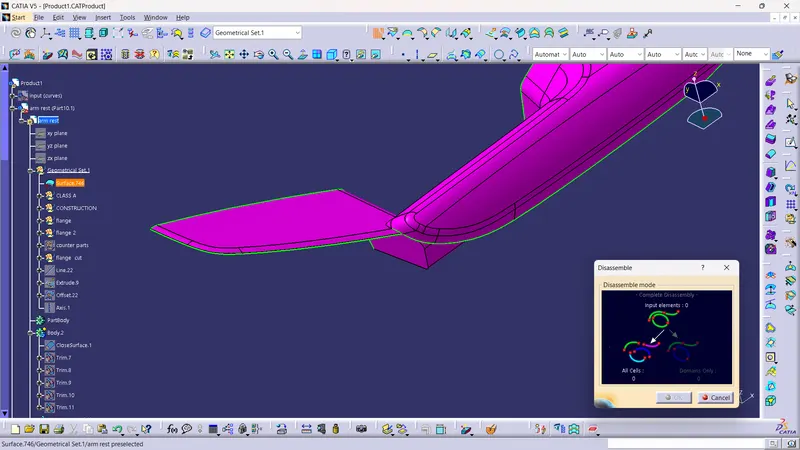

ARM REST

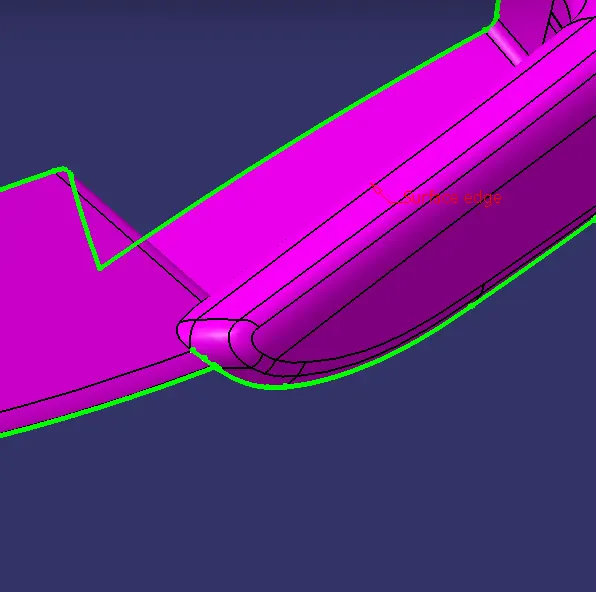

CLASS A

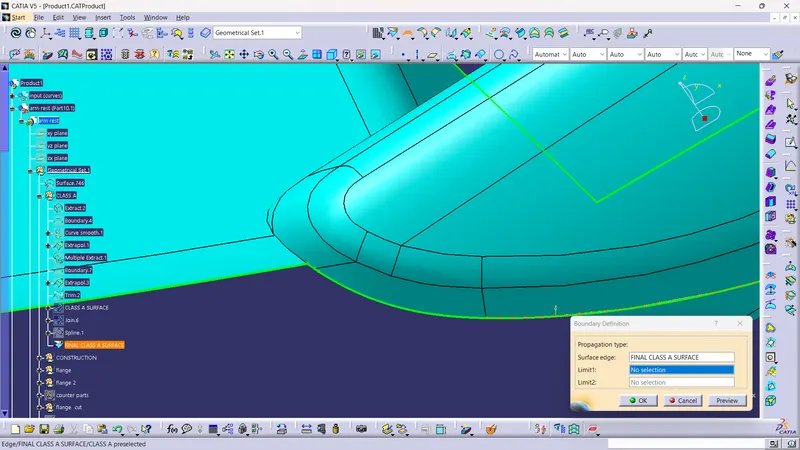

IMPROVED CLASS A

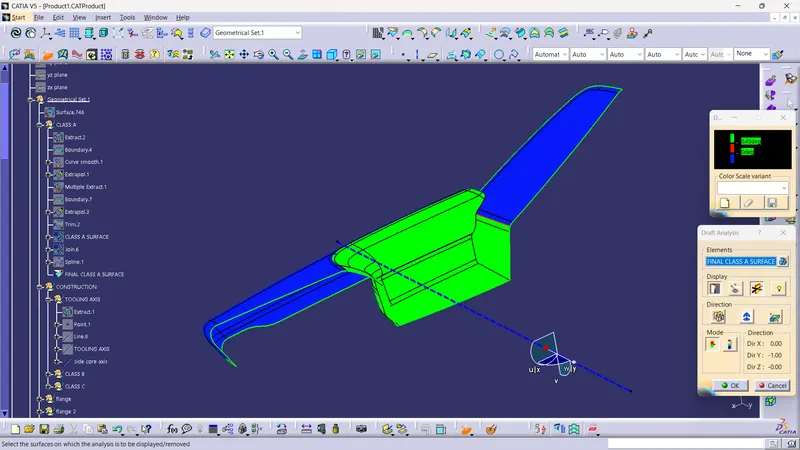

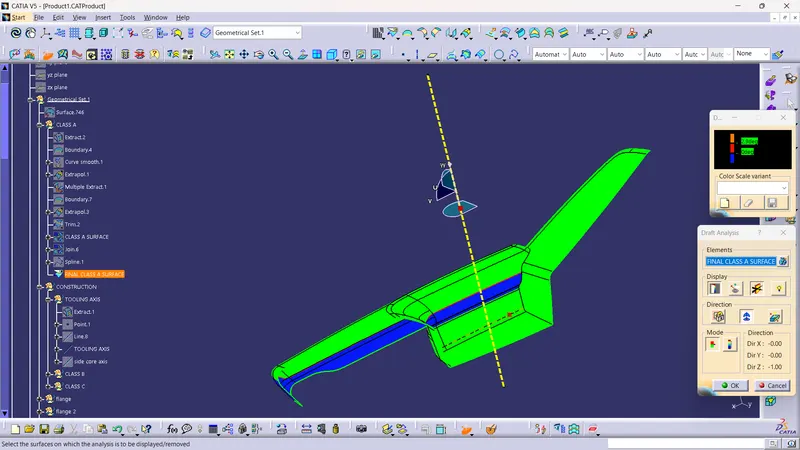

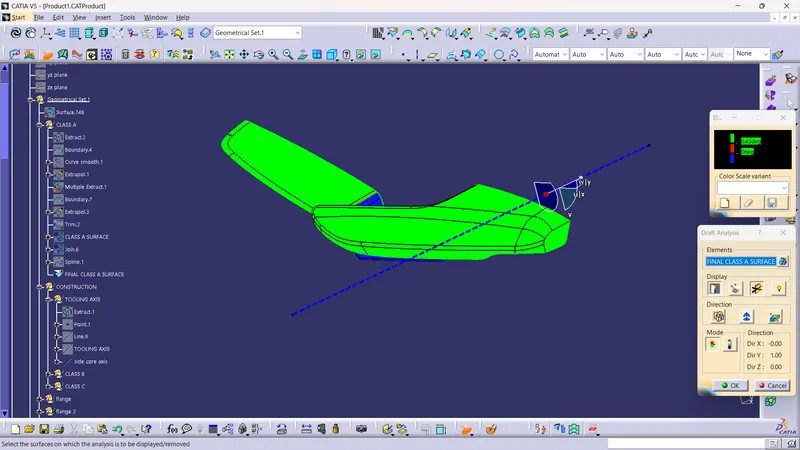

DRAFTING ANALYSIS FOR CLASS A

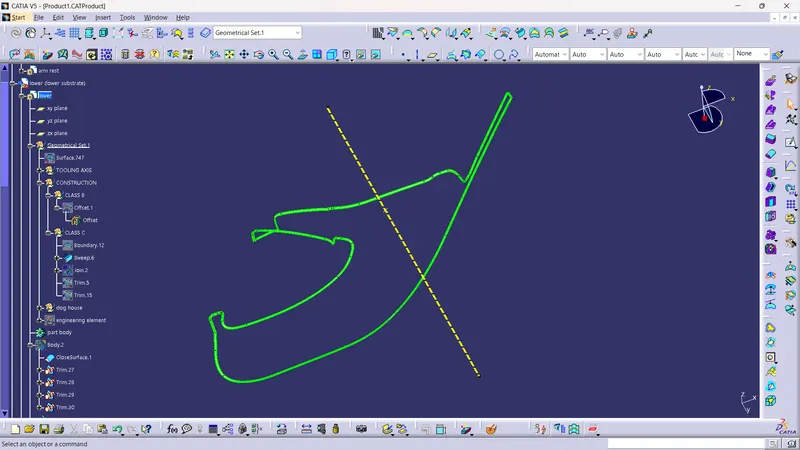

AS PER TOOLING AXIS

AS PER SIDE CORE AXIS

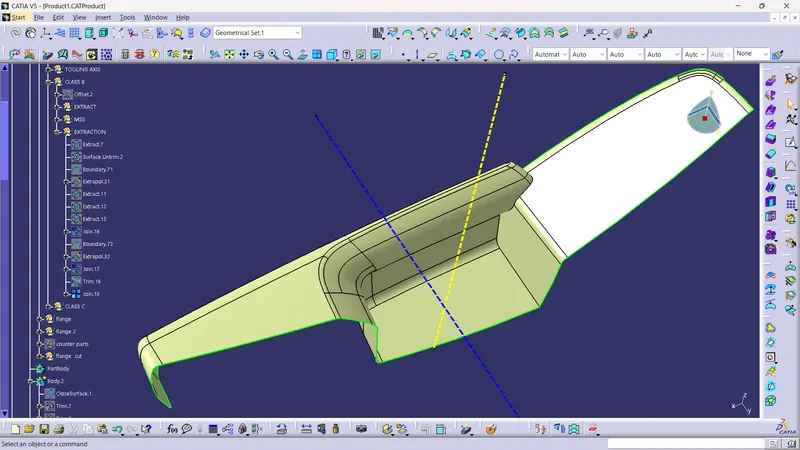

CLASS B

CLASS C

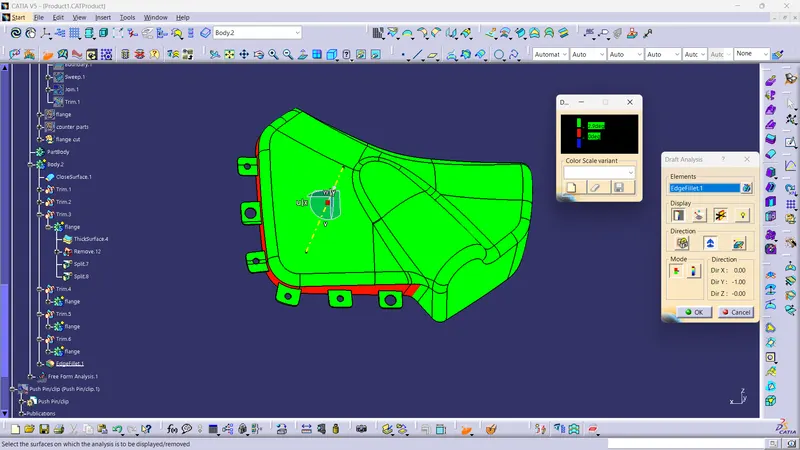

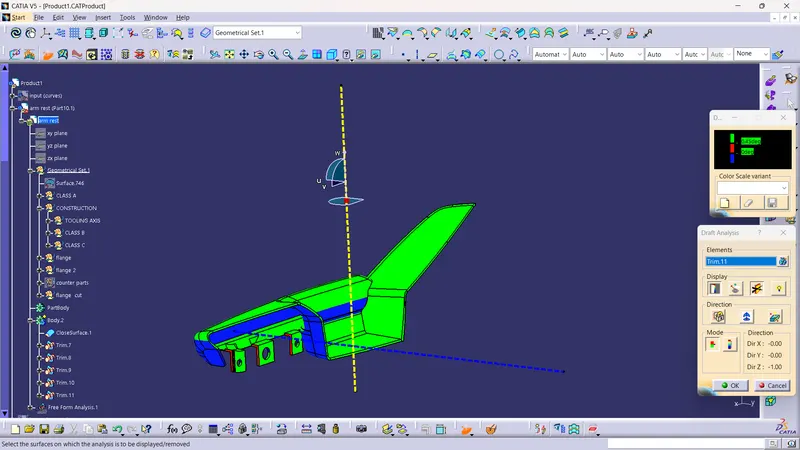

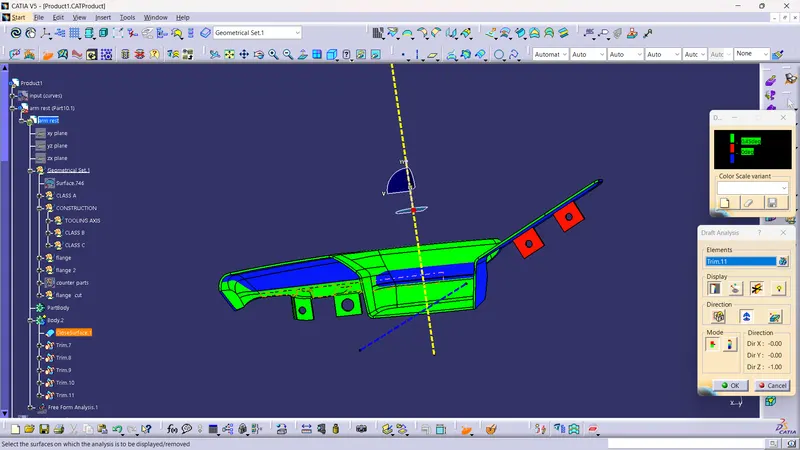

DRAFTING ANALYSIS FOR CLOSED SURFACE

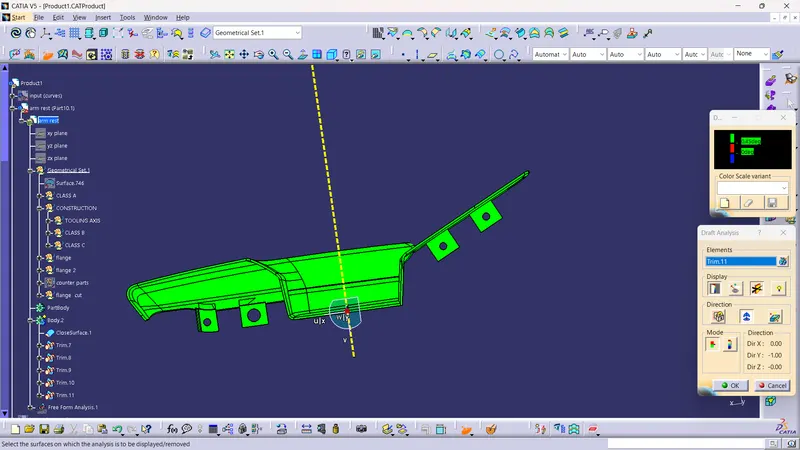

BY TOOLING AXIS

UNABLE TO GIVE DRAFT TO 2 RED FLANGE BECAUSE WHEN PERFORMING DRAFT ON THOSE FLANGE THEY WERE DISTORTING AND COUNTERPART WAS CHANGE ITS PLACE, FOR THIS I HAVE TO CHANGE POSITIONS OF HEATSTAKES.

DRAFT ANALYSIS AS PER SIDE CORE AXIS

LOWER SUBSTRATE

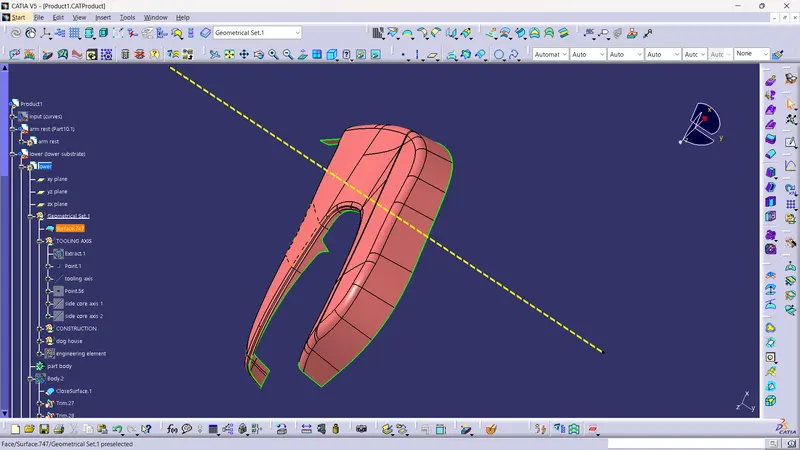

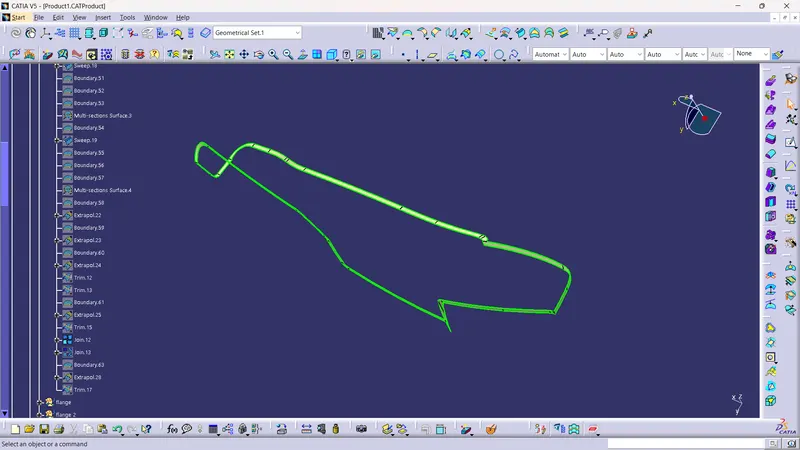

CLASS A

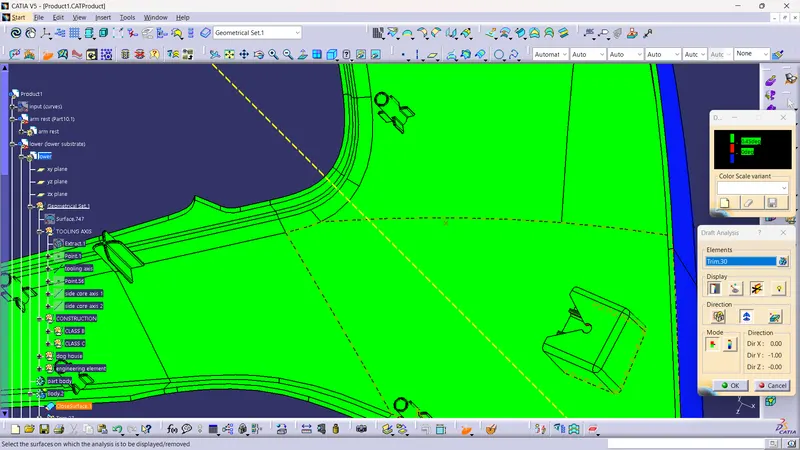

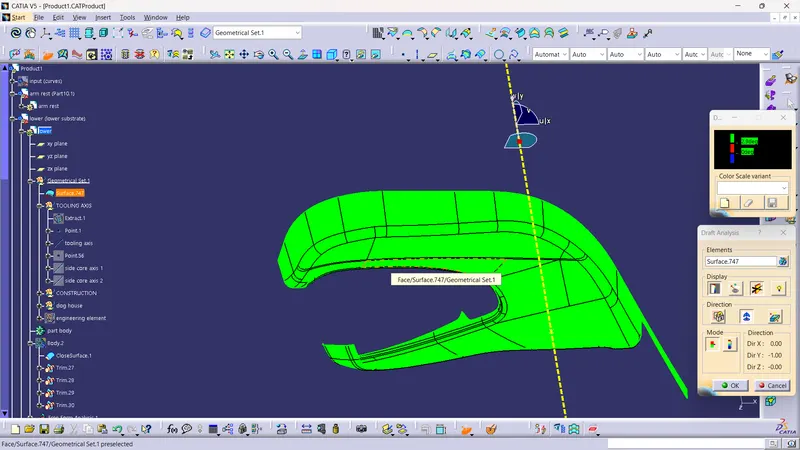

CLASS A DRAFT ANALYSIS

CLASS B

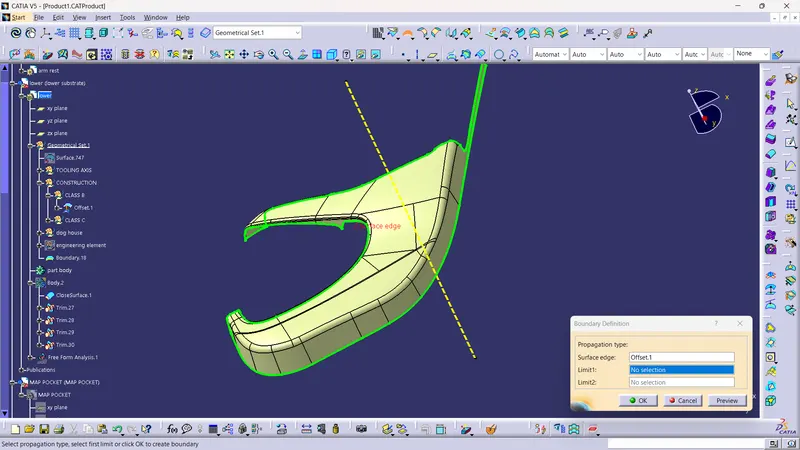

CLASS C

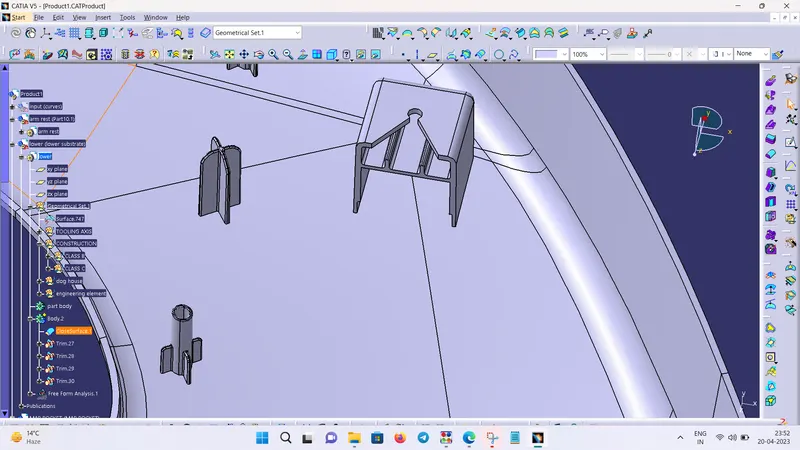

HEAT STAKES + LOCATOR + DOG HOUSE

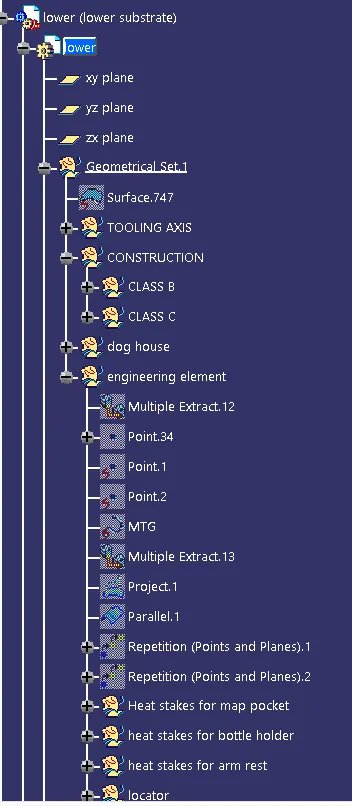

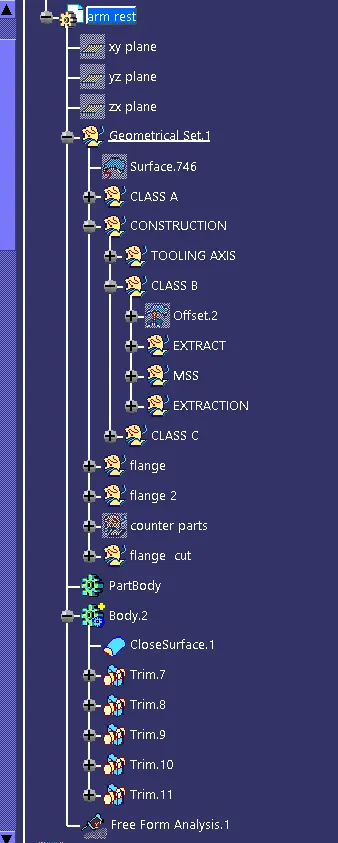

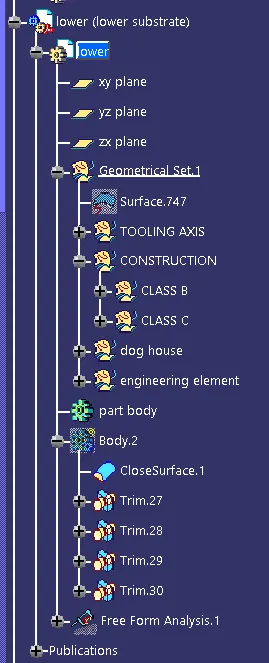

TREE STRUCTURE

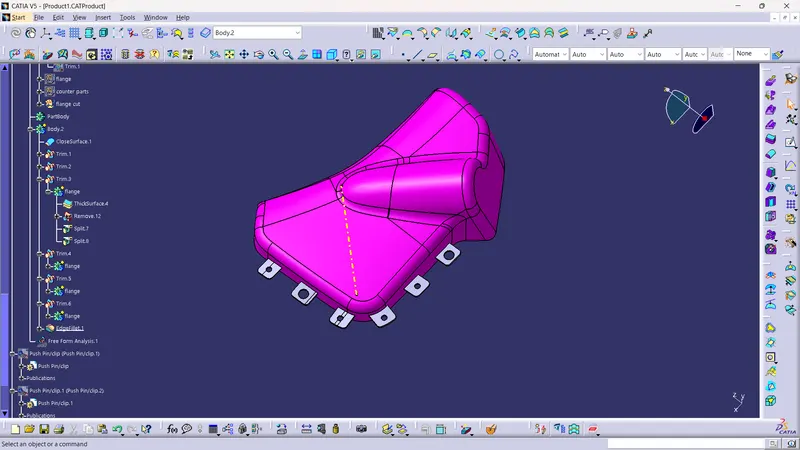

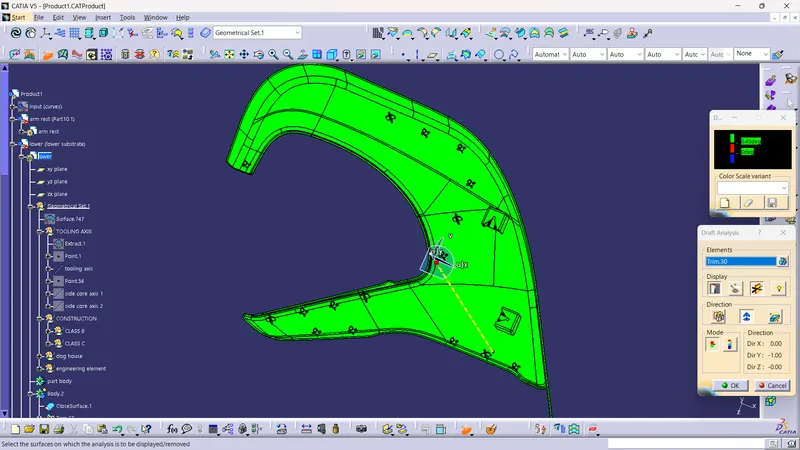

DRAFT ANALYSIS FOR CLOSED SURFACE

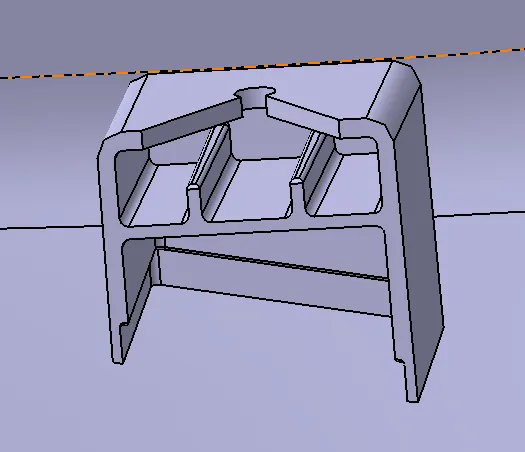

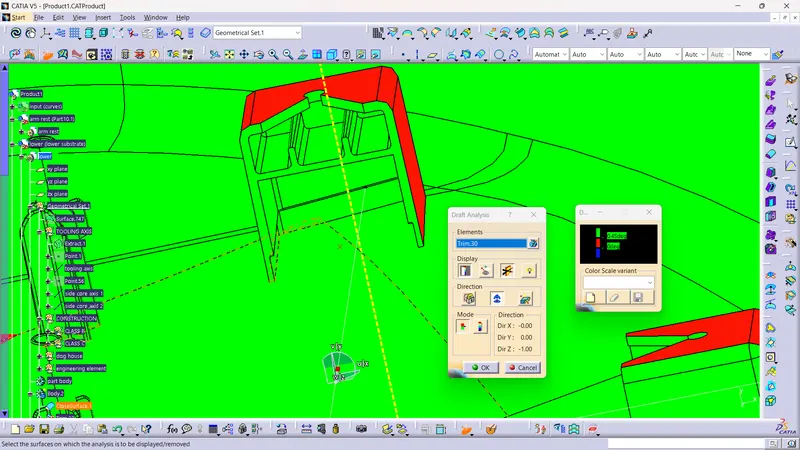

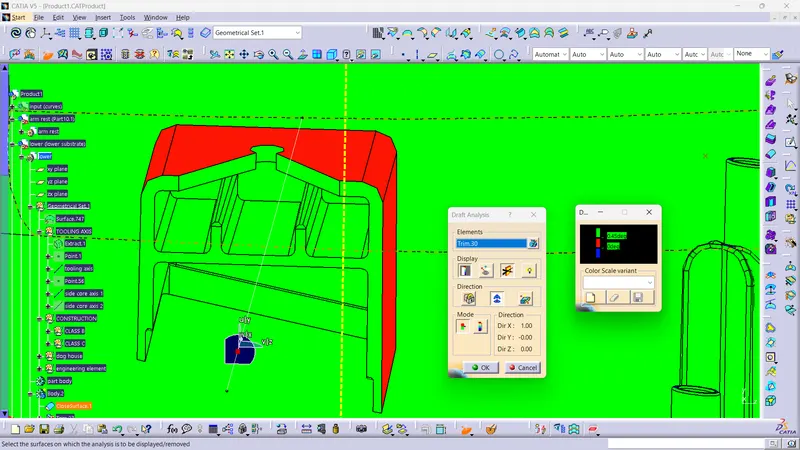

DRAFT ANALYSIS FOR DOG HOUSE BY SIDE CORE AXIS

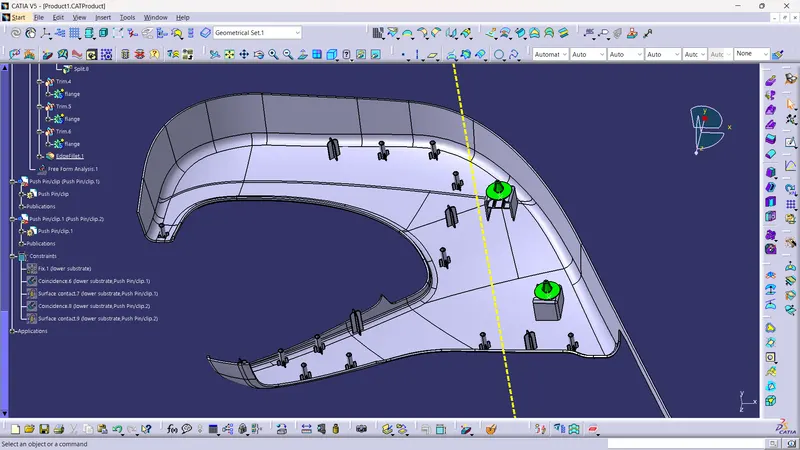

AFTER ASSEMBLING PUSH PIN

THERE WAS A CONFUSION IN DOG HOUSE BECAUSE 2 DIFFERENT IN INSTRUCTOR TOLD ME 2 DIFFERENT THINGS.

I HAVE HAVE SOME GAP BETWEEN RIBS AND PUSH PIN OR RIBS HAVE TO SUPPORT PUSH PIN ?

MADE TWICE BUT GOING WITH THIS SO PLEASE TELL ME IN REMARK.

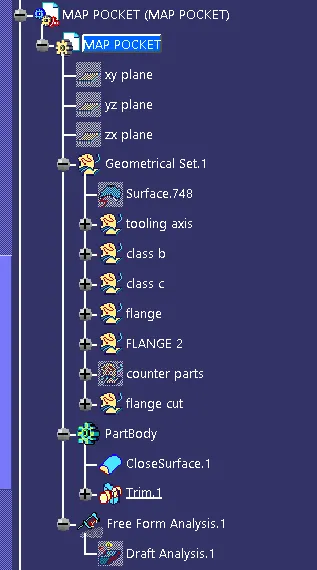

MAP POCKET

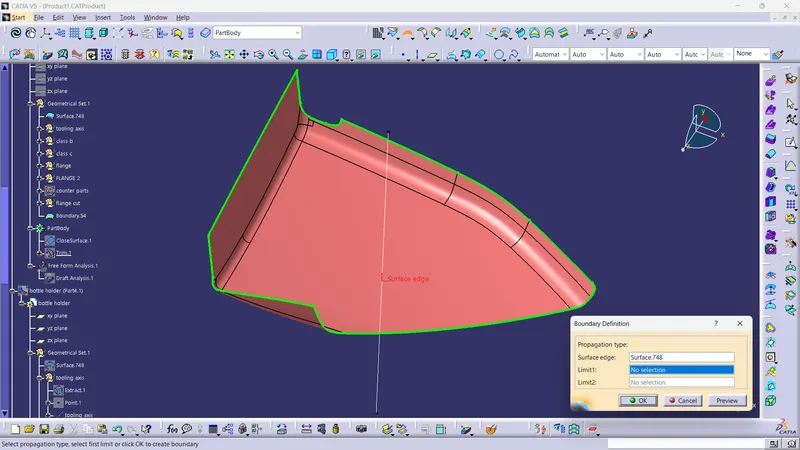

CLASS A

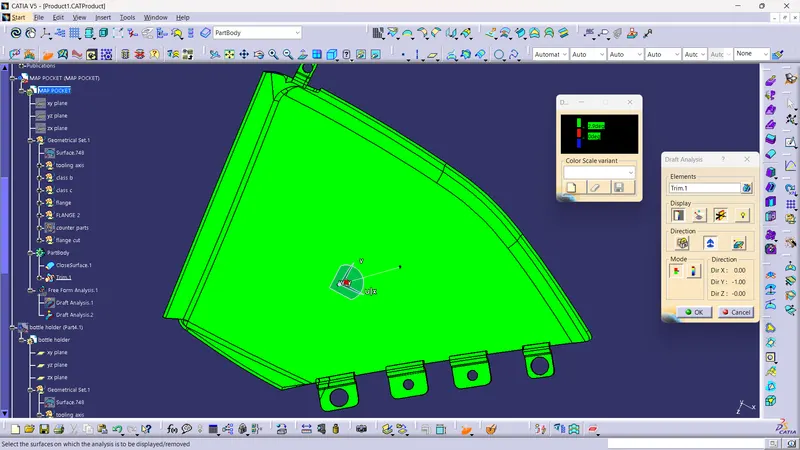

DRAFT ANALYSIS OF CLASS A

CLASS B

CLASS C

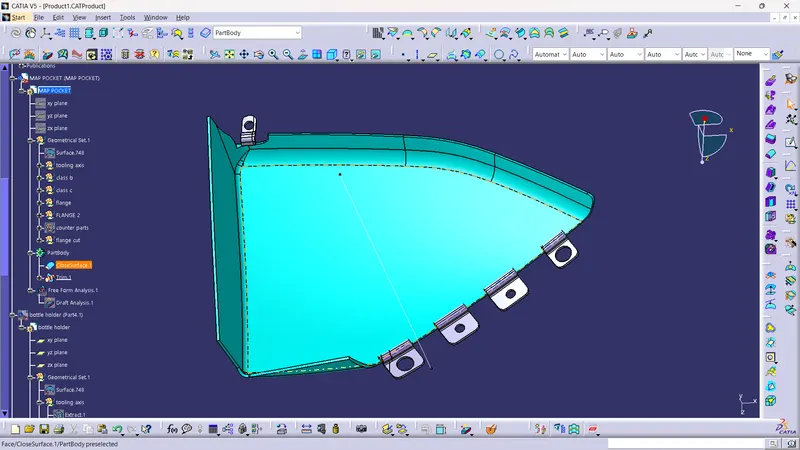

CLOSED SURFACE

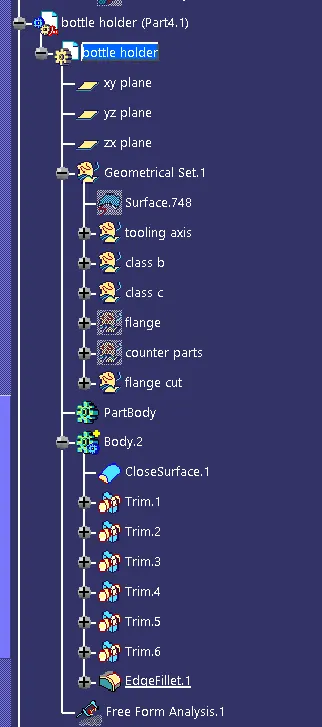

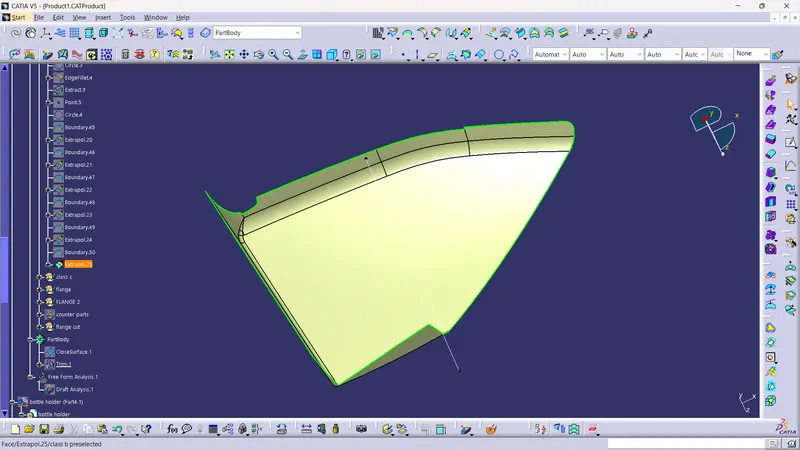

BOTTLE HOLDER

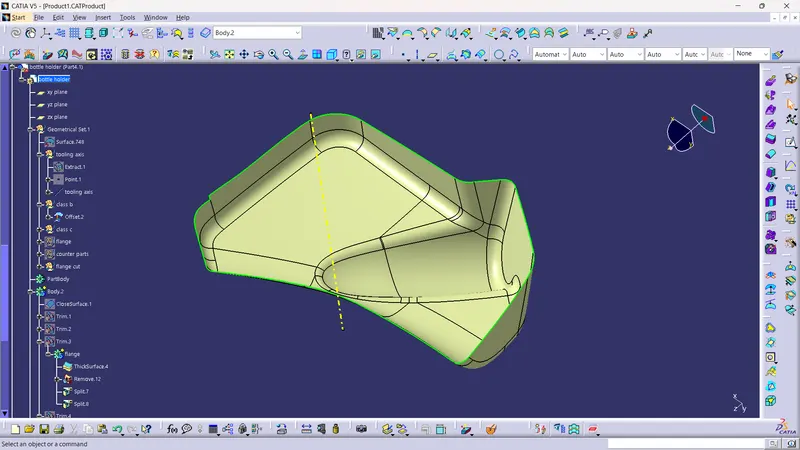

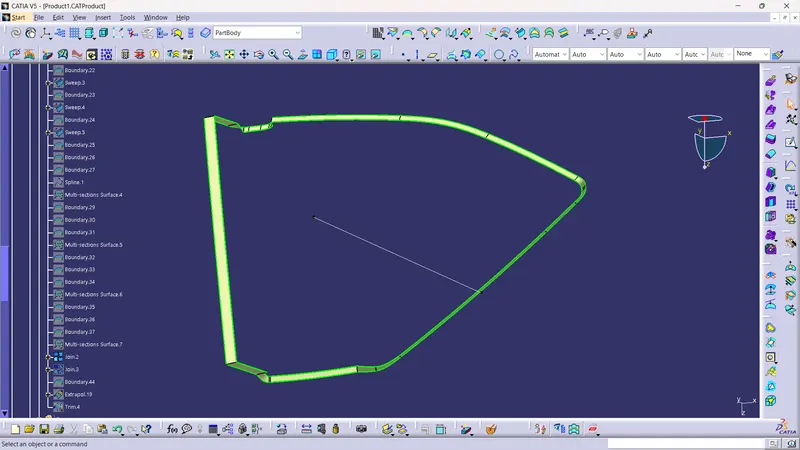

CLASS A

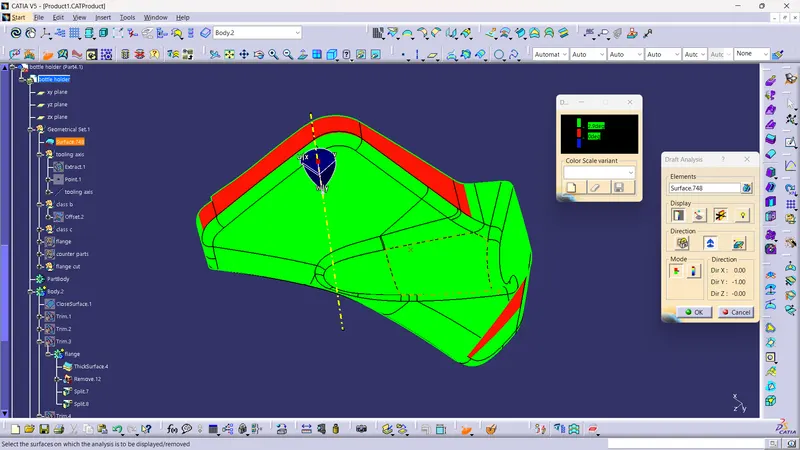

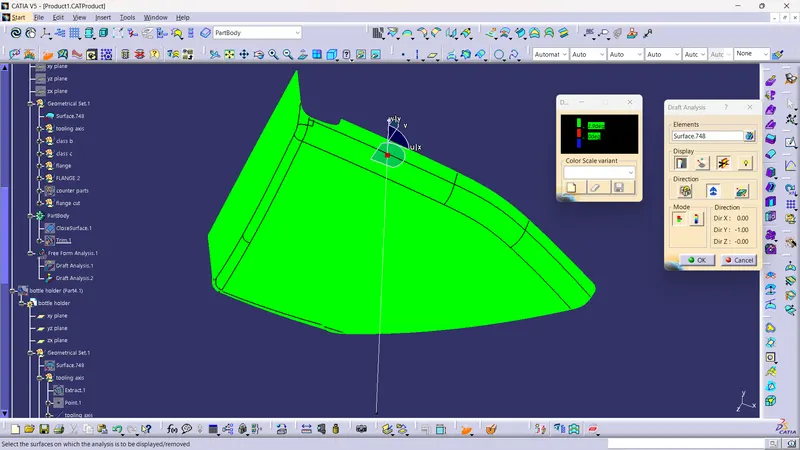

DRAFT ANALYSIS FOR CLASS A

THE SURFACE WAS NOT CLEARING DRAFT ANALYSIS BY MAKING TOOLING AXIS WITH POINT DIRECTION, NORMAL TO SURFACE AND EVEN AFTER TILTING THIS AXIS IN ±3 DEGREE BOTH SIDES.

CLASS B

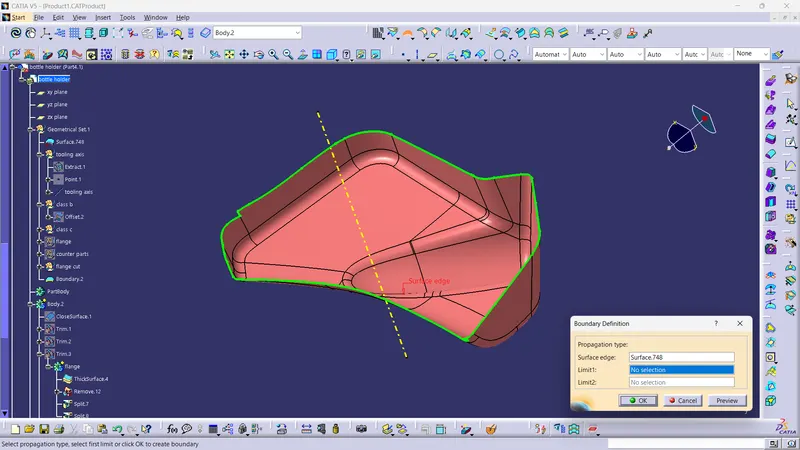

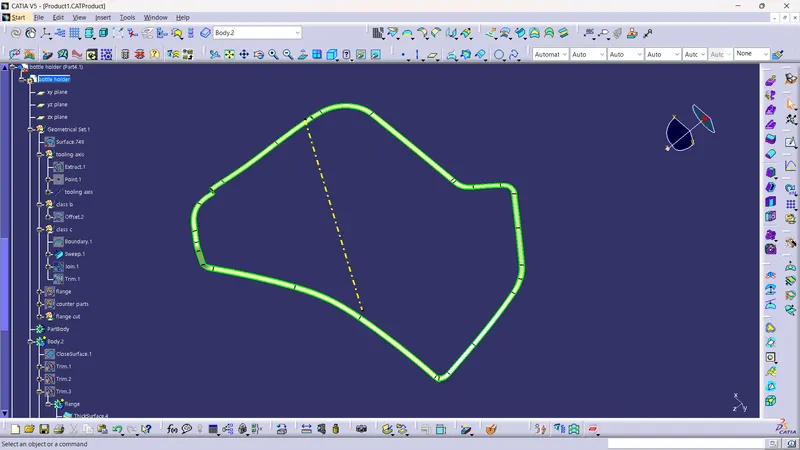

CLASS C

CLOSED SURFACE

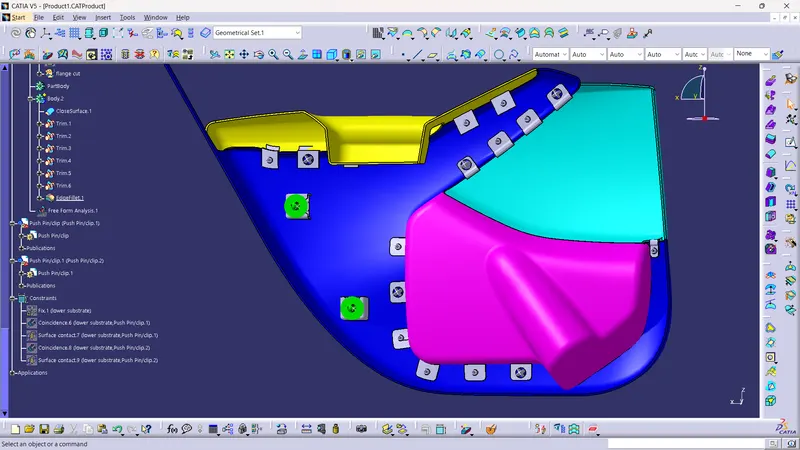

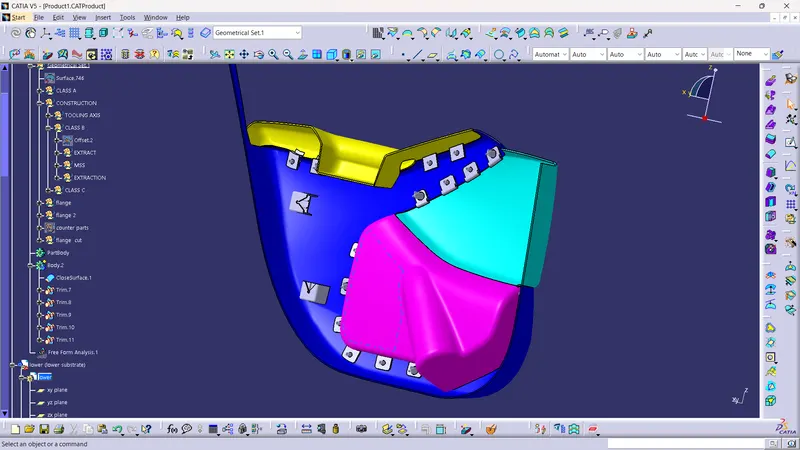

ALL TOGETHER
