Week 12 Challenge

                                                                            DOOR TRIM PANEL IntroductionThe car door trim is…

Create a CATIA parametric structure with publication commandProduct file with a proper name and part documents

Report on Designing a Mold for a CPU Fan Bezel in SolidWorks 1. IntroductionThe objective of this report is to document the process of designing a mold for a CPU fan bezel using SolidWorks. The design includes considerations for manufacturability, accuracy, and ease of use. 2. Initial Setup Software Preparation: Ensure…

Report on Designing a Mold for a Table Fan Base in SolidWorks 1. IntroductionThe objective of this report is to document the process of designing a mold for a table fan base using SolidWorks. The design includes considerations for manufacturability, accuracy, and ease of use. 2. Initial Setup Software Preparation:…

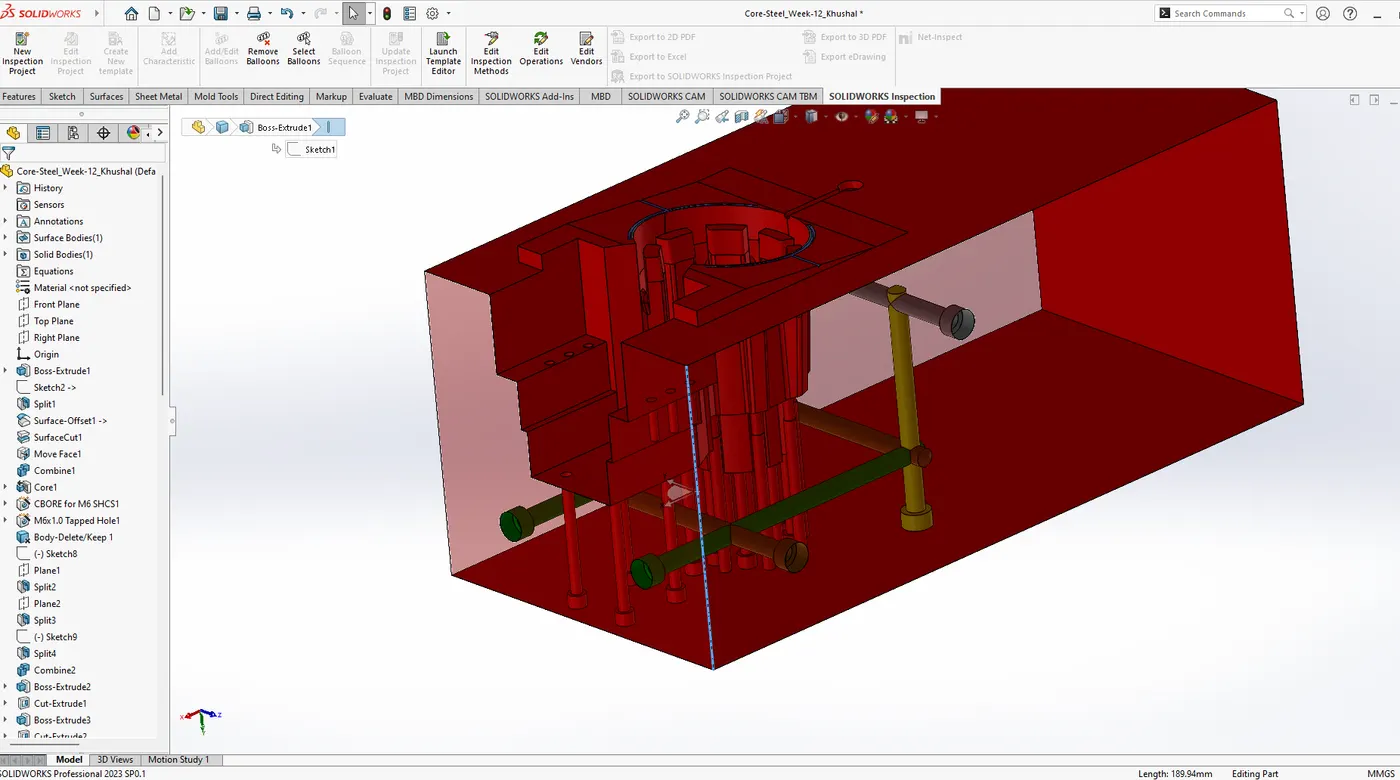

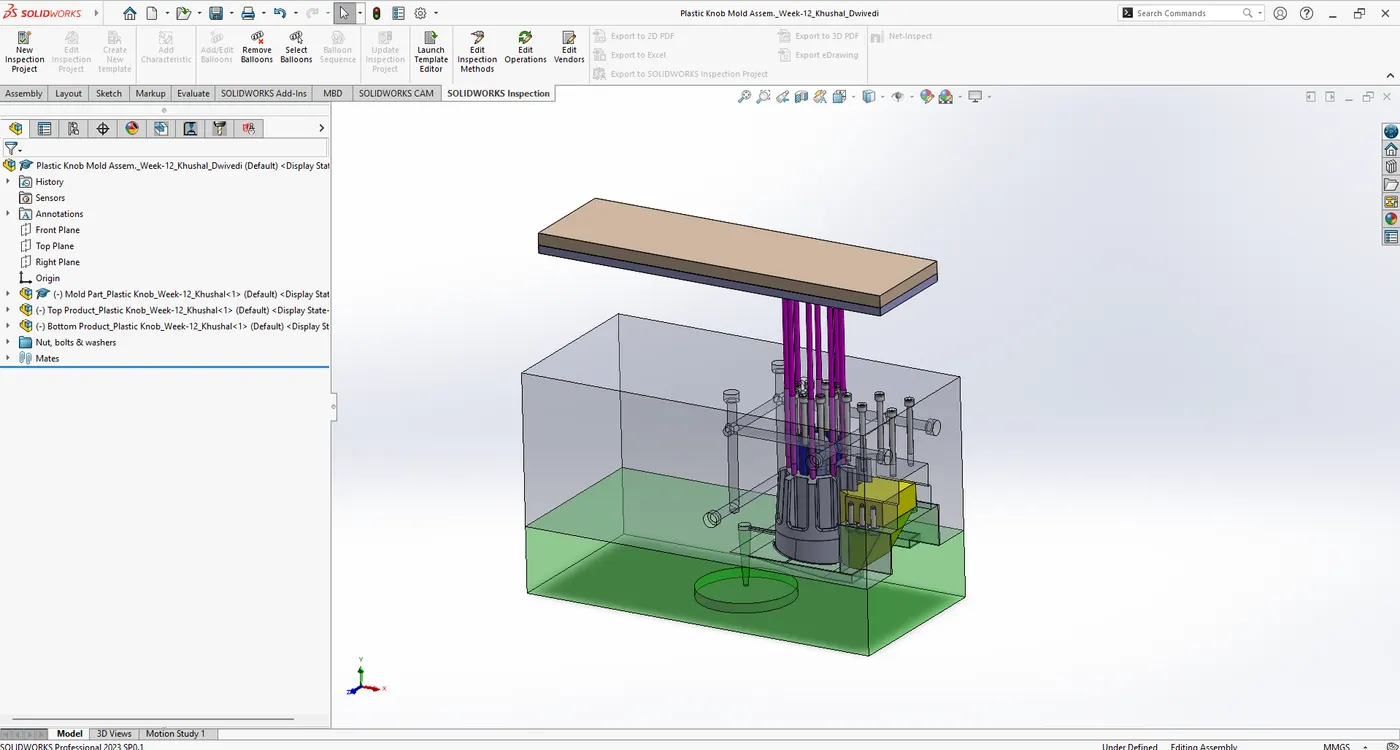

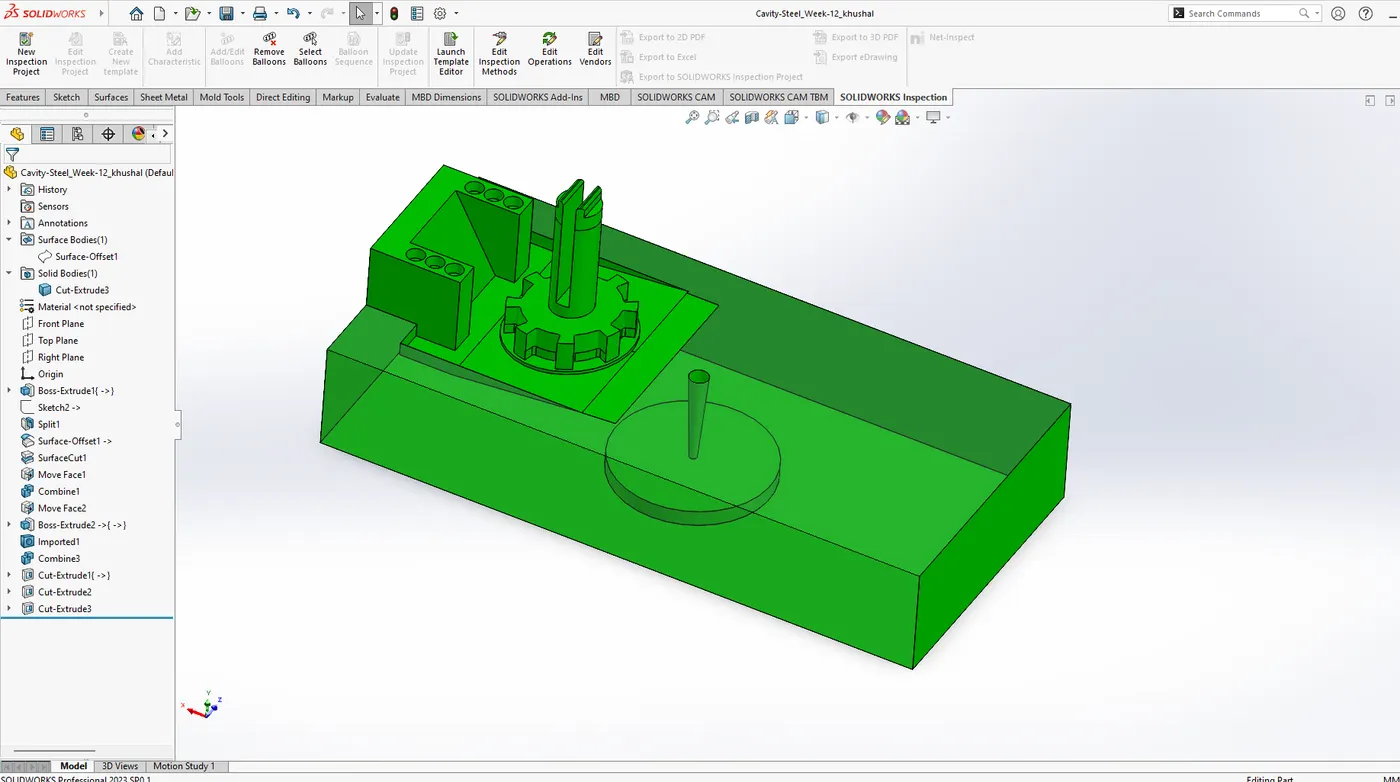

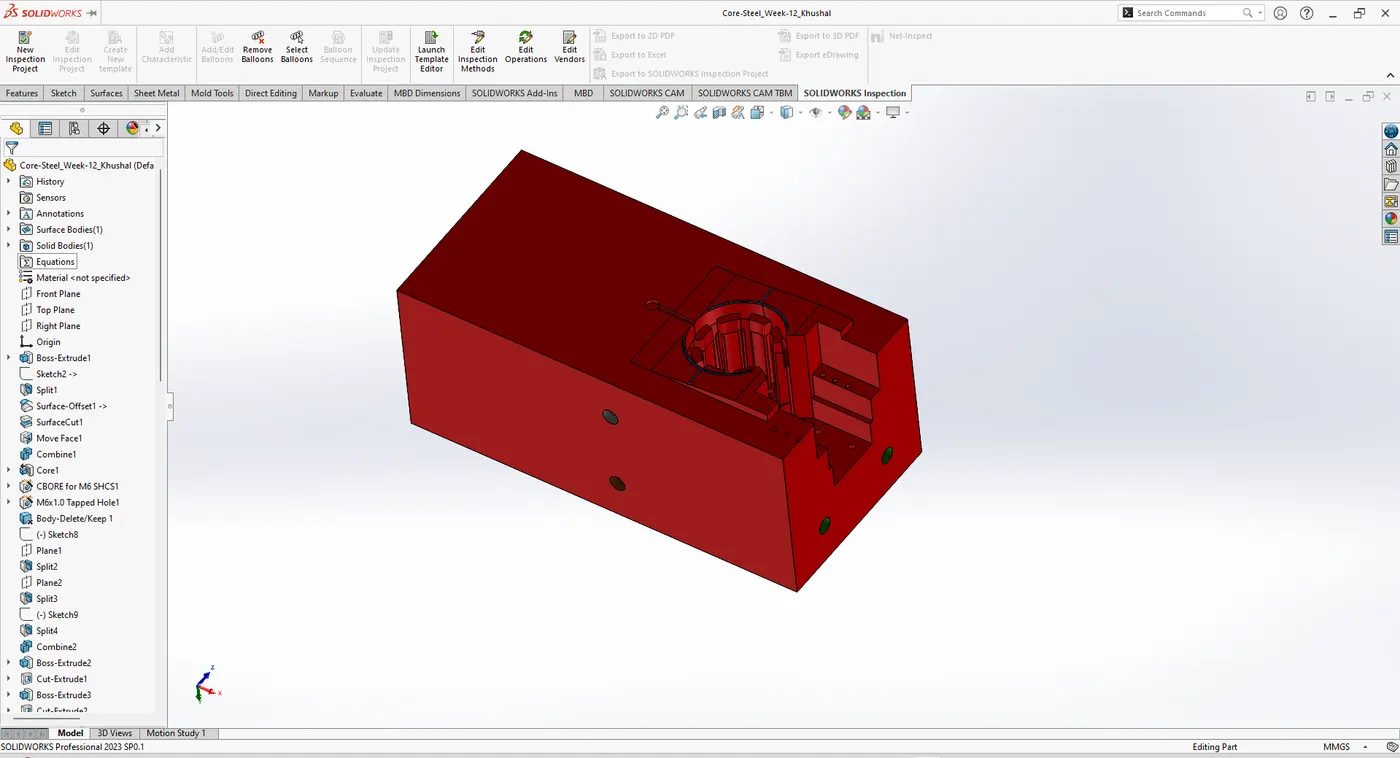

Designing the proper ejection system with ejector pins and plates, runner and gate system, air vents, and cooling channels for a mold using SolidWorks. 1. Initial Setup and Part Design Start SolidWorks: Open SolidWorks and create a new part document. Design the Part: Use the various sketch and feature tools…

     ''Routing for BACK DOOR '' TAIL GATE .STP  FILE CONVERT IN PART FILE :- CREATE NEW ASS. GIVEN NAME OF THE ASS. IS " TAILGATE_WIRING_HARNESS_ASS. EXISTING COMPONENT IN THIS ASS. ADD NEW PRODUCT FILE IN THIS ASS. THEN GIVEN NAME THE PRODUCT FILE IS TAILGATE_WIRING _HARNESS_GEOMETRICAL_BUNDDLE  ADJUSTING…

Report on Creating Sliders & Inserts for a CPU Fan Case Mold in SolidWorks This report details the procedure for creating sliders to accommodate complex geometries in a pre-designed CPU fan case part. Sliders are essential for molding features that cannot be formed by the main core and cavity pull direction. This…

Creating sliders for handling undercuts in the core and cavity of a door bezel part in SolidWorks involves a focused set of steps. Here’s a detailed procedure for designing sliders:Procedure for Making Sliders in SolidWorks 1. Identify Undercuts Draft Analysis: Use the `Draft Analysis` tool to identify undercut…

     ''Routing for side door panel''DOOR OF CAR IGS FILE CONVERT IN PART FILE :-GUIDING CHANEL IGS FILE CONVERT IN PART FILE > CREATE POINT ENTER POINT AND EXIT POINT OF THE BUNDDLE> CREATE A SKETCH FOR BUNDLE ROUTECREATE NEW ASS. GIVEN NAME OF THE ASS. IS " ASS. WIRING_HARNESS_CAR_DOOR_EXISTING COMPONENT…

3D modeling Week 7 Challenge Flattening    Switching  to the electrical harness flattening workbench create New Product FileSwitch to the Electrical Harness flatten Workbenchequipment & systems_ electrical harness discipline_electrical harness flattening. SETTING THE HARNESS FLATTENING…

3D modeling Week 5 & 6 Challenge:- wiring harness is an assembly of many components in it,it follows the assembly structure in virtual environment too.  week 5& 6 challenge  is main assembly  Multi branchable (contains all wiring Bundles) Connectors/Terminals as .CATPart  clips/clamps/ channels/brackets…

      3D modeling Week 4 Challenge:- wiring harness is an assembly of many components in it,it follows the assembly structure in virtual environment too. Geometrical Bundle is main assembly Multi branchable (contains all wiring Bundles)Connectors/Terminals as .CATPart clips/clamps/ channels/brackets…

Wiring harness routing & packaging Rules Week 3 Challenge1. P_CLAMP:-  these clamp are widely used for harness clamping in every area of the vehicle.                      clamps are plastic molded parts with mounting/snapping features.Following important parameters…

   3D modeling Week 2 Challenge1st  download steps files from  given link in this challenge after create catalog so insert new> select catalog document >then ok after open catalog window >select Add Family icon option > give file name > select electrical type >okgo to tools…

Week 11 - Project - A pillar Design with Master Section   Open the Part: -Open the Door Applique part in CATIA. then i  saw class a surface with master section TREE STRUCTURE:- Step 1:- Draft analysis of class A surface . Draft analysis in CATIA involves evaluating the angles and directions of draft…

                 Week 10 - Challenge 3 - Door Trim Lower with Engineering FeaturesOpen the Part:-Open the Door Applique part in CATIA.then i  saw class a surface and some reference  point for heat stake & locatorsStep 1:- Draft analysis of class A surface .Draft…

                                                 METAL_BRACKET_llREFRANCE 2D DRAWING FOR METAL BRACKET -SKETCH:- STARTNX12.0 AND CREATE A NEW SHEET METAL MODEL CALLED NX_BRACKET_ll_KHUSHAL_DWIVEDI.PRTCRATE…

                                                                                           …

                                          ODD SHAPED ENCLOSURE       1. INTRODUCTION:- STARTNX12.0 AND CREATE A NEW SHEET METAL MODEL CALLED NX_ODD_ENCLOSURE_KHUSHAL_DWIVEDI.PRT CREATE…

                                                                                   BOX ASSEMBLY     1. INTRODUCTION:- STARTNX12.0 AND CREATE A NEW SHEET METAL MODEL CALLED CASING.PRT CREATE A SKETCH INTHE XY PLANE AND DRAW A RECTANGLE CENTRED AT THE ORIGIN WITH AN XLENGTH OF 200MM AND a Y WIDTH OF 150MM. EXIT THE SKETCH…

                                                                                   CASING DESIGN  …

                                                                                           …

                                                                                             …

                                                                                                 BUMPER     Bumpers are an essential part of any vehicle, serving as the first line of defense against minor collisions and providing a bit of cushioning to protect passengers and the car itself. Bumper moulds, also known as…

                                                                                    SWITCH BEZEL DESIGN …

                                                                                         …

                                                                   ASSEMBLY WORKBENCH    ASSEMBLY WORKBENCH :-       …

                                                                         DESIGN OF BACKDOOR    INTRODUCTION:- Backdoor of the…

                                                                            ROOF DESIGN     AIM :- For the Given…

                                                                                 FENDER DESIGN    …

                                                              FENDER WHEEL ARCH CALCULATION                   …

                                                    SECTION MODULUS CALCULATION AND OPTIMIZATION  STATEMENT- Determine the Section Modulus of the Designed Hood. Create a new design…

                                                                               HOOD DESIGN     OBJECTIVE:- The main pourpose  of this project is to design a hood of a car with the given master section and BY following  neccessary safety precaution. The Body in White (BIW)inner panel and outer panel of the hood must be…

                                                                   UNDERBODY COATING    Underbody coating is an anti-corrosion process that…

  WHAT IS BENCHMARKING -                                                                                 …

                                                             ''  SECOND ORDER ODE PENDULUM ''   The ode is very important in engineering, which describes many…

                                                         '' Forward Kinematics Of A 2R Robotics Arm''    Why Use ROBOT in Industry ? Robotics are emerging field,there…
