Week 12 Challenge

The report for the remaining parts as follows:-

• The proper ejection system is provided,the molded component must be ejected from the mold to repeat the cycle,to eject the component the system must be developed according to the given dimensions.

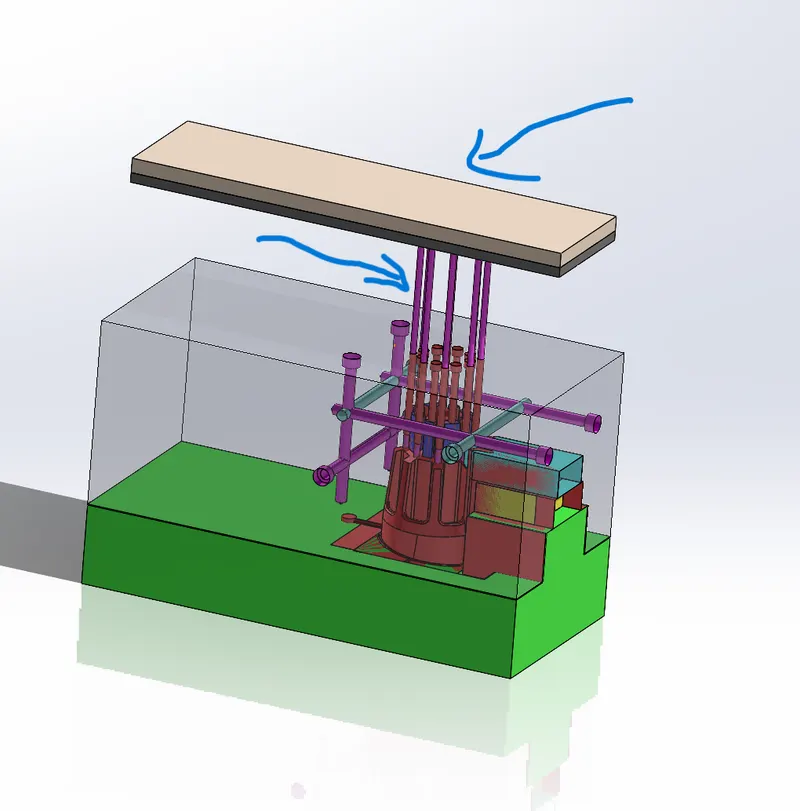

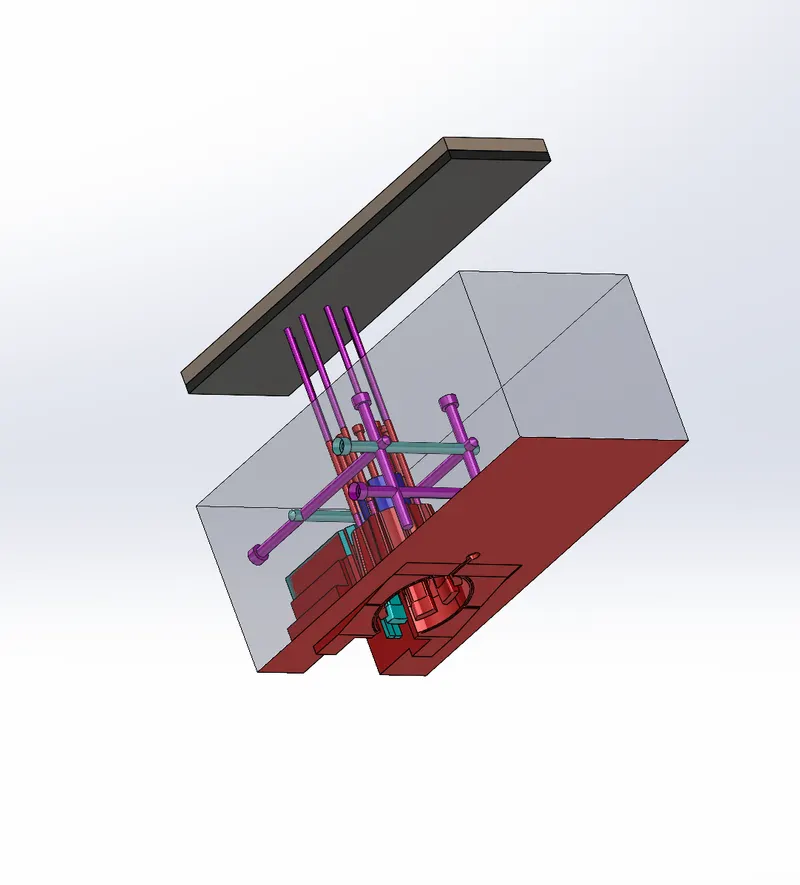

• The ejection system is developed with the use of ejector pins,ejector plate,ejector back plate.all the parts are shown in the fig below.and the releif must be provide through out the core,it starts from the 12 mm distance from the main component.

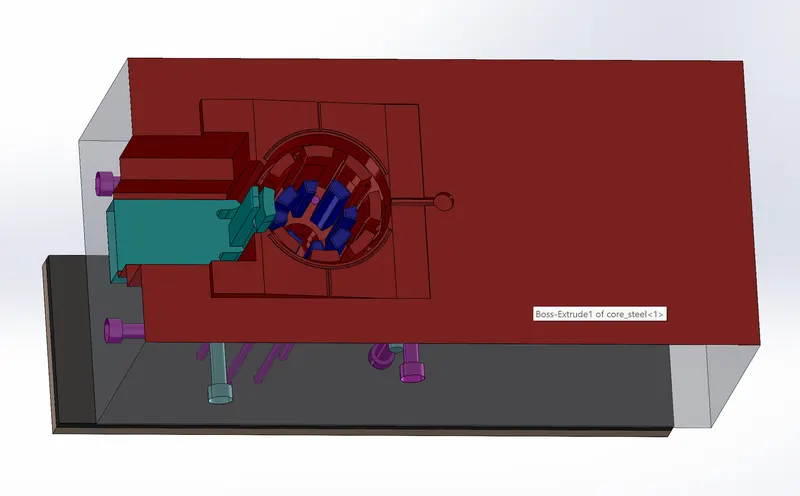

• The runner and gate is designed as per the given dimensions,the use of the runner and gate is through runner the material flows and gate restricts the part of flow and increase the flow pressure ,it is created the solid by using extruded boss command and created the shape of gate and combined it using the combine and substarct the body from the core since it is presented on the core body.
• The air vent is created such that the material cannot flow throw it and only air can flow throgh it,1mm depth is provided for hot air to move out from the process,0.1 mm is provided to trap the material flow and allows the hot air.The image shows the clearly the components.

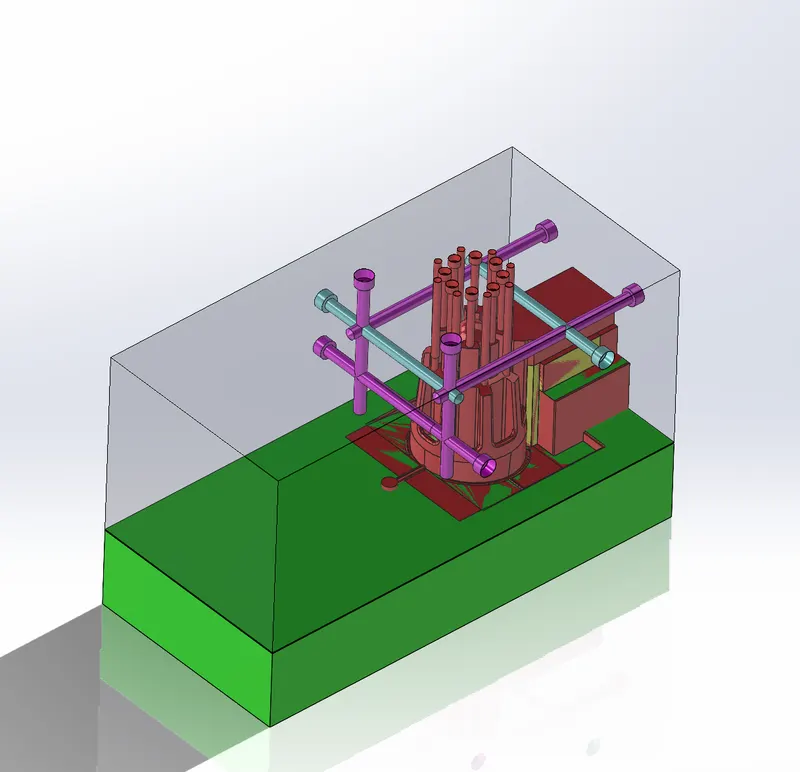

• The mold cooling is very much needed to cool the molds repeatedly by using the water as a coolant,sometimes oil.these cooling occurs by the creation of holes to the core block with the use of standards and make a cut with hole wizard,and finally gave the direction of flow,and this process continues foe whole processing time.if no cooling provided the milding produts may change its shape due to the heat and temparature of mold,all the cooling channels are shoen in the below image.
