Week 12 Challenge

1.Generate report for the steel building design from challenges 1 – 6 along with the loading summary

AIM : To generate report for steel building design with loading summary

TOOLS USED : Open, Model Report, Building loading, loadcase summary, show report.

PROCEDURE :

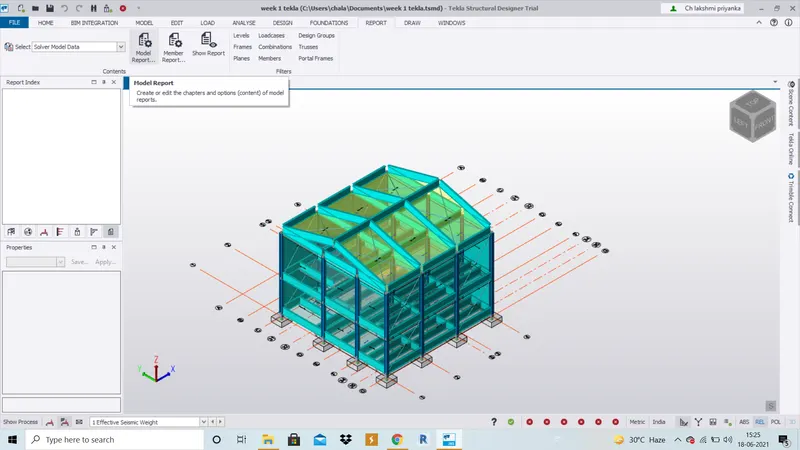

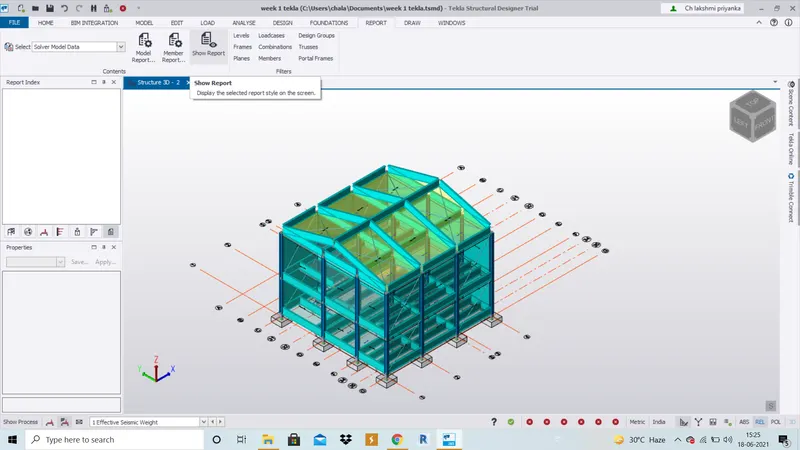

1. Open the steel structure and click on Model report.

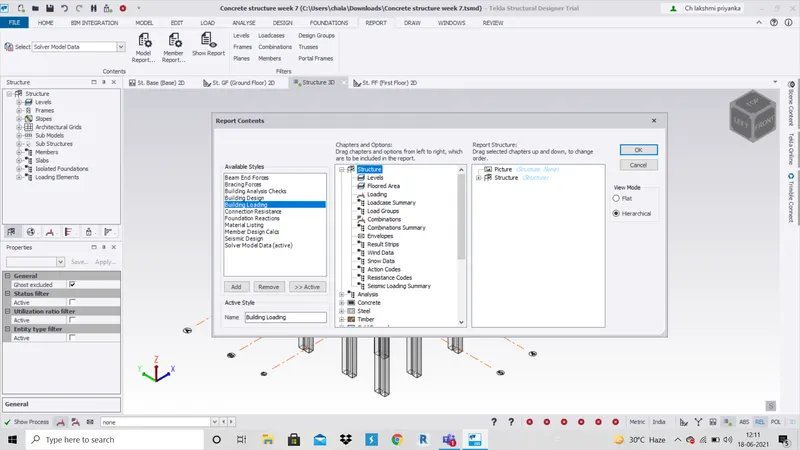

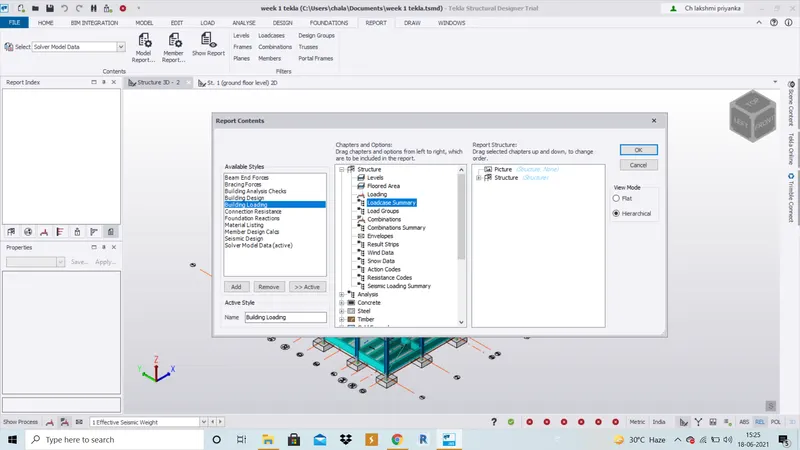

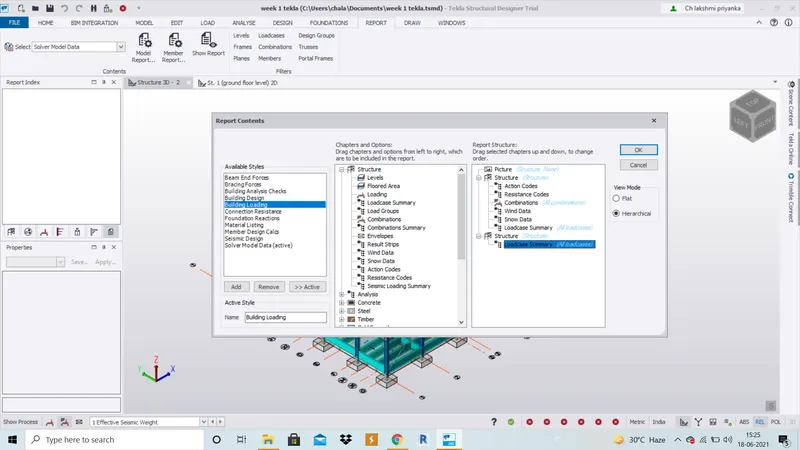

2. Click on building loading in avaliable styles tab in left of report contents dialogue box.

3. Click on structure and drag the loadcase summary and drag it into the contents and click ok.

5. Click on show reports in report tab to generate reports.

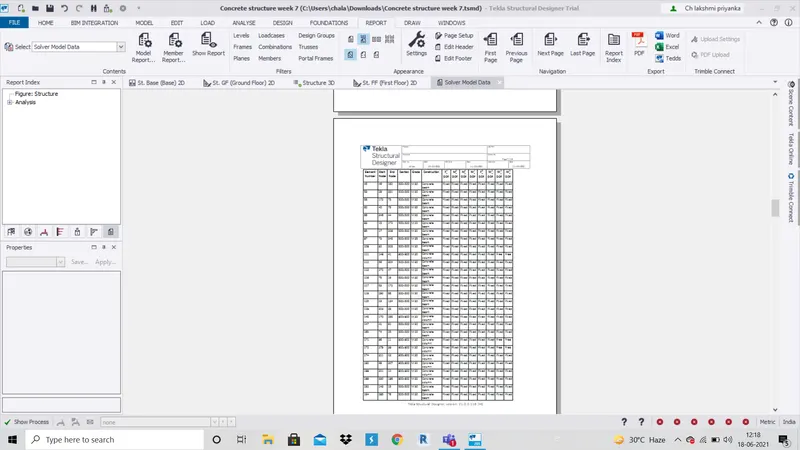

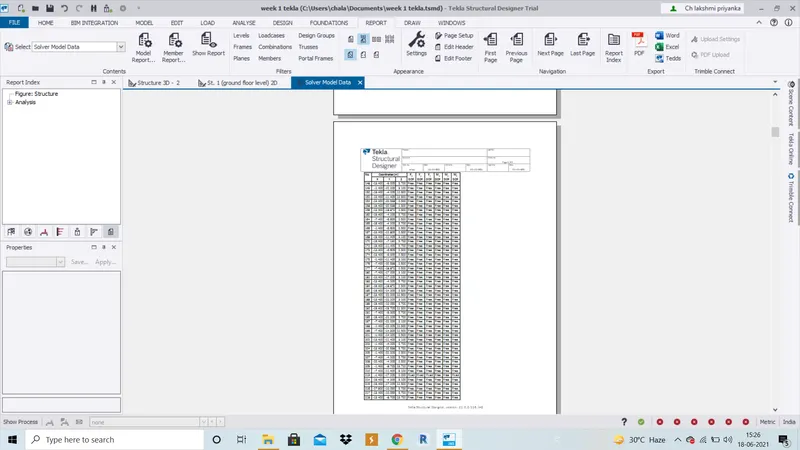

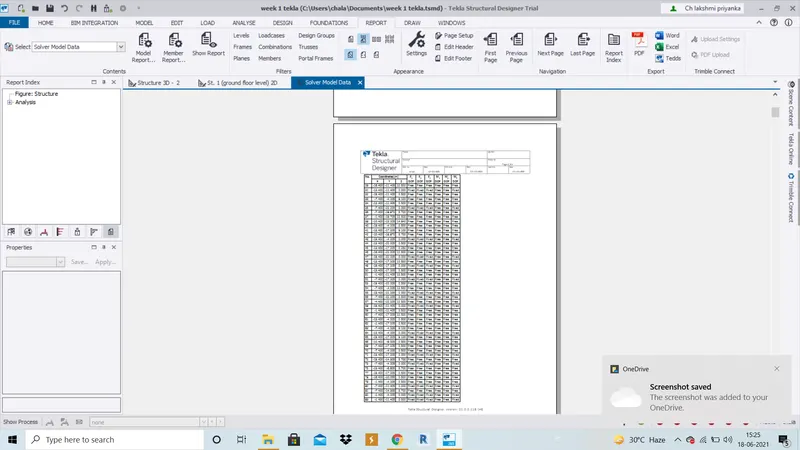

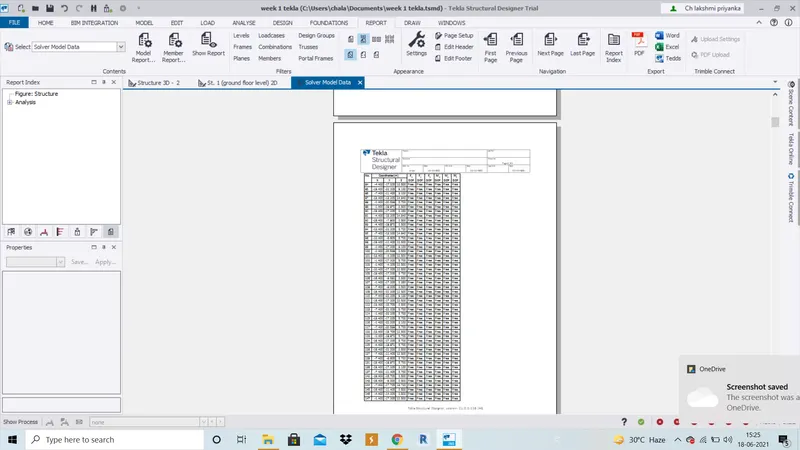

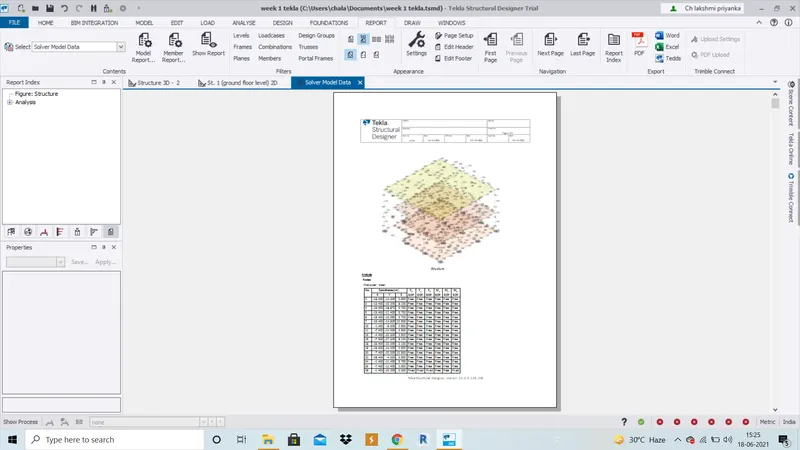

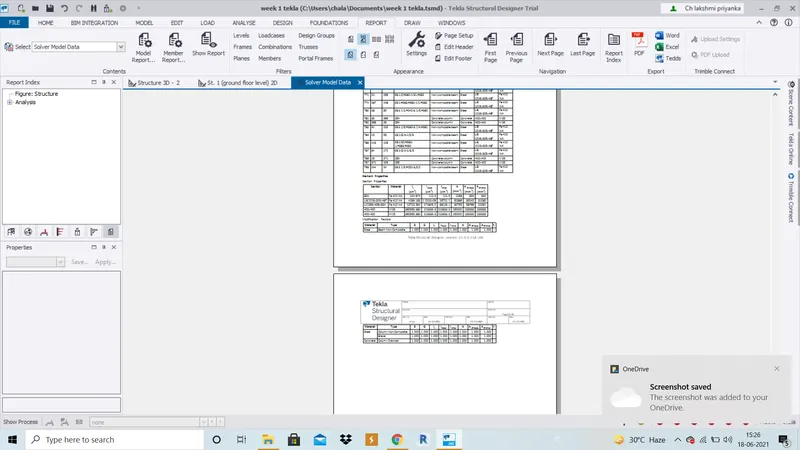

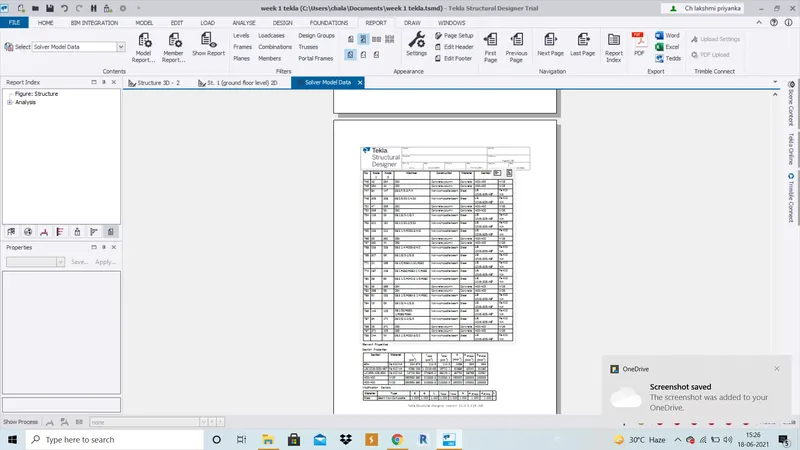

RESULTS : The following reports are generated.

Only few reports are shown as it wont be difficult to show all the generated reports.

2.Generate report for RC structure along with the loading summary

AIM : To generate report for RC structure along with loading summary

TOOLS USED : Open, Model Report, Building loading, loadcase summary, show report.

PROCEDURE :

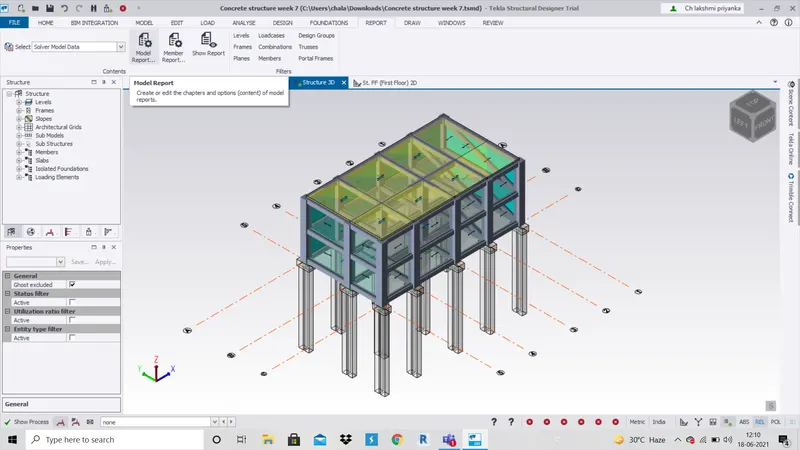

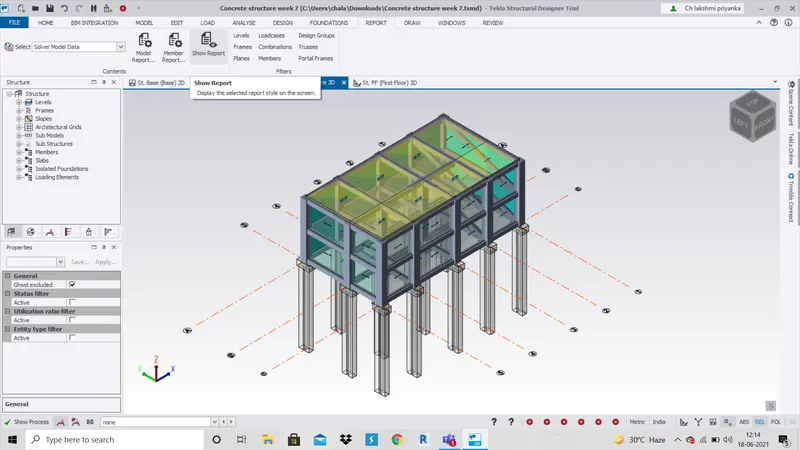

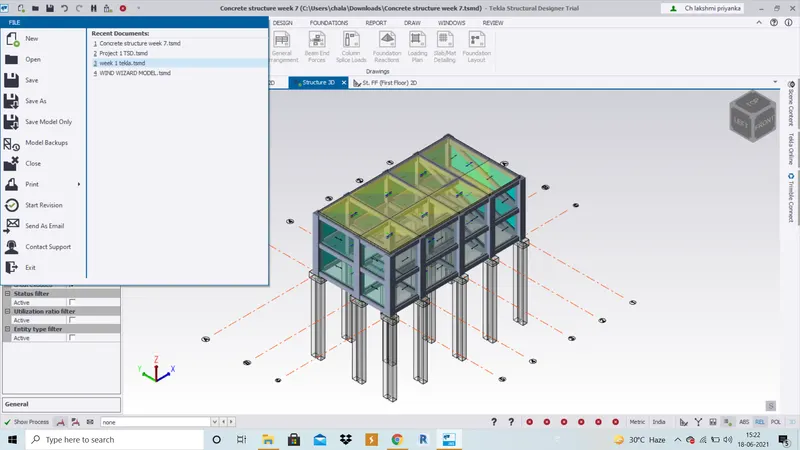

1. Open the RC structure and click on Model report.

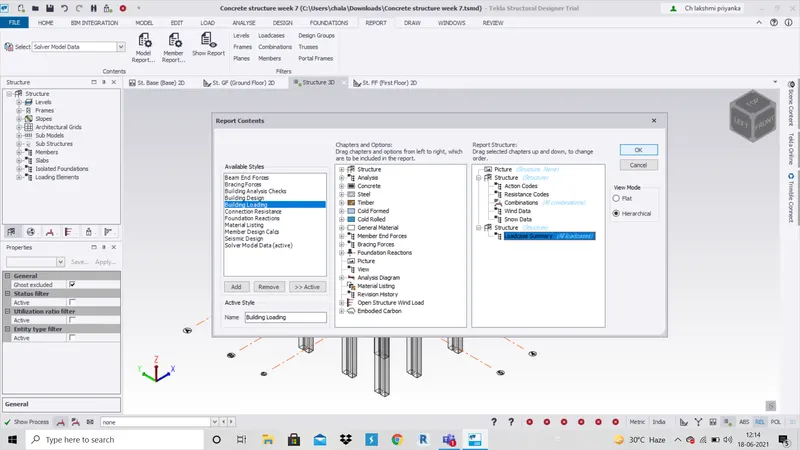

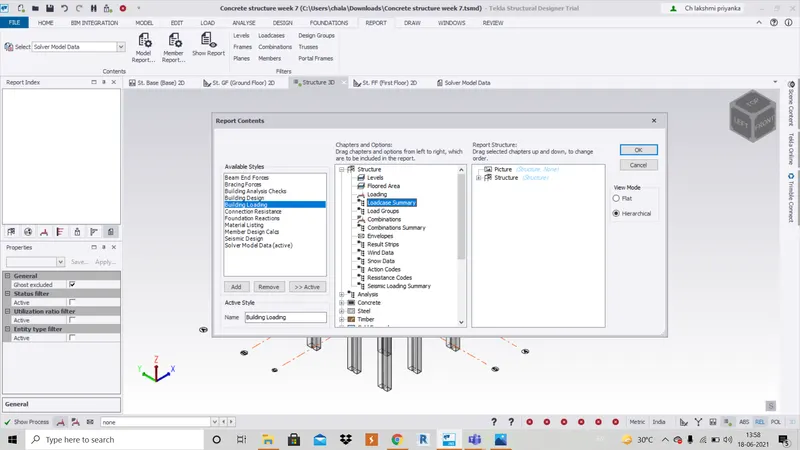

2. Click on building loading in avaliable styles tab in left of report contents dialogue box.

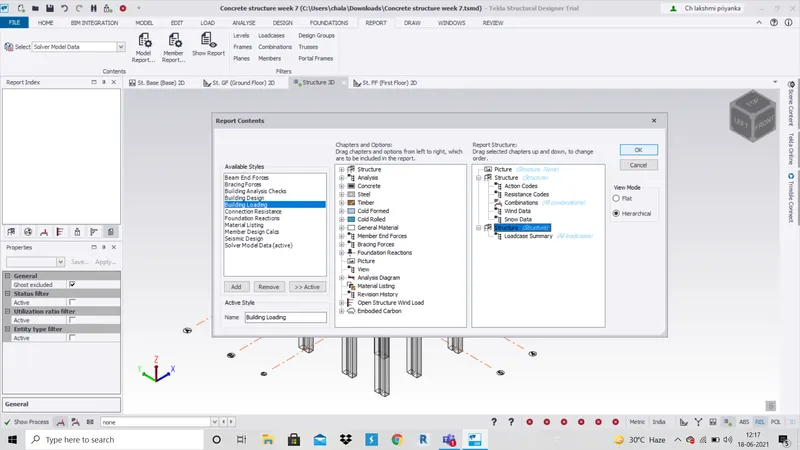

3. Click on structure and drag the loadcase summary and drag it into the contents.

4. Review all the contents and click ok.

5. Click on show reports in report tab to generate reports.

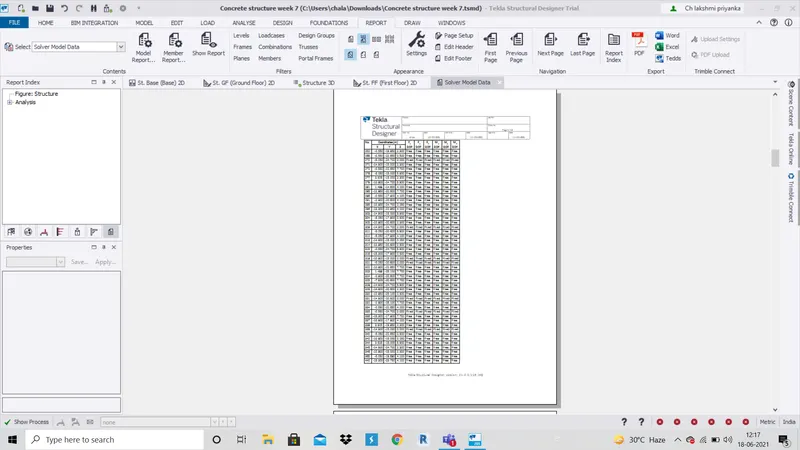

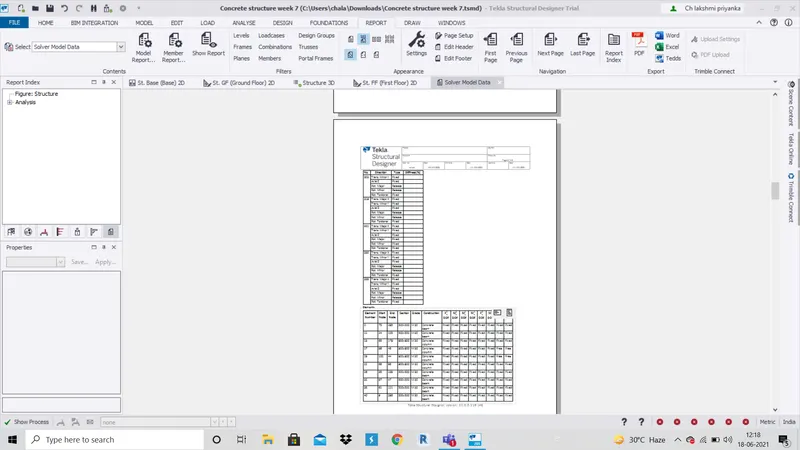

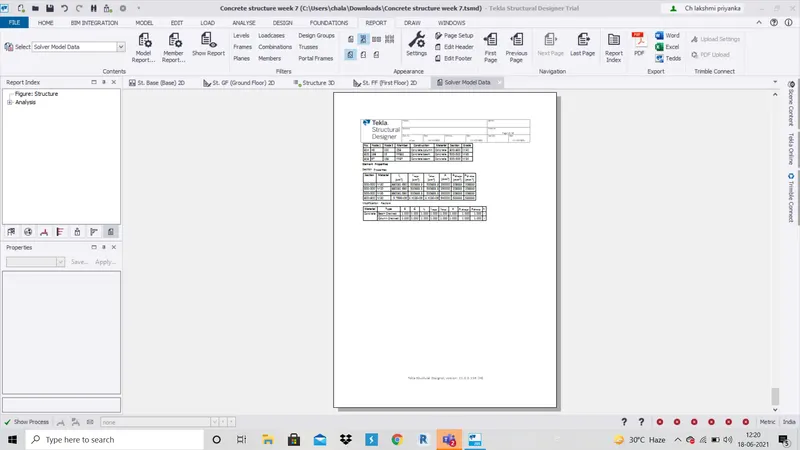

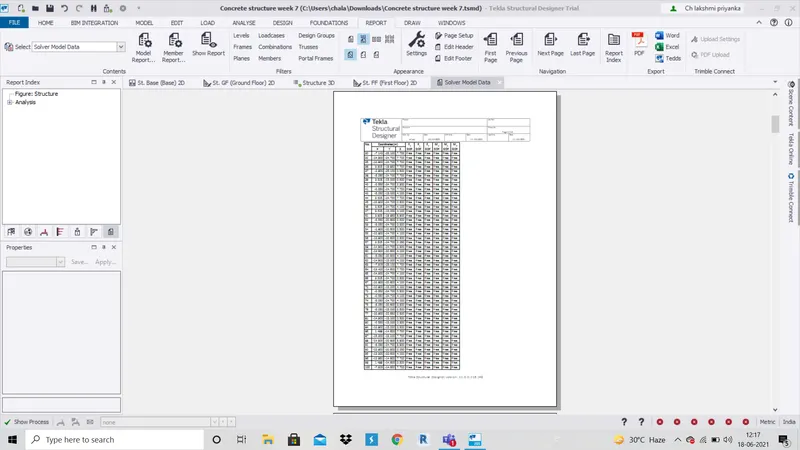

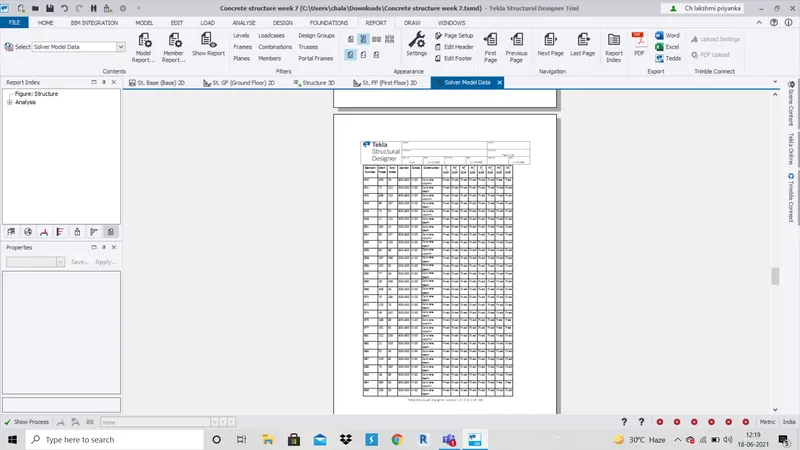

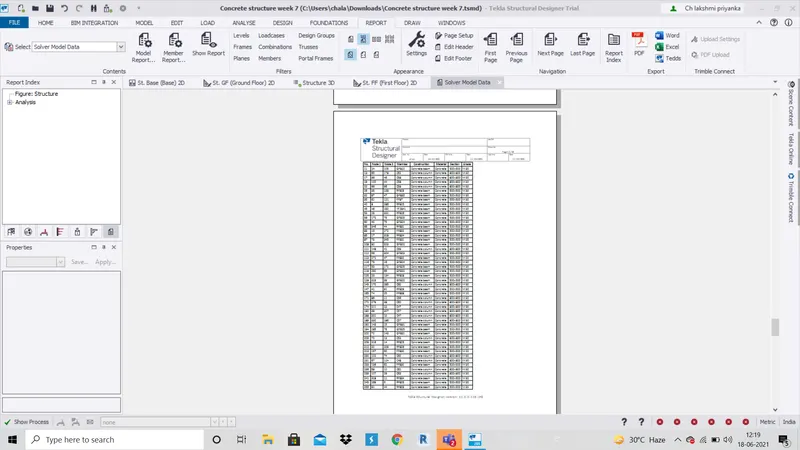

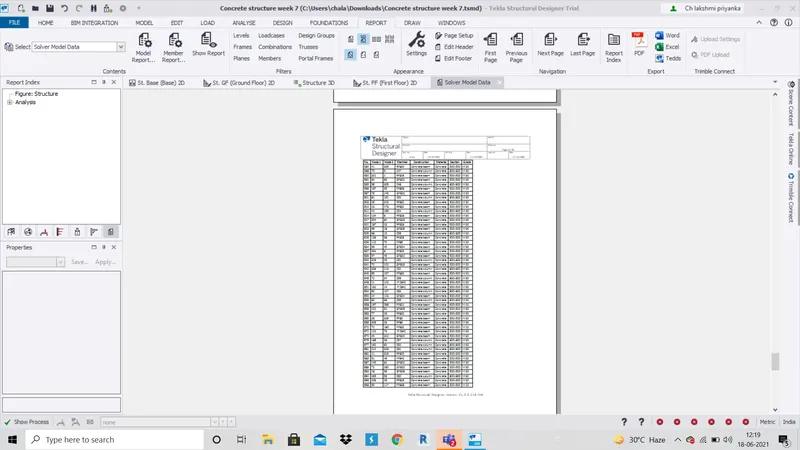

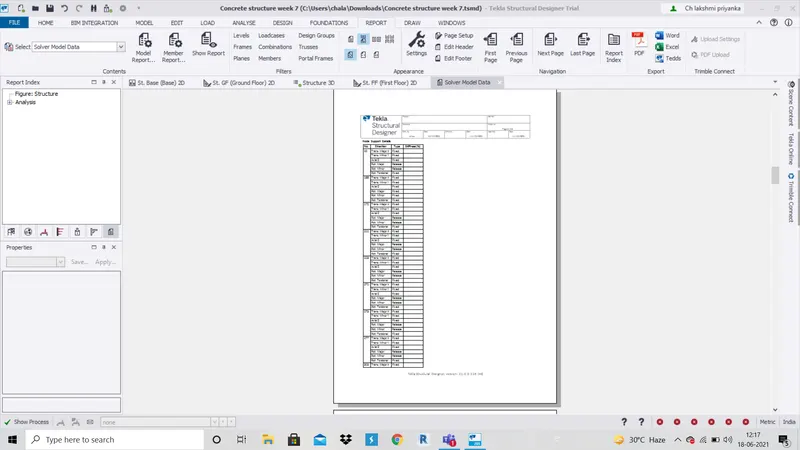

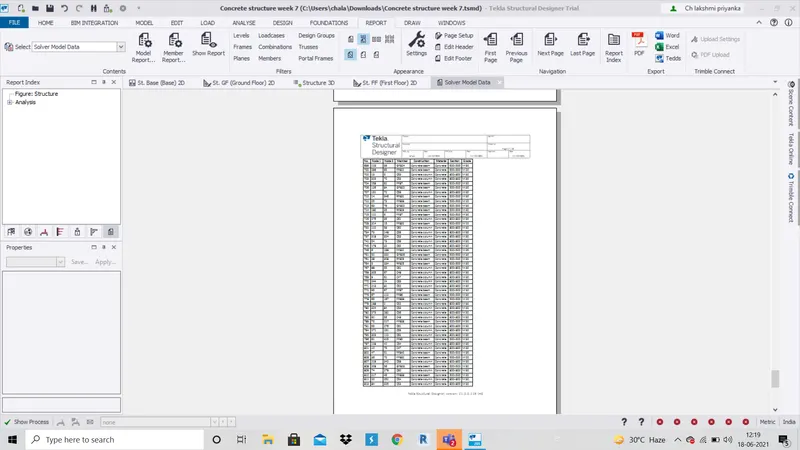

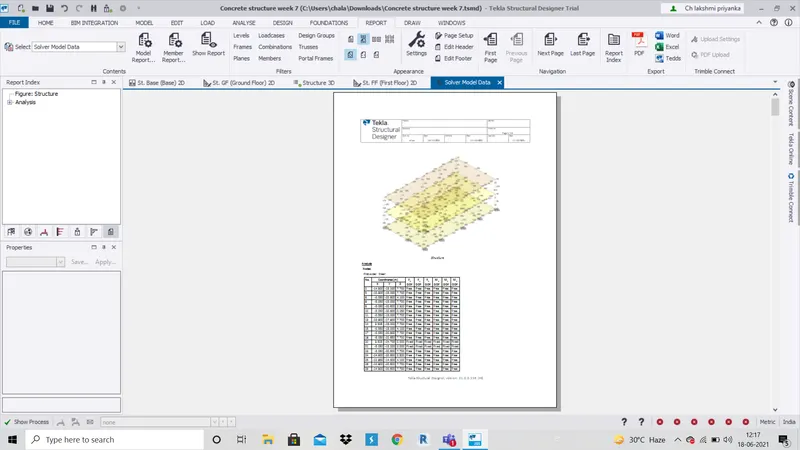

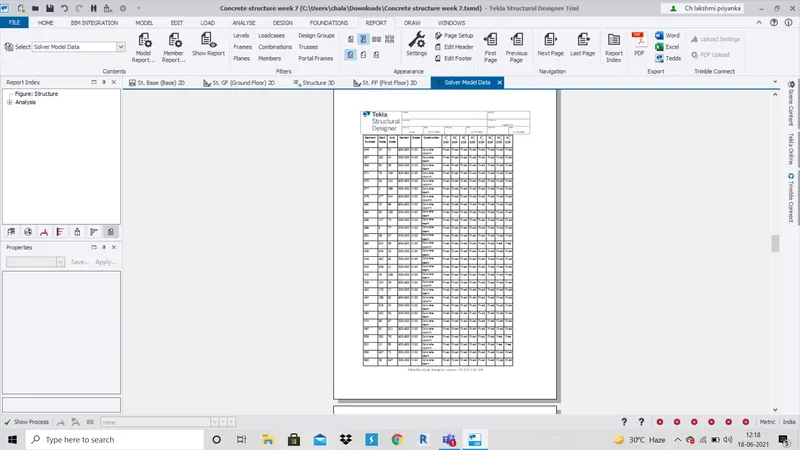

RESULT : The reports are generated successfully.

3.Update the layers settings in the model and generate plan drawings and details from the model

 AIM : To update the layers settings and generate plan drawings and details from the model.

TOOLS USED : Draw tab, Settings, Layer Styles, Colour.

PROCEDURE :

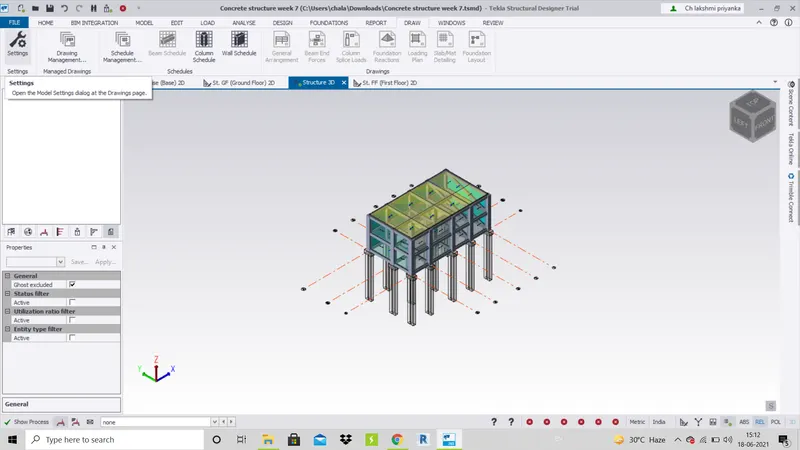

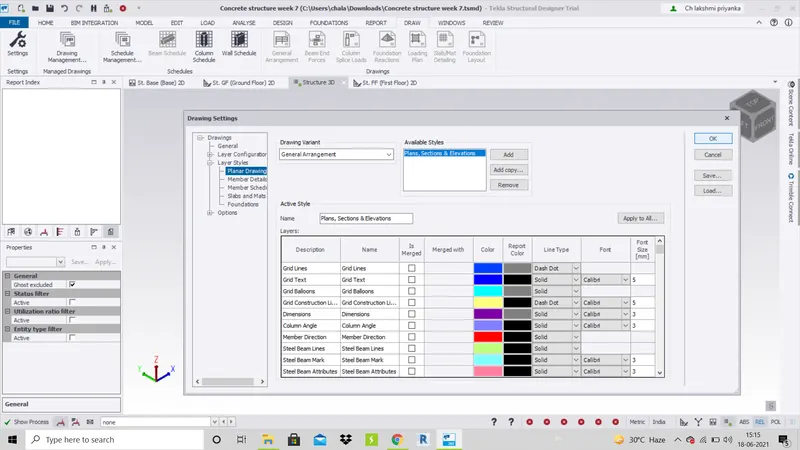

1. Click on Settings in the draw tab.

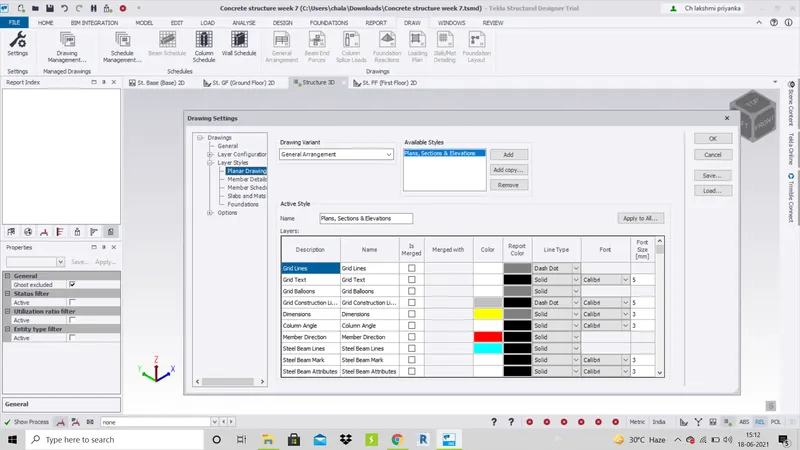

2. In the tab that appears, click on Layer Styles in the Drawings.

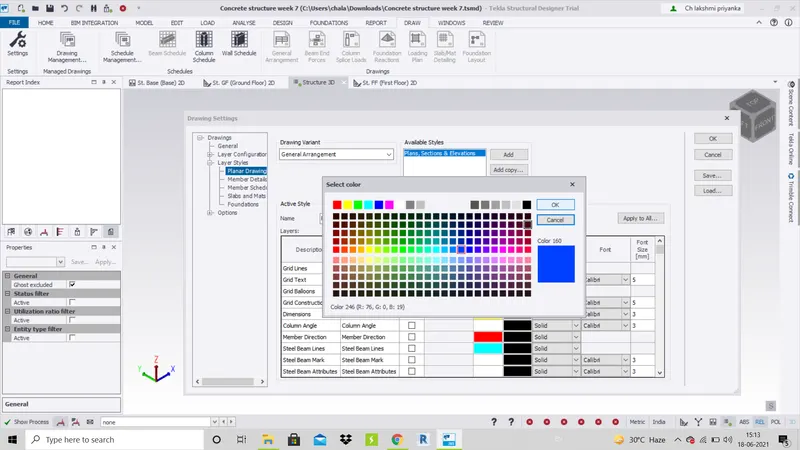

3. Click on the colur and select the coulour as you require and click ok.

4. Again click ok after creating layers for all the lines, members of TSD.

RESULT : The layers are successfully created.
