Week 11 - Simulation of Flow through a pipe in OpenFoam
Simulation of Flow through a pipe in OpenFoam:
Aim:
To simulate an axi-symmetric flow by applying the wedge boundary condition. Do a transient or steady state simulation and you will validate your results with the Hagen- Poiseuille's equations for the fully developed flow.
Write code in Matlab to automate the generation of blockMeshDict file. The code should take inputs like pipe length, diameter, wedge angle, etc and output a fully functional blockMeshDict file.

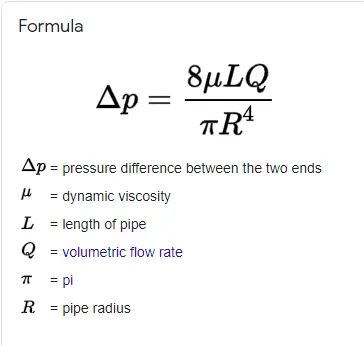

Hagen–Poiseuille law
Question parametrs

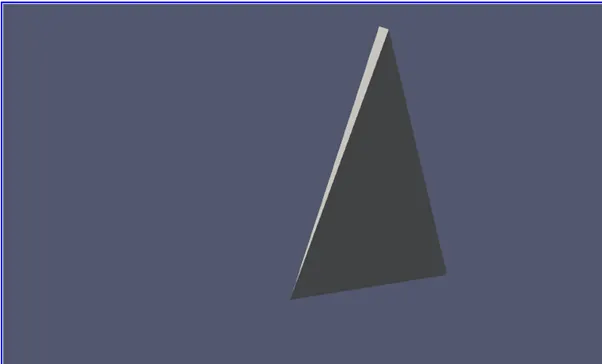

- You can create a wedge from a hex block by collapsing its bottom face (by merging both sets of adjacent vertices)
- Wedge angle should be less than 5 degree
- You can assume the pipe diameter
STep by step procedure
Steps to follow
1. Creating the blockmeshDict file, using the matlab code. Replace this Blockmeshdict file with the one in the cavity folder created.
2. The mesh is given as per the requirement.
3. The U and p files are updated as needed
4. The controlDict file in system folder is edited for Simulation run time and timestep;
5. After the geometry is input, the simulation can be started by calling 'icoFoam' command in the terminal.

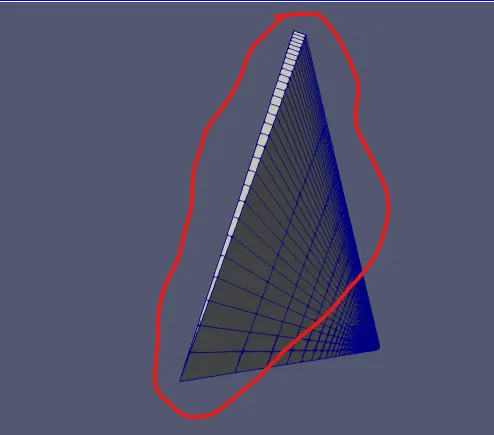

6. Use paraFoam command to open paraView to check the meash

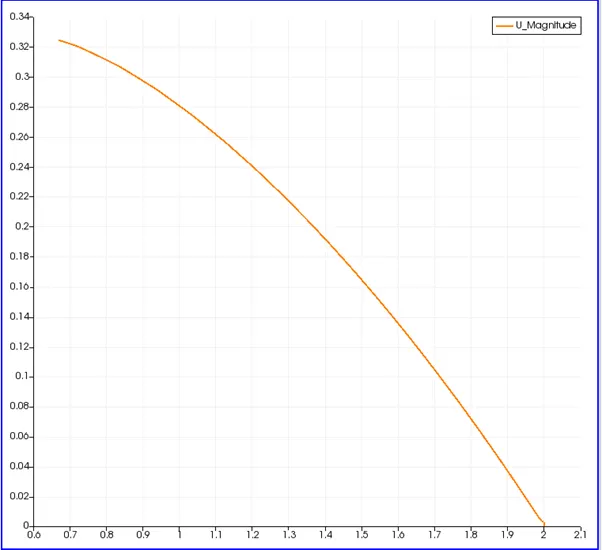

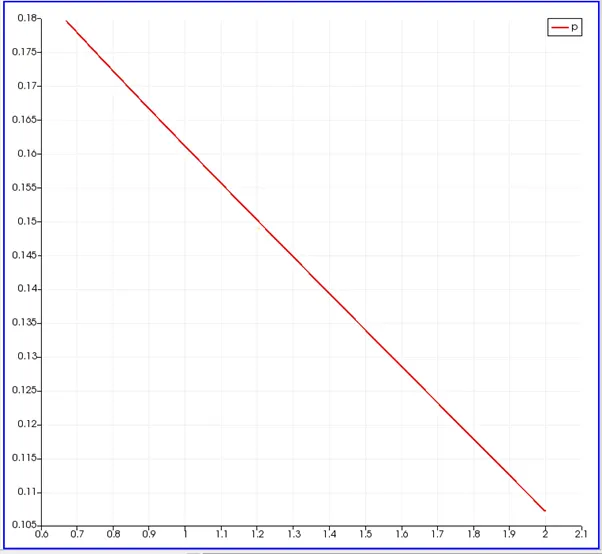

7. The shear stress diagram is obtained by post-processing the velocity results obtained from Openfoam. Open plot over line to create the velocity and pressure files.
MATLAB CODE
clear all
close all
clc
% The Reynolds number
Re = 2100
% The Diameter of pipe
D = 0.01
% The Entry length of pipe
L =0.05*Re*D
% The total length of pipe
L_p = L+0.95
% Radius of pipe
r = D/2
% Angle of wedge (less than 5)
theta = 2
% Dynamic viscosity
mu = 0.89e-3
% Density
rho = 997
% Hagen poiseuille flow equations
v_avg = (Re*mu)/(rho*D)
v_max = 2*(v_avg)
del_p = (8*mu*L_p*v_avg)/(r^2)
kinematic_p = del_p/rho
header1='/*----------------------------------*- C++ -*------------------------------------*'
header2=' ========= | '
header3=' \ / F ield | OpenFOAM: The Open Source CFD Toolbox '
header4=' \ / O peration | Website: https://openfoam.org '
header5=' \ / A nd | Version: 8 '
header6=' \/ M anipulation | '
header7='*----------------------------------------------------------------------------------*/'
f1 = fopen('blockMeshDict','w')
fprintf(f1, '%sn', header1)
fprintf(f1, '%sn', header2)
fprintf(f1, '%sn', header3)
fprintf(f1, '%sn', header4)
fprintf(f1, '%sn', header5)
fprintf(f1, '%sn', header6)
fprintf(f1, '%sn', header7)
fprintf(f1, 'FoamFilen{n')
fprintf(f1, '%12s t 2.0;n','version')
fprintf(f1, '%12s t ascii;n','format')
fprintf(f1, '%12s t dictionary;n','class')
fprintf(f1, '%12s t blockMeshDict;n','object')
fprintf(f1, '}n')
header8='// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //'
fprintf(f1, '%snn',header8)
fprintf(f1, 'convertToMeters 1;nn')
fprintf(f1, 'verticesn')
fprintf(f1, '(n')
fprintf(f1, 't (%d %d %d)n',0,0,0)
fprintf(f1, 't (%d %d %d)n',0,r*cosd(theta/2),r*sind(theta/2))
fprintf(f1, 't (%d %d %d)n',0,r*cosd(theta/2),-r*sind(theta/2))
fprintf(f1, 't (%d %d %d)n',L_p,0,0)
fprintf(f1, 't (%d %d %d)n',L_p,r*cosd(theta/2),r*sind(theta/2))
fprintf(f1, 't (%d %d %d)n',L_p,r*cosd(theta/2),-r*sind(theta/2))
fprintf(f1, ');nn')
fprintf(f1, 'blocksn')
fprintf(f1, '(n')
fprintf(f1, 't hex (0 3 5 2 0 3 4 1) (%d %d %d)',300,30,1)
fprintf(f1, ' SimpleGrading (1 0.1 1)nn')
fprintf(f1, ');nn')
fprintf(f1, 'edgesn')
fprintf(f1, '(n')
fprintf(f1, 't arc %d %d (%d %d %d)n',1,2,0,r,0)
fprintf(f1, 't arc %d %d (%d %d %d)n',4,5,L_p,r,0)
fprintf(f1, ');nn')
fprintf(f1, 'boundaryn')
fprintf(f1, '(n')
fprintf(f1, 't inlet n')
fprintf(f1, 't {n')
fprintf(f1, 'tt type patch;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (0 1 2 0)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, 't outletn')
fprintf(f1, 't {n')
fprintf(f1, 'tt type patch;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (3 5 4 3)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, 't topn')
fprintf(f1, 't {n')
fprintf(f1, 'tt type wall;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (1 4 5 2)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, 't frontn')
fprintf(f1, 't {n')
fprintf(f1, 'tt type wedge;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (0 3 4 1)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, 't backn')
fprintf(f1, 't {n')
fprintf(f1, 'tt type wedge;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (0 2 5 3)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, 't axisn')
fprintf(f1, 't {n')
fprintf(f1, 'tt type empty;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (0 3 3 0)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, '); nn')
fprintf(f1, 'mergePatchPairsn')
fprintf(f1, '(n')
fprintf(f1, ');n')
header9='// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //'
fprintf(f1, '%sn',header9)
fclose(f1)
BLOCKMESHDICT FILE
/*----------------------------------*- C++ -*------------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*----------------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0)
(0 4.999238e-03 8.726203e-05)
(0 4.999238e-03 -8.726203e-05)
(2 0 0)
(2 4.999238e-03 8.726203e-05)
(2 4.999238e-03 -8.726203e-05)
);
blocks
(
hex (0 3 5 2 0 3 4 1) (300 30 1) SimpleGrading (1 0.1 1)
);
edges
(
arc 1 2 (0 5.000000e-03 0)
arc 4 5 (2 5.000000e-03 0)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 5 4 3)
);
}
top
{
type wall;
faces
(
(1 4 5 2)
);
}
front
{
type wedge;
faces
(
(0 3 4 1)
);
}
back
{
type wedge;
faces
(
(0 2 5 3)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
Transport properties
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.9267e-07;
// ************************************************************************* //
COntrolDICT
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 8;
deltaT 4.4469e-04;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //
PRESSURE
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0.10709;
}
axis
{
type empty;
}
top
{
type zeroGradient;
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* //
VELOCITY
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0.1874 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.1874 0 0);
}
outlet
{
type zeroGradient;
}
axis
{
type empty;
}
top
{
type fixedValue;
value uniform (0 0 0);
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* //
