Week 11 - Simulation of Flow through a pipe in OpenFoam
AIM:
- To write a program in matlab that can generate the mesh automatically for any wedge angle, diameter and length of pipe.
- To validate maximum velocity and pressure drop for fully developed flow.
- To post process shear stress for fully developed flow.
HAGEN-POISEUILLE EQUATION:
Hagen Poiseuille equation is a physical law that gives the pressure drop in an incompressible and newtonian fluid in laminar flow flowing through a long cylindrical pipe of constant cross section. The equation is obtained from navier-stokes equation.
ASSUMPTION:
- The flow is steady and laminar.
- The flow is incompressible and Newtonian.
- The flow is axisymmetric.
- The flow is fully developed.
Hagen–Poiseuille flow implies not just the relation for the pressure drop, above, but also the full solution for the laminar flow profile, which is parabolic. However, the result for the pressure drop can be extended to turbulent flow by inferring an effective turbulent viscosity in the case of turbulent flow, even though the flow profile in turbulent flow is strictly speaking not actually parabolic. In both cases, laminar or turbulent, the pressure drop is related to the stress at the wall, which determines the so-called friction factor. The wall stress can be determined phenomenologically by the darcy-weisbach equation in the field of hydraulics, given a relationship for the friction factor in terms of the Reynolds number.

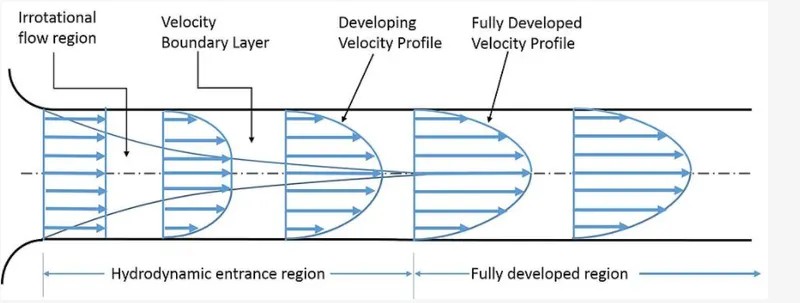

The region from the inlet of pipe to the point, at which the velocity profile is fully developed is called hydrodynamic entry region.
Fully developed flow means that velocity doesnot change in the fluid flow direction.
Let us consider that fluid flowing through pipe is water,
Diameter of pipe = 0.02m
Property of water at 30c and 1 atm,
|
PROPERTY |
VALUE |
|
density |
996 kg/m^3 |
|
Dynamic viscosity |
0.799*10^-3 Ns/m^2 |
|
Kinematic viscosity |
8.007*10^-7 m^2/s |
VELOCITY CALCULATION:
Average velocity = Re*mu/rho*D = (2100*7.99E-4)/(996*0.02) = 0.08 m/s
Expected maximum velocity = 2*average velocity = 2*0.08 = 0.164 m/s
HYDRODYNAMIC ENTRANCE LENGTH:
L_e = 0.06*Re*D = 0.06*2100*0.02 = 2.52m
TOTAL LENGTH:
L = 2.52 +1 = 3.52 m
PRESSURE DROP:
Delta p = (32*mu*L*v_(avg))/D^2
Delta p = (32*0.799e-3*3.52*0.08)/0.02^2 = 17.99 pa.
Kinematic pressure drop = delta p/rho = 17.99/996 = 0.018 m^2/s^2
MATLAB CODE:
MATLAB CODE TO GENERATE BLOCKMESHDICT FILE:
clear all
close all
clc
%reynolds number
re = 2100;
%total length
l = input('length of the pipe : ');
%density
rho = 996;
%viscosity
mu = 0.799e-3;
%diameter
D = input('diameter of pipe : ');
%radius
r = D/2;
%entrance length
l_e = 0.06*D*re;
%angle
theta = input('wedge angle : ');
%simple grading
nx = 200;
ny = 20;
nz = 1;
%average velocity
v_avg = (re*mu)/(rho*D);
%maximum velocity
v_max = 2*v_avg;
%pressure drop
delta_p = (32*mu*l*v_avg)/(D^2);
%kinematic pressure drop
kin_p = (delta_p)/rho;
%creating blockmeshdict file
h1 = '/*-------------------------------*- c++ -*-------------------------------------*\';
h2 = ' ========= | ';
h3 = ' \\ / F ield | OpenFOAM: The Open Source CFD Toolbox ';
h4 = ' \\ / O peration | Website: https://openfoam.org ';
h5 = ' \\ / A nd | Version: 8 ';
h6 = ' \\/ M anipulation | ';
h7 = '\*-----------------------------------------------------------------------------*/';
h8 = 'FoamFile';
h15 = '//*****************************************************************************//';
%opening the file
f1 = fopen('blockMeshDict.txt','w');
%writing comments
fprintf(f1,'%s\n',h1);
fprintf(f1,'%s\n',h2);
fprintf(f1,'%s\n',h3);
fprintf(f1,'%s\n',h4);
fprintf(f1,'%s\n',h5);
fprintf(f1,'%s\n',h6);
fprintf(f1,'%s\n',h7);
fprintf(f1,'%s\n',h8);
fprintf(f1,'{\n');
fprintf(f1,'%10s\t 2.0;\n','version');
fprintf(f1,'%9s\t ascii;\n','format');
fprintf(f1,'%8s\t dictionary;\n','class');
fprintf(f1,'%9s\t blockMeshDict;\n','object');
fprintf(f1,'}\n');
fprintf(f1,'%s\n\n',h15);
%creating conversion
fprintf(f1,'convertToMeters 1;\n\n');
%creating vertices
fprintf(f1,'vertices\n');
fprintf(f1,'(\n');
fprintf(f1,'\t (%d %d %d)\n',0,0,0);
fprintf(f1,'\t (%d %d %d)\n',0,r*cosd(theta/2),r*sind(theta/2));
fprintf(f1,'\t (%d %d %d)\n',0,r*cosd(theta/2),-r*sind(theta/2));
fprintf(f1,'\t (%d %d %d)\n',l,0,0);
fprintf(f1,'\t (%d %d %d)\n',l,r*cosd(theta/2),r*sind(theta/2));
fprintf(f1,'\t (%d %d %d)\n',l,r*cosd(theta/2),-r*sind(theta/2));
fprintf(f1,');\n\n');
%creating blocks
fprintf(f1,'blocks\n');
fprintf(f1,'(\n');
fprintf(f1,'\t hex (0 3 5 2 0 3 4 1)(%d %d %d) simpleGrading(1 0.2 1)\n',nx,ny,nz);
fprintf(f1,');\n\n');
%creating edges
fprintf(f1,'edges\n');
fprintf(f1,'(\n');
fprintf(f1,'\t arc 1 2 (%f %f %f)\n',0,r,0);
fprintf(f1,'\t arc 4 5 (%f %f %f)\n',l,r,0);
fprintf(f1,');\n\n');
%creating boundary
fprintf(f1,'boundary\n');
fprintf(f1,'(\n');
%inlet
fprintf(f1,'\t inlet\n');
fprintf(f1,'\t {\n');
fprintf(f1,'\t\t type patch;\n');
fprintf(f1,'\t\t faces\n');
fprintf(f1,'\t\t (\n');
fprintf(f1,'\t\t\t (0 1 2 0)\n');
fprintf(f1,'\t\t );\n');
fprintf(f1,'\t }\n');
%outlet
fprintf(f1,'\t outlet\n');
fprintf(f1,'\t {\n');
fprintf(f1,'\t\t type patch;\n');
fprintf(f1,'\t\t faces\n');
fprintf(f1,'\t\t (\n');
fprintf(f1,'\t\t\t (3 5 4 3)\n');
fprintf(f1,'\t\t );\n');
fprintf(f1,'\t }\n');
%top
fprintf(f1,'\t top\n');
fprintf(f1,'\t {\n');
fprintf(f1,'\t\t type wall;\n');
fprintf(f1,'\t\t faces\n');
fprintf(f1,'\t\t (\n');
fprintf(f1,'\t\t\t (1 4 5 2)\n');
fprintf(f1,'\t\t );\n');
fprintf(f1,'\t }\n');
%back
fprintf(f1,'\t back\n');
fprintf(f1,'\t {\n');
fprintf(f1,'\t\t type wedge;\n');
fprintf(f1,'\t\t faces\n');
fprintf(f1,'\t\t (\n');
fprintf(f1,'\t\t\t (0 2 5 3)\n');
fprintf(f1,'\t\t );\n');
fprintf(f1,'\t }\n');
%front
fprintf(f1,'\t front\n');
fprintf(f1,'\t {\n');
fprintf(f1,'\t\t type wedge;\n');
fprintf(f1,'\t\t faces\n');
fprintf(f1,'\t\t (\n');
fprintf(f1,'\t\t\t (0 3 4 1)\n');
fprintf(f1,'\t\t );\n');
fprintf(f1,'\t }\n');
%axis
fprintf(f1,'\t axis\n');
fprintf(f1,'\t {\n');
fprintf(f1,'\t\t type empty;\n');
fprintf(f1,'\t\t faces\n');
fprintf(f1,'\t\t (\n');
fprintf(f1,'\t\t\t (0 3 3 0)\n');
fprintf(f1,'\t\t );\n');
fprintf(f1,'\t }\n');
fprintf(f1,');\n\n');
%creating merge patch pairs
fprintf(f1,'mergePatchPairs\n(\n');
fprintf(f1,');\n');
fprintf(f1,'%s',h15);
%closing the file
fclose(f1)
MATLAB CODE:
- The above matlab code takes the user defined wedge angle and uses that angle to calculate the vertices for the mesh.
- The entrance length is calculated and 1m is added to the value so as to observe the fully developed flow.
- The block is defined and the mesh refinement is done by using simple grading.
- The edges is also defined.
- The boundary conditions are defined for inlet, outlet, top, bottom and axis.
BLOCKMESHDICT FILE FOR WEDGE ANGLE 4:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0)
(0 9.993e-3 3.489e-4)
(0 9.993e-3 -3.489e-4)
(3.52 0 0)
(3.52 9.993e-3 3.489e-4)
(3.52 9.993e-3 -3.489e-4)
);
blocks
(
hex (0 3 5 2 0 3 4 1) (200 20 1) simpleGrading (1 0.2 1)
);
edges
(
arc 1 2 (0 0.01 0)
arc 4 5 (3.52 0.01 0)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 5 4 3)
);
}
topwall
{
type wall;
faces
(
(1 4 5 2)
);
}
back
{
type wedge;
faces
(
(0 2 5 3)
);
}
front
{
type wedge;
faces
(
(0 3 4 1)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //here the geometry is created and the mesh refinement is done using grading factor.
CONTROLDICT FILE:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 50;
deltaT 0.01;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //The type of solver and the start and end time of simulation is defined in this file.
TRANSPORT PROPERTIES:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.02e-7;
// ************************************************************************* //kinematic viscosity of water at 30 celcius is 8.02e-7
INITIAL CONDITIONS:
PRESSURE:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
topwall
{
type zeroGradient;
}
back
{
type wedge;
}
front
{
type wedge;
}
axis
{
type empty;
}
}
// ************************************************************************* //In this file we are fixing the outlet initial conditions as a fixed value because we assume pressure at the pipe outlet to be normal air pressure which is measured as 0.
VELOCITY:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.084 0 0);
}
outlet
{
type zeroGradient;
}
topwall
{
type noSlip;
}
back
{
type wedge;
}
front
{
type wedge;
}
axis
{
type empty;
}
}
// ************************************************************************* //In this file we are define the inlet initial conditions as a average velocity value that we calculated previously.
RESULT:
MESH:

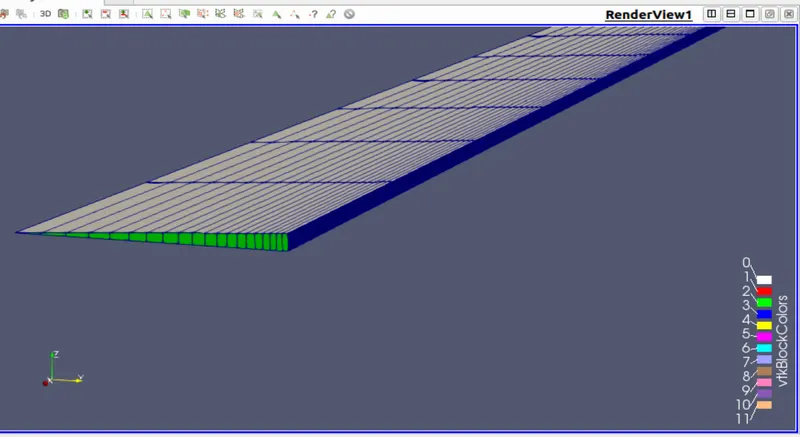

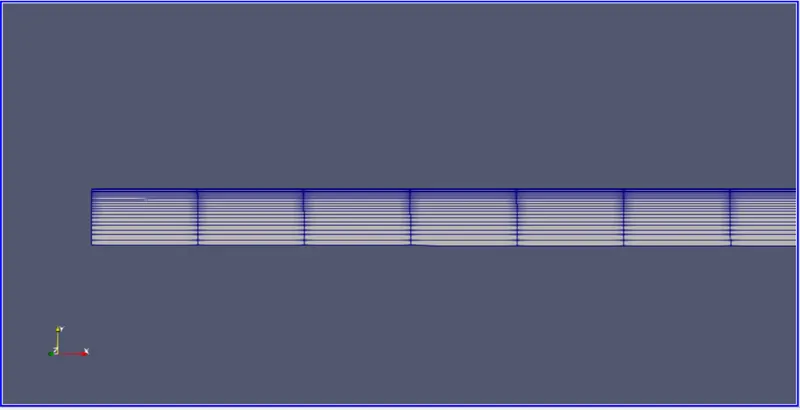

MESH AT INLET:

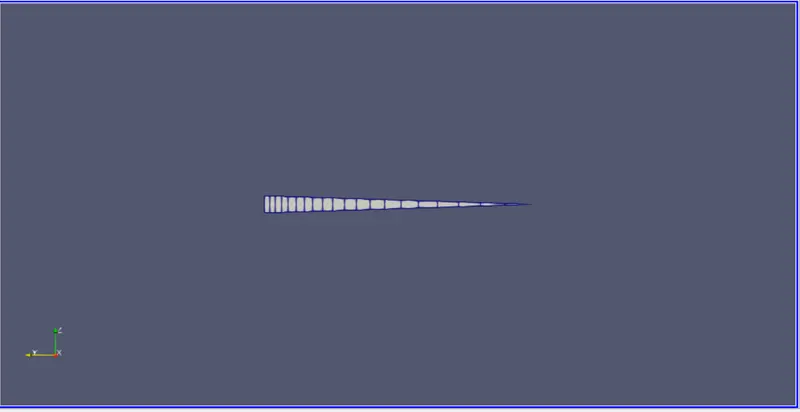

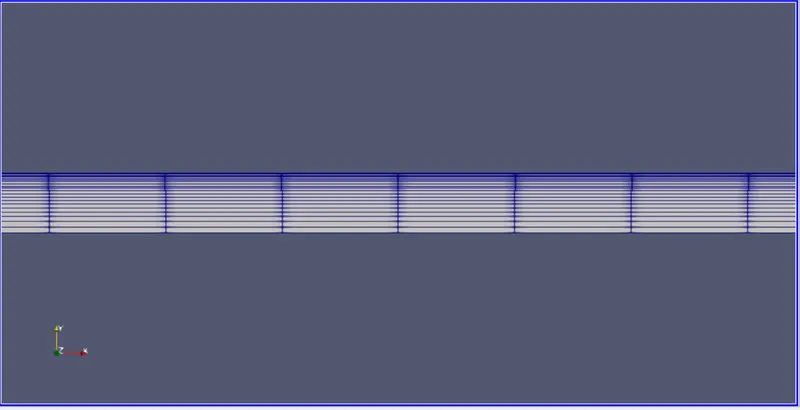

FRONT VIEW OF MESH:

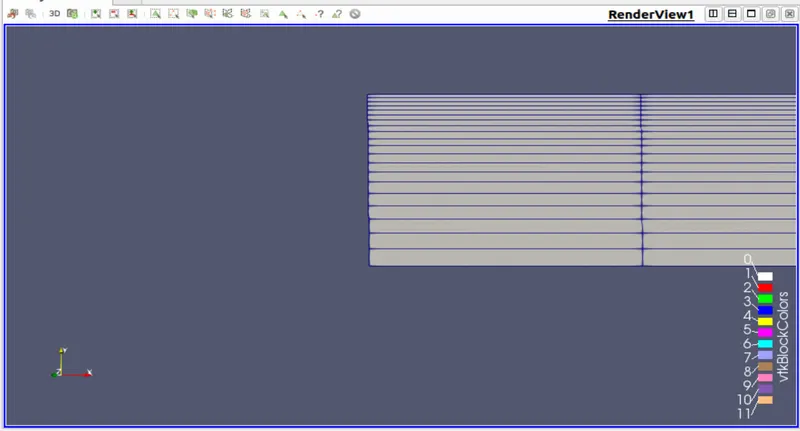

MESH AT CENTRE:
MESH AT OUTLET:

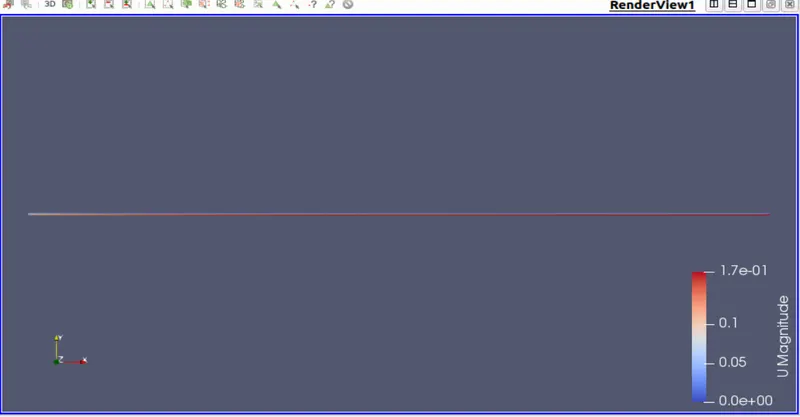

VELOCITY PROFILE AT INLET:
VELOCITY PROFILE AT OUTLET:

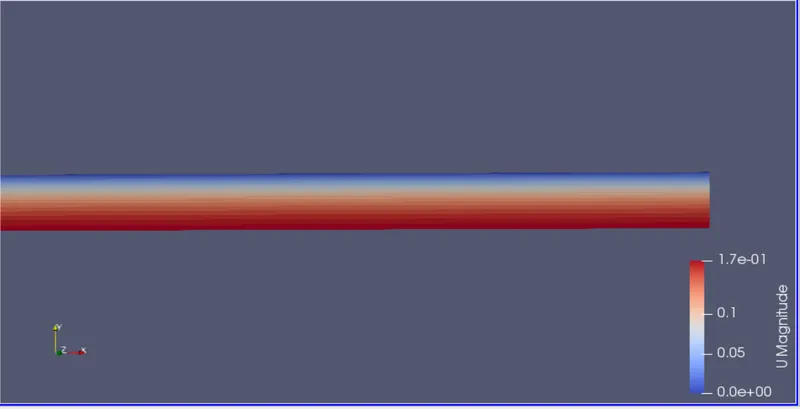

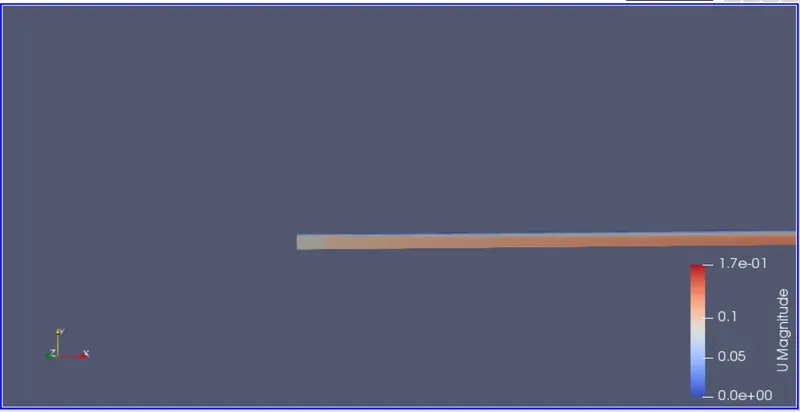

VELOCITY PROFILE:
The velocity is less at inlet and high at outlet.

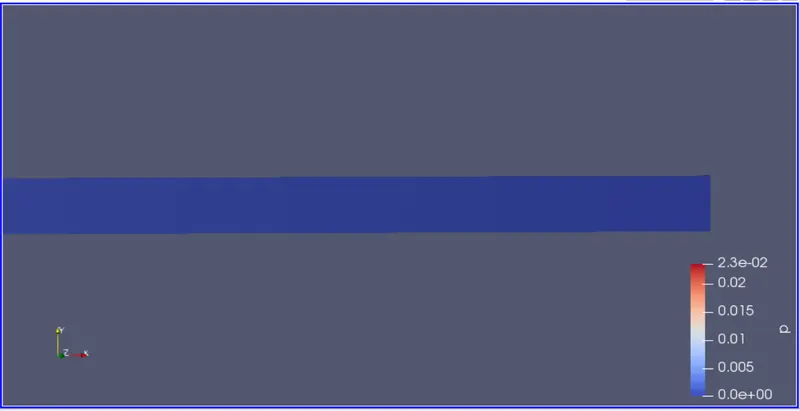

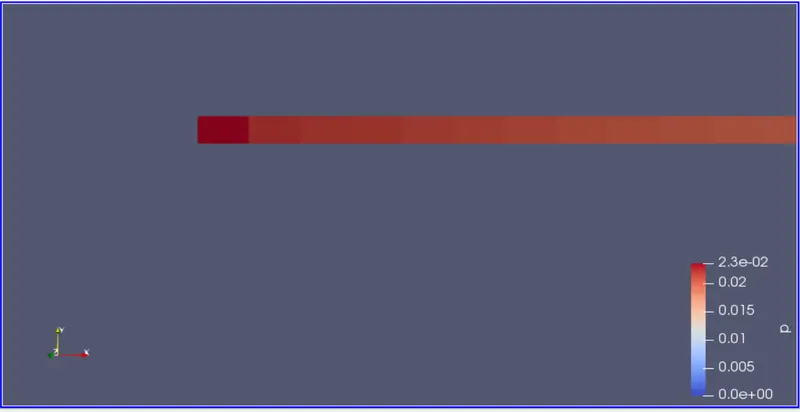

PRESSURE PROFILE AT INLET:
PRESSURE PROFILE AT OUTLET:

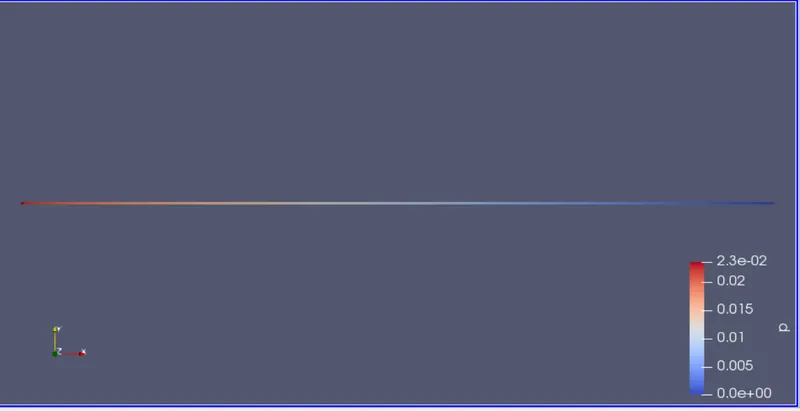

PRESSURE PROFILE:
The pressure is high at inlet and low at outlet.
VELOCITY PROFILE VARIATION AT A DISTANCE X FROM INLET:

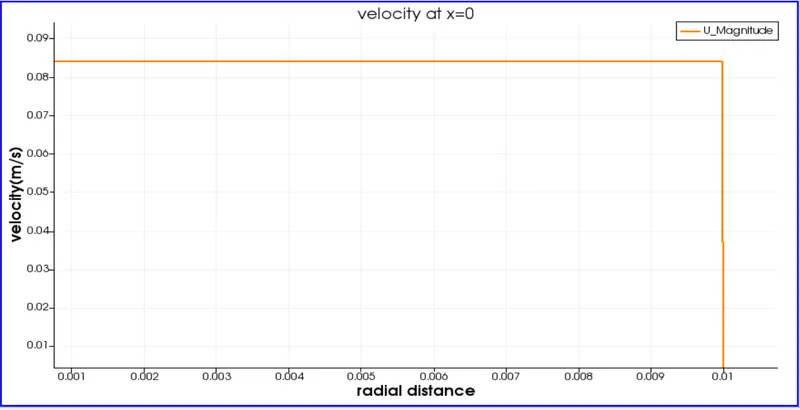

X = 0
the velocity profile shows the velocity is 0.084 at the entrance and the flow is developing.

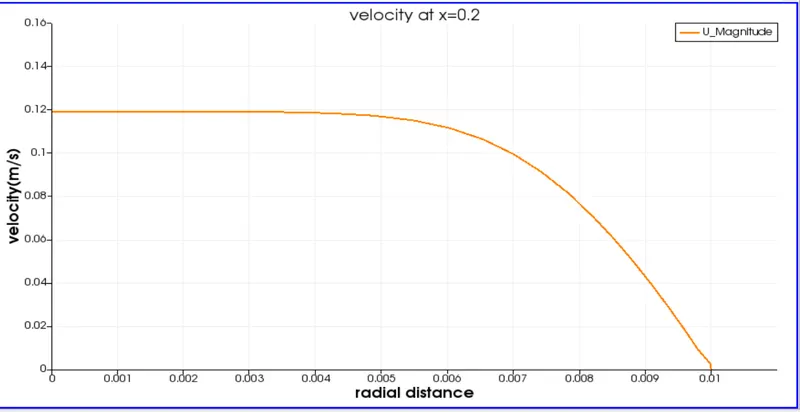

x = 0.2
the velocity profile shows the velocity is 0.12 at x = 0.2 from entrance and the flow is developing.

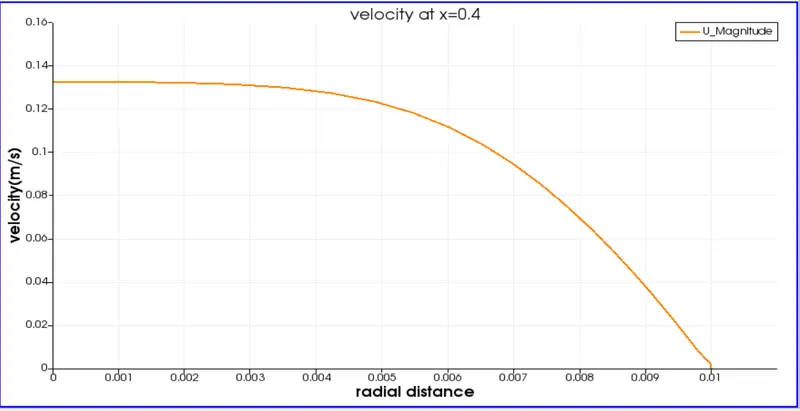

x = 0.4

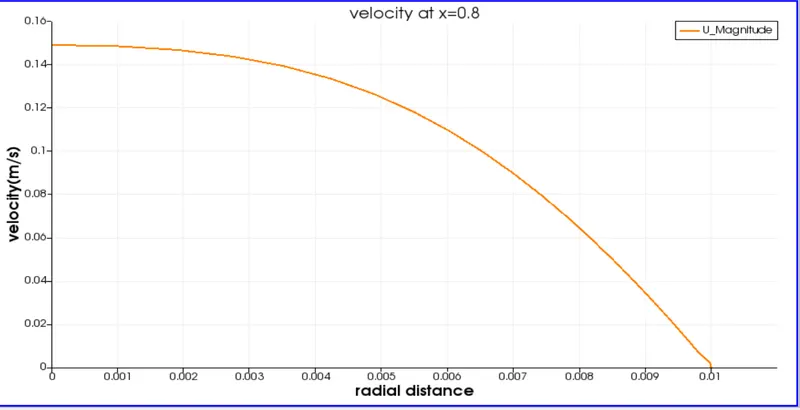

the velocity profile shows the velocity is 0.132 at x = 0.4 from entrance and the flow is developing.
x = 0.8
the velocity profile shows the velocity is 0.148 at x = 0.8 from entrance and the flow is developing.

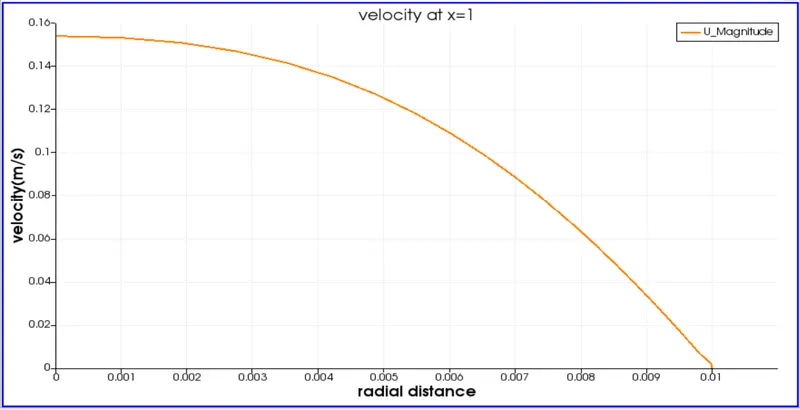

x = 1
the velocity profile shows the velocity is 0.154 at x = 1 from entrance and the flow is developing.

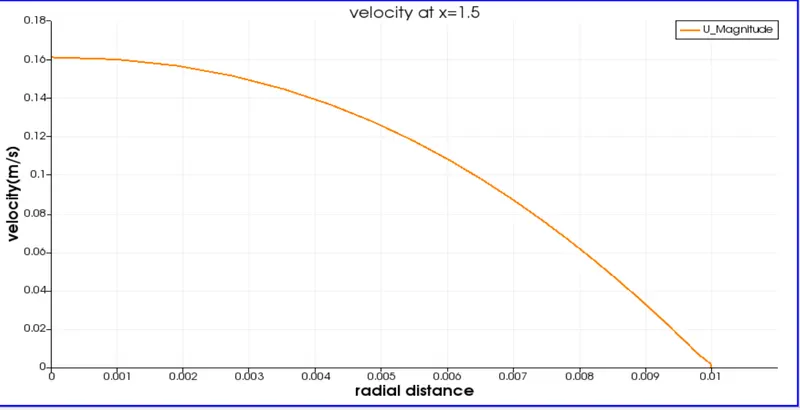

x = 1.5
the velocity profile shows the velocity is 0.16 at x = 1.5 from entrance and the flow is developing.
x = 2
the velocity profile shows the velocity is 0.164 at x = 2 from entrance and the flow is fully developed.
x = 2.5
the velocity profile shows the velocity is 0.164 at x = 2.5 from entrance and the flow is fully developed.

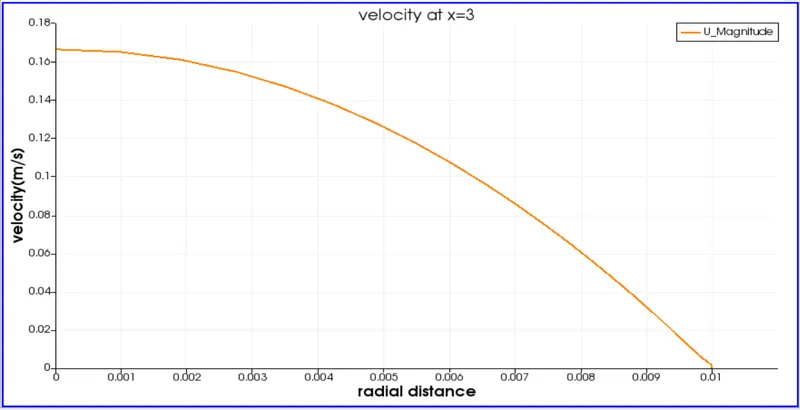

x = 3
the velocity profile shows the velocity is 0.164 at x = 3 from entrance and the flow is fully developed.

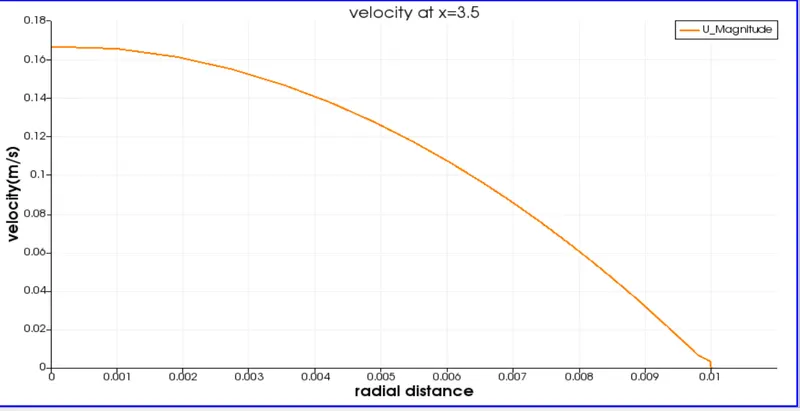

x = 3.5
the velocity profile shows the velocity is 0.164 at x = 3.5 from entrance and the flow is fully developed.

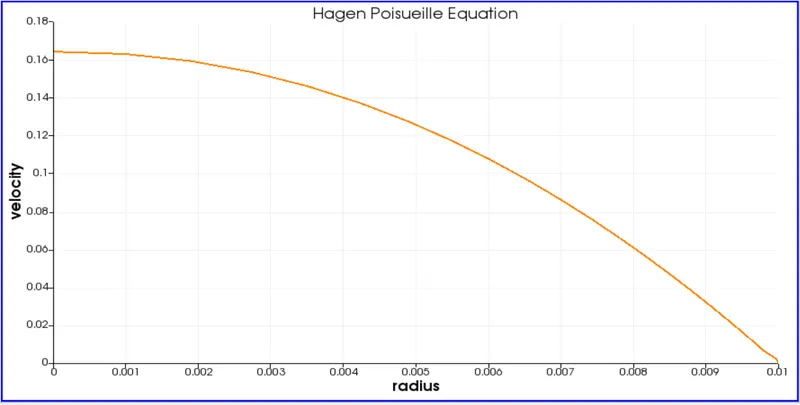

VELOCITY PROFILE FOR HAGEN-POISEUILLE FLOW:
The velocity is maximum at centre and almost zero near the walls.
The velocity flow of a hagen poiseuelli flow exactly matches with velocity profile when x = 2m from the entrance and the profile doesn't changes after that as the flow is fully developed.

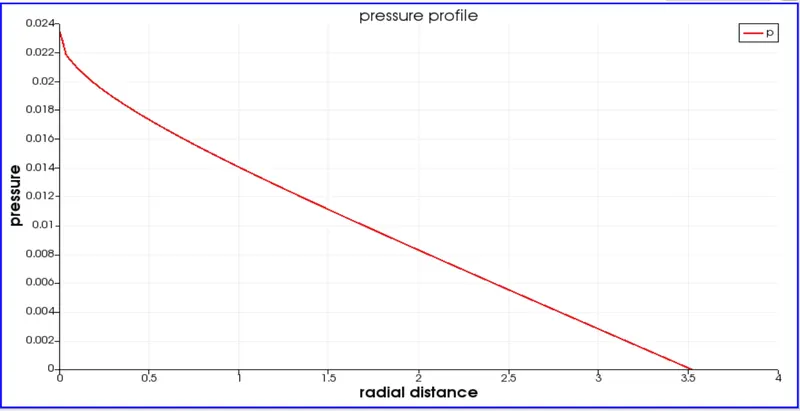

PRESSURE PROFILE:
The pressure keep on reduces from center and almost zero near the walls .

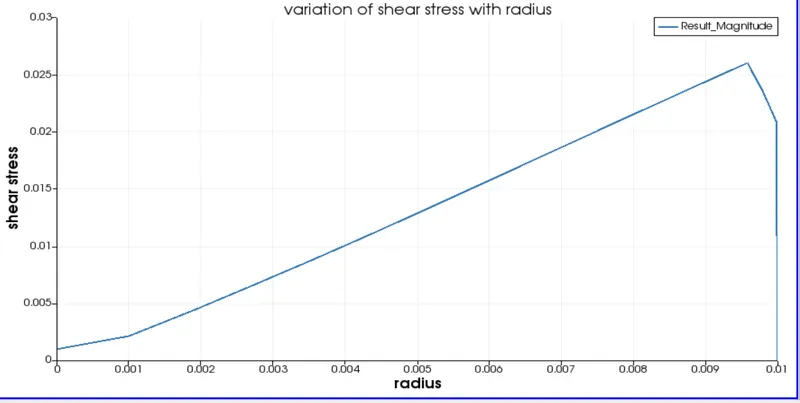

SHEAR STRESS VARIATION WITH RADIUS:
The plot shows that the shear stress is closer to zero at center and increases and maximum near walls.
CONCLUSION:
- Velocity profile is fully developed at hydrodynamic entrance length.
- Pressure is maximum at inlet and tends to gauge pressure at outlet.
- Shear stress is zero at centre and maximum at near walls.
- Numerical data is valid with exact solution with negligible deviation.
