Week 11 - Project - A pillar Design with Master Section

• While creating a master section, one needs a huge experience.
• It was my first try to create a master section of engineering features.
• By analyzing this step file, I concluded that was a lock pin with solving 10 degrees of freedom.

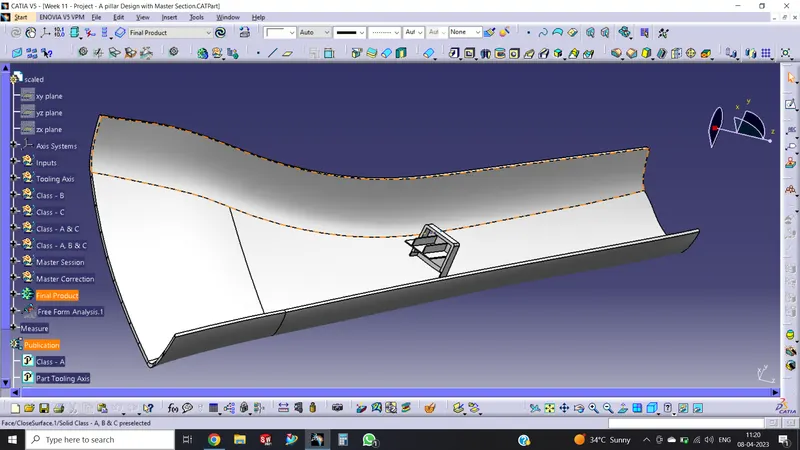

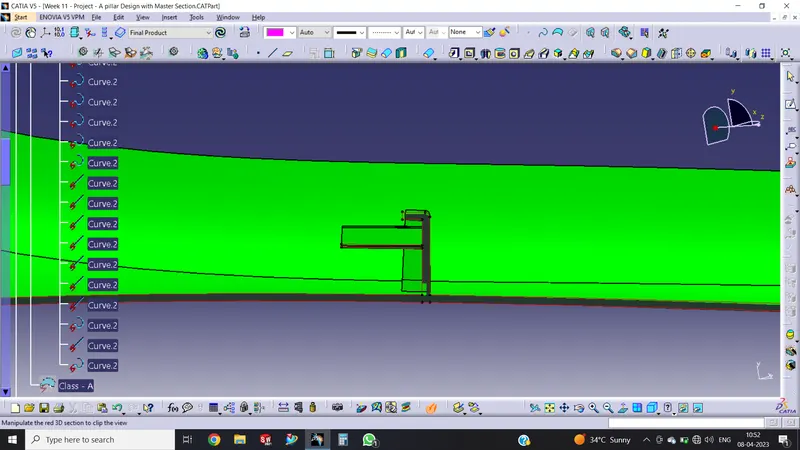

• The part is shown with master section - 1.

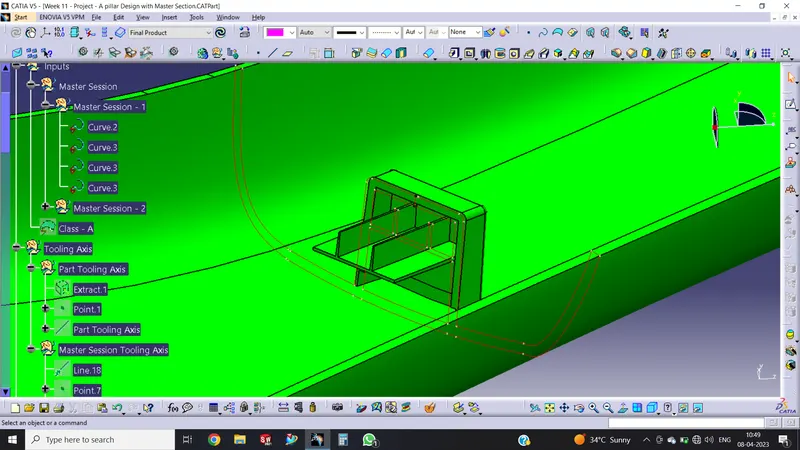

• Part with master section - 2.
• Both are created with master sections and visual checking is also made.

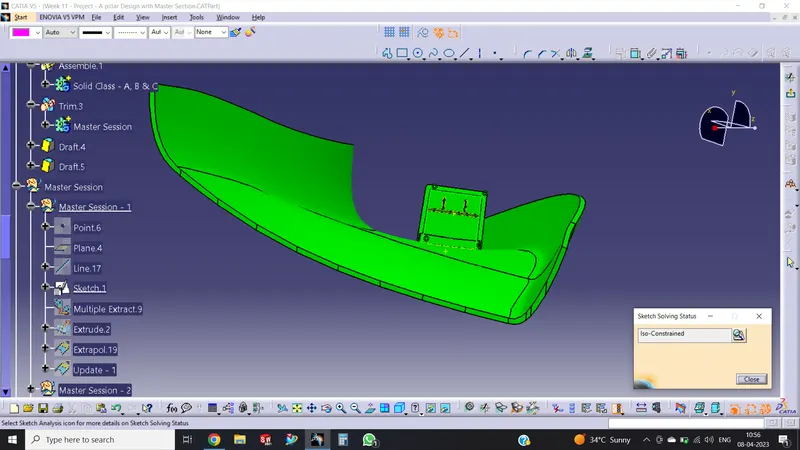

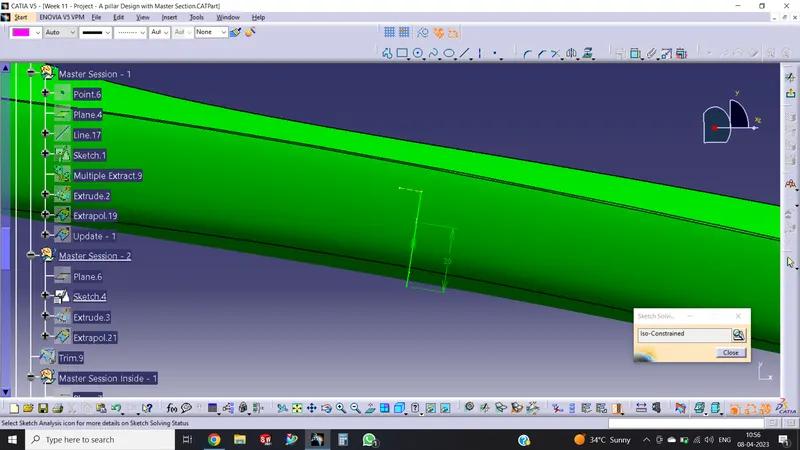

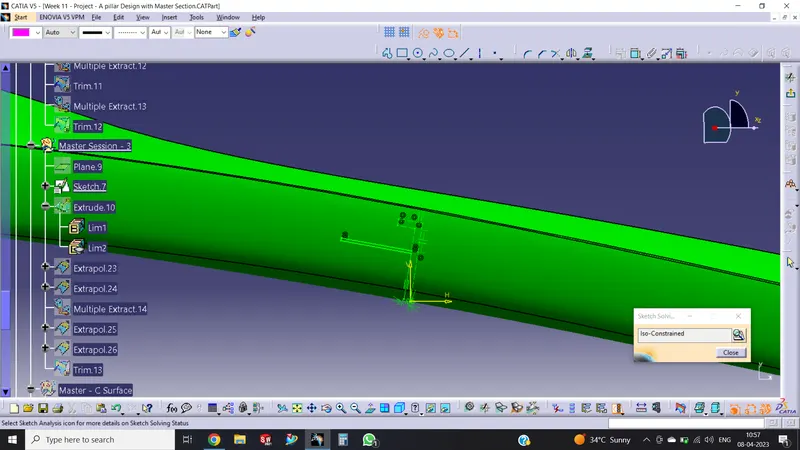

• Dog house and pins are created with sketch-solving status.

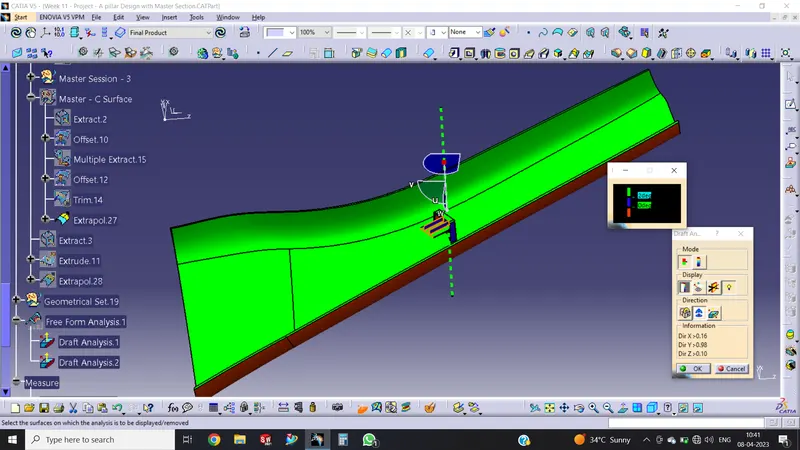

• Also, draft analyses have been done.

• Draft analysis was obtained with 2.5 degrees.

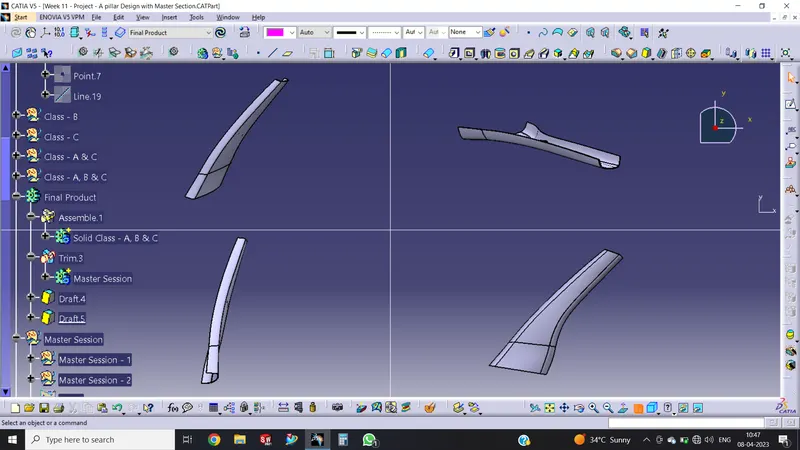

Clear tree structure.

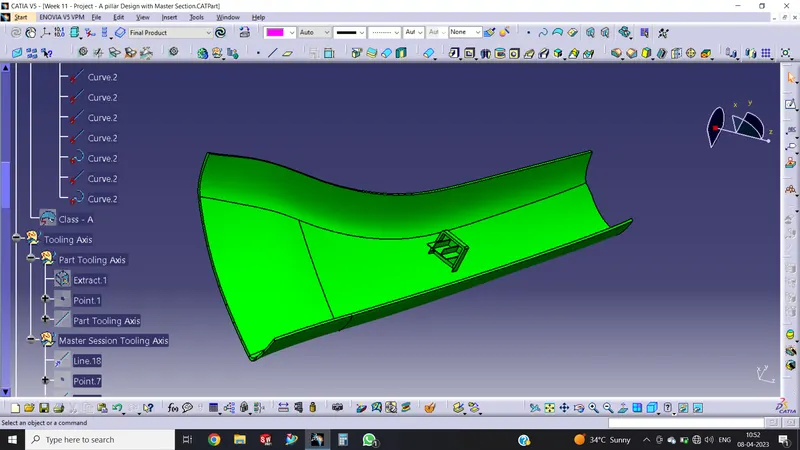

• Finally, engineering features are created as shown in the master sections.
• The master section was designed as my thoughts while seeing the master sections.
