Week 8 - Challenge 2 - Switch Bezel Design

Create the Switch Bezel Plastic component through the given Class-A surface

• Initially Class - A - Surface was not proper, and contains a gap in the STEP file.
• I just Joined the gap with a 0.003mm merge.

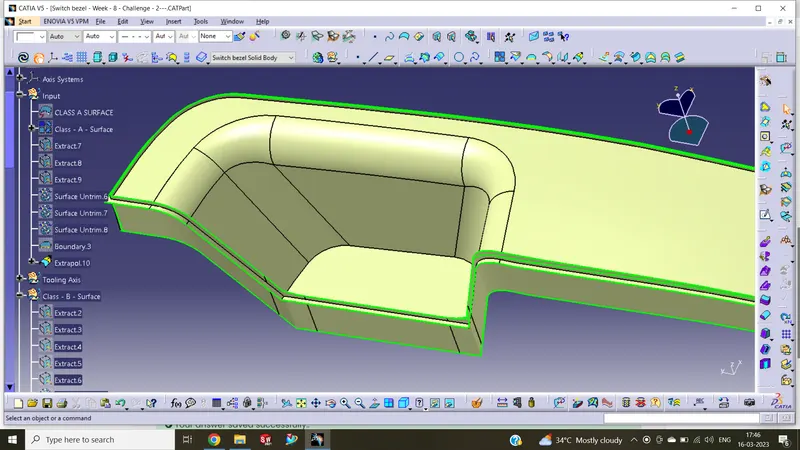

• Then created Class-B Surface.
• Fillets are created inversely by subtracting or adding thickness.

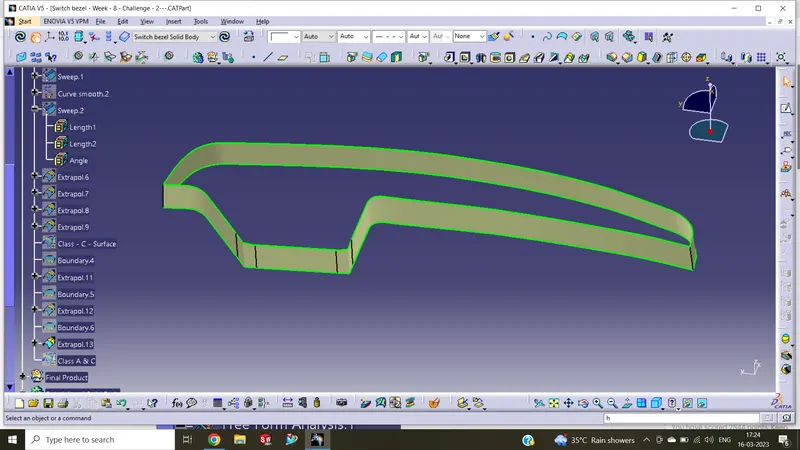

• After doing this I started creating Class - C Surface.
• This was created with Class - A - Surface as a reference.

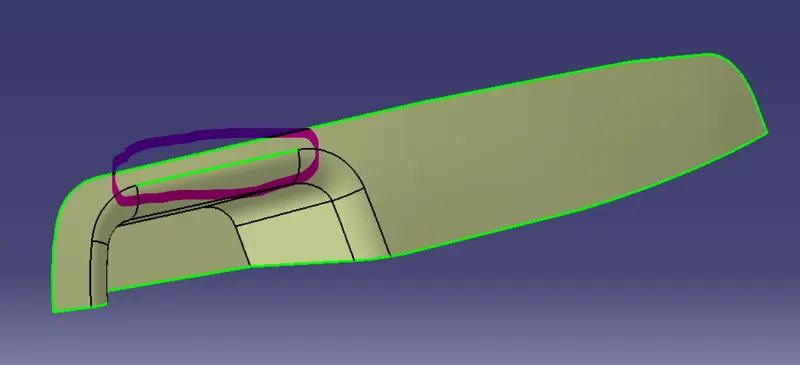

• Now while joining Class - A & C Surfaces, I have faced difficulties.
• So I corrected that extrapolate on both surfaces and joined using trim.

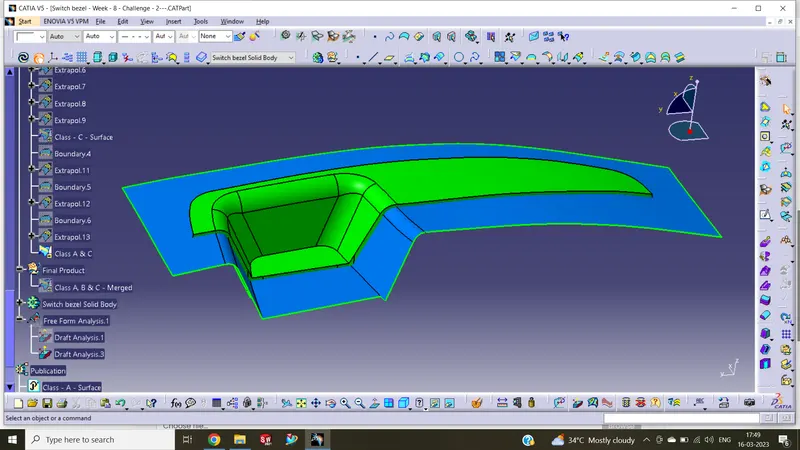

• Now Class - A & C Surface were joined and trimmed with Class - B Surface.

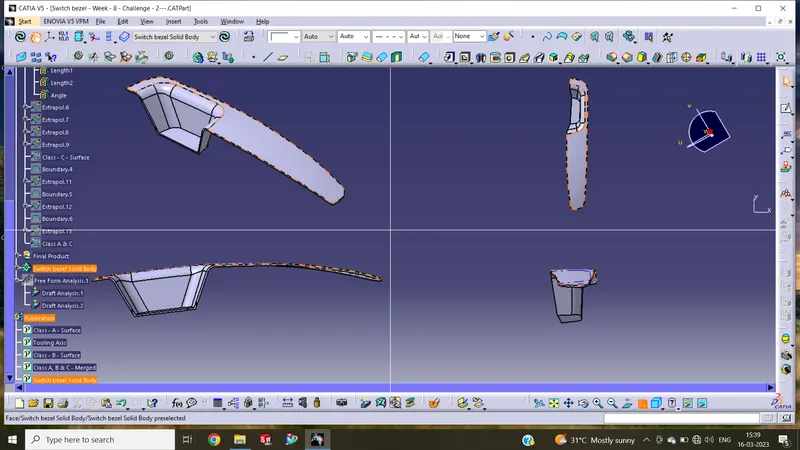

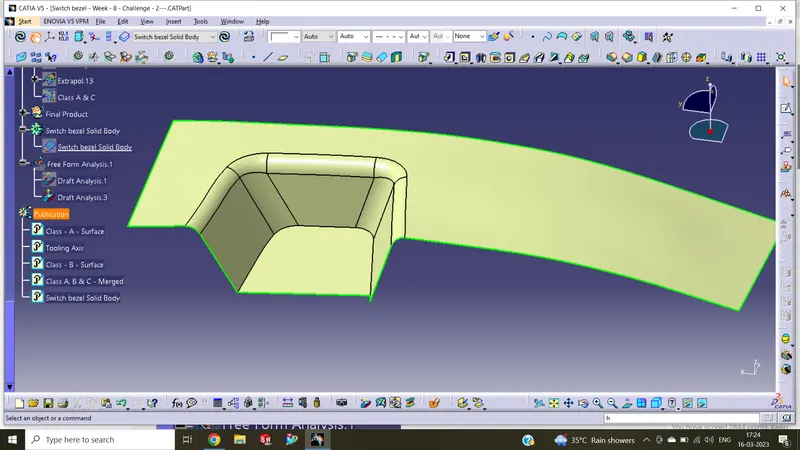

• Now the final product is completed.

Draft Analysis:-

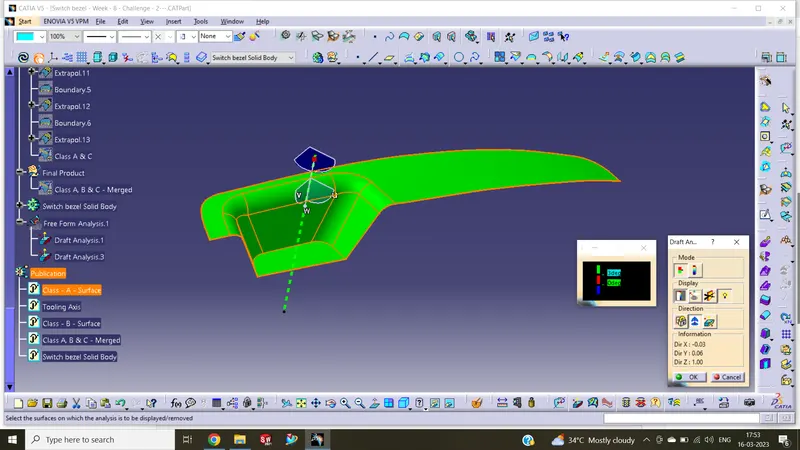

• For Class - A Surface

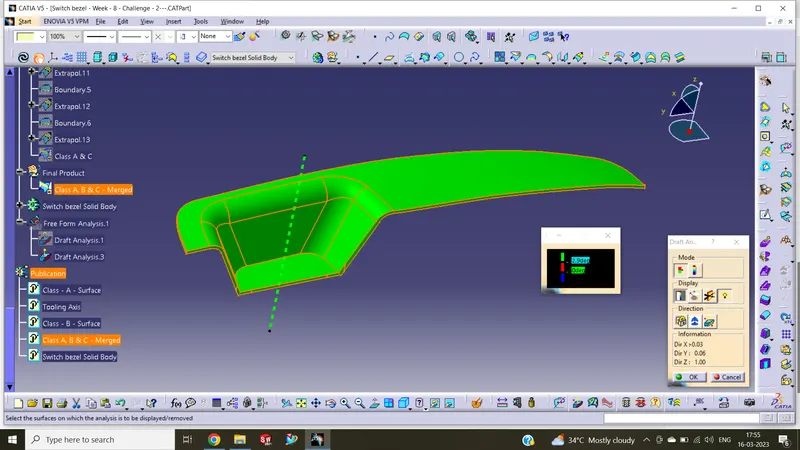

• The final part draft analysis is done with 2.9 deg of draft angle.
