Week 11 - Project - A pillar Design with Master Section
WEEK 11 (A PILLAR WITH MASTER SECTION)
TOOLING AXIS CREATION:
- CREATED LINE WITH POINT TO DIRECTION PROPOGATION
- DIRECTION KEPT AS Y AXIS

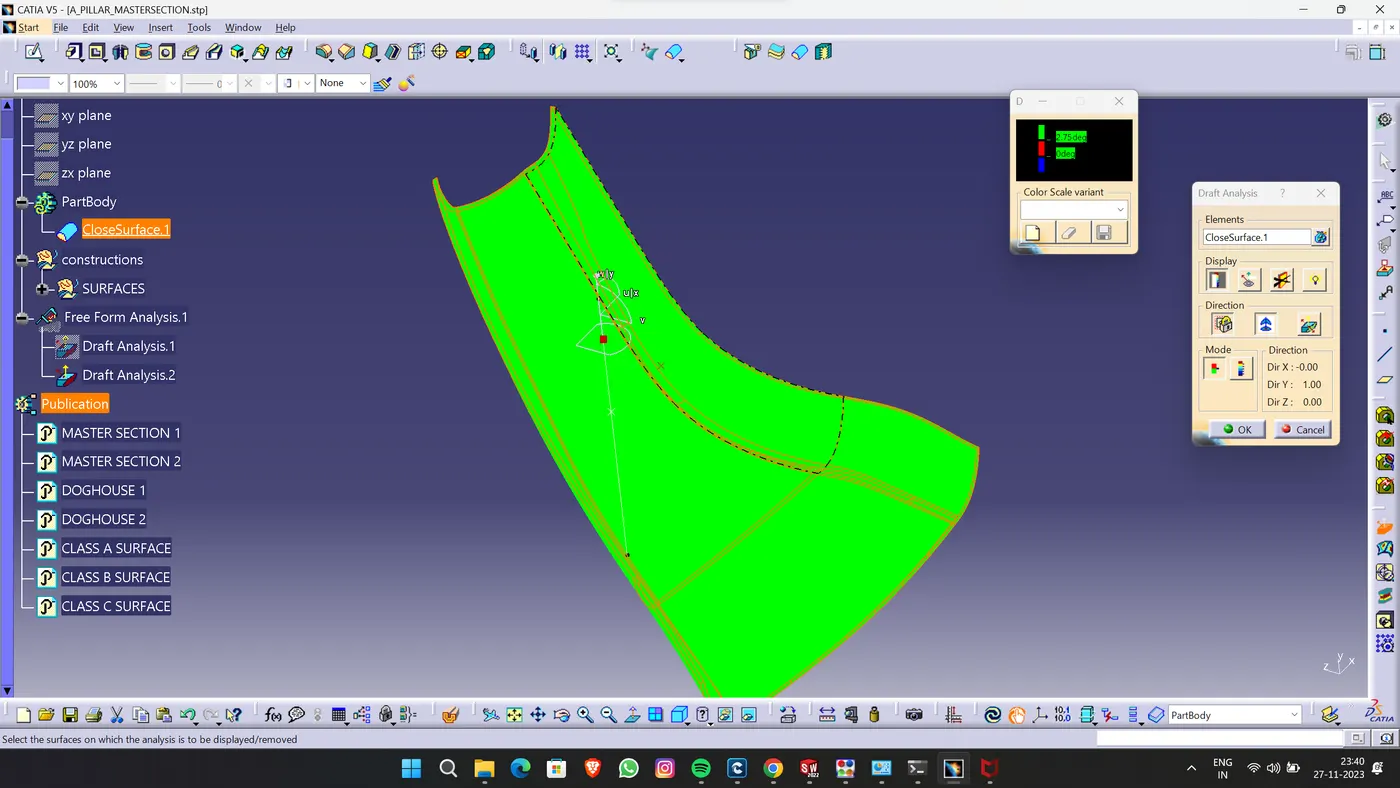

DRAFT ANALYSIS OF CLASS A SURFACE:
- CREATED LINE USED AS DRAFT DIRECTION
- GIVEN VALUE OF 3 DEGREE
- PERFORMED DRAFT ANALYSIS
- SURFACE HIGHLITED IN GREEN COLOR ( GOOD DRAFT)
CLASS B SURFACE CREATION:
- EXTRACTED ONE PART OF A SURFACE SEPERATELY WHICH IS NOT OFFSETING
- OFFSETED ROUGH AT 2.5 MM
- ANOTHER SURFACE OFFSETED NORMALY 2.5 MM
- EXTRACTED BOTH SURFACE TO INTERSECT
- TRIMMED ALL
- EXTRECTED ALL THE EDGES TO INTERSECT WITH C SURFACE
CLASS C SURFACE CREATION:
- SWEEPED CLASS A SURFACE AS PER DESIGN RULE
- JOINED CLASS A AND C SURFACE TRIMMED ALL THE SEPERATE C SURFACE TOGETHER IN ORDER TO JOIN THEM
- TRIMMED WITH B SURFACE TO MAKE CLOSED SURFACE
USED FILL SURFACE COMMAND TO MAKE SOLID

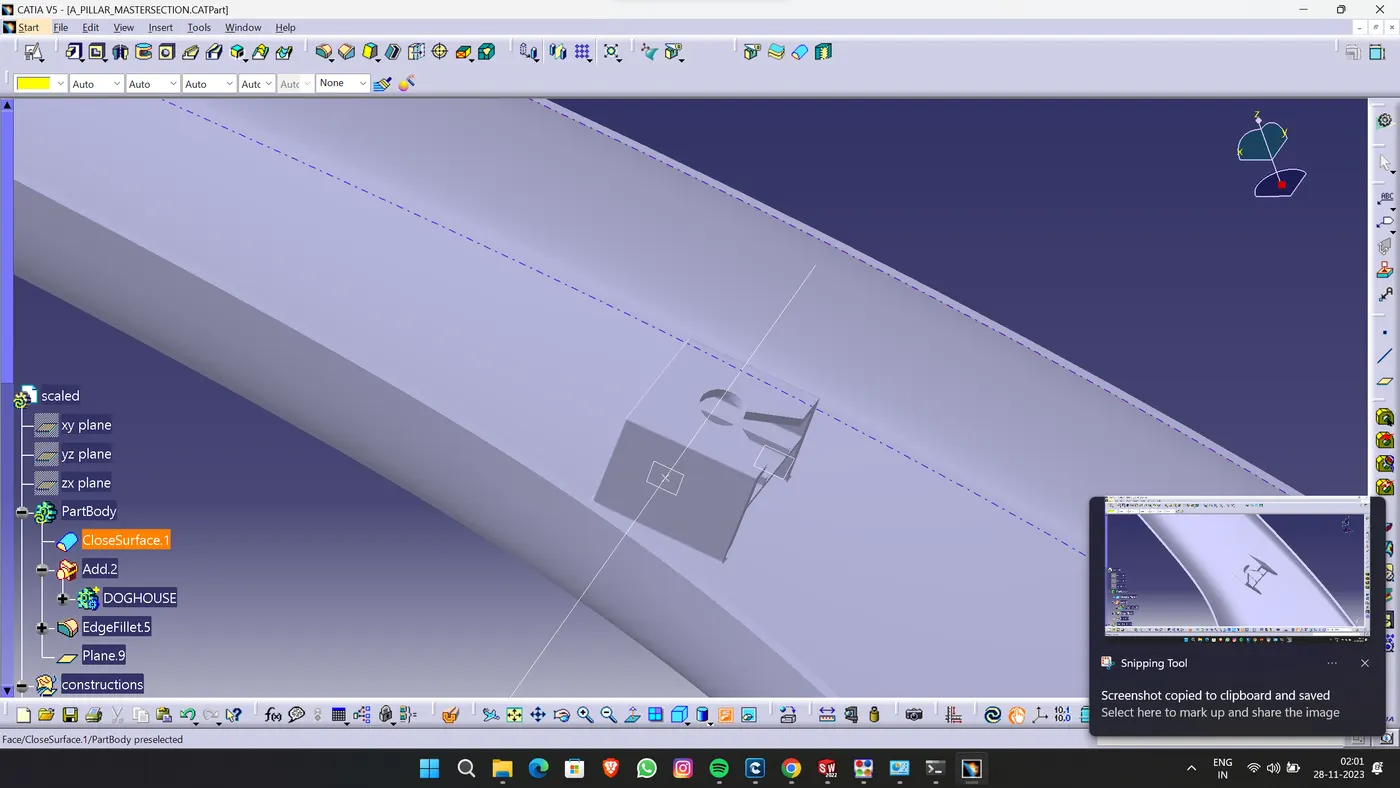

B SIDE FAETURE(DOG HOUSE MAKING)
- USED MASTER SECTION OF GIVEN PART
- MAKE PLANES USING 3 POINT METHOD ON MASTER SECTIONS
- EXTRECTED REQUIRED SKETCH FROM MASTER SECTION
- EXTRUDED AS SURFACE AND TRIMMES TOGETHER TO MAKE DOGHOUSE
- THICKENED IT FOR 2.5MM
- EXTRACTED SKETCH OF MIDDLE RIB PLATE
- EXTRUDED AS SURFACE
- THICKENED IT OFR 1.5MM
- CREATED TIBS ON IT
- CUTTED FLANGE CUT USING SURFACE SPLIT COMMAND
- OFFSETED MAIN BODY FOR 3 MM TO CUT 1MM THICK JOINT
- JOINED DOGHOUSE BODY WITH MAIN BODY USING JOIN BOOLEAN OPERATION.

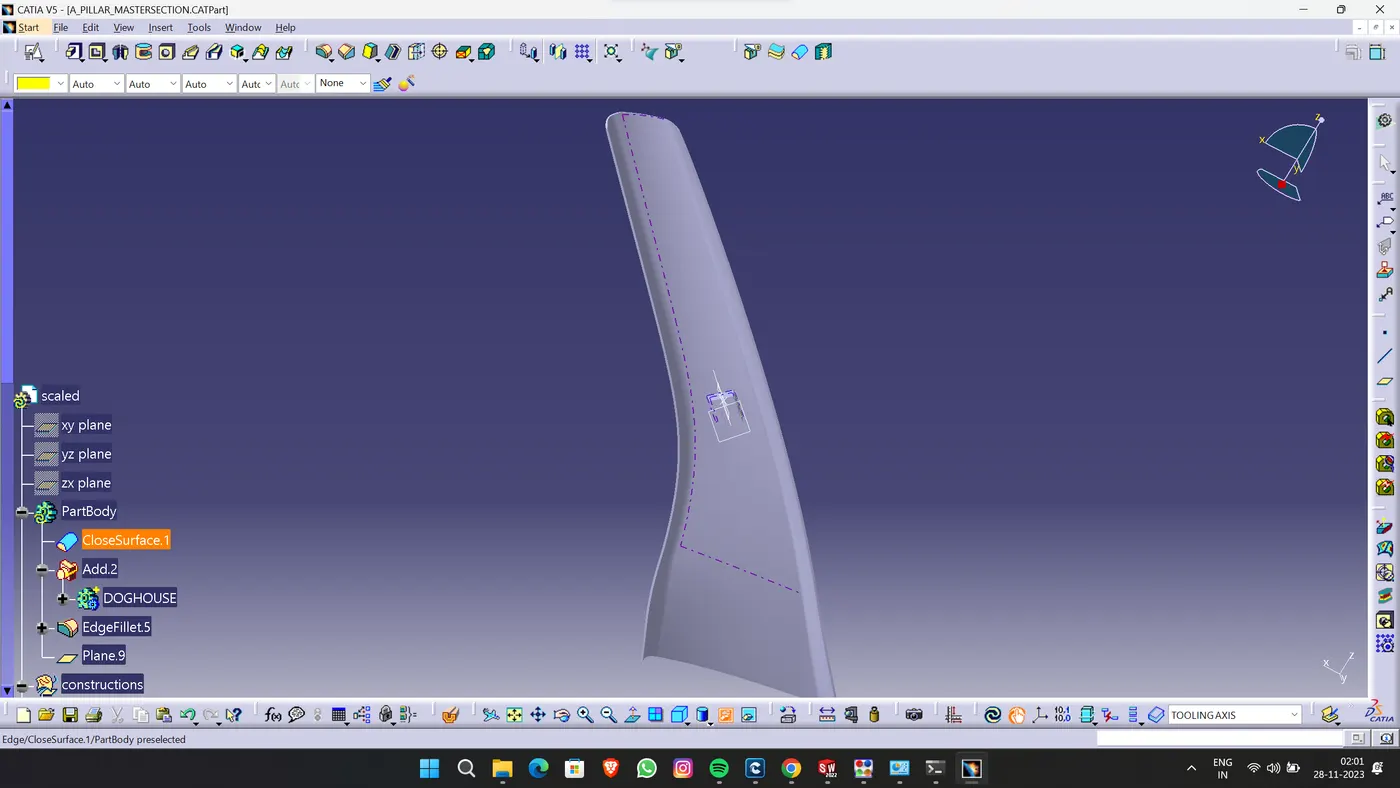

BODY DRAFT ANALYSIS:
- SELECTED SAME TOOLING AXIS
- SELESTED BODY FOR ANALYSIS

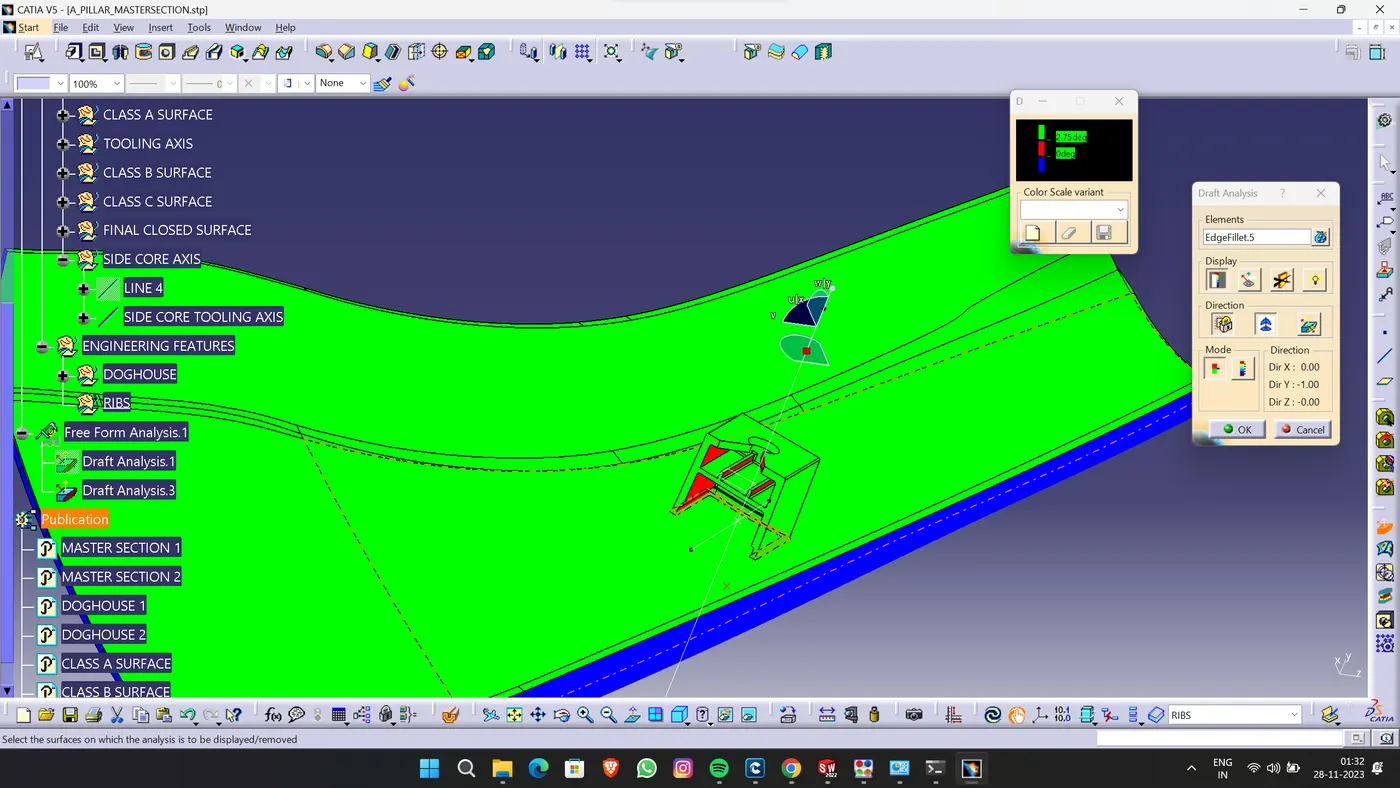

- PERFORMED ANALYSIS FOR CLASS A, B, C SURFACE
- CLASS A AND CLASS B SURFACE HIGHLITED GREEN
- CLASS B SURFACE'S FLANGE'S SOME PORTION HIGHLITED BLUE
