Week 11 - Project - A pillar Design with Master Section

AAravind A11 Sept 2023

REPORT:

TOOLING AXIS:

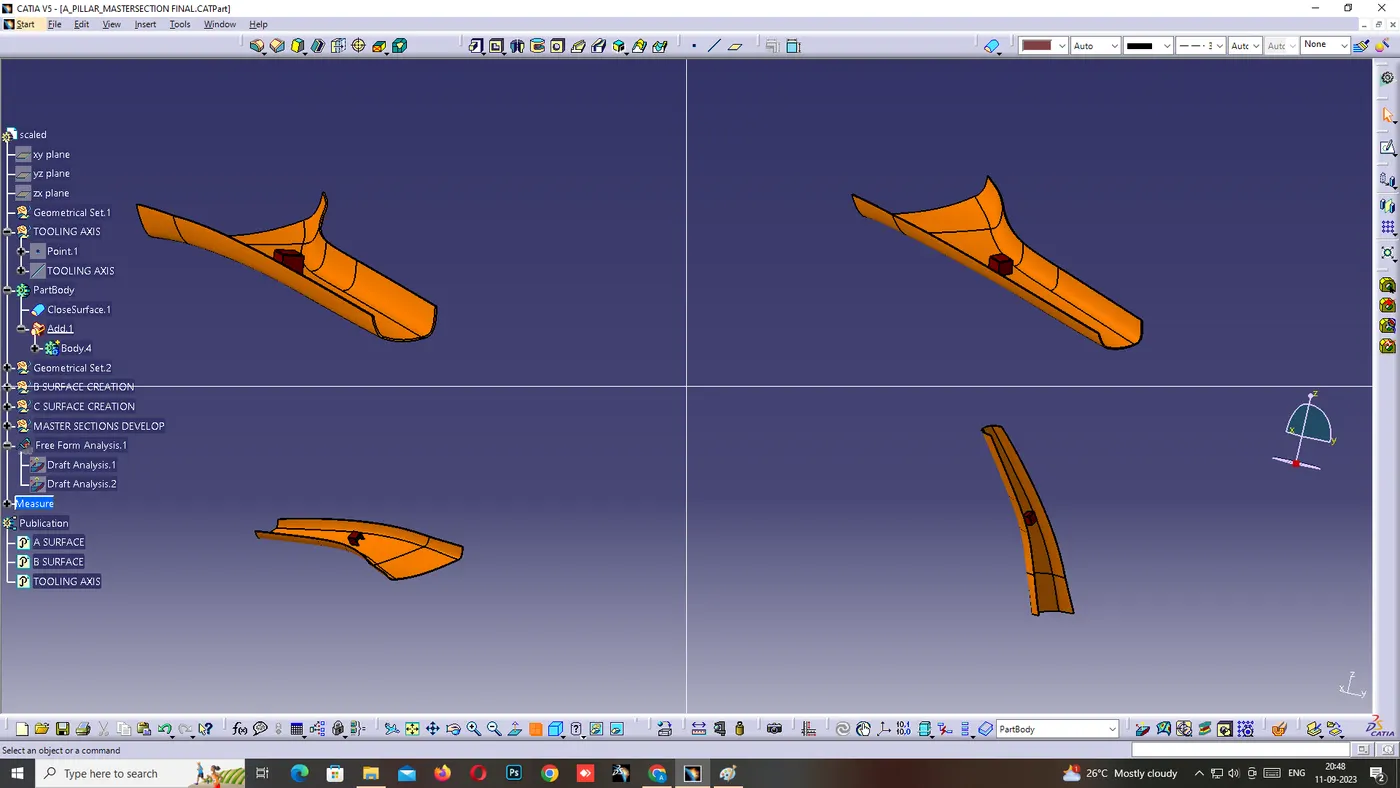

I CREATED A POINT ON THE CLASS A SURFACE, THROUGH THAT POINT I CREATED LINE PERPENDICULAR TO THE SURFACE. I MADE PERPENDICULAR LINE AS TOOLING AXIS 1.

THEN I CREATED A SECOND LINE PERPENDICULAR TO THE TOOLING AXIS 1 AND I NAMED IT AS TOOLING AXIS 2.

DRAFT ANALYSIS:

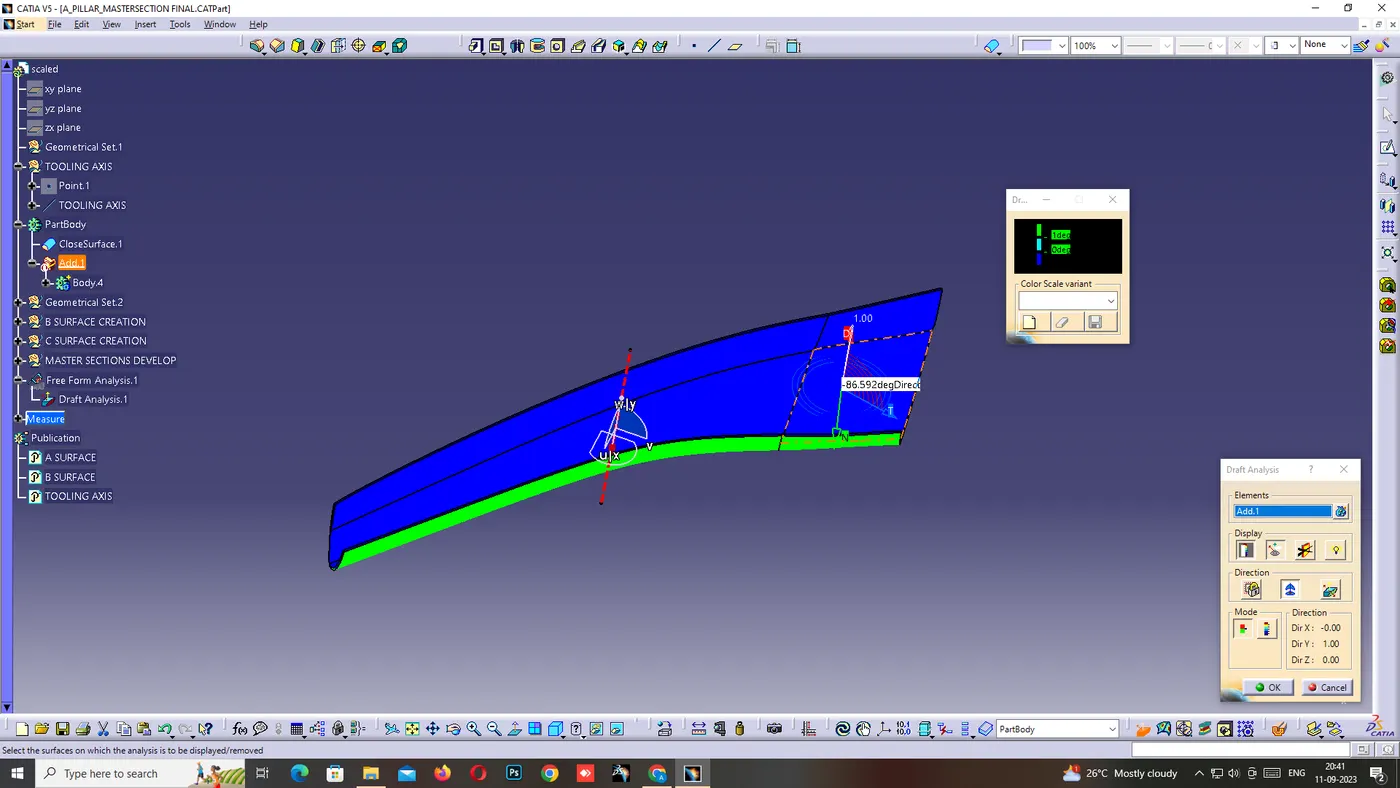

I DONE THE DRAFT ANAYSIS IN CLASS A SURFACE. FIRST OF ALL I GOT THE DRAFT ANALYSIS COMMAND IN THE PART BODY. THEN I INSERTED THE COMPASS IN THE DRAFT ANALYSIS TO THE TOOLING AXIS. I DONE THE ANALYSIS AND I VERFIED THE ANGLE WITH THE RUNNING POINT ANALYSIS.

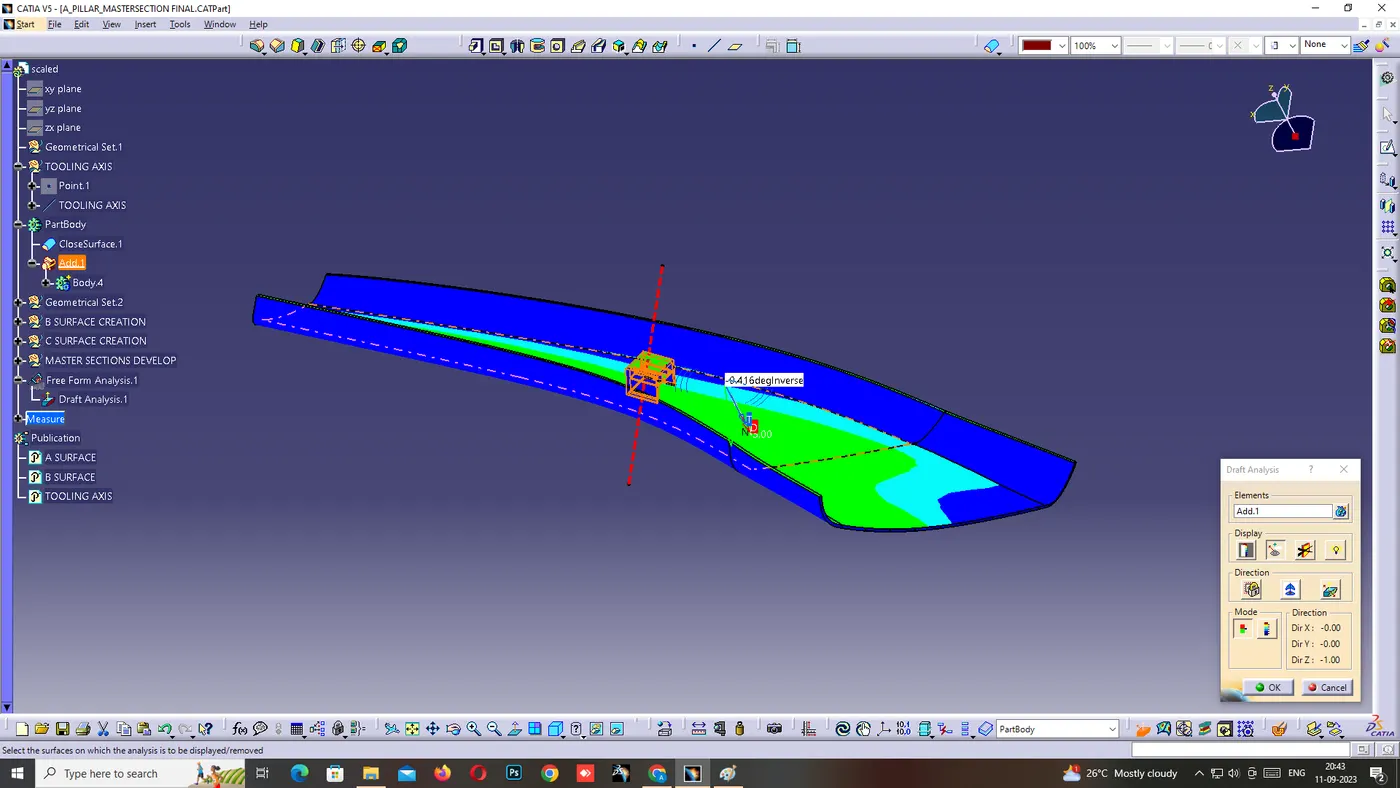

I DONE THE DRAFT ANAYSIS IN PART BODY. FIRST OF ALL I GOT THE DRAFT ANALYSIS COMMAND IN THE PART BODY. THEN I INSERTED THE COMPASS IN THE DRAFT ANALYSIS TO THE TOOLING AXIS. I DONE THE ANALYSIS AND I VERFIED THE ANGLE WITH THE RUNNING POINT ANALYSIS.

B SURFACE CREATION:

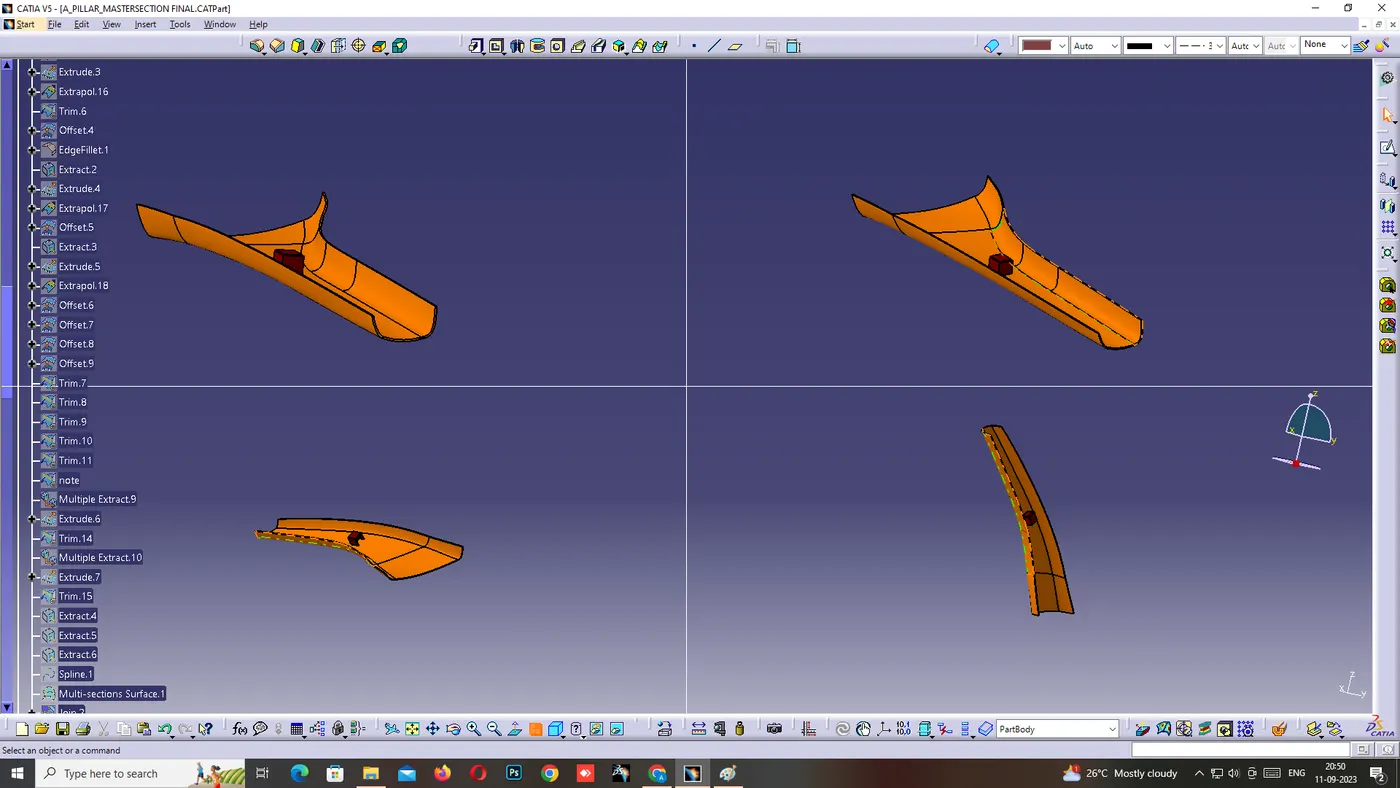

I OFFSETTED THE CLASS A SURFACE INSIDE FOR 3MM. THEN I REPAIRED THE PATCHED WITH THE HELP OF TOOLS LIKE MULTIPLE EXTRACT, BOUNDARY CREATION, TRIM AND EDGE FILLETS. IN SOME AREAS I USED THE EXPOLATE COMMAND TO ENLARGE THE PARTICULAR AREA OF THE SURFACE.

THEN AFTER SOME ALTERATIONS THE SURFACE CAME TO AN END. I NAMED IT AS CLASS B SURFACE.

C SURFACE CREATION:

I EXTRACTED THE BOUNDARY OF THE CLASS A SURFACE. THEN WITH THE HELP OF TOOLING AXES 1 AND 2, I SWEEP THE BOUNDARIES. I SWEEPED THEM WITH REFERANCE SURFACE AND SOME BOUNDARIES WITH DRAFT DIRECTION.

THEN I NAMED THE SWEEPED SURFACES AS CLASS C SURFACE.

PARTBODY:

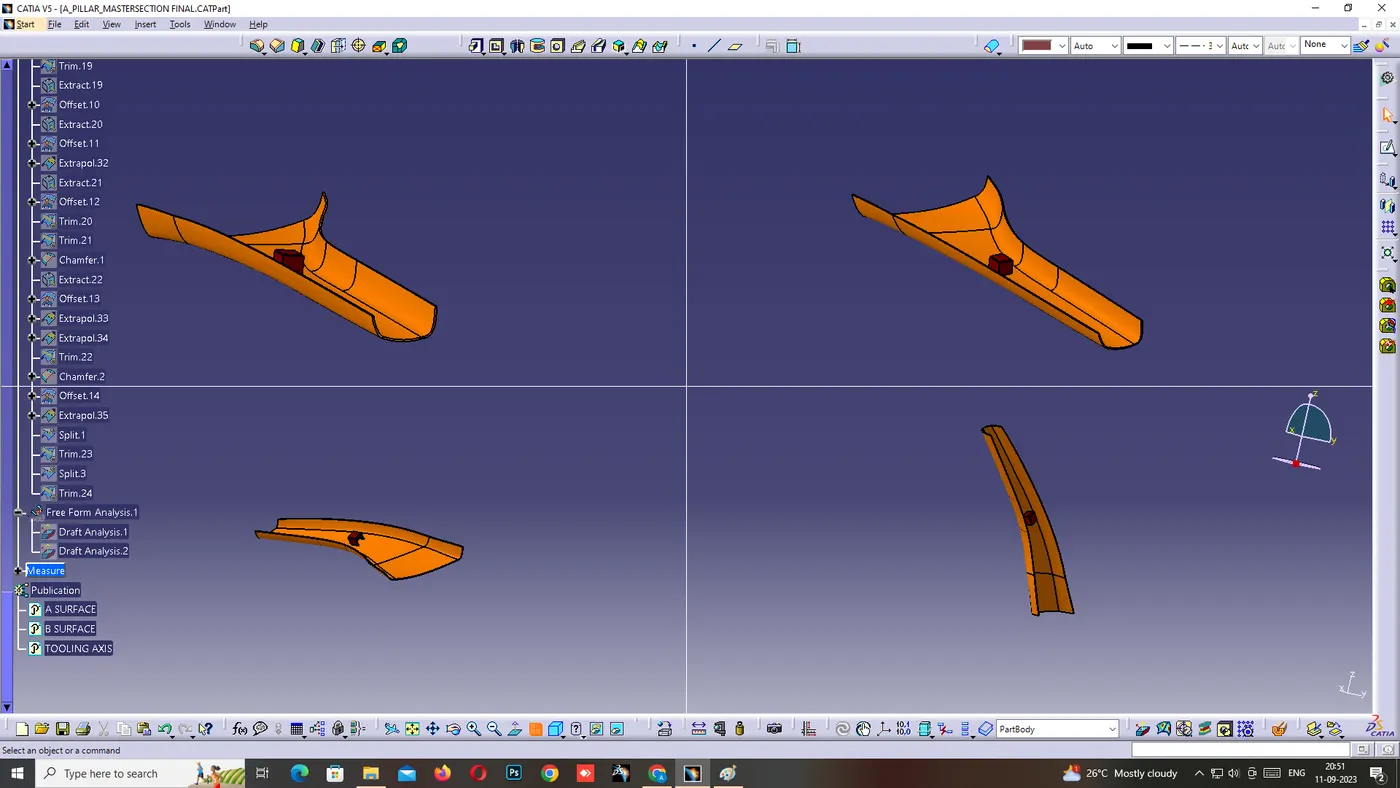

I TRIMMED THE CLASS B SURFACE AND CLASS A SURFACE TOGETHER. I GOT NEW SURFACE. THEN I MADE IT AS CLOSED SURFACE WITH THE HELP OF CLOSE SURFACE COMMAND. FINALLY IT IS A PART BODY.

DOG HOUSE:
