Week 9 - Challenge 3 - Bumper

REPORT:

TOOLING AXIS:

I CREATED A POINT IN THE BOX SHAPED SURFACE BY EXTRACTING IT AND I CREATED A LINE TO THE Z DIRECTION. THEN I MADE IT AS TOOLING AXIS.

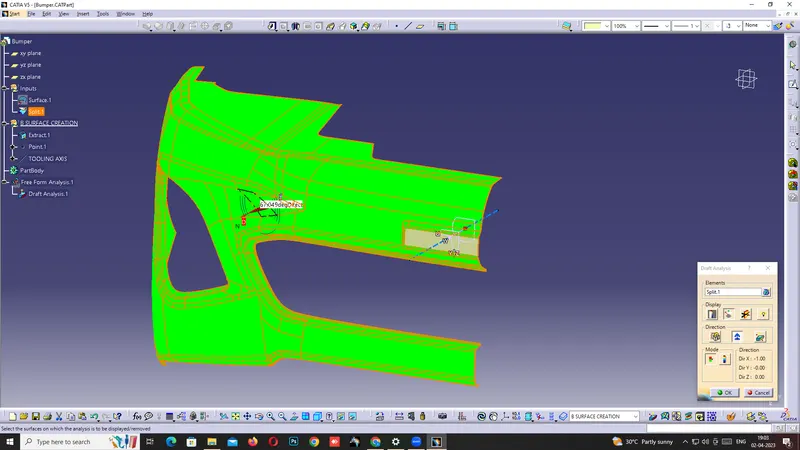

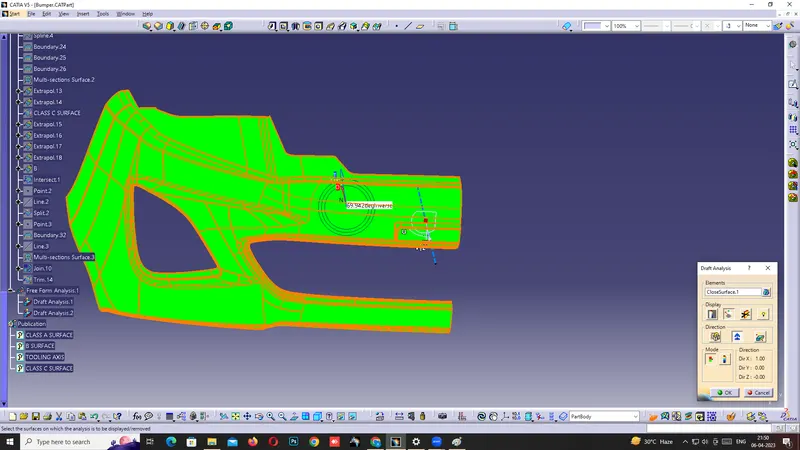

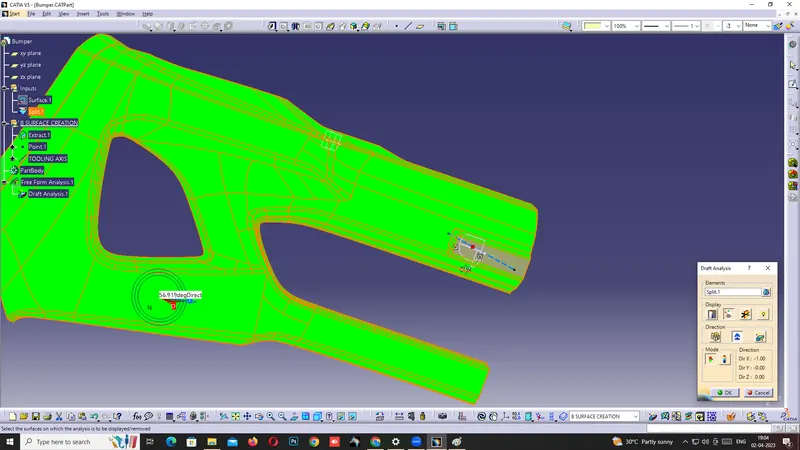

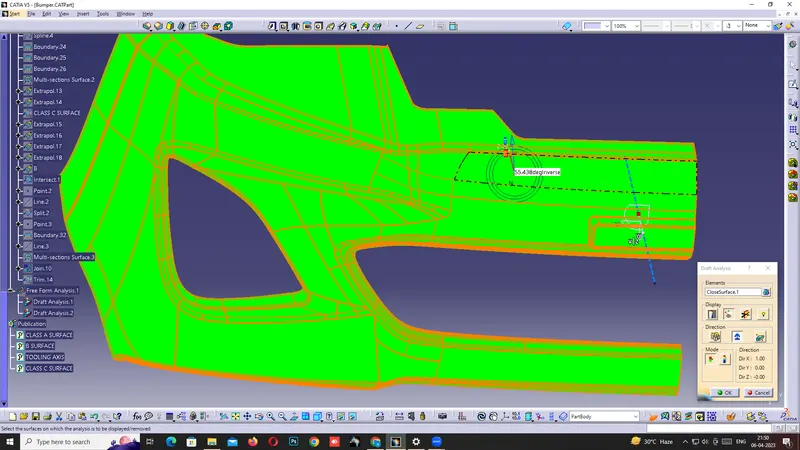

DRAFT ANALYSIS:

I SELECTED THE DRAFT ANALYSIS COMMAND AND I CHANGED IT THE MODE THE MATERIAL. THEN SWITCHED ON THE COMPASS COMMAND AND I MOVED THE COMPASS TO THE CENTRE OF THE TOOLING AXIS. THEN WITH HELP OF ANALYSIS UNDER RUNNING POINT CURSOR I DONE THE DRAFT ANALYSIS.

B SURFACE CREATION:

BY OFFSETTING THE CLASS A SURFACE TO 3MM IT FORMED A NEW SURFACE AND I FILLED THE SURFACE GAPS WITH THE SUB ELEMENTS TO REMOVE COMMAND IN JOIN COMMAND.

THEN I GIVE FILLET TO THE SURFACE.

C SURFACE CREATION:

I EXTRACTED THE BOUNDRIES BY EXTRACTING CLASS A. THEN I SWEEP THE SOME BOUNDRIES WITH DRAFT DIRECTION COMMAND AND SOME WITH REFERENCE SURFACE COMMAND.

I JOINED CLASS A AND SWEEP SURFACE AND I NAMED IT AS C SURFACE. AFTER SOME ALTERATIONS IN C AND B SURFACES I TRIMED B AND C TO CREATED A CLOESED SURFACE.

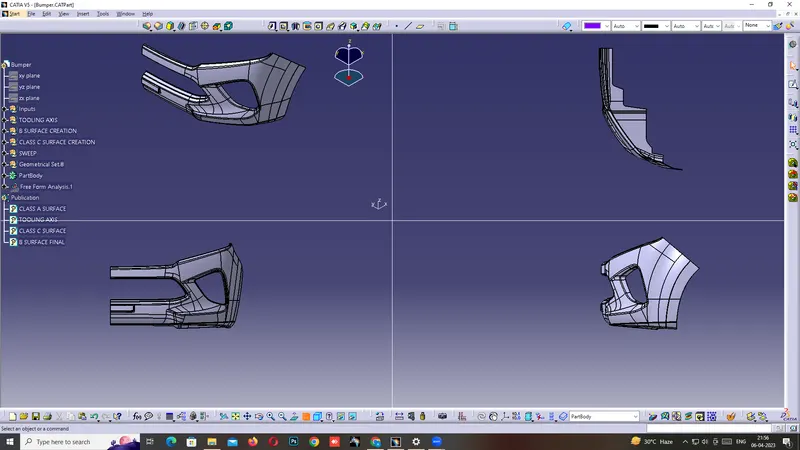

PART BODY CREATIONS:

BY DEFINING PART BODY AND ENTERING INTO THE PART DESIGN I USED THE CLOSE SURFACE COMMAND TO CREATE THE PART BODY.
