Week 11 - Project - A pillar Design with Master Section

A-Pillar Master Section:-

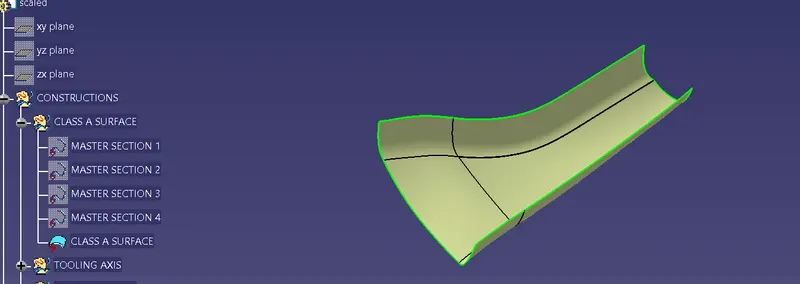

Firstly I downloaded the STEP file After that I Checked Class A Surface for any errors or open surfaces.

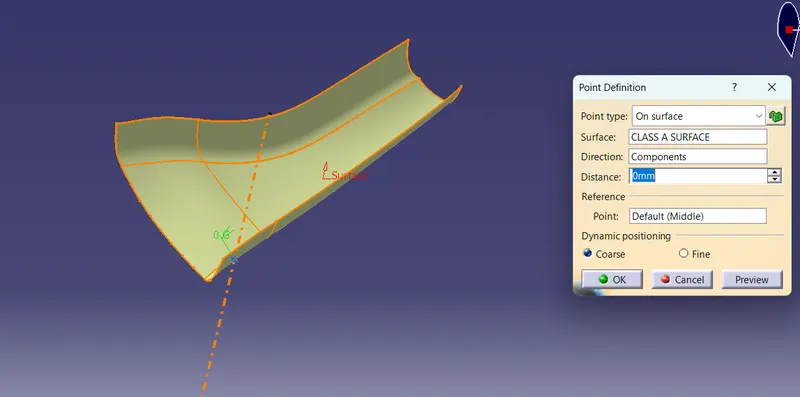

I didn't find any open surfaces. So I started with Tooling Axis.

Class B Surface:-

I offset Class A Surface to 2.5 mm After offset I got some errors to rectify I used the sweep command.

Class C Surface:-

I took Class A Surface to Create Class C I used the sweep command. After that, I extrapolate and Trim unwanted surfaces.

Class C Surface Formed.

After that, I joined Class C and Class A surfaces. Then I used Final Trim Means Trim (Class A and C ) with Class B surface.

Then I checked for open surfaces in Final Trim.

I Close the surface.

Flange:-

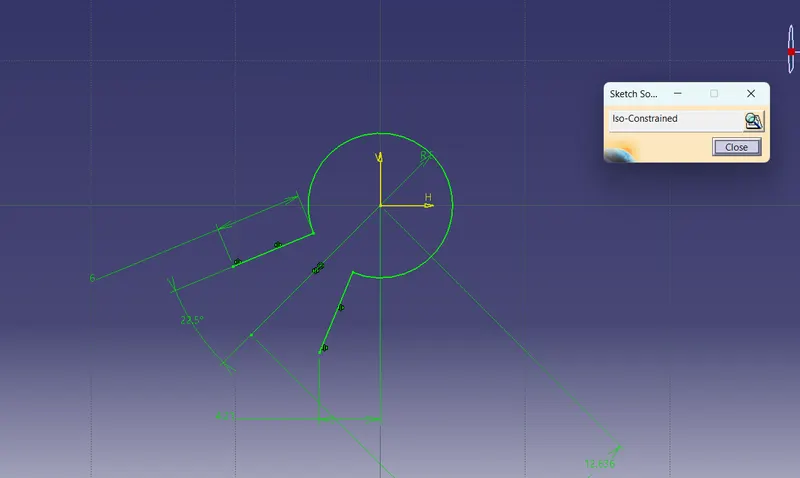

For Flange I took the master section as a reference from which I created the dog house. After thickening the surface.

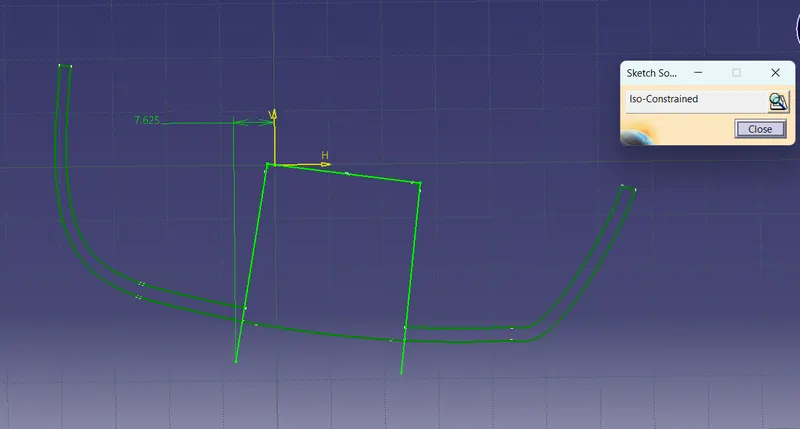

After sketching, I used extrude command then I thicken that part After that I split the unwanted surface.

As above image, I used the limit between those I got Dog House.

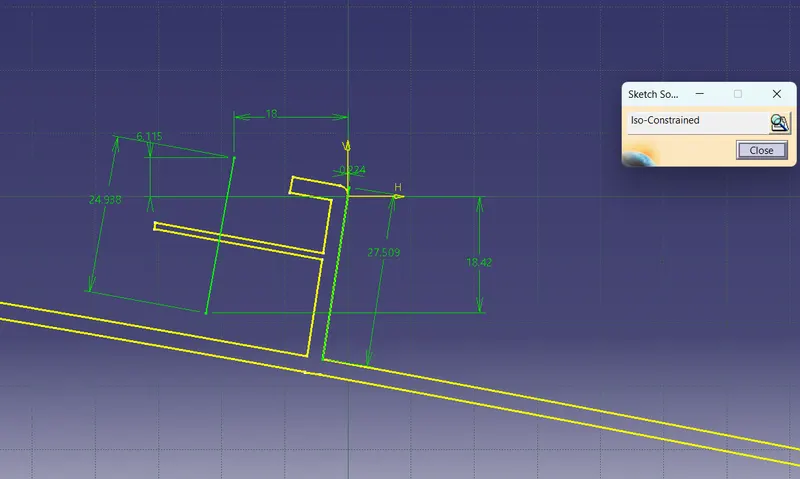

As above image, I used the Master section as a reference.

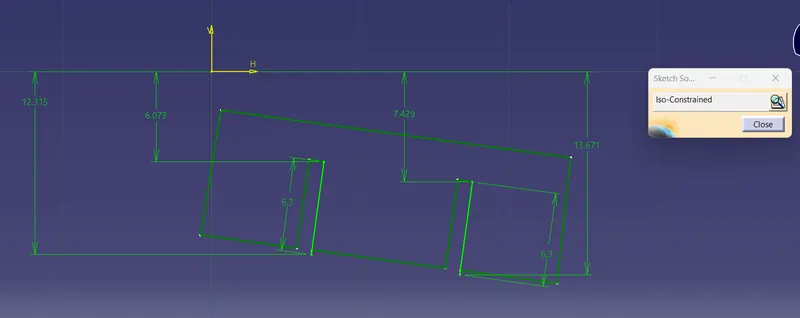

Dog House Top Portion:-

As from the sketch given, I challenge I used to draw like a below image

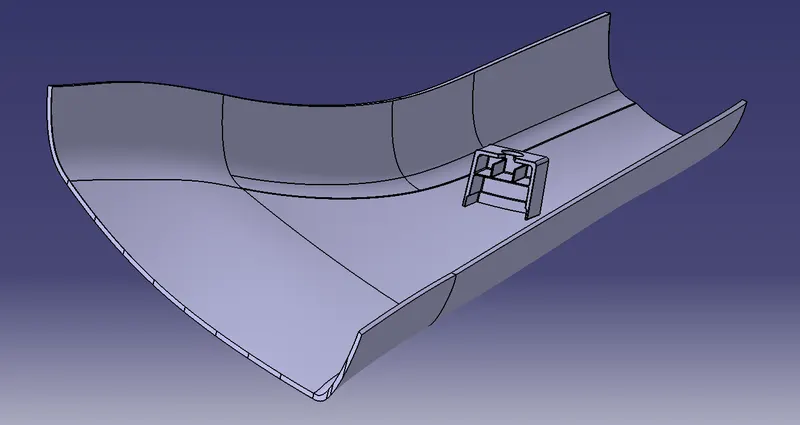

Final Plastic Product:-

Draft Analysis:-

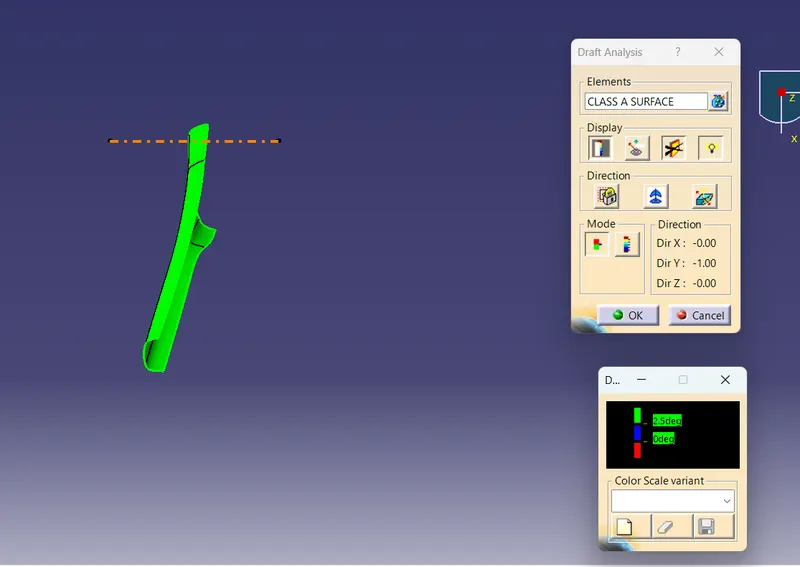

1)Class A Surface:-

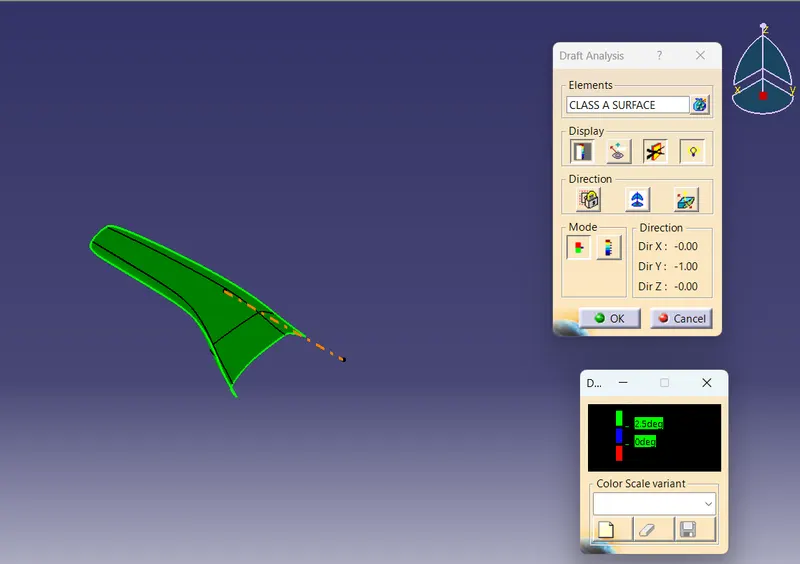

Isometric View:-

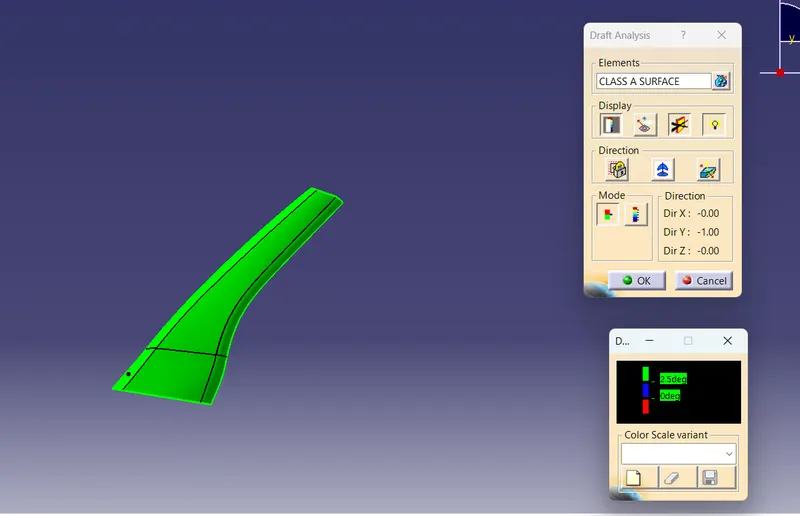

Top View:-

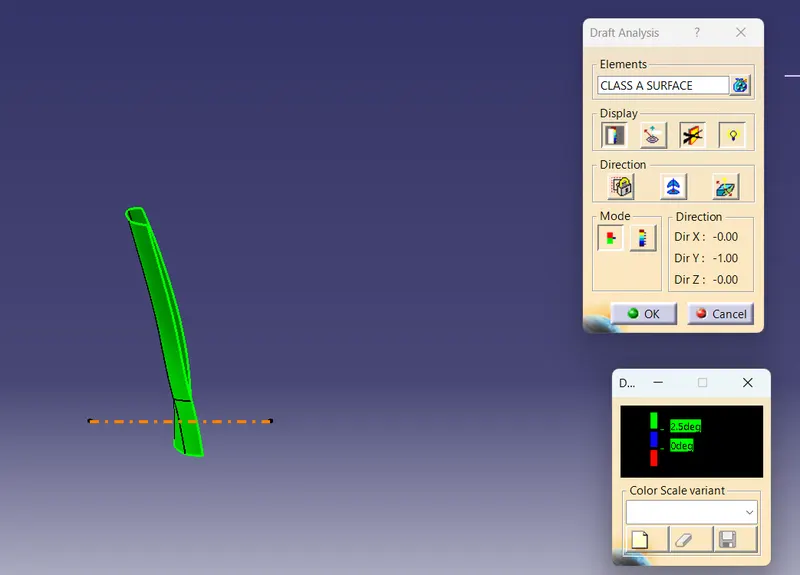

Side View:-

Front View:-

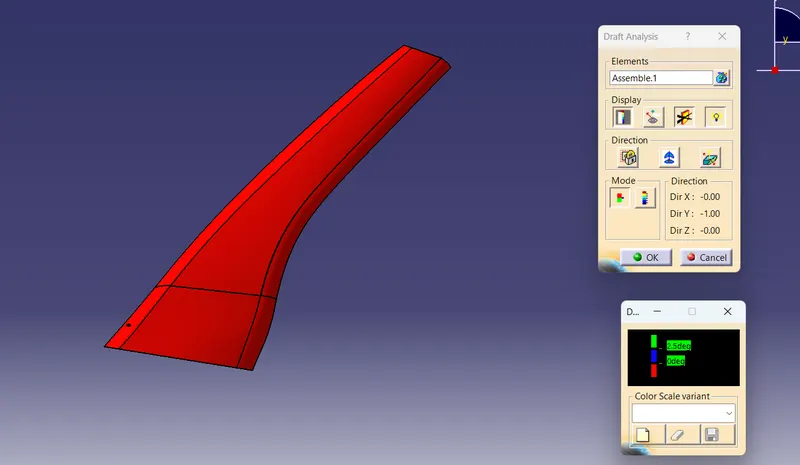

Final Product Tooling Axis:-

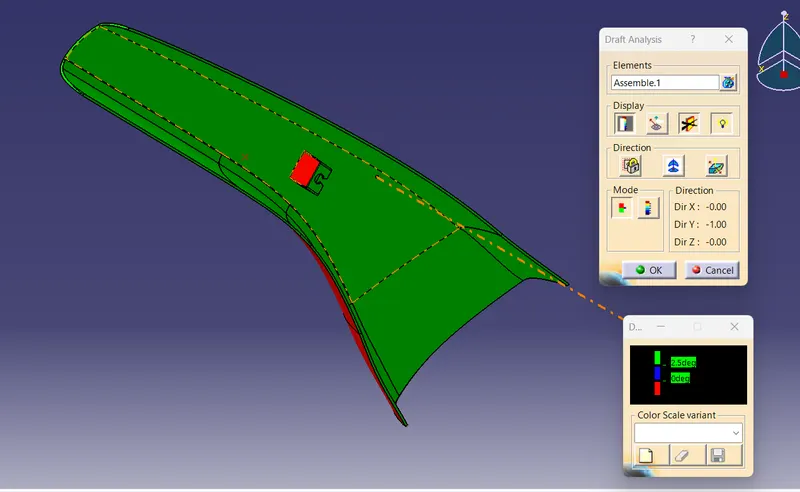

Isometric View:-

Top View:-

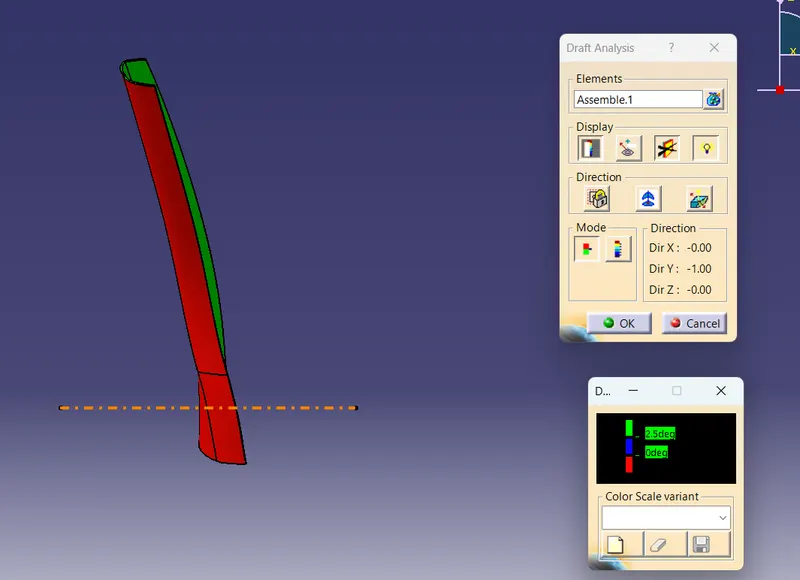

Side View:-

Front View:-

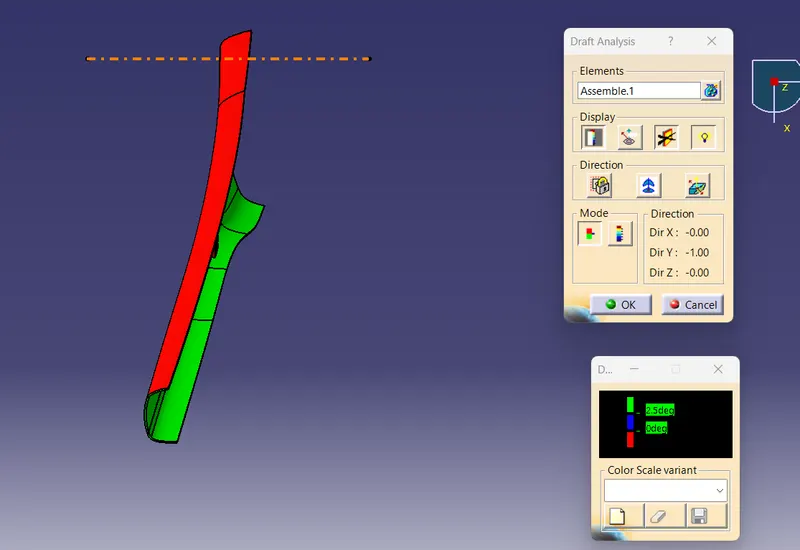

3)Side Core Axis:-

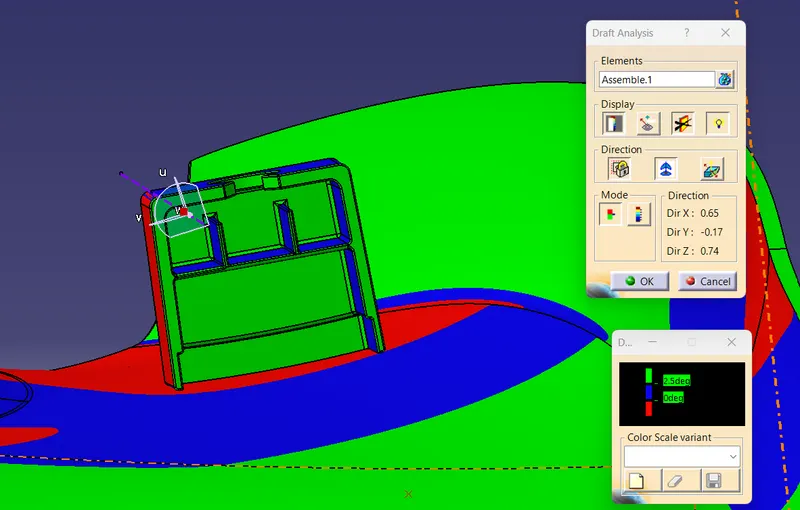

Isometric View:-

Report:-

As from the given project I created Close Surface.Created Dog House,B side features,Dog House Top Portion.
