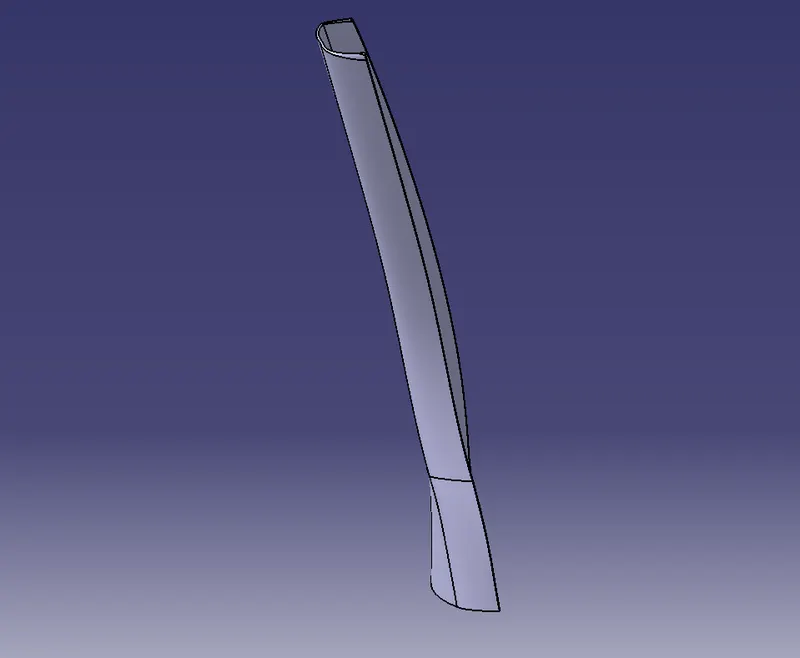

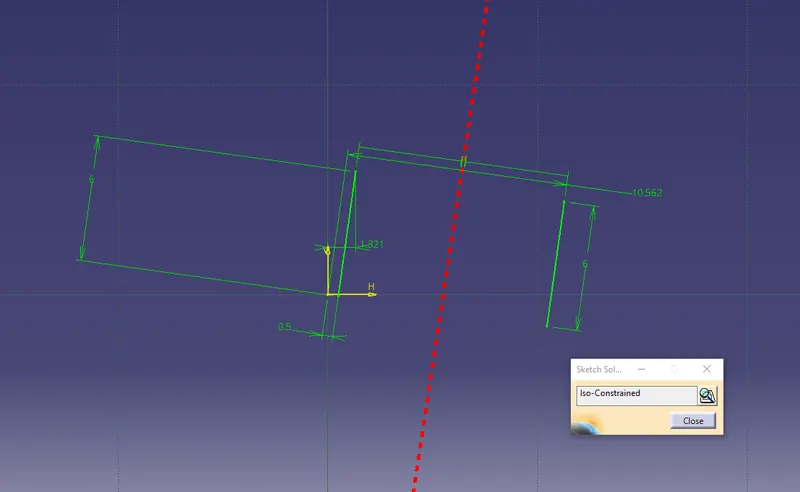

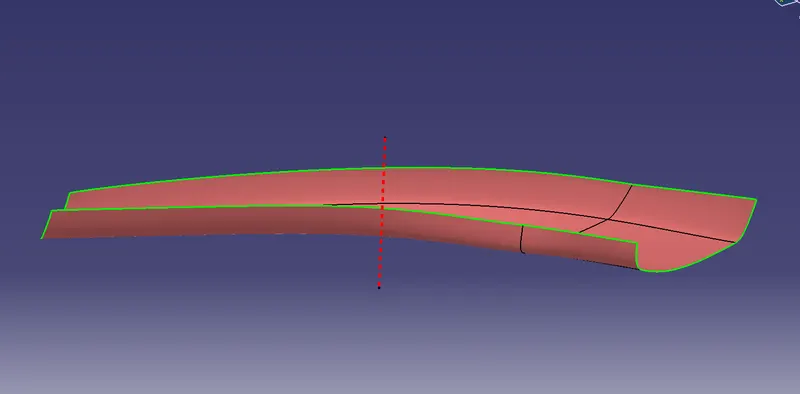

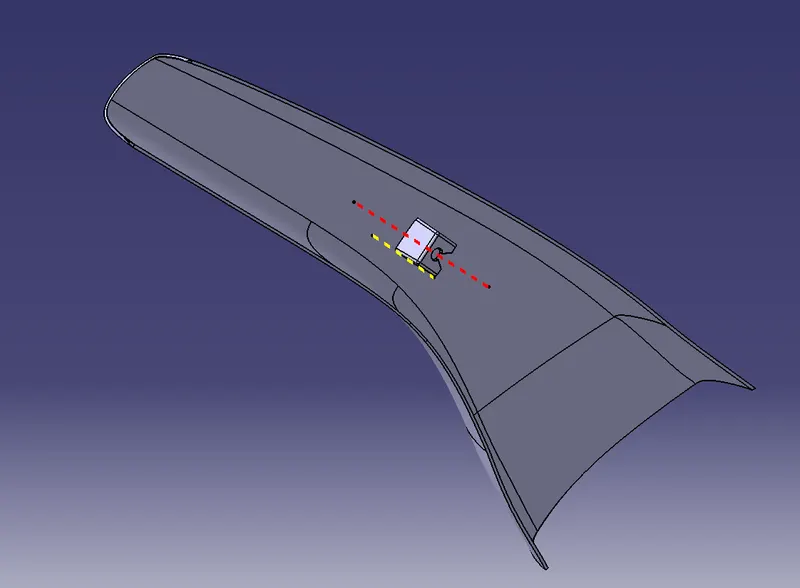

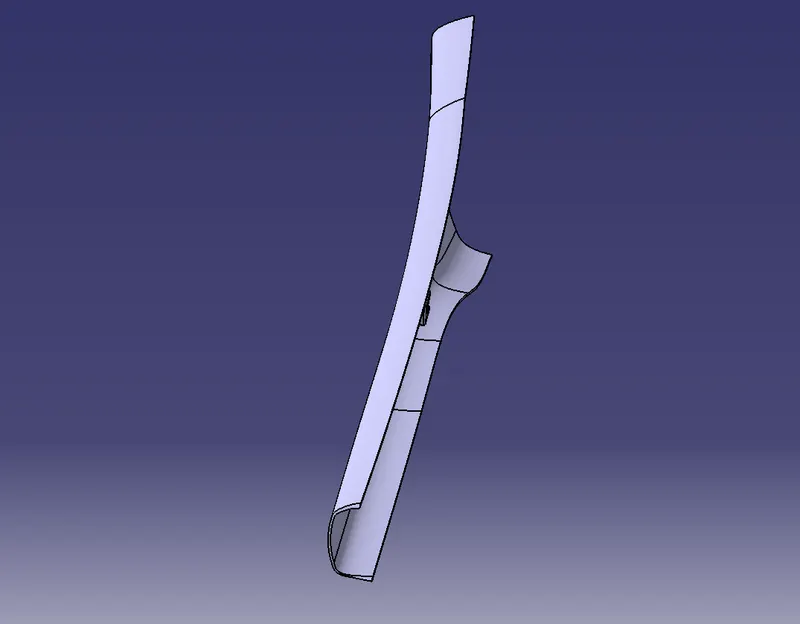

Week 11 - Project - A pillar Design with Master Section

1. P Clamps2. BackShellThen Defined this part as Back Shell.After that defined the bundle entry point and Back Shell Connection Point Below is the tree structure of the final product.3. COT and Slit Cot are in the file

1. Deutsch DT06 – 08SAAbove Image Shows the Part Body Of our 1st Clip - Deutsch DT06 – 08SACreated a center point on the bundle side using point tool and selecting between option by selecting two point and middle point option.Same for the connector side.Now, On the connector side created axis system using axis…

IntroductionThe section modulus is a critical parameter in structural engineering, representing the strength of a cross-sectional shape of a structural member, here we are using hood design as our structure. It is essential for assessing the load-bearing capacity of beams, columns, and other structural elements.Understanding…

1. Arm Rest - Extracted Class A Surface Improved Class A Surface Tooling Axis Improved Class A Analysis Class B Surface Class C Surface Final Trim Side Core Axis Final Part Body Final Analysis TREE ISO FRONT SIDE TOP 2. Bottle Holder Extracted Class A Surface Tooling Axis Class A Analysis Class B Surface Class C Surface…

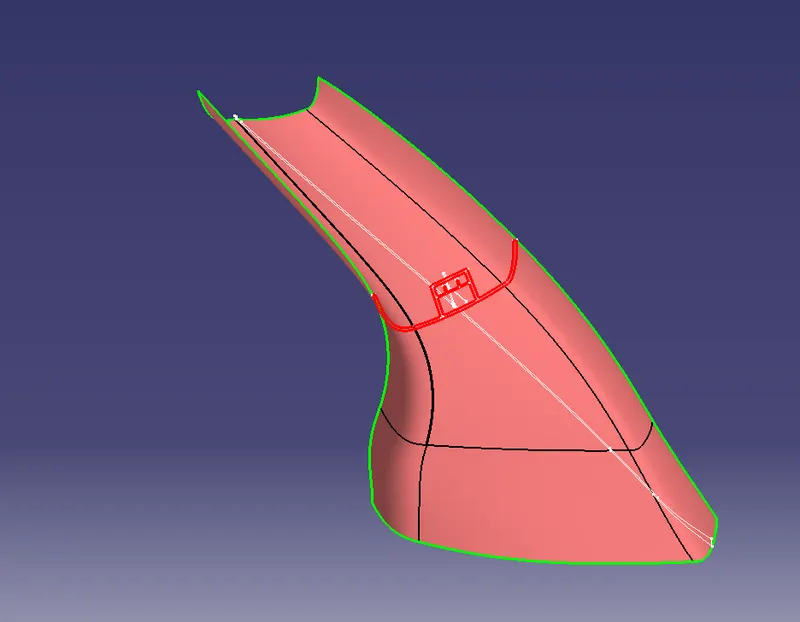

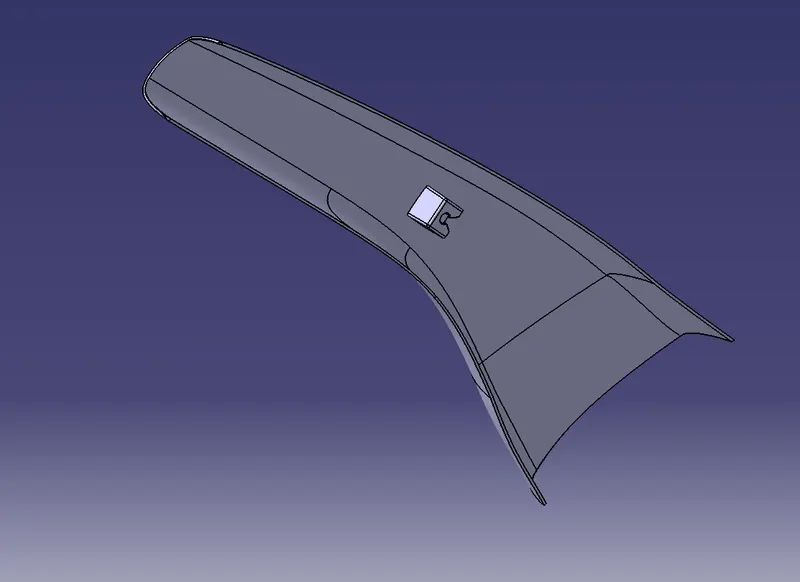

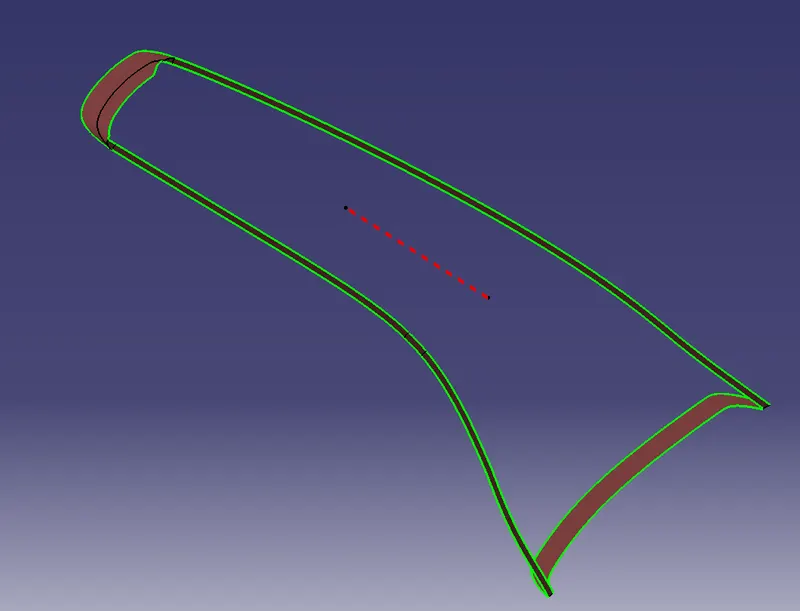

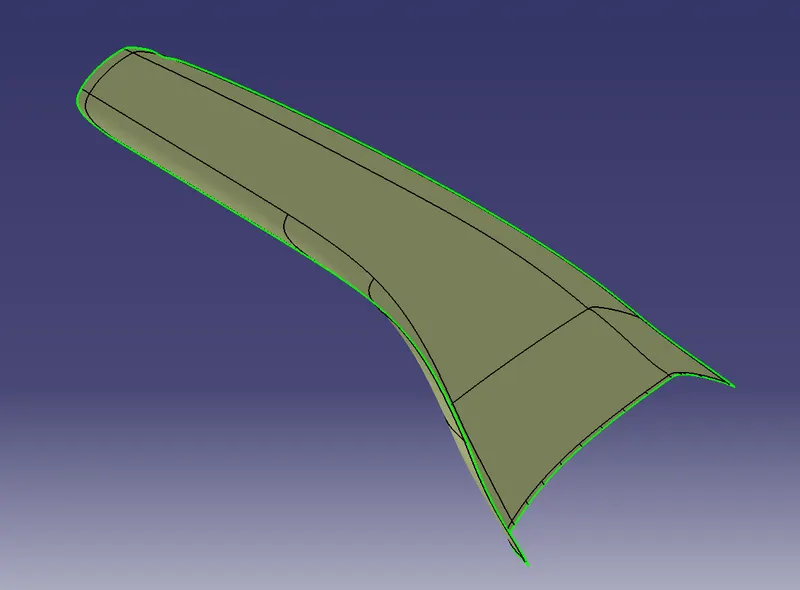

Given Class A & Master Section - TOOLING AXIS PREPRATION To create the 'Tooling Axis', the given class A should be observed thoroughly, Here we have taken an approch of extracting the base face of the class A and Intersecting it, and then taking a point to the center of the extracted surface that lies on the intersection…

GIVEN CLASS A -  TOOLING AXIS PREPRATION To create the 'Tooling Axis', the given class A should be observed thoroughly, Here we have taken an approch of extracting the base face of the class A and Intersecting it, and then taking a point to the center of the extracted surface that lies on the intersection line, and…

Given Class A Surface -  TOOLING AXIS PREPRATION To create the 'Tooling Axis', the given class A should be observed thoroughly, Here we have taken an approch of extracting the base face of the class A and Intersecting it, and then taking a point to the center of the extracted surface that lies on the intersection…

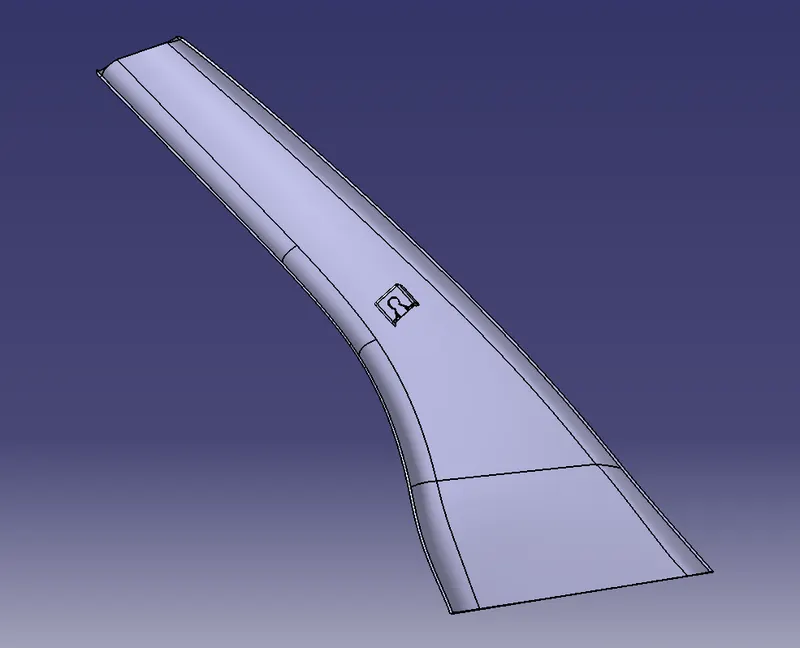

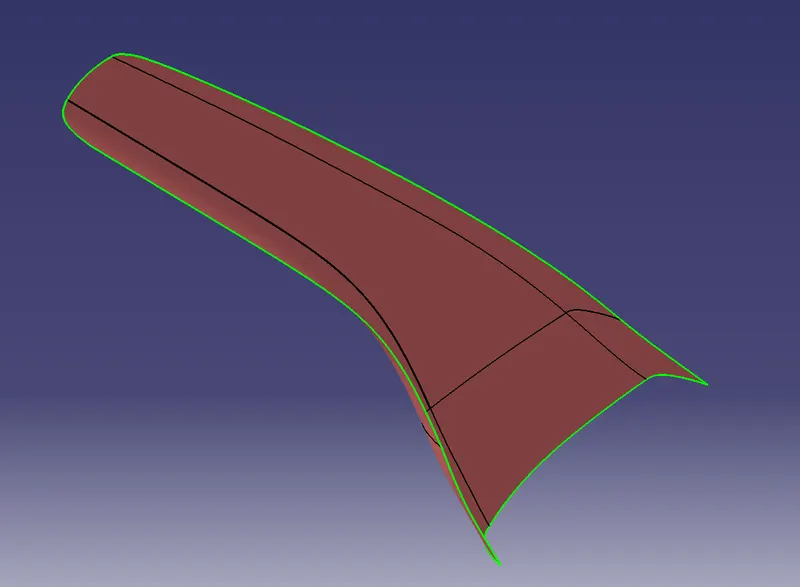

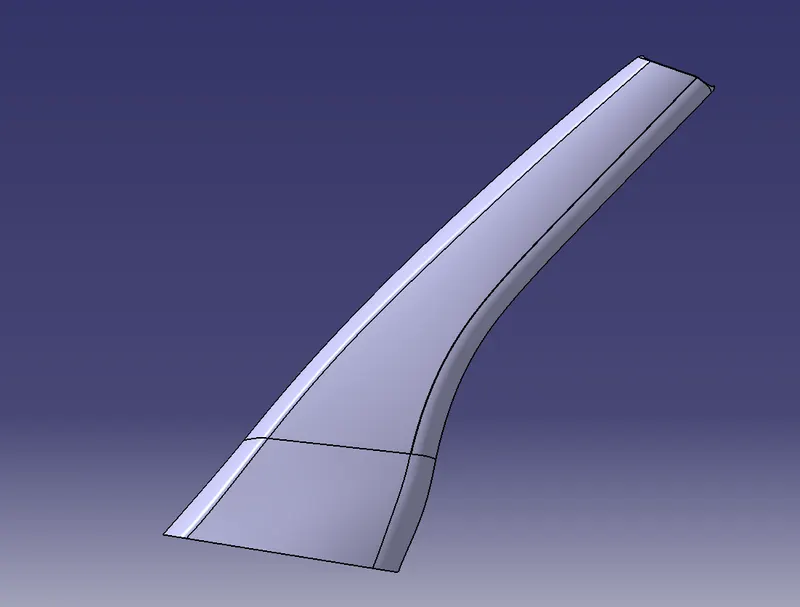

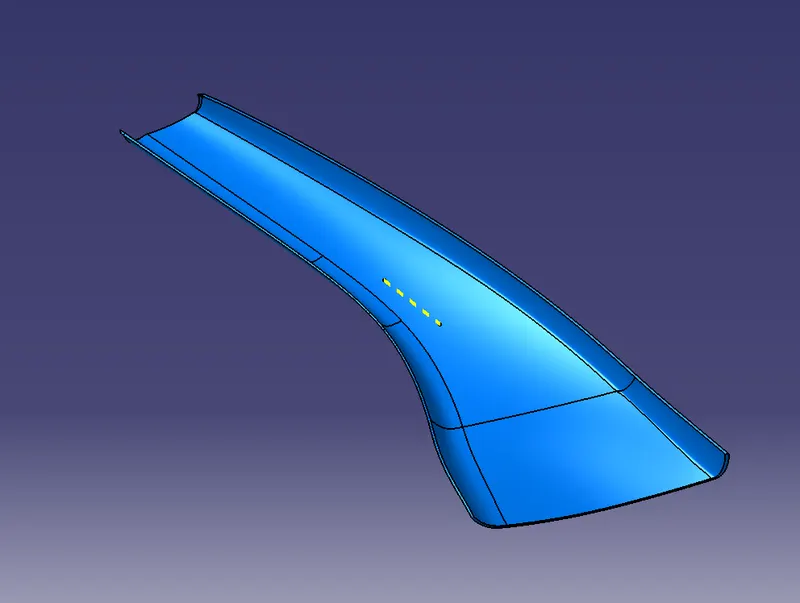

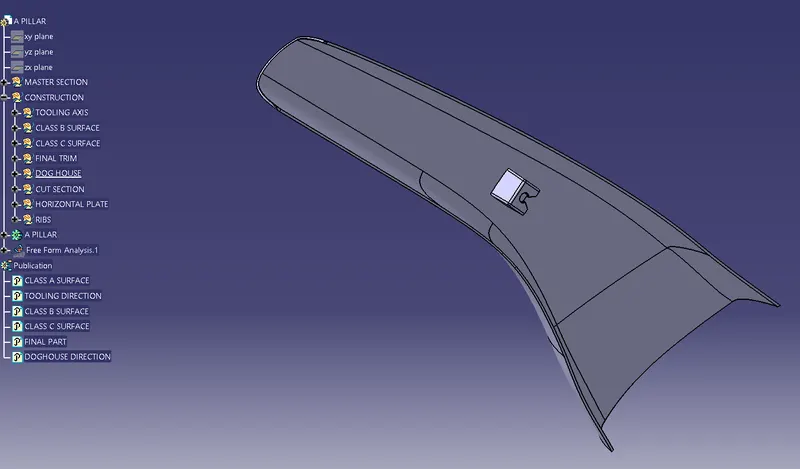

GIVEN CLASS A TOOLING AXIS CLASS A ANALYSIS FINAL ANALYSIS CLASS B SURFACE CLASS C SURFACE CLASS A + C FINAL TRIM FINAL BODY IN ISO FRONT TOP SIDE RIBS TEST

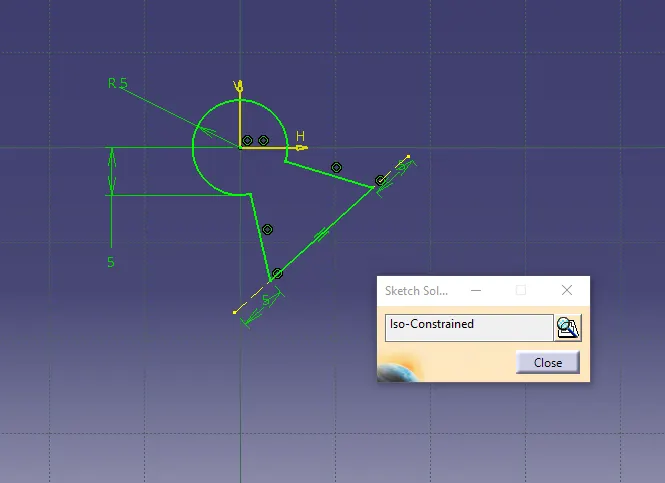

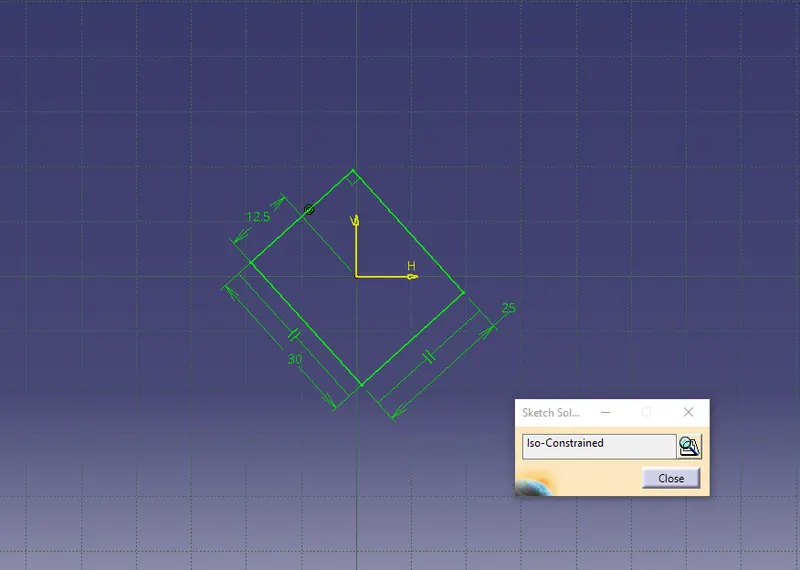

Model 1 - Quick Return Mechanism The Quick Return Mechanism consist of  5 parts, all parts were designed seperately on parts designed workbench and then assembled using different constraint tools available in the asembly workbench . To assemble these parts we first copy all the parts into work bench and then provide…

GIVEN CLASS A - TOOLING AXIS PREPRATION To create the 'Tooling Axis', the given class A should be observed thoroughly, Here we have taken an approch of extracting the base face of the class A and Intersecting it, and then taking a point to the center of the extracted surface that lies on the intersection line, and then…

GIVEN CLASS A - TOOLING AXIS PREPRATION To create the 'Tooling Axis', the given class A should be observed thoroughly, Here we have taken an approch of extracting the base face of the class A and Intersecting it, and then taking a point to the center of the extracted surface that lies on the intersection line, and then…

GIVEN CLASS A SURFACE TOOLING AXIS PREPRATION To create the 'Tooling Axis', the given class A should be observed thoroughly, Here we have taken an approch of extracting the base face of the class A and Intersecting it, and then taking a point to the center of the extracted surface that lies on the intersection line, and…

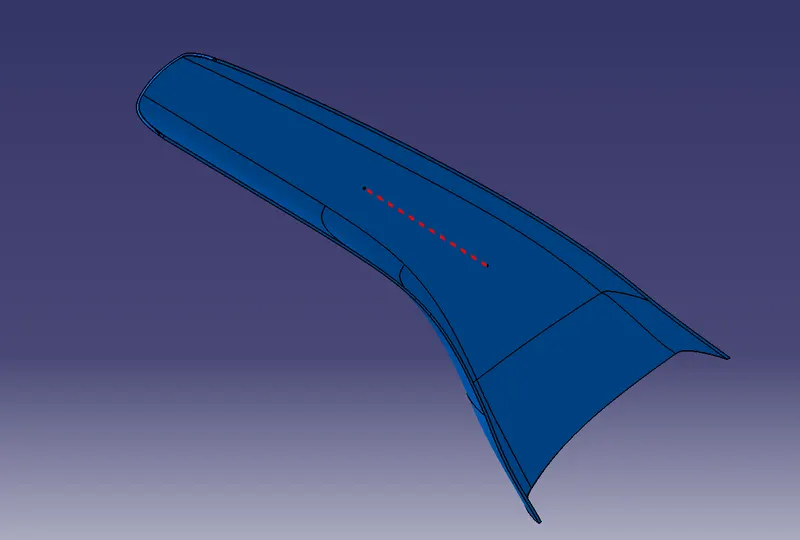

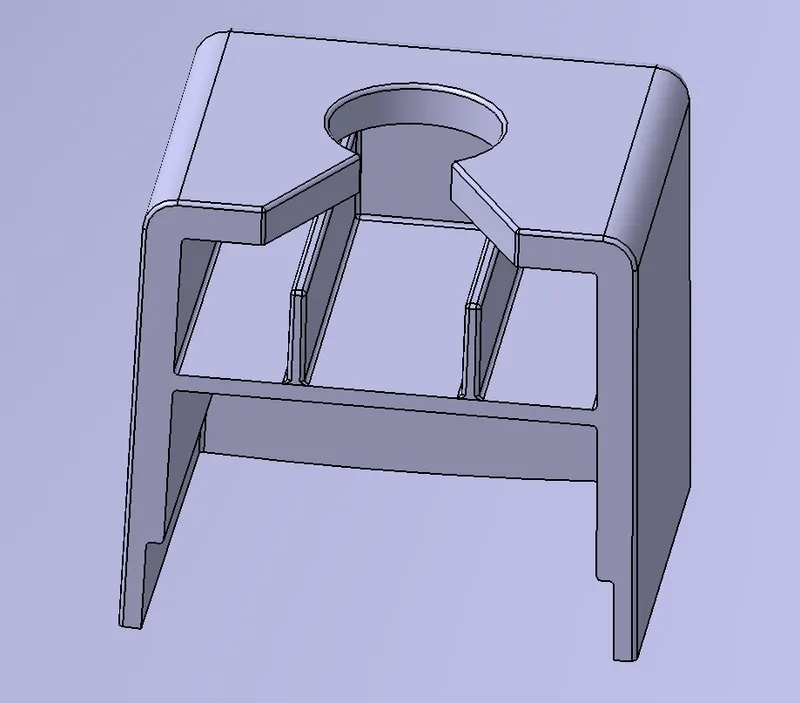

GIVEN CLASS A SURFACE To create the 'Tooling Axis', the given class A should be observed thoroughly, For the given base bracket class A,  Z-axis is the best suitable tooling axis, It is decided based on the complete visiblity of the class A. Then using the intersections made by the appropriate planes and the class…

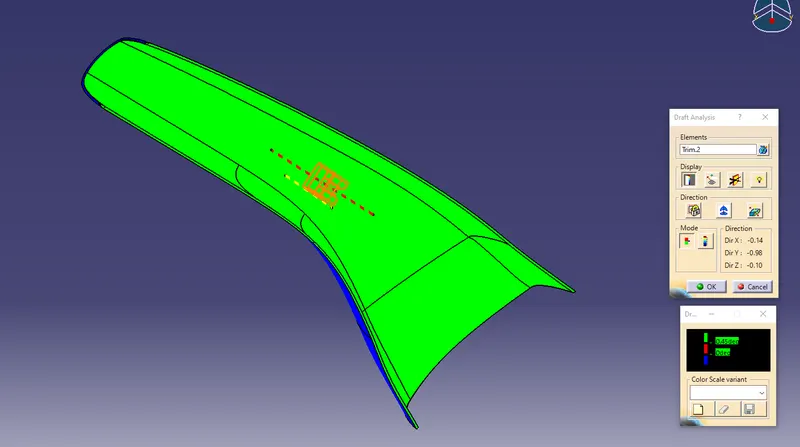

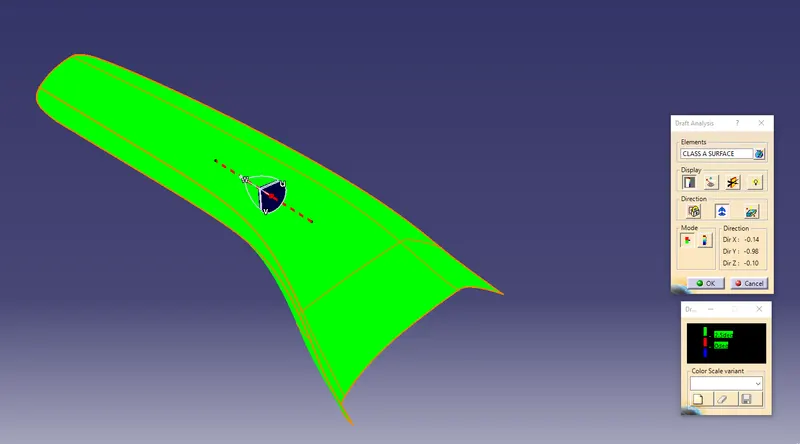

CLASS A DRAFT ANALYSIS FINAL CLOSE BODY ANALYSIS METHOD FOR DRAFT ANALYSIS - First I checked the possible direction for the draft analysis in my case the z-direction was the best possible way to take the draft analysis, then I created the dummy tooling axis for the reference of x,y,z-direction.then took a plane in…
