Week 8 - Challenge 1 - Base Bracket Design

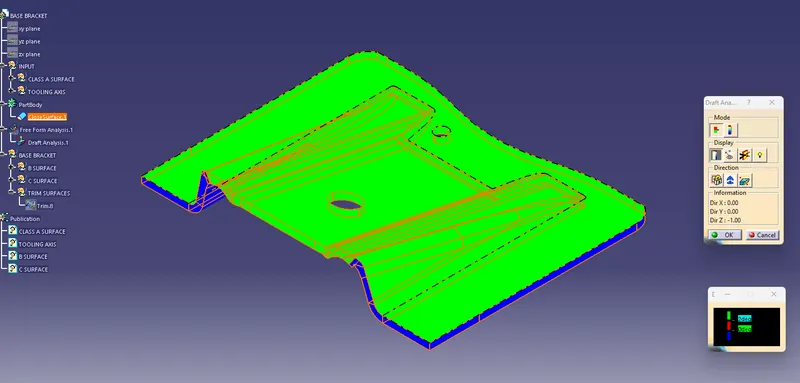

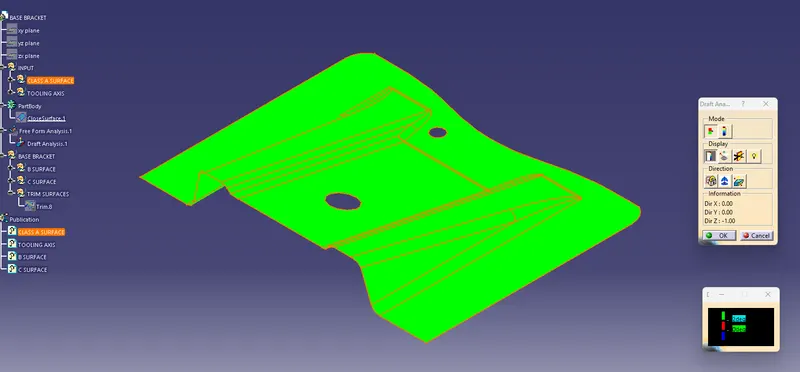

CLASS A DRAFT ANALYSIS

FINAL CLOSE BODY ANALYSIS

METHOD FOR DRAFT ANALYSIS - First I checked the possible direction for the draft analysis in my case the z-direction was the best possible way to take the draft analysis, then I created the dummy tooling axis for the reference of x,y,z-direction.then took a plane in refrence to yz-plane and took a intersection in that plane, then created the construction lines for those surface which are going to cause problem.then created the bisecting line by selecting the two construction lines. then hide all other things on the workbench other than the bisecting line that was created as main tooling axis. then changed the color for that line. After that switched to material view and started the draft analysis tool and then bring the cursor to the tooling axis, then clicked on the surface to see the minimum draft analysis in my case it was 2 degree. So, i have designed the complete the CLASS B AND CLASS C Surface according to that.

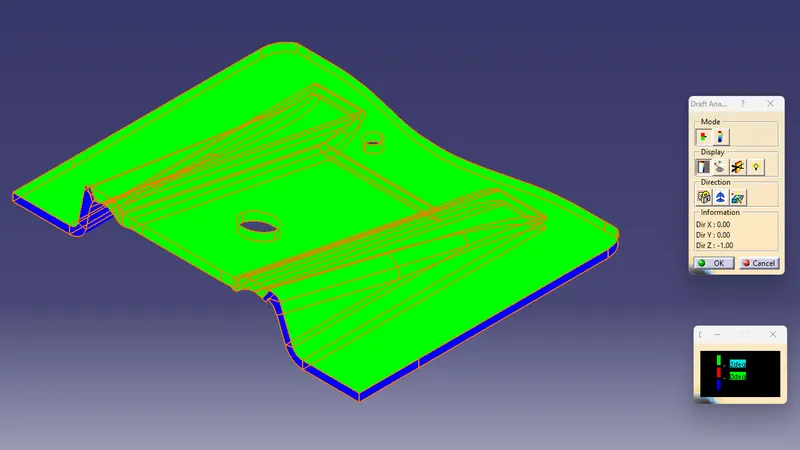

ISO

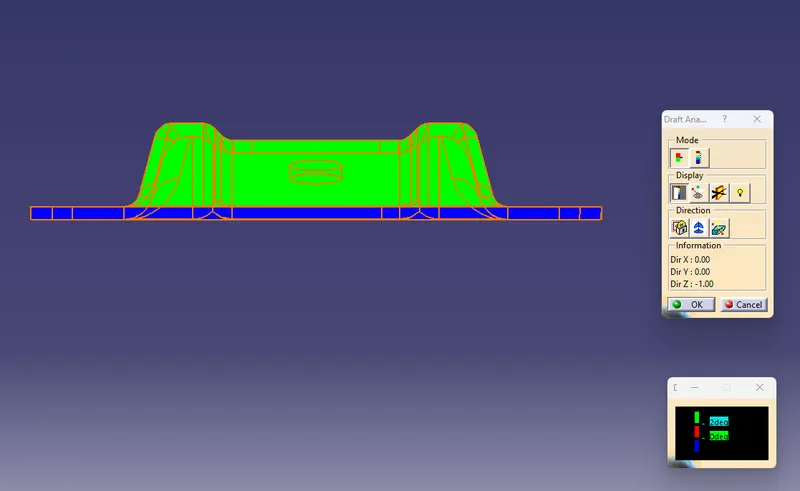

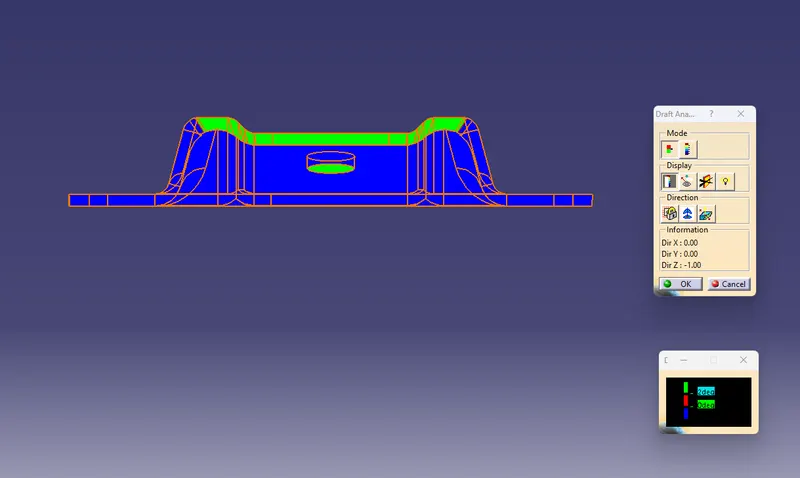

FRONT

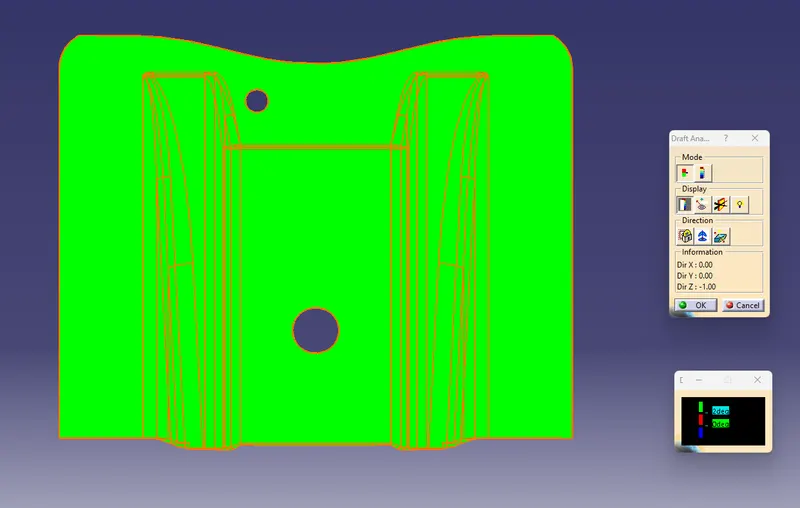

TOP

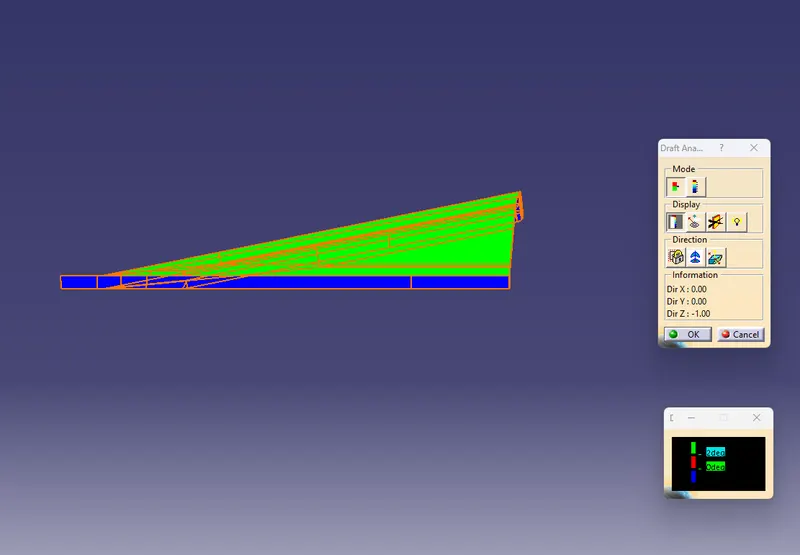

SIDE
