Week 8 - Challenge 2 - Switch Bezel Design

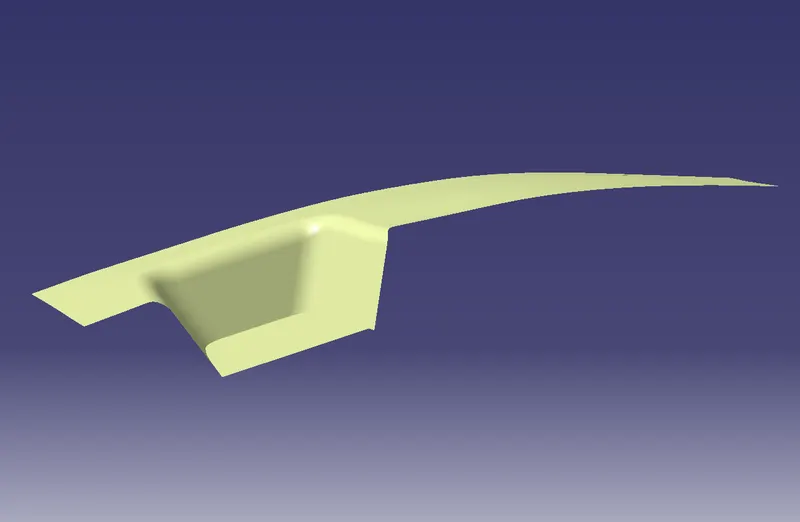

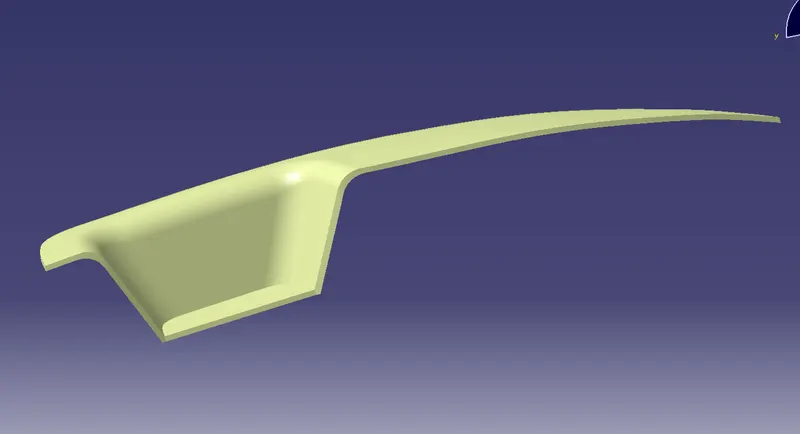

GIVEN CLASS A SURFACE

To create the 'Tooling Axis', the given class A should be observed thoroughly, For the given base bracket class A, Z-axis is the best suitable tooling axis, It is decided based on the complete visiblity of the class A. Then using the intersections made by the appropriate planes and the class A, We get a crossection sketch. The dummy axis is drawn on the z axis. Then the lines which are more or less parallel to the z axis are taken into consideration and drawn. By bisecting the two lines , As an output The Tooling clearing axis of both the planes are derived. This process is done twice using the zy and zx planes. After bisecting the tool clearing axes, we get a toolimg axis for the entire product.

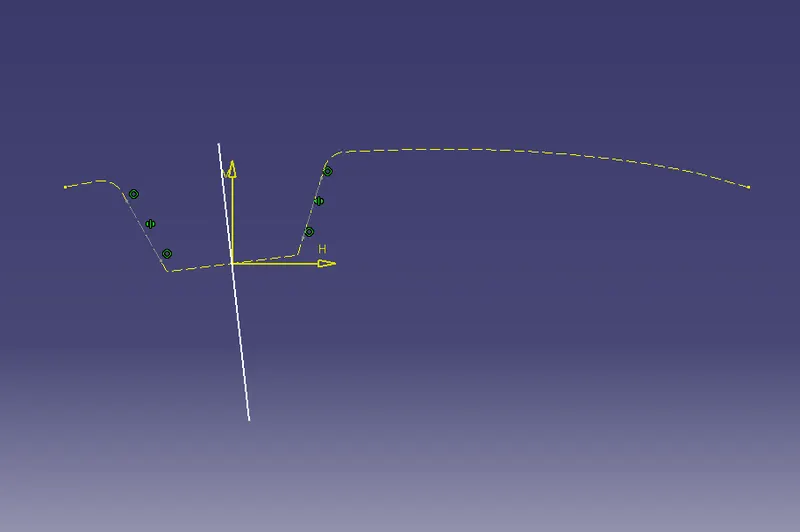

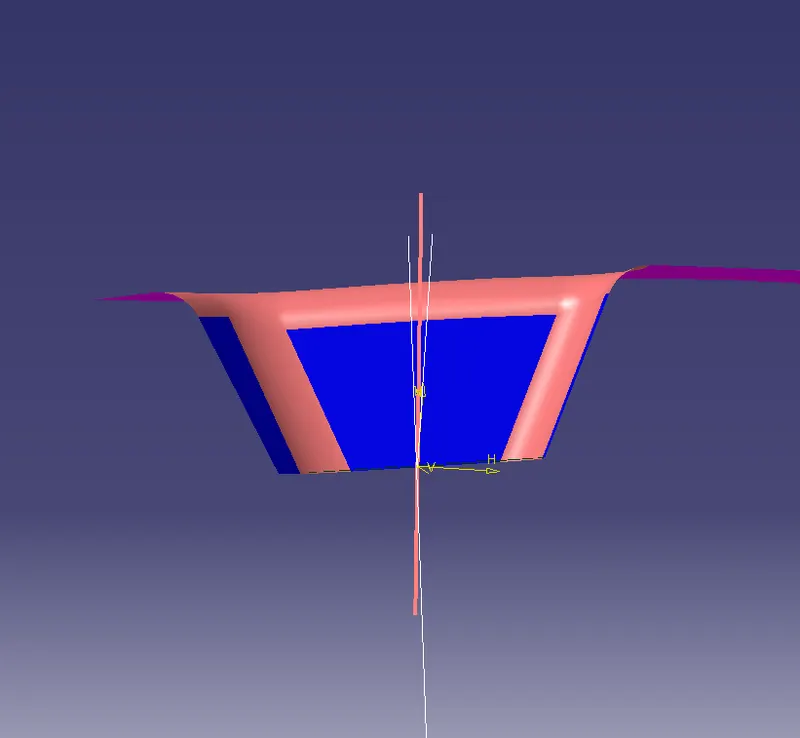

TOOLING AXIS PREPRATION 1

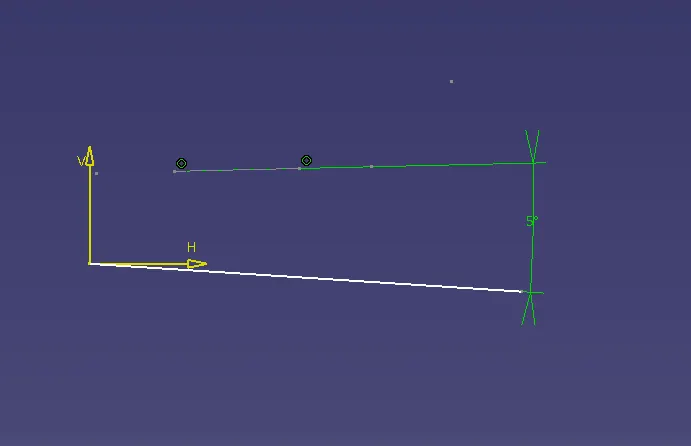

TOOLING AXIS PREPRATION 2

MAIN TOOLING AXIS

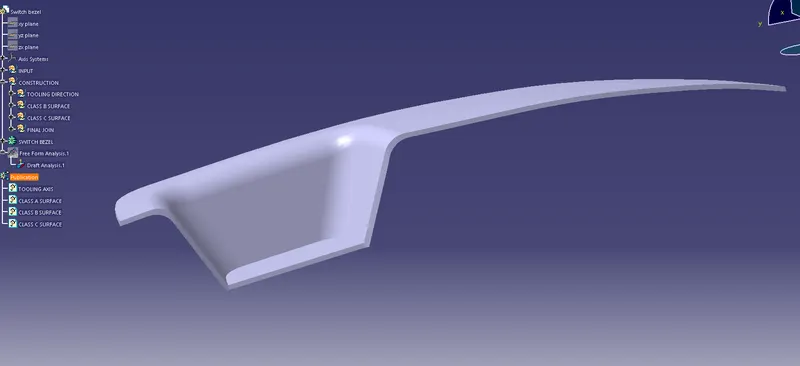

TREE

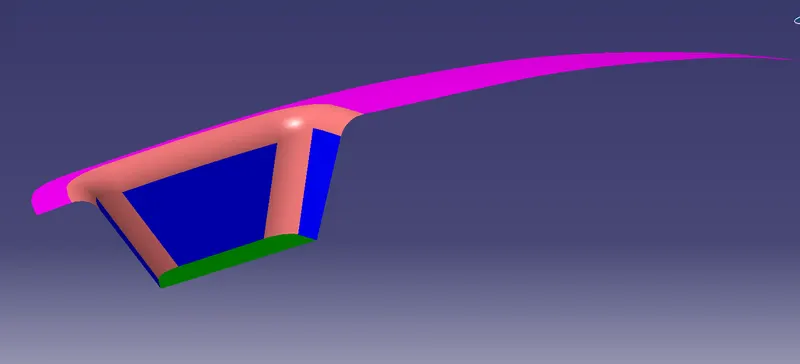

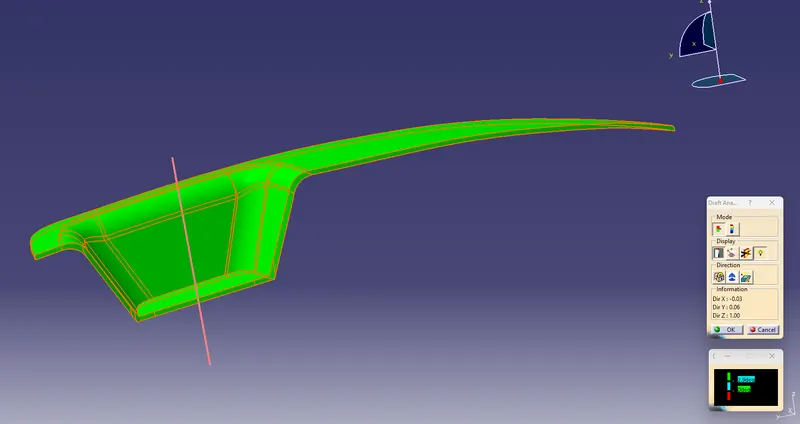

DRAFT ANALYSIS OF CLASS A

To perform the draft analysis of class A surface, click on Insert >Analysis > Feature Draft Analysis

Once the draft analysis toolbar is opened, The compass was selected and placed on the tooling axis, Then go to the display block and select the 'Analysis under the running point' command to check the angle for different sides on the class A surface. The color scale on the bottom visualizes, whether the draft angle meets the requirements or not (3 deg) by indicating the colors Green, Blue and Red.

CLASS B SURFACE

To create the class B surface from the class A, The entire surface has to be considered as 3 parts 'Walls, ............'. If we directly offset the class A surface, fillets may lead to cause an error, To avoid the errors we need to extract the surfaces and untrim the extracted surfaces and extrapolate those untrimmed surfaces with point continuity. Now those extrapolated surfaces was trimmed to the required shape. And finally, fillets were given to the final trim.

CLASS C SURFACE

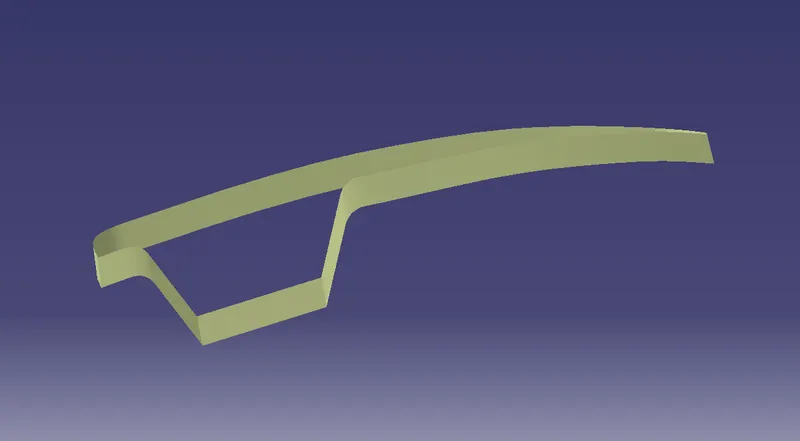

To create a class C surface, I used the sweep command by considering the outer boundary of the class A surface. In the sweep command > 'with draft direction', select the outer boundary and tooling axis, give 3 deg in the angle (the draft angle for a plastic component is 0.5 to 3 deg) and select the direction to sweep, in this condition the class B surface is under the class A surface so select the inside down arrow to sweep.

FINAL OUTPUT AFTER JOINING

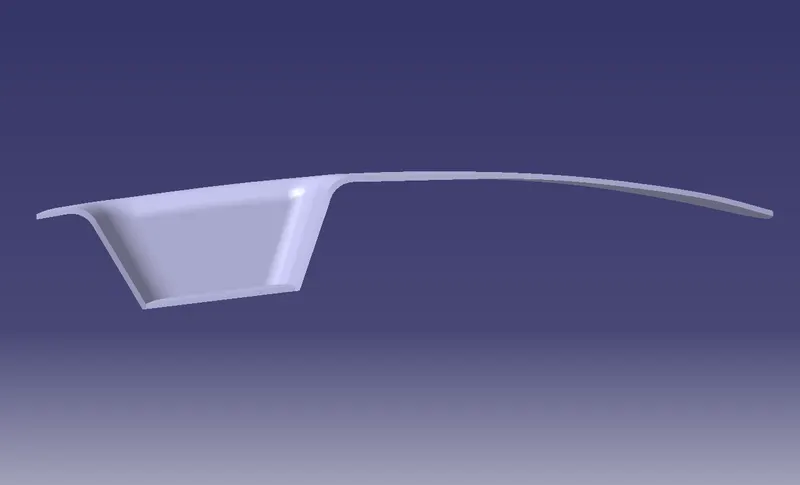

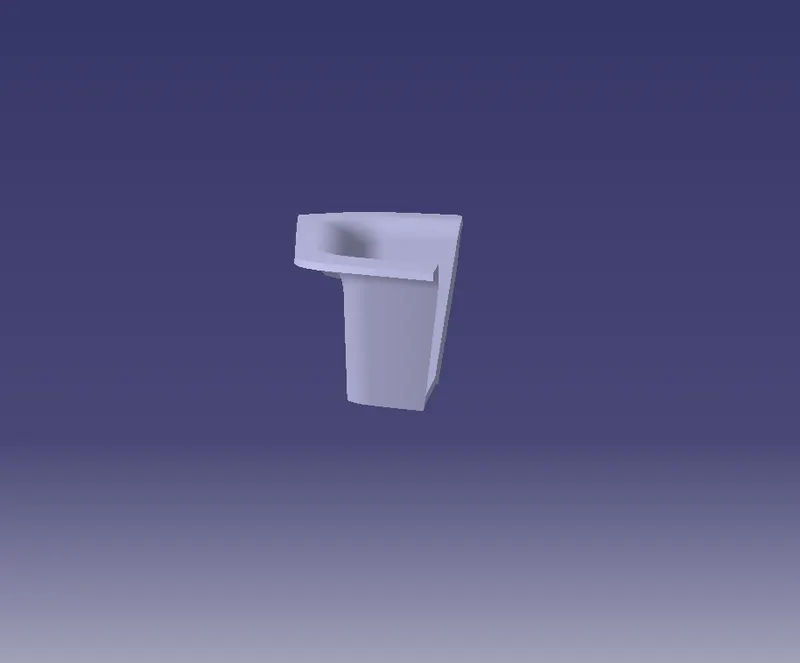

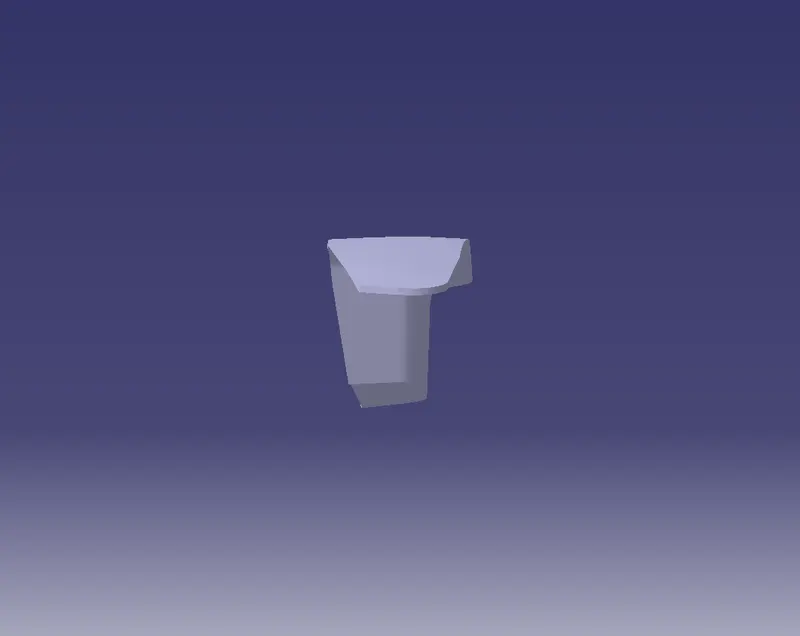

CLOSED BODY

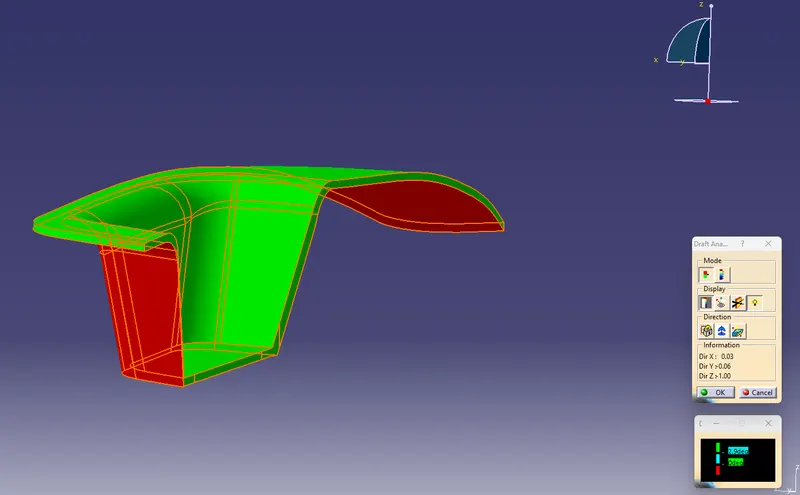

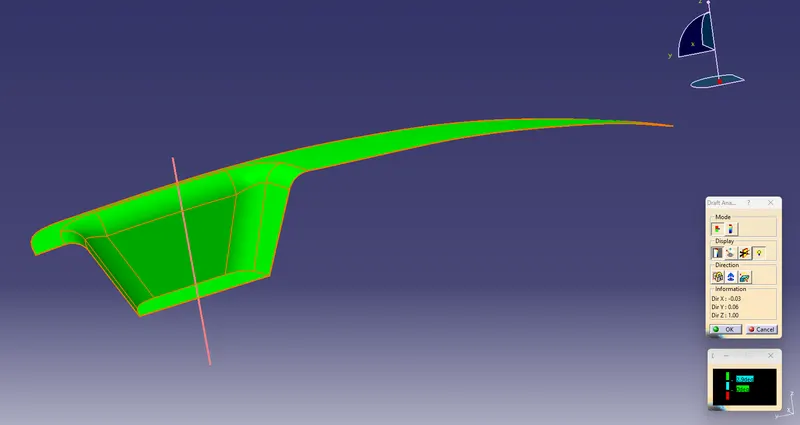

FINAL ANALYSIS OF CLOSED BODY

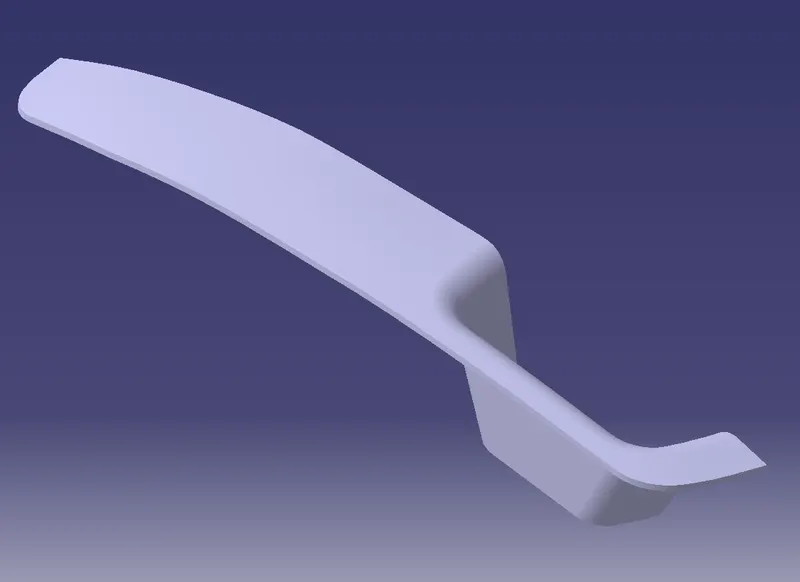

ISO

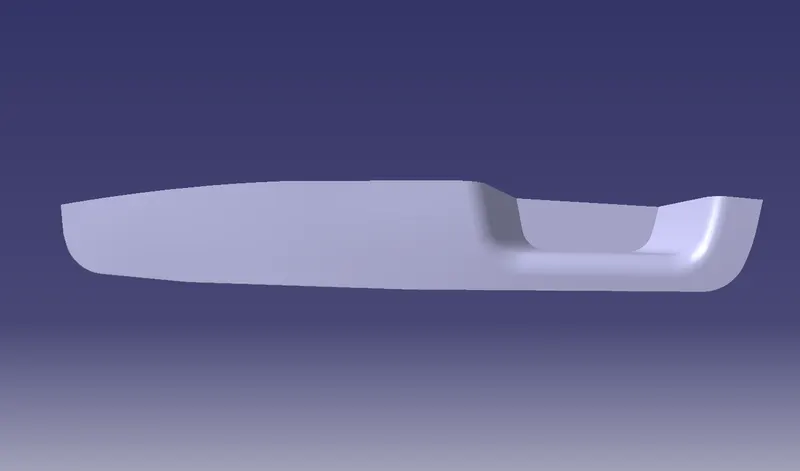

FRONT

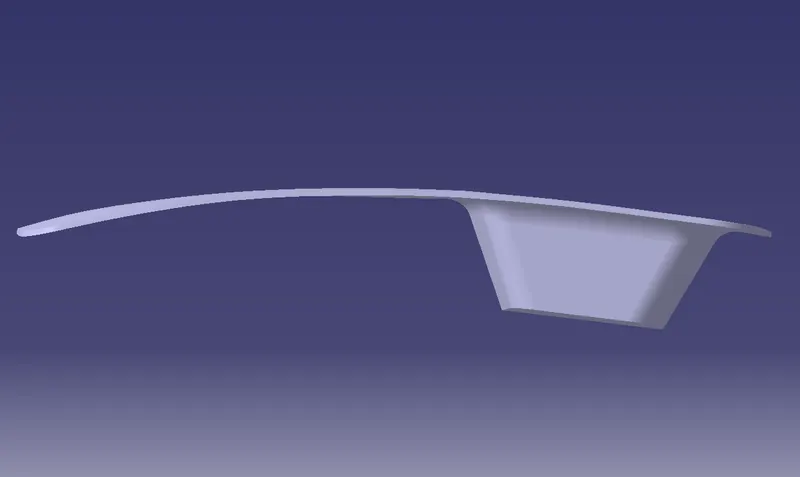

SIDE

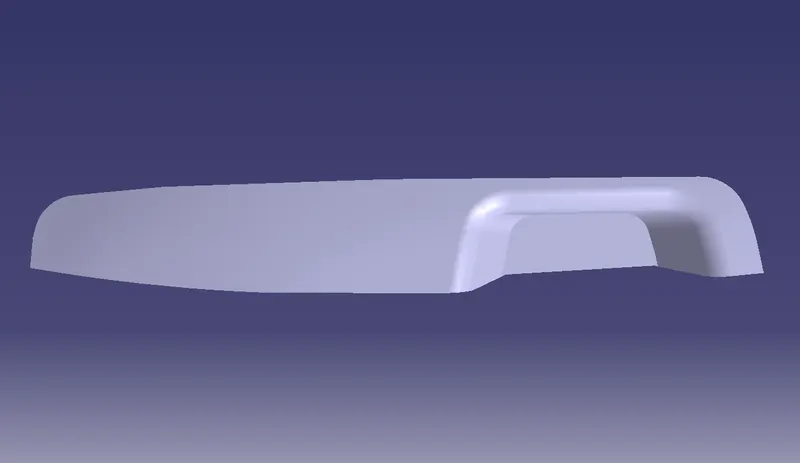

TOP
