Week 11 - Project - A pillar Design with Master Section

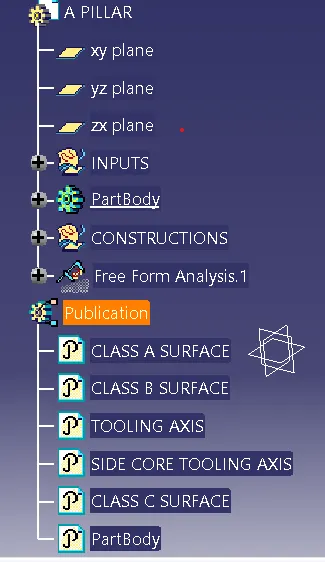

TREE STRUCTURE:

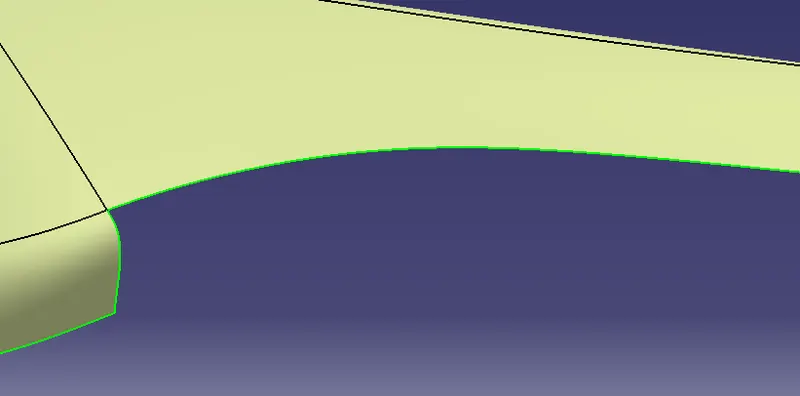

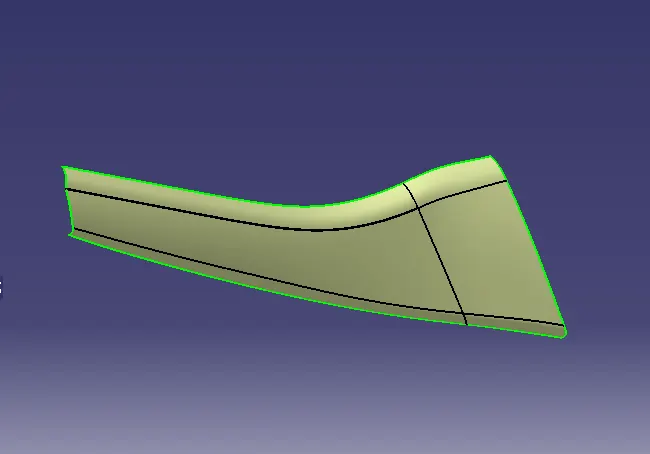

CLASS A SURFACE:

TOOLING AXIS:

MAIN TOOLING AXIS:

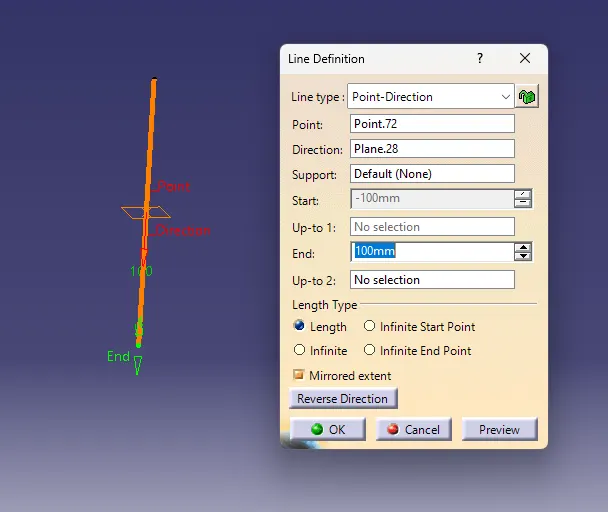

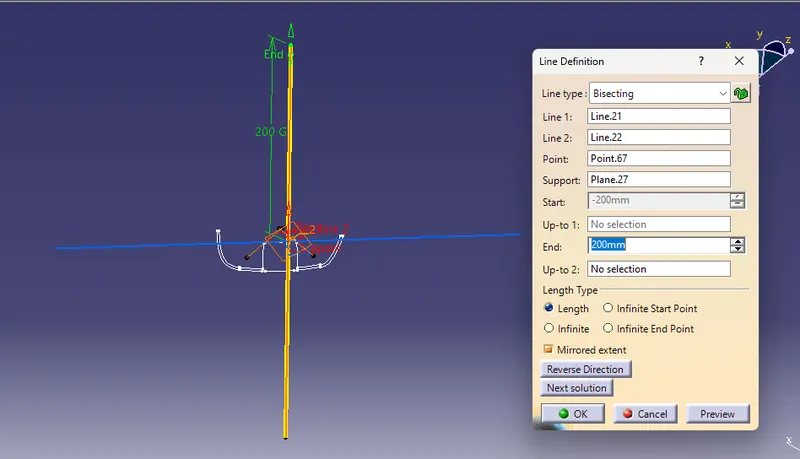

Check the best possible tooling direction by manually adjusting the compass.By analysing it is found thathe t y axis as tooling direction would clear most of the faces without any difficulties.Now extract any surface and create a mid-point on it.Then create a dummy axis creating a line on the point and direction along the y-axis.Perform draft analysis to find whether the given axis clears the draft analysis. If not create a new tooling axis.create the two lines with the master section, bisecting the line & create the tooling axis.

SIDE CORE TOOLING AXIS:

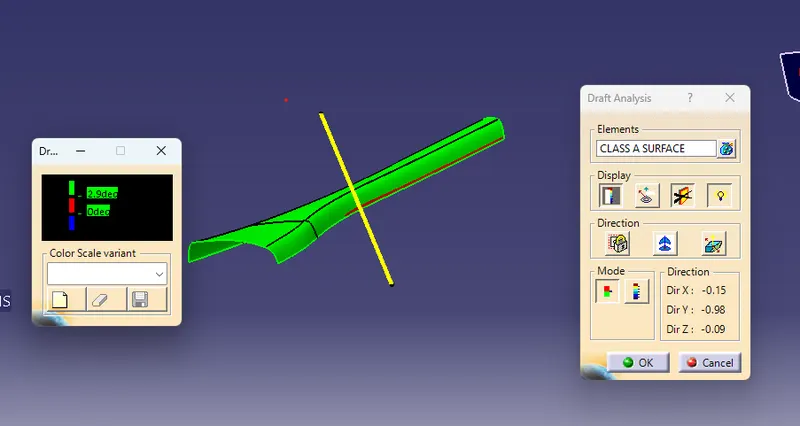

CLASS A SURFACE DRAFT ANALYSIS:

Now perform the Draft analysis using the Featured Draft Analysis tool in the tools.Then after opening the draft analysis tool box ,go for the compass and place the compass alinged to tooling axis, and click on the lock symbol to lock the position. after alinging click on the surface which we want to do draft analysis,minimum draft angle given is 3 degree.it shows green colour once its finished.

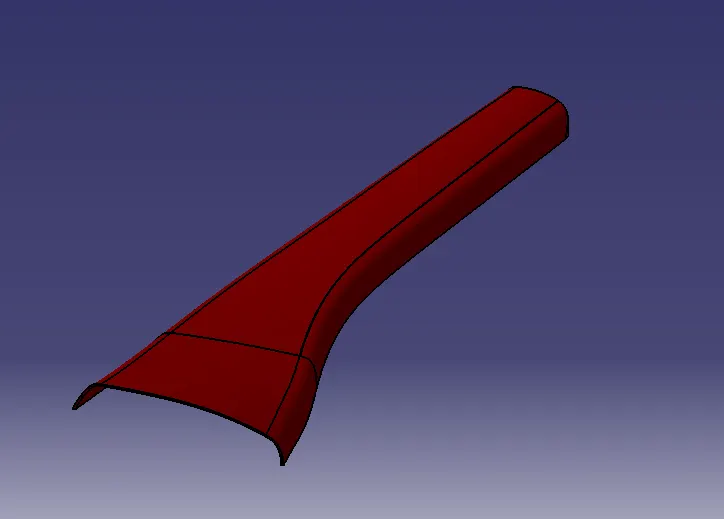

CLASS B SURFACE CREATIONS:

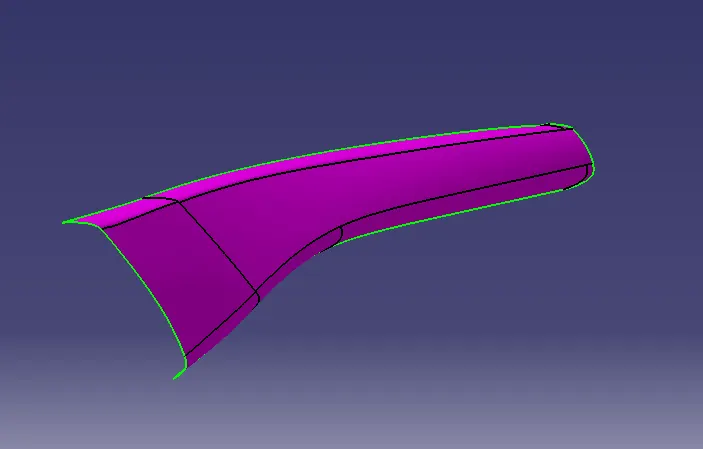

Class-B surface means the thickness of a part it is not visible and is inside part. In other words, the Class-B surface is a surface below a certain thickness from the class-A surface. This is the surface that contains engineering aspects of a model.Create an offset surface of Cin LASS-A about 2.5mm inward direction.

Check for discontinuity and rework on the offset surface using extract, multi-extract, multi sections surfaces.Join the surfaces and ensure the final CLASS-B surface created has no gaps.

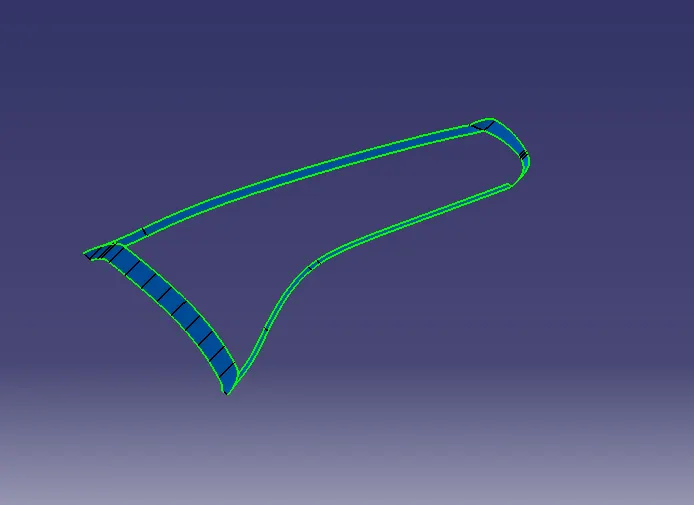

CLASS C SURFACE:

The surface that joins class-A and class-B surfaarethe s is class-C surface. Class C is often specified for interior surfaces not readily visible, surfaces that will be covered by another part when assembledCreate the sweep concerningerence to the surface and tooling axis, multi-extractingting the CLASS-A boundaryJoin the sweep surfaces by using commands like extrapolate, trmulti-sectiontion surface.Finally join all the sweep surfaces and ensure the continuity of the CLASS-C surface.

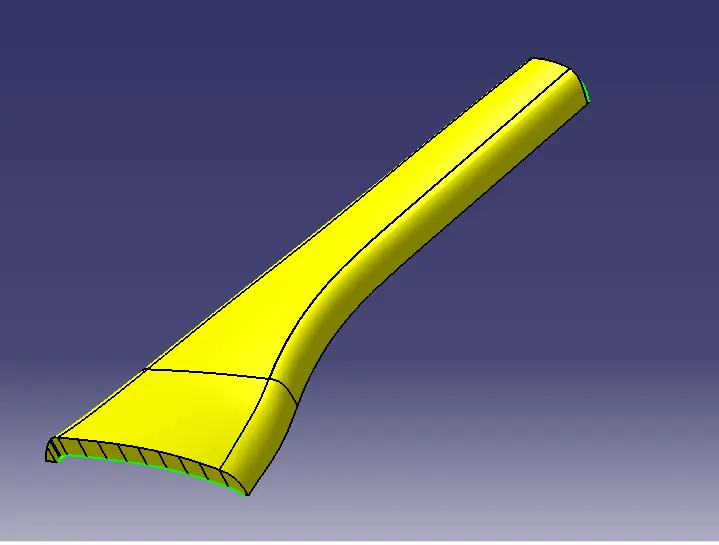

FINAL SURFACE:

For creating the Finals door trim surface, join the CLASS-A and CLASS-C surfaces together.Then Extrapolate the B surfacea little bit outward direction to make sure that there would not be any gap when trimming with the joined surface.Then trim the extrapolated CLASS-B surface wthe ith Join surface (CLASS-A and CLASS-C).

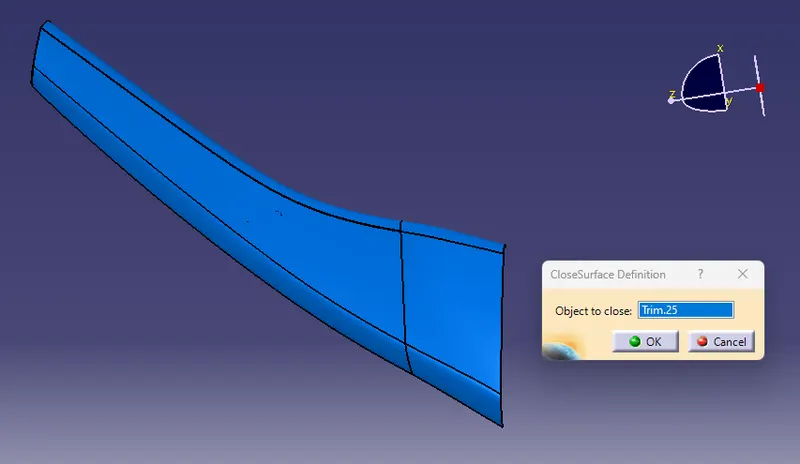

Make a solid part body using the close surface command in the part design workbench

B SIDE FEATURES:

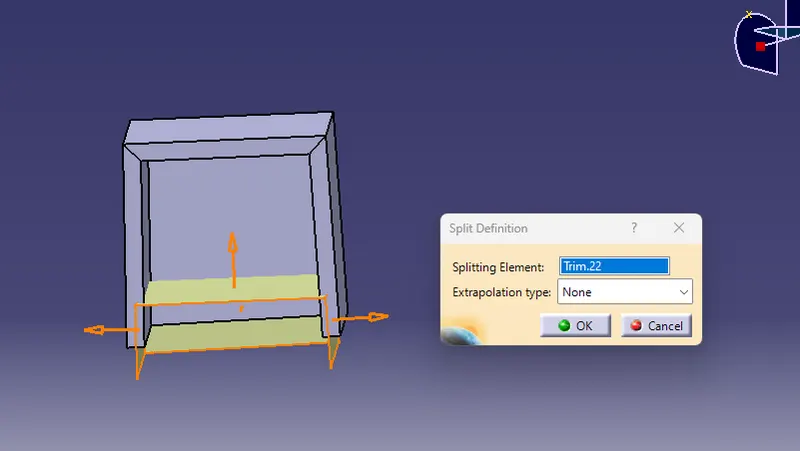

DOG HOUSE:

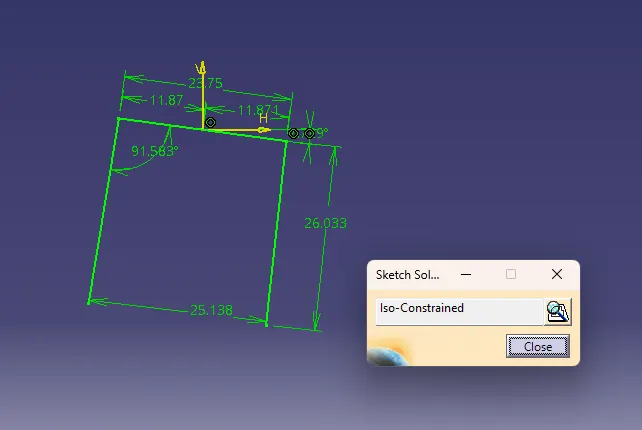

To create the dog house for given mastersection.

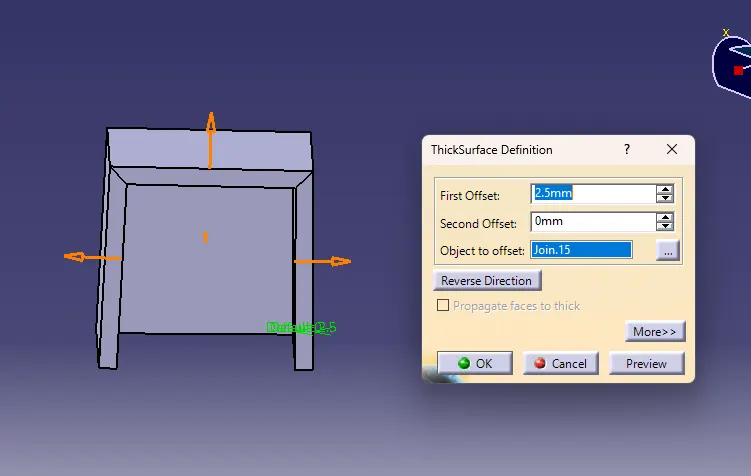

Extrude the sketch convert to sloid.

to reduce the sink marks

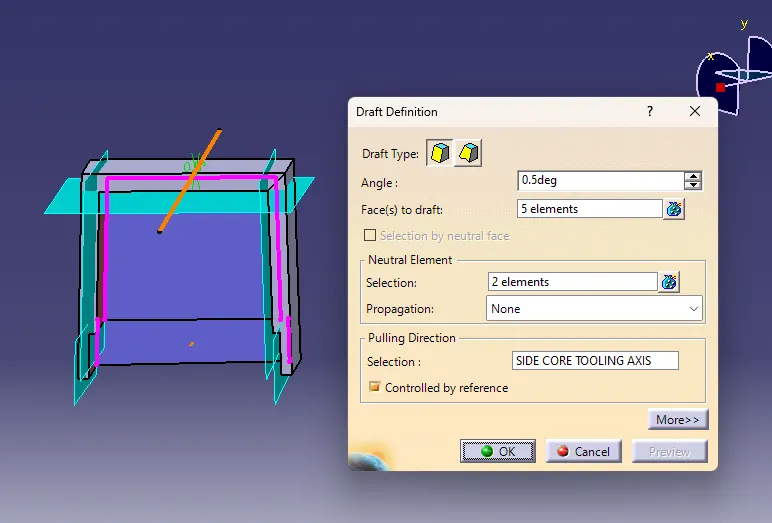

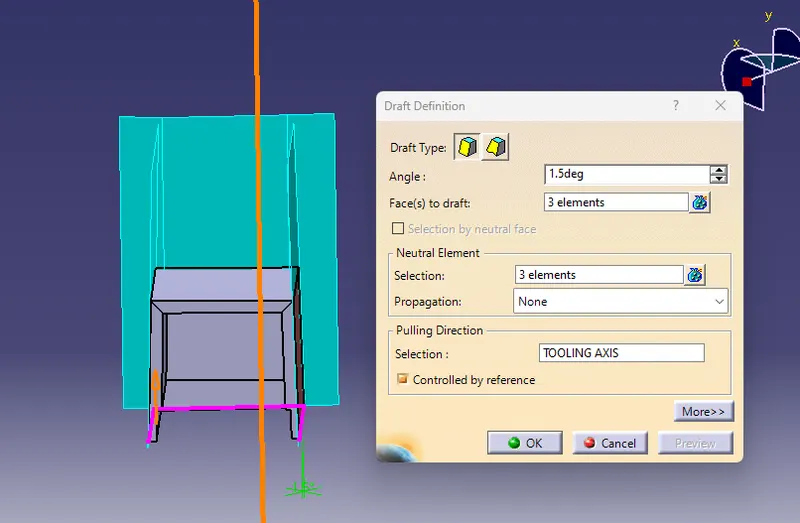

draft to the dog house using side core axis.

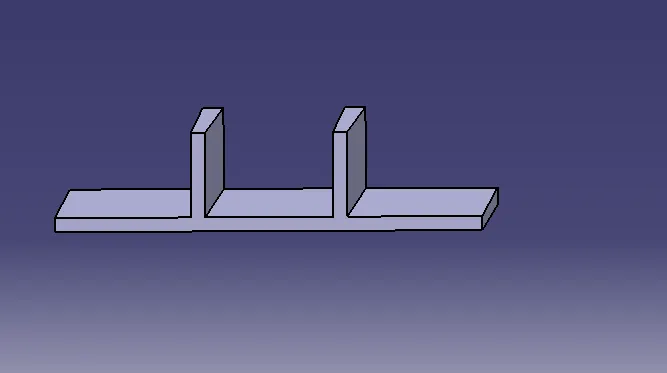

RIBS:

To create the ribs for given mastersection.

and then pad it given matersection to taken reference for make it properly.

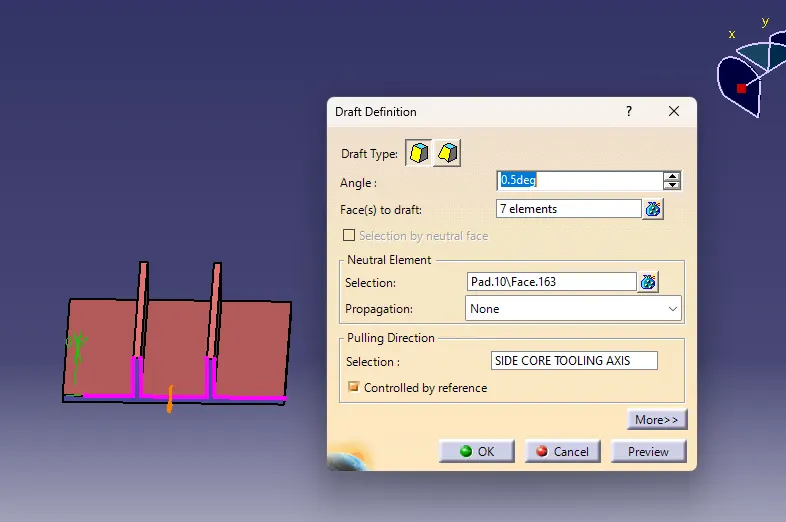

draft to the ribs using side core axis.

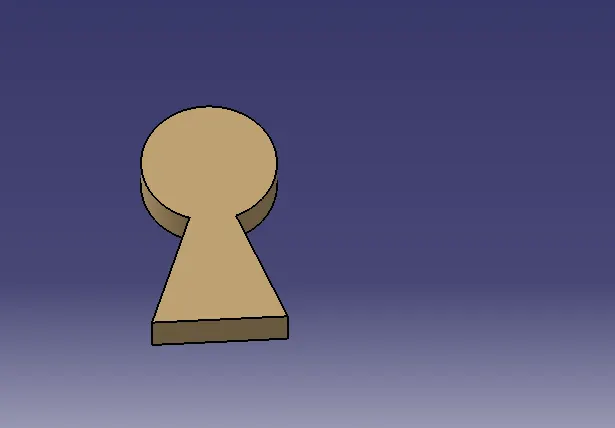

TOP CUTOUT:

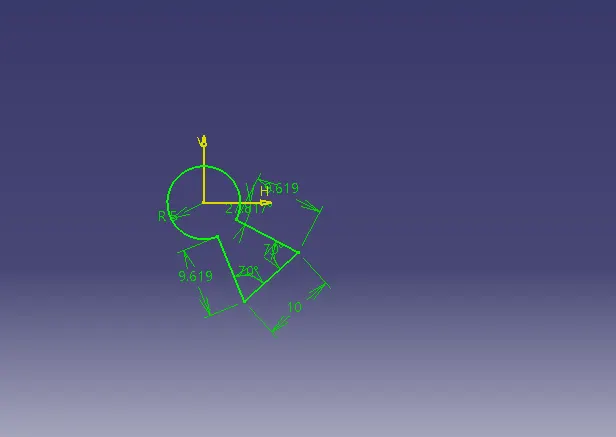

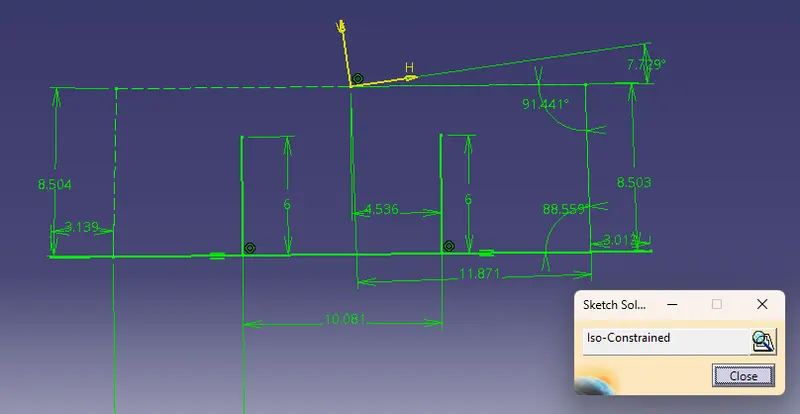

To create the circle and inter conected for given values to measured for 2D Sketch in the surface body.

and then pad it for given 2Dsketch in the partbody.

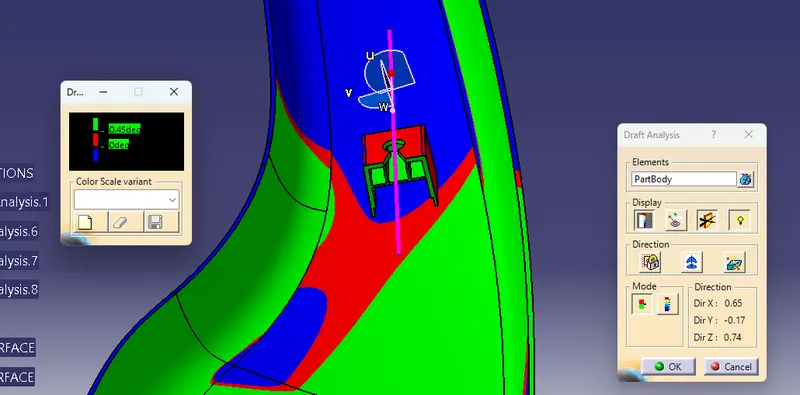

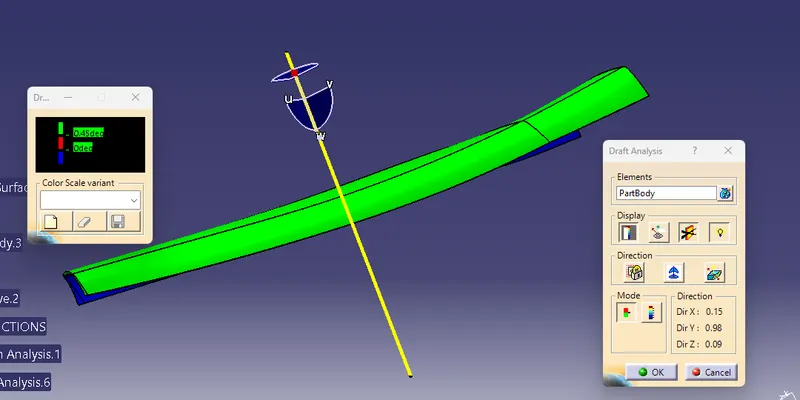

FINAL DRAFT ANALYSIS:

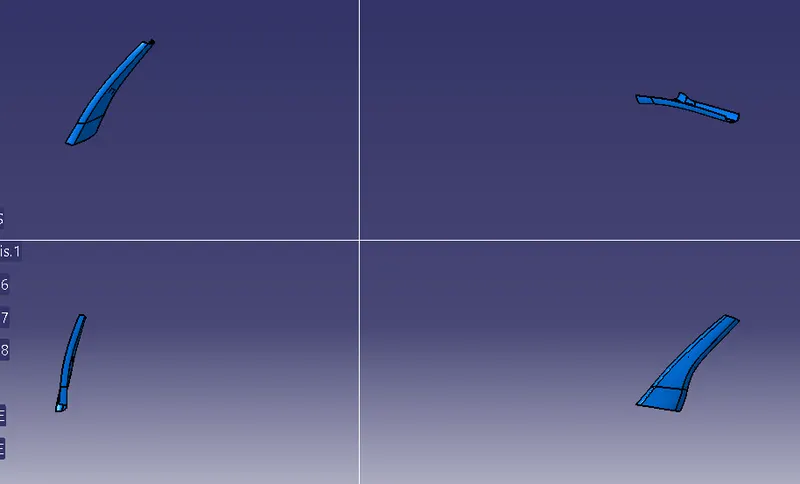

DIFFERENT VIEWS:
