Week 11 - Project - A pillar Design with Master Section

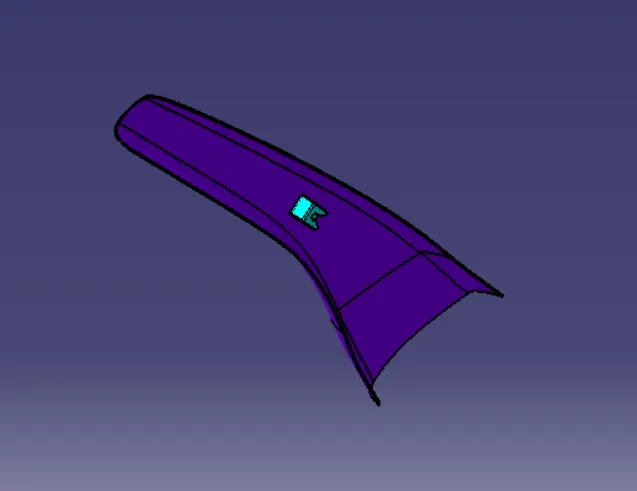

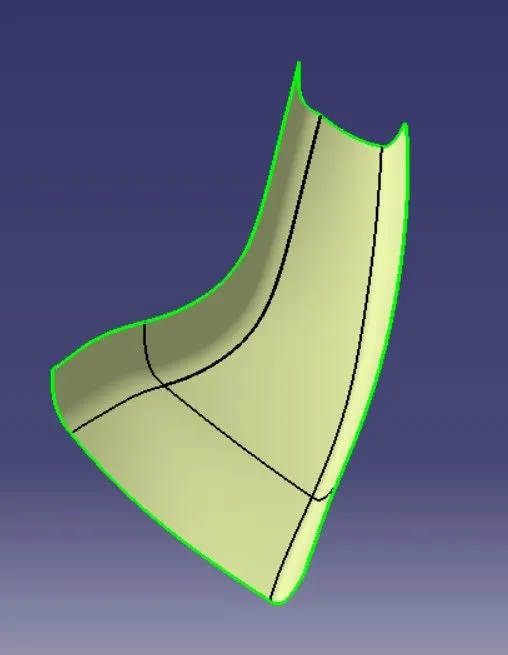

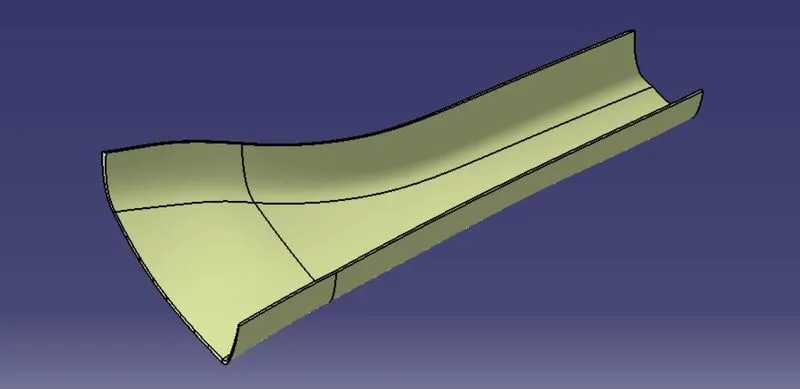

GIVEN CLASS A SURFACE:

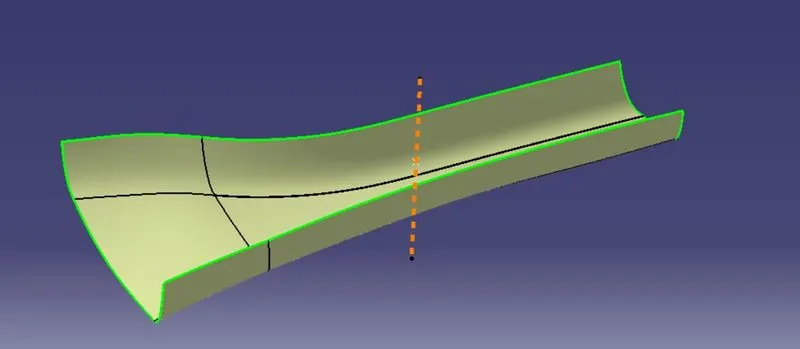

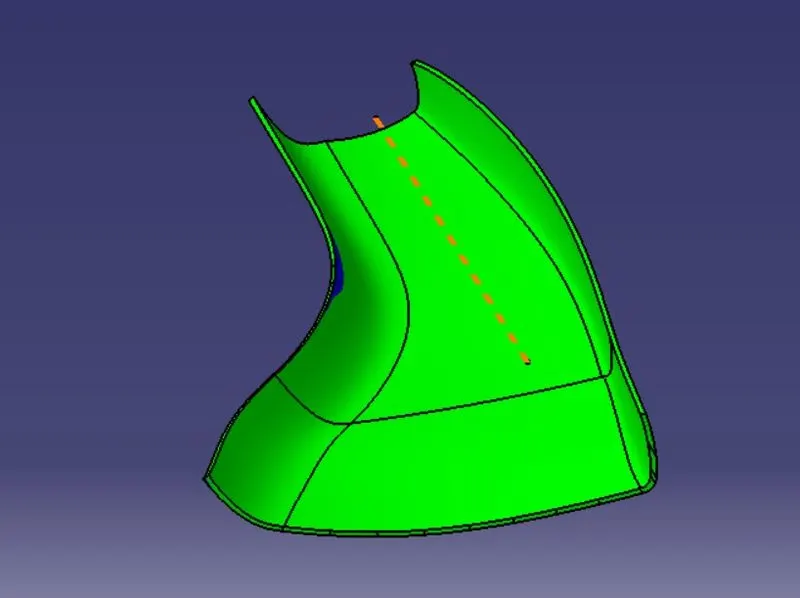

TOOLING AXIS CREATION USING BISECTING METHOD:

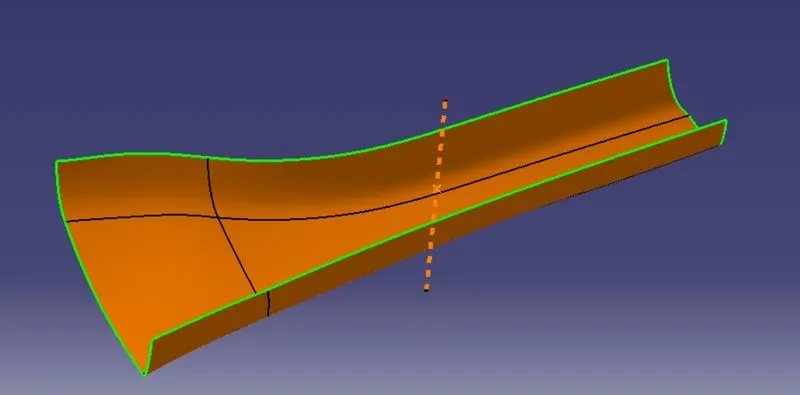

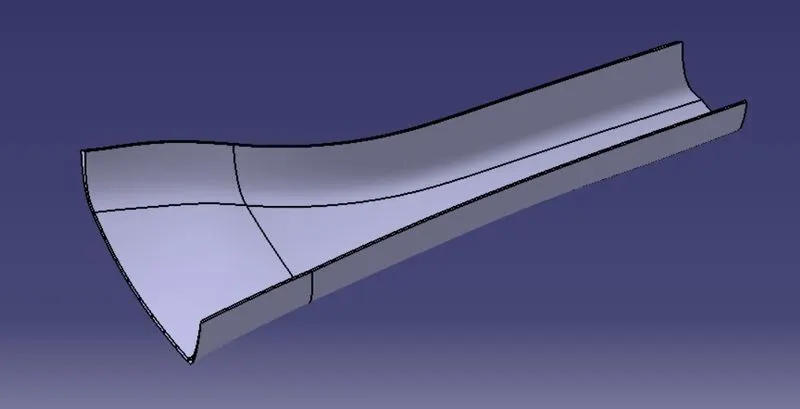

CLASS B CREATION USING SWEPT SURFACE:

OFFSET 2.5mm

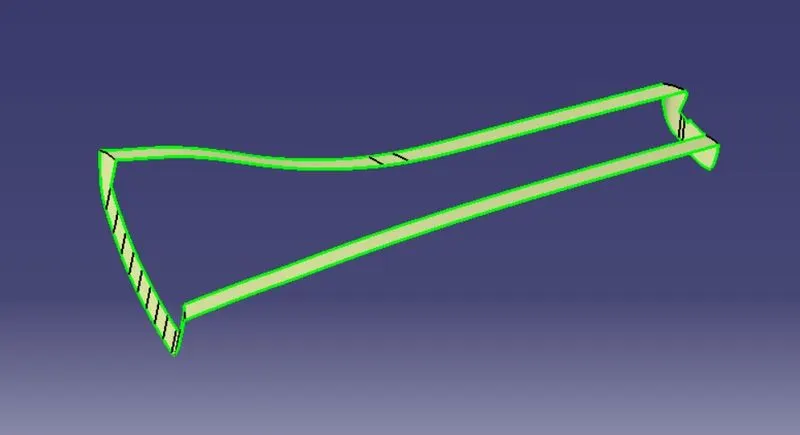

CLASS C CREATION:

FINAL TRIM OF CLASS B AND C SURFACE:

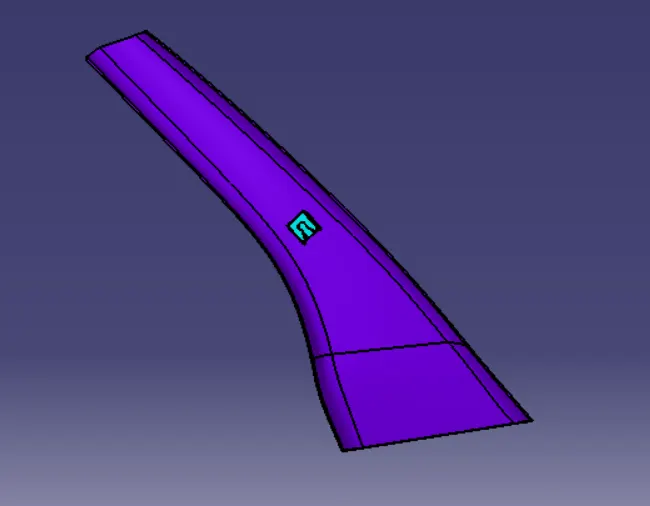

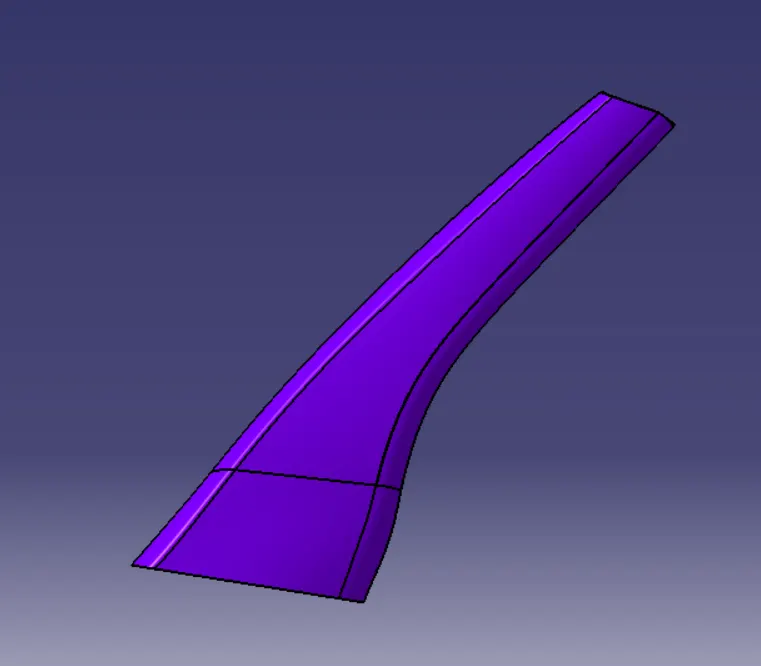

CLOSED BODY:

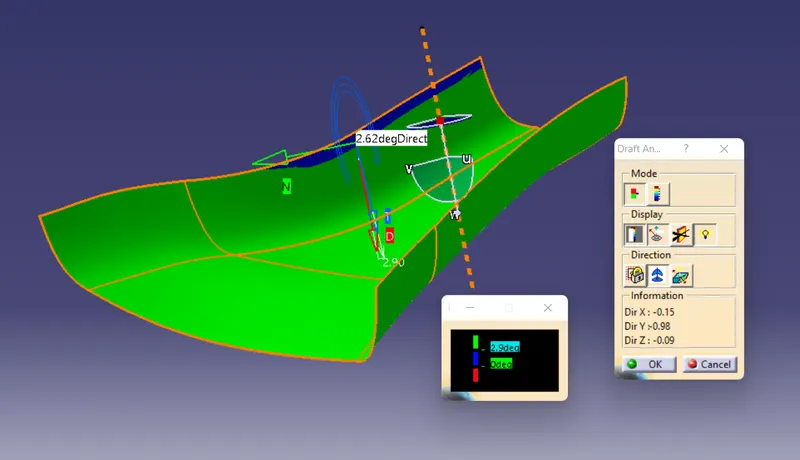

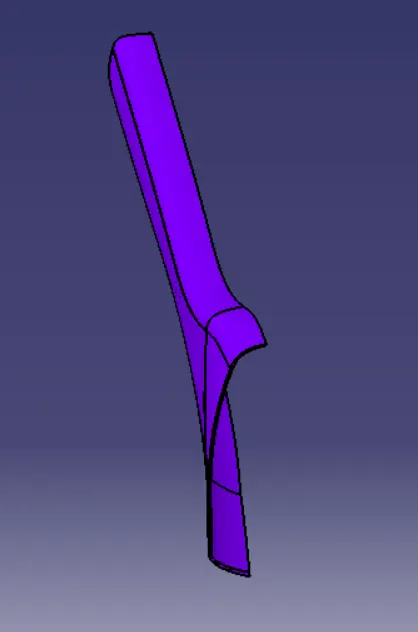

DRAFT ANALYSIS OF CLOSED BODY:

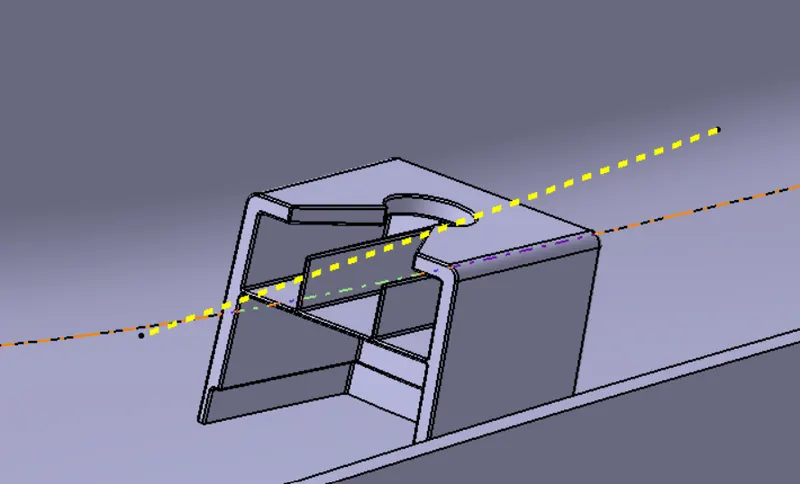

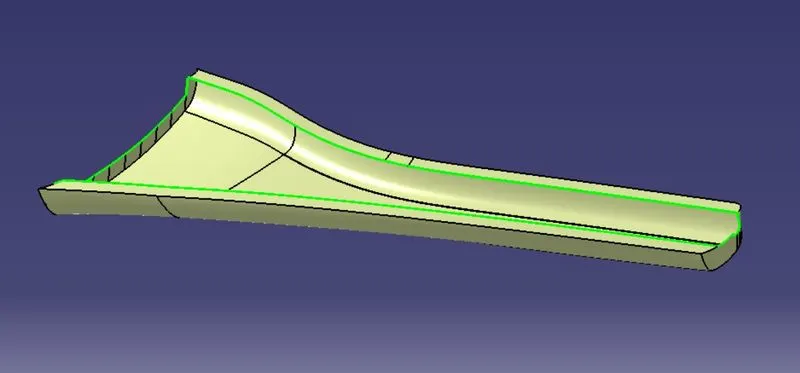

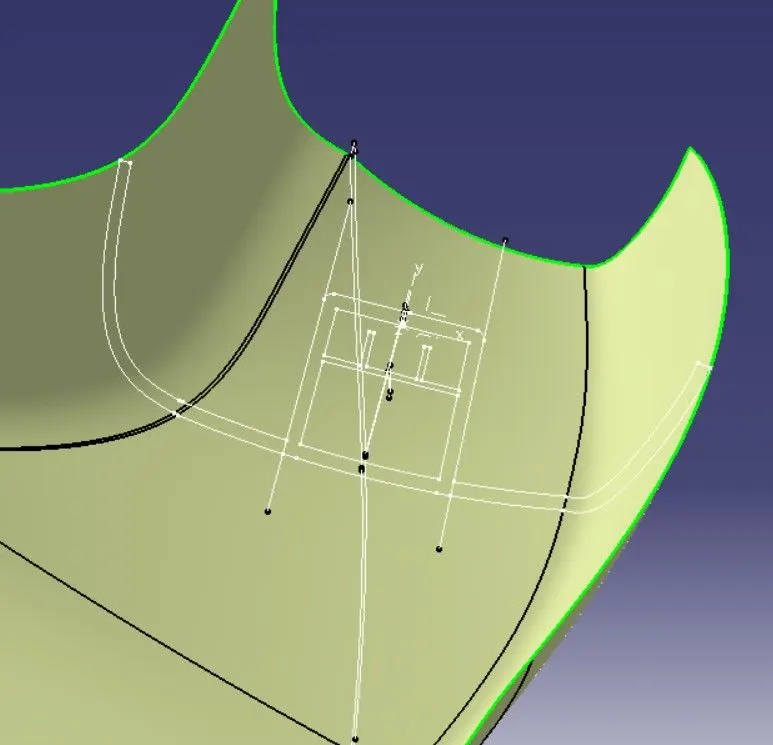

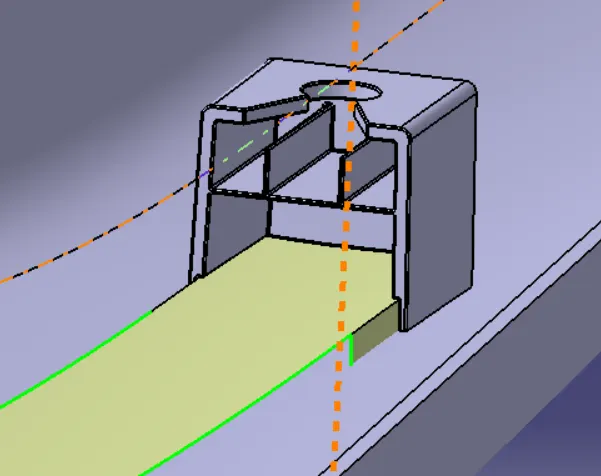

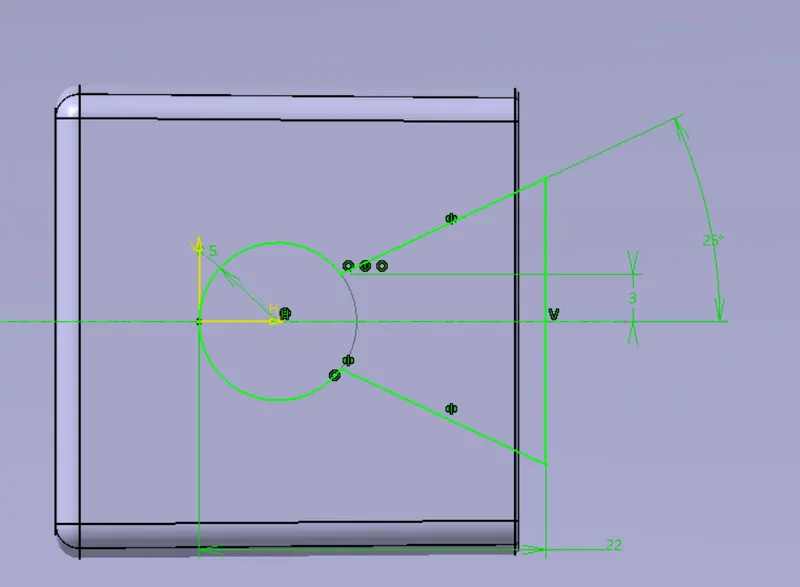

A PILLAR CREATION:

SHELL- 1mm

FILLET- 0.25 mm, 3mm

DRAFT- 0.5 DEG WITH CREATED PULLING DIRECTION

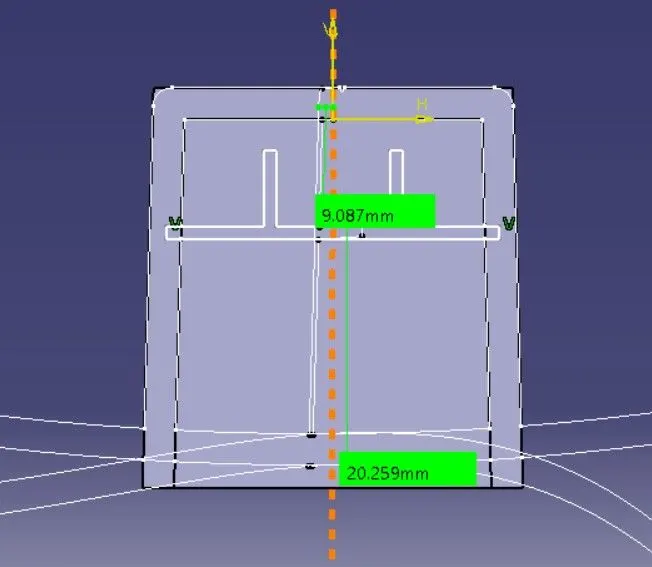

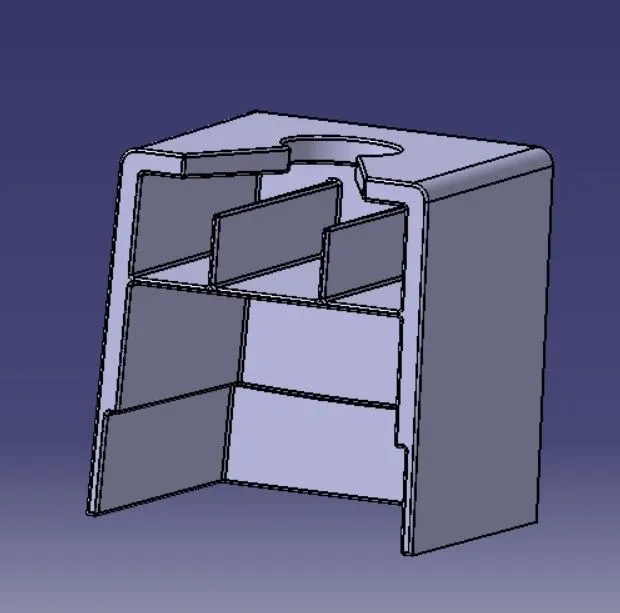

A PILLAR IS CREATED USING BELOW FIGURE:

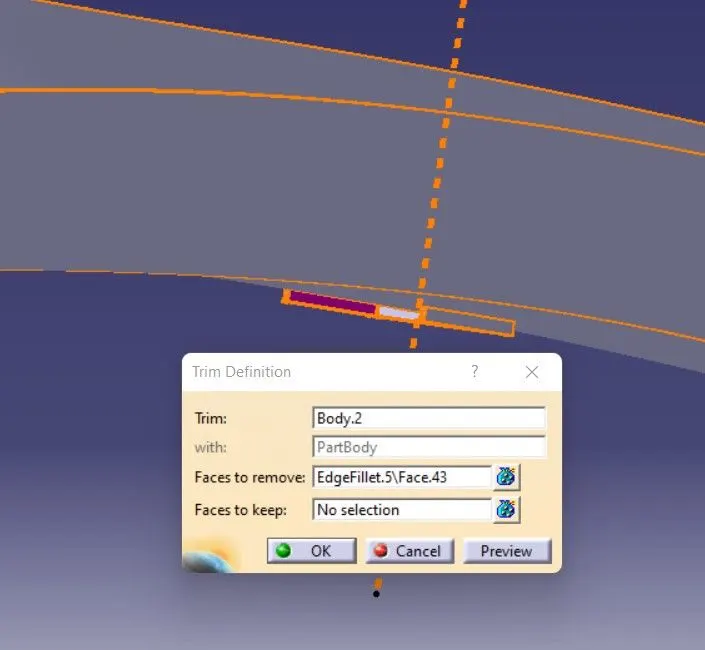

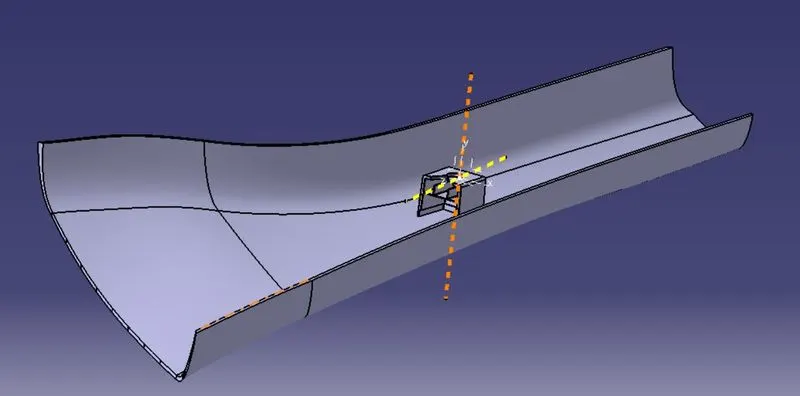

JOINING A PILLAR WITH A CLOSED BODY USING UNION TRIM:

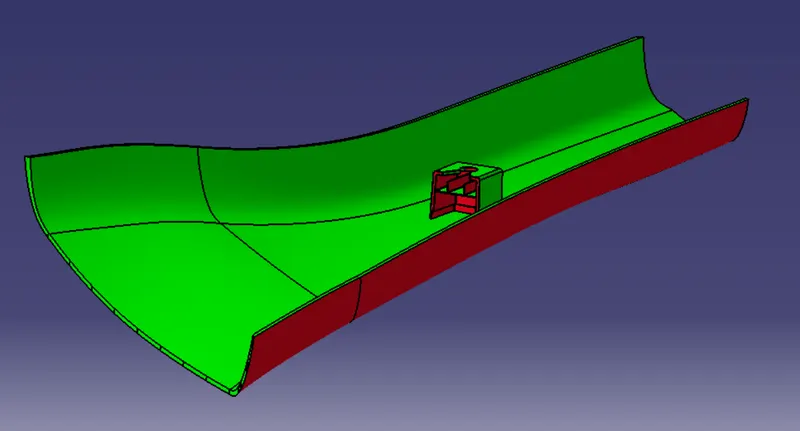

DRAFT ANALYSIS ON CLASS A:

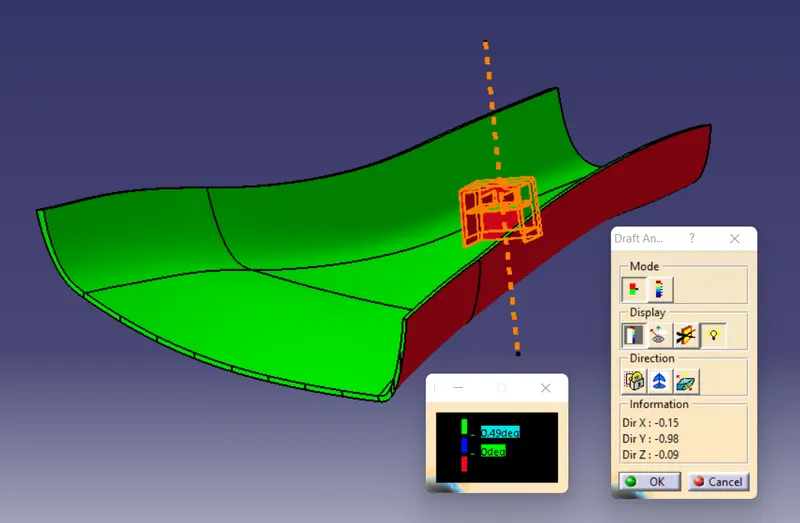

DRAFT ANALYSIS ON THE FINAL PART BODY:

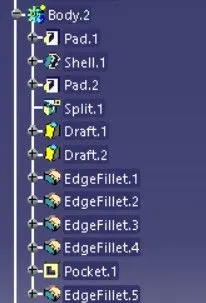

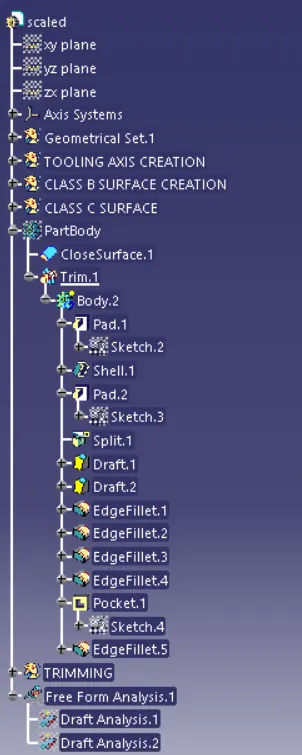

TREE STRUCTURE:

3D VIEWS OF THE FINAL PART WITH PROPER COLOR CODE OF THE DRAFT ANGLE IN VARIOUS ORIENTATIONS:

LEFT SIDE VIEW:

BOTTOM VIEW:

RIGHT VIEW:

ISOMETRIC VIEW:
