Week 11 - Project - A pillar Design with Master Section

AIM- TO DEIGN THE A PILLAR B ,C SURFACE AND THE DOG HOUSE BY USING THE GIVEN MASTERSECTION.

1) TOOLING AXIS-

   TO CREATE THE MAIN TOOLING AXIS WE CAN USE MASTERSECTION. TAKING REFRENCE FROM MASTERSECTION AND ISOLATING THE SKETCH         AND BY USING BISECTING METHOD TO C BISECT REF LINE TAKEN.

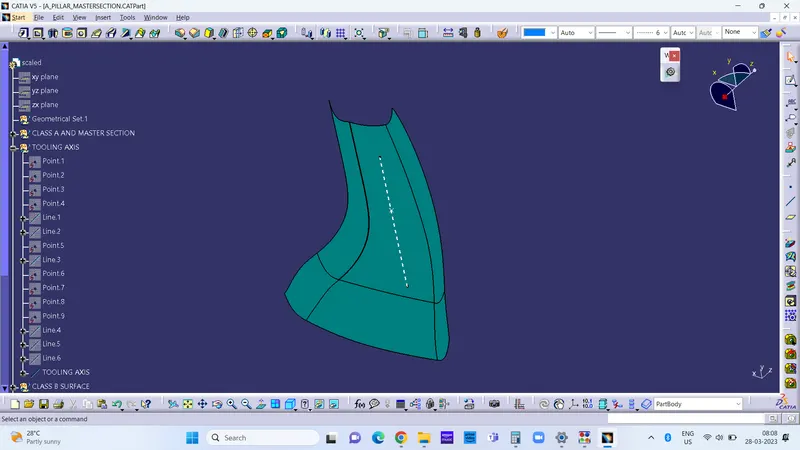

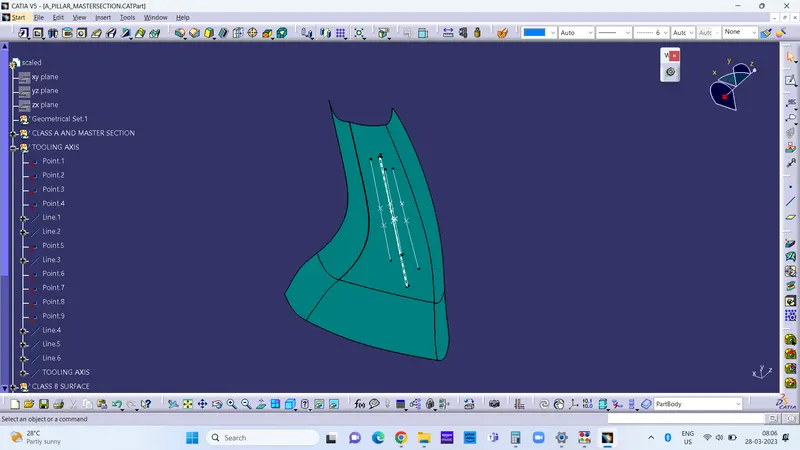

AFTER BISECTING LINES WE GET MAIN TOOLING AXIS HERE.

2) DRAFT ANALYSIS-

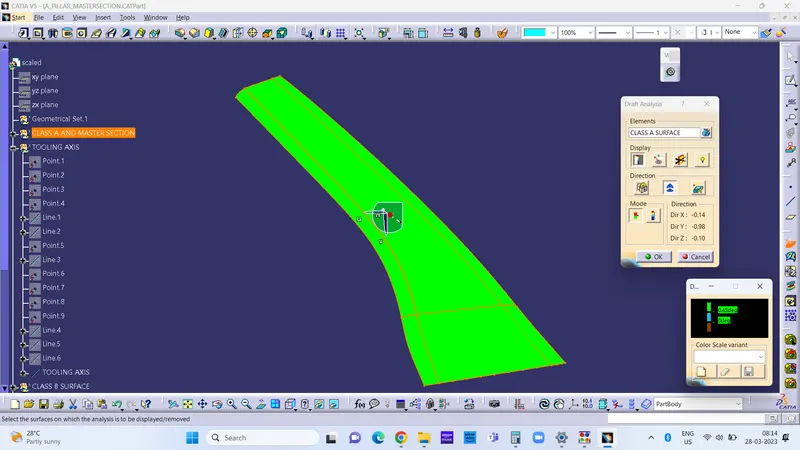

  BY USING DRAFT ANALYSIS WE CAN CONFIRM THE TOOLING AXIS, ALL SIDES AND ACES ARE CLEARING OR NOT.

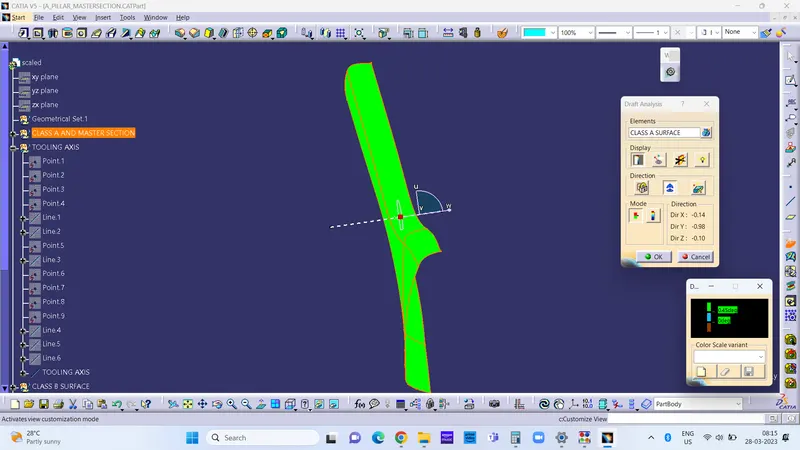

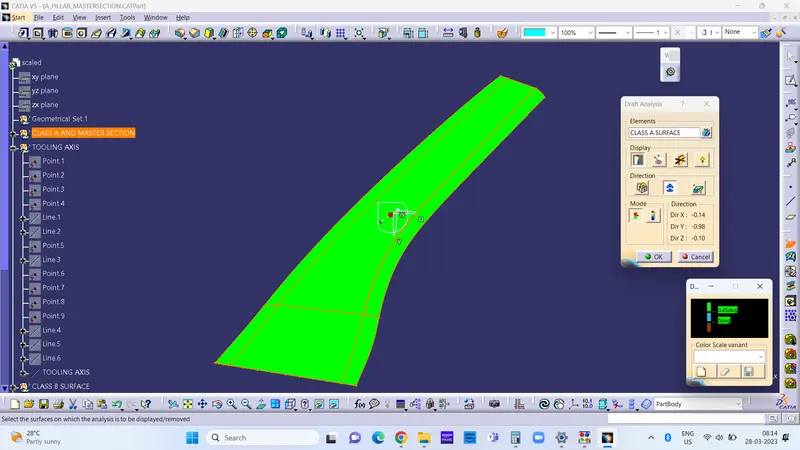

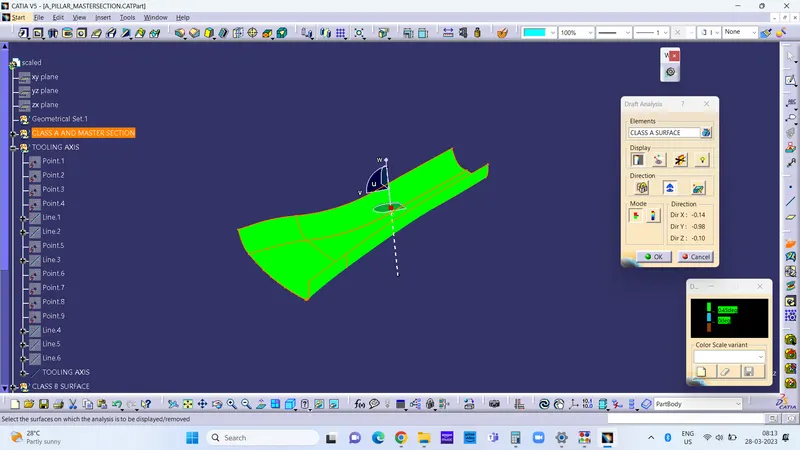

DRAFT ANALYSIS PICTURE FROM ALL VIEWS.

3) AFTER DRAFT ANALYSIS DESIGN OF B SURFACE.

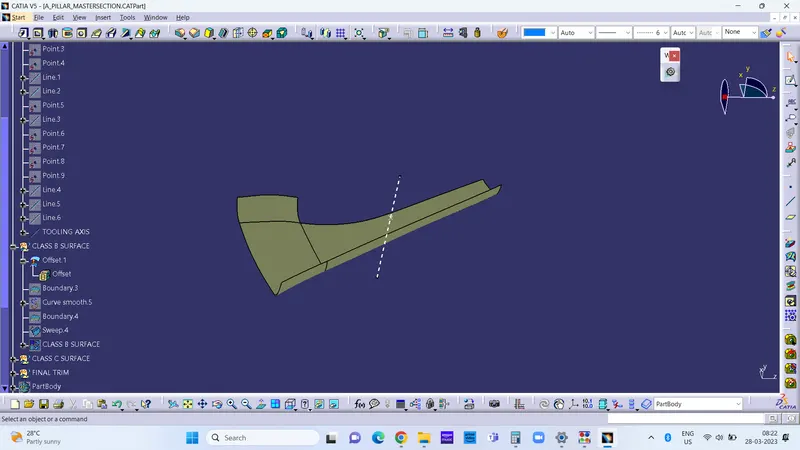

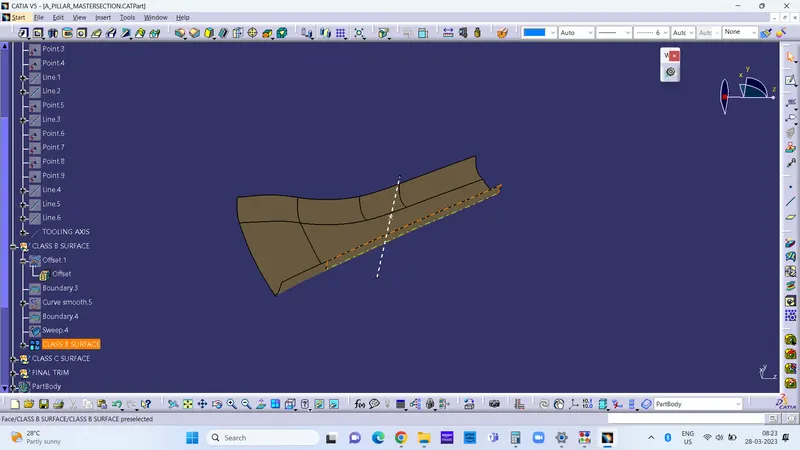

   BY DIRECT OFFSET METHOD WE CAN DESIGN THE B SURFACE.SINCE ALL FACES WILL NOT COME IN OFFSET WE HAVE TO CREATE IT                   SEPARATELY BY USING THE SWEEP.

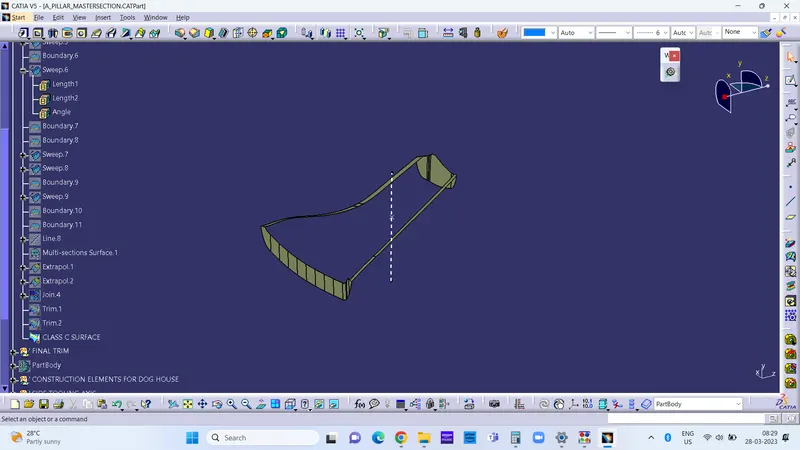

4) C SURFACE DESIGN-

  FOR DESIGNING THE C SURFACE WE HAVE SWEEP. SWEEP WITH DRAFT DIRECTION FOR THE SIDES  WHICH ARE PARALLEL TO THE TOOLING      AXIS GIVING 3 DEGREE ANGLE. AND THE SWEEP WITH REF SURFACE FOR THE SIDE WHICH ARE PERPENDICULAR TO TOOLING AXIS BY              GIVING ANGLE 90 DEGREES.

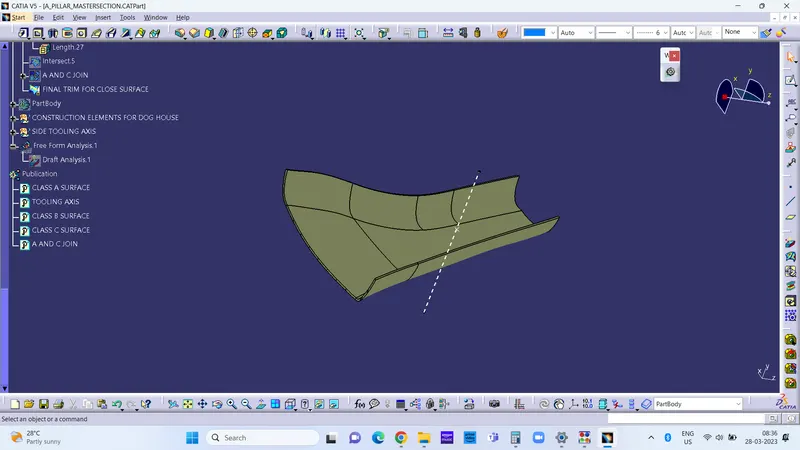

5) FINAL TRIM-

  FIRST JOIN THE A AND C SURFACE TO TRIM IT WITH THE B SURFACE. FOR TRIMMING A,C JOIN AND B SURFACE MUST BE INTERSECTING EACH    OTHER. IF NOT INTERSECTING IN ANY AREA EXTRAPOLATE THAT PARTICULAR AREA FOR TRIM.

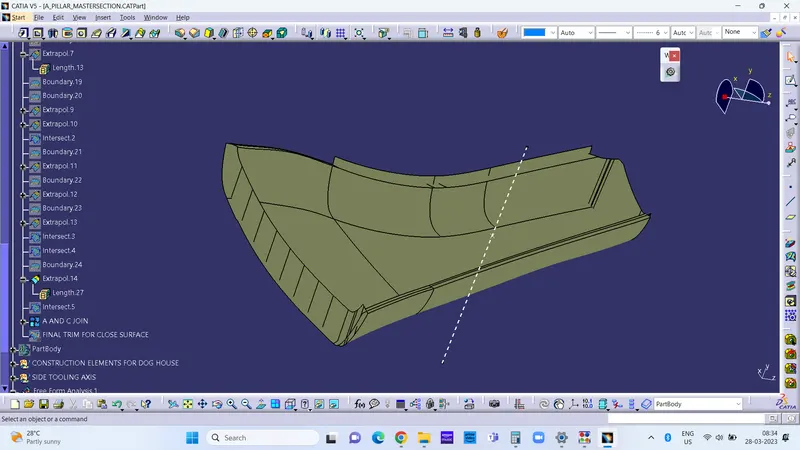

FINAL TRIM PICTURE

6)MAKING THE SOLID FROM CLOSE SURFACE -

  BY USING CLOSE SURFACE COMMAND MAKE SOLID OF FINAL TRIM.

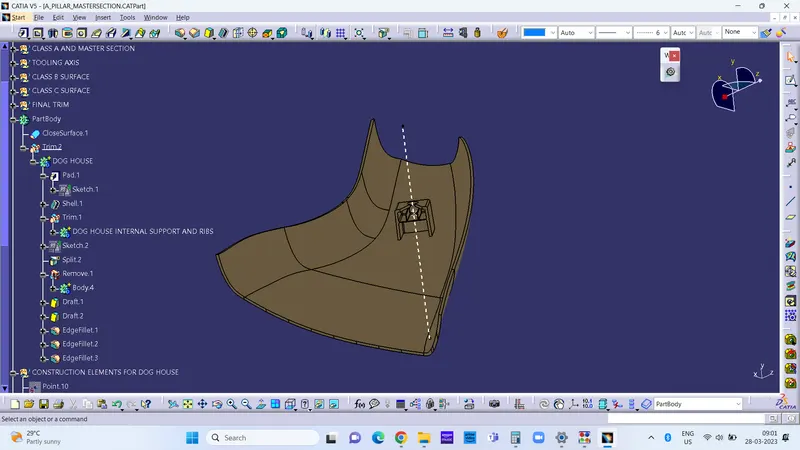

7)DESIGN OF DOG HOUSE.

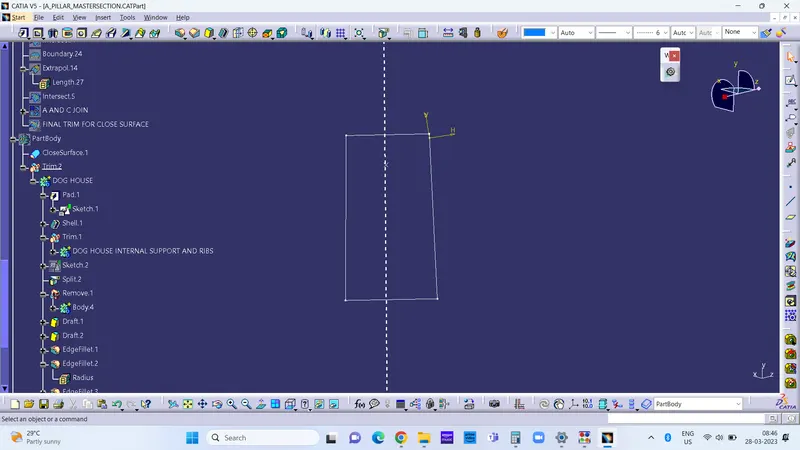

  BY USING GIVEN MASTER SCTION CRATE A PLANE BY USING THREE POINT PLANE. ON THAT PLANE CREATE A SKETCH AND TAKE REF FROM          THE  MASTER SECTIION AND THEN ISOLATE IT.

  THEN PAD SKETCH UPTO THE GIVEN MASTER SECTION.

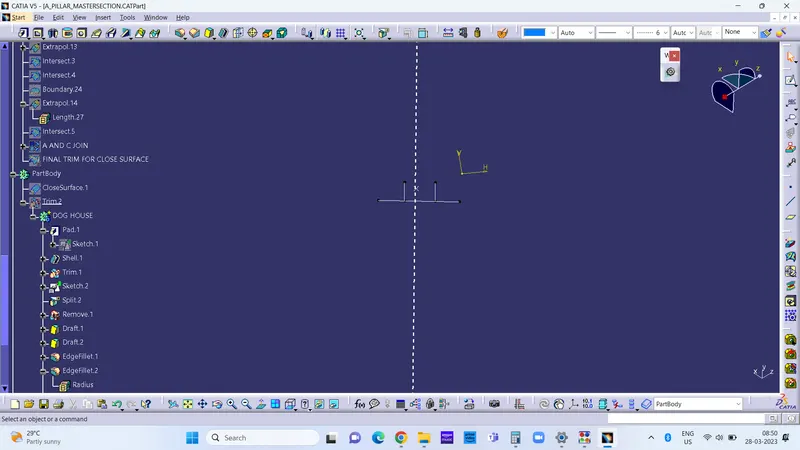

  AFTER THAT CREATING INTERNAL SUPPORT AND RIBS BY USING MASTER SCTION.

  AFTER THAT MAKE UNION TRIM BETWEEN THE OUTSIDE AND INSIDE AREA.

  THEN GIVING REQUIRED DRAFT TO THE DOGHOUSE WITH RESPECT TO MAIN TOOLING AXIS AS WELL AS THE SIDE TOOLING AXIS.

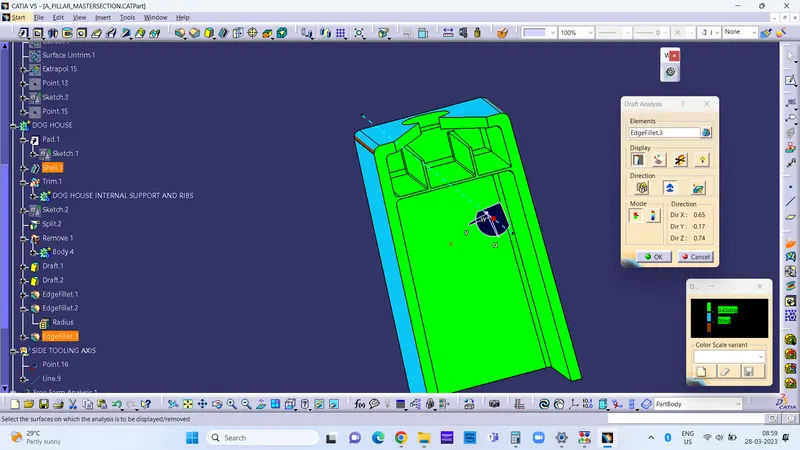

  AFTER THAT ANALYSING DRAFT ON THE DOG HOUSE AS PER MAIN TOOLING AXIS.

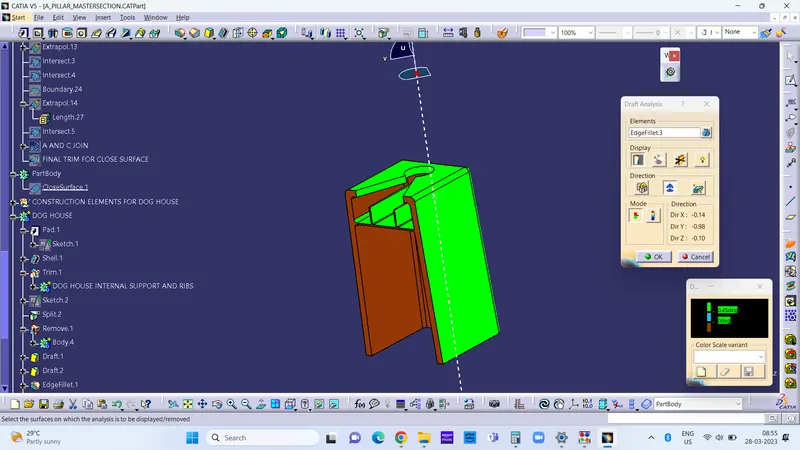

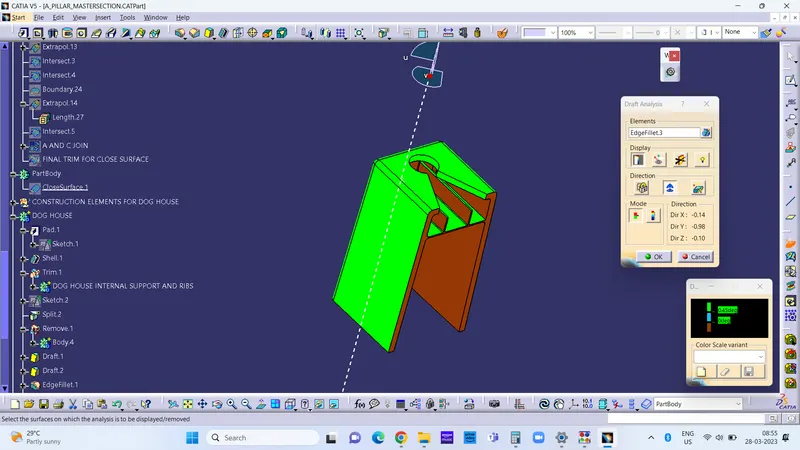

 DRAFT ANALYSIS WITH RESPECT TO SIDE TOOLING AXIS.

AFTER DRAFT ANALYSIS GIVE FILLET AS PER MASTER SECTION AND DESIGN GUIDELINES AND MAKE UNION TRIM OF DOGHOUSE WITH MAIN PART BODY.
