Week 11 - Project - A pillar Design with Master Section

REPORT :

TOOLING AXIS :

THE TOOLING AXIS FOR THE A SURFACE WAS TAKEN BY ANALYSING A DIRECTION WHERE THE SURFACE ARE ALL VISIBLE AND EXTRACTING A SURFACE FOR THE CREATION OF TOOLING AXIS USING POINT AND DIRECTION METHOD.

BISECTING TOOLING AXIS FOR DOG HOUSE:

FROM THE MASTER SECTIONS 4 INTERSECTIONS WERE EXTENDED , TAKING TWO INTERSECTIONS AT A TIME WHICH WAS BISECTED USING LINE COMMAND , TO PASS THROUGH A COMMON POINT.SIMILARLY FOR OTHER TWO EXTENDED LINES.

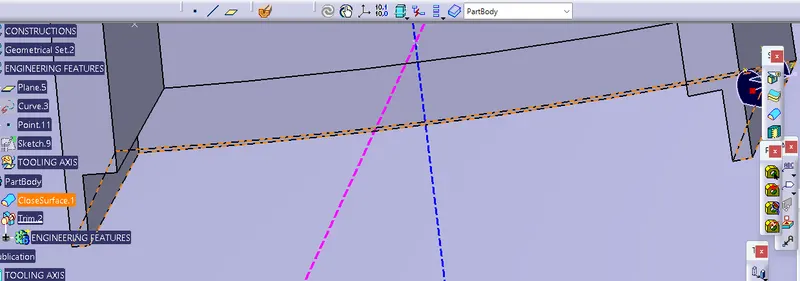

THEN, THE BISECTED PAIR WAS AGAIN BISECTED TO GET THE FINAL TOOLING AXIS FOR DOG HOUSE.(BLUE COLOR)

SIDE CORE AXIS:

THE AXIS WAS CONSTRUCTED NORMAL TO A PLANE EHICH WAS USED TO CREATTE THE DOG HOUSE.(PINK COLOR).

CREATION OF DOG HOUSE:

THE BOUNDARIES OF MASTER SECTION WAS WAS COINCIDED WITH LINES TO GET THE REQUIRED RECTANGLE FOR DOG HOUSE , WHICH WAS EXTENDED USING PAD AT 20.1+9.1 UNITS. THEN USED SHELL COMMAND AT 2.52 UNITS. TO GET THE OUTER LAYER OF DOG HOUSE .THE OUTER SURFACES WERE DRAFTED WITH 1.5 DEGREES TAKING THE PLANE AS NEUTRALSURFACE . THEN THE LAYER FROM BASE AT A MEASUREMENT OF 3 UNITS WAS SPLIT WITH LEAVING 1.008 UNITS AT THE EXTREAME SURFACES.

THE INNER SURFACES WERE DRAFTED WITH 0.5 DEGREES .

THE RIBS WERE EXTENDED AND USING UNION TRIM ATTACHED TO THE BODY .

THE UPPER SURFCE OF THE DOG HOUSE Was REMOVED USING PAD AND REMOVE COMMAND IN BOOLEAN ALGEBRA.

LATED THE DOG HOUSE WASSA ATTACHEDTO THE CLOSED SURFACE UNION TRIM.
