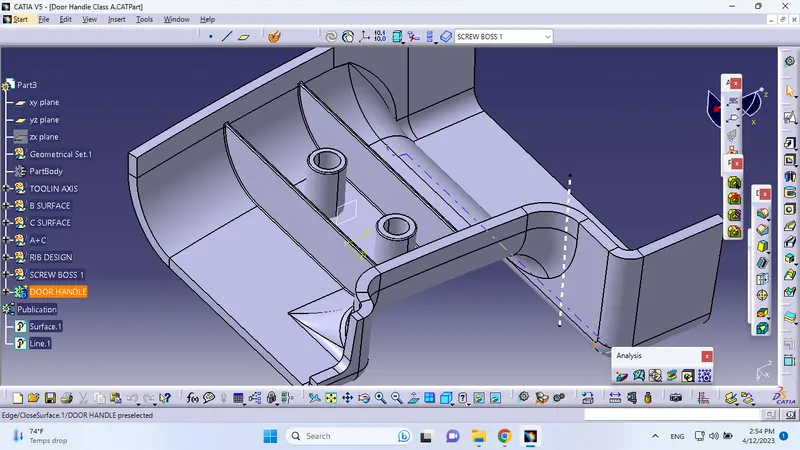

Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

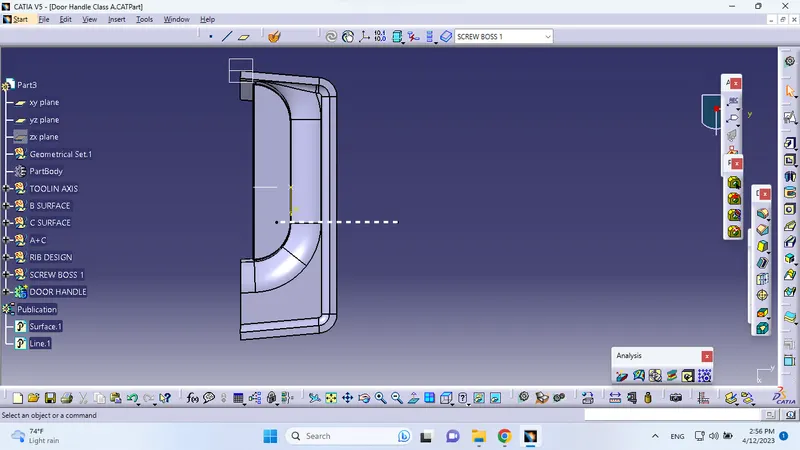

REPORT: The tooling axis is drawn along the y axis ,that is perpendicular to the surface (point and direction) method.

Note: the given A surface is not fully green using the drafting analysis.

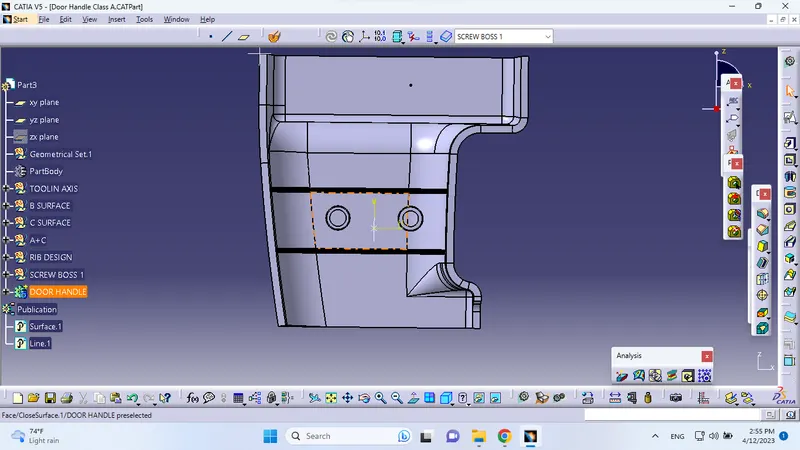

the B surface has been created using offset, the missing layer of surface has been created using the multi section command ;the C surface has been created using draft direction .

finally A AND C are joined and trimmed with B surface.

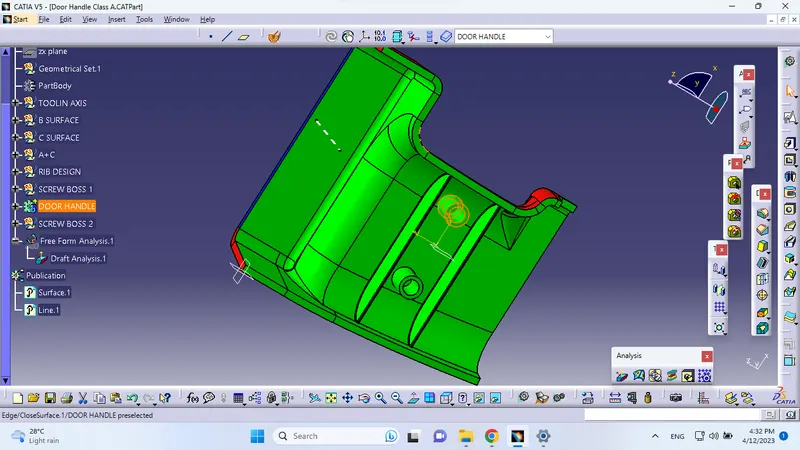

the draft analysis was completed with an angle of 0.45 degrees ,which is drafted properly

.
