Week 11 - Final project

RIGHT SIDE FRONT DOOR TRIM

STEPS INVOLVED IN CREATION OF FINAL PROJECT :

1. Check the A surface given as the input.
2. Check the mastersection for dimentions and thickness.
3. Make the input suface into separate component.
4. Create the proper tooling axis for the components.
5. create B surface and C surface for all the compomponents
6. create solid surface for all the input surface.
7. create the B side features for all the components as per the master section
8. Make draft analysis for all the components.

Image Referance

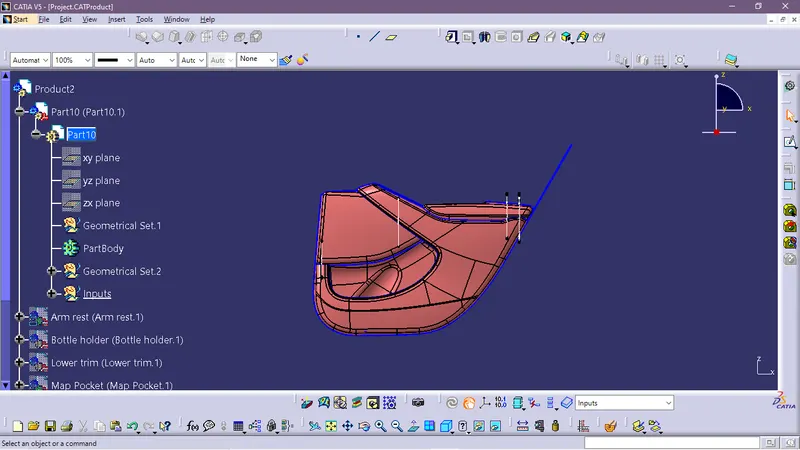

1. Input : All the surface are provided in the single geometry.

Separated Components

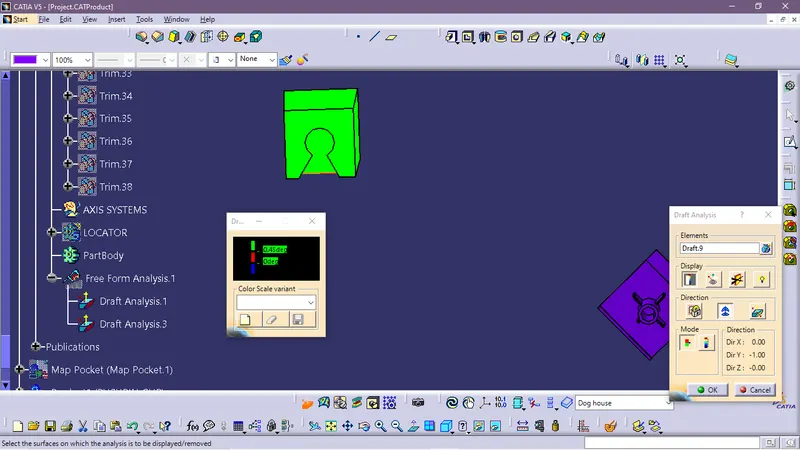

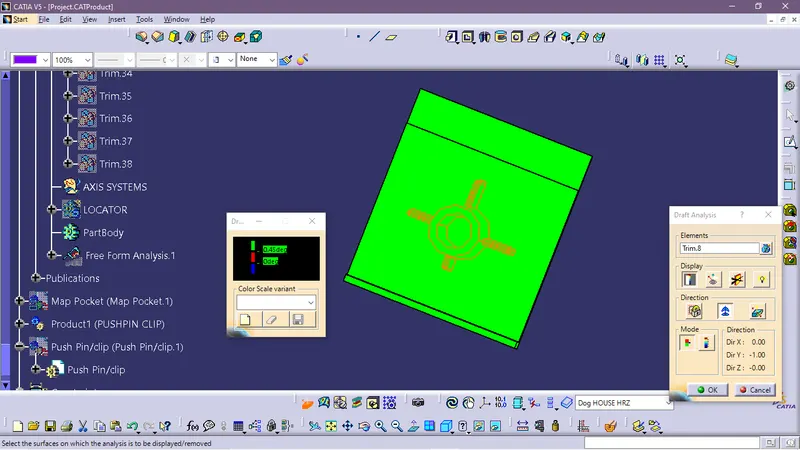

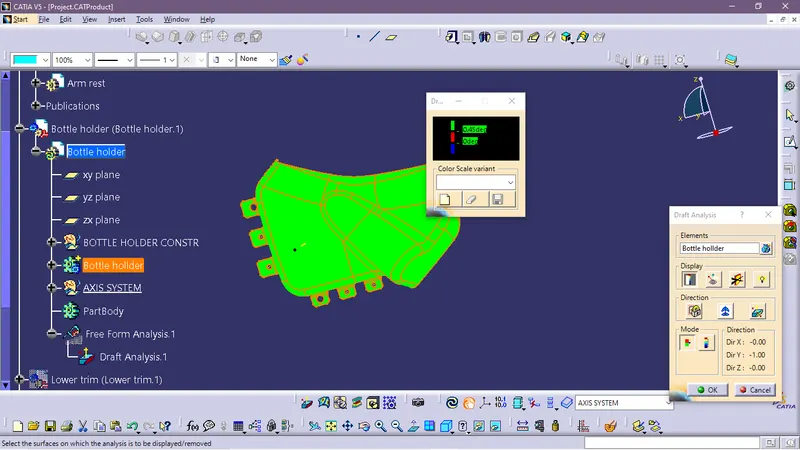

IMAGES WITH DRAFT ANALYSIS

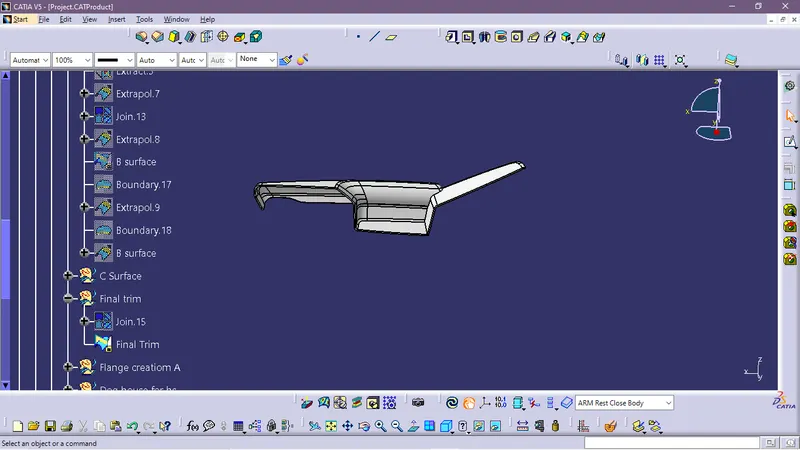

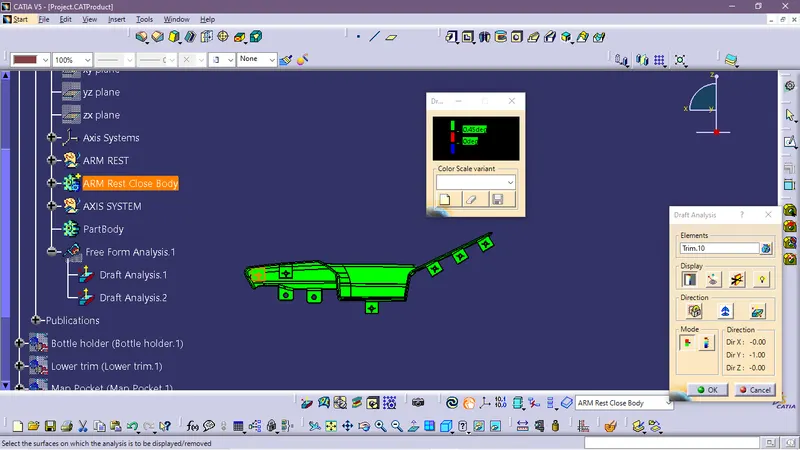

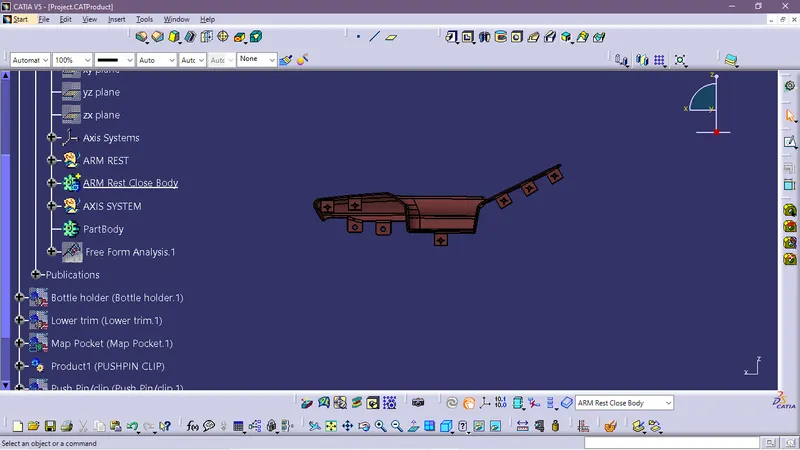

1 . Arm Rest : An armrest offers the possibility of comfortably positioning hand when driving on a motorway or standing in traffic. And also Depending on the equipment of an individual vehicle, it can also combine the functions of the control console of the vehicle's electrical systems and the practical storage compartment.

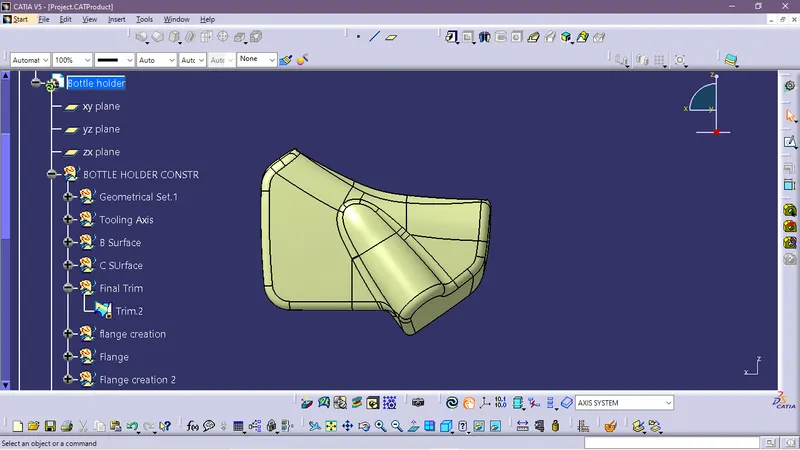

2. BOTTLE HOLDER : A Bottle holder is the compfortable space provided for water bottles in the vehicle.

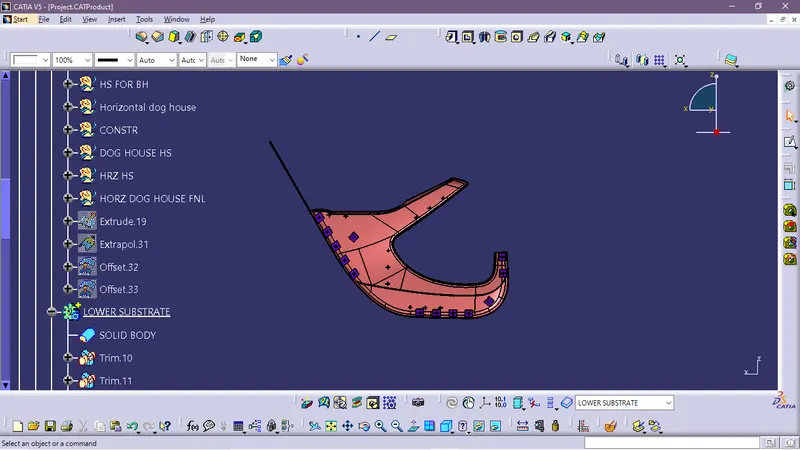

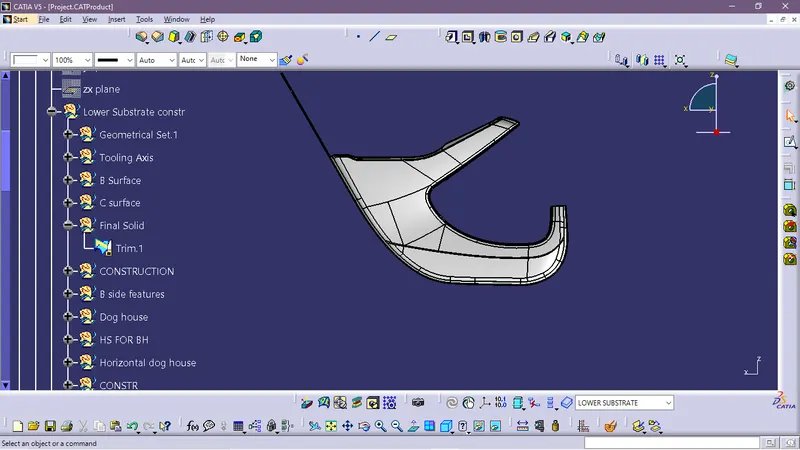

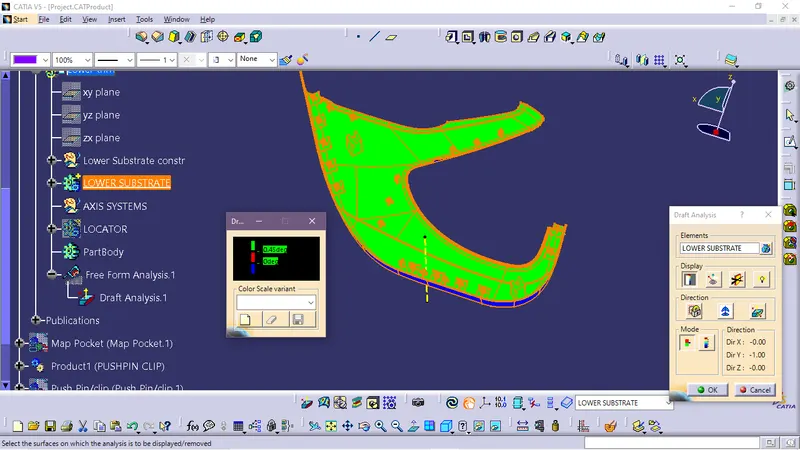

3. LOWER SUBSTRATE:

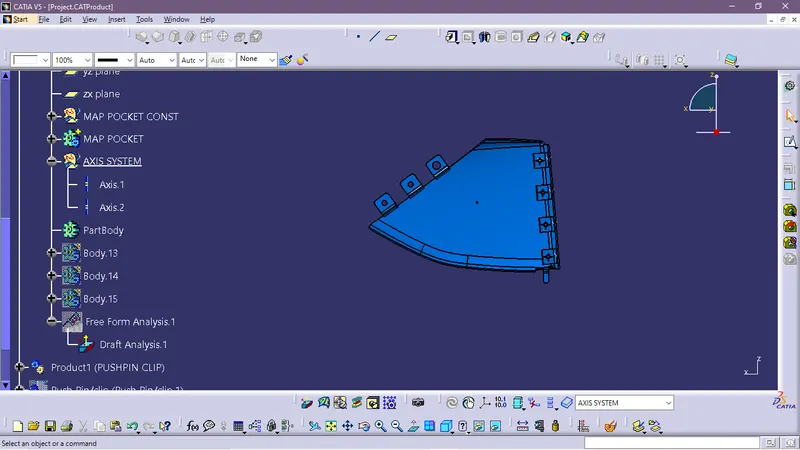

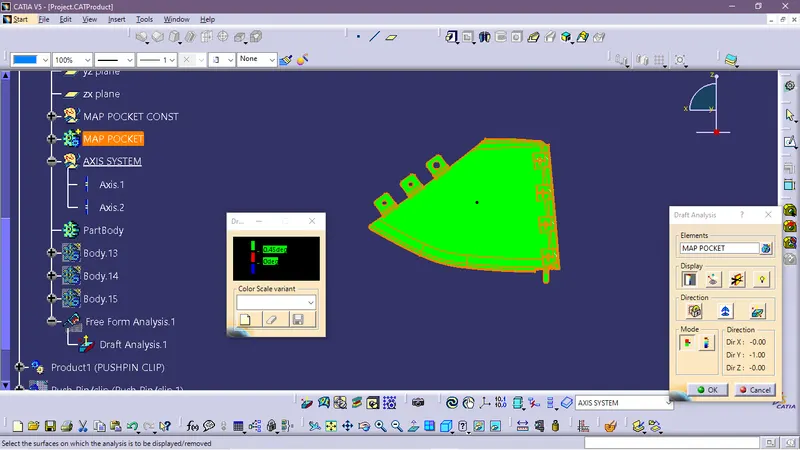

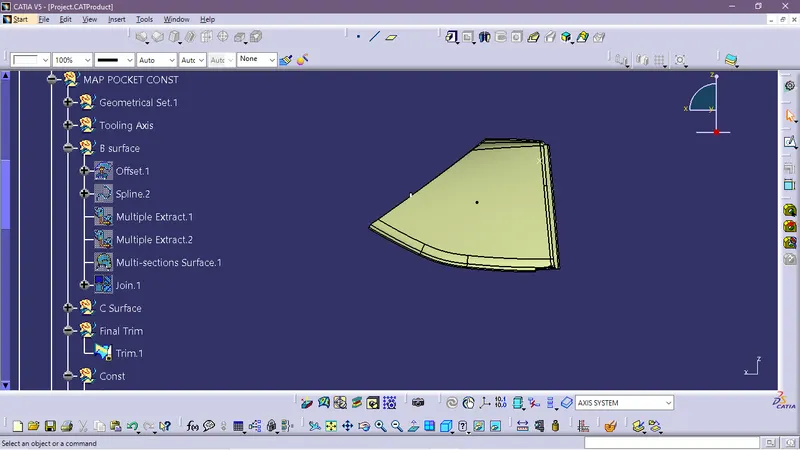

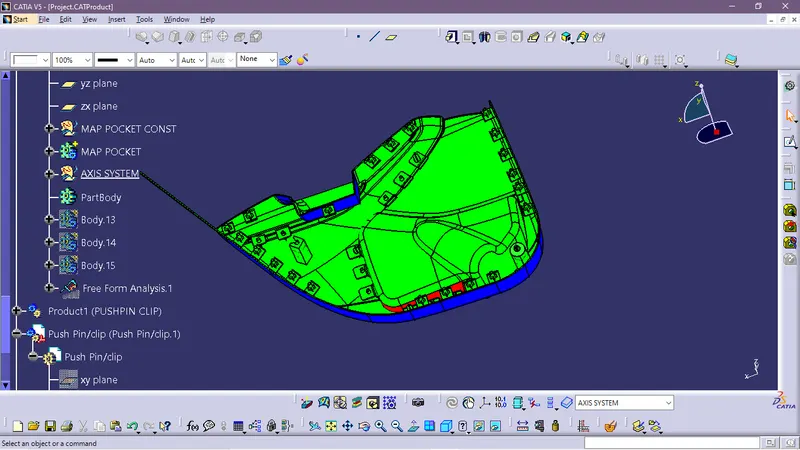

4. MAP POCKET : An armrest offers the possibility of comfortably positioning your hand when driving on a motorway or standing in traffic, yet not only. Depending on the equipment of an individual vehicle, it can also combine the functions of the control console of the vehicle's electrical systems and the practical storage compartment.

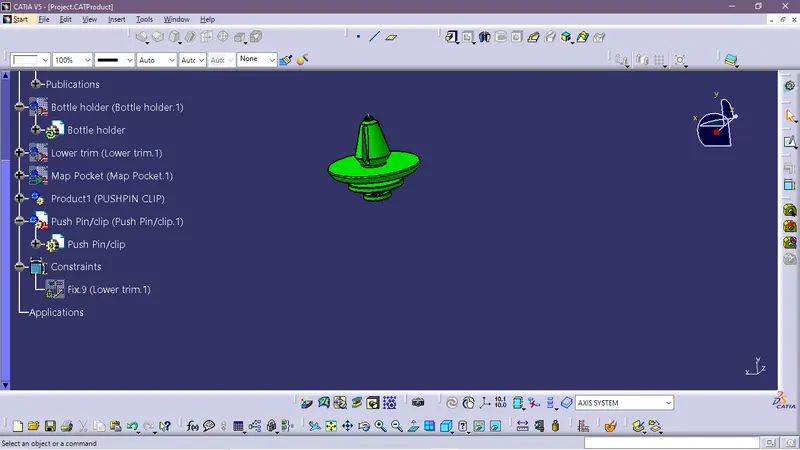

5. Push pin

B SIDE FEATURES:

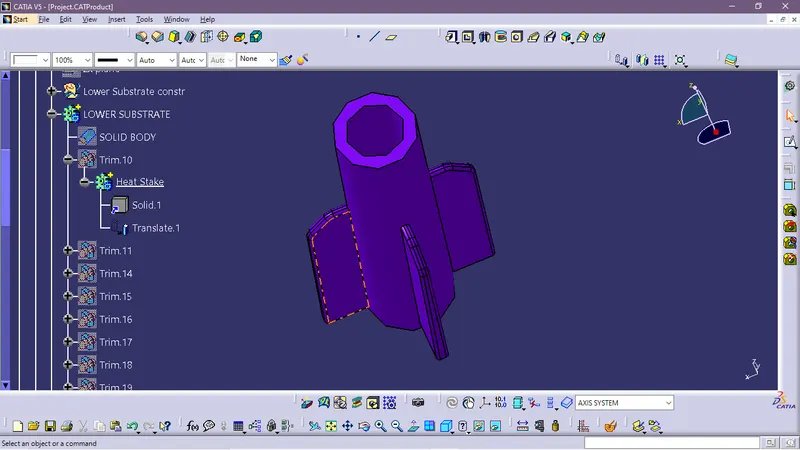

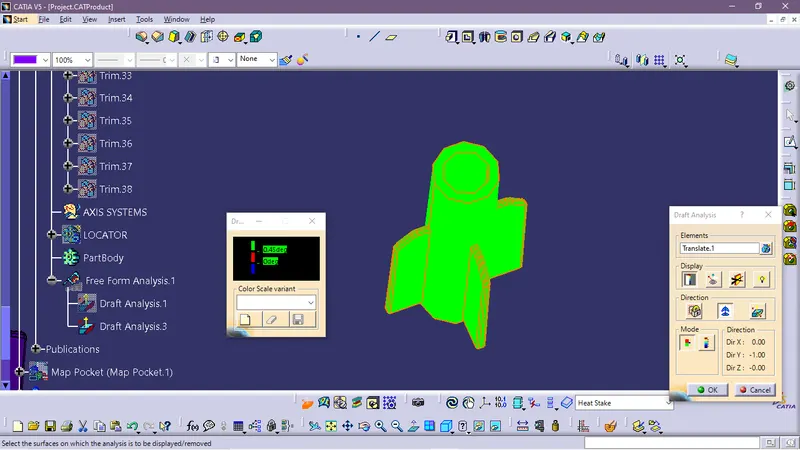

1 . HEAT STAKE: Heat staking is an assembly method that uses the controlled melting and reforming of a plastic stud or boss to capture or lock another plastic or metal component of an assembly in place. The plastic stud protrudes through a hole in the component to be locked in place

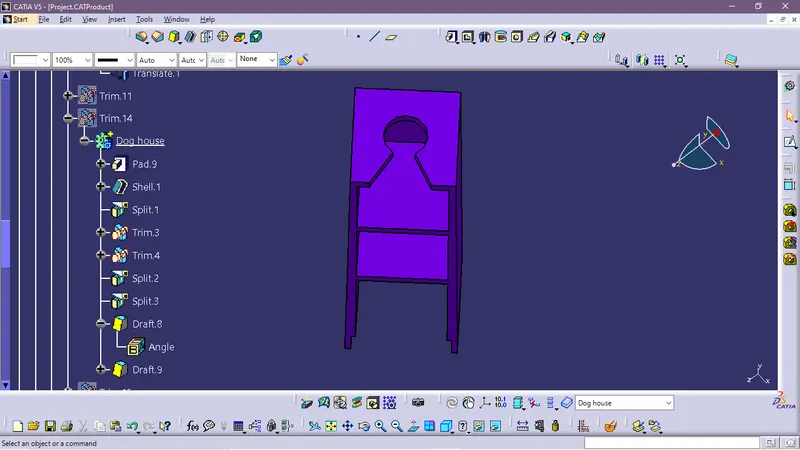

2. DOG HOUSE : Dog house is the feature provided for enhancing the height for placing the fixing components in the plastic design.

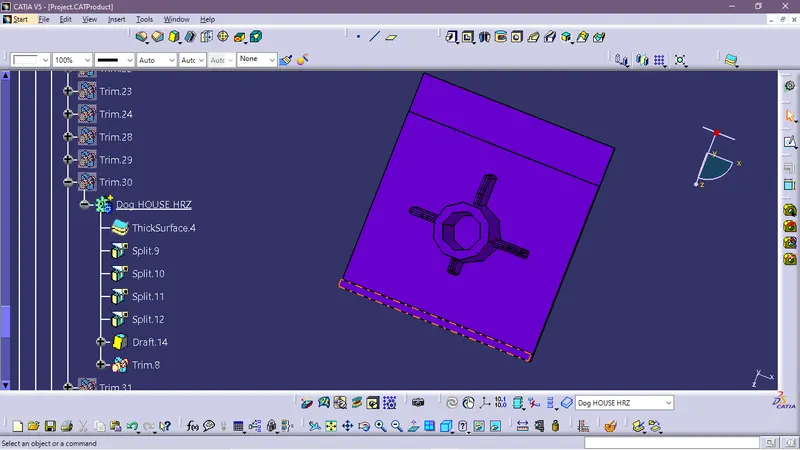

3. HORIZONTAL DOG HOUSE WITH HEAT STAKE:

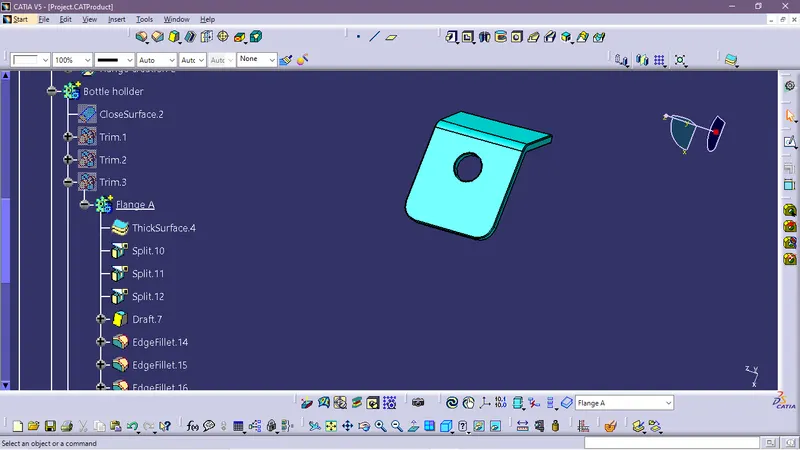

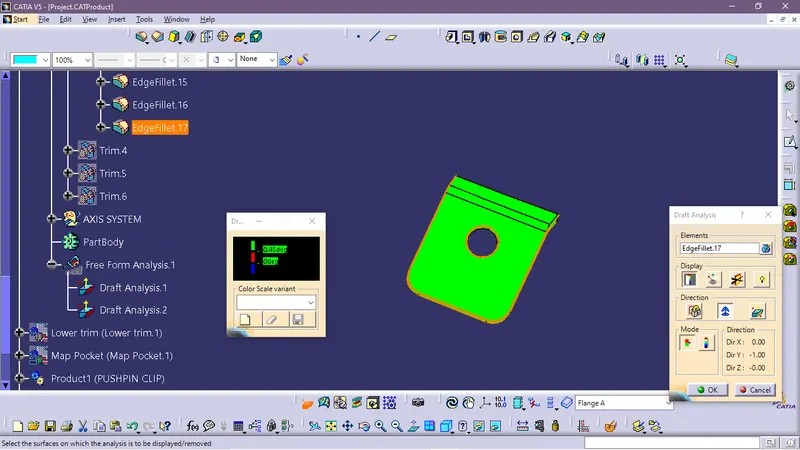

4. FLANGE : The flange is the feature used for aligning two plastic parts with the help of heat stakes.

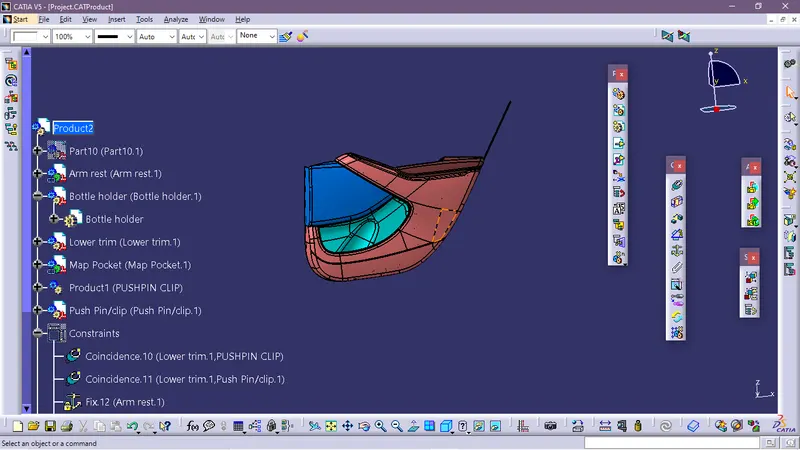

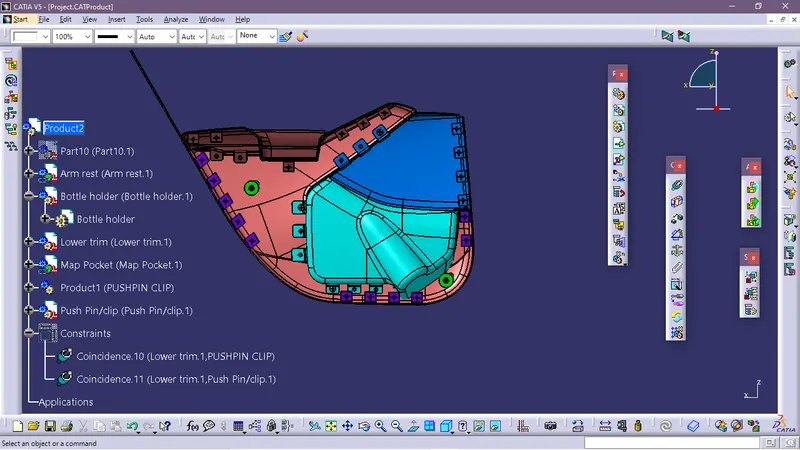

FINAL OUTPUT PRODUCT :
