Week 8 - Challenge 3 - Coin Holder Design

Detailed Report

Steps

1. Created a tooling axis on the base surface

2. Created a B surface With Reference to A surface by 2.5mm

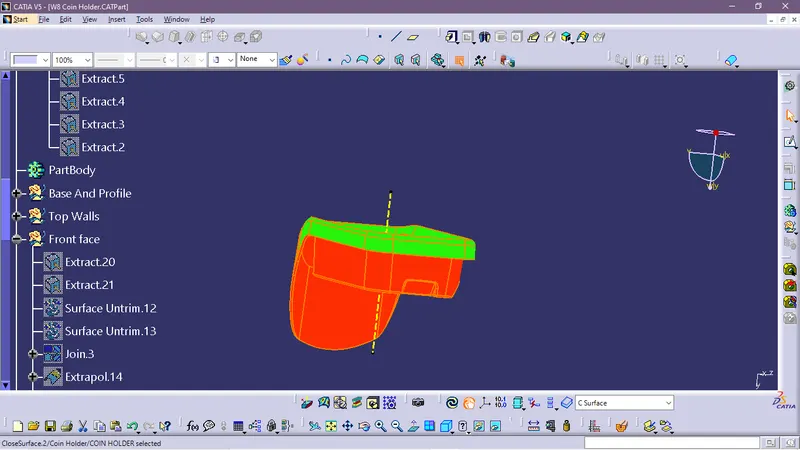

3.Sweeped the C surface along 90 Degrees to the A and B Surface

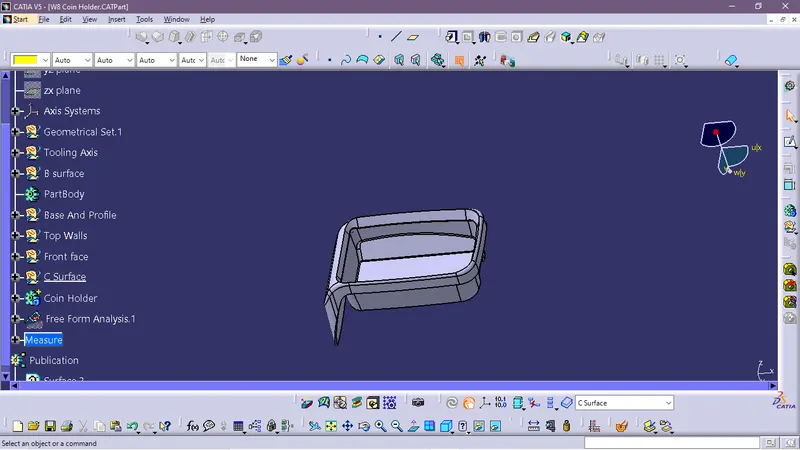

4 Draft analysis done with the tooling axis with 3degrees Draft.
