Week 8 - Challenge 6 - Core & Cavity Design

1 dRAFT CLEARES THE PART ALONG THE TOOLING DIRECTION

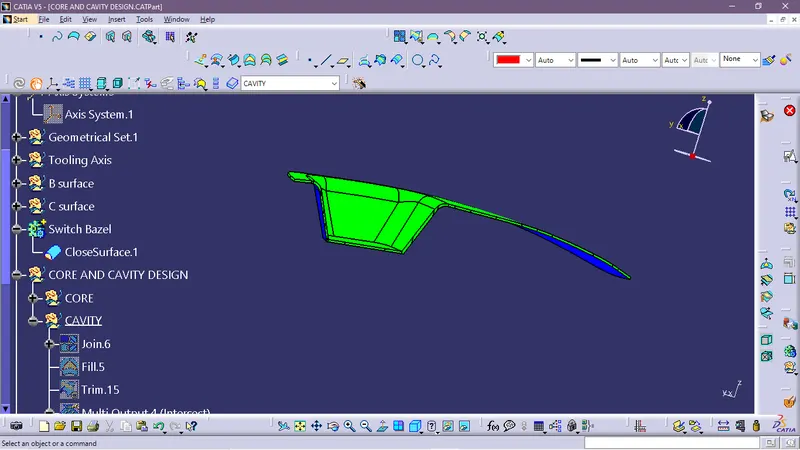

2. CREATED THE PARTIONG SURFACE AS B SURFACE.

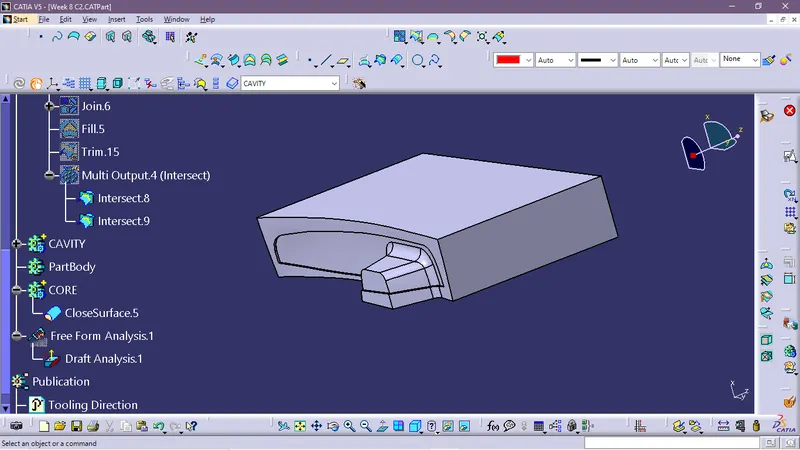

3. CREATED THE CORE BLOCK

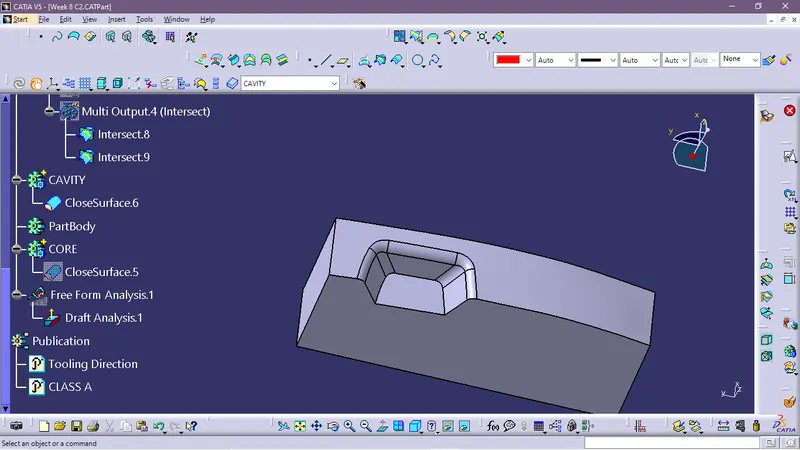

4. CREATED THE CAVITY BLOCK

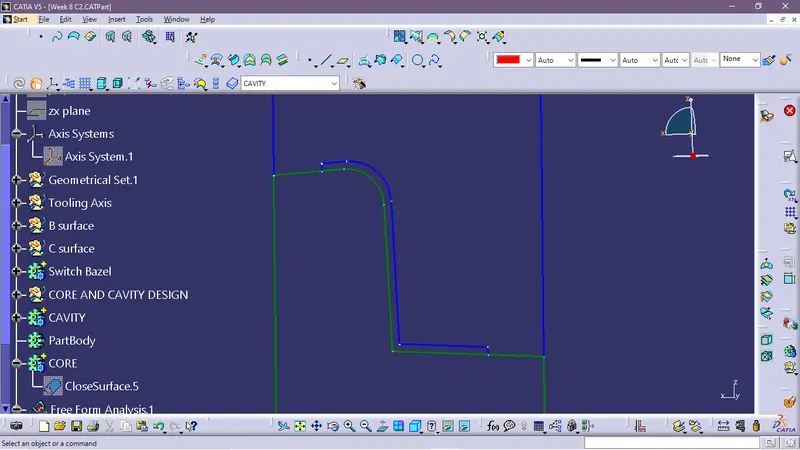

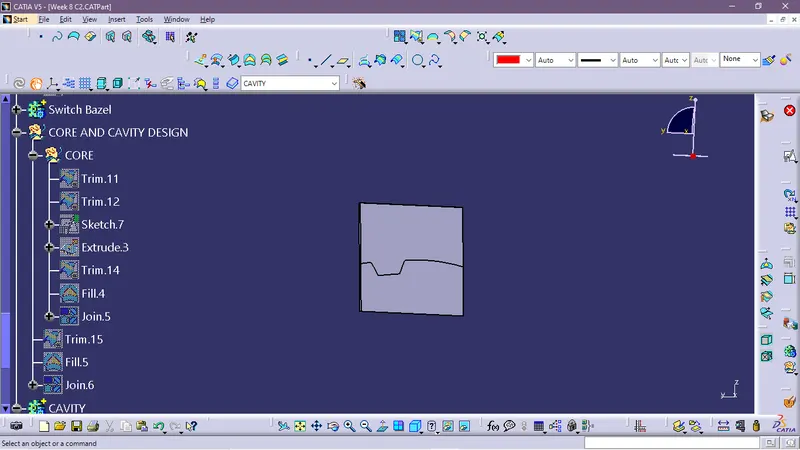

5. INTERSECTION VIEW OF THE PART FILLING SECTION.

6. FINAL MOLD OF CORE AND CAVITY
