Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

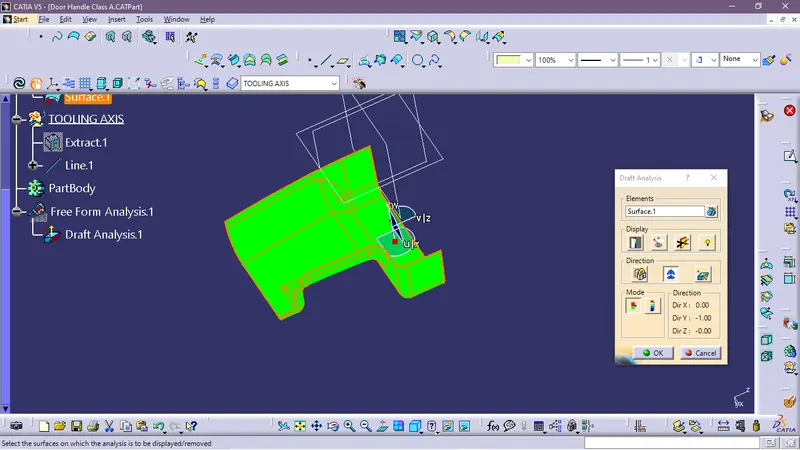

1.A SURFACE CLEARES THE MOLD ALONG THE TOOLING DIRECTION

2. CREATED THE RIBS AS PER DESIGN RULES .

3. CREATED THE SCREW BISS AS PER THE DESIGN RULES

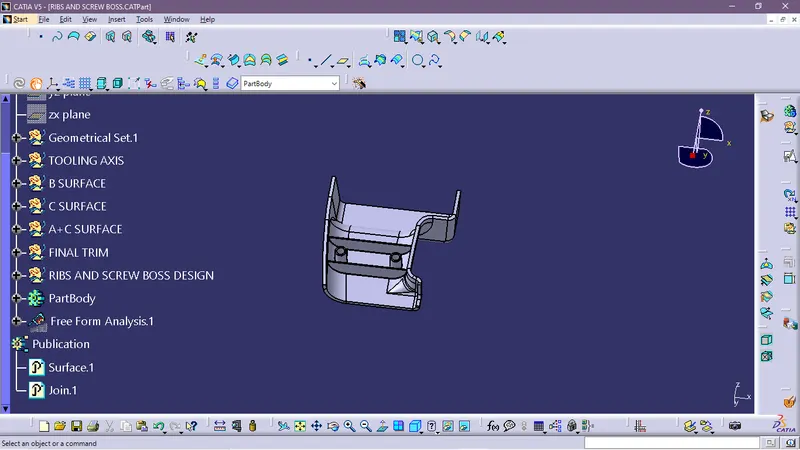

4 CREATED A FINAL SOLID PART

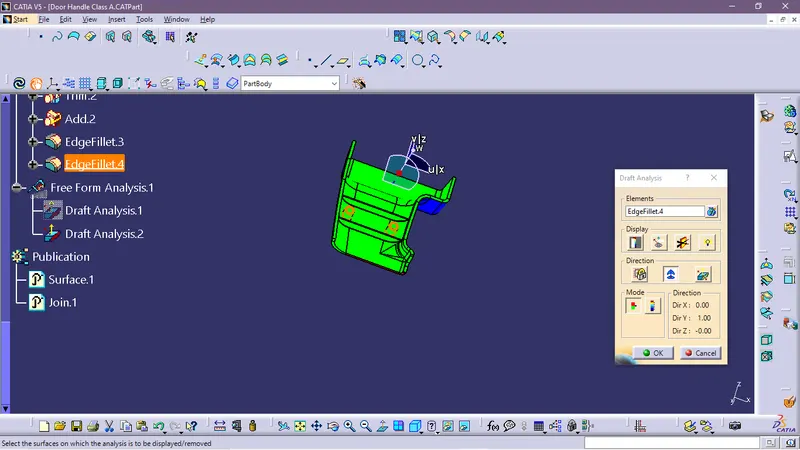

5. SOLID PART CLEARES ALONG WITH TOOLING DIRECTION.
