Week 11 - Final project

Door Trim Panel Report: -

In this design we will work on 3 different components:

1) Map Pocket (Upper and lower part)

2) Door Arm Rest (Upper and lower part)

3) Lower Subtrate

1) Map Pocket Upper Part: -

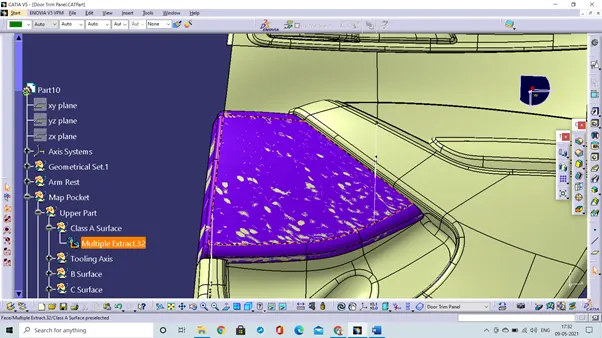

Extract the component surface from the given plastic component. This extracted surface will be class A surface for arm rest upper part.

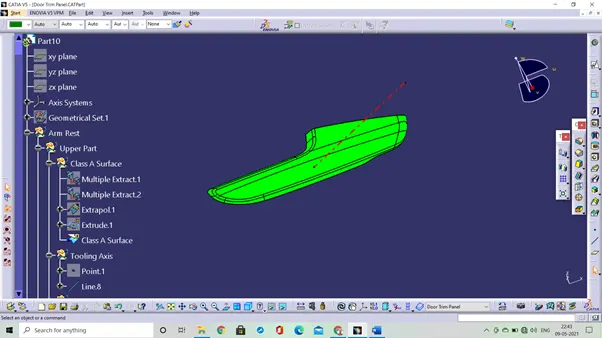

Creation of Tooling Axis: Tooling axis should be designed such that the class A surface should appear green that means it should be clear in draft analysis.

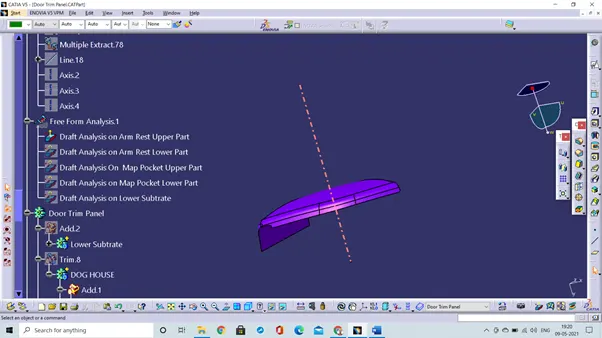

Draft Analysis:

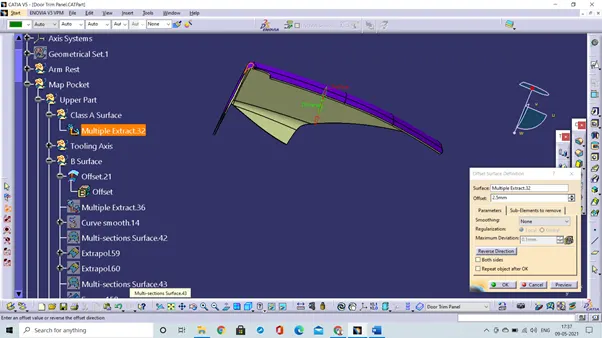

Creation of B surface: The thickness of this surface should be 2.5mm, therefore we need to offset this class A surface to 2.5mm. This will be the B surface. Sometimes while offsetting the class A surface there may be some areas which may not get offset. So, in that case we need to create that element manually.

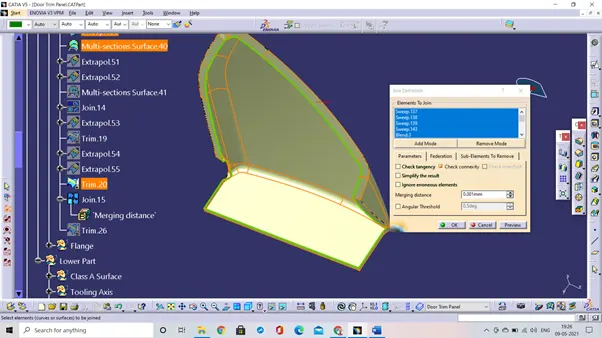

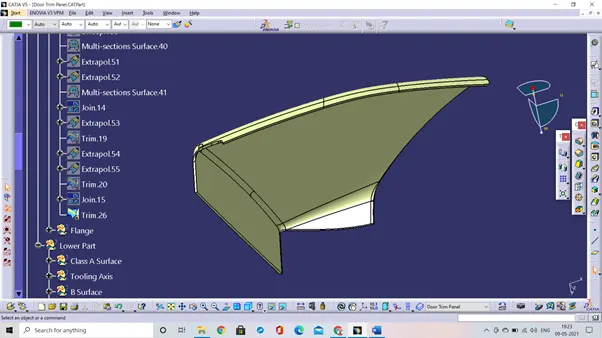

Creation of C surface: For Creation of C surface, we need to sweep in axis direction at 3 degree and join it with class A surface. Now trim it with B surface. Make sure the obtained body is fully closed. Now go to Part Design and use the “closed body” command to make the body solid.

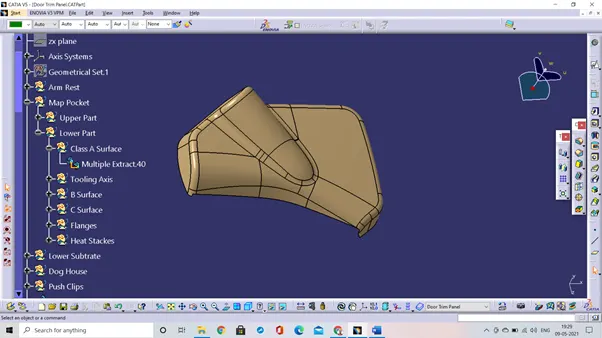

Map Pocket Lower Part:

Creation of Class A surface: Extract the surface from the given component.

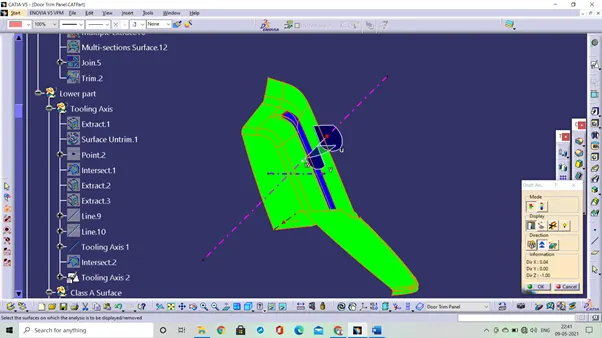

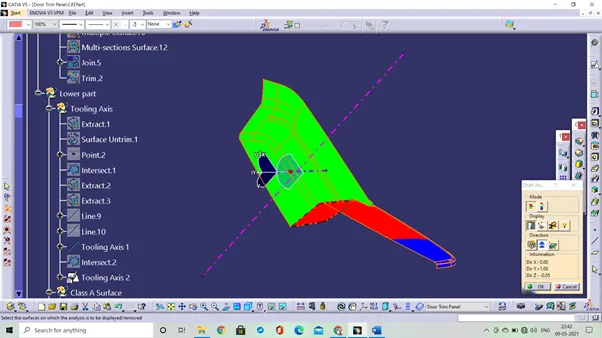

Creation of Tooling Axis: Take a point on the surface of the class A surface and draw the line through the point in the vertical direction the surface and make sure that the body is being cleared in the draft analysis.

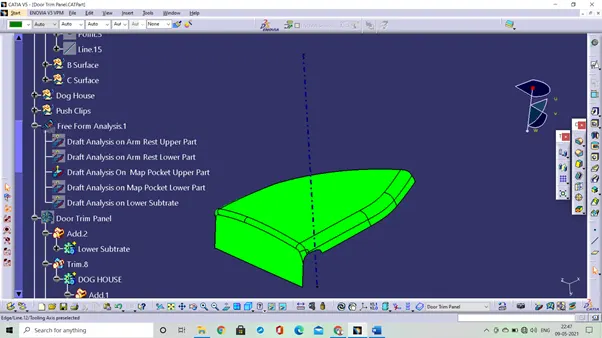

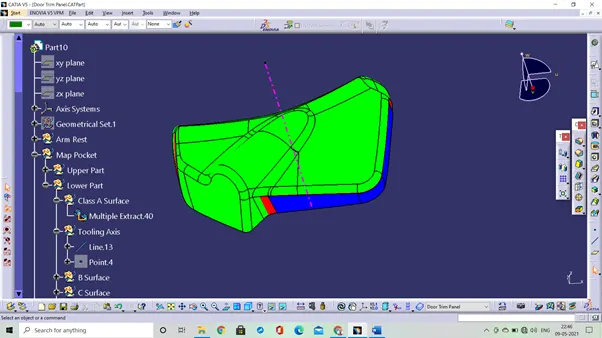

Draft analysis:

Note- In draft analysis of class A surface of lower subtrate there are some surfaces that are not cleared, that is the issue in the given class A surface of the body.

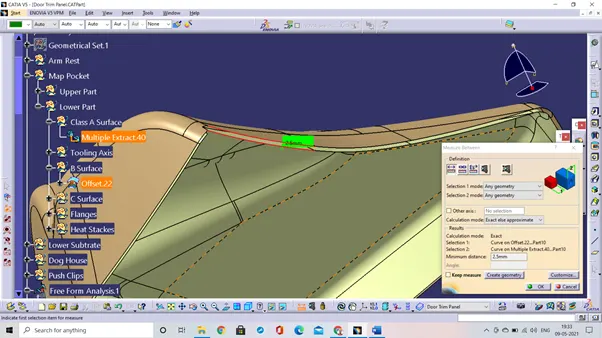

Creation of B surface: Offset the class A surface to about 2.5mm

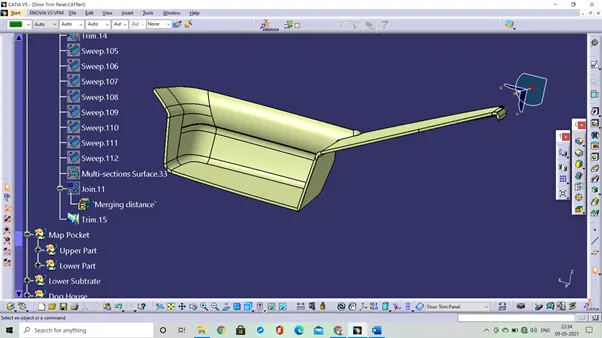

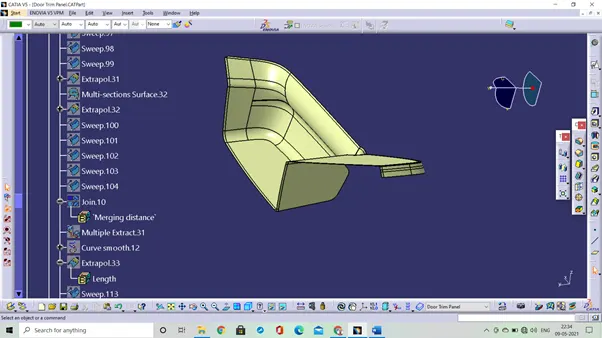

Creation of C surface: In this body the C surface cannot be created using the sweep operation so we need to blend the between the A & B surface and then join them.

Make this body solid in the part design using the closed surface command.

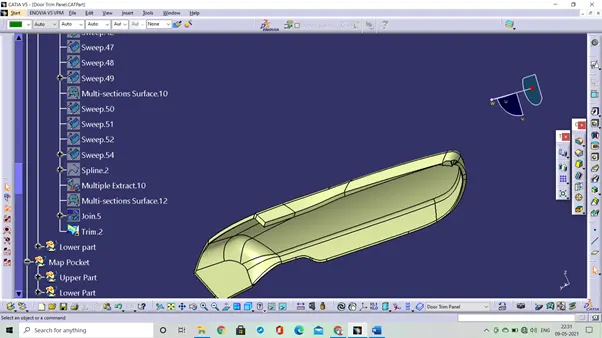

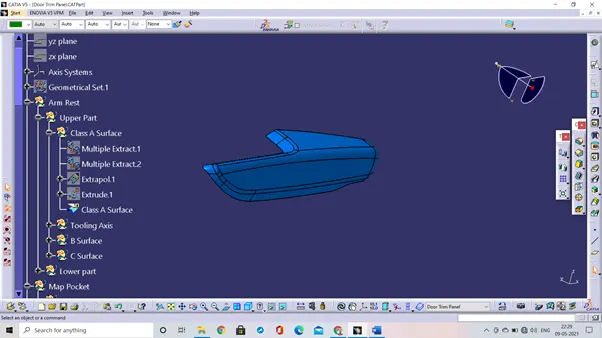

2) Arm Rest Upper Part:

Class A Surface:

Draft Analysis:

B Surface:

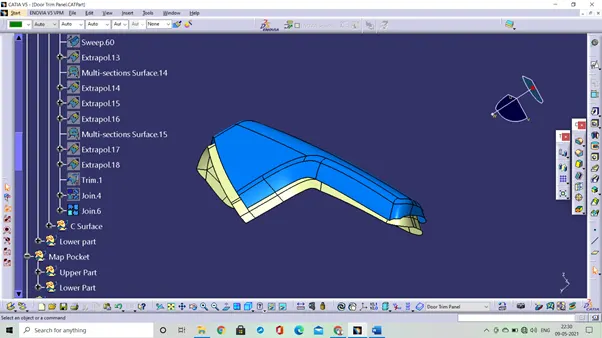

C Surface:

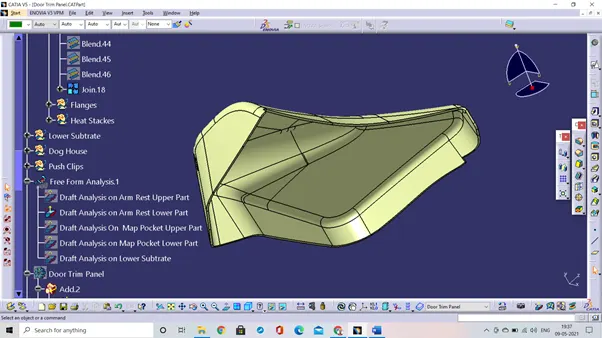

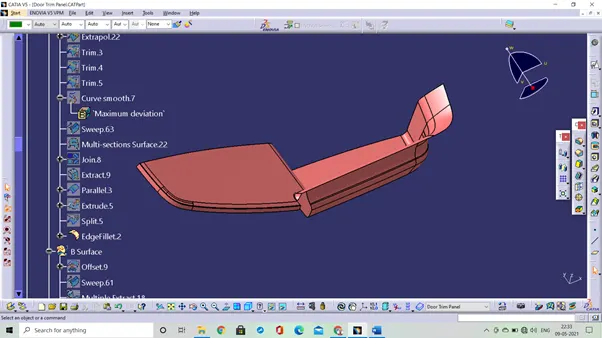

Arm Rest Lower Part:

Class A Surface:

Draft Analysis:

B surface:

C Surface:

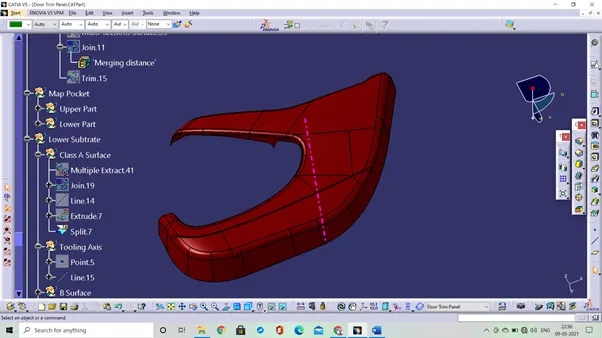

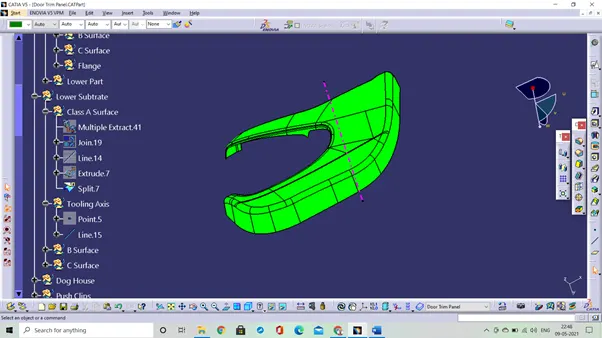

3) Lower Subtrate:

Class A Surface:

Draft Analysis:

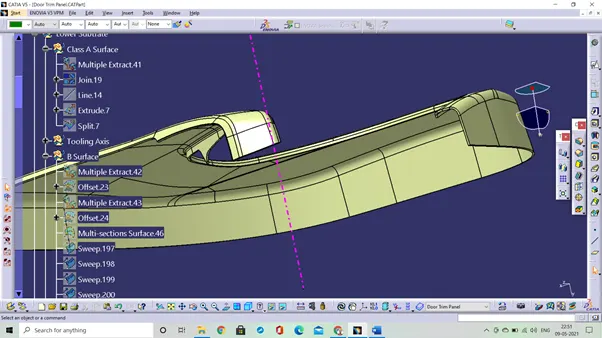

B Surface:

In the B Surface of lower subtrate some parts are not cleared in offset, so we need to create them manually.

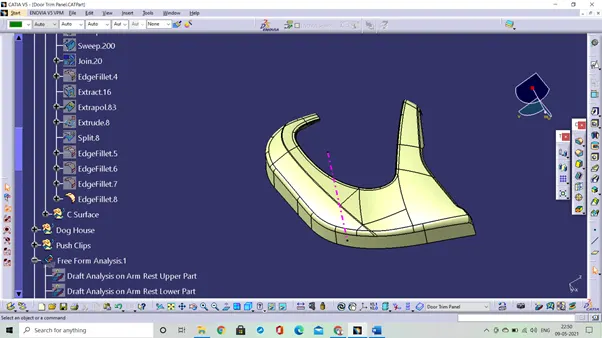

C Surface:

Accessories:

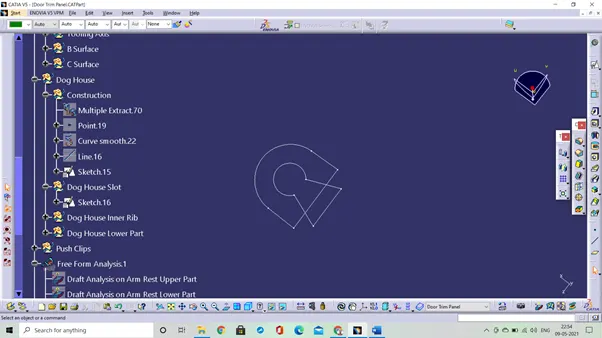

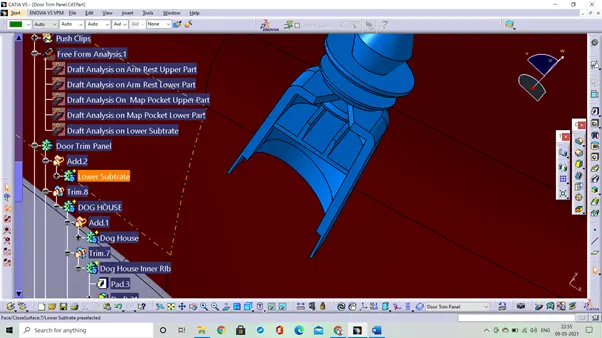

Dog House: Dog house are needed to give extra strength to the components and to avoid sink marks and to increase the height for push pins.

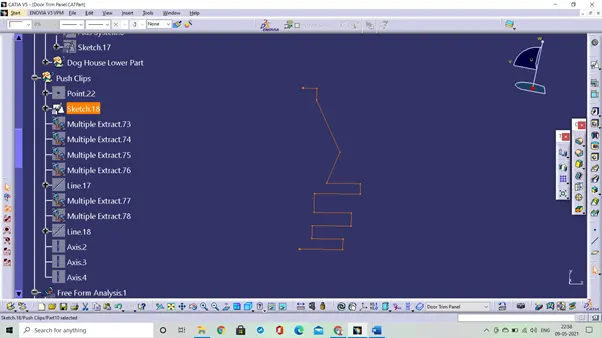

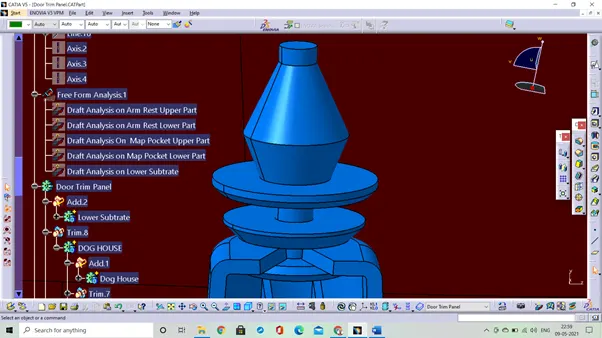

Push Clips: For push pin Create the one side profile and with “shat command” rotate the profile to get the desired component

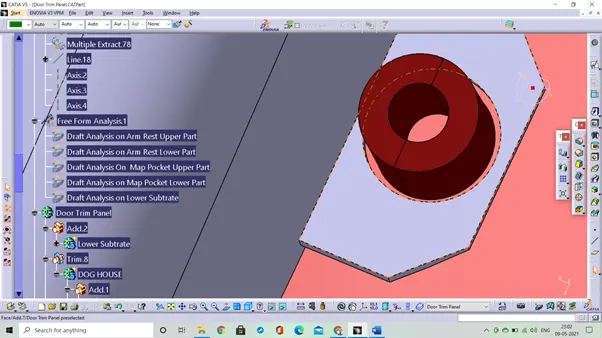

Heat Stackes: Heat stackes are used to join one or more plastic components. Give the draft of 3 degree to the heat stackes in the both outer and inner side.

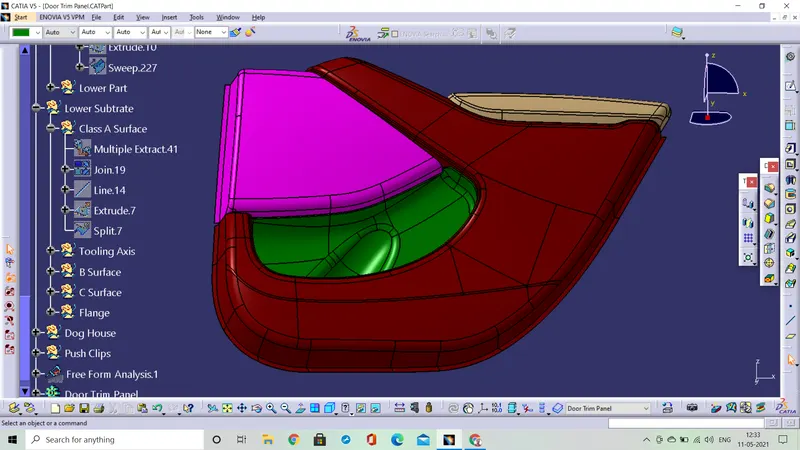

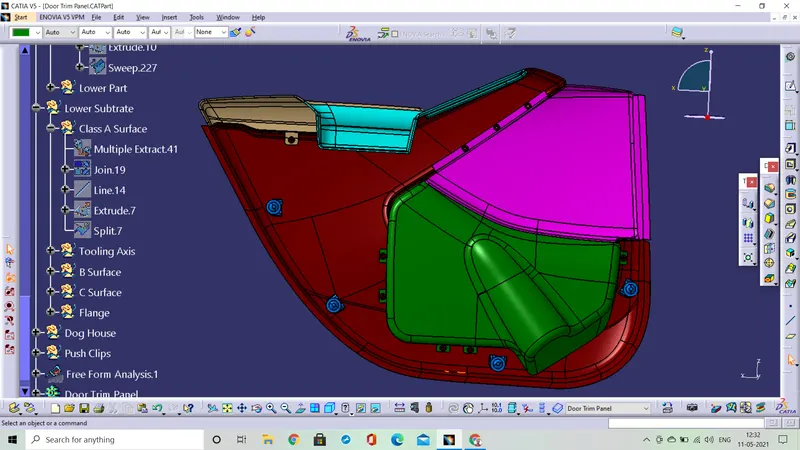

Door Trim Panel Solid Design:
