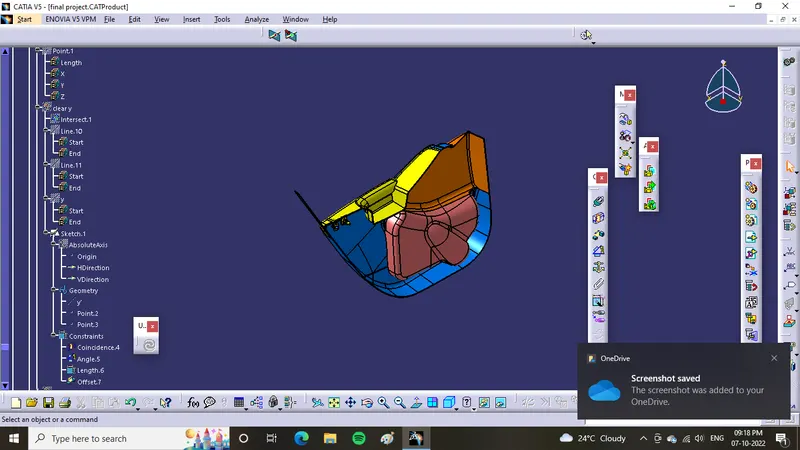

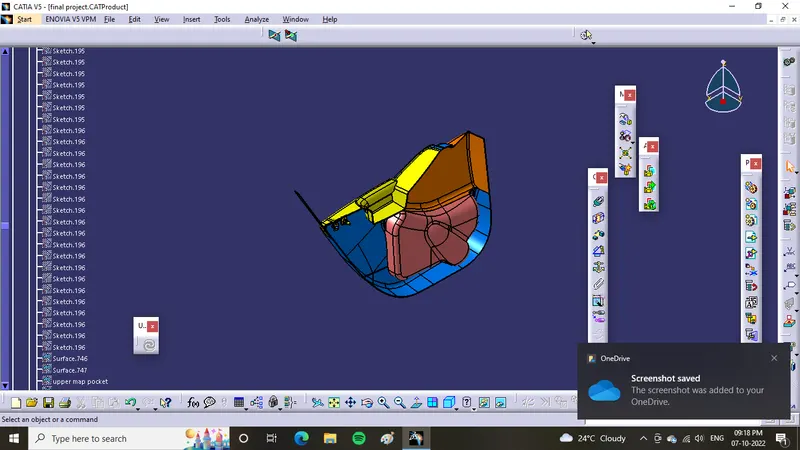

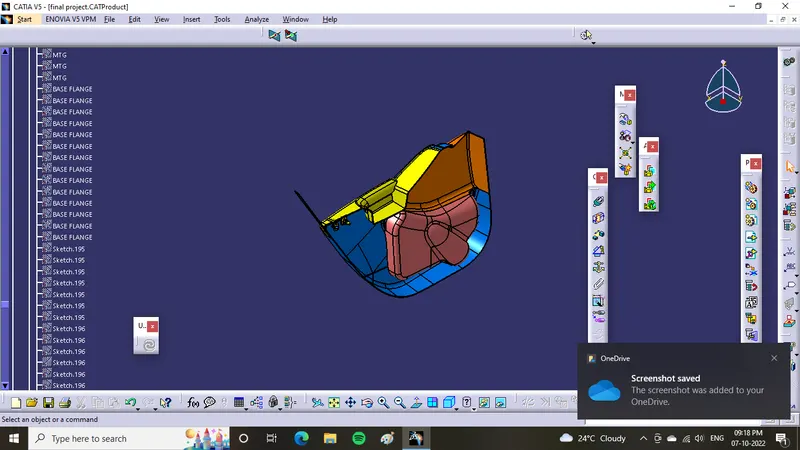

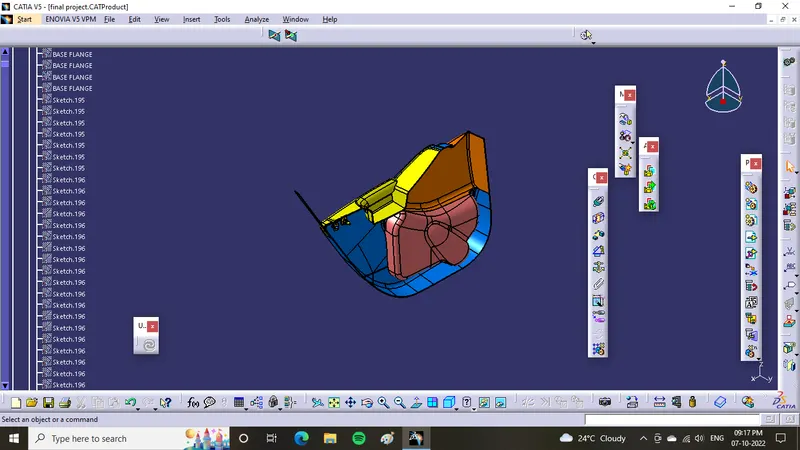

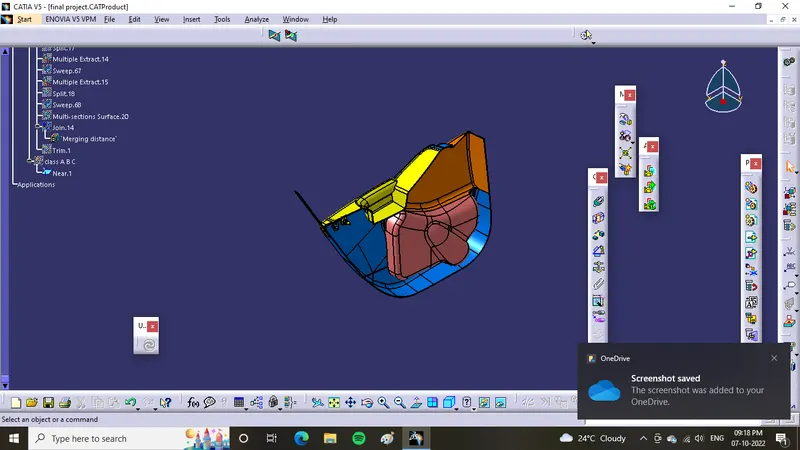

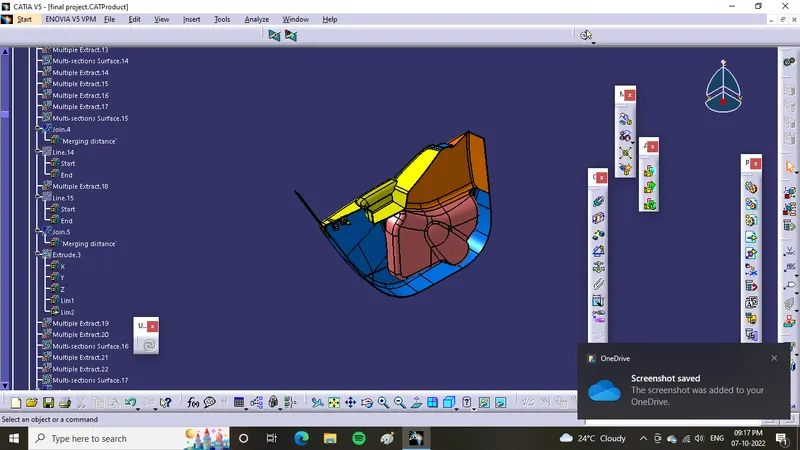

TREE STRUCTURE

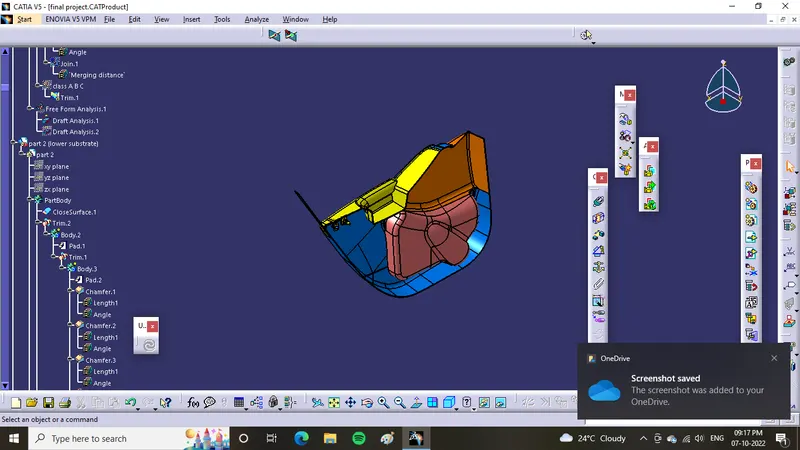

DRAFT ANALYSIS

Tooling axis in this case created by trial and error method
First create approximate tooling axis

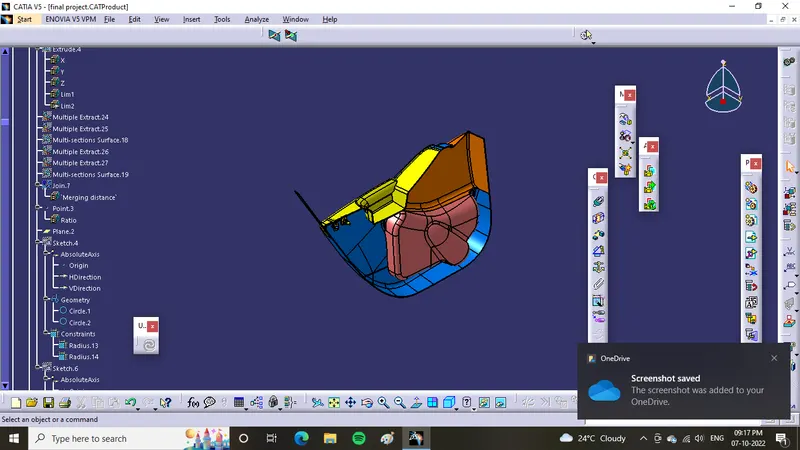

After that apply draft analysis for given A surface
And find the green color surface on the surface of given class A surface such that compass positioned
Then create a line passing through point and in the compass direction
Then perform draft analysis to the class A surface for better result
Same steps followed to final surface also

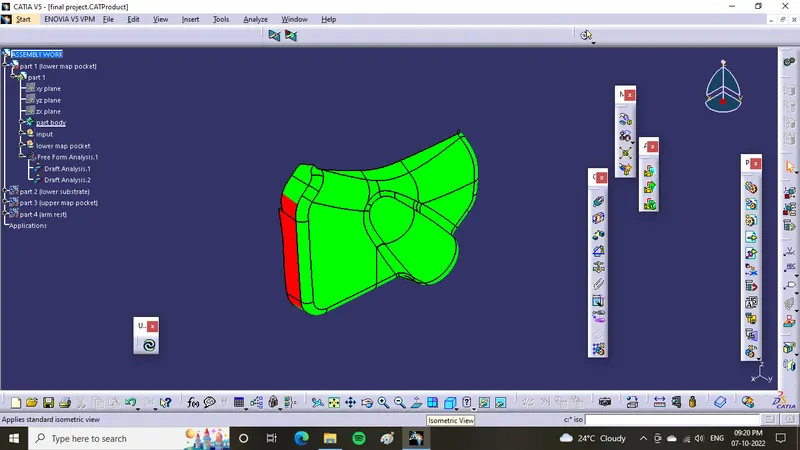

green colour indicates draft angle will be more than 2 deg
blue colour indicates draft angle will be negative
for draft analysis axis system is taken and that axis system is coinside with the tooling axis
and lock that position
then take the pendent symbol tool and click on the part then it will show which surface is more draft angle which surface is less angle
if the surface is green then ok
for blue surface click inversion symbol then shifted up side down and visible green surface
if any deviation surface shown red colour.
