Week 11 - Final project

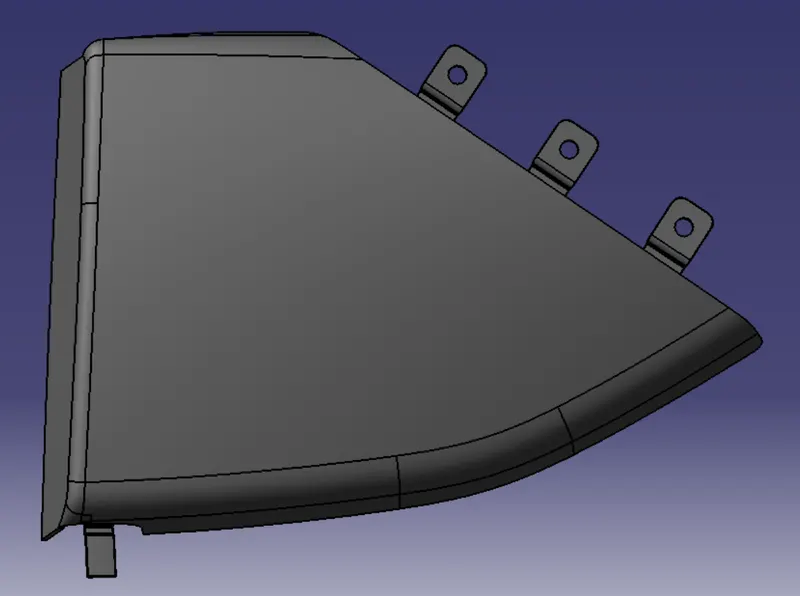

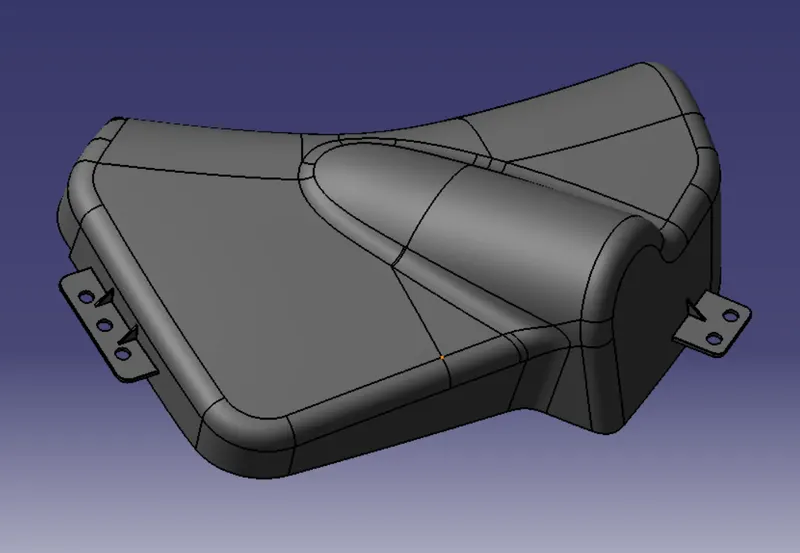

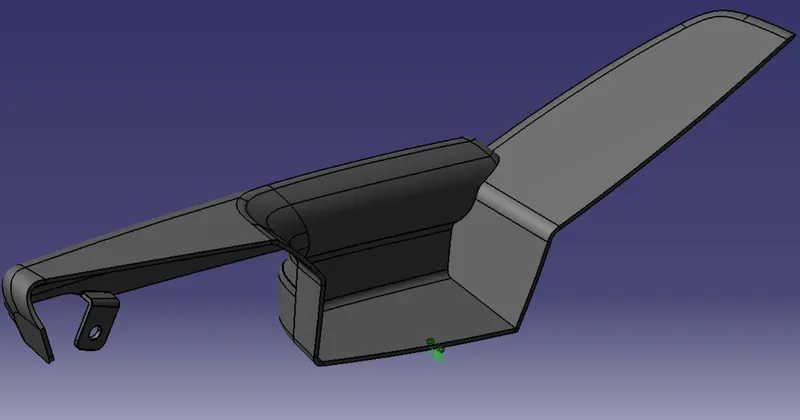

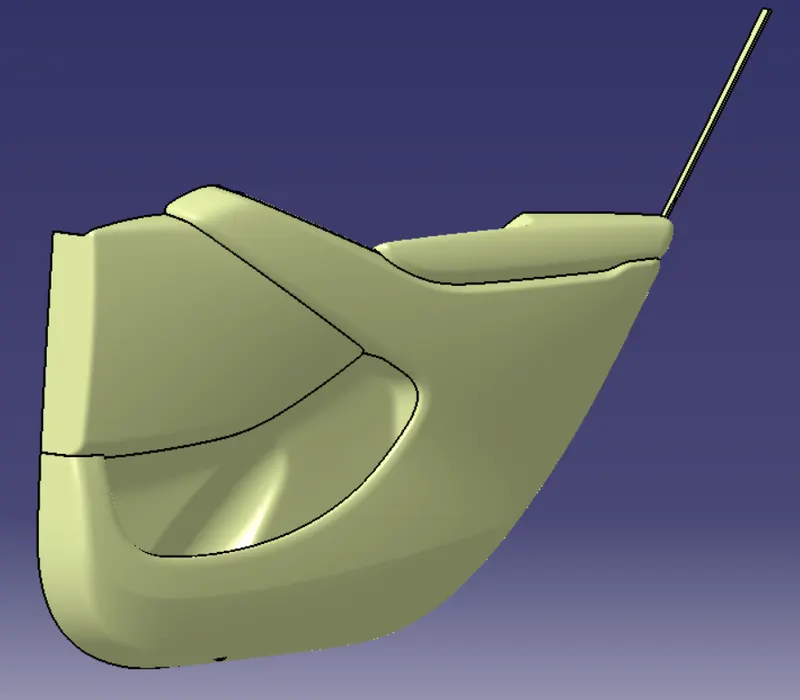

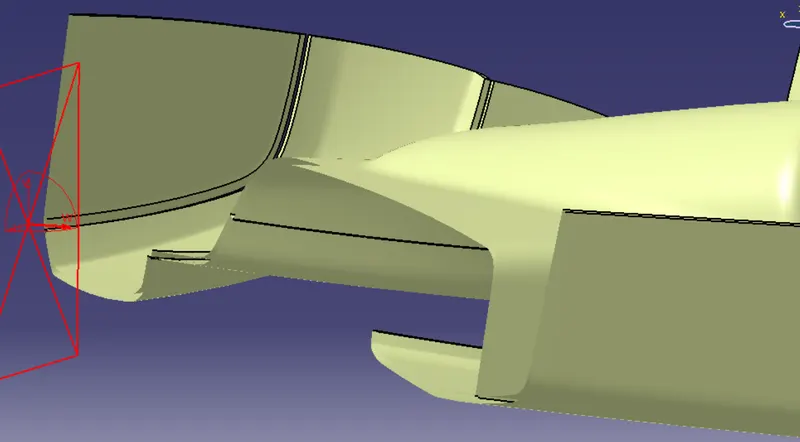

Closed surfaces

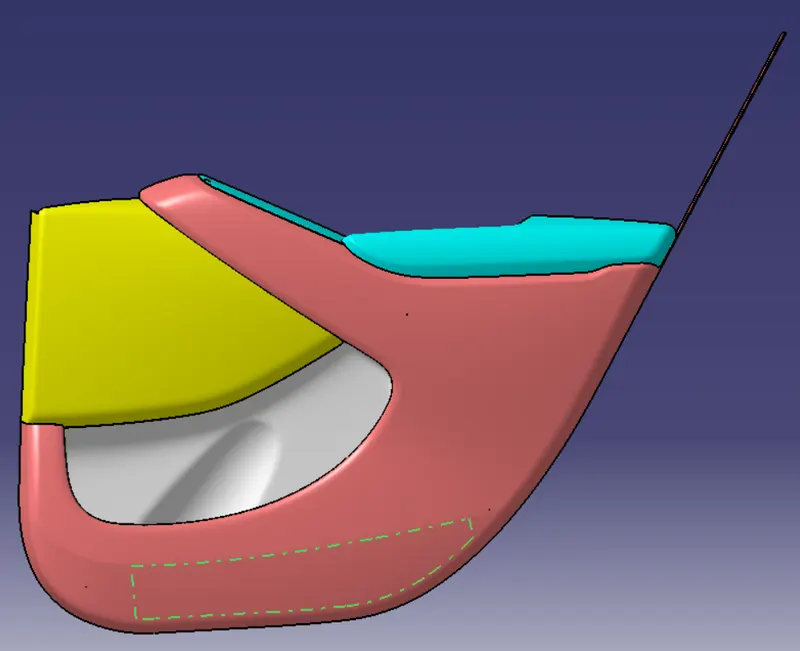

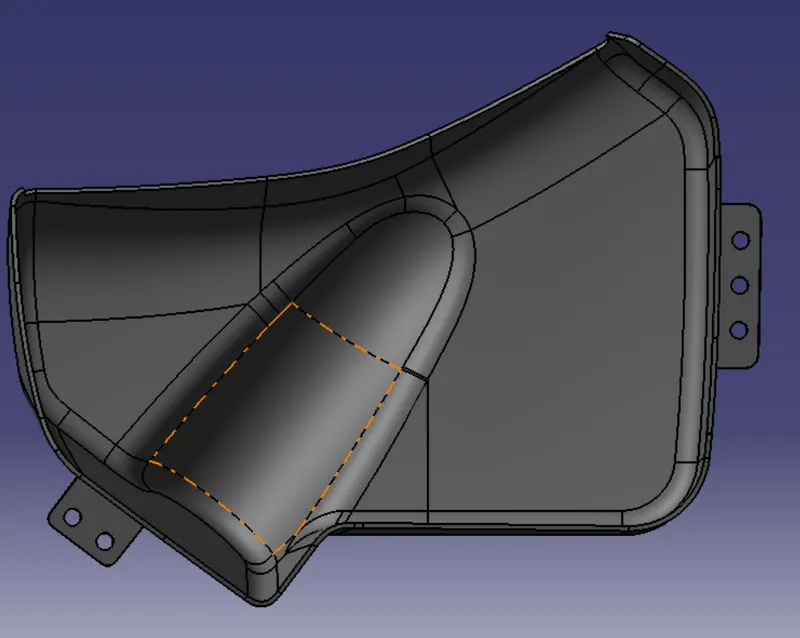

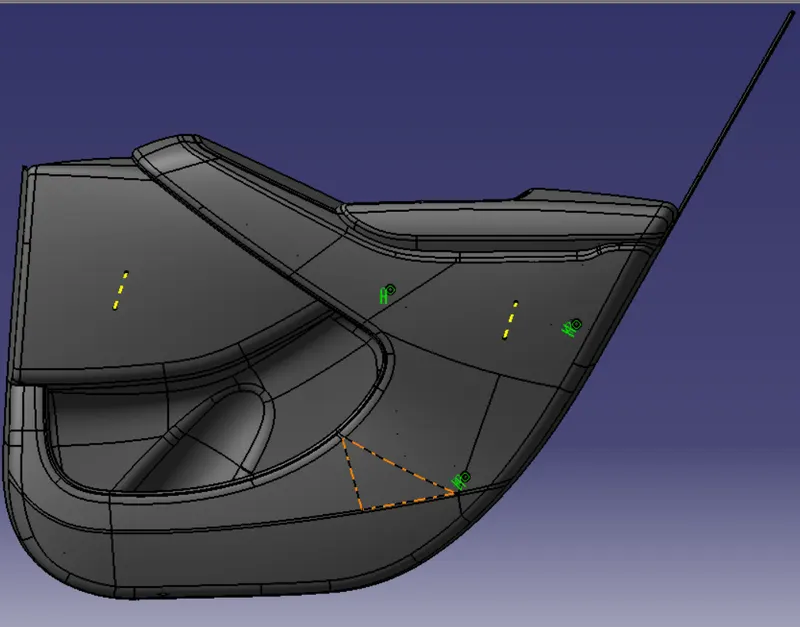

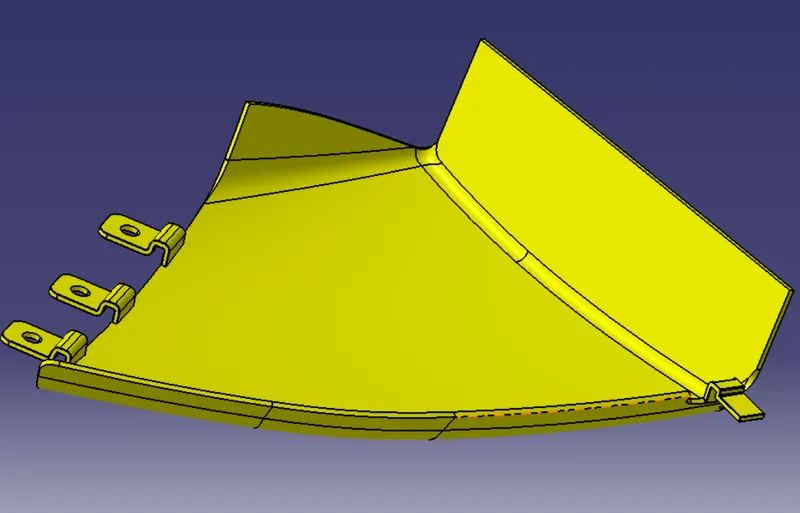

The Solid Body

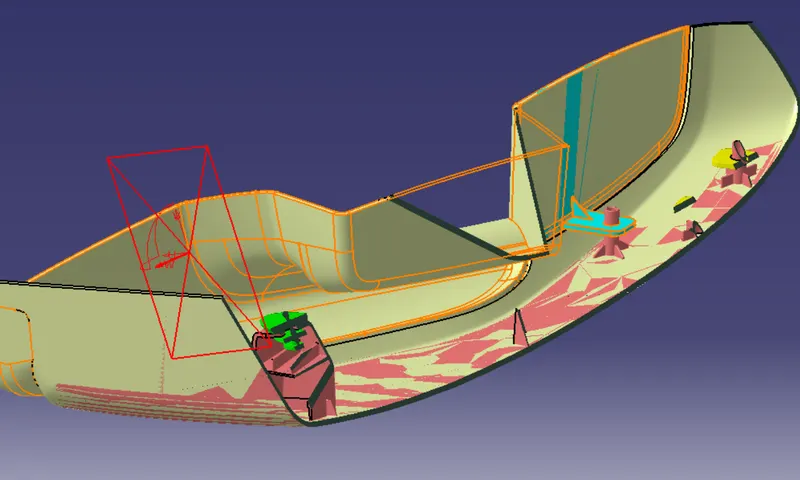

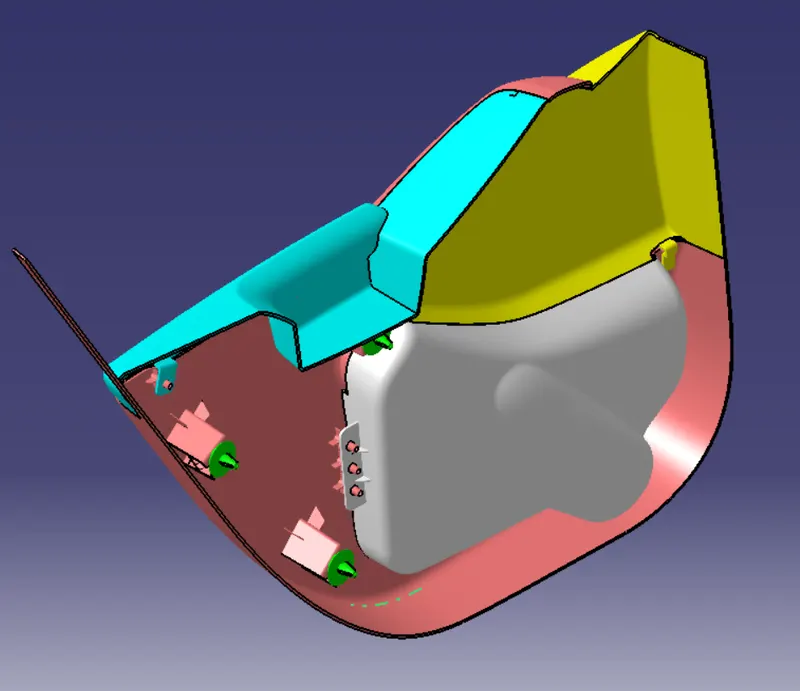

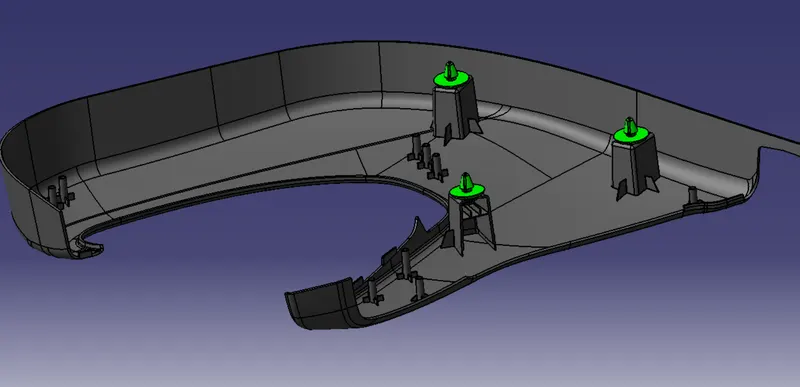

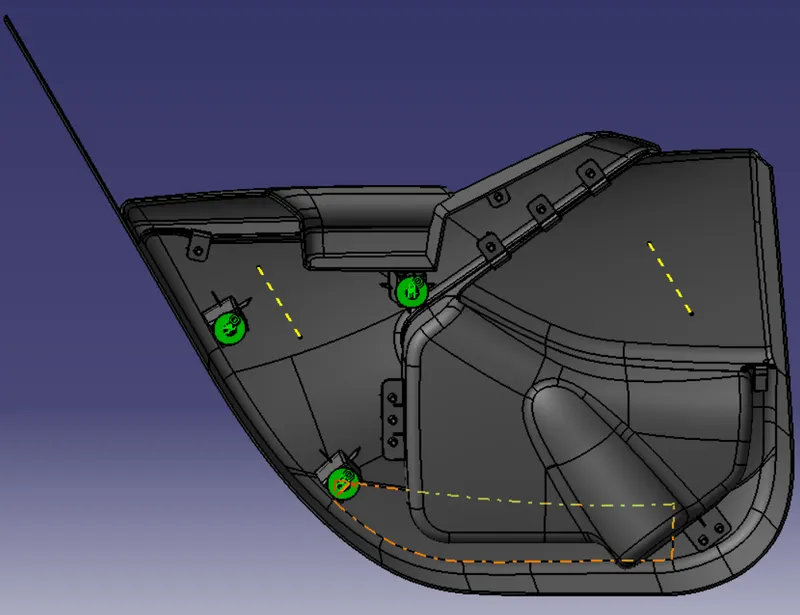

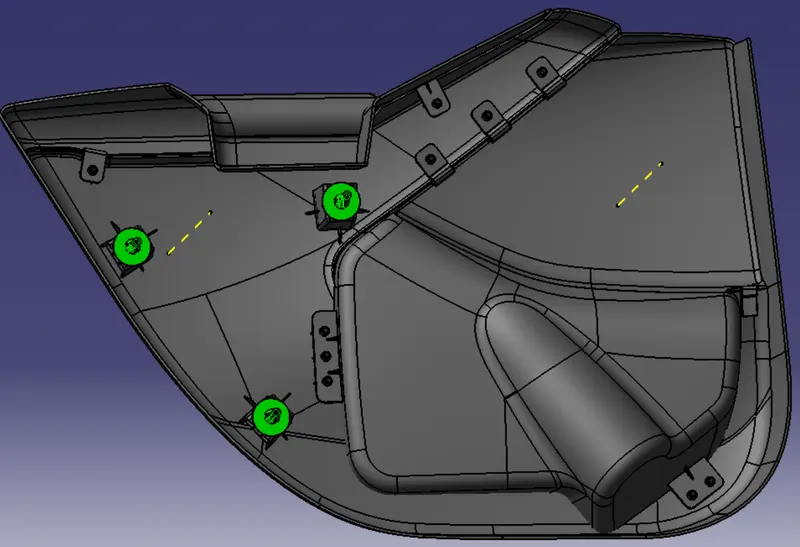

Mounting features/B-side features

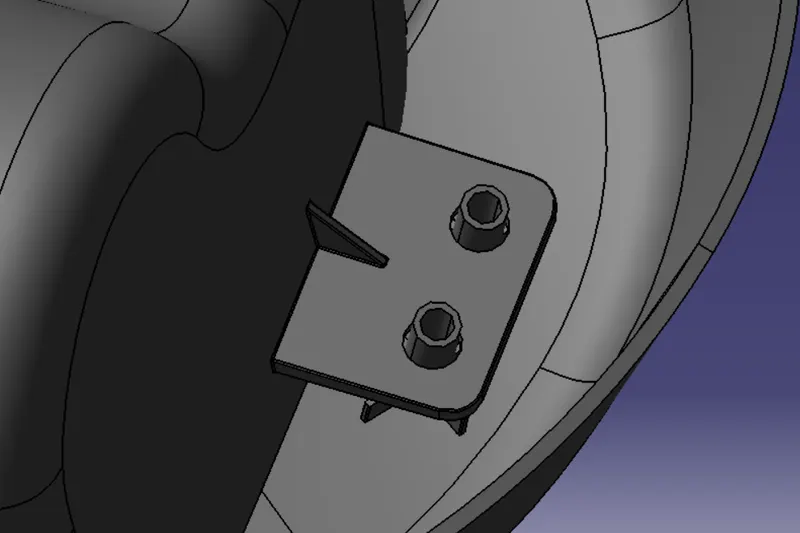

• Ribs are provide on flanges for additional support and strength.

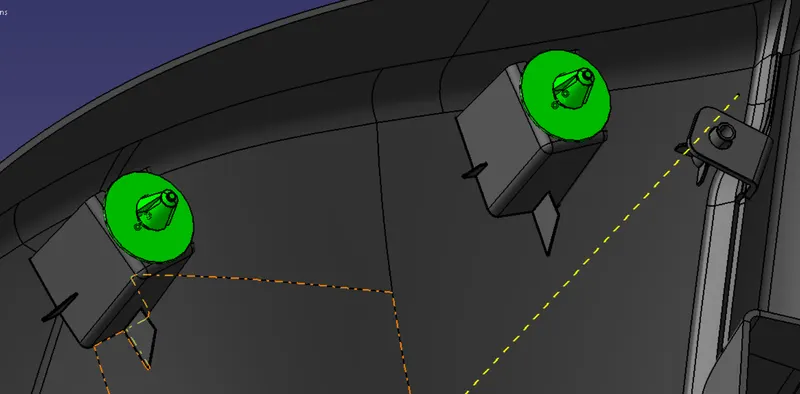

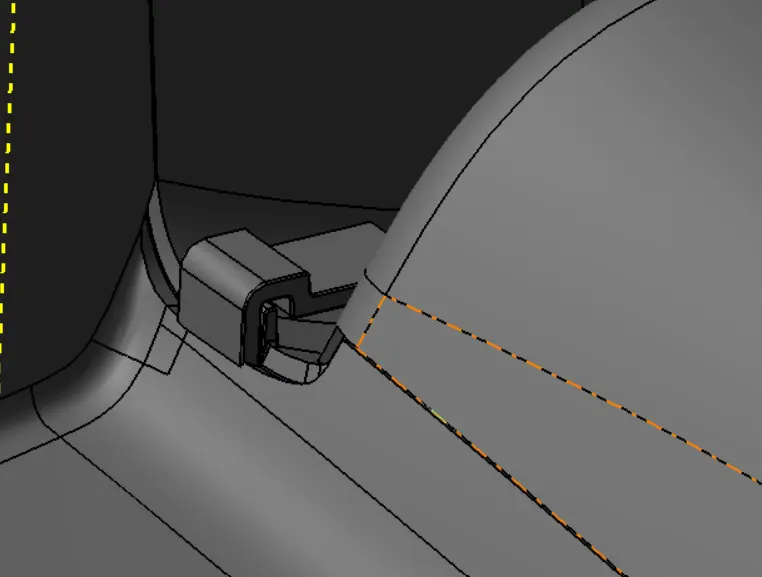

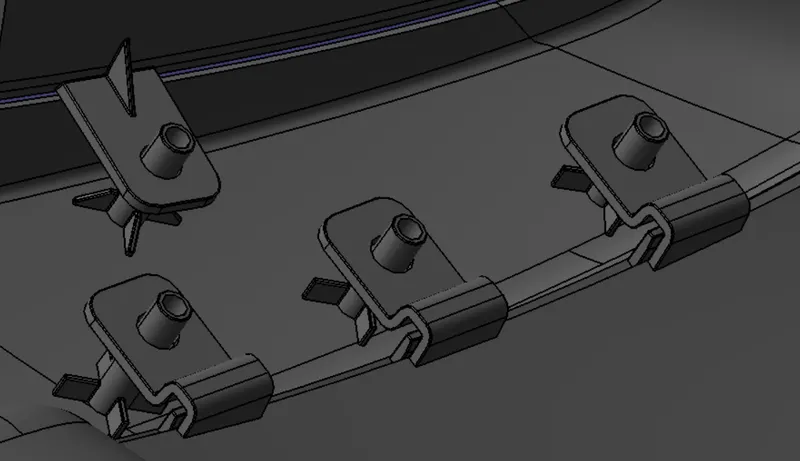

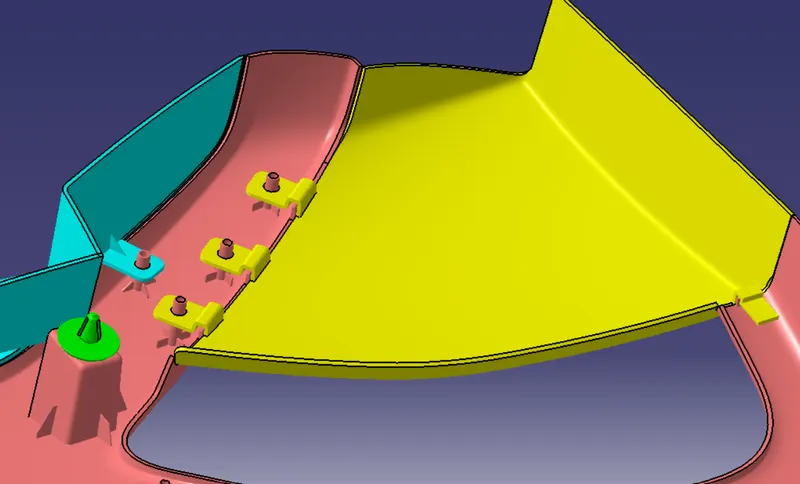

Doghouse and pushpin assembly

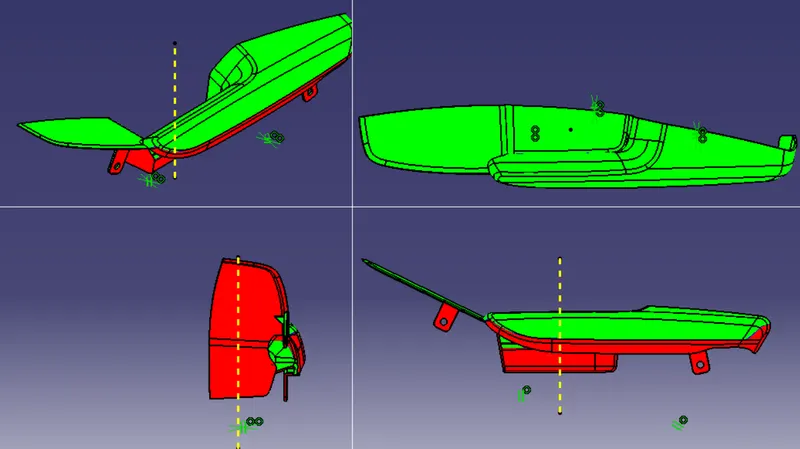

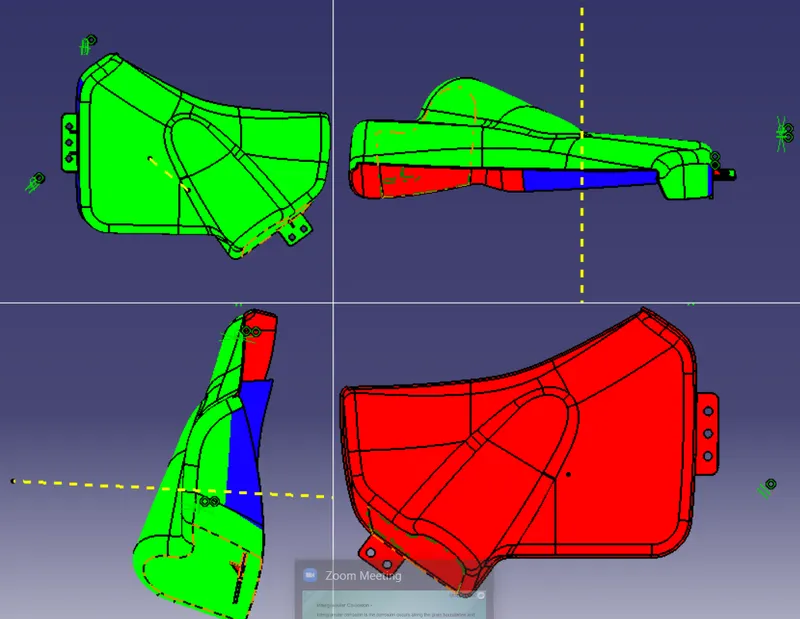

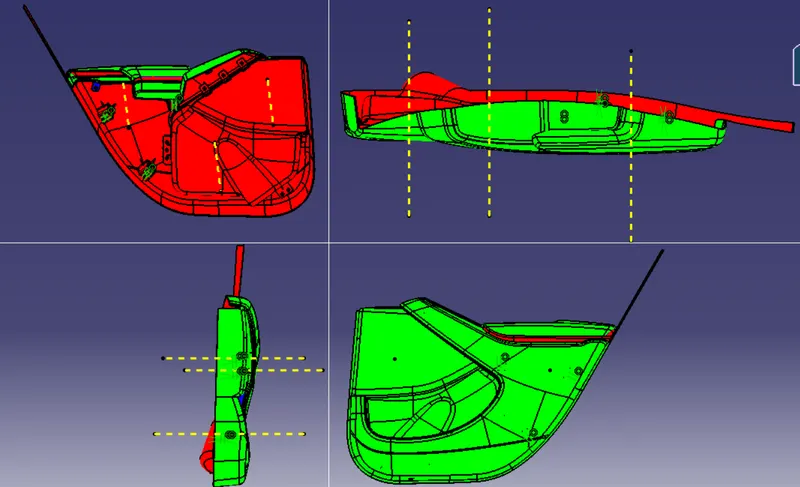

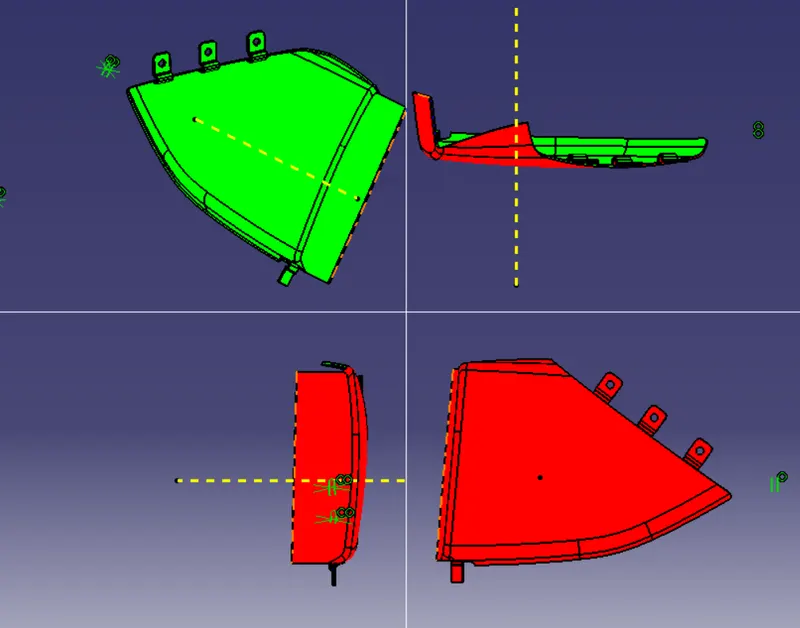

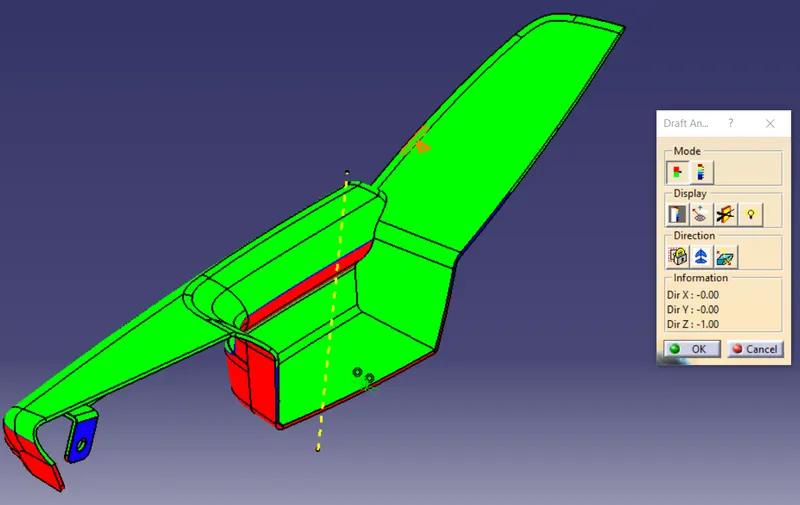

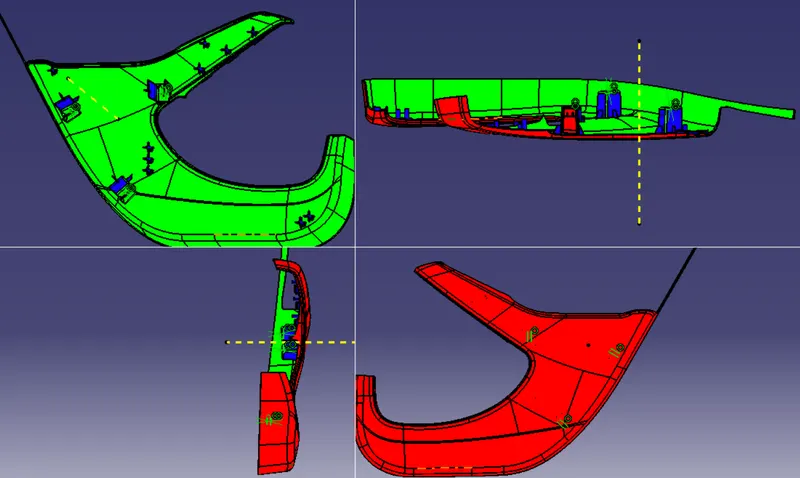

Drafting Analysis and Feasibilty Check

• Tooling axis is taken for all element is natural tooling axis.
• 0.5 degree of draft angles are mainly used for the b-side features, so it shows mainly in blue color in drafting analysis.
• Some of the part cannot get molded using one tooling direction, need more than 2 parts of mold to make the parts.

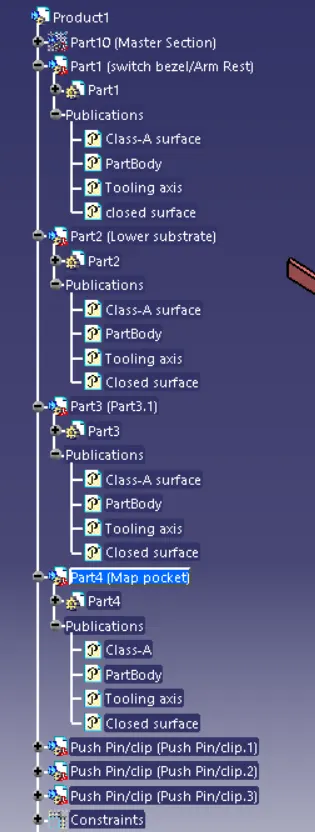

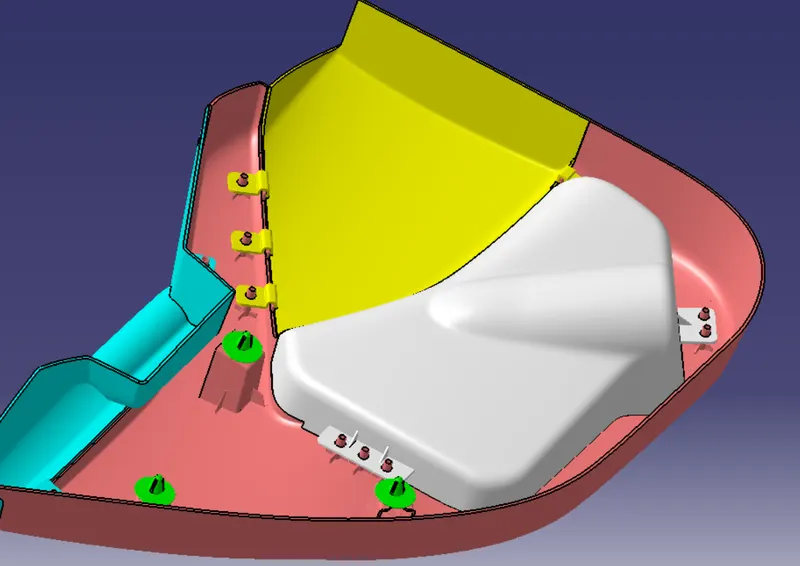

Tree Structure
