Week 11 - Final project

AIM

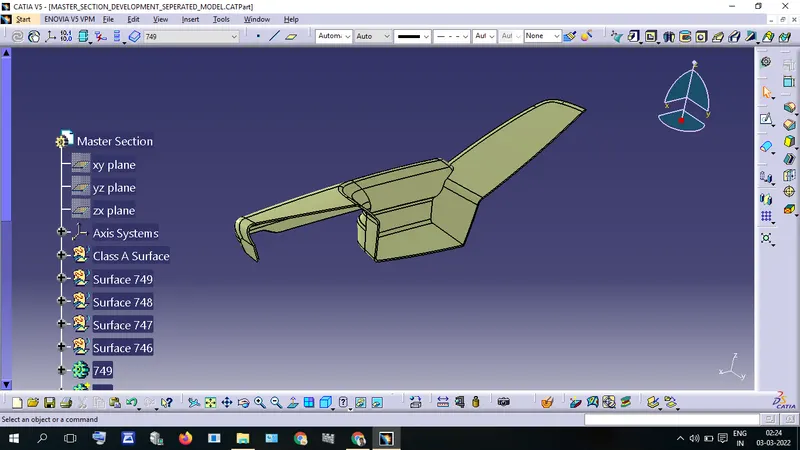

          To design the following requirements for given class A Surface and master Section Sketch.

• Tooling Axis Creation & Draft Analysis
• Class B Surface & Class C Surface
• Close Body and Thicken Part
• Creation Of Aditional Engineering Features.
• Assemble the Push Pin

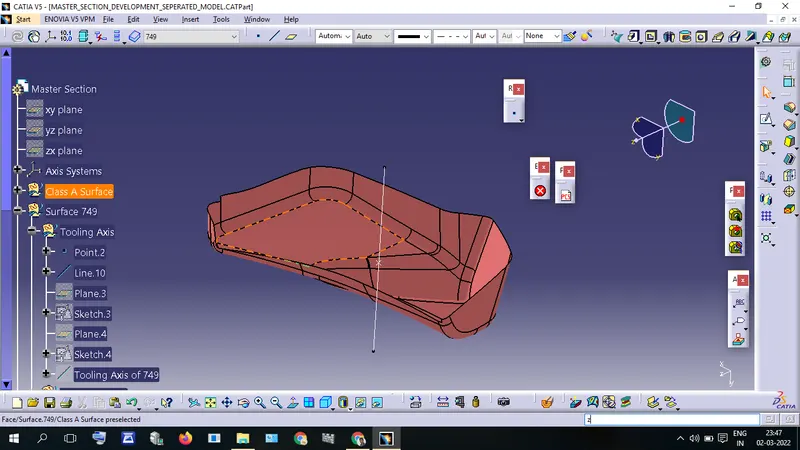

Tooling Axis Creation & Draft Analysis

Surface 749 (Bottle Holder)

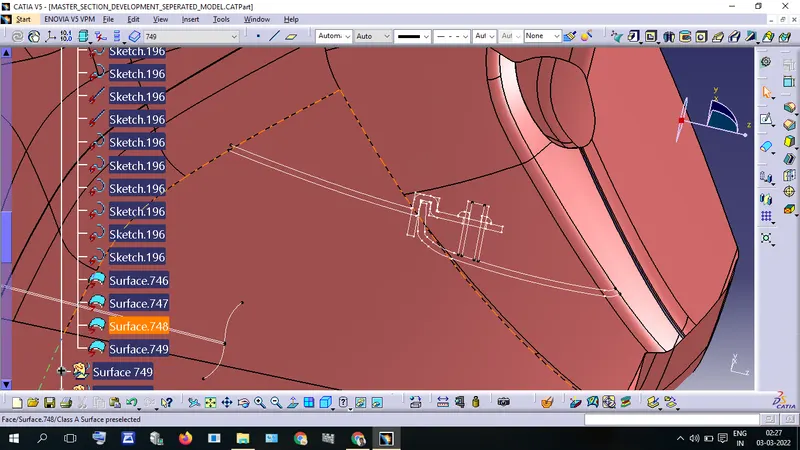

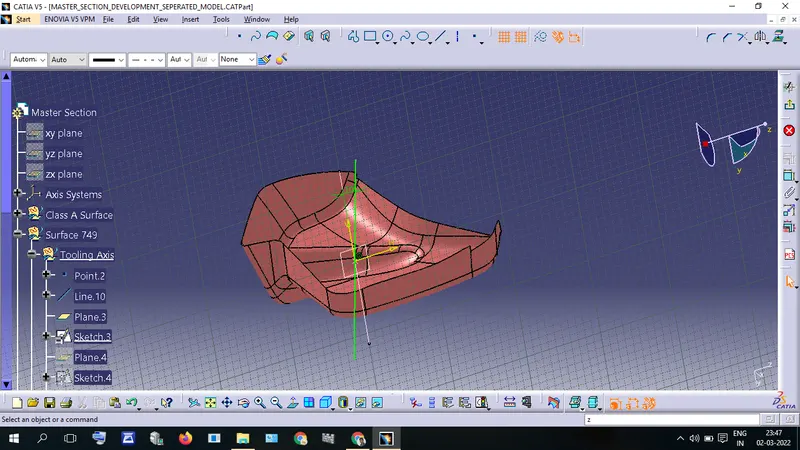

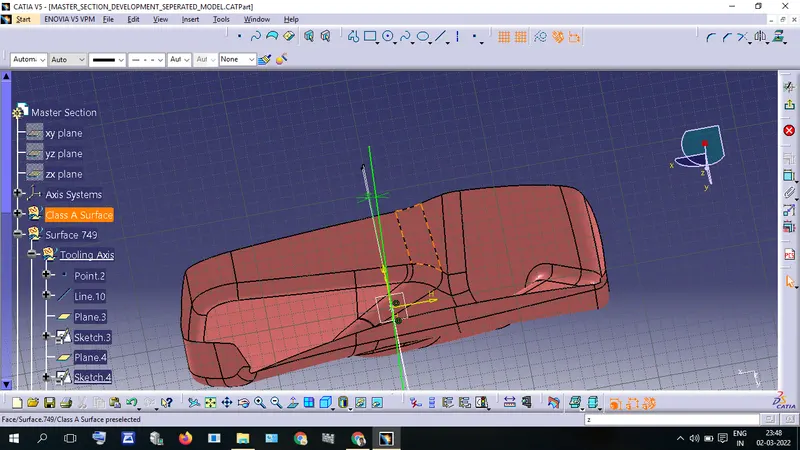

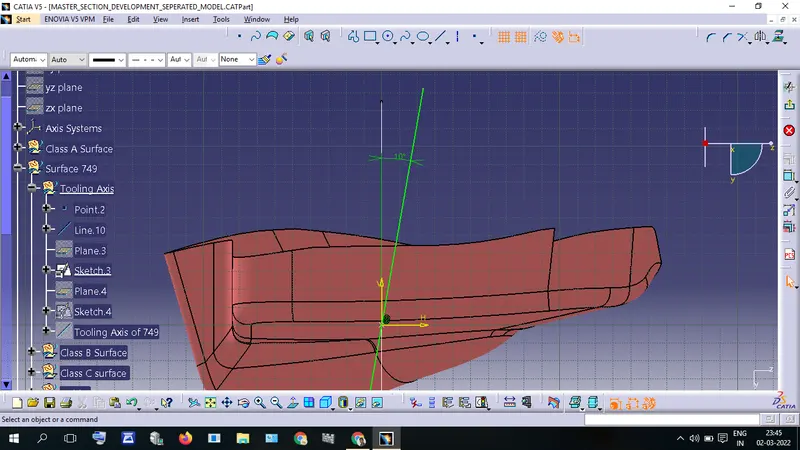

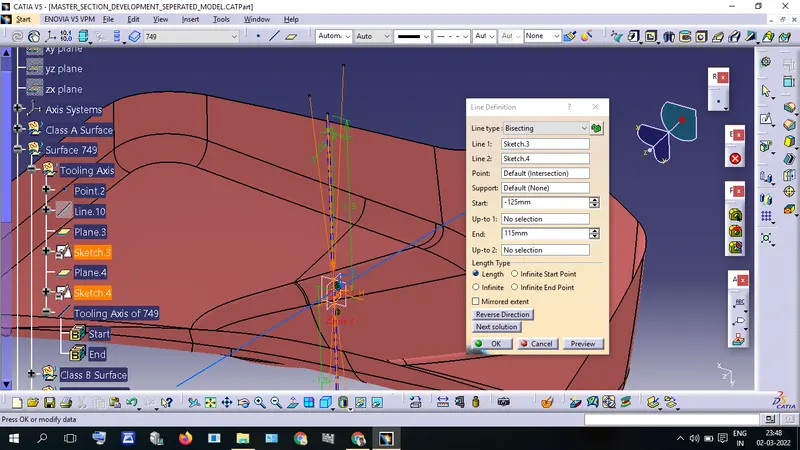

I found a center point for a given class a surface and drew a point and  Centerline. Create line with yz plane the angle

of 10 degrees with respect to the Center Line. and also drew another sketch with XY plane and angle of 3 degree respect

to the centerline. Drew a bisecting line

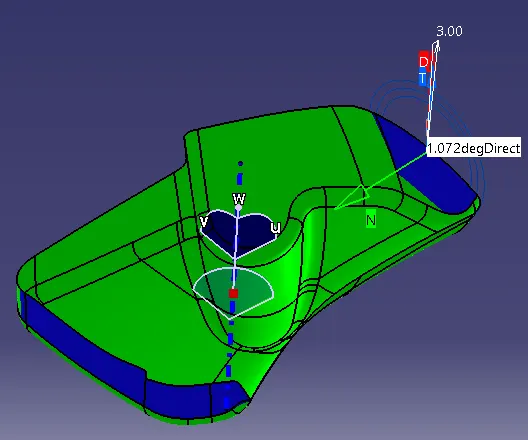

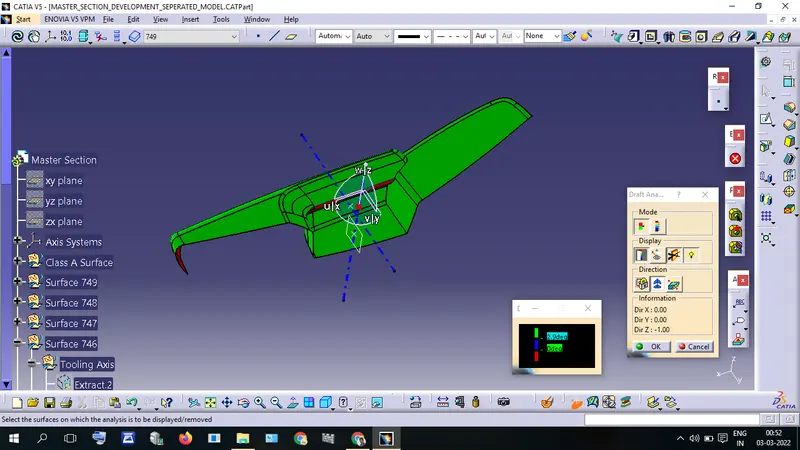

 Draft Analysis

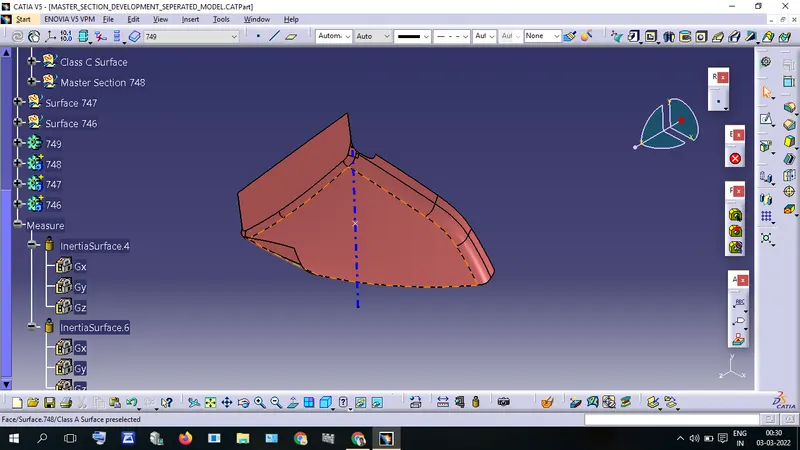

Surface 748

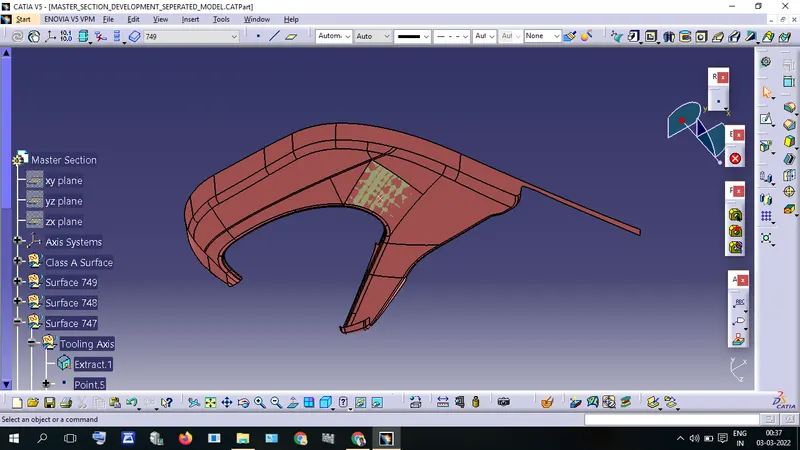

Surface 747

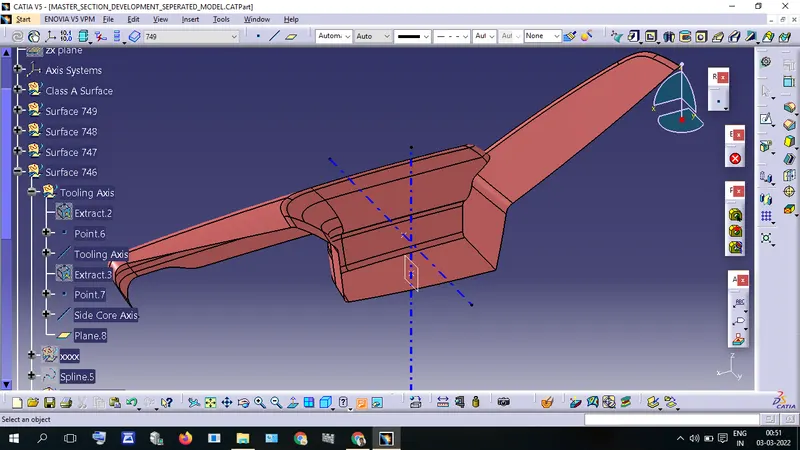

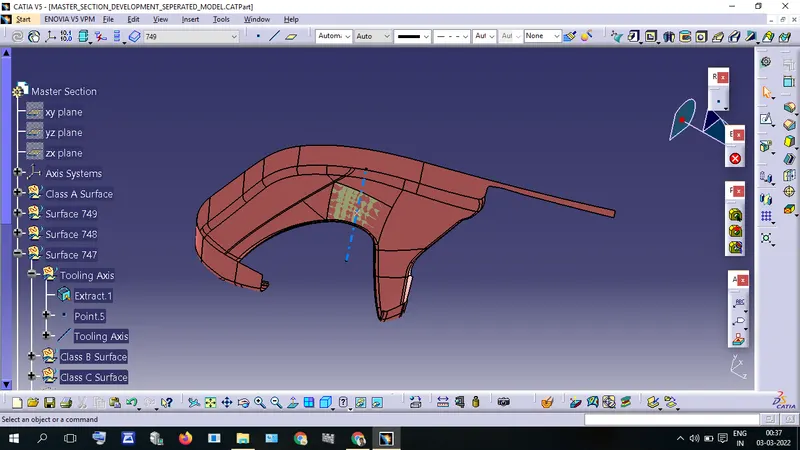

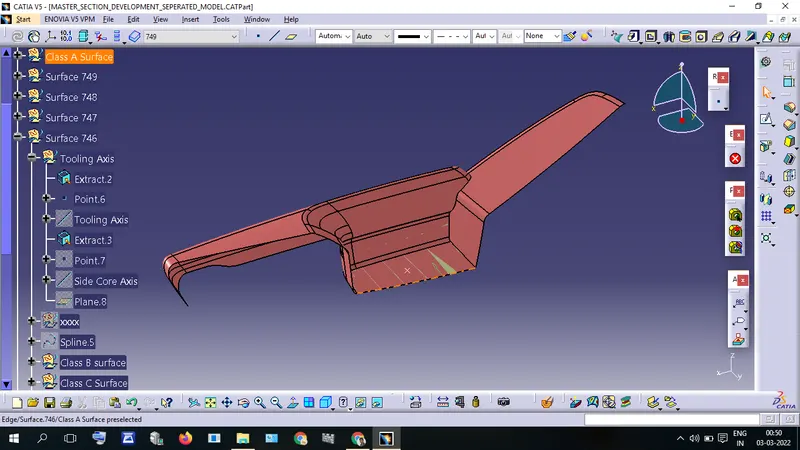

Extrude Center Surface and create a point in the middle of Extruded Surface. and Draw a line this is the tooling axis

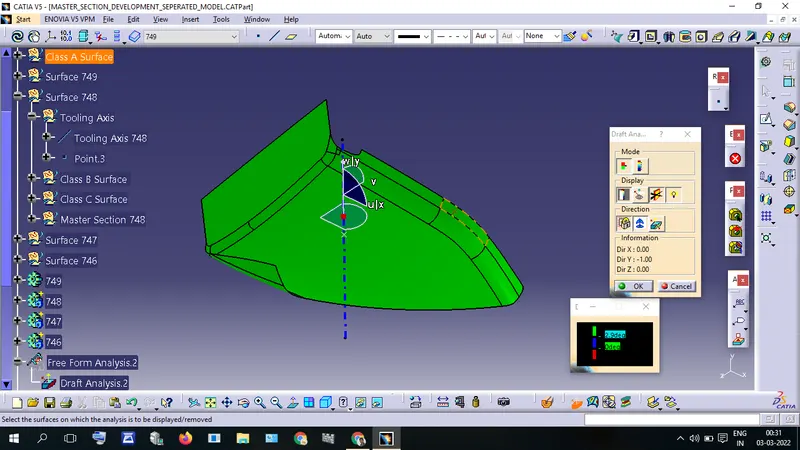

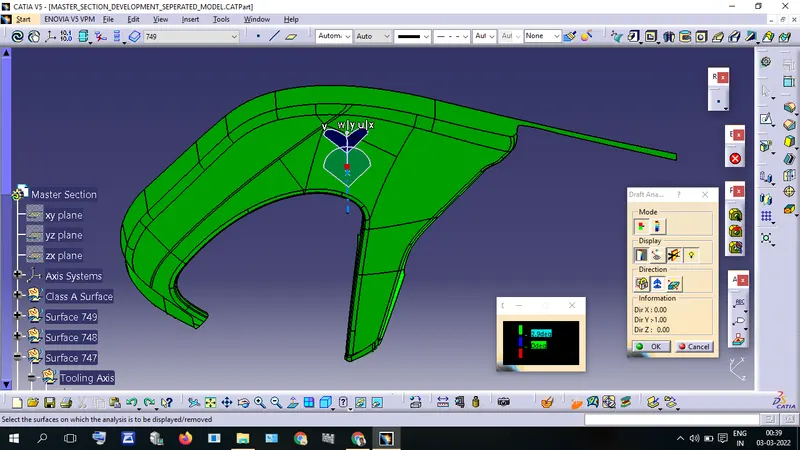

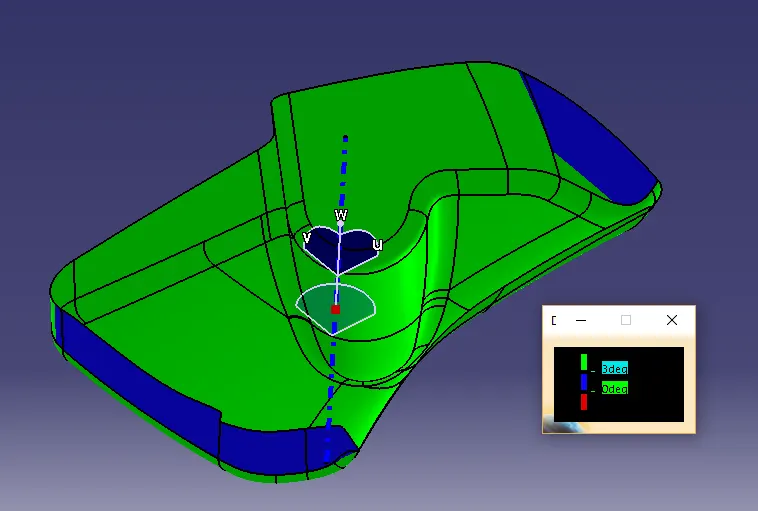

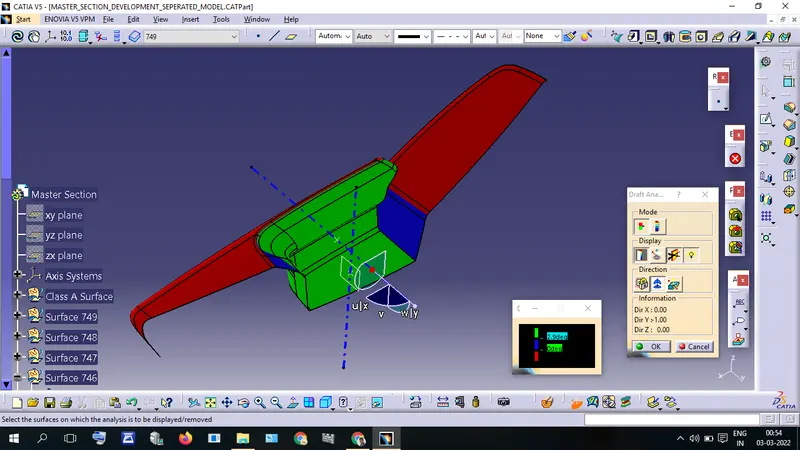

Draft Analysis with tooling Axis

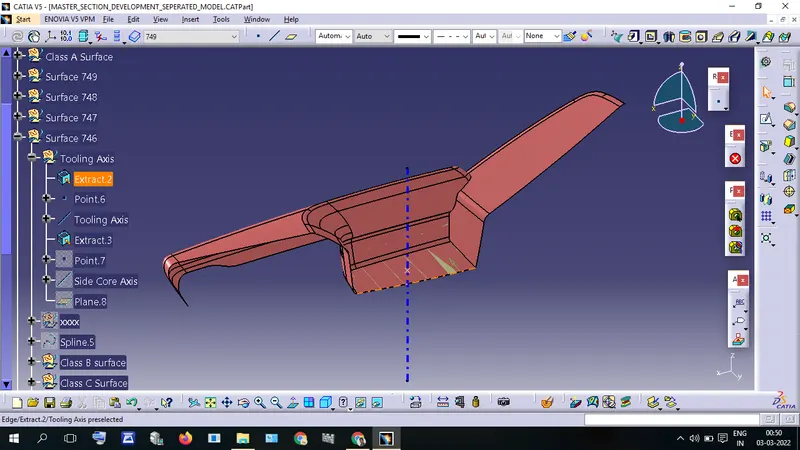

Surface 746

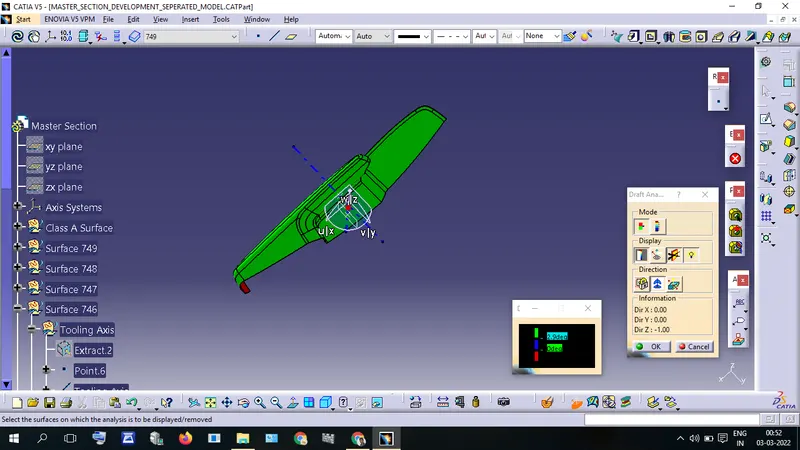

Draft Analyis

It is impossible to design we can not create a proper tooling axis. we have to edit the design or split this part.

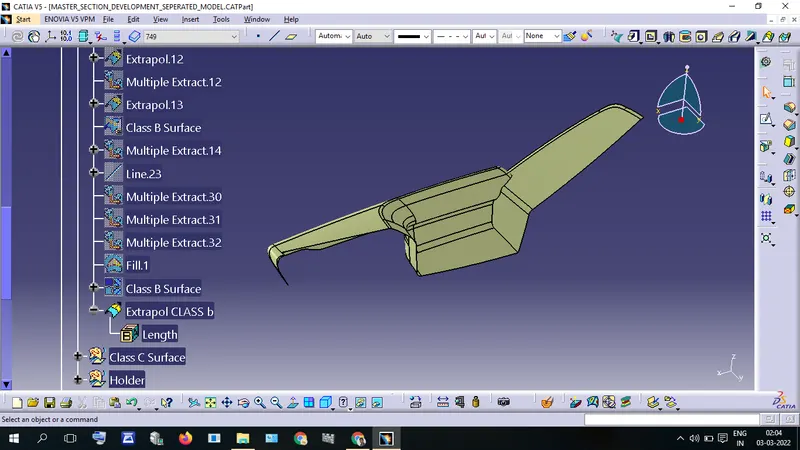

Class B Surface & Class C Surface Creation

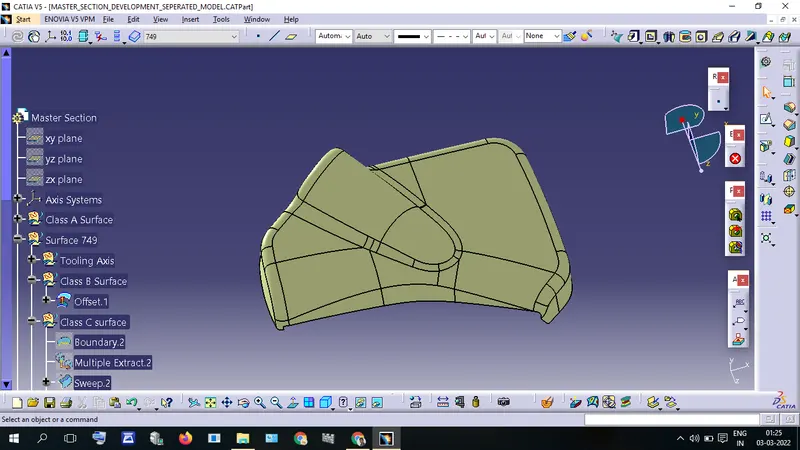

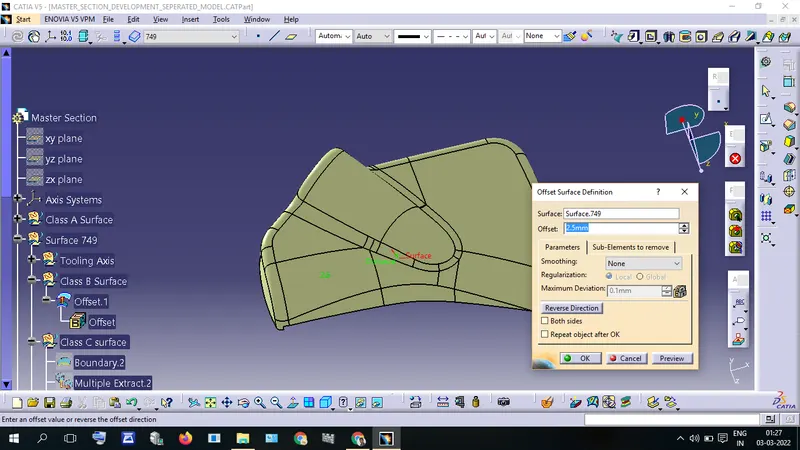

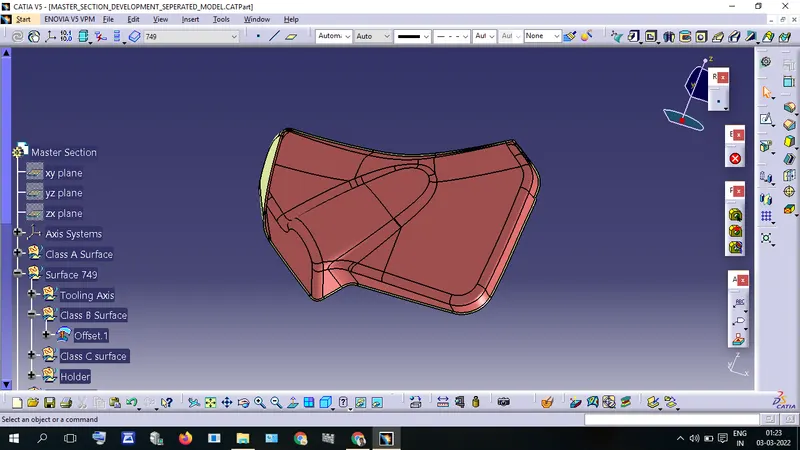

 Class B Surface for Surface 749 (Bottle Holder)

We Can get Class-B when offset the Class A surface.

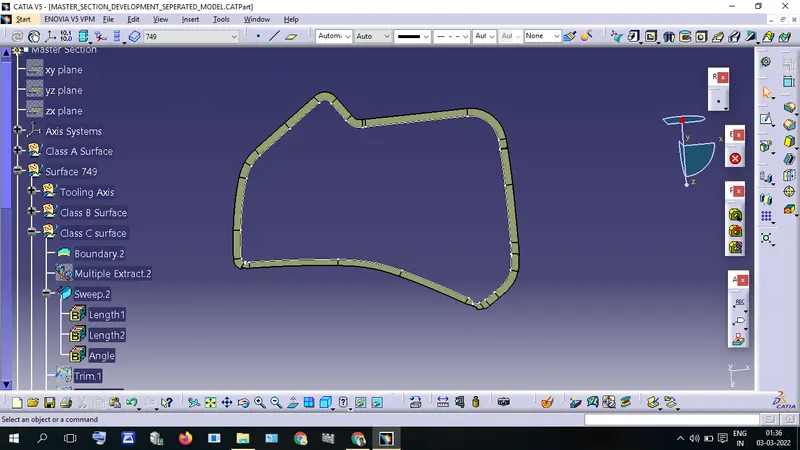

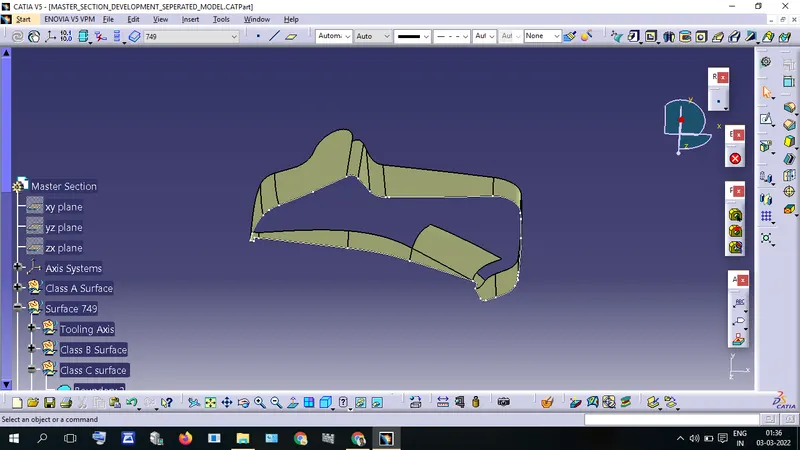

Class C Surface for Surface 749(Bottle Holder)

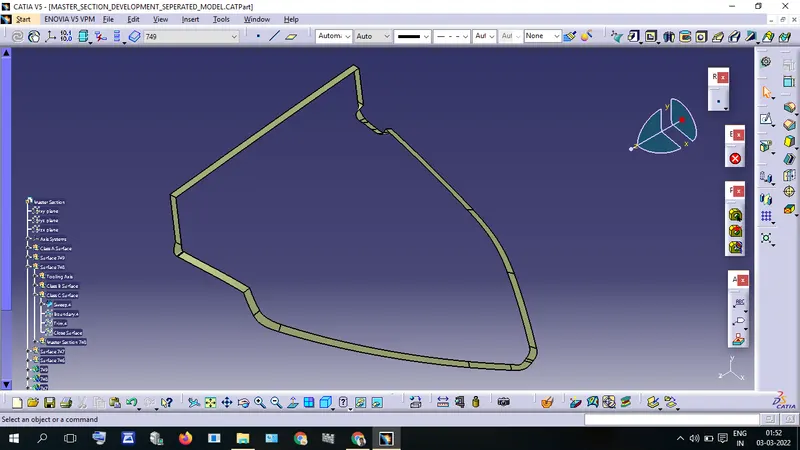

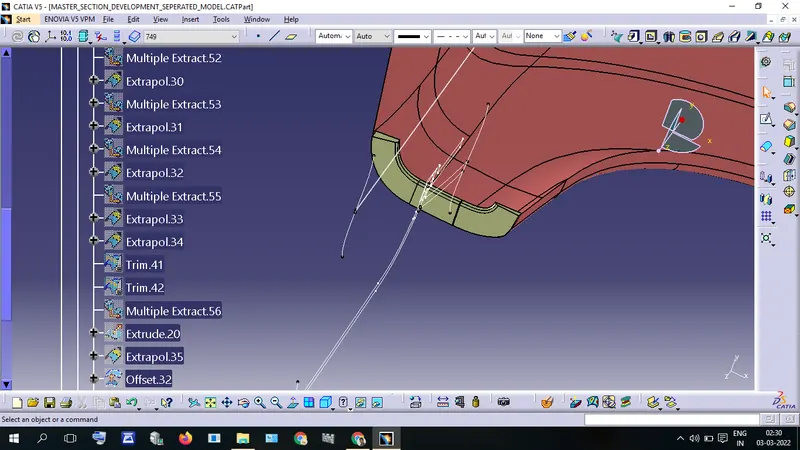

Multiple Extrude boundary of  Class A Surface and its boundary

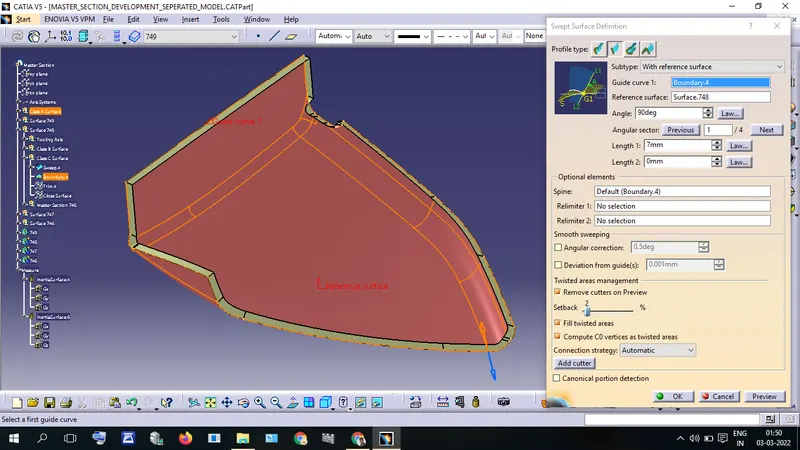

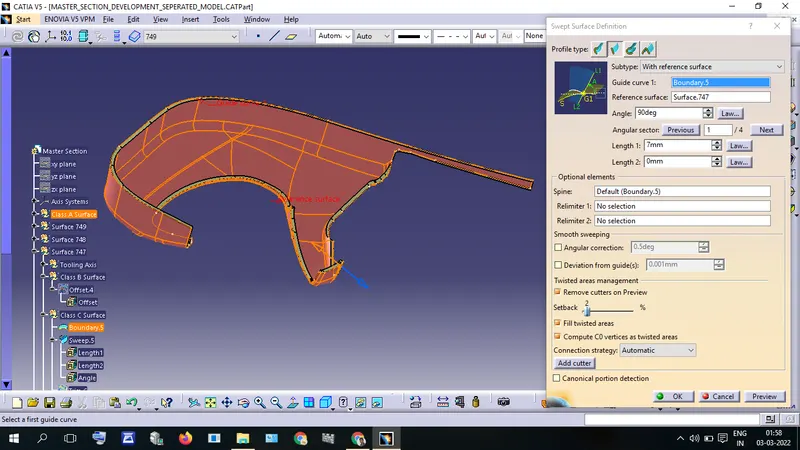

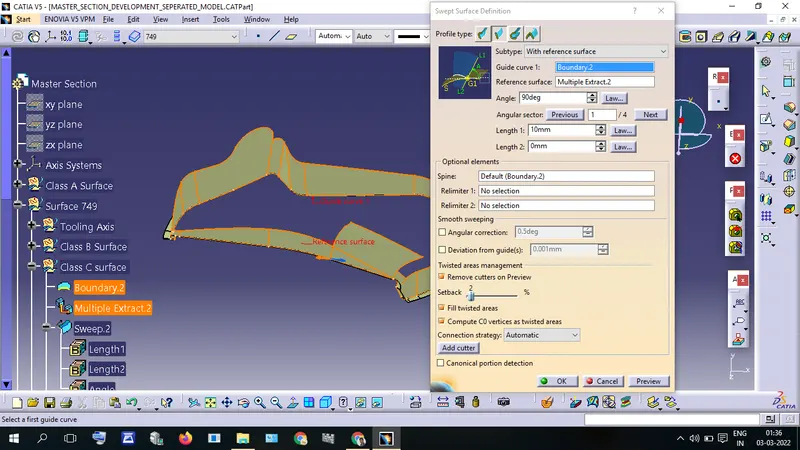

use sweep tool to create a Class-C Surface respective to the above-extruded surface

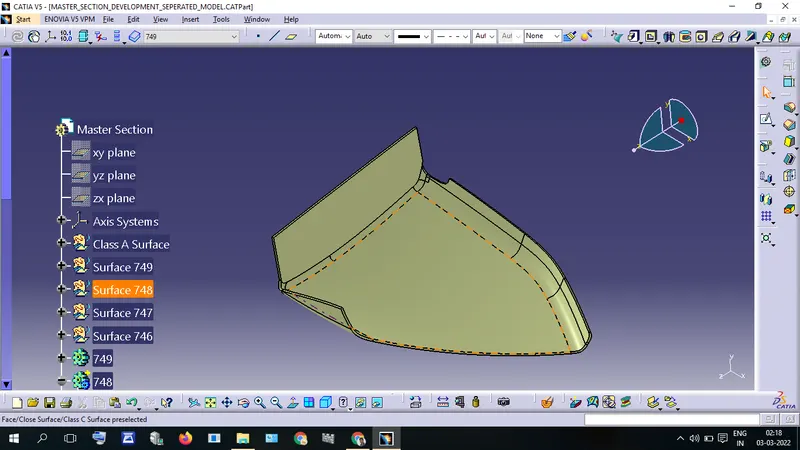

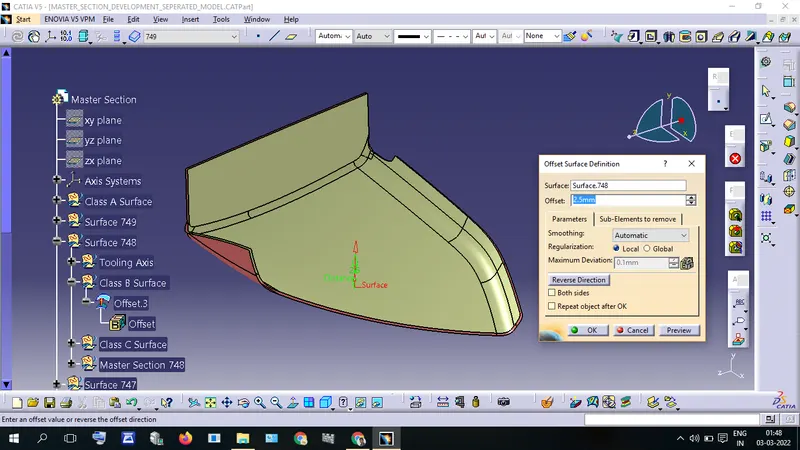

Class B Surface for Surface 748

Class C Surface for Surface 748

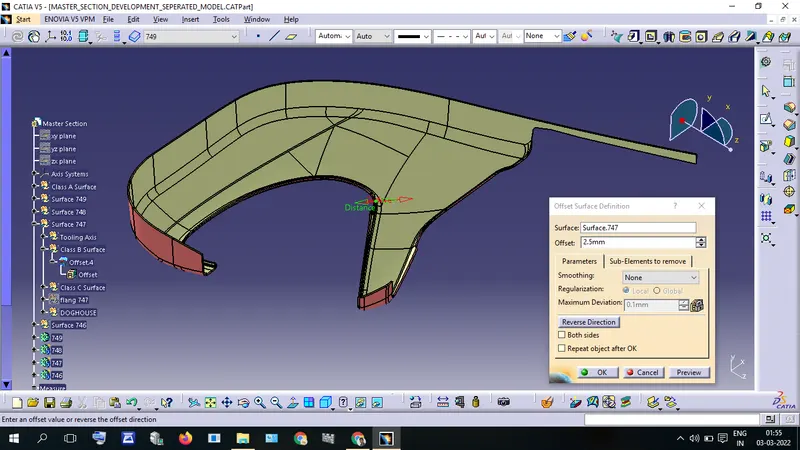

Class B Surface Design for Surface 747

Class C Surface Design for Surface 747

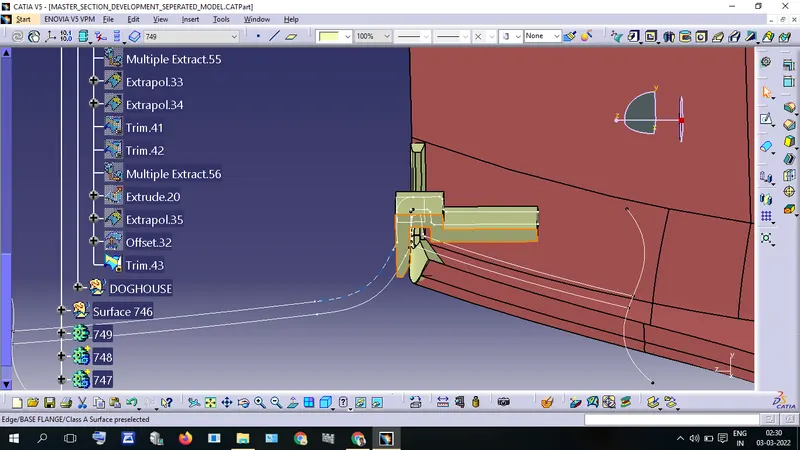

Class B Surface Design for Surface 746

Class c Surface Design for Surface 746

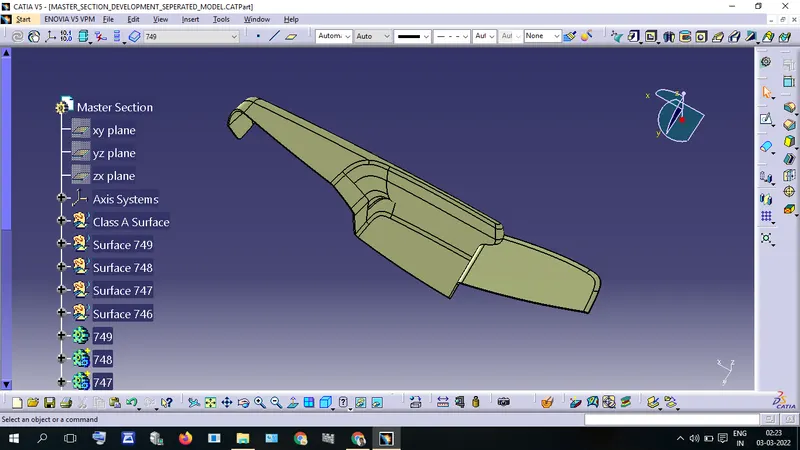

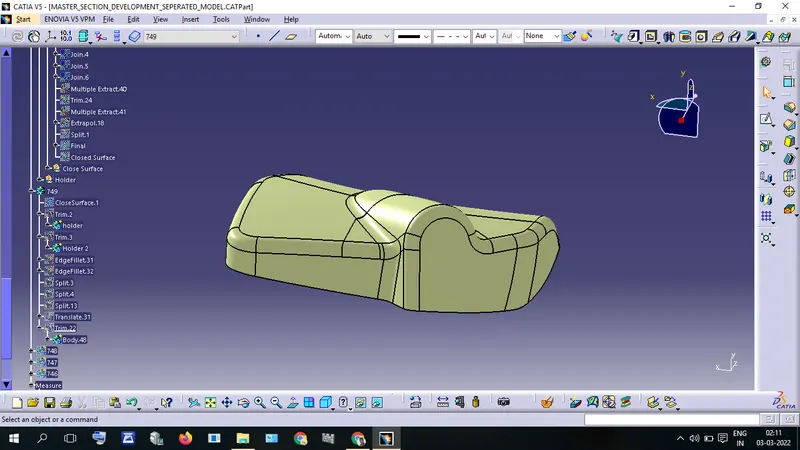

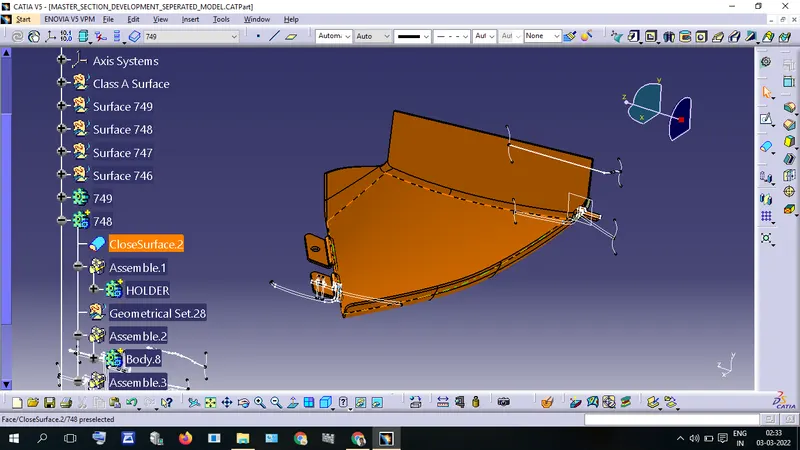

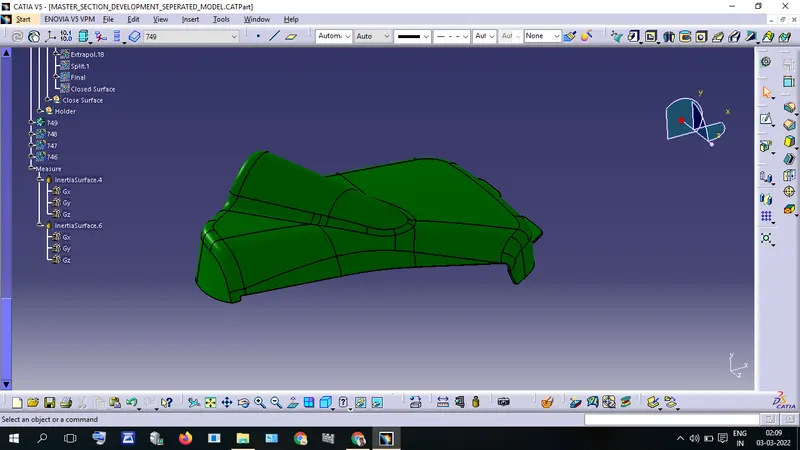

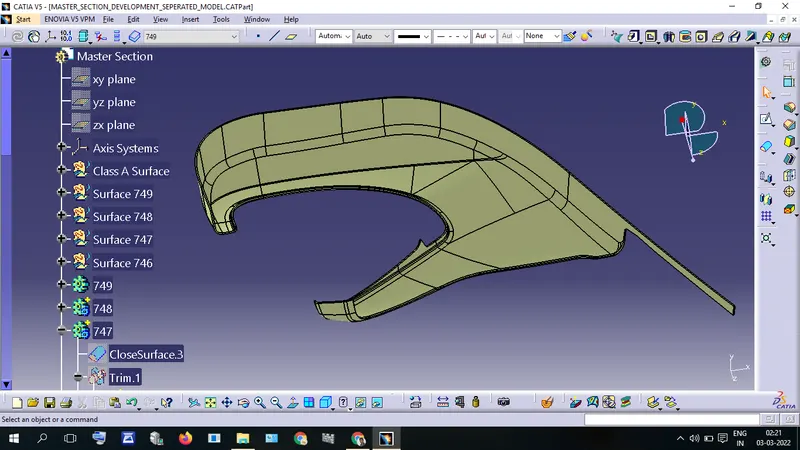

Close Body and Thicken Part

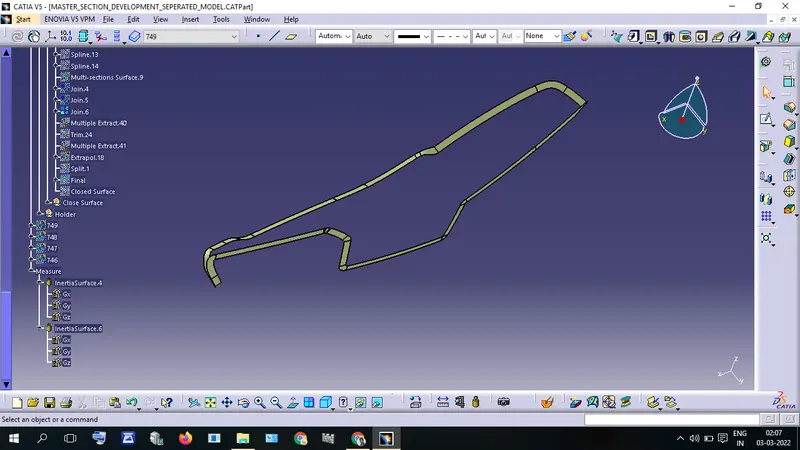

        Trim Class-A Surace and Class-C Surface And Class-B Surface, We will get Closed Surface.

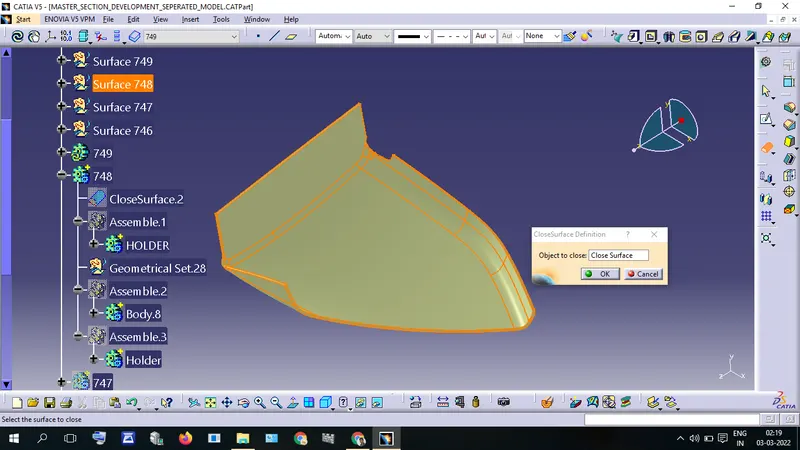

After getting a Closed Surface we can easily convert this Surace into a Solid Part Body using Close Surface Tool.

Surface 479

Surface 478

Surface 747

Surface 746

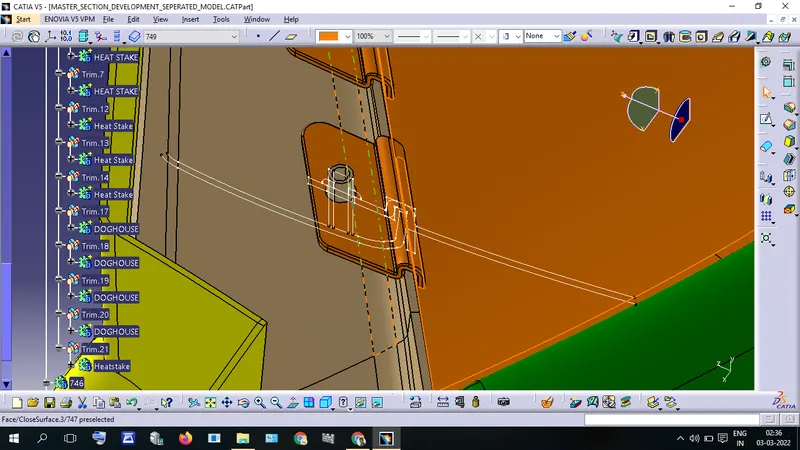

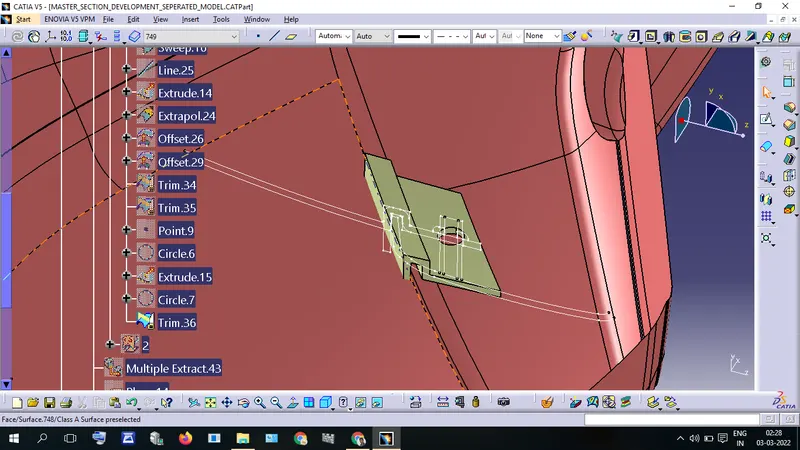

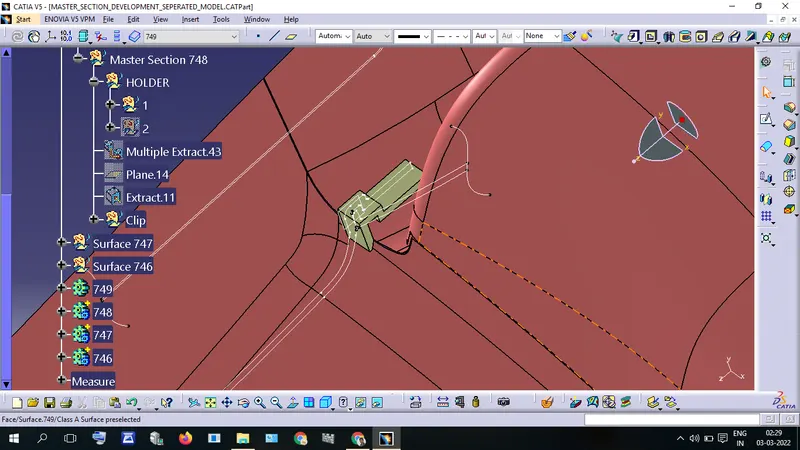

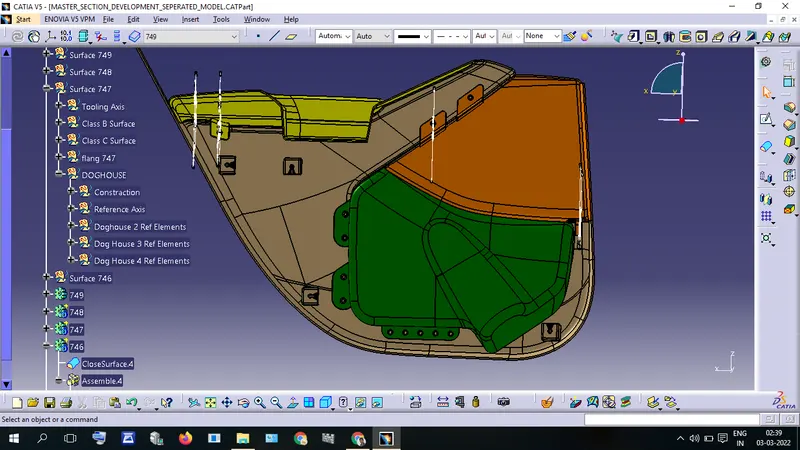

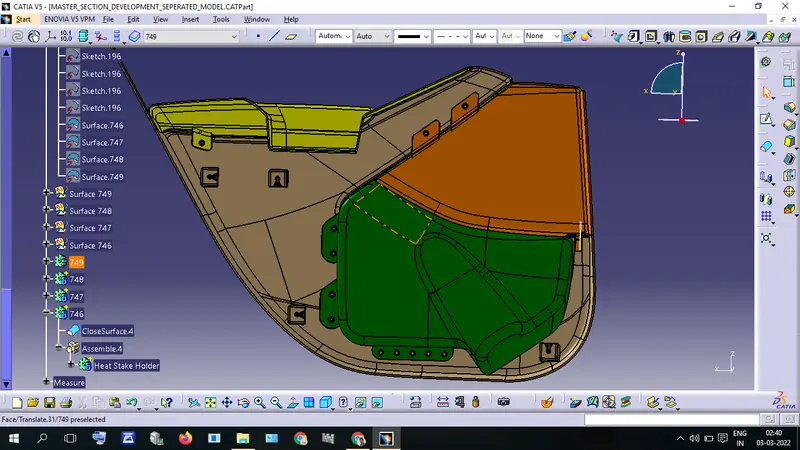

Creation Of Aditional Engineering Features

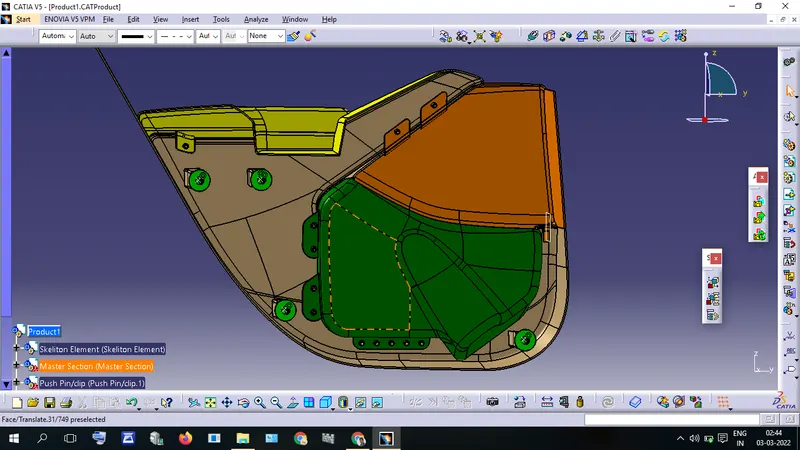

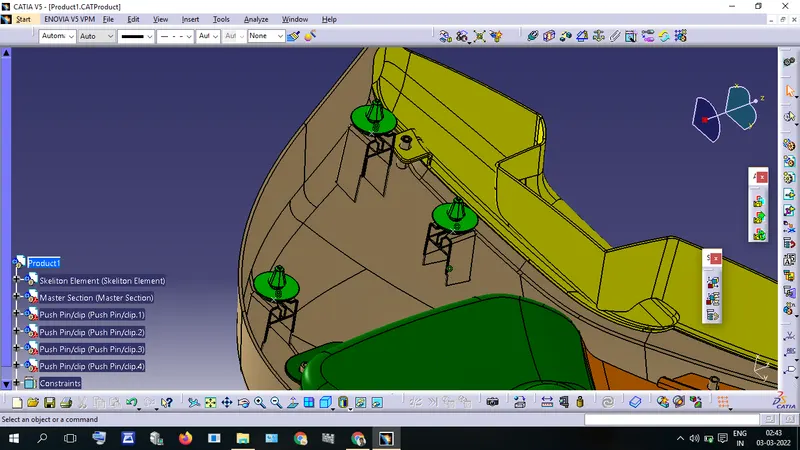

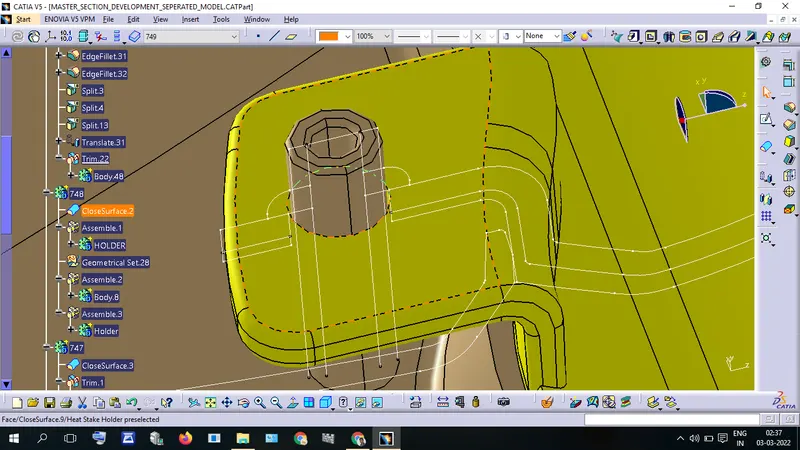

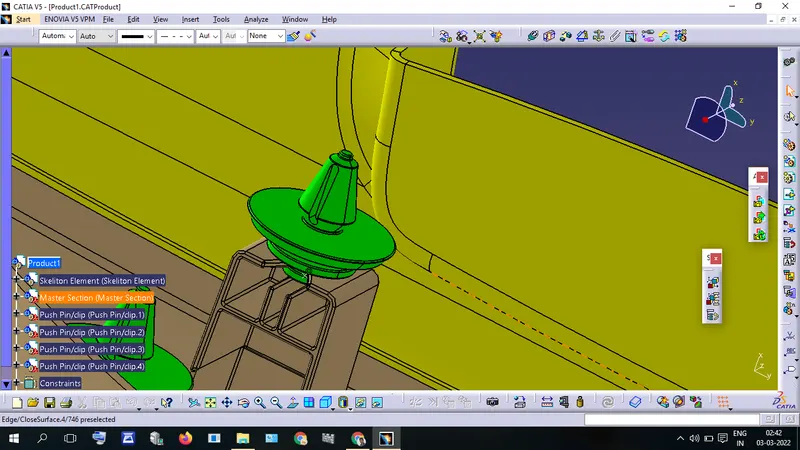

Assemble the Push Pin

Conclusion

     All of the master section features and development design have been designed.
