Week-11 Challenge: Braking

1. For a defined driving cycle, calculate the energy required for braking.
Ans:- In electric vehicle is require by vehicle for acceleration as well as deacceleration of vehicle also. As we require to stop vehicle in stipulated time, we cannot allow vehicle to stop as per its inertia value, for stopping vehicle we require to apply brake. Braking of vehicle require to deaccelerate vehicle to lower speed within a given time.
We can observe in this test cycle vehicle needs to stop in given time at some instance also for this we will apply brakes. We will calculate the power require for braking operation.

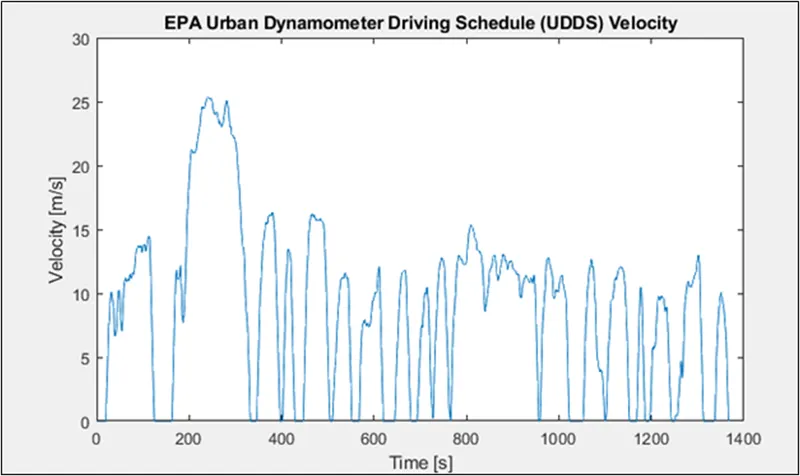

Please refer the attached sheet for complete calculation of Deacceleration energy require in UDDS cycle.
To reduce speed from 80 to 40 Kmph in 20 sec = 292 KJ
To reduce speed from 80 to 0 Kmph in 10 sec = 560 Kj

2. Why electric motor can’t develop braking torque at high speed similar to starting? How electric and mechanical brakes are coordinated?
Ans:- The torque-Speed characteristic of motor is not exact same in the braking and motoring region.

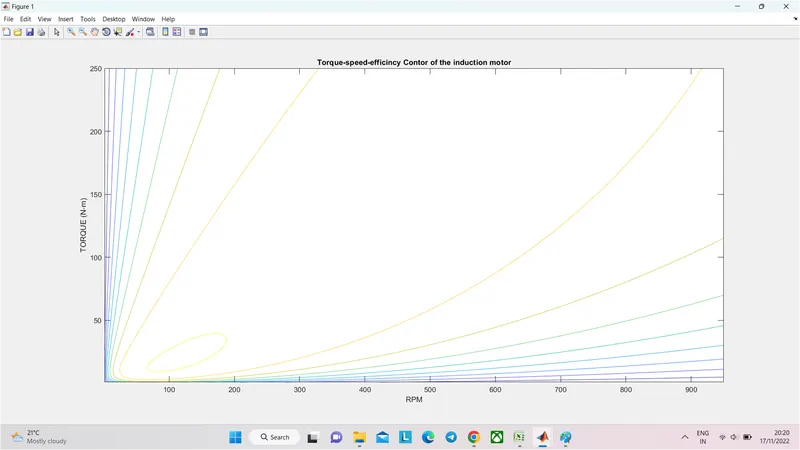

This is torque-speed contour plot of motor with efficiency.
We can see that, at the time of accelerating vehicle at starting the maximum torque available motor is operating at constant torque region, in that motor will have maximum torque available, but as motor starts deaccelerating motor characteristics are shifted towards braking region, in this we don’t have max torque available for braking as motor is already running at higher speed.
Due to this operation, electric motor can’t develop braking torque at high speed similar to starting
Electrical and mechanical braking systems can are coordinated by using Brake strategy subsystem
1) Serial Braking Strategy
2) Parallel Braking Strategy

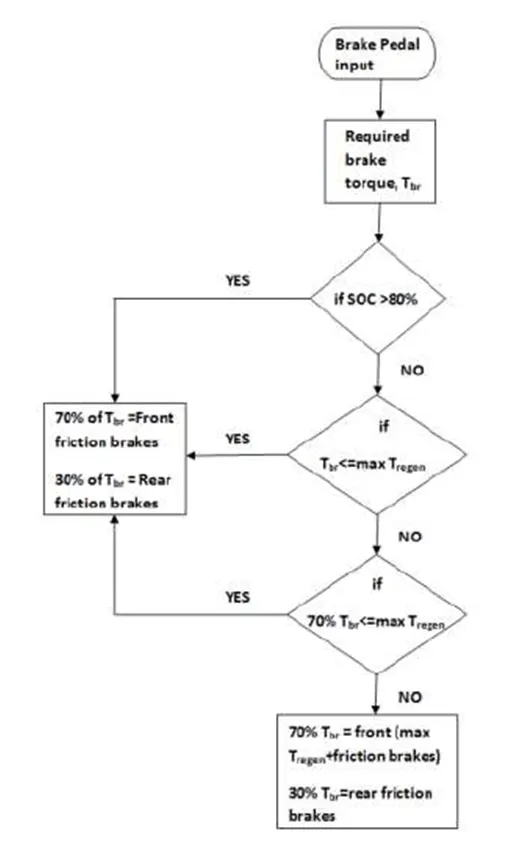

Implementation of serial braking strategy
Once the brake pedal is pressed and depending on the level of depression, a brake torque is sent. Now this brake torque passes into the brake control strategy block. Here, firstly it is checked if battery state-of-charge is below 80% which is set as the maximum permissible level of charge. If that condition is satisfied, then the battery is recharged. The brake torque requested is compared to the maximum regenerative torque limit of the motor-generator. If the overall brake torque requested is less than or equal to the maximum regenerative torque, then the vehicle brakes purely on regenerative torque and the battery is charged. The amount of charge ultimately put in depends also on the motor-generator operation efficiency and the battery charging efficiency. If the overall brake torque requested is greater than what the motor-generator can provide, then the friction brakes kick-in. Now since the vehicle is front driven, it is checked if the total brake torque requested from front is less than or equal to maximum regenerative torque capability of motor-generator. If yes, then front braking is provided purely by regeneration and rear (non-driven axle) by friction. Once the total brake torque request increases further, then front friction brakes (driven axle) comes into play in combination with rear friction brakes and front regenerative braking, to satisfy the overall brake torque demand. This has been represented in a chart manner

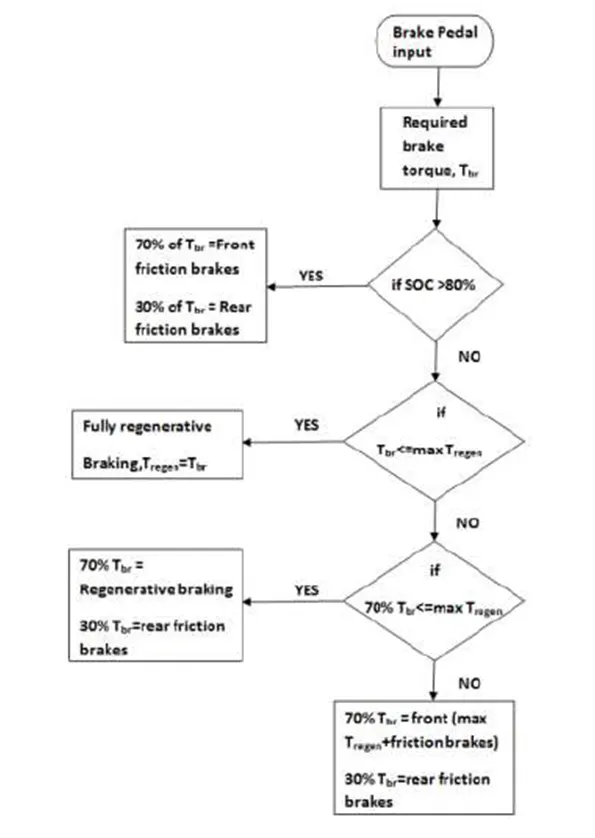

Parallel Braking:-
Once the brake pedal is applied and a desired overall brake torque request is sent from the driver block. This brake torque on passing through the brake control strategy gets divided between regeneration and friction braking at all times. The strategy is so modeled with the comfort and brake pedal feel in mind. As a parallel regenerative braking is an add-on to the conventional systems, it is devoid of any integrated control. So to make the transition and co-performance of regenerative braking with friction smooth, it is assigned in such a way that, there is a clear division between the amount of brake torque that will be achieved from regeneration and friction braking. On application of brakes and in keeping with the design of the motor-generator, it is designed to operate generator in a constant generator torque region. Motor-generator can provide a maximum of 322 Nm of generator torque at or under the base speed. The generator is scaled such that the base speed of the generator corresponds to a velocity of 124 [kmph], which is the maximum speed limit on most highways. Hence regeneration works, as long as the vehicle is braking from a speed of under 124 [kmph] and the requested brake torque on the front driven wheels, after the front-rear brake split is greater than or equal to maximum generator torque. If that condition is satised, then regenerative and friction braking operates in tandem else it’s just the friction brakes at the driven and non-driven axle. This has been represented in a ow chart manner in the g.1.5.

3. Make a MATLAB program which plots contour of given motor speed, torque and efficiency values. Attach the code as a .m file attach a screenshot of all the plots.
