Week 11 Challenge

AIM:

Calculate the temperature load for the RC bridge with M40 grade to be constructed in Delhi.

GIVEN:

• The Span of the bridge is 9 m.
• The Box girder dimension is 1500 x 1500 with a web thickness of 300mm.
• The diameter of the circular pier is 2.5m
• The width of Deck slab is 7m and width of piercap is 6m.
• The Thickness of Deck slab is 550mm.

PROCEDURE:

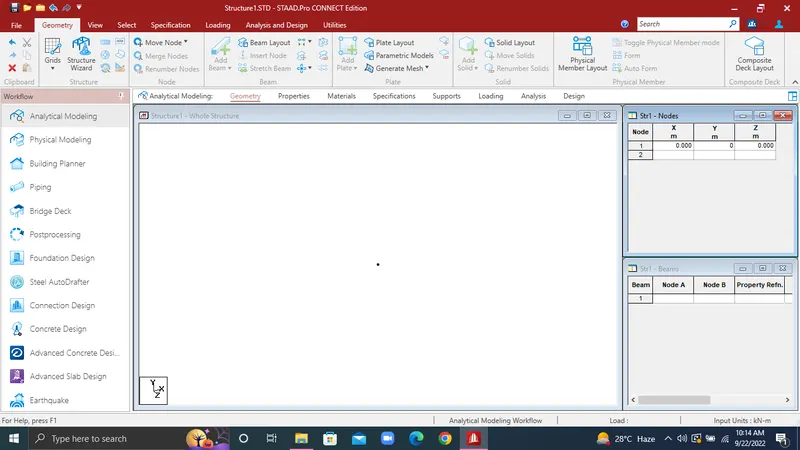

1.First creat a node

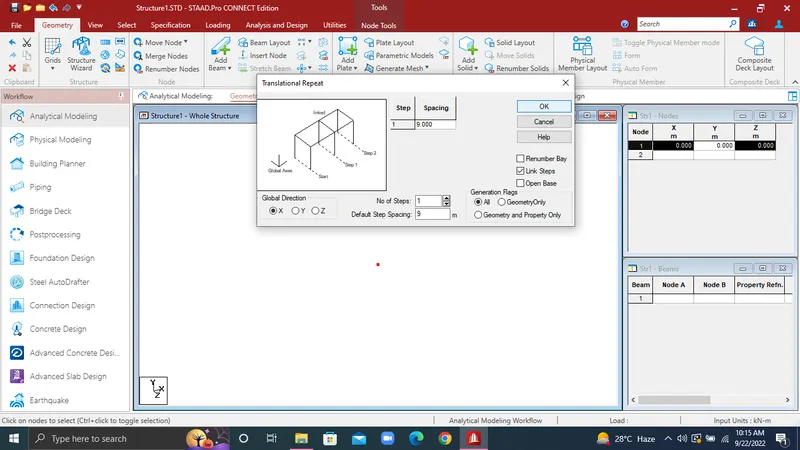

2.To select a node use translation reputing command one step 9m spacing and link step

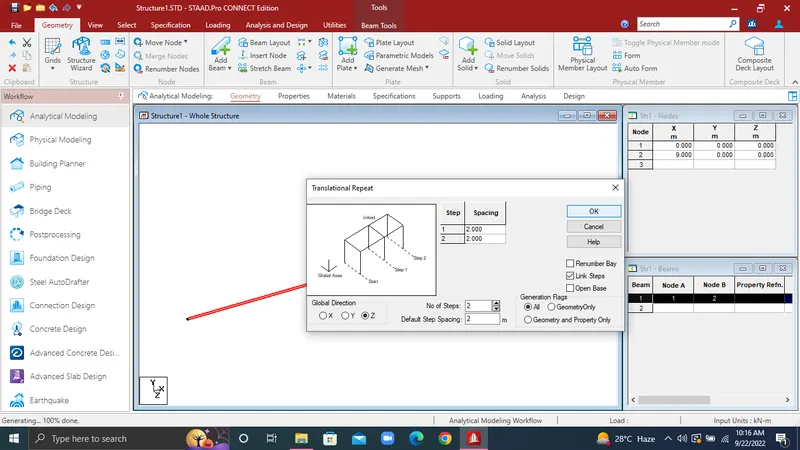

3.Select the beam to use reputing command 2 steps 2m spacing and link steps

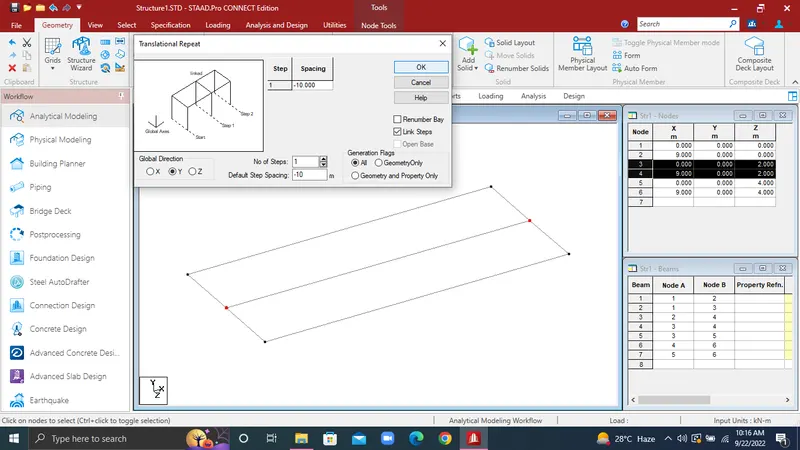

4.To select the center nodes use reputing command Y dirction -10m spacing and link staps

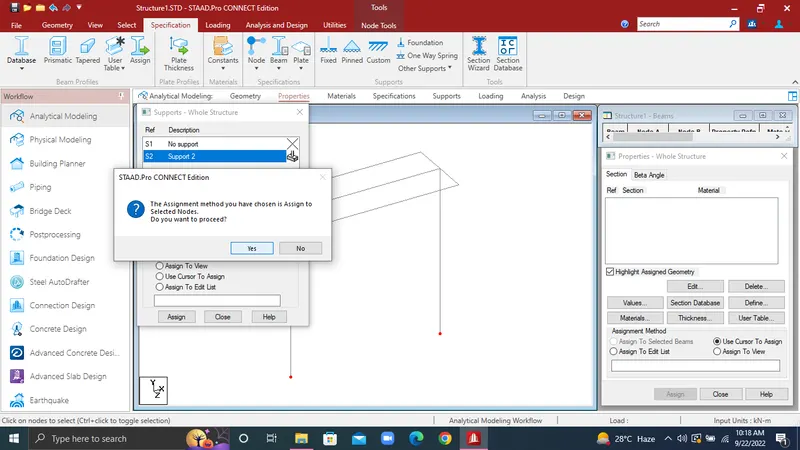

5.The piers are fixed supports

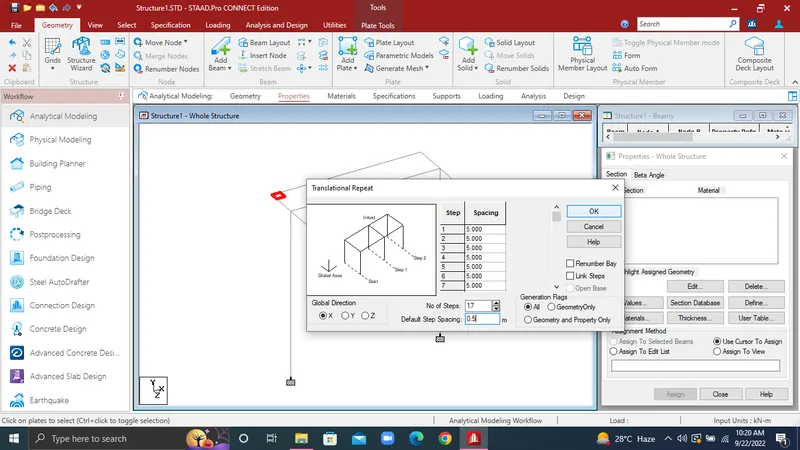

6.To creat a plate 0.5m spacing and select the plate 17 steps 0.5m spacing X direction

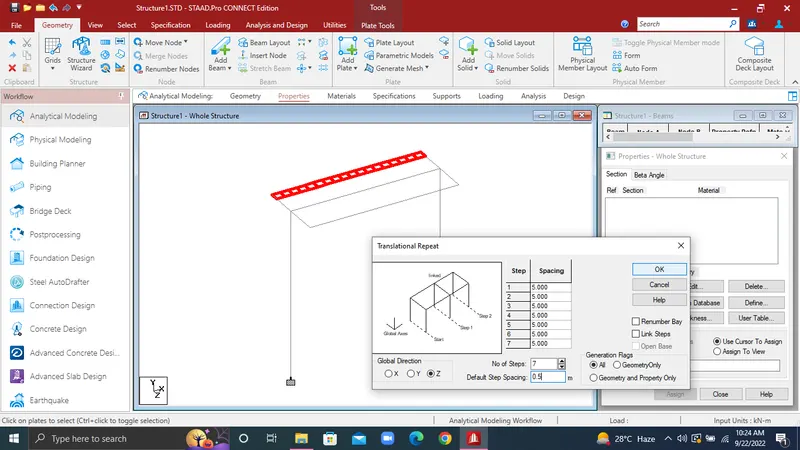

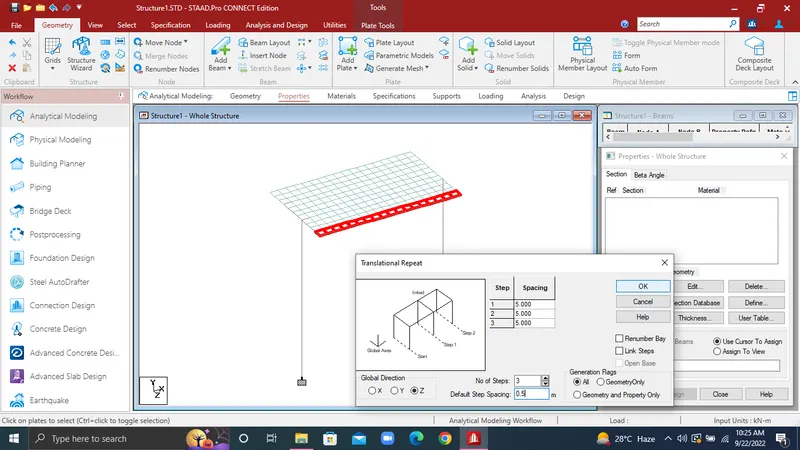

7.Select the all plats 7 steps 0.5m spacing Z direction

8.Candiliver supports 1.5m Z direction

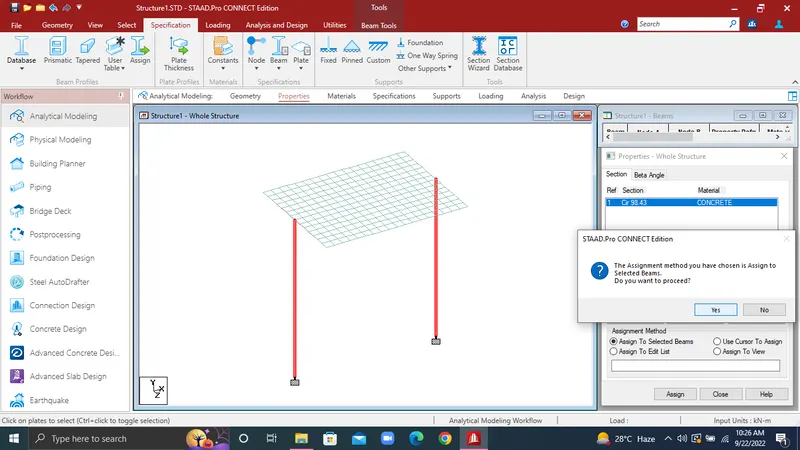

9.pier size is 2.5m

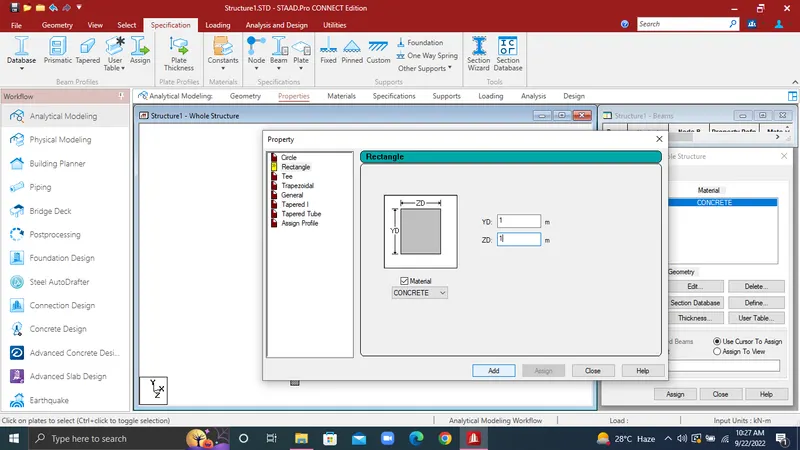

10.Cross beams are 1m X 1m

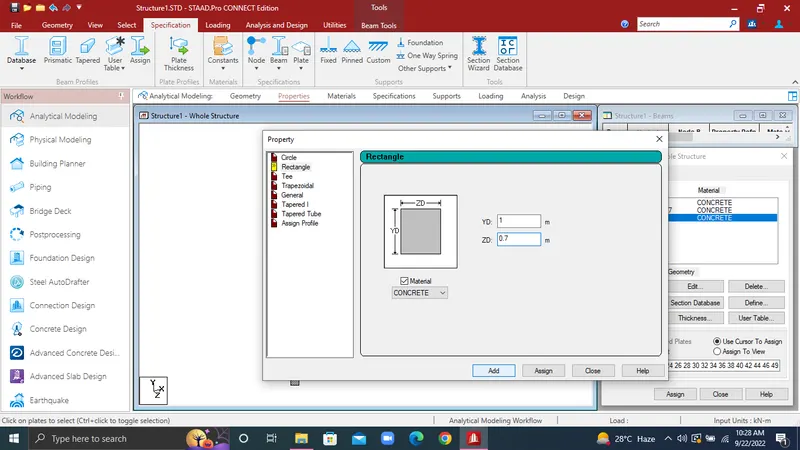

11.The girders are 1m X 0.7

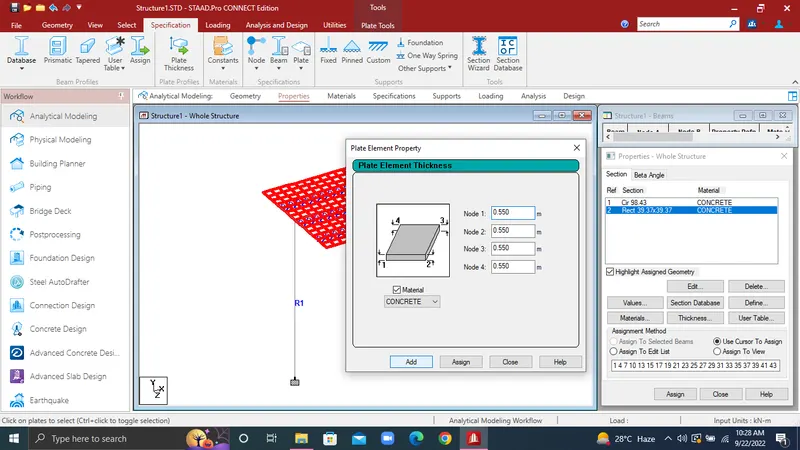

12.Plats size is 0.550m thickness

CALCULATION:

• The maximum temperature in the location as per IRC 6 isotherm at location = 47.5 degree
• The minimum temperature in the location as per IRC 6 isotherm at location = 5.60 degree

Effective temperature difference

= ( 47.5 - 5.60 )/2 + 10

= 30.95 kN/m2

Stress due to temperature = Alpha X Del T X E

= 11.27 X 10^-6 X 30.95 X 5000(40)^(1/2)

= 11.03 kN/m2

Hence the stress are restricted to 3 kN/m2

Temperature at bottom = ( 2.1/17.8 ) 47.5

= 5.60 degree

Temperature at top = 47.5 degree

= 47.5 - 5.60

= 41.90

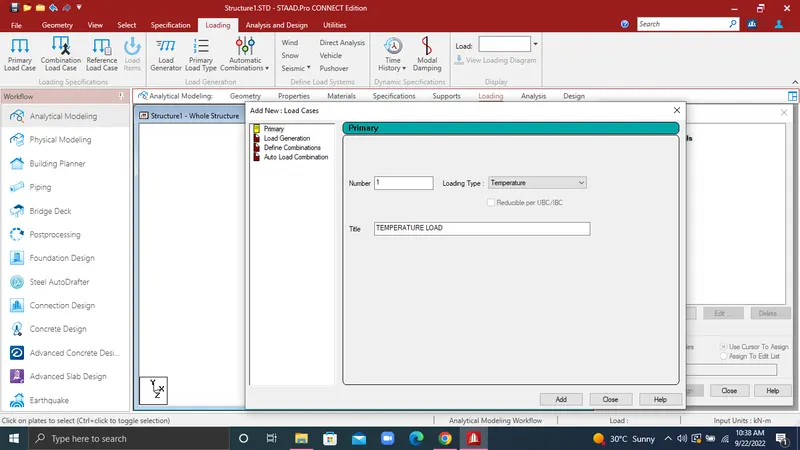

13.Load cases details > add > Teaperature loads

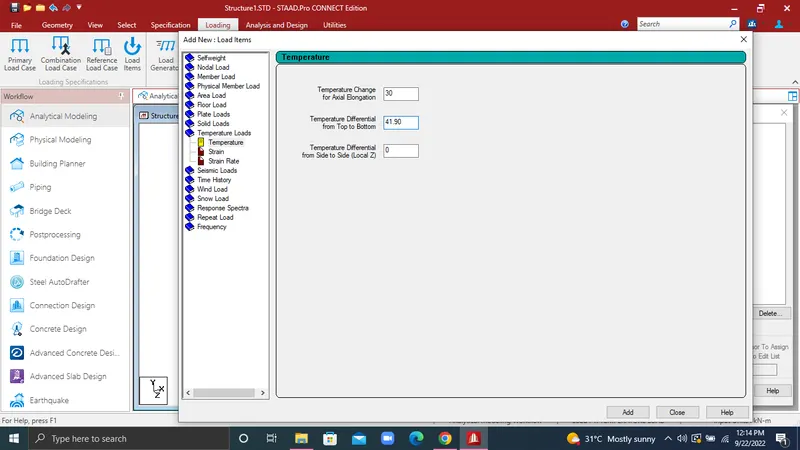

14.Temperature load > add > temperature > axial elongination 30, top to bottom 41.90

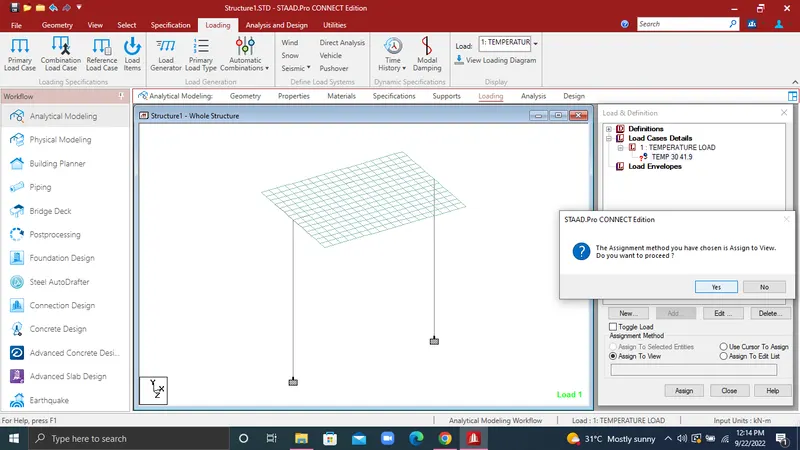

15.The valus are asing to view

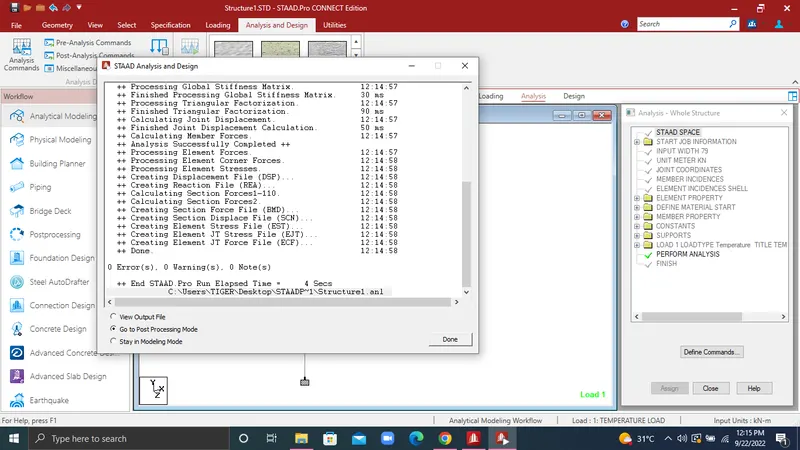

16.Go to analysis and run analysis

RESULTS:

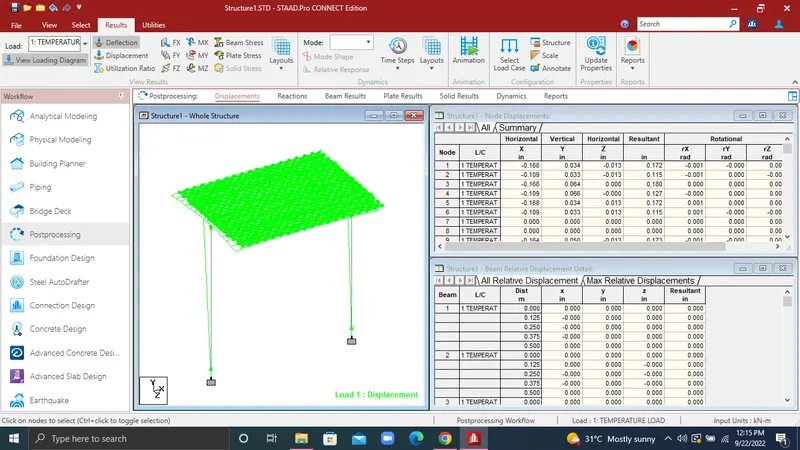

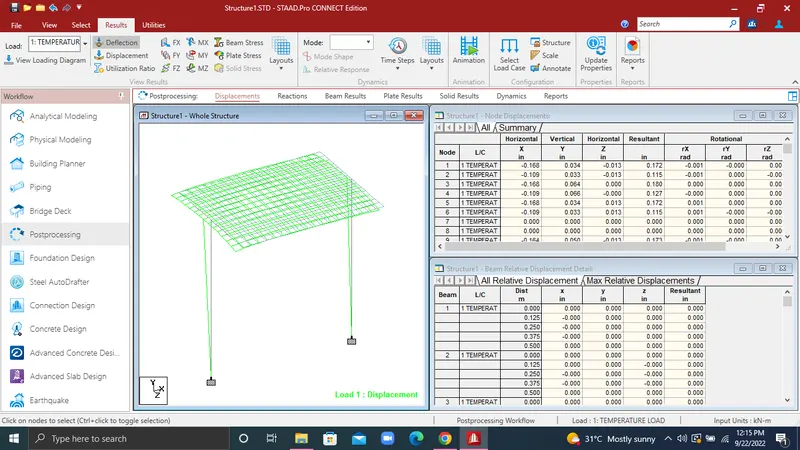

17.Deflection

18. View loading

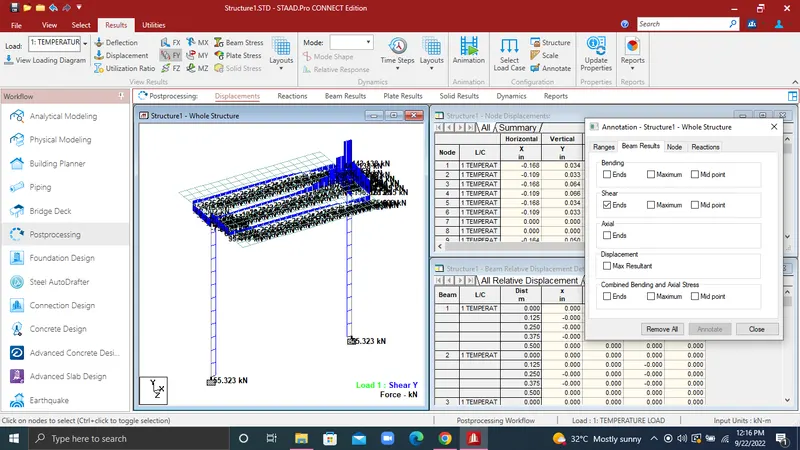

19.Shear FY

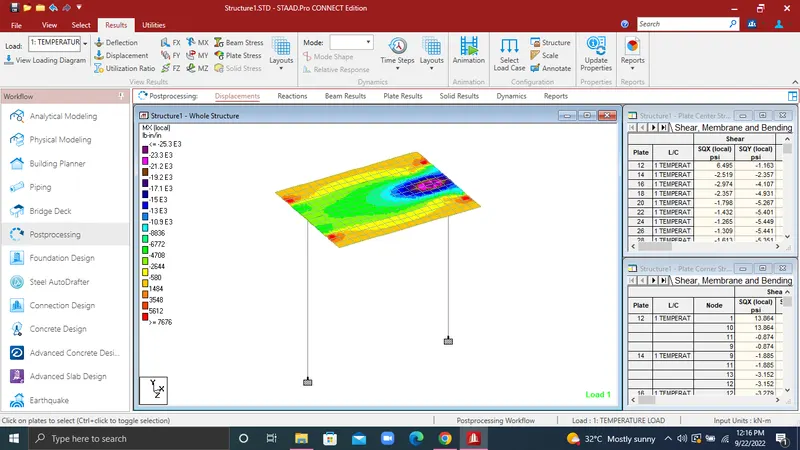

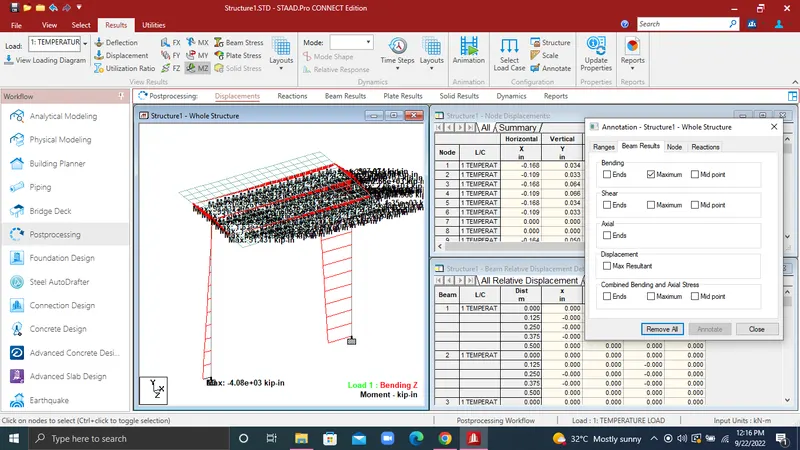

20.Bending moment MY

21. MX local plats results

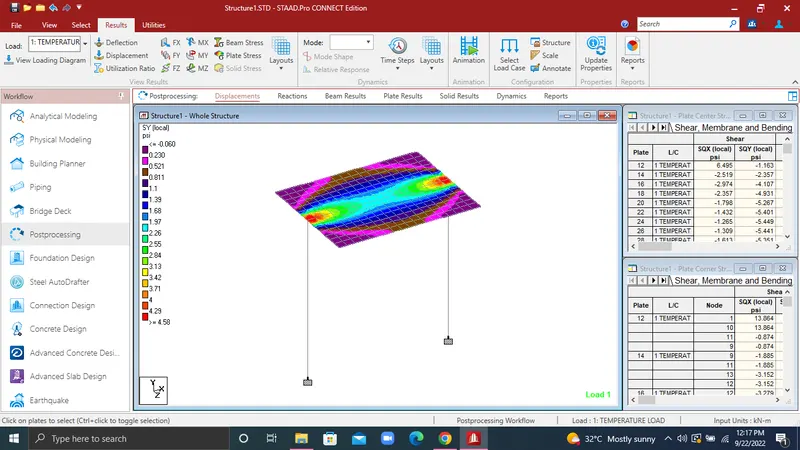

22.SY local
