Week 4 Challenge

AIM:

Calculate the Earth pressure acting on the abutment wall and apply on the STAAD pro.

GIVEN DATA:

• The abutment wall is 5m length
• Backfill soil is 7m height

• The ground level is at 3m above top of foundation level

PROCEDURE:

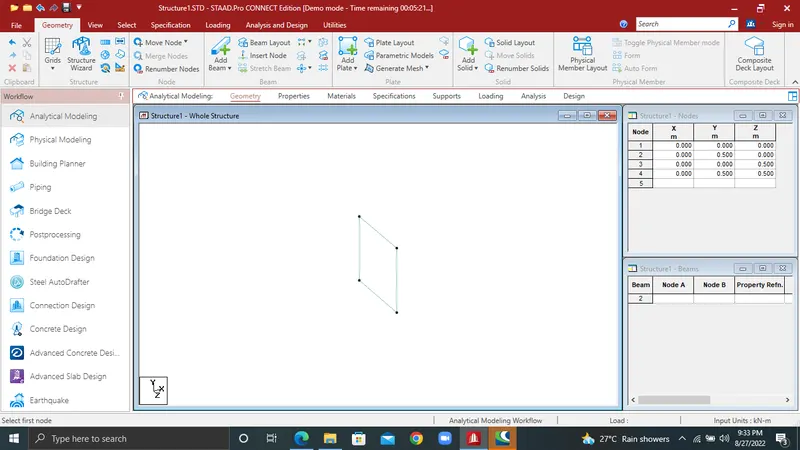

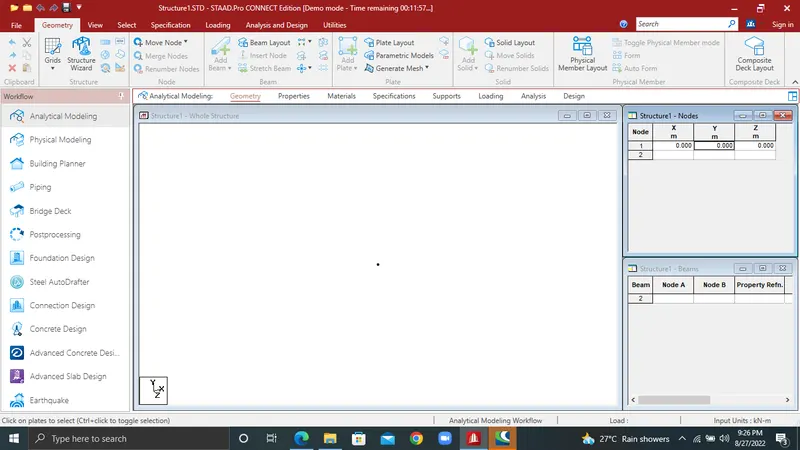

1.To create a node

2.Next node create in y direction 0.5m

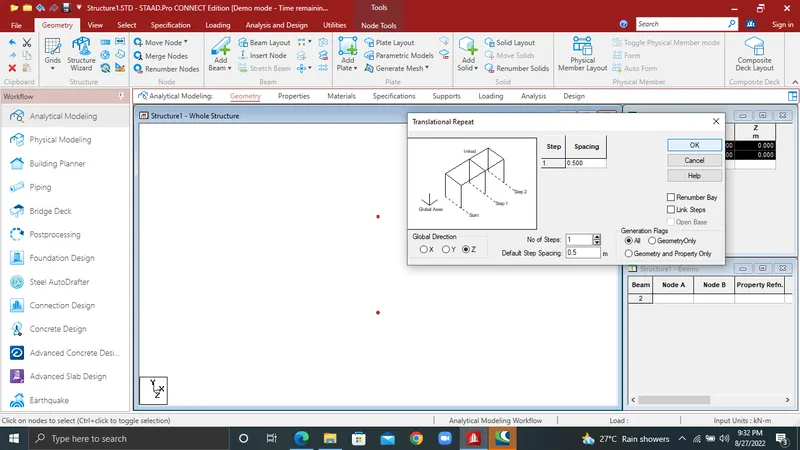

3.To selected a node and copy past in z direction 0.5m and add plate

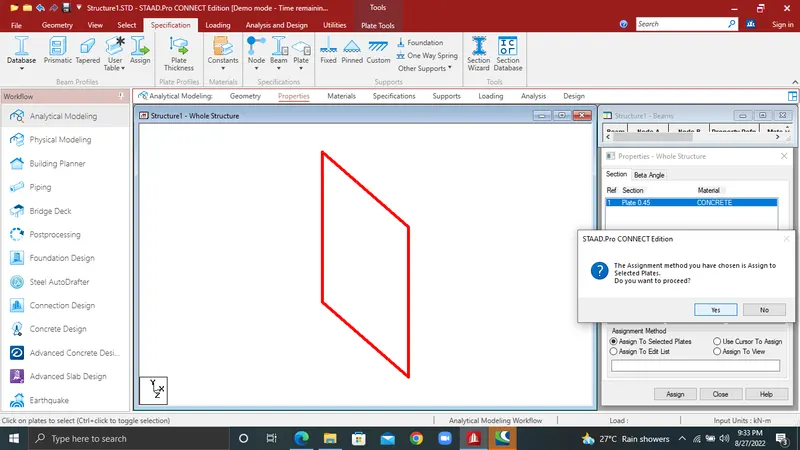

4.To input the plate thickness 0.45m

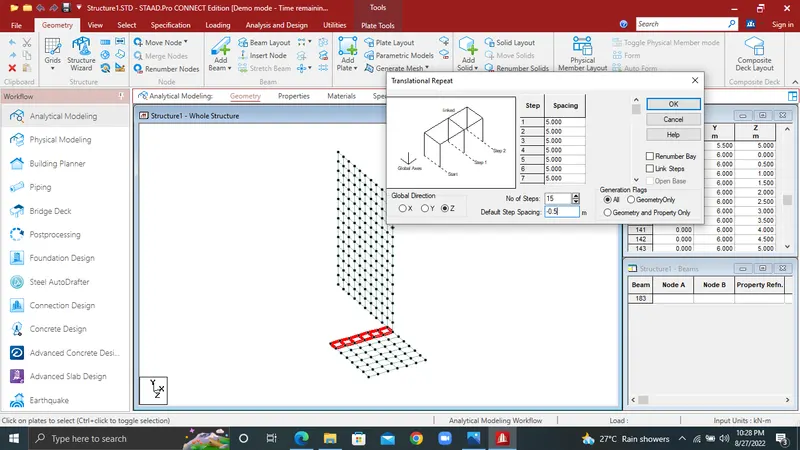

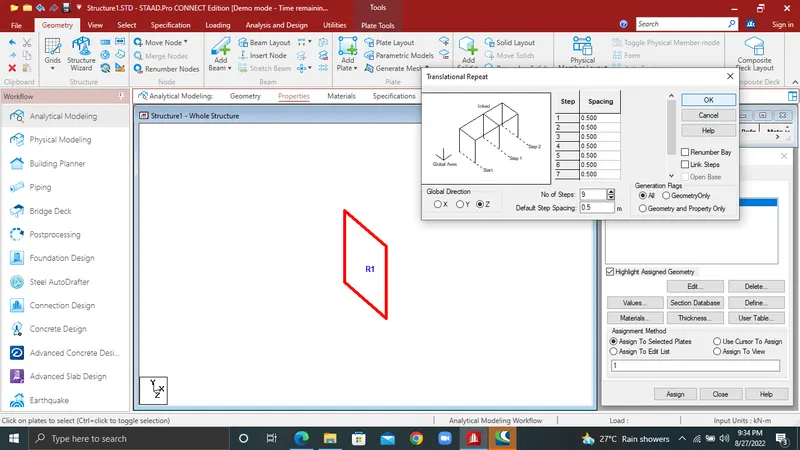

5.To using repute method 9 steps, 0.5m distance

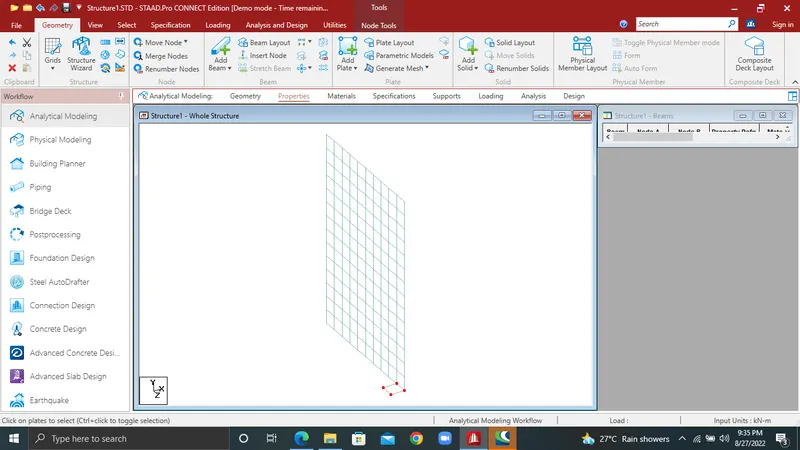

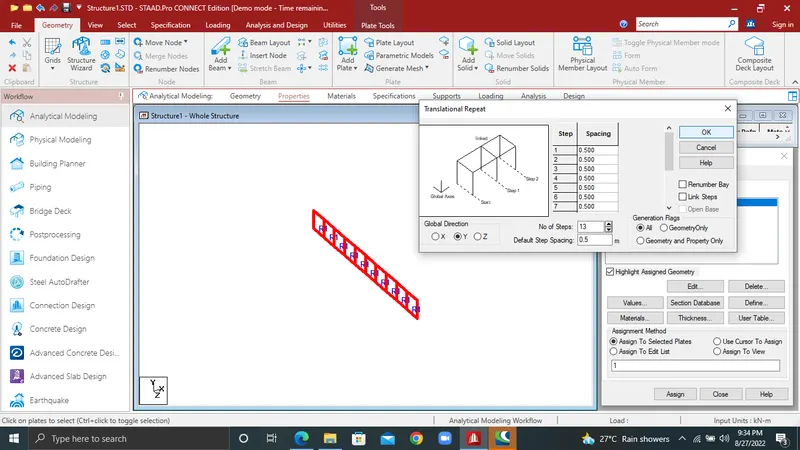

6.Select the all the plates using repute method y direction 13 steps, 0.5m distance

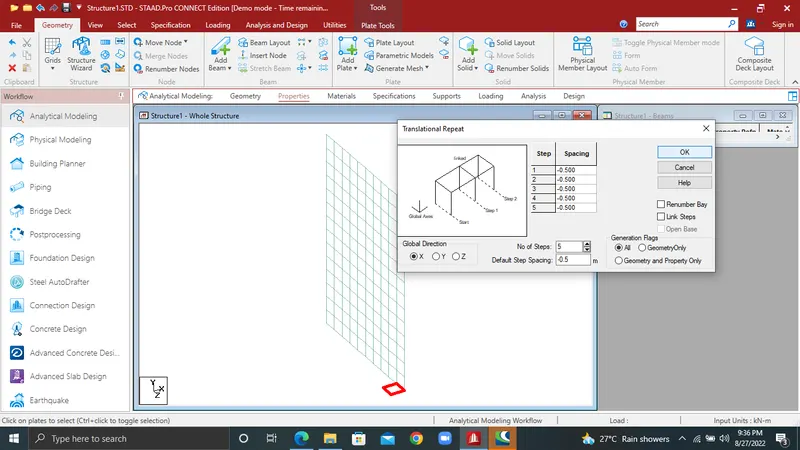

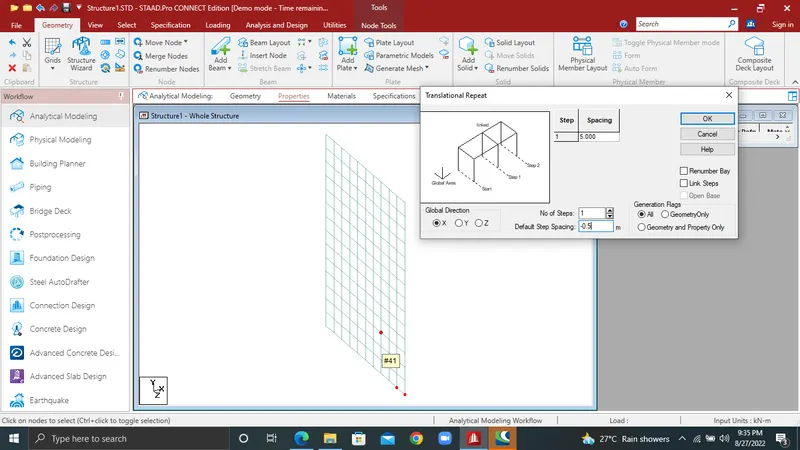

7.To select the bottom two nodes repute method use to x direction –0.5m

8.To add the horizontal plates

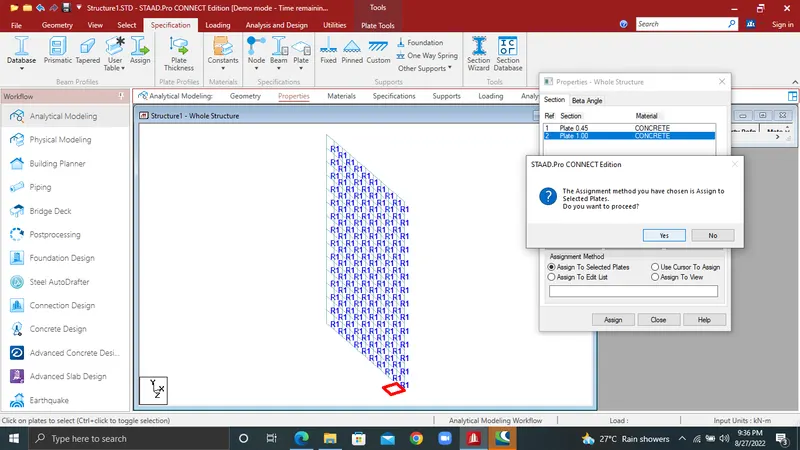

9.The horizontal plate thickness is 1m

10.To select the plates x direction –0.5 distance.

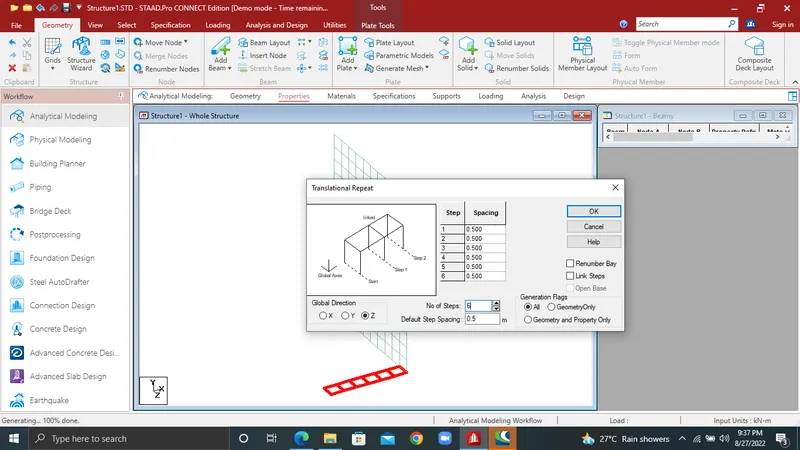

11.To select the horizontal plates z direction 6 steps, 0.5m distance

12.Select the plates repute the x direction –0.5m

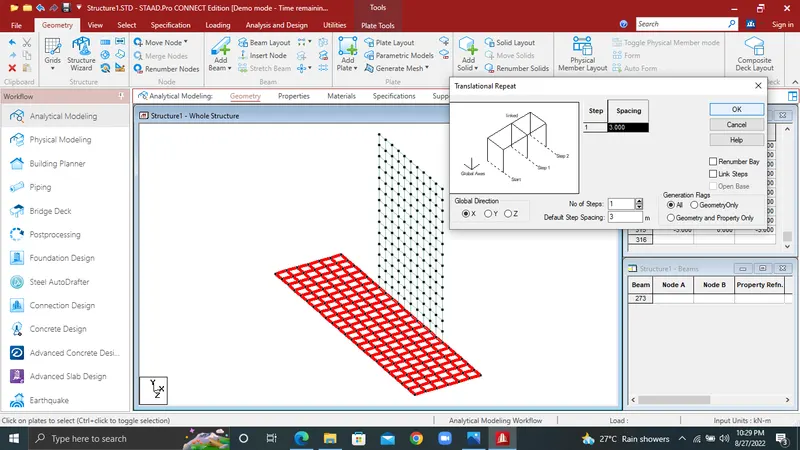

13.Select all plates repute to x direction 3m distance

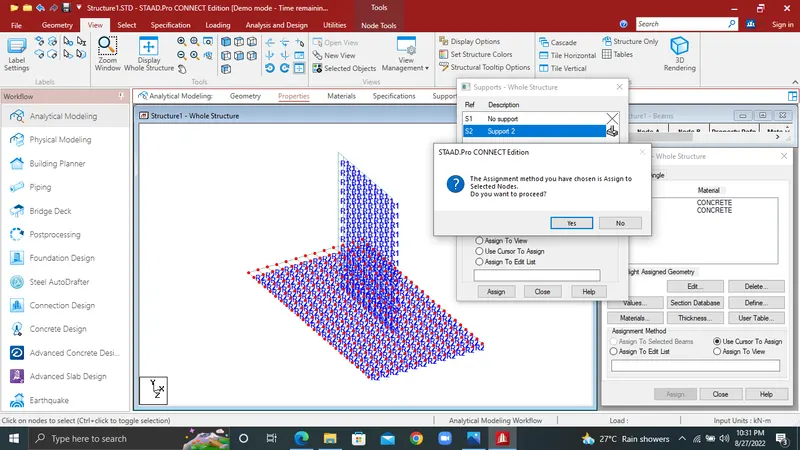

14.It is shallow foundation so al are fixed supports

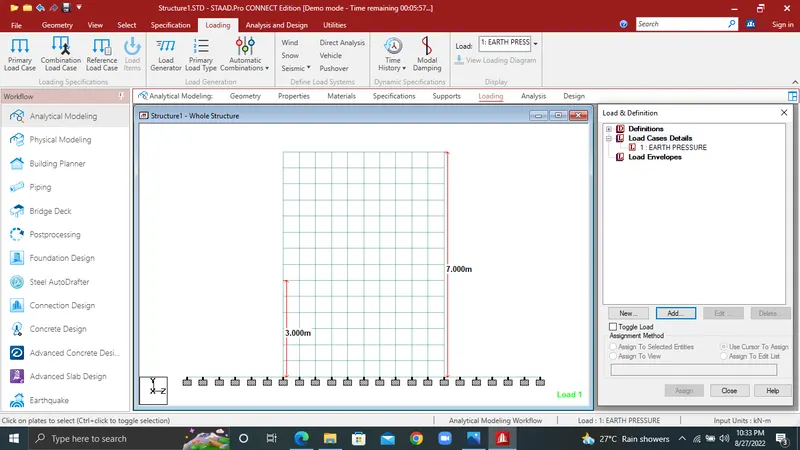

15.Go to the load cases details and calculate the earth pressure

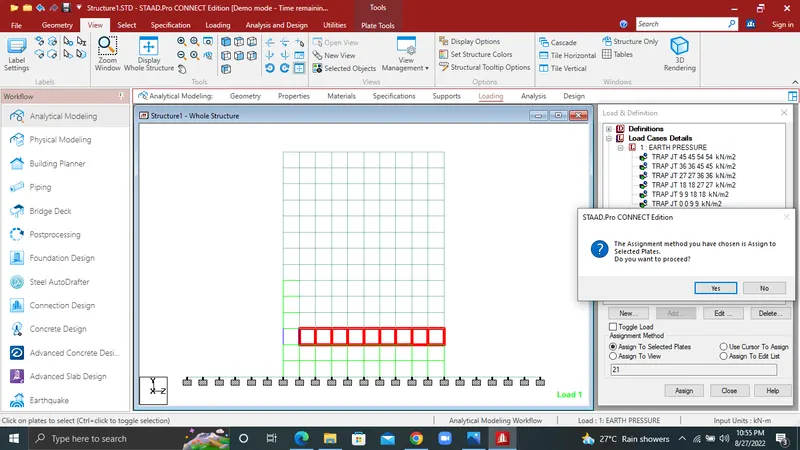

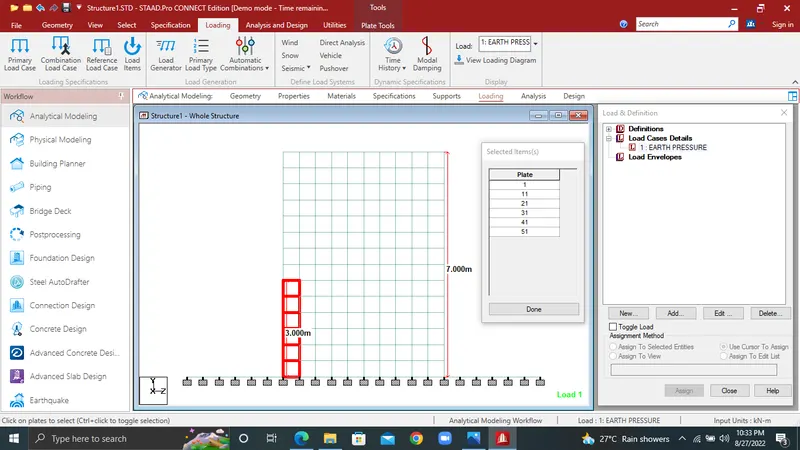

16.Go to plate loads > Hydrostatics > select plates in 3m vertical direction > single plates > W1 mine global value is 18*3 = 54 kN/m2

17. To select the bottom all plate assign same as all the plates

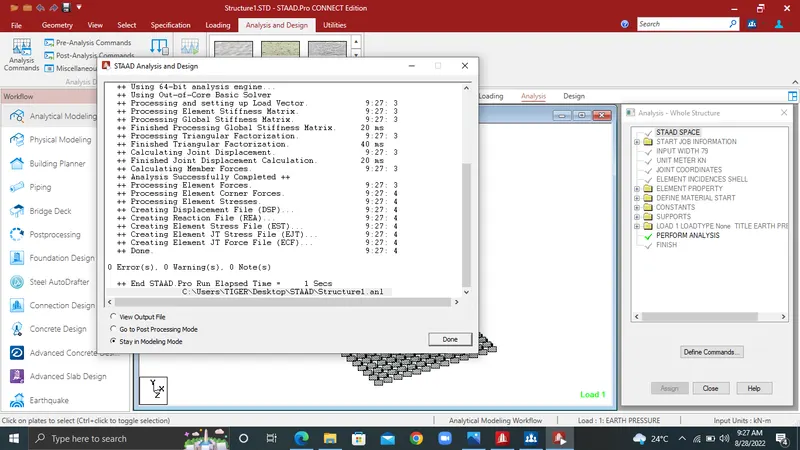

18.And then go to run analysis > go to post processing mode

RESULTS:

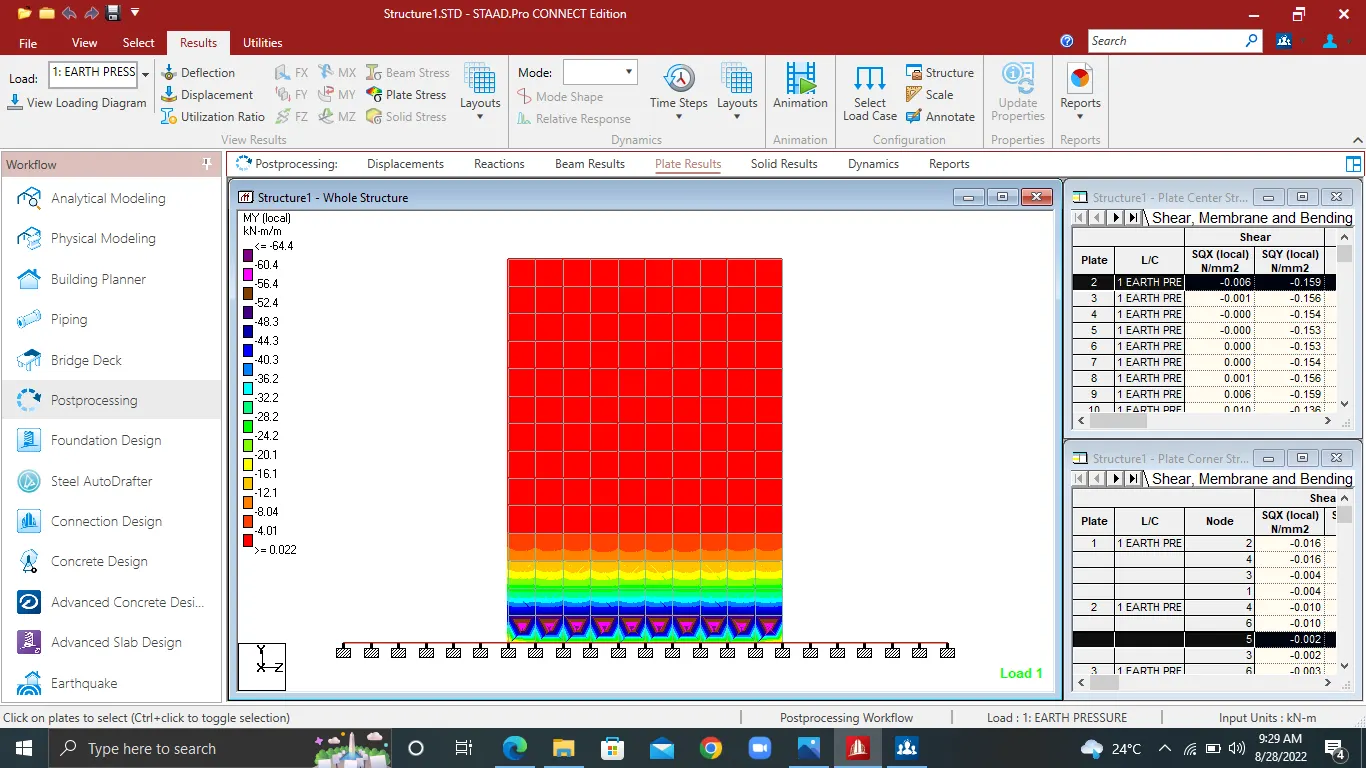

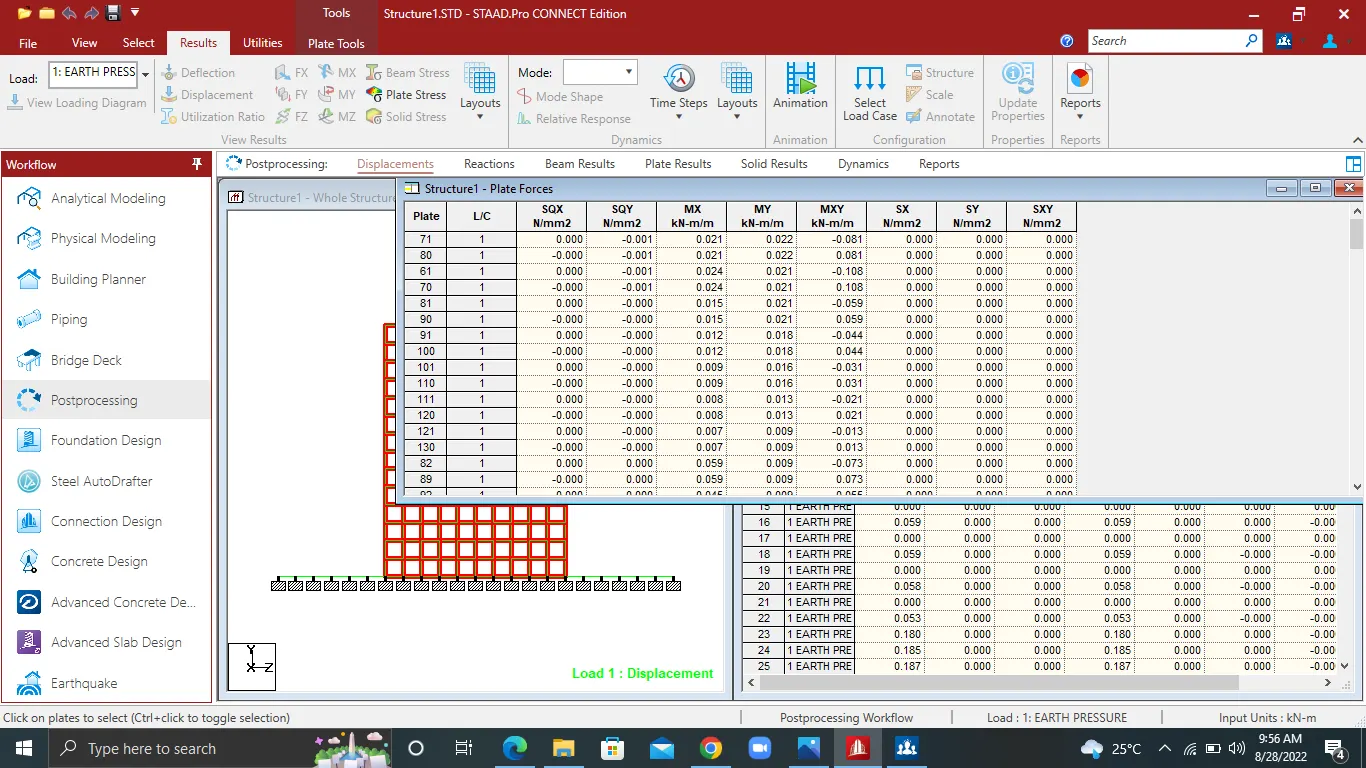

19.Plate result is MY

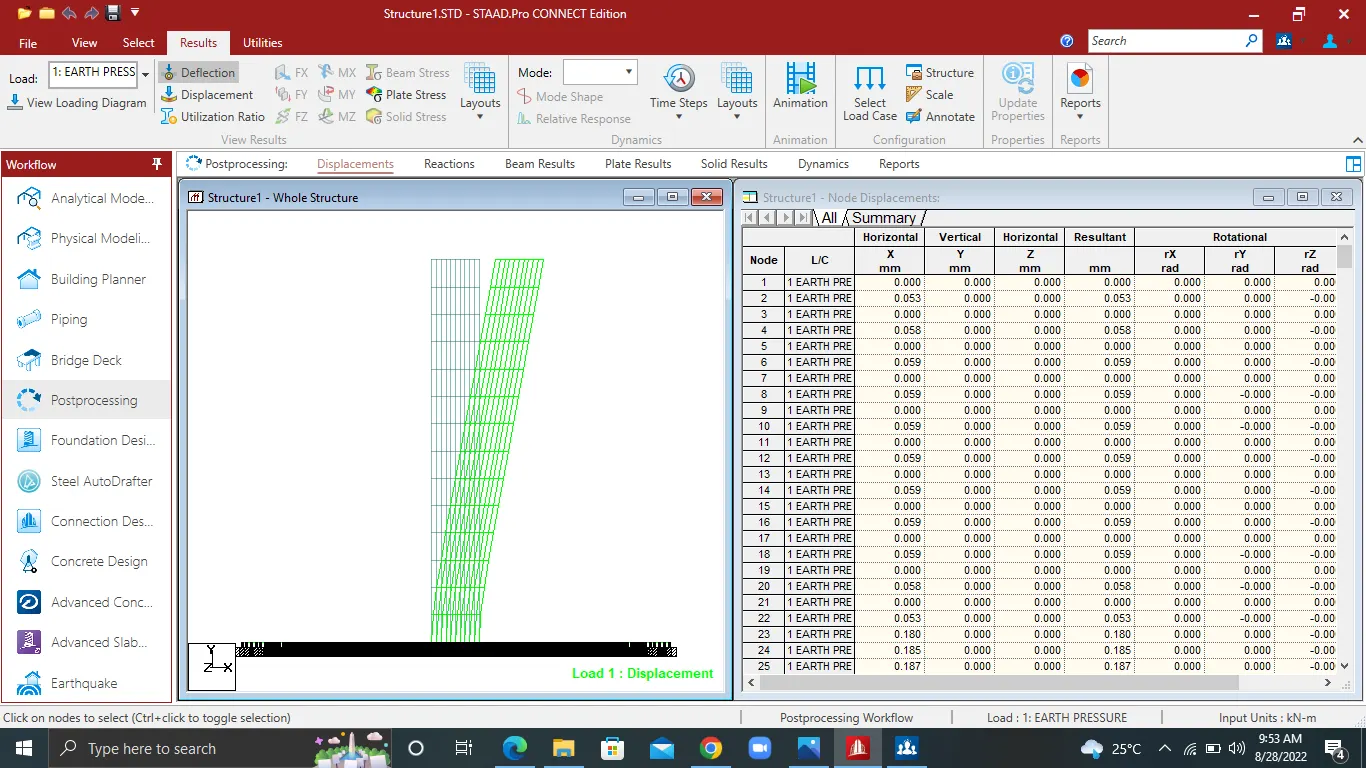

20.Deflection

21.Bending MY results
