Week 11 Challenge

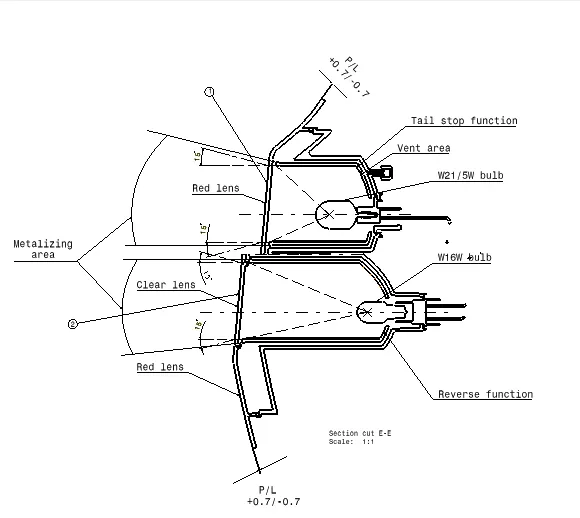

Assembly drawing for tail light;

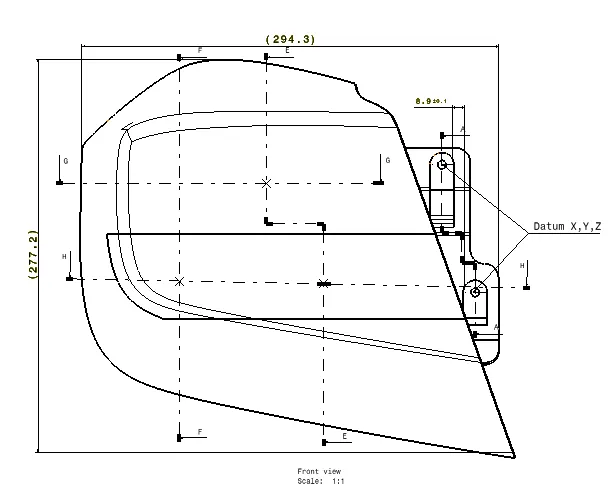

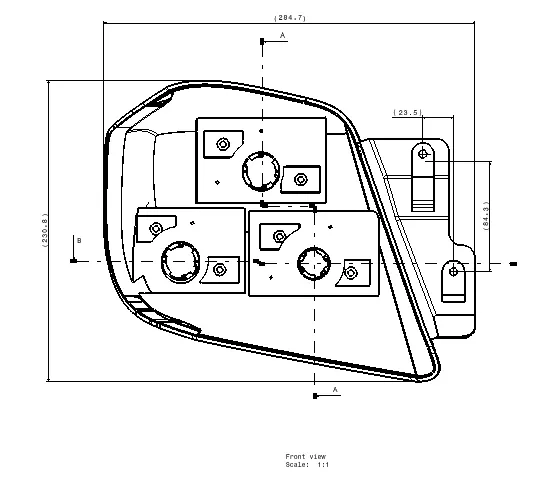

Front view;

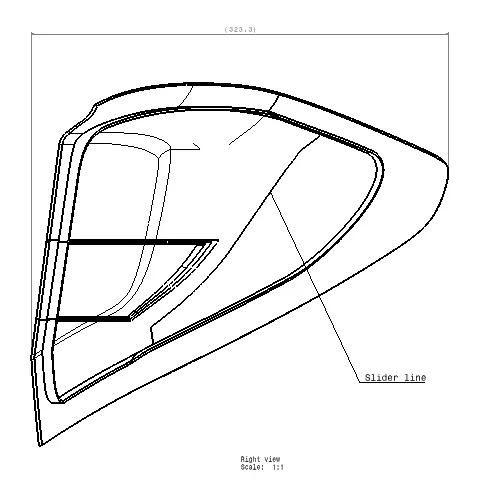

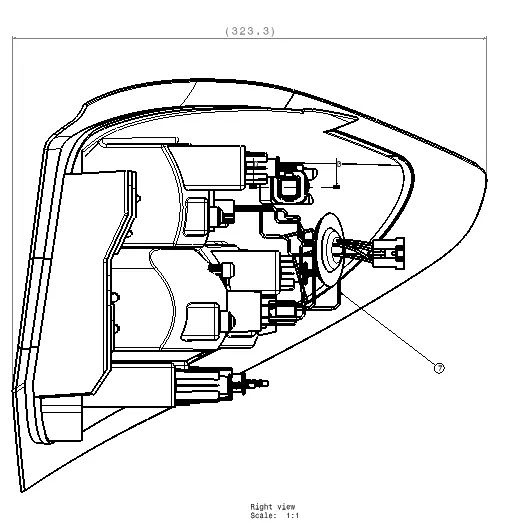

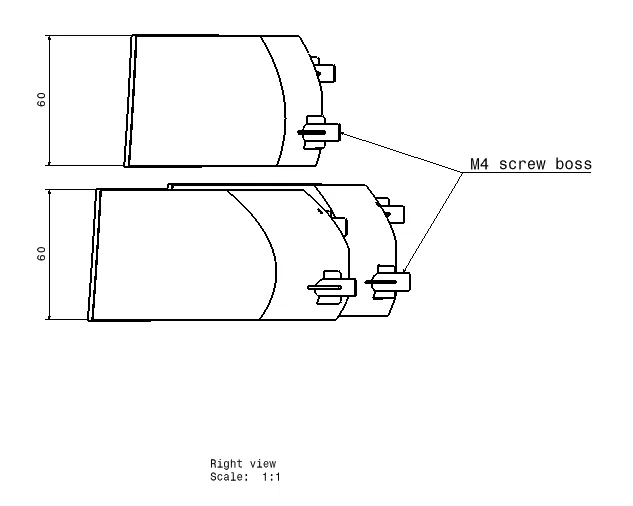

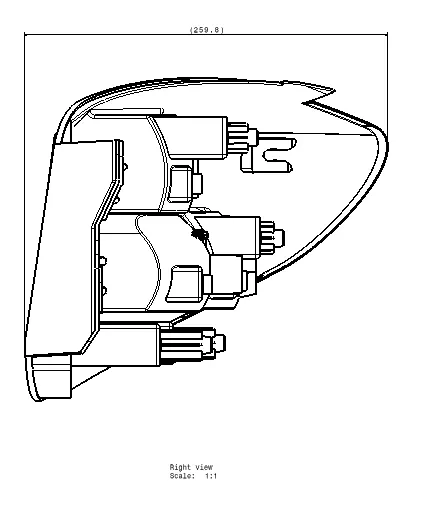

Right side view;

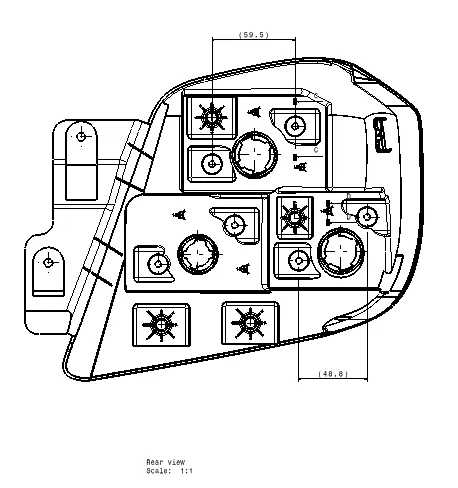

Rear view;

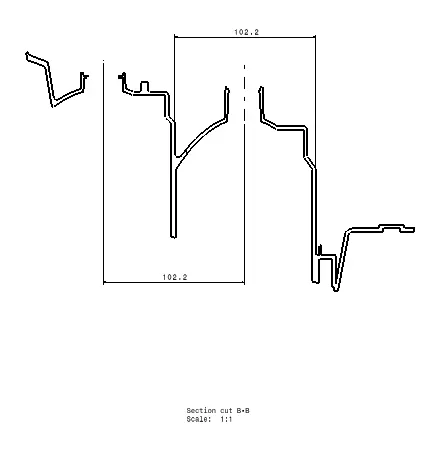

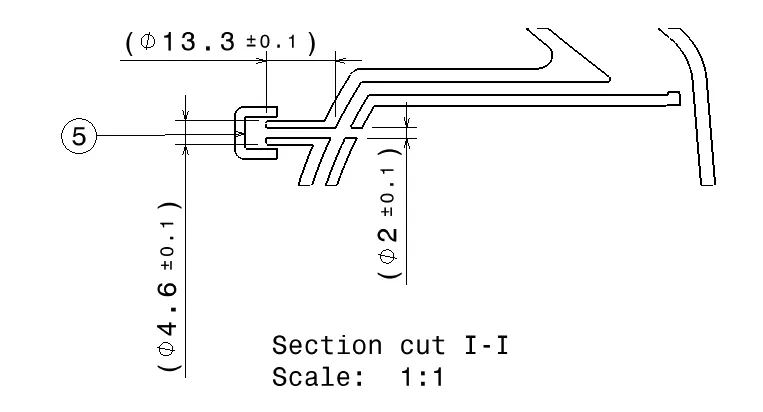

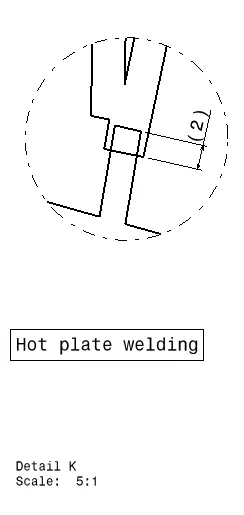

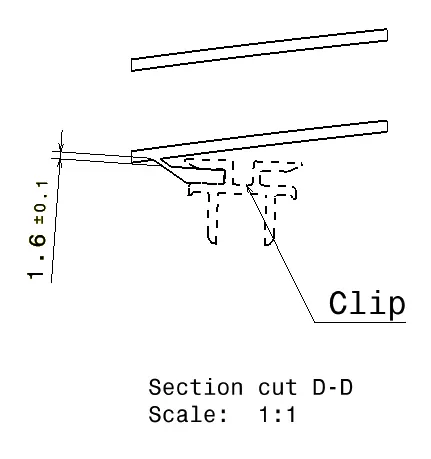

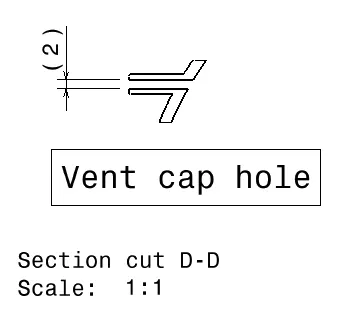

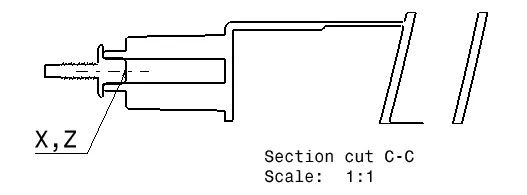

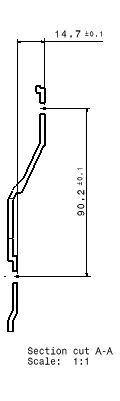

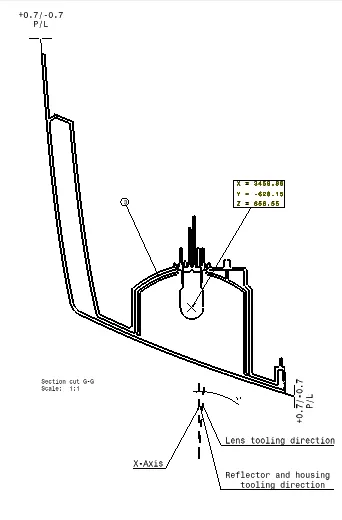

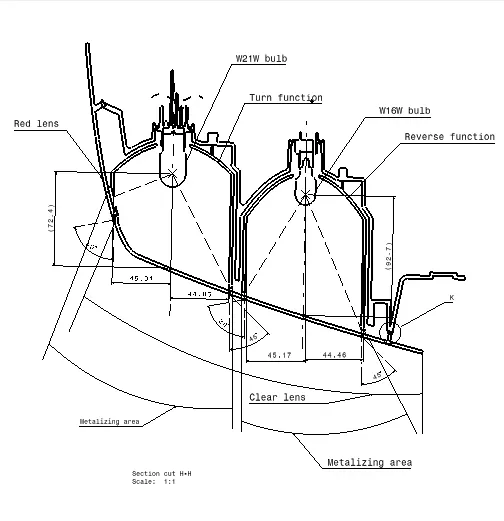

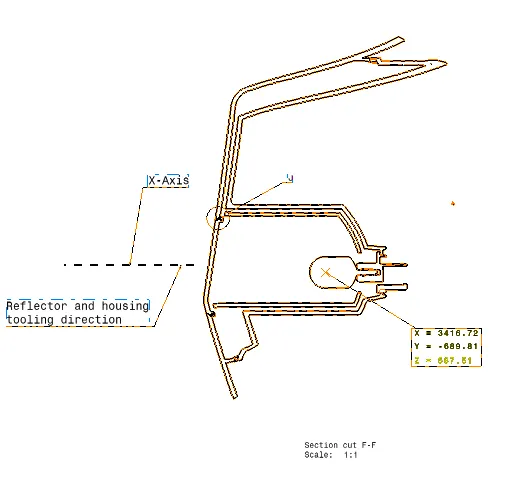

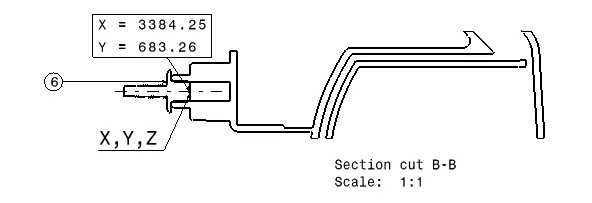

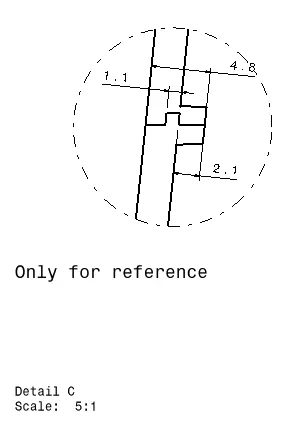

Section views;

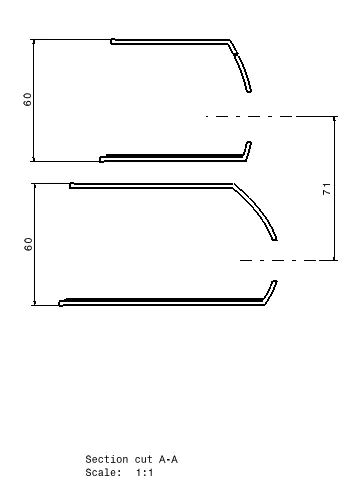

Lens drawing;

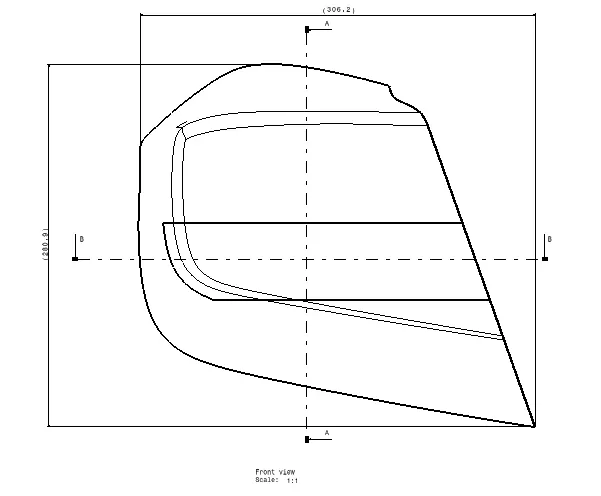

Front view;

Right side view;

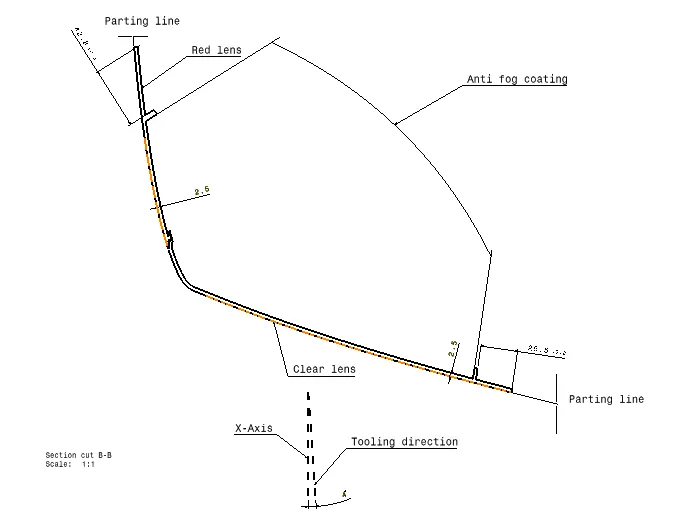

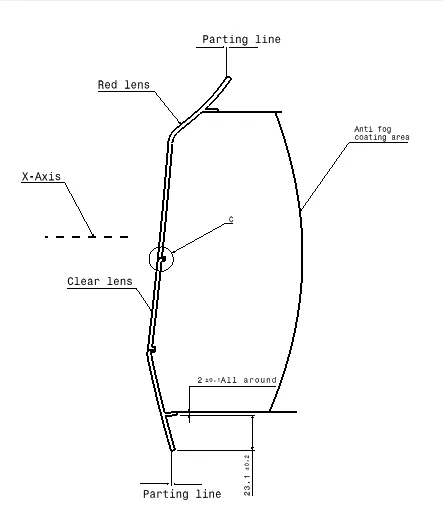

Horizondal section for lens;

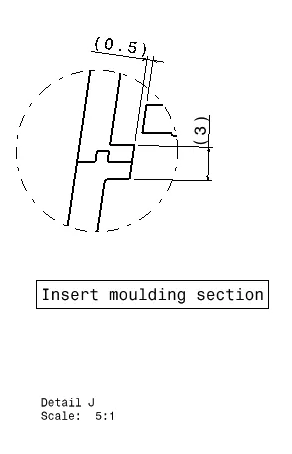

Vertical section for lens;

Housing drawing;

Front view;

Right side view;

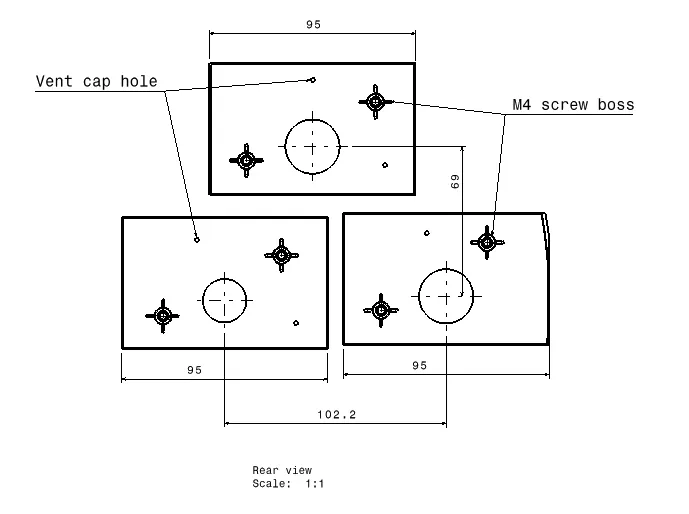

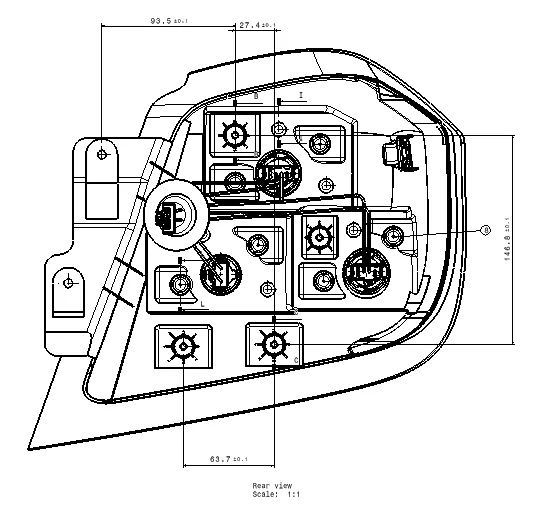

Rear view;

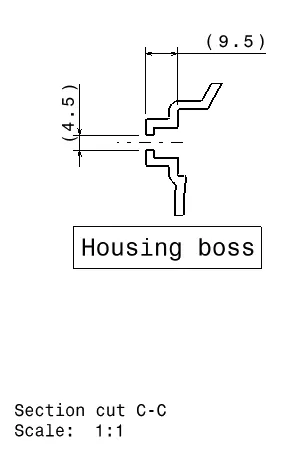

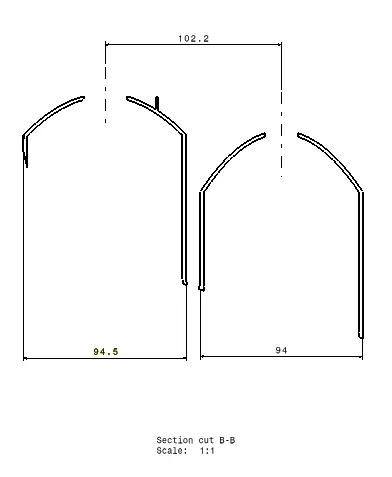

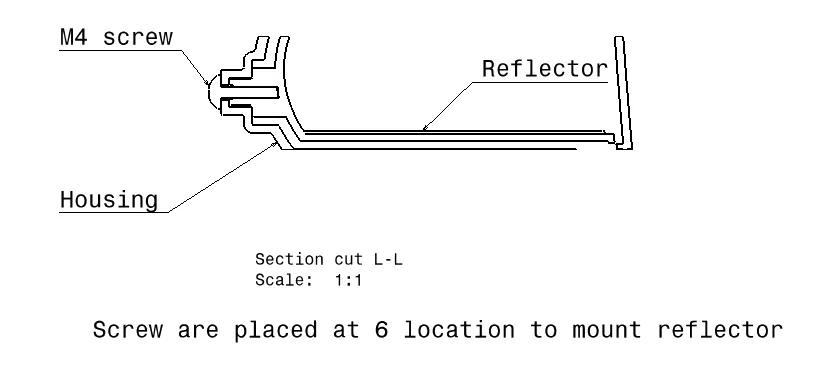

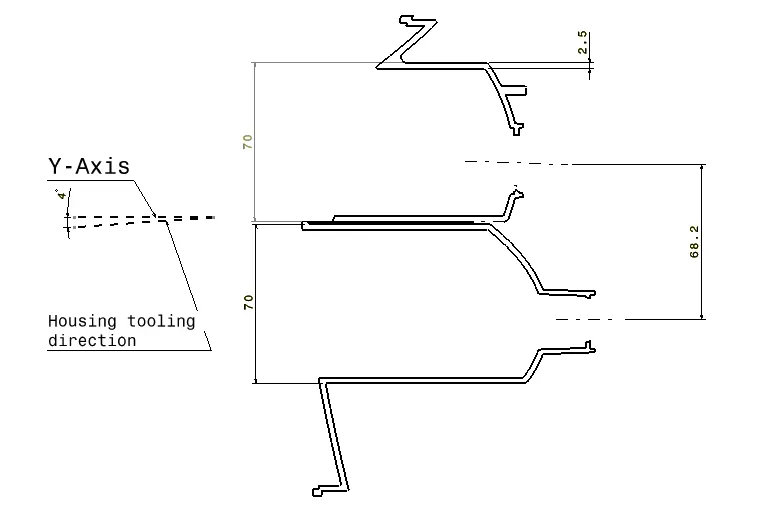

Section views;

Reflector drawing;

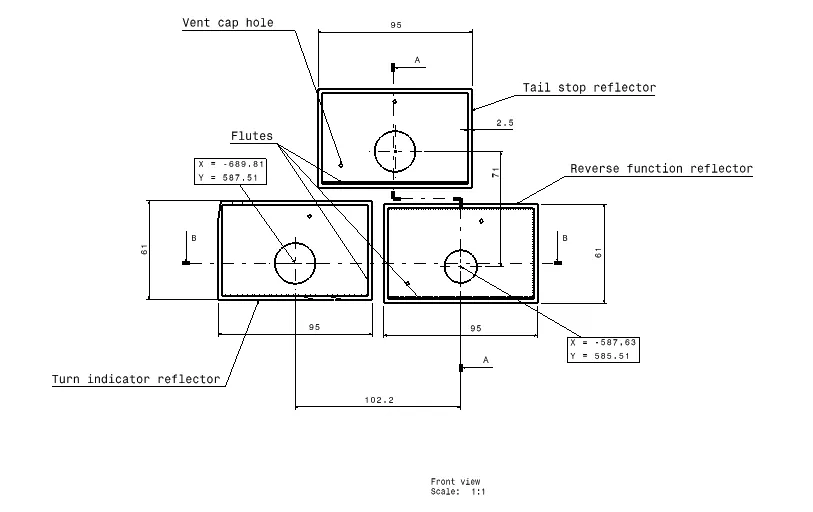

Front view;

Right side view;

Rear view;

Section views;

Bill of Material;

A bill of material or product structure is a list of the raw material, sub-assemblies, intermediate assembly, sub components, parts and its quantity of each needed to manufacture end product

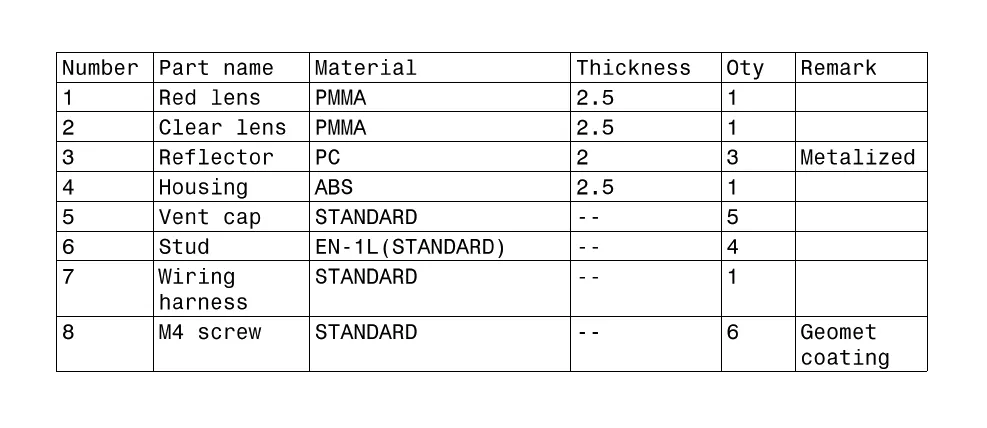

The below table represents the BOM of the Assembly drawing of Tail Lamp Design
