Week 11 Challenge

AIM : To find Frictional force.

PROCEDURE :

        Vertical Load = 125KN.

        Frictional force = Coeff of friction * Vertical Load

        Coeff of Friction = 0.15 (Carbon steel to  Stainless Steel)

       Coeff of Friction = 0.10 (Stainless Steel steel to teflon)

       Frictional Force = 0.15*125 = 18.75 KN between pipe support and shoe.

       Frictional Force = 0.10*125 = 12.50 KN, if teflon pad is used between pipe support and shoe.

2) AIM : To identify type of support

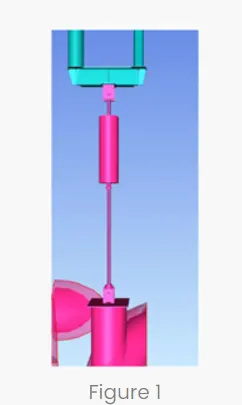

       a) Spring support.

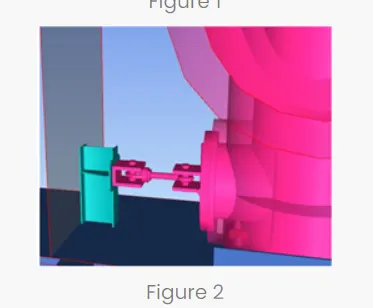

          b) Spring support.

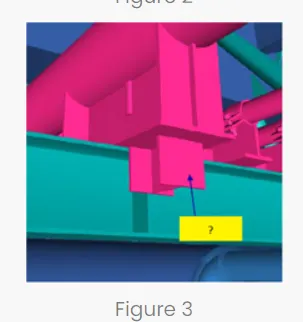

        c) Guyed support

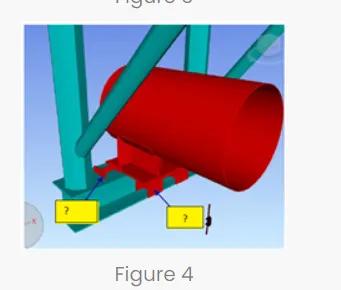

     d) Stop Support

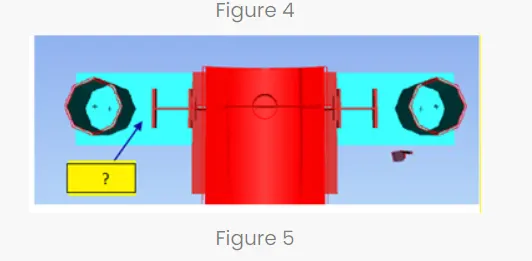

     e) Guyed Support

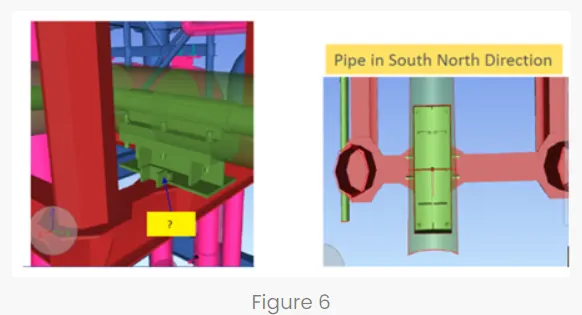

      f) Rigid Support

 3) Please find the attached file for the piperack STAAD model
