Week 11 Car Crash simulation

Objective:

To run the car crash simulation  and find the total deformation and the strain with the 3 different thickness of a car body by the parametric study analysis.

Thicknesses are 0.3,0.5,0.6mm.

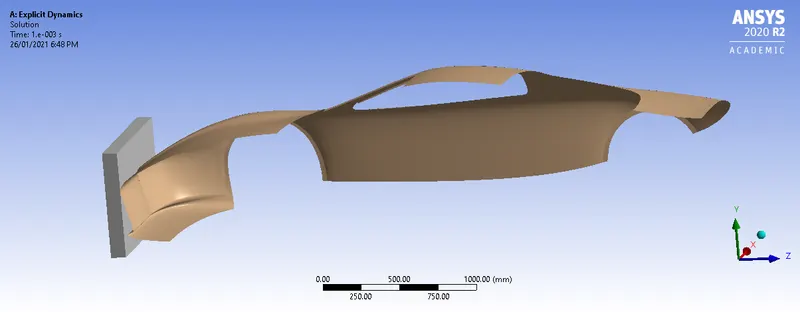

Model:

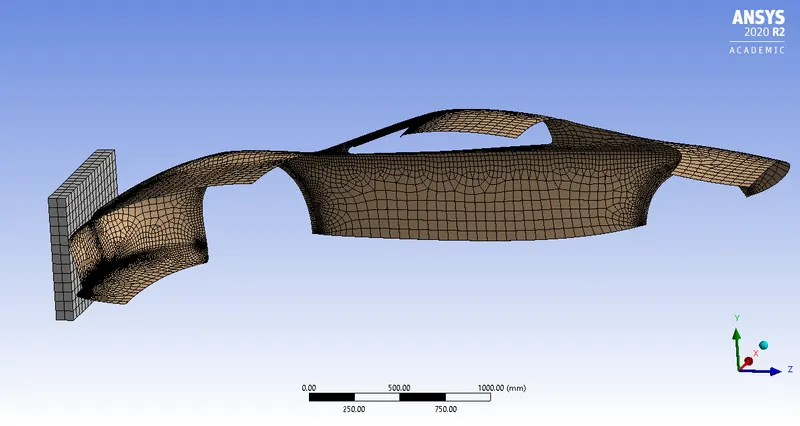

Mesh:

Total Deformation:

Case1-0.3mm:

For 0.3 body thickness the total deformation is 1262.4mm

For 0.5 body thickness the total deformation is 1256.2mm

For 0.6 body thickness the total deformation is 1261.7mm

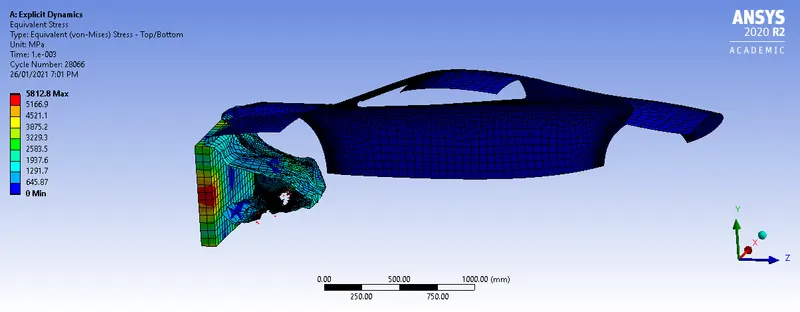

Stress:

For 0.3 body thickness the total Max stress is 5812.8Mpa

For 0.5 body thickness the total Max stress is 5815.1Mpa

For 0.6 body thickness the total Max stress is 5815.9Mpa
