Week 11- Assembly Workbench

Assembly Workbench

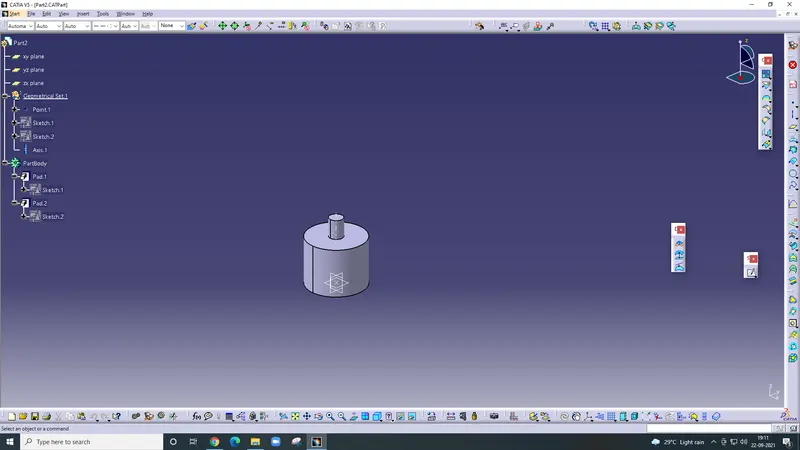

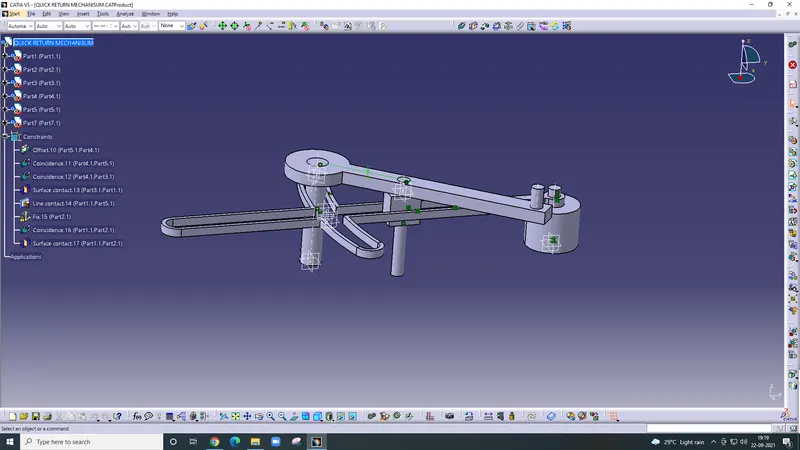

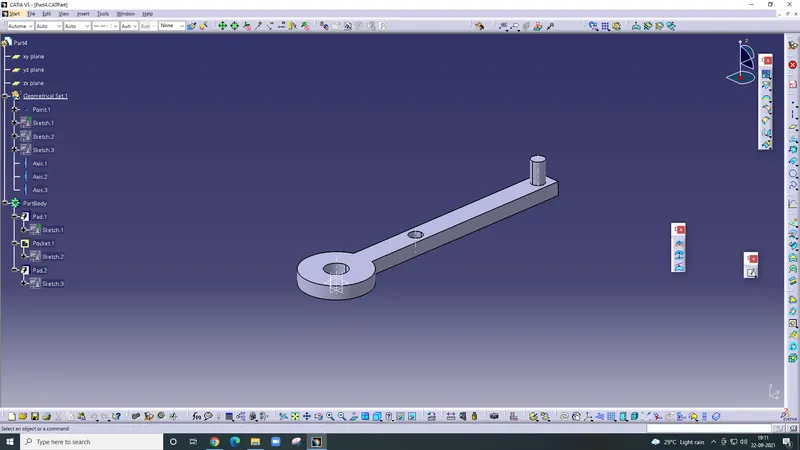

Quick Return Mechanism-

A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke. It is driven by a circular motion source and uses a system of links with three turning pairs and a sliding pair. The quick return mechanism converts circular motion into reciprocating motion. This mechanism is also used in shaping, planning, slot machines.

CV Joint -

Constant velocity joints, better known as CV joints, are found at the ends of the drive shafts. They are essential to connecting the drive shafts to the transmission and wheels. Because of their function and location, these joints easily wear out over time. They can even break.

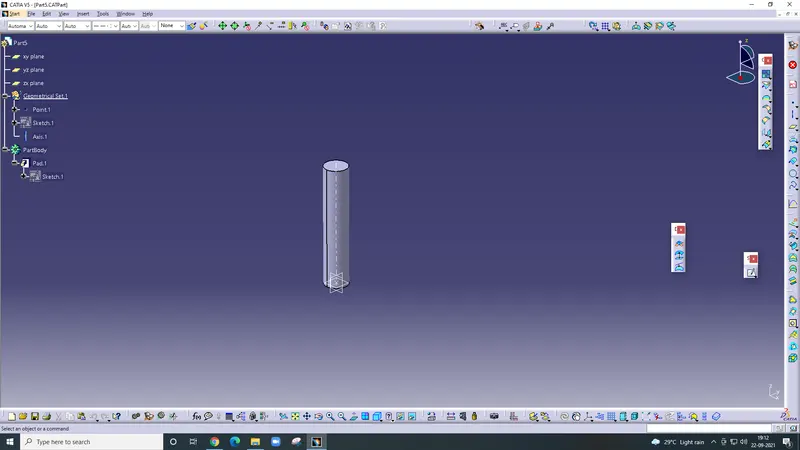

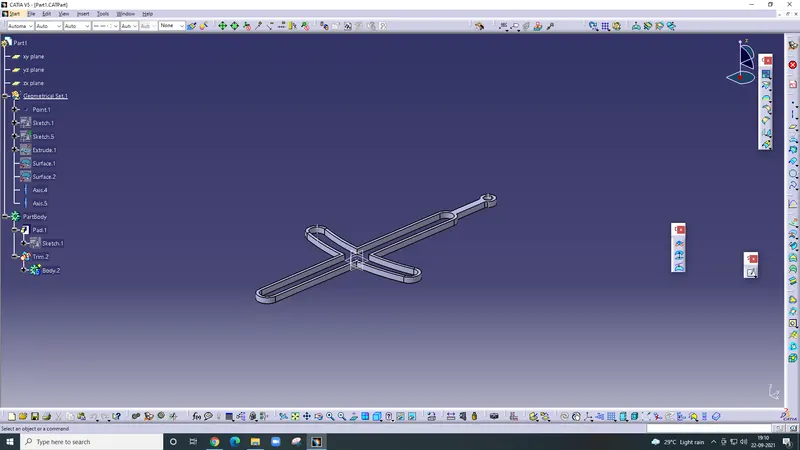

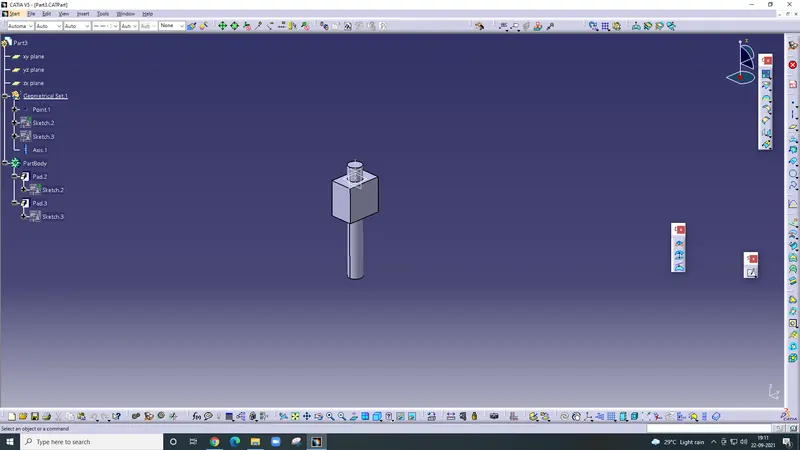

Firstly draw parts separately after that assemble

In assembly use coincidence constrain, contact constrain, offset constrain and fix component command also use manipulation command and assemble.

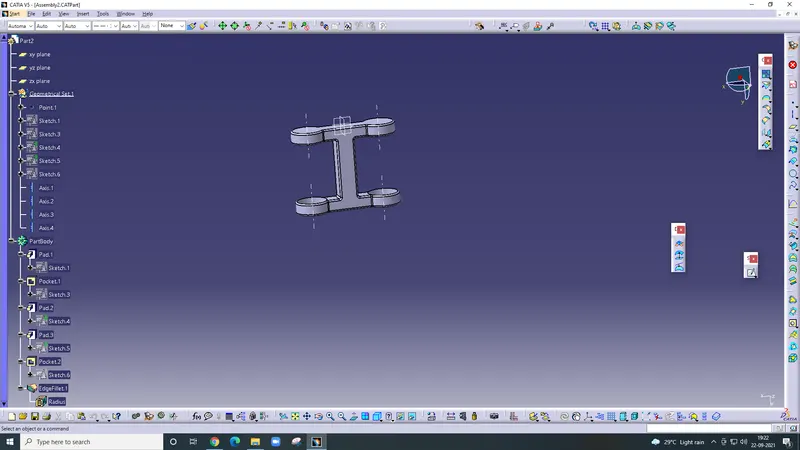

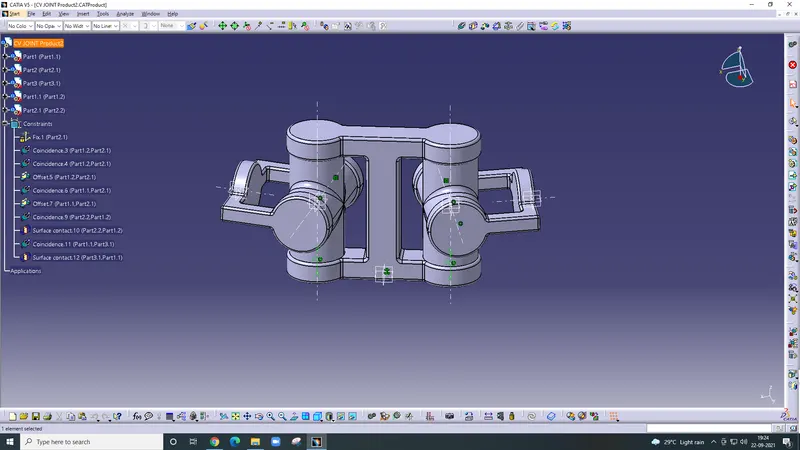

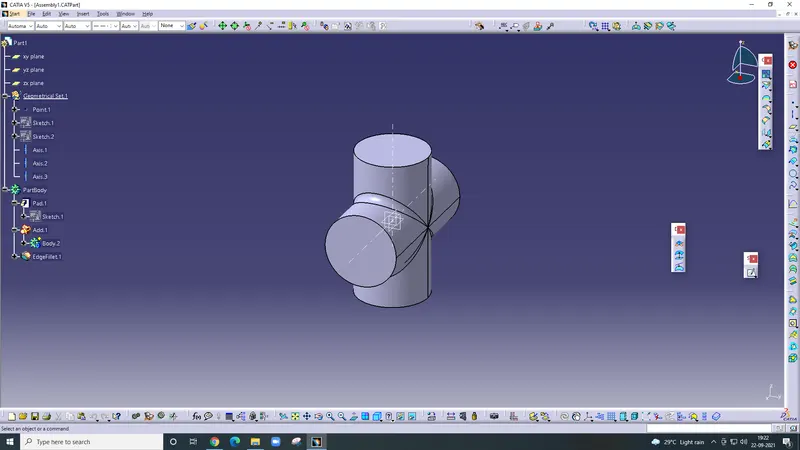

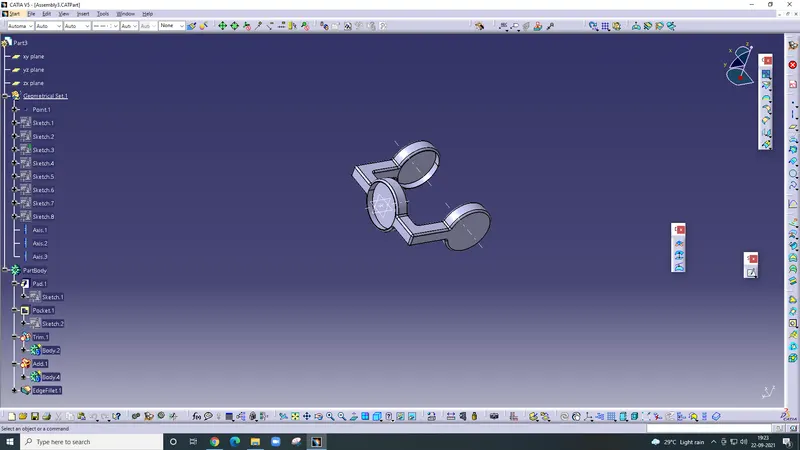

CV Joint
