Week 11- Assembly Workbench

ASSEMBLY WORKBENCH

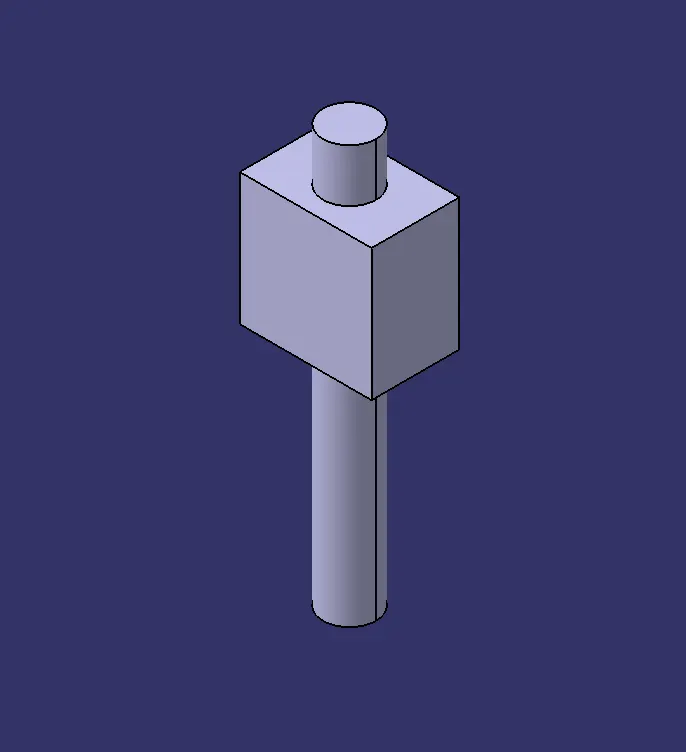

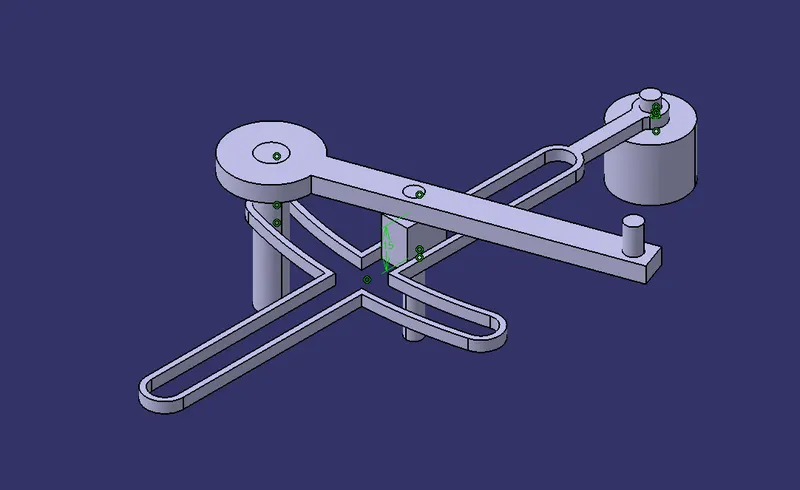

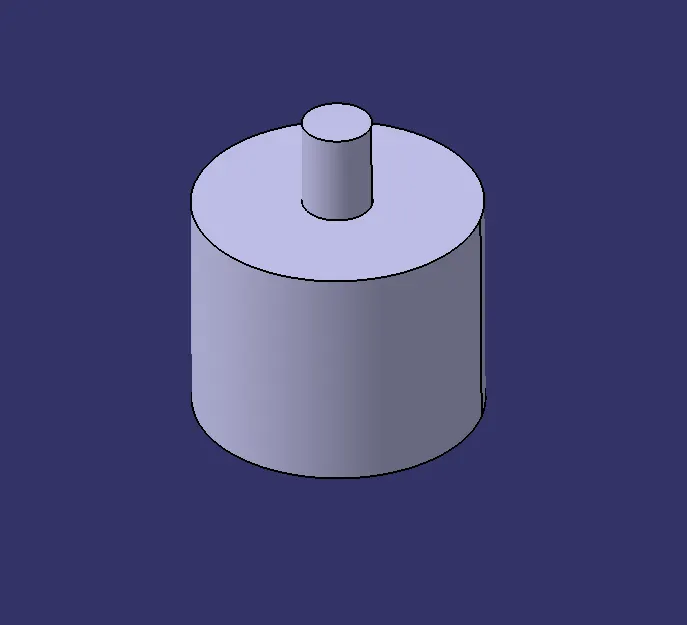

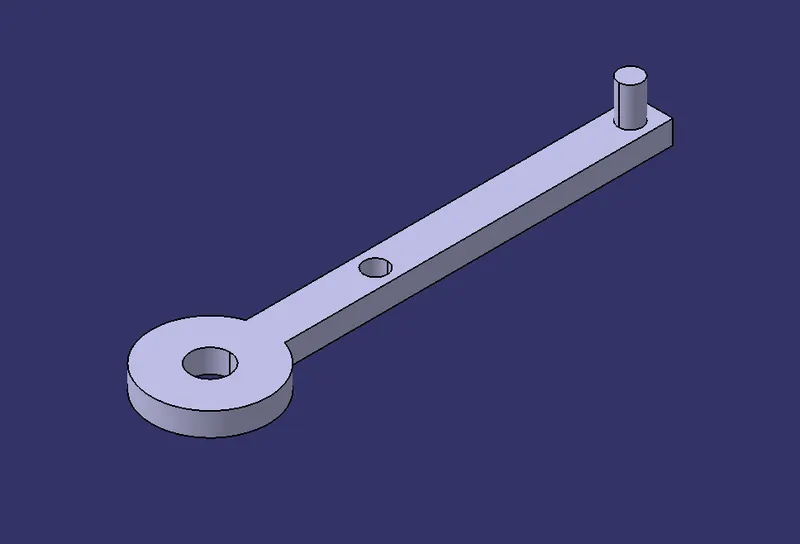

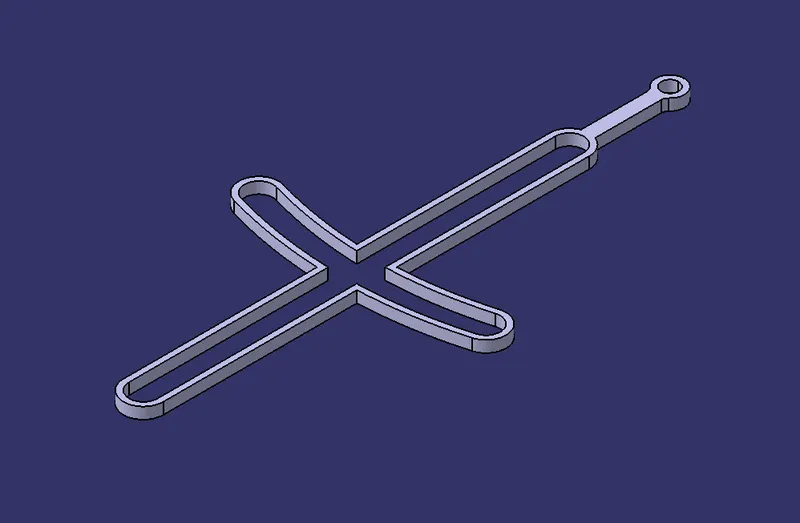

MODEL 1 – QUICK RETURN MECHANISM

Steps followed,

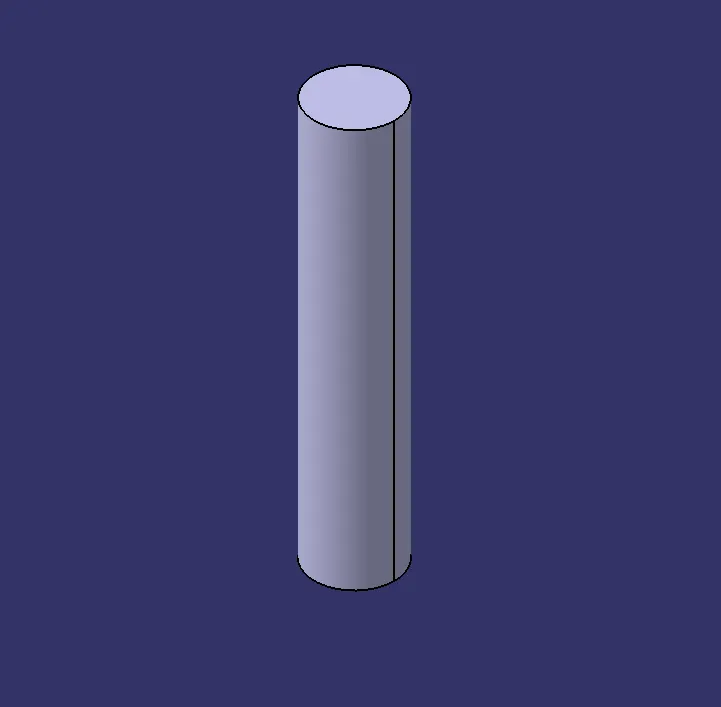

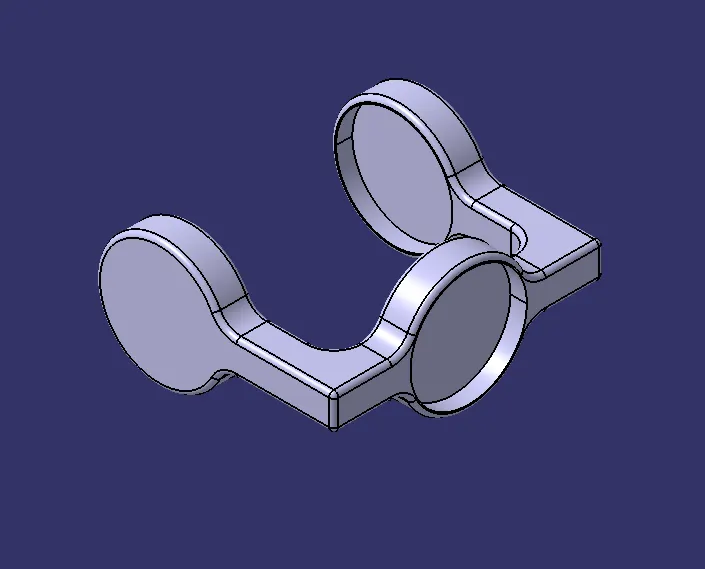

• First the parts were designed from provided drawings with given dimensions and assumptions where ever required.

• Then assembly was developed for the same using ‘Assembly Workbench’ with proper constraints between the parts.

• After that, the 2d drawings were developed for the parts and the corresponding assemblies using ‘Drafting Workbench’.

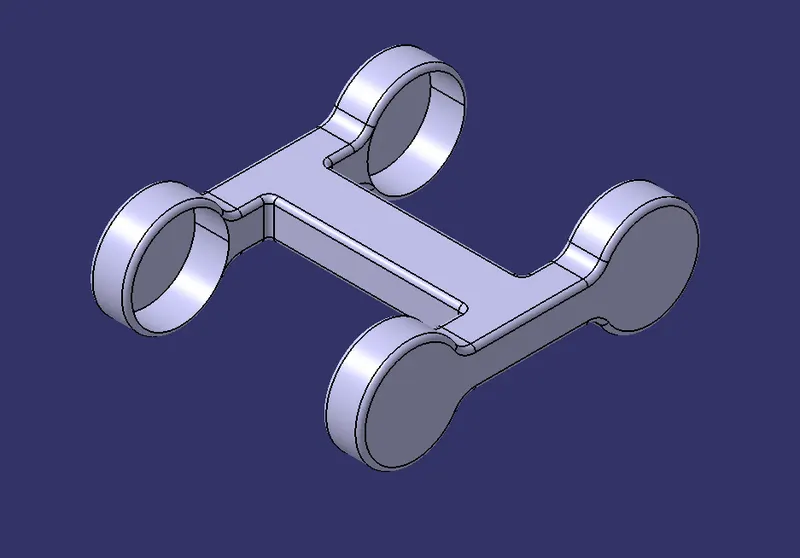

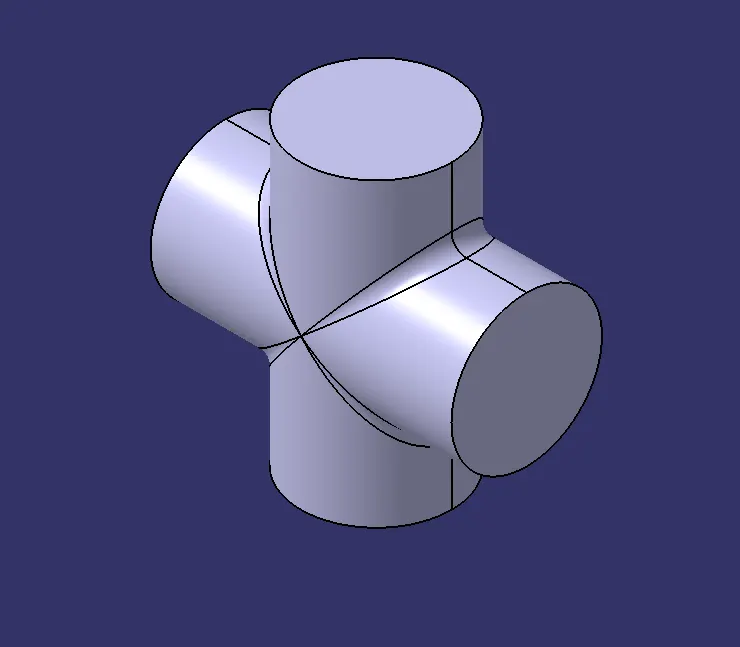

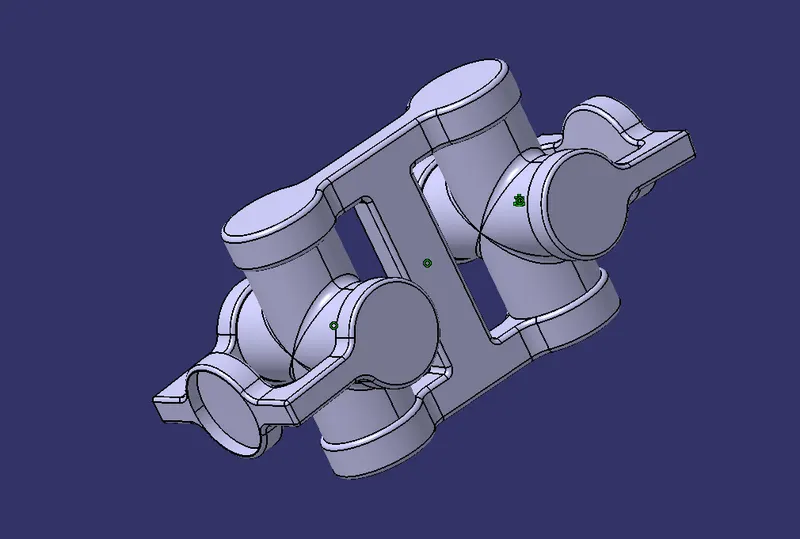

MODEL 2 – CV JOINT

Steps followed,

• First the parts were designed from provided drawings with given dimensions and assumptions where ever required.

• Then assembly was developed for the same using ‘Assembly Workbench’ with proper constraints between the parts.

• Finally, 2d drawings were developed for the parts and the corresponding assemblies using ‘Drafting Workbench’.
