Week 11 - 3D Contacts

all the files can be found in this drive link

note: there was a technical error with my laptop building up a 3d contact by deactivating the cvcv joint and curves or vis versa, so I have used two different models to compare the displacement of the follower

steps: 1)

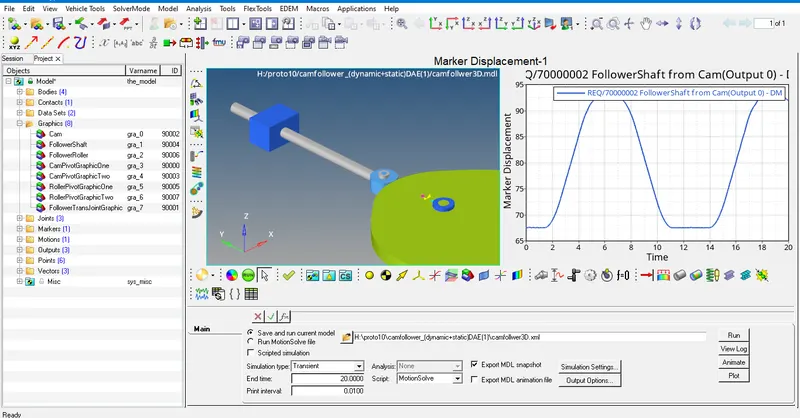

1. model is created with contact modeling

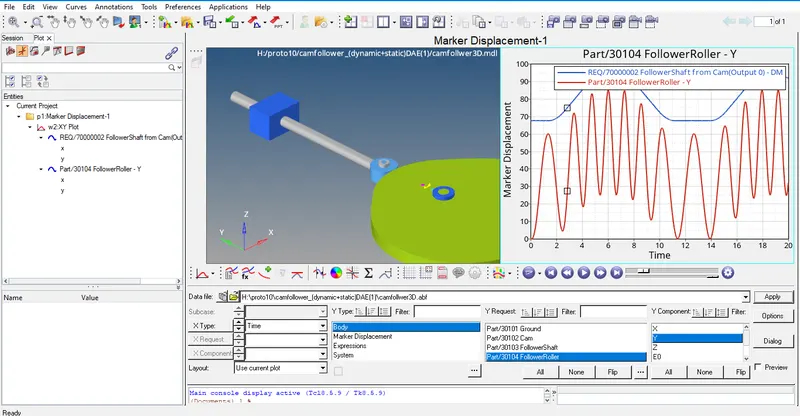

2. the respective displacement graph is plotted

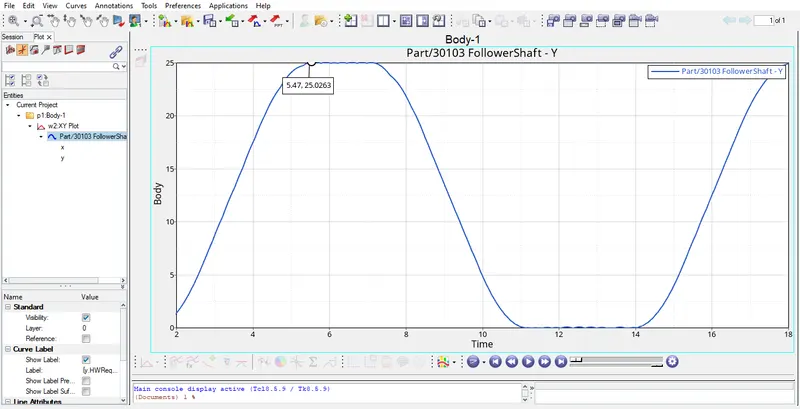

the displacement of the follower was found to be 25.02mm in contact modeling

2)

1. model is created with a cvcv joint
2. the respective curves are assigned
3. displacement graph is plotted

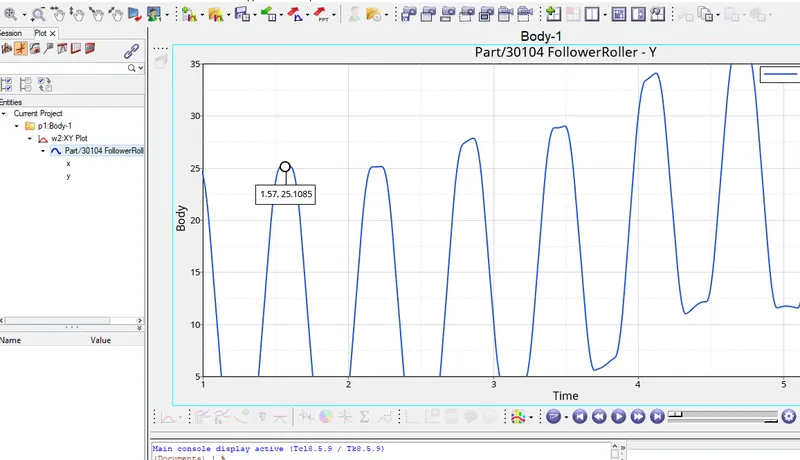

displacement was found to be 25.108mm with cvcv joint
