Week 11:- 2D Detailing Challenge 2

Before handover to manufacturing need to do 2D finish after done 3D finish in Biw fixture design.All the dimensions of fixture unit and its child parts should mention clearly mentioned in drawing sheets.The detailing drawing standard should be change according to customer requirment.GD&T must used to reduce manufacturing effort and cost.

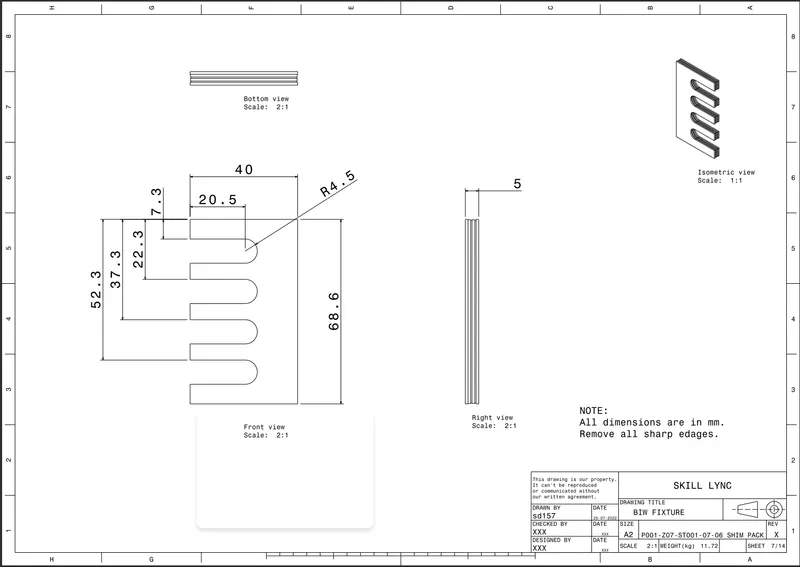

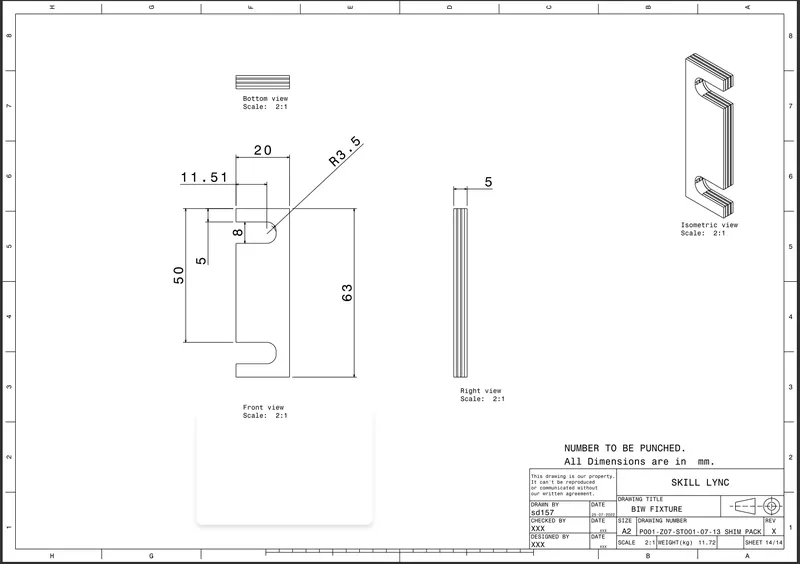

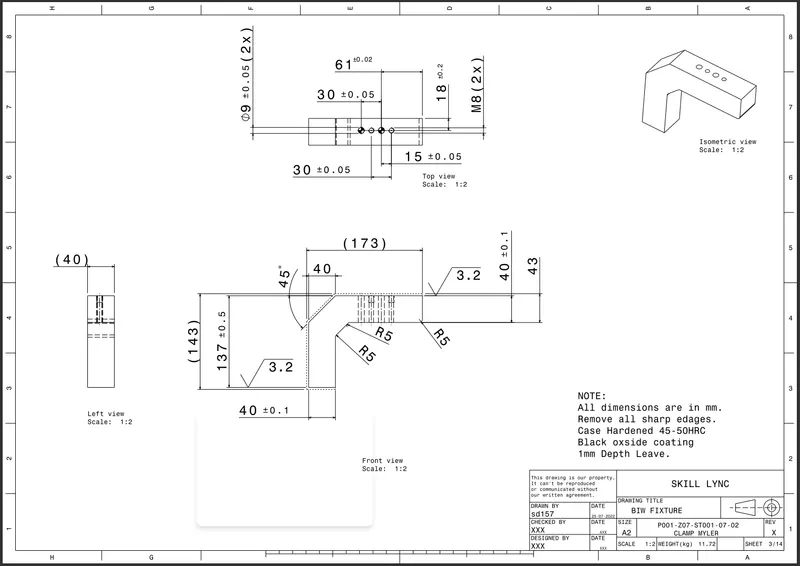

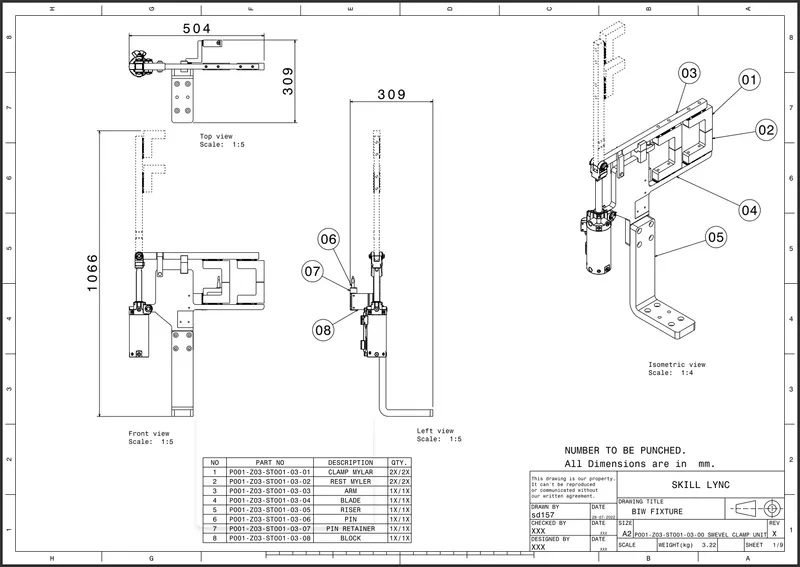

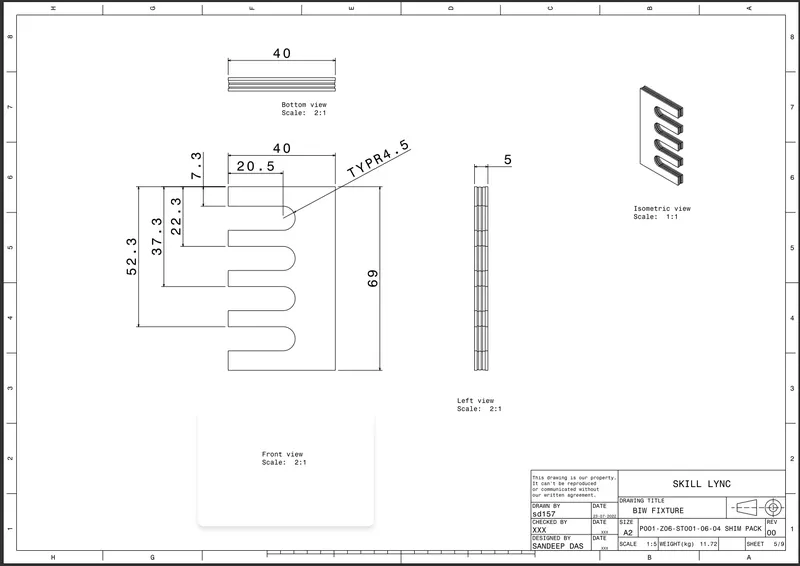

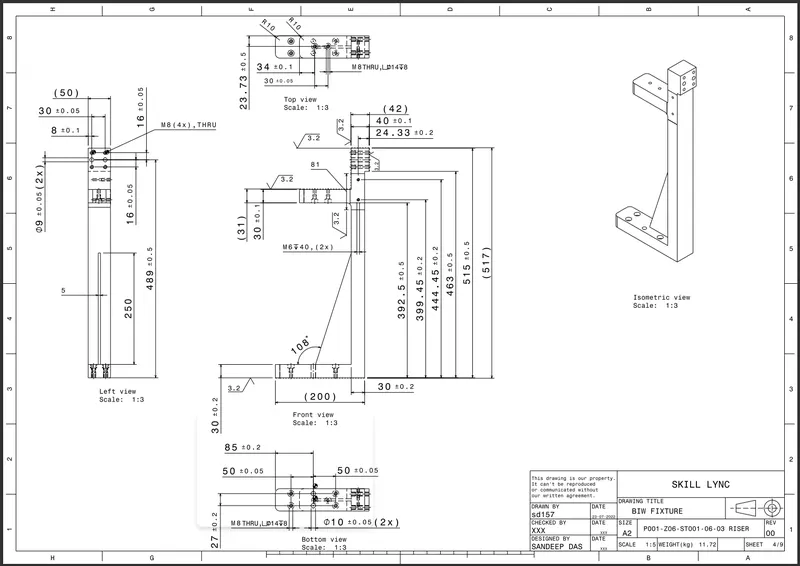

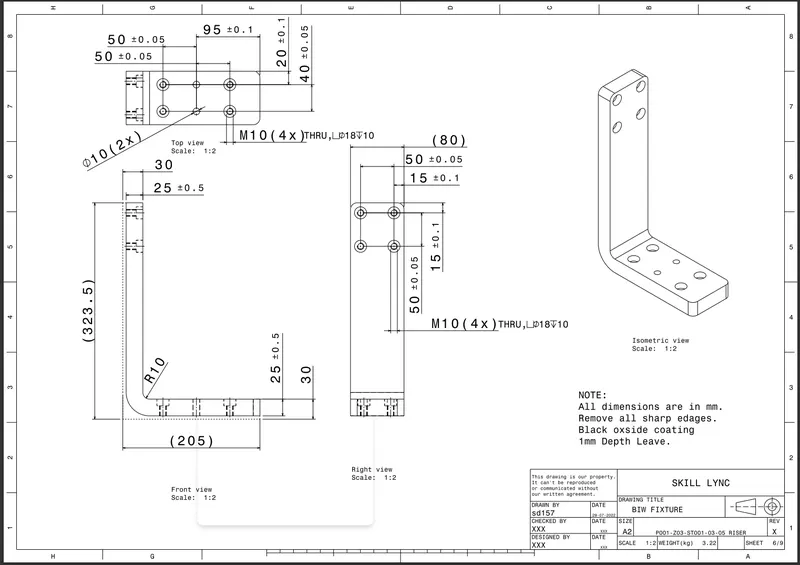

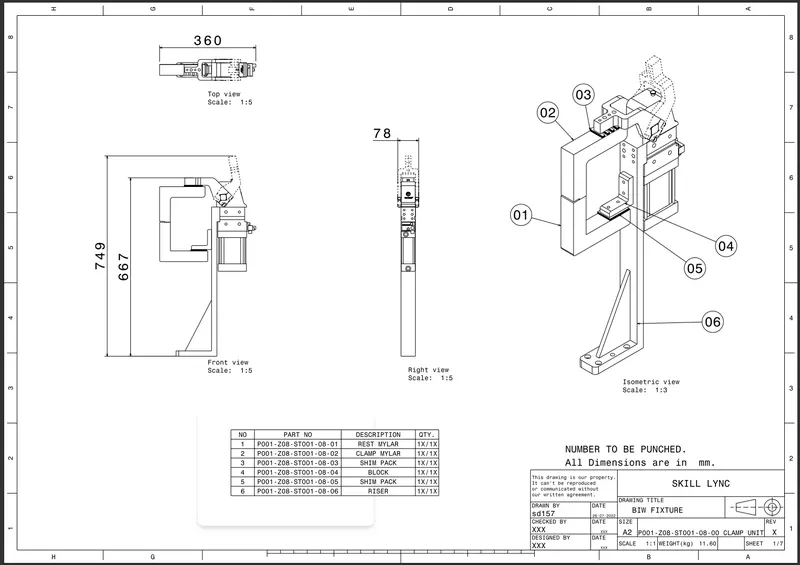

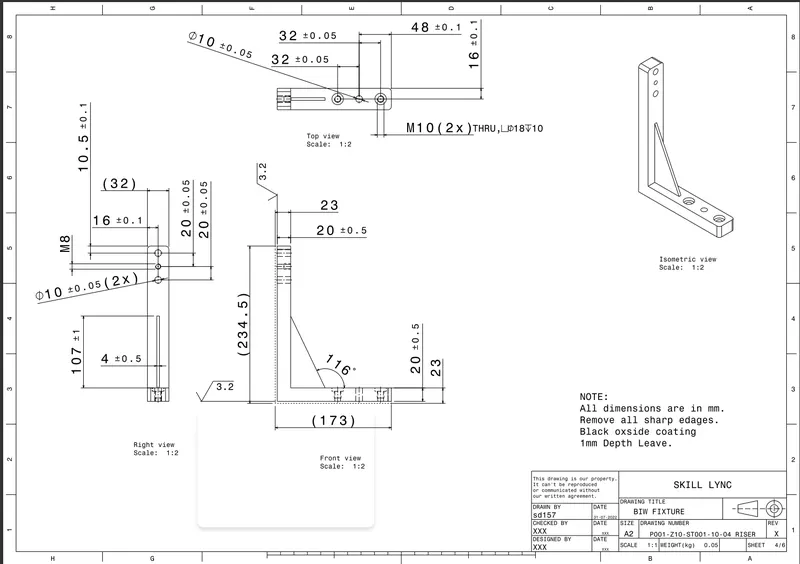

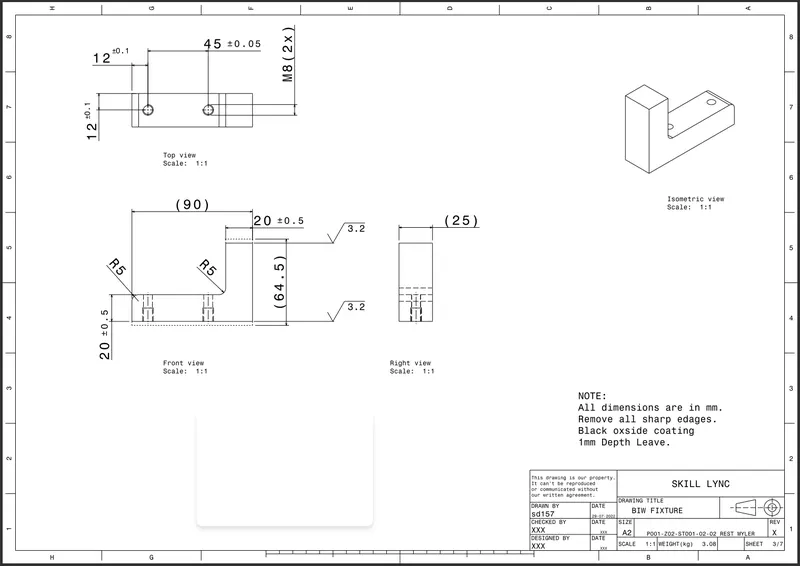

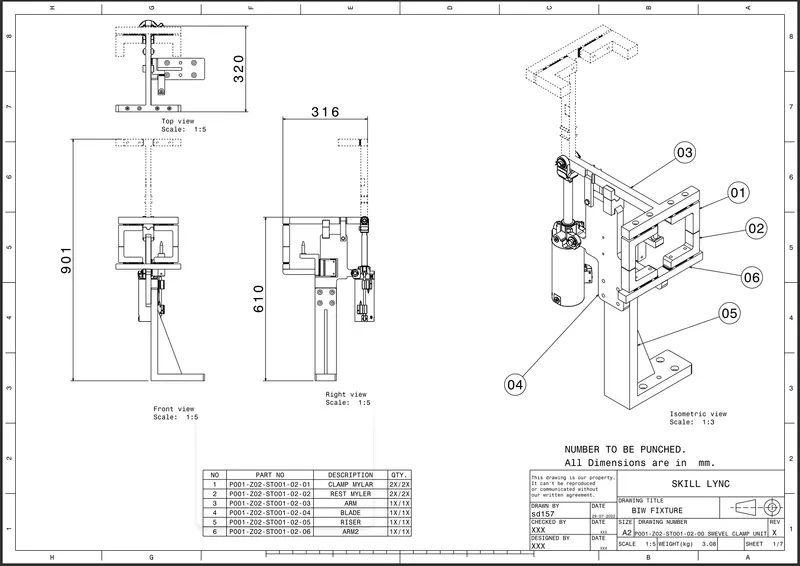

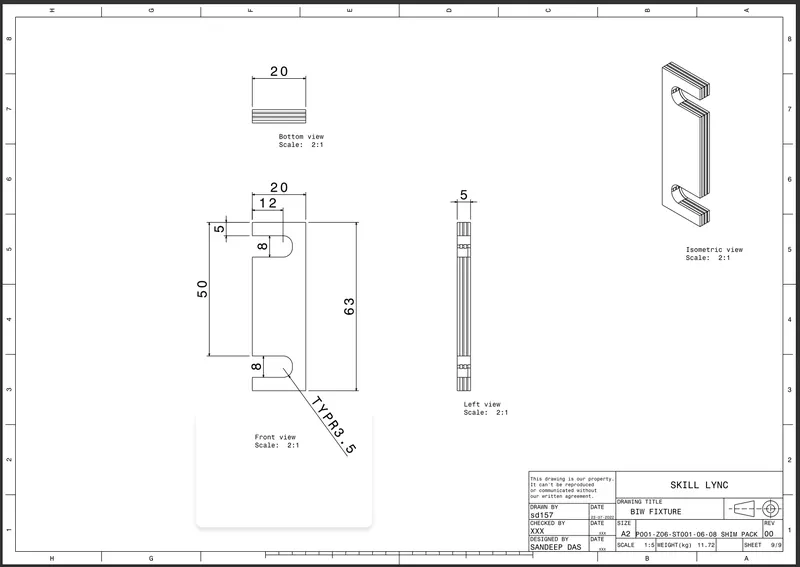

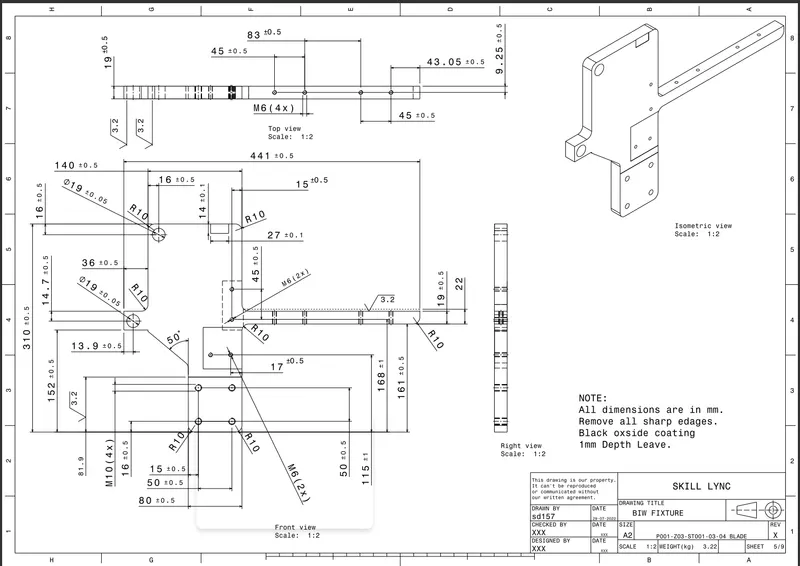

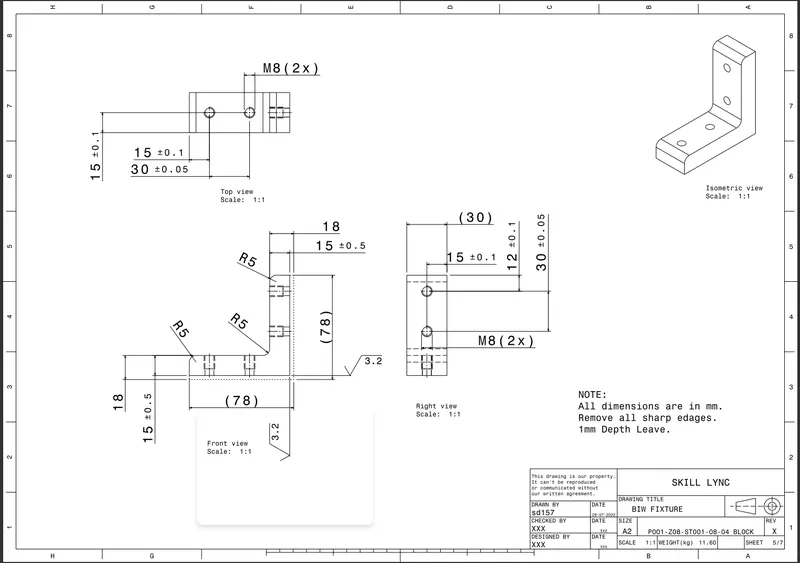

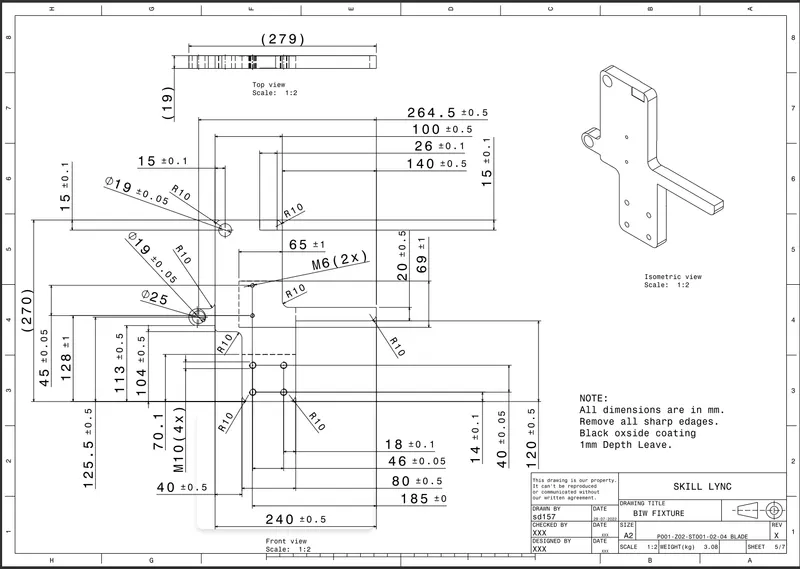

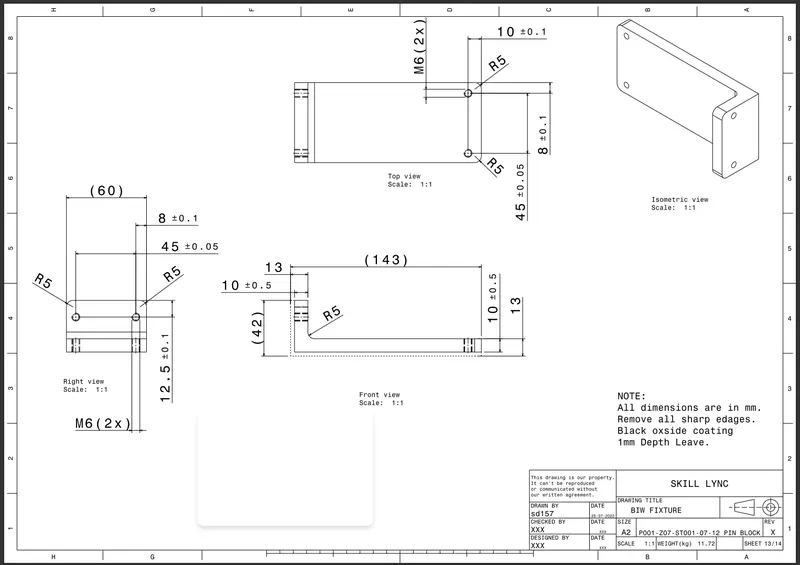

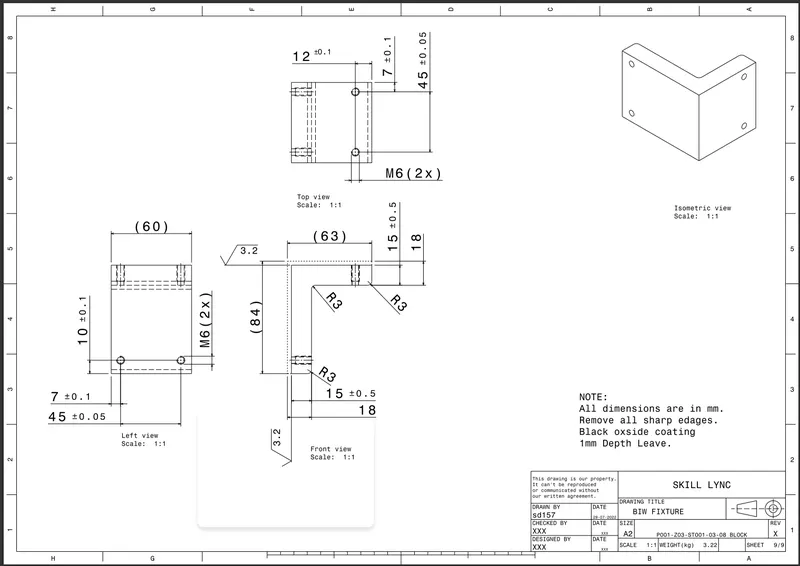

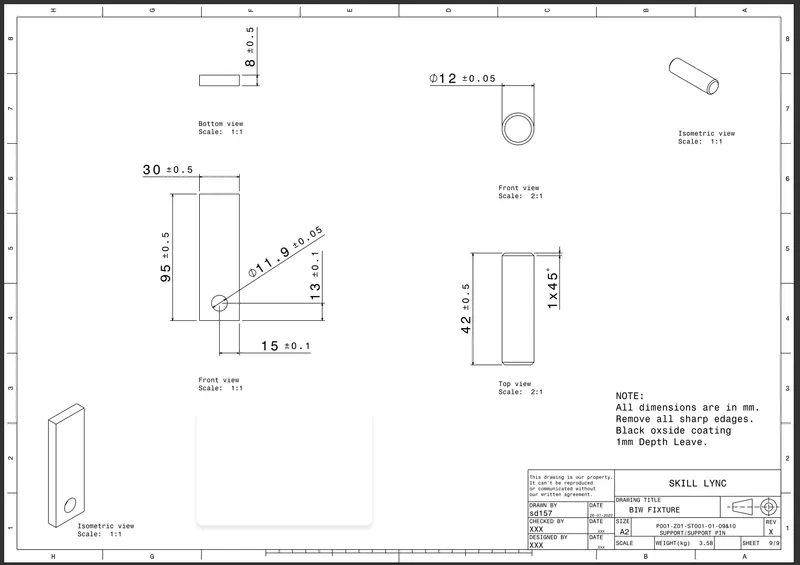

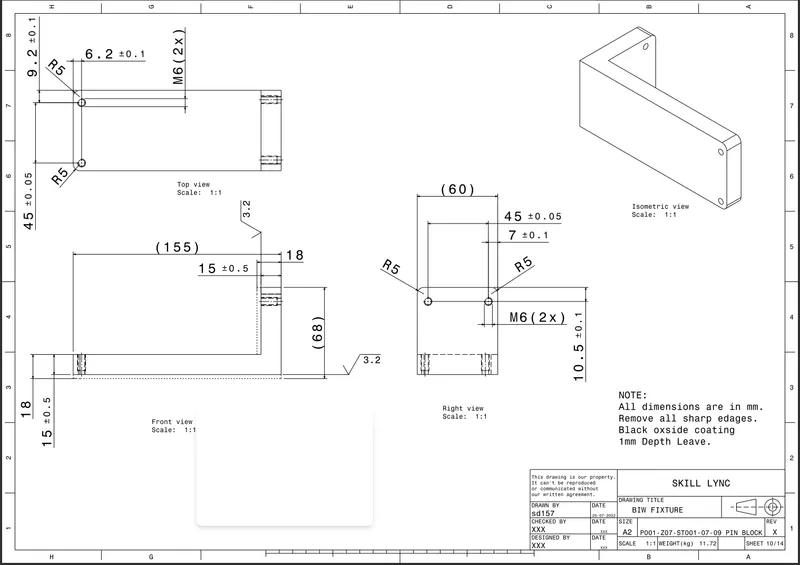

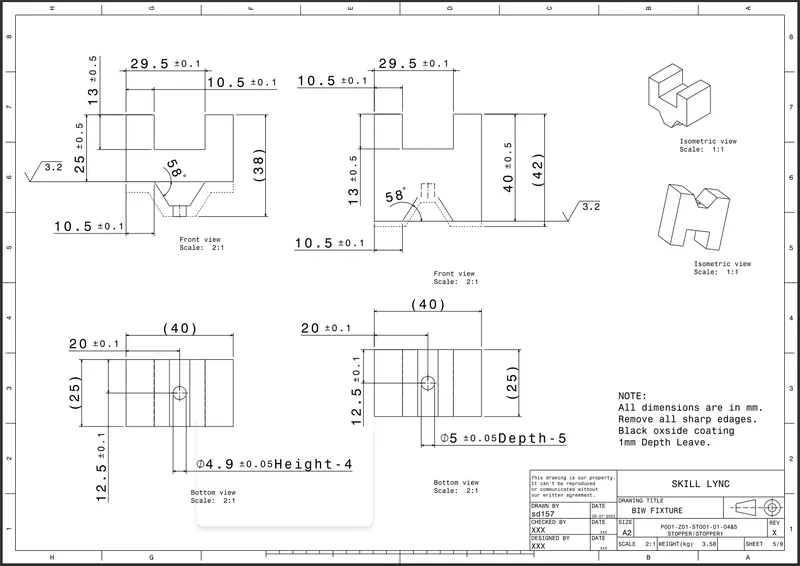

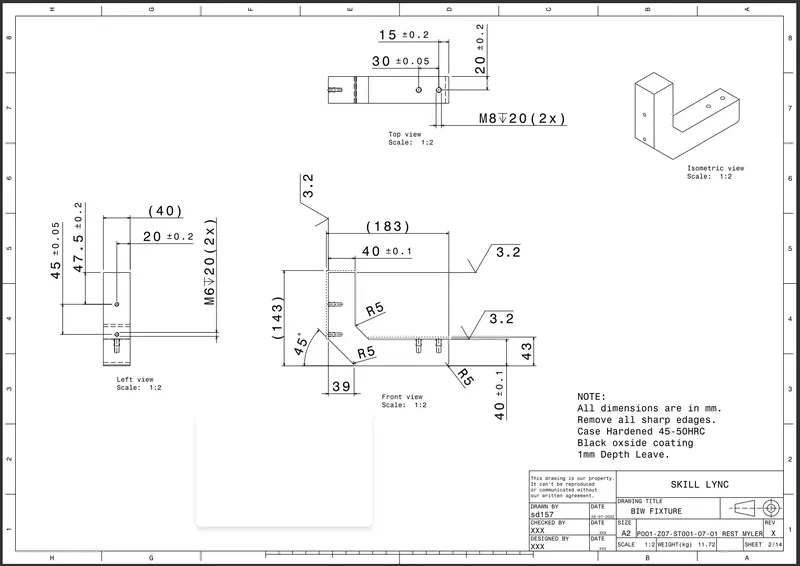

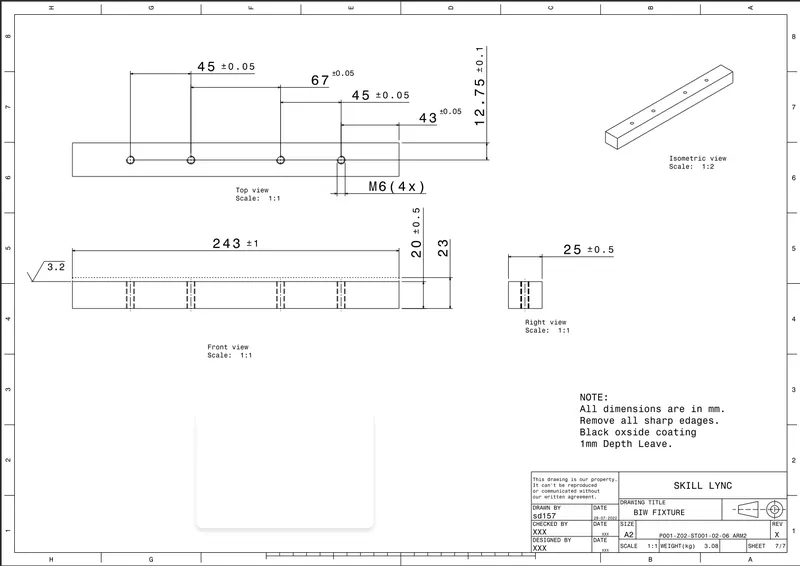

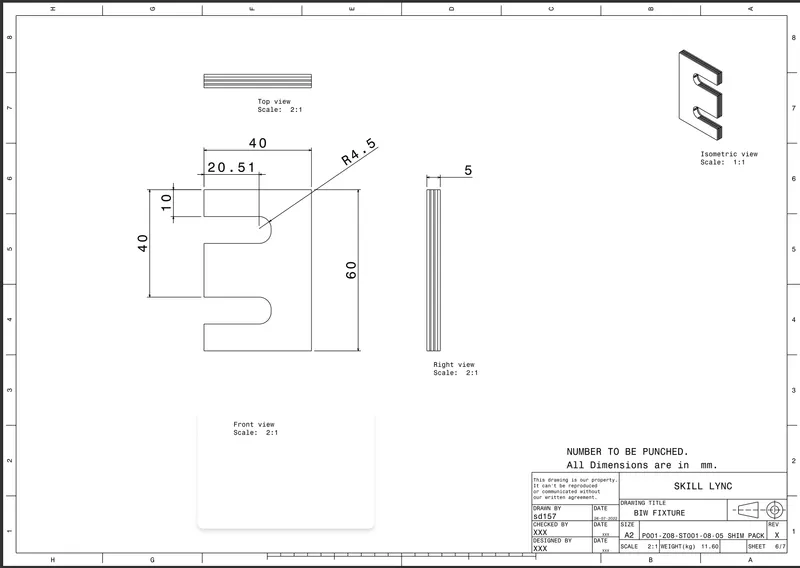

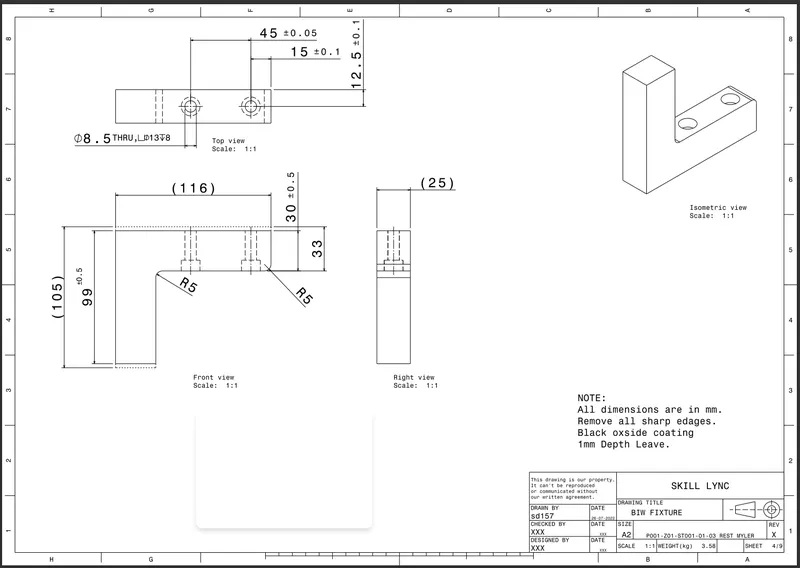

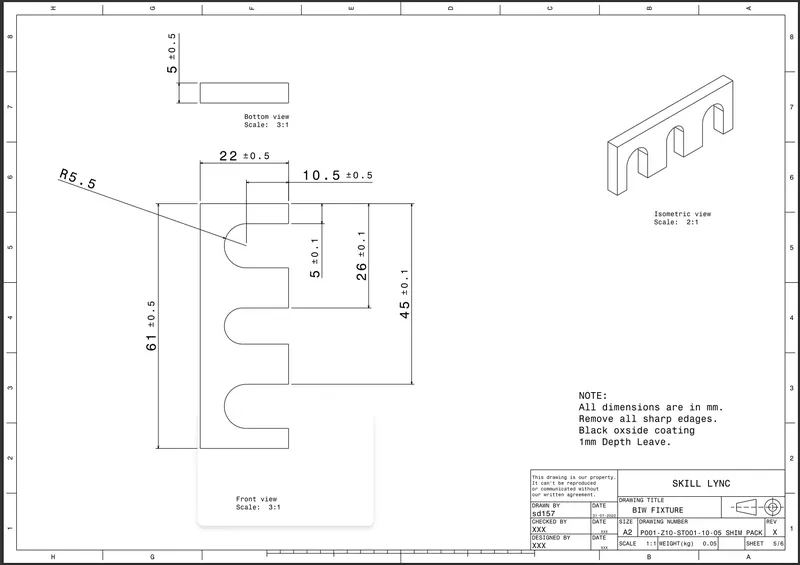

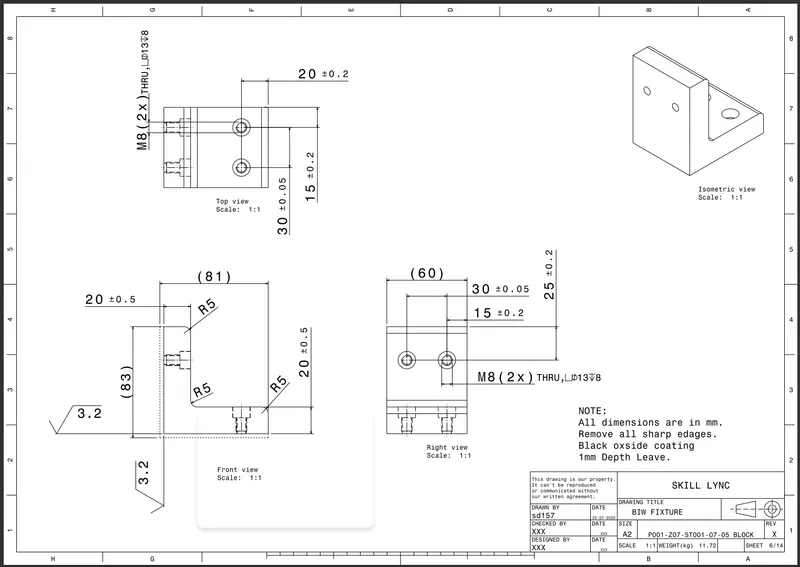

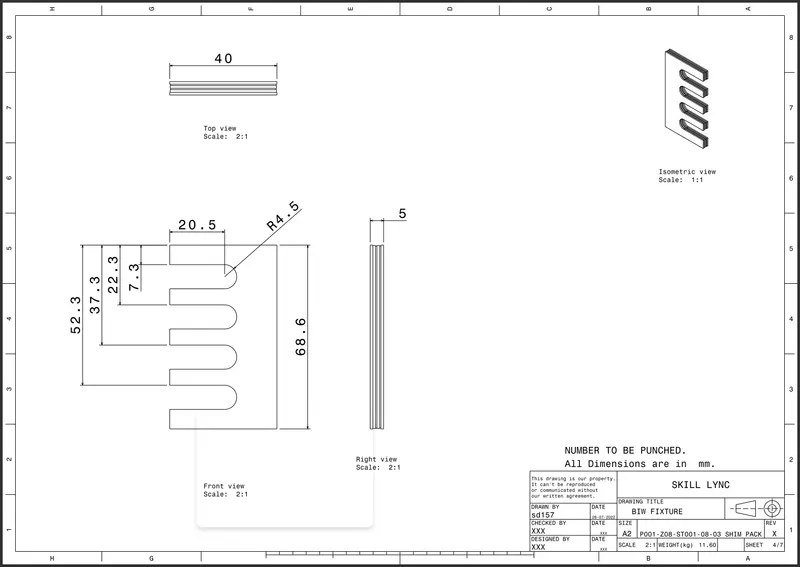

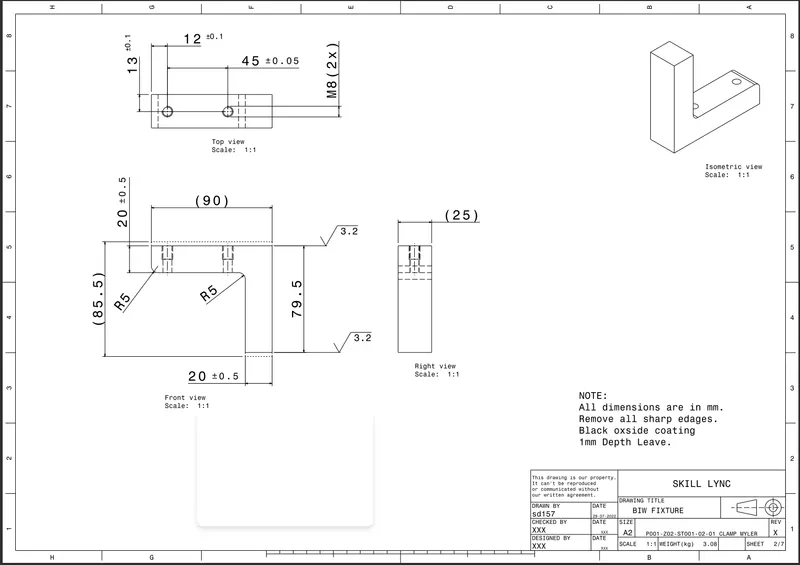

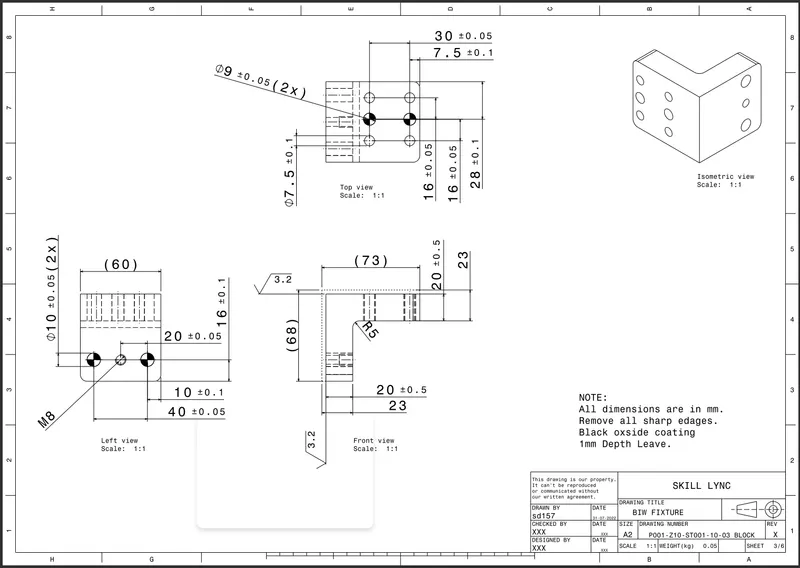

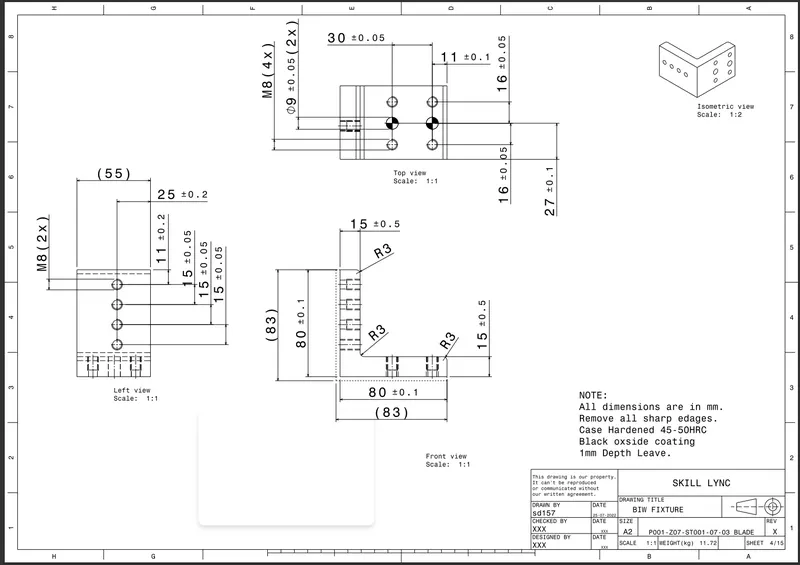

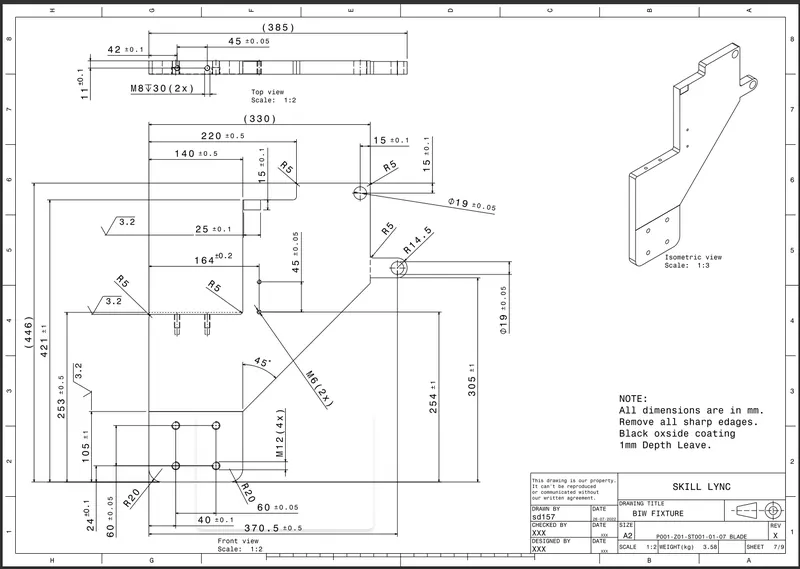

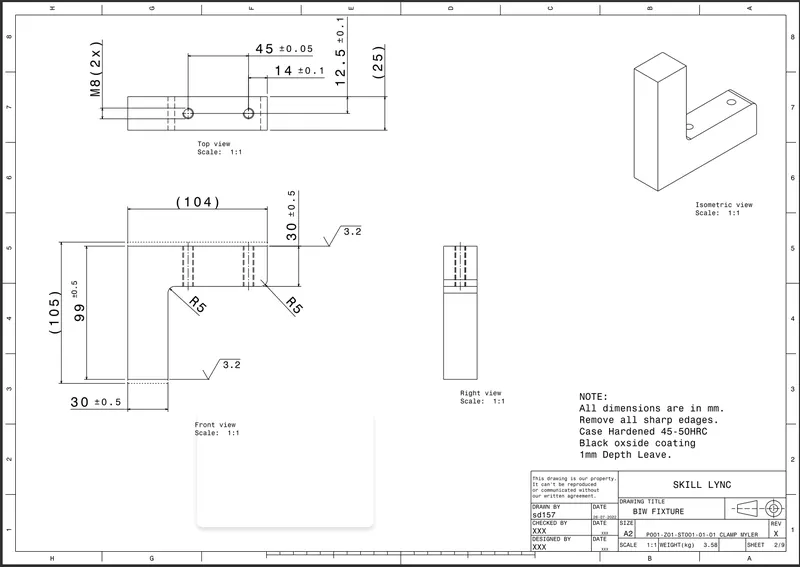

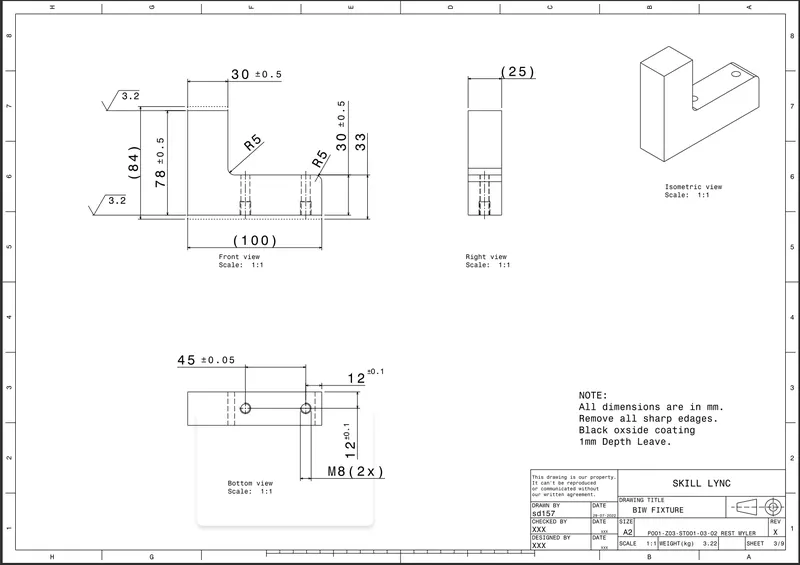

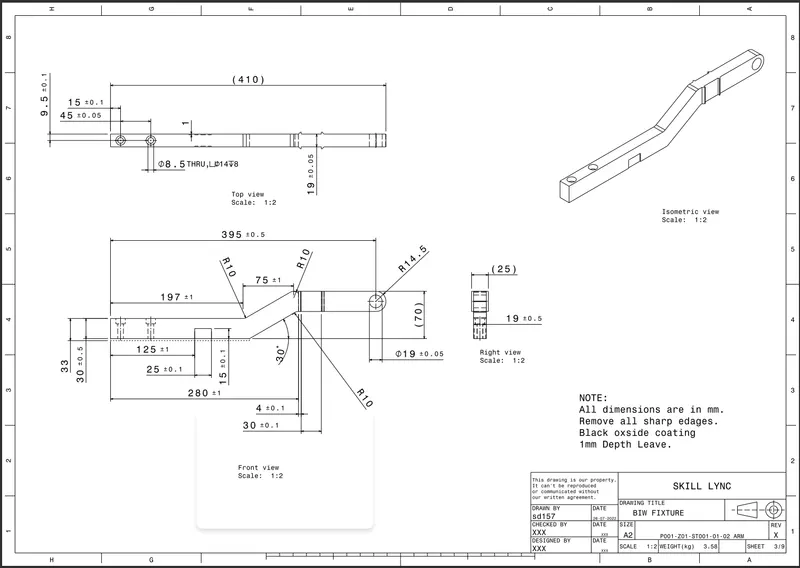

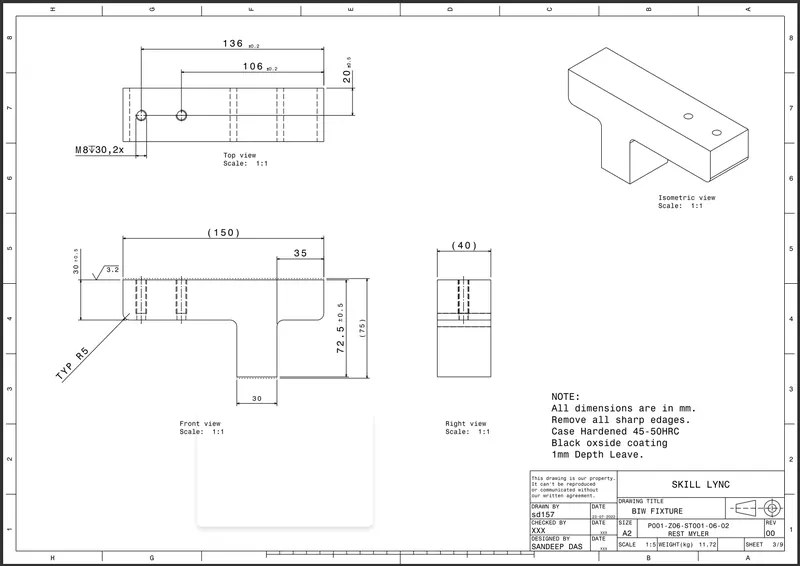

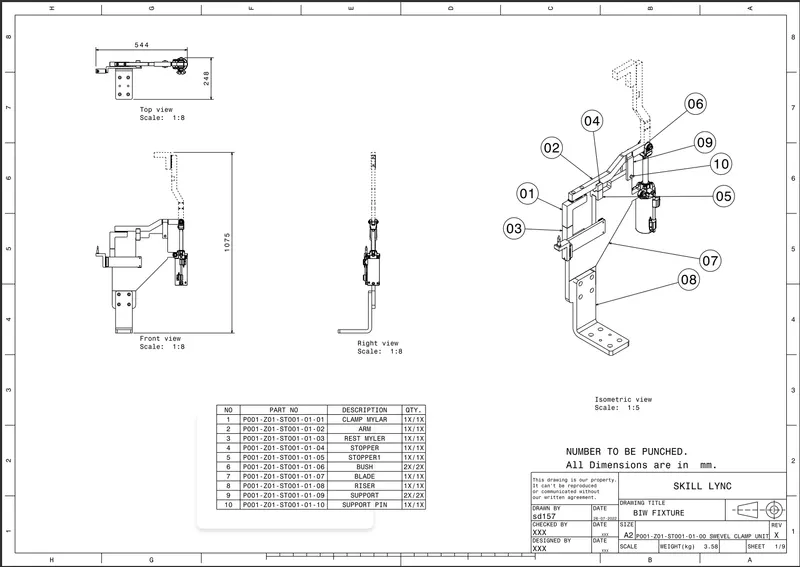

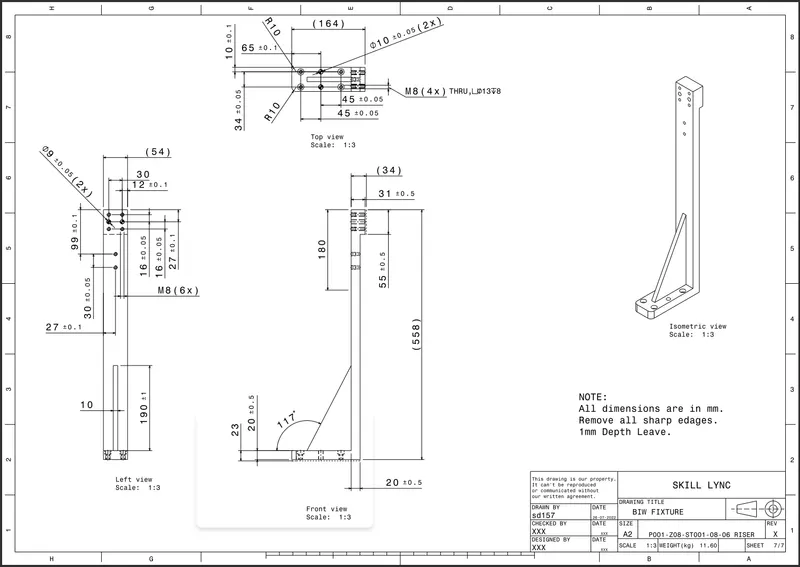

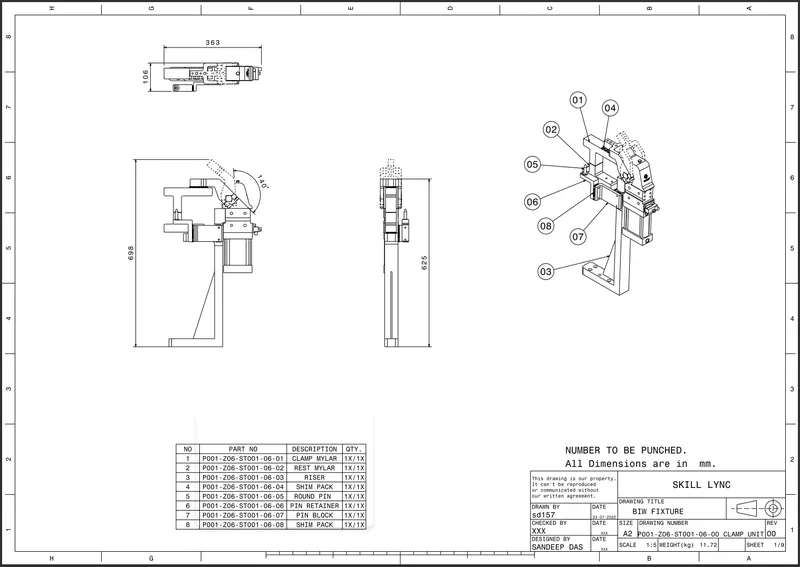

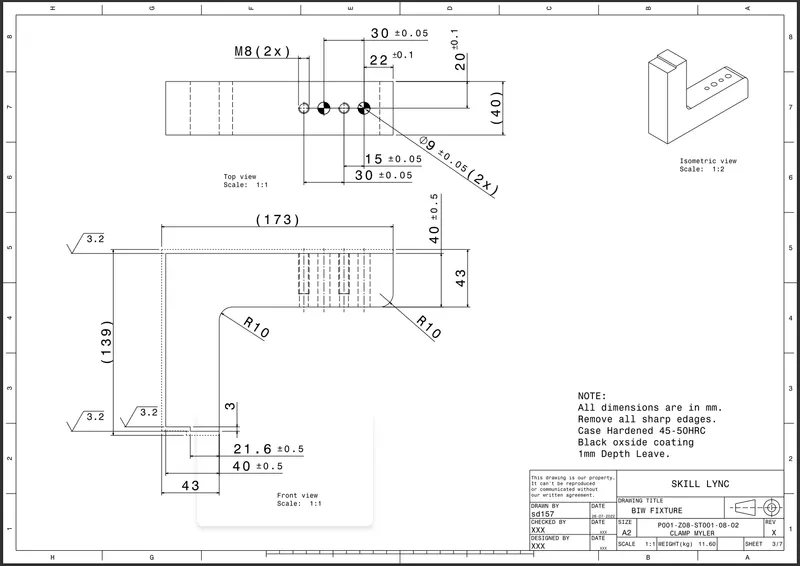

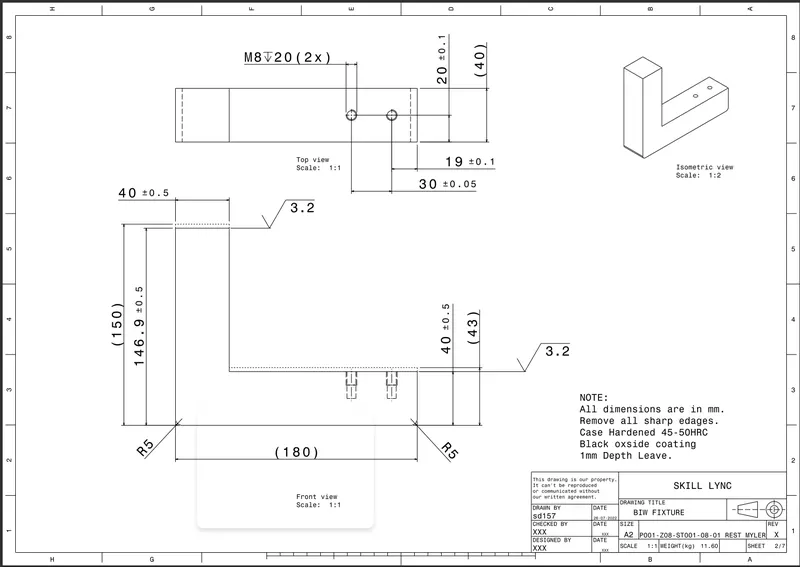

2D Detailing of clamp unit-1

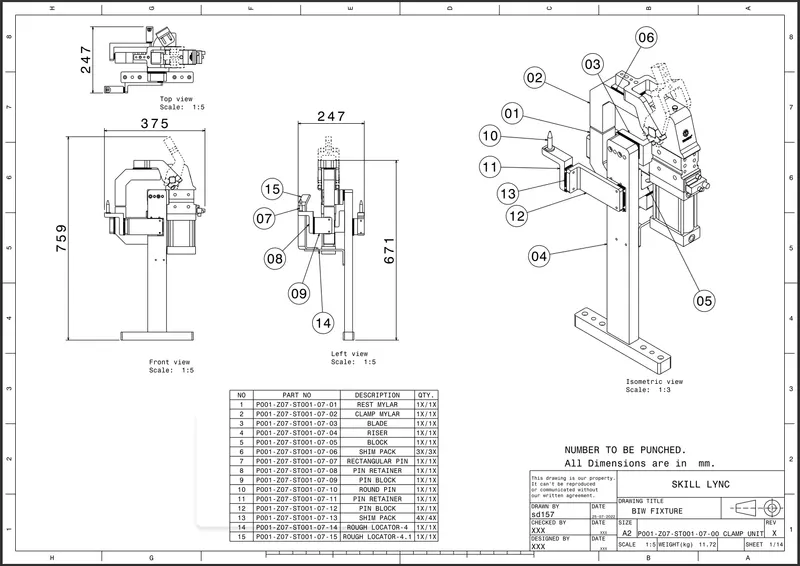

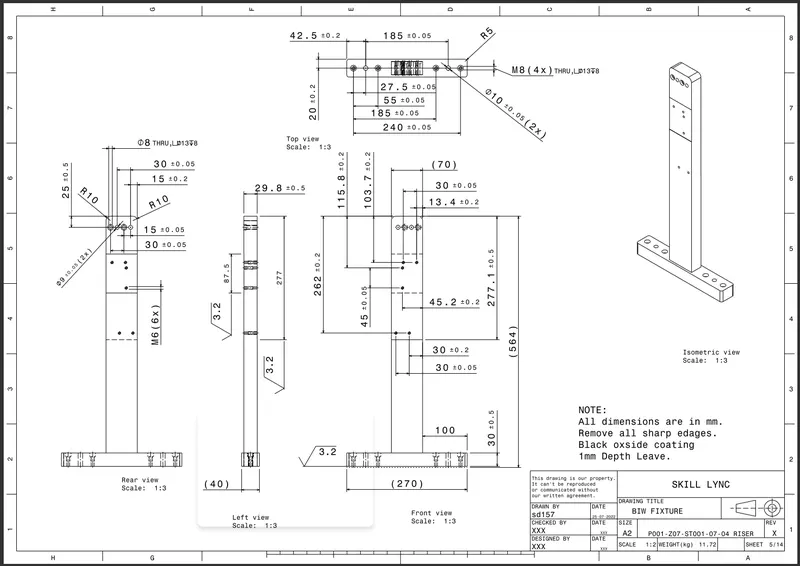

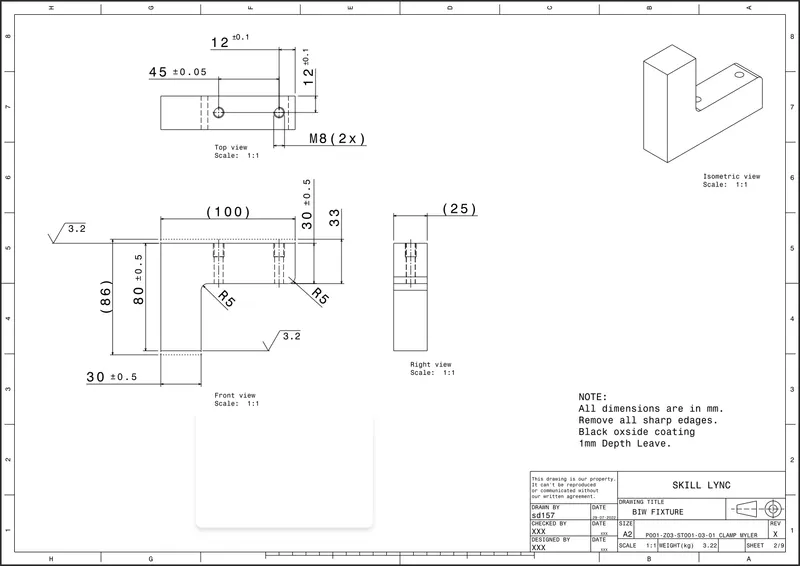

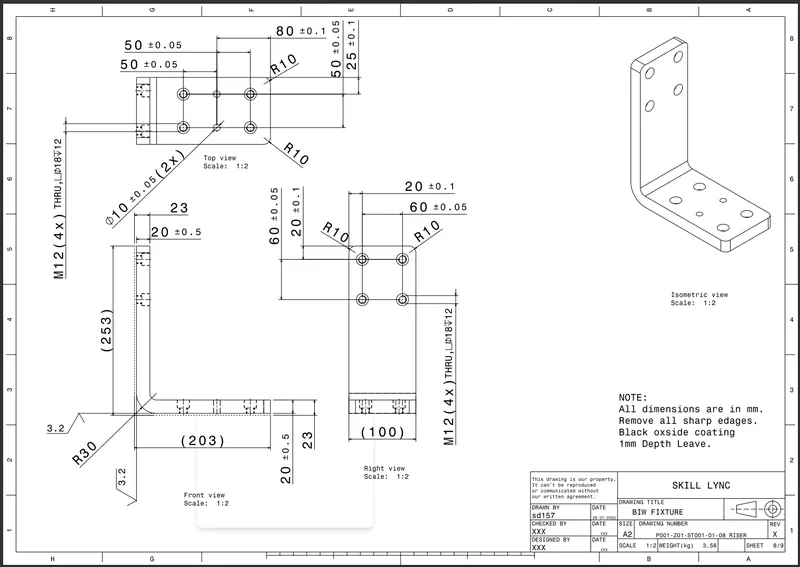

2D Detailing of clamp unit-2

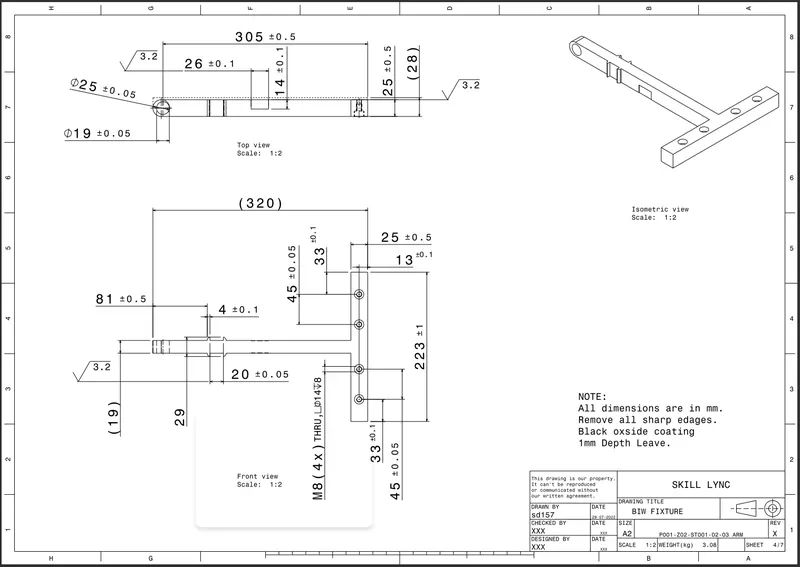

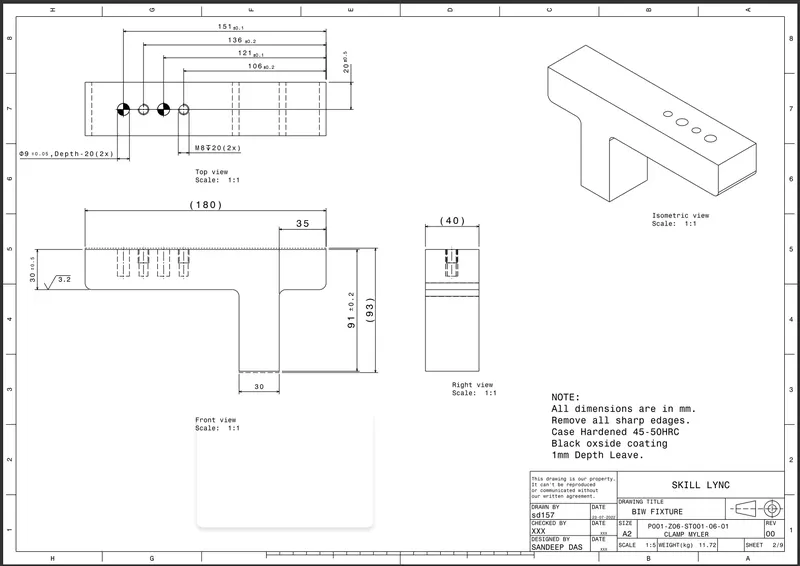

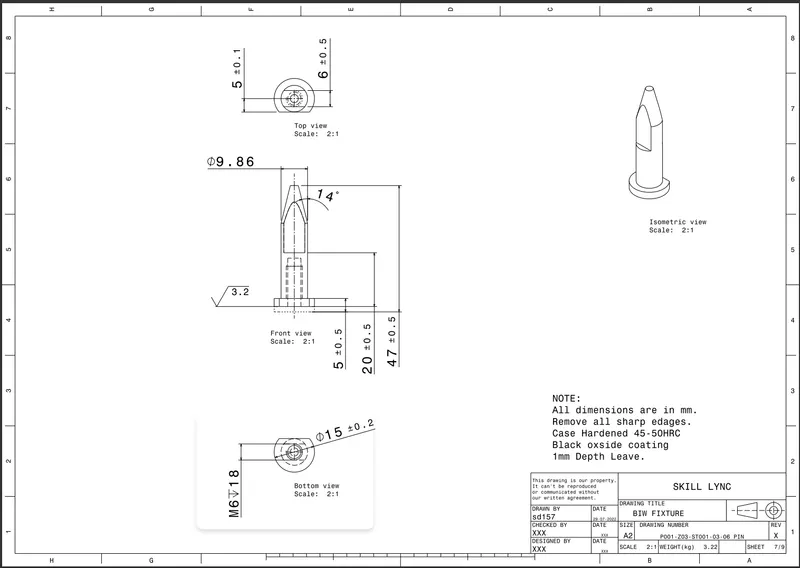

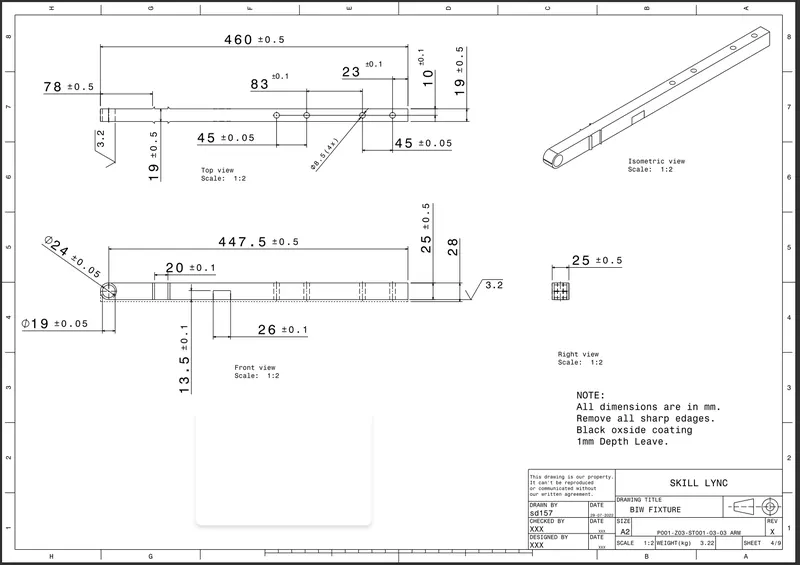

2D Detailing of clamp unit-3

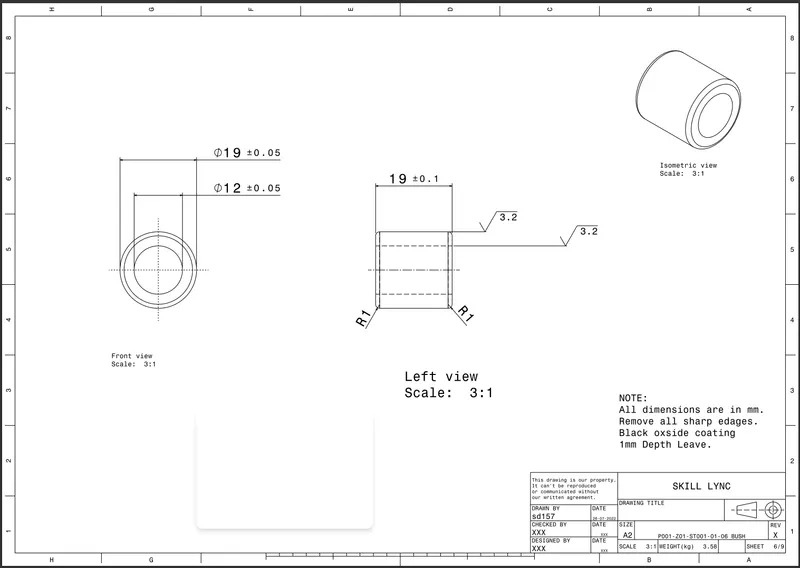

2D Detailing of clamp unit-4

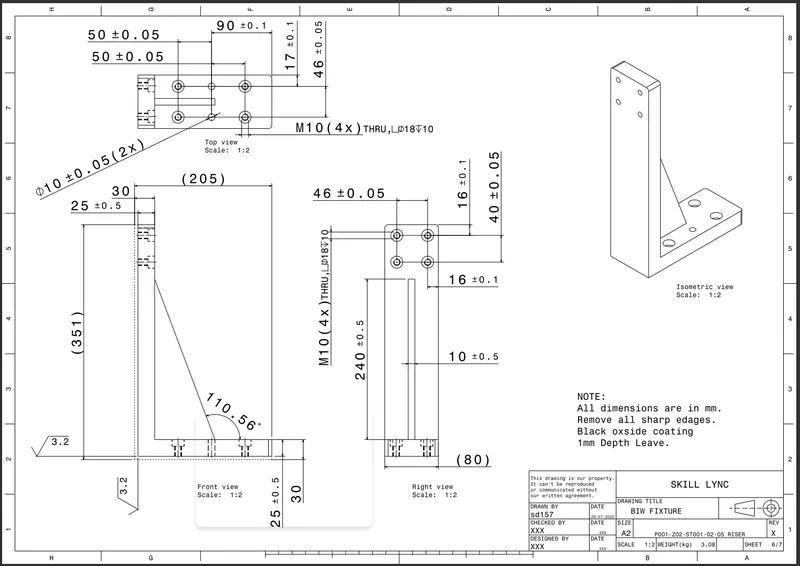

2D Detailing of clamp unit-5

2D Detailing of clamp unit-6

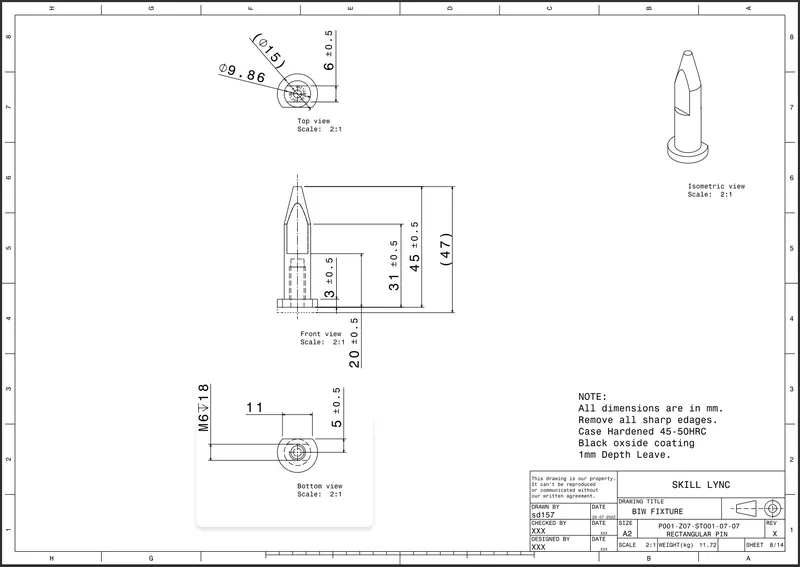

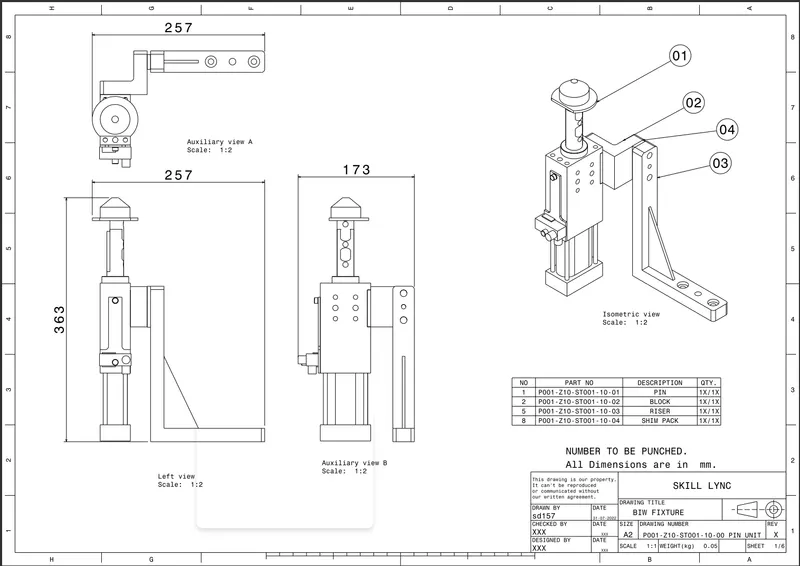

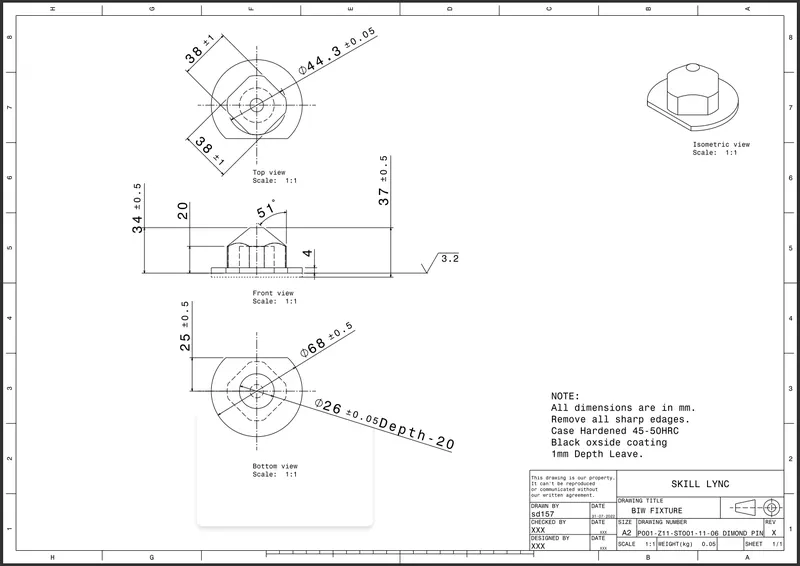

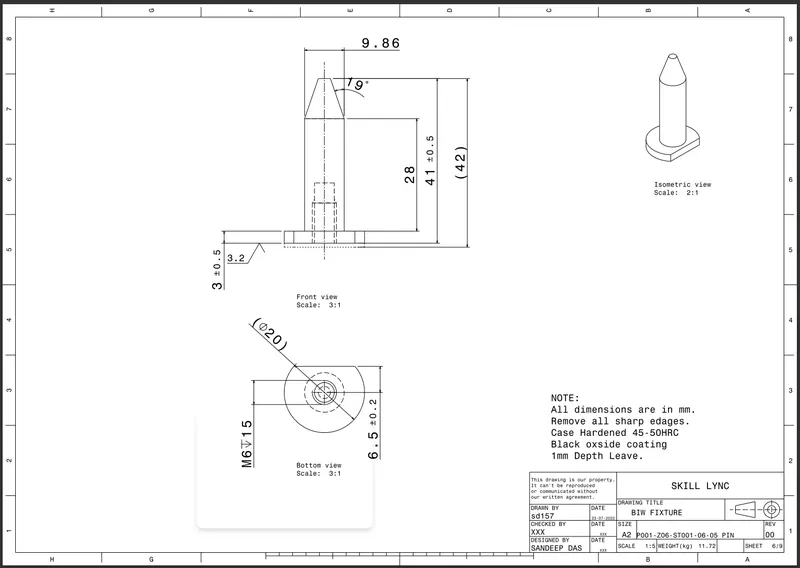

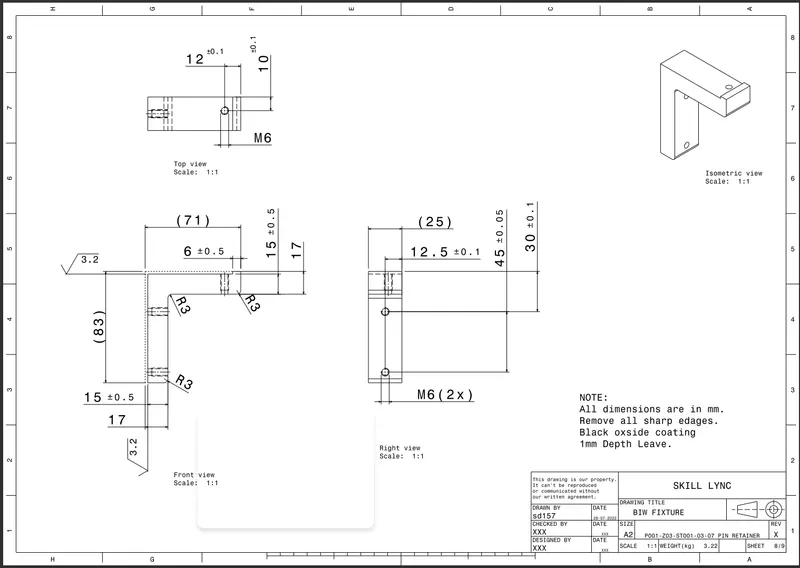

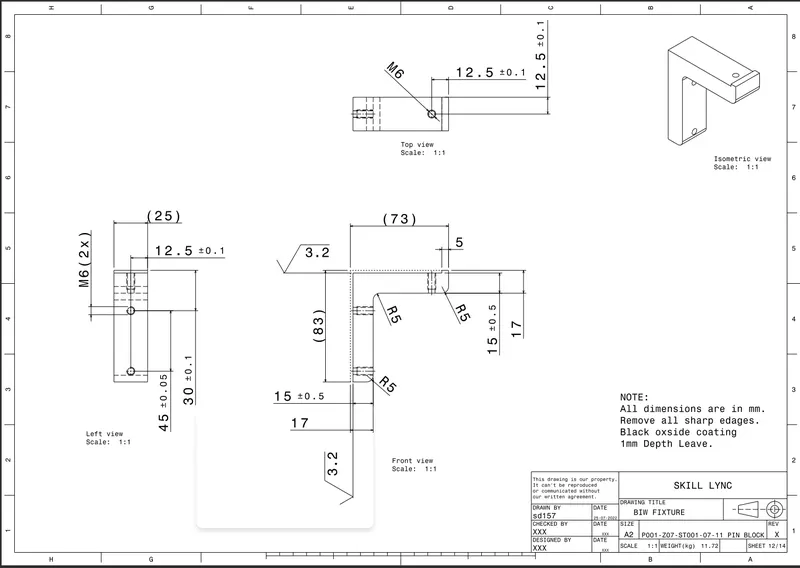

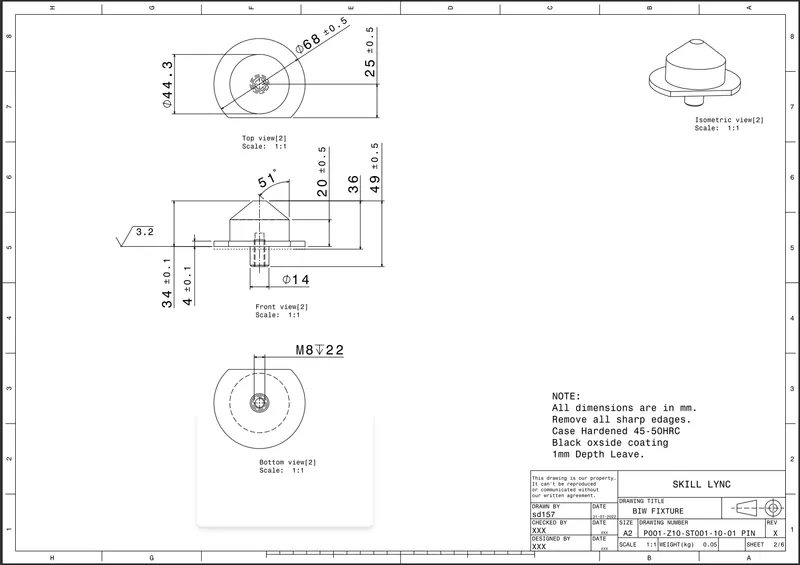

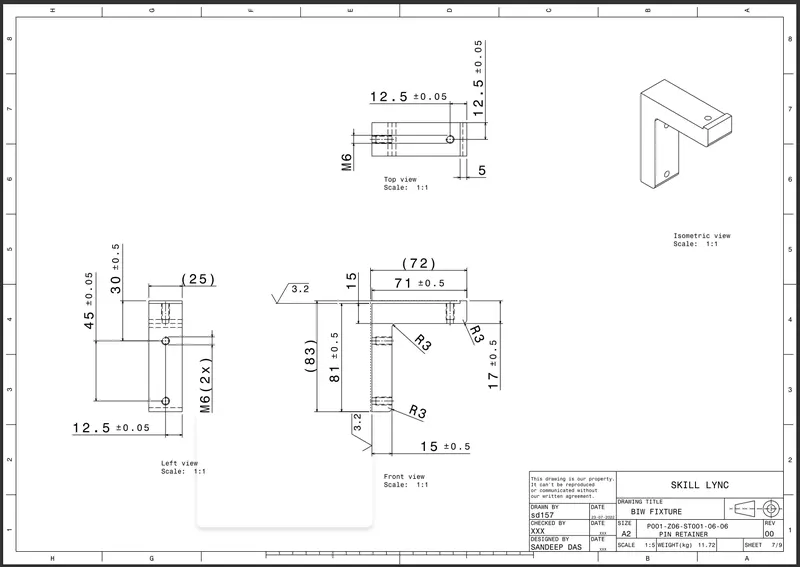

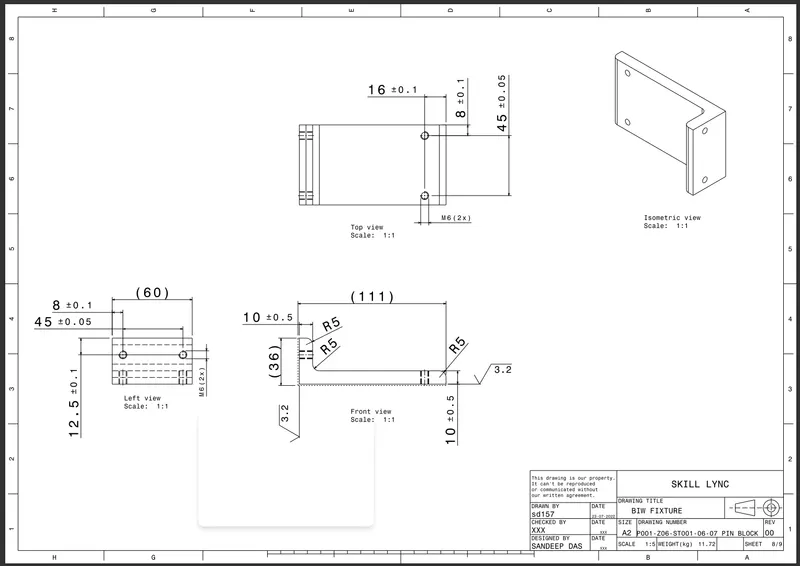

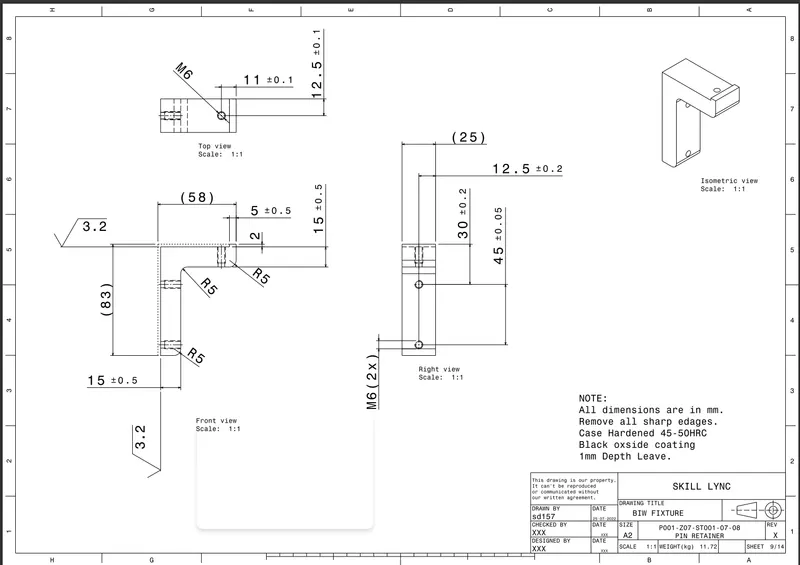

2D Detailing of Pin unit
